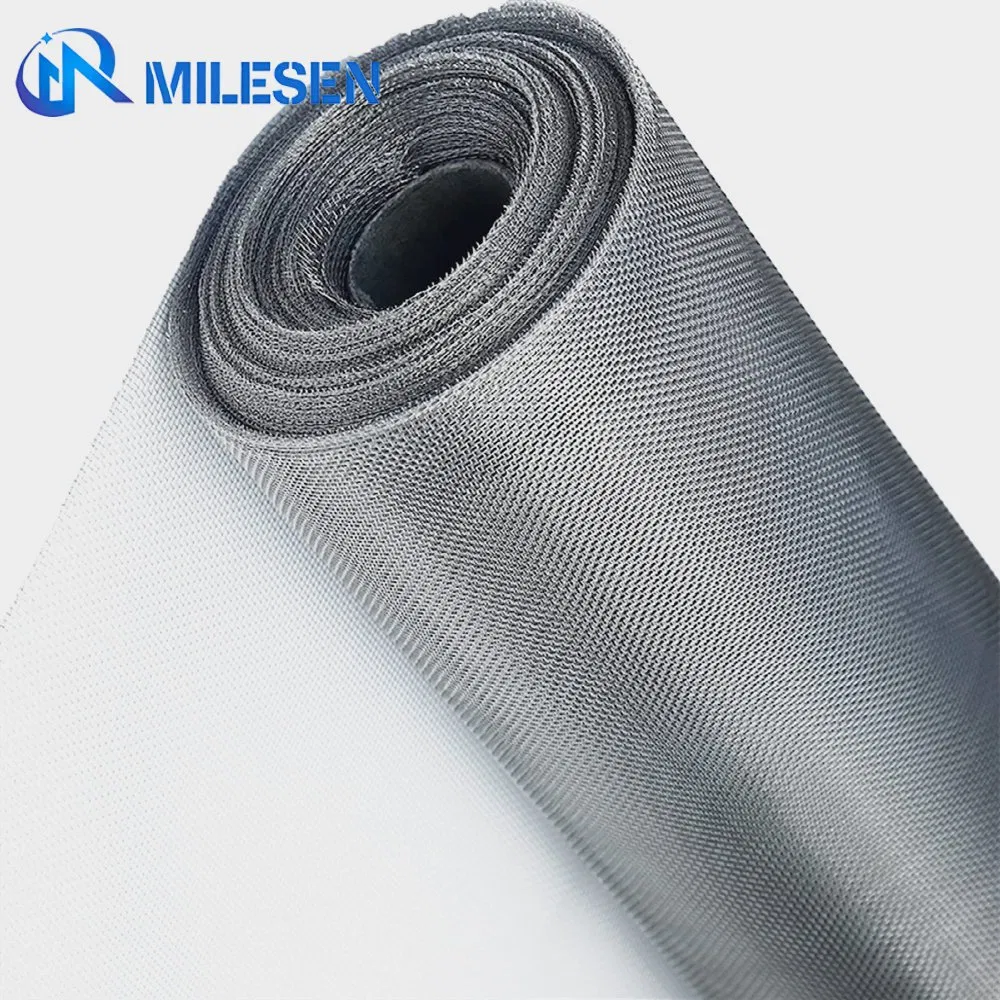

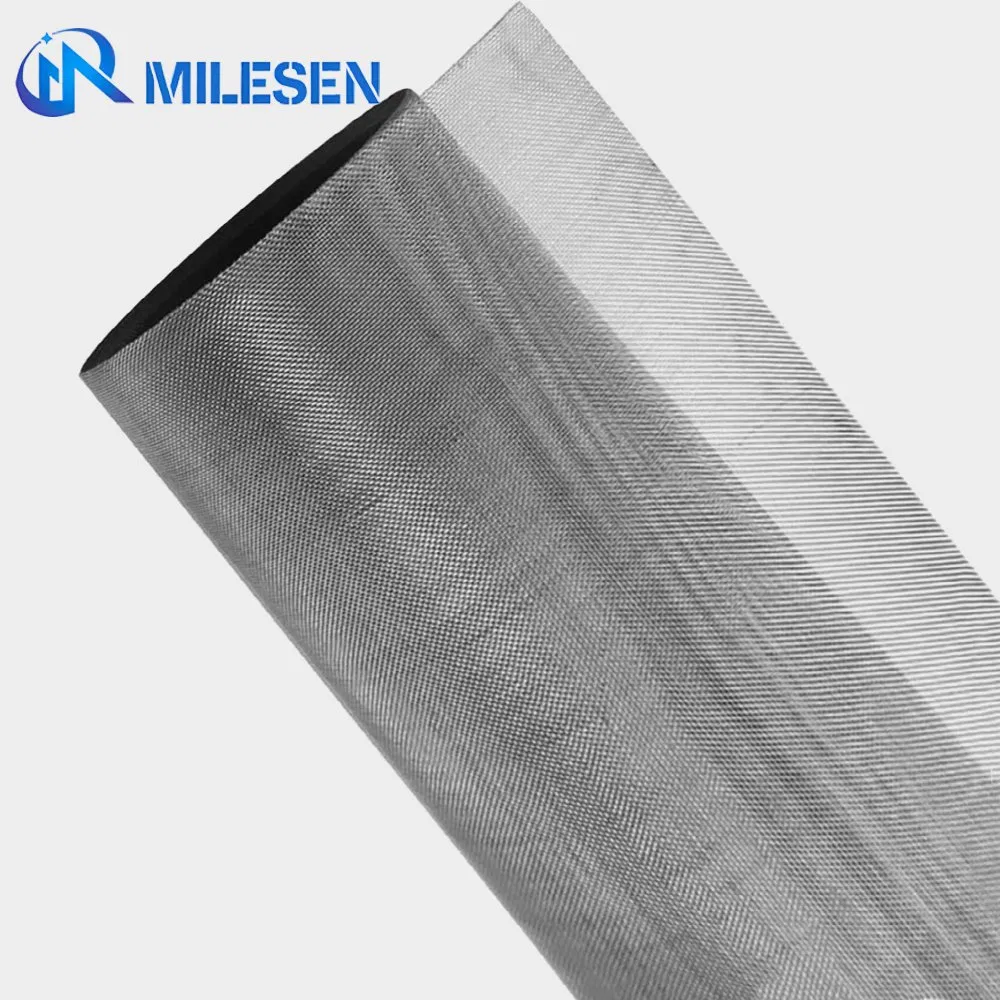

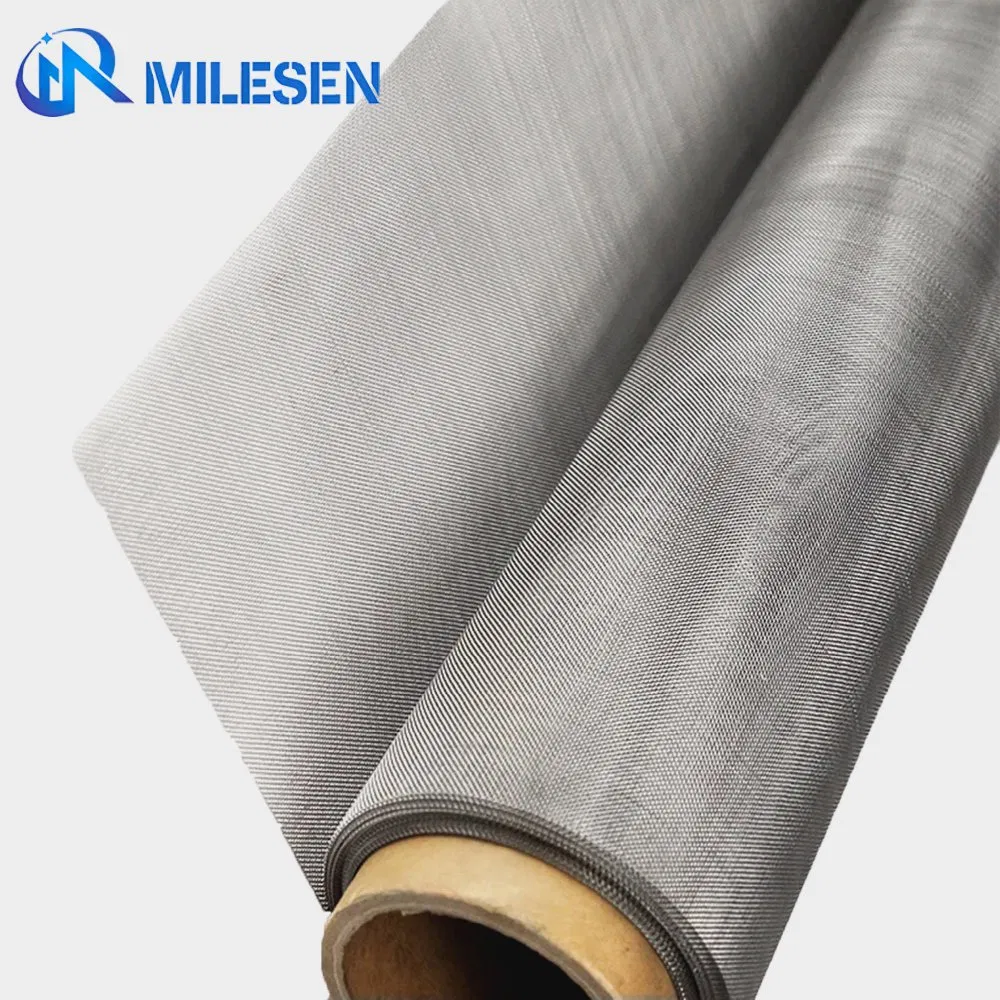

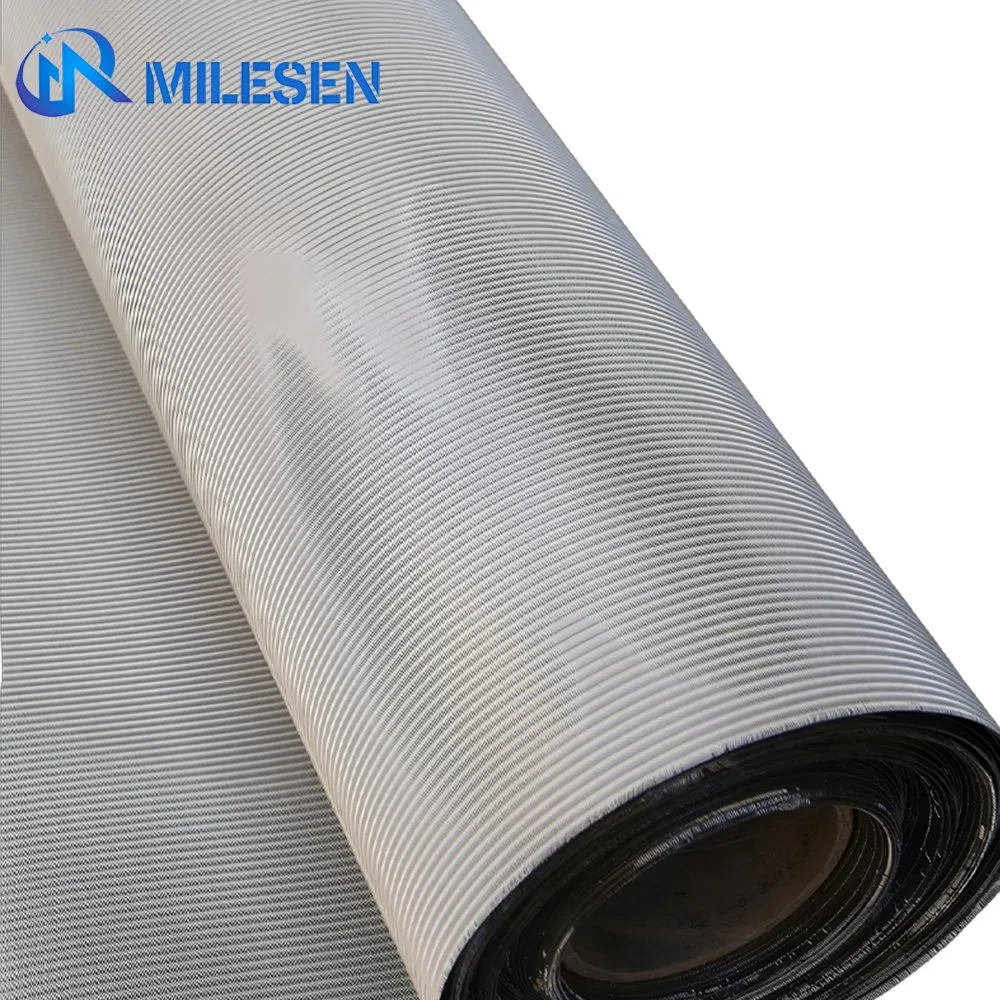

304 316 Metal Mesh / Stainless Steel Wire Mesh 90 120 150 Micron Filter Mesh
304 316 Metal Mesh / Stainless Steel Wire Mesh 90 120 150 Micron Filter Mesh
304 316 Metal Mesh / Stainless Steel Wire Mesh 90 120 150 Micron Filter Mesh
304 316 Metal Mesh / Stainless Steel Wire Mesh 90 120 150 Micron Filter Mesh
304 316 Metal Mesh / Stainless Steel Wire Mesh 90 120 150 Micron Filter Mesh
1 / 5
304 316 Metal Mesh / Stainless Steel Wire Mesh 90 120 150 Micron Filter Mesh
304 316 Metal Mesh / Stainless Steel Wire Mesh 90 120 150 Micron Filter Mesh
304 316 Metal Mesh / Stainless Steel Wire Mesh 90 120 150 Micron Filter Mesh
304 316 Metal Mesh / Stainless Steel Wire Mesh 90 120 150 Micron Filter Mesh
304 316 Metal Mesh / Stainless Steel Wire Mesh 90 120 150 Micron Filter Mesh

304 316 Metal Mesh / Stainless Steel Wire Mesh 90 120 150 Micron Filter Mesh

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Stainless steel wire mesh
Material Type
Stainless Steel Wire
Weave Technique
Plain, Twill Weave
Wire Diameter
0.014-4mm
Certification
ISO9001
Production Capacity
2 Million Sqm/Year
Product Description

Premium Stainless Steel Wire Mesh & Filter Solutions

Our stainless steel woven mesh products are engineered for precision filtration and industrial screening. Available in various materials including 201, 304, 304L, 316, 316L, and specialty alloys.

  • Plain/Twill Weave: 1 – 635 mesh for versatile applications.
  • Dutch Weave: High-precision filtration up to 500 x 3500 mesh.
  • Customization: Roll widths from 0.1m to 4m, tailored to your specifications.
  • Durability: High strength, pressure resistance, and superior corrosion resistance.

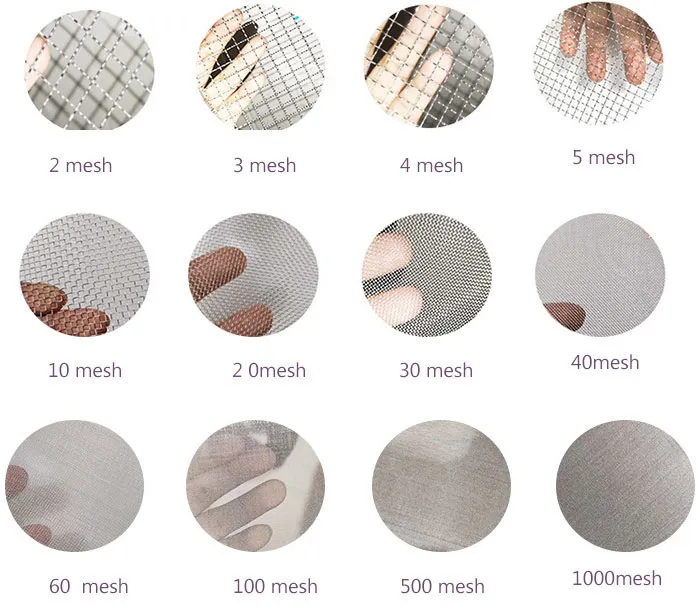

Mesh Comparison
Professional Weave Types

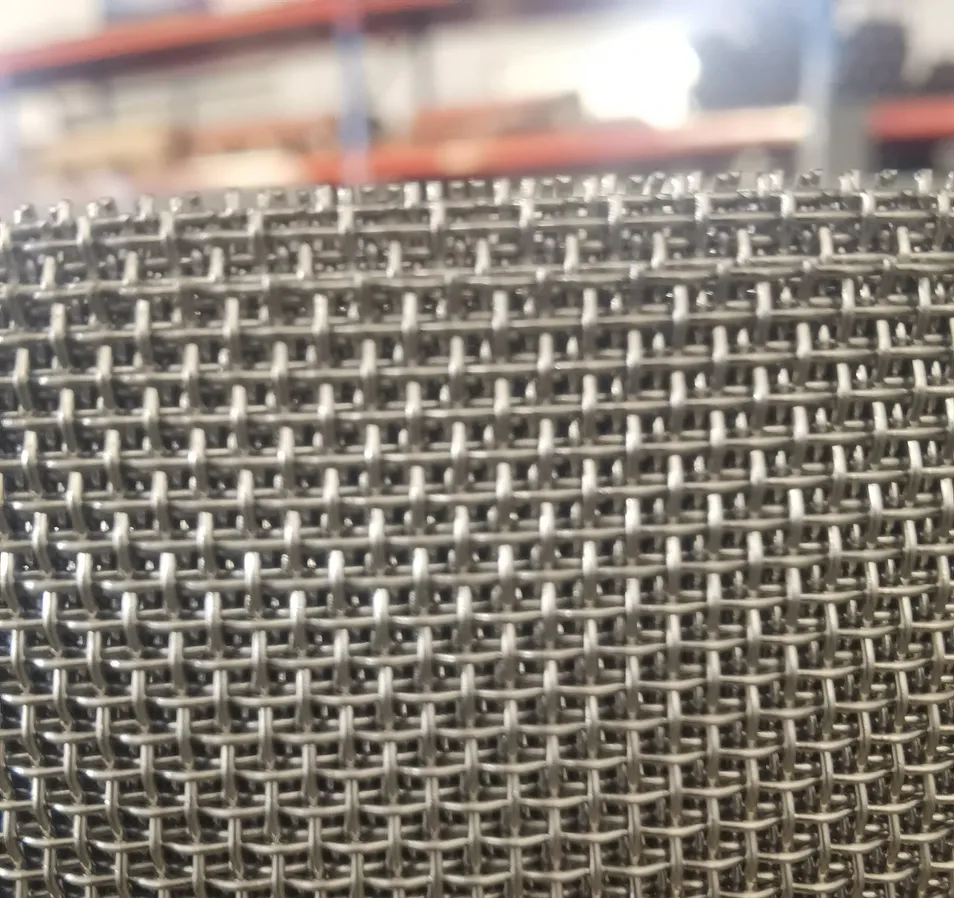

Weave Types

Plain Weave: Uniform rectangular pores, ideal for general screening.

Twill Weave: Diagonal interweaving for increased strength and higher flow rates.

Dutch & Reverse Dutch: Specialized for high-precision filtration and delicate separation operations.

Technical Specifications
Plain Weave Mesh (Common Specifications)
Mesh Count Wire Dia (Inch/mm) Width of Opening (Inch/mm) Open Area (%)
1X10.157 / 4.00.84 / 21.471%
5X50.055 / 1.40.14 / 3.6852%
10X100.039 / 1.00.06 / 1.5436%
100×1000.004 / 0.1020.006 / 0.1536%
400×4000.001 / 0.02540.0015 / 0.03736%

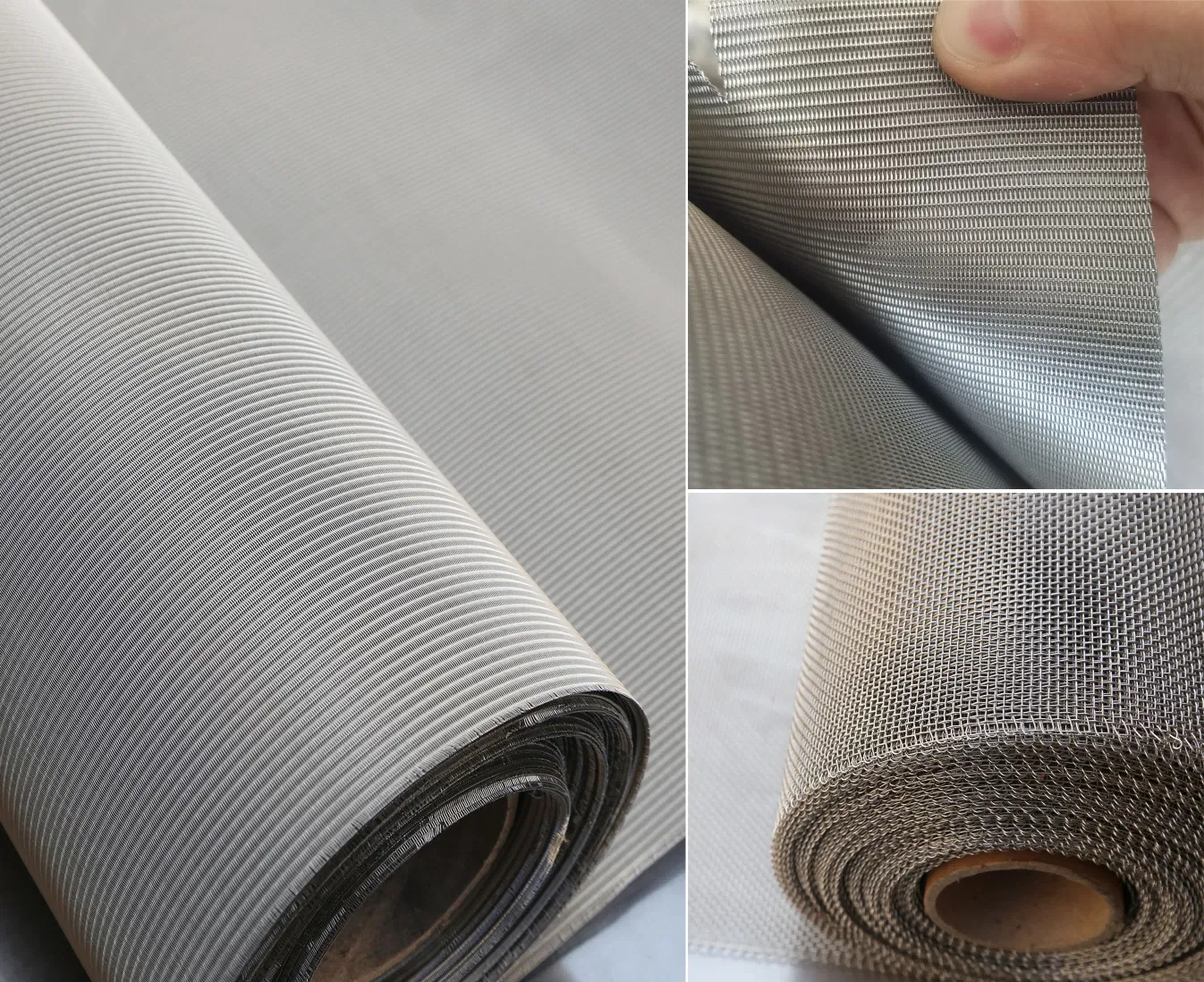

Specification 1

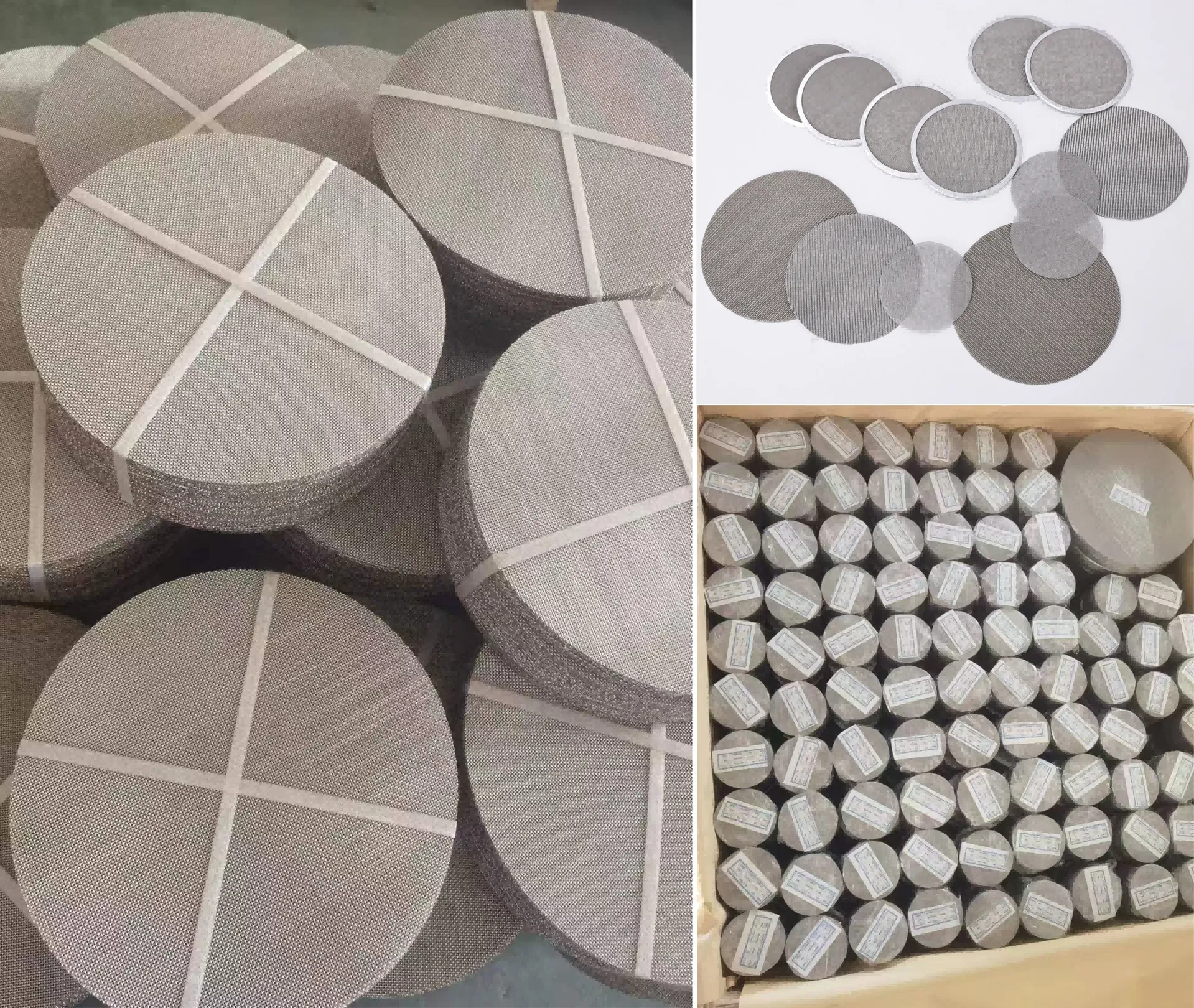

Specification 2
Specification 3
Industrial Applications

Our mesh products are widely recognized for their versatility across various industries:

  • Plastic Granulation & Recycling
  • Oil Field & Refinery Filters
  • Chemical & Pharmaceutical Screening
  • Aerospace & Automotive Components
  • Food & Beverage (Beer/Wine) Filtration
  • Architectural & Decorative Mesh
Production
Quality Control
Packaging & Shipping

We ensure secure delivery using professional export standards: Waterproof paper lining followed by sturdy wooden cases to prevent damage during transit.

Packaging
Shipping
Frequently Asked Questions
What materials are used for your wire mesh?
We use high-quality stainless steel including 201, 304, 304L, 316, 316L, 321, 317, and 430 grades. Special alloys like Inconel and Hastelloy are also available.
What is the difference between Plain and Twill weave?
Plain weave features vertical and horizontal wires creating uniform square pores. Twill weave uses diagonal interweaving, allowing for thicker wires and providing higher strength or flow rates for complex filtration.
What industries use your stainless steel filter mesh?
Our mesh is used in plastic recycling/granulation, oil refineries, food processing, pharmaceutical filtration, aerospace, and construction screening.
Can the roll width and wire diameter be customized?
Yes, we offer customization. Roll widths range from 0.1 to 4 meters, and wire diameters range from 0.014mm up to 4mm to meet specific project needs.
How do you ensure the product is not damaged during shipping?
All products are first wrapped in waterproof paper and then packed into secure wooden cases to protect against moisture and physical impact.
What is your annual production capacity?
We have a robust production facility capable of producing approximately 2 million square meters of wire mesh per year.
