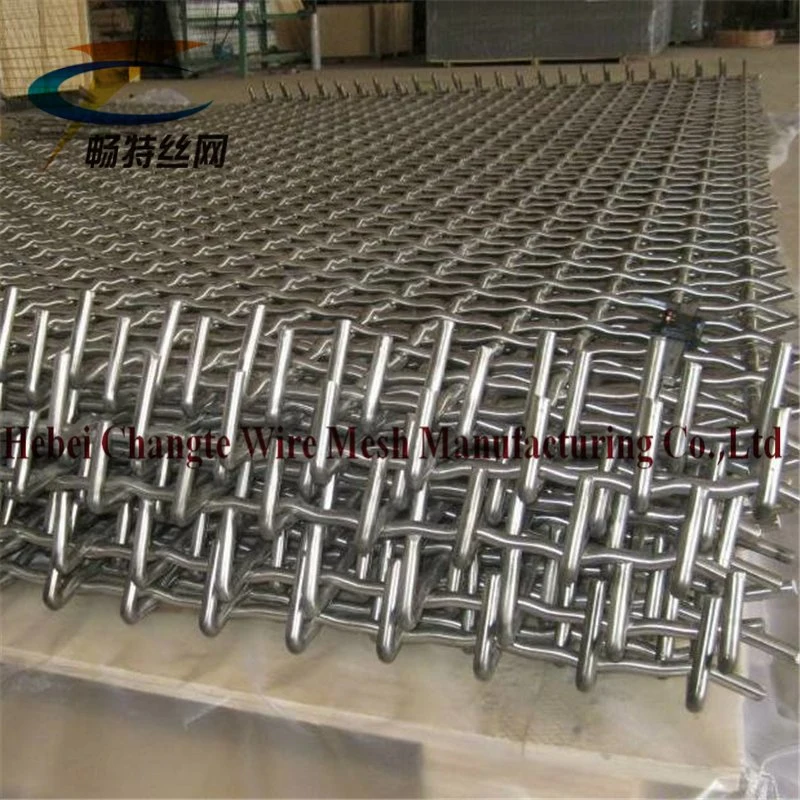

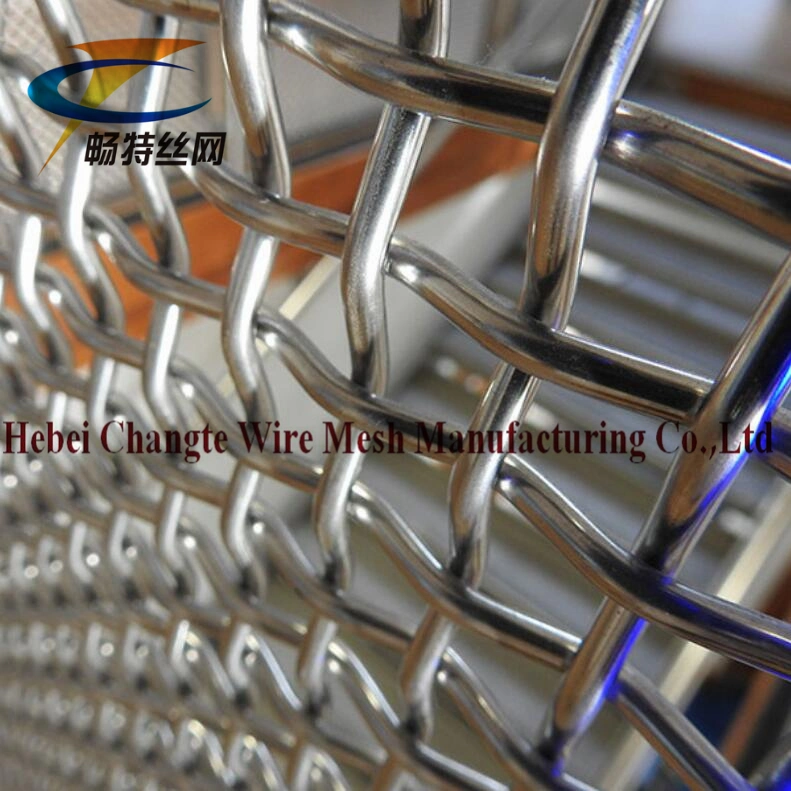

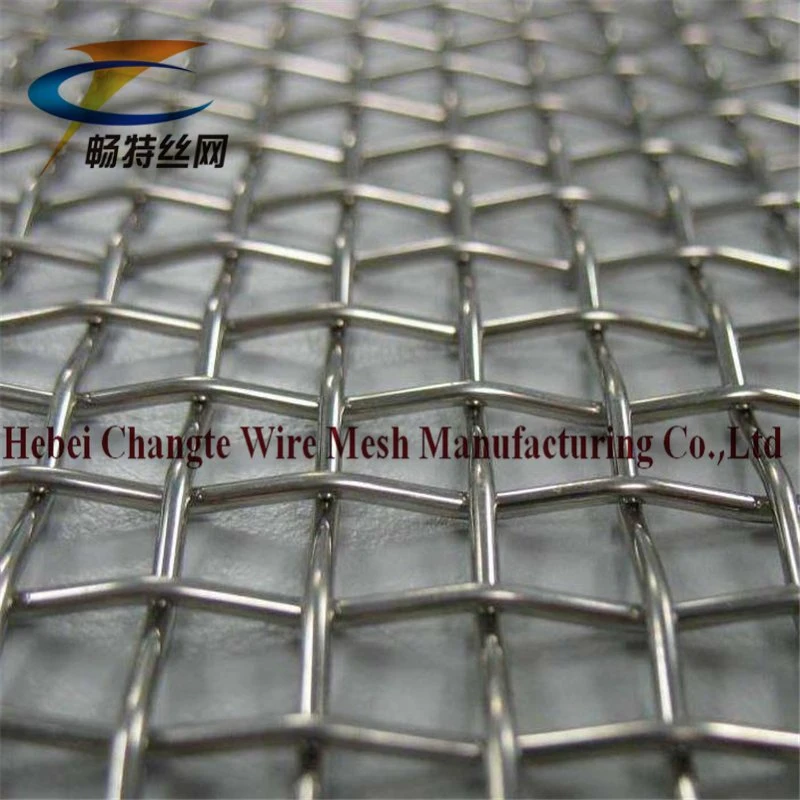

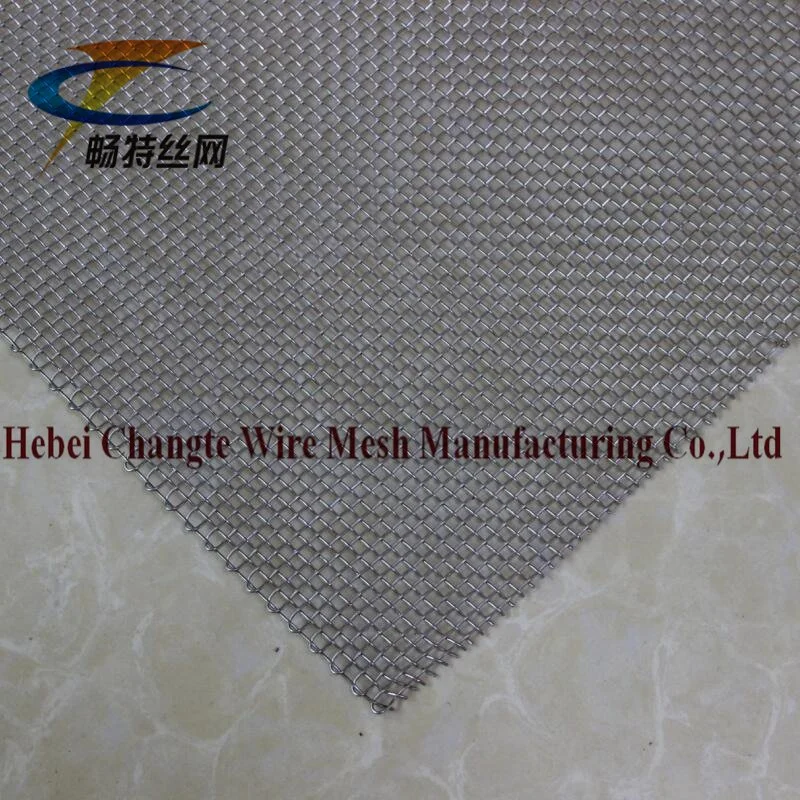

304 Stainless Steel Crimped Wire Mesh for Animal Cage or Vibrating Screen

📋

Basic Information

Model NO.:SC-01

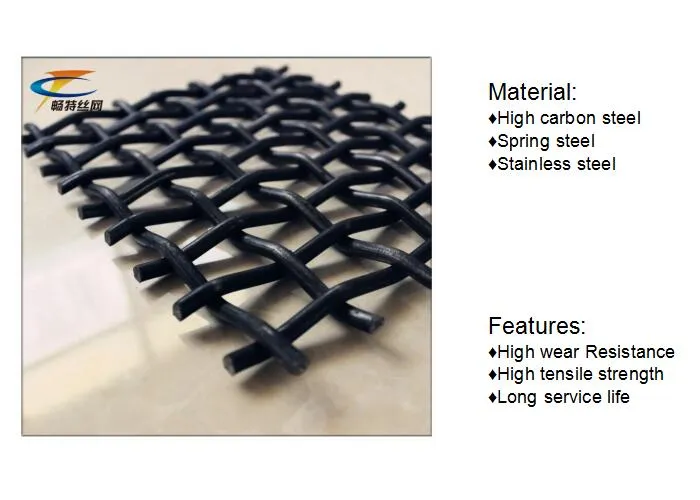

Material:High Carbon Steel and Spring Steel

Hole Shape:Square

Weave Technique:Plain Weave

Feature:Anti Wear and Anti Earthquake

Wire Diameter:0.2mm to 15mm

Certification:ASTM, ISO9001

Open Size:0.5-400mm

Steel Grade:Stainless Steel, 45#, 55#, 65mn, 72b

Tensile Strength:More Than 1000-1800MPa

🏗️

Product Description

304 Stainless Steel Crimped Wire Mesh is an essential material for animal cages and vibrating screens, offering superior durability and resistance. Heavier woven wires are pre-crimped to maintain stability and rigidity throughout the lifespan of the mesh.

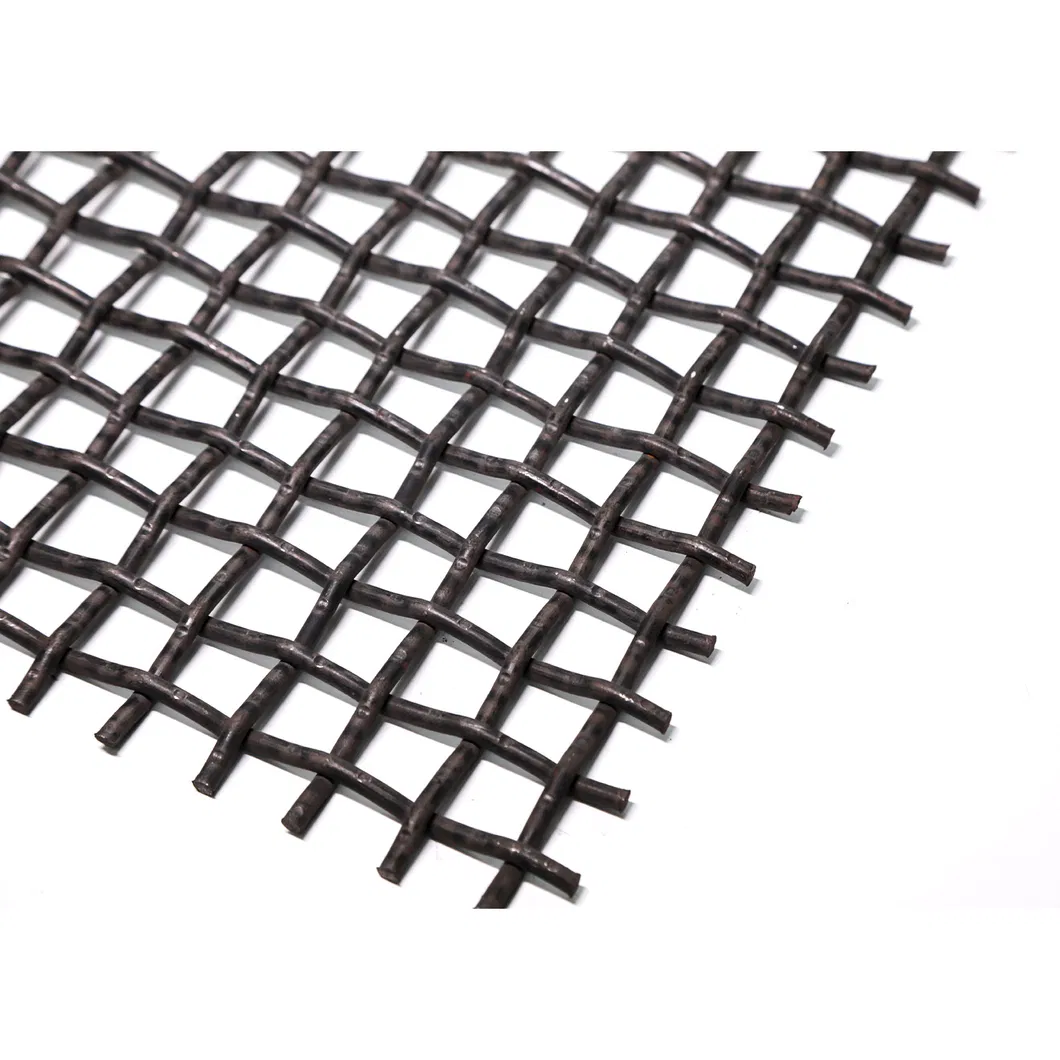

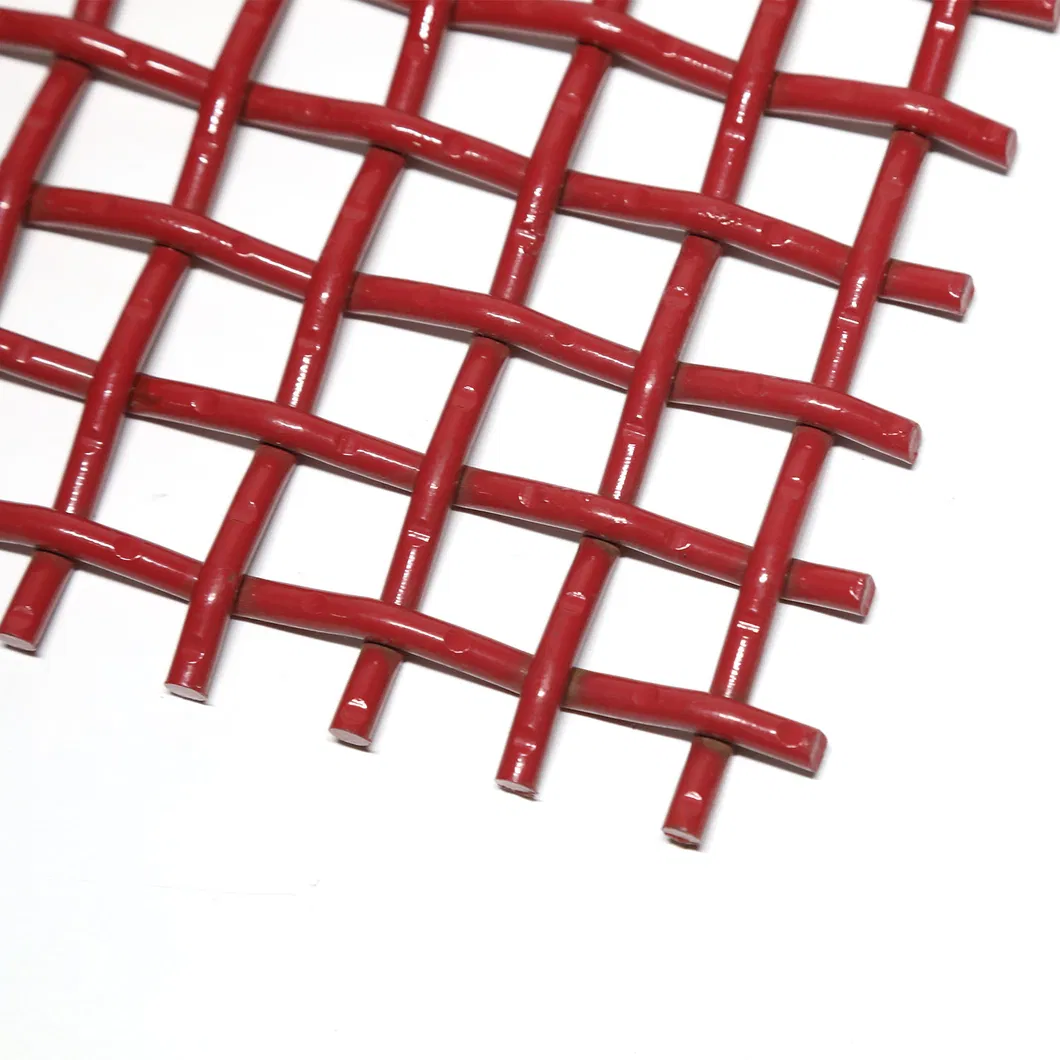

Woven Wire Crimps Types

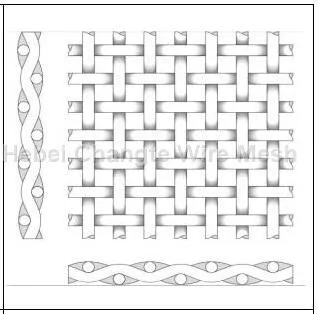

Double Crimp Woven Wire

Used for medium to heavy wire in relation to screen opening size, providing consistent spacing and structure.

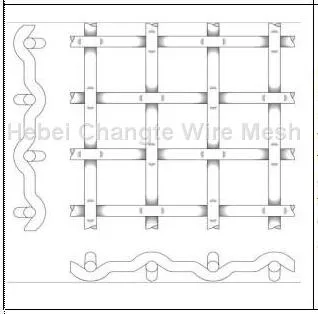

Lock Pre-crimp Mesh

Characterized by straight sections of wire connected by defined bumps at intersections to lock wires together, ensuring no movement.

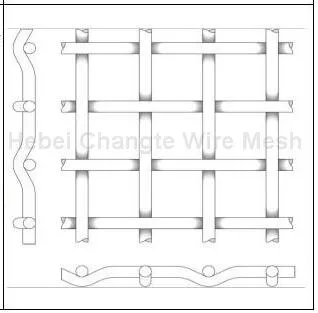

Flat Top Woven Wire

Creates a smooth top surface where all wires are woven on a single plane. Ideal for smooth flow of materials and aggregate sorting.

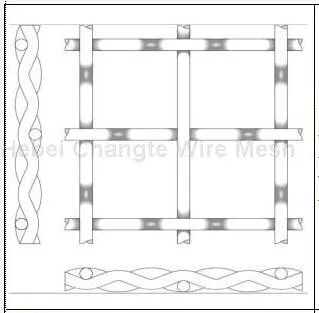

Intermediate Crimp Woven Wire

Used in coarse weaves of lighter gauge wire to provide greater stability, tightness, and maximum rigidity for large openings.

⚙️

Technical Parameters

Hook Angles: 30 degrees, 45 degrees
Shapes: V-shaped, U-shaped
Hook Types: Positive check options available
Materials: Stainless steel wire, 45Mn steel, 65Mn steel, high carbon steel, carbon steel, nickel steel.
Weaving Methods: Locked crimp, double plain weave, single wave weave, double crimp, space weave.

🌐

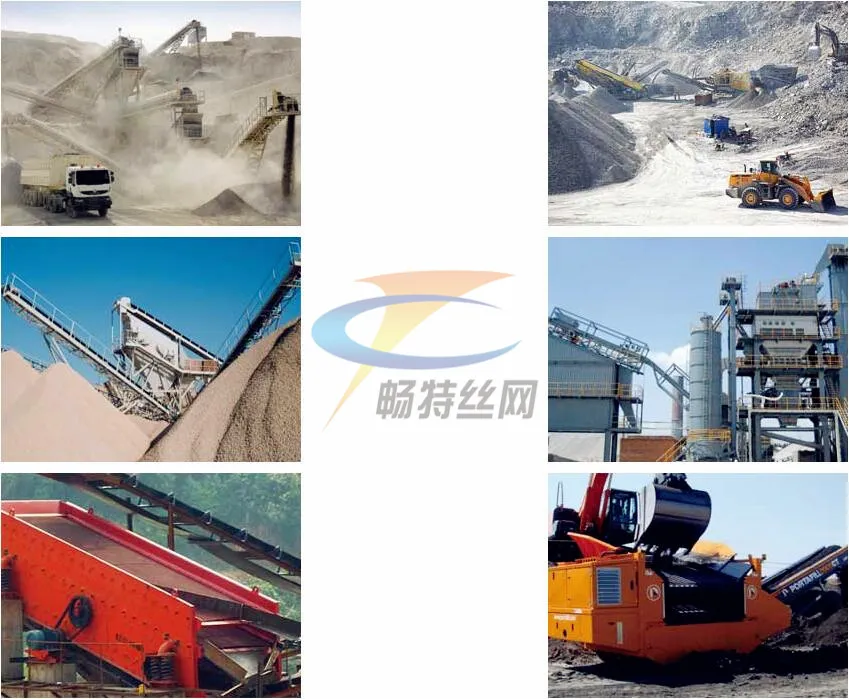

Applications & Usage

Industry Focus:

Mining & Coal Industry
Construction & Building industry
Food processing and meat industry
Petroleum & Chemical screening

Common Uses:

Grid windows & Poultry protection
Concrete reinforcement
Quarry grading & Liquid filtering
Barbecue & Wire baskets

📦

Packaging & Shipping

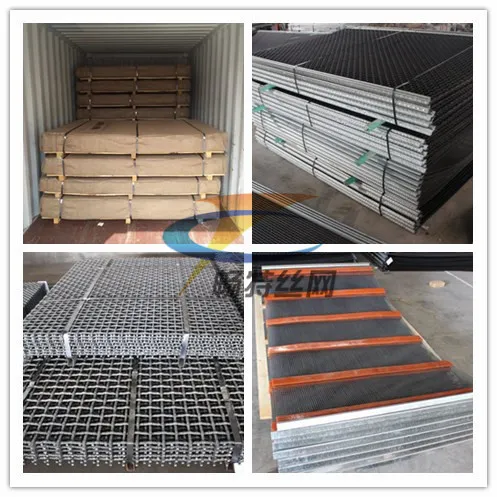

Standard Packing: In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing can be arranged upon request.

📊

Technical Data Sheet

Aperture (mm)	Tolerance (mm)	Wire (mm)	Max Edge (mm)	Weight (kg/m²)
101.60	±3.05	12.70	50.80	17.92
88.90	±2.67	12.70	44.45	20.16
76.20	±2.29	12.70	38.10	23.04
63.50	±1.91	12.70	31.75	26.88
50.80	±1.52	9.19	25.40	17.88
38.10	±1.14	7.92	19.05	17.31
25.40	±0.76	7.19	12.70	20.14
10.00	±0.30	4.00	5.00	14.51
2.00	±0.06	1.50	1.50	8.99

Request a Quote Specifications:

Please provide the following details for accurate pricing:

1. Material Type

2. Wire Diameter

3. Mesh Count/Aperture

4. Width and Length

5. Edge/Hook Type & Size

6. Order Quantity

❓

Frequently Asked Questions

What materials are available for the crimped wire mesh?

We offer a wide range of materials including Stainless Steel, 45Mn steel, 65Mn steel, high carbon steel, carbon steel, and nickel steel to suit different environmental requirements.

What is the advantage of Flat Top crimped mesh?

Flat Top mesh provides a smooth upper surface which allows for the even flow of materials. It is particularly effective for aggregate sizing, sorting, and filtration applications.

Can the mesh handle heavy-duty vibrations?

Yes, our mesh is designed with anti-wear and anti-earthquake features. The pre-crimping process ensures the wires are locked tightly, providing high tensile strength and rigidity for vibrating screens.

What edge types can be provided?

We provide both Flat Edges and Hooked Edges (including V-shaped and U-shaped hooks) to facilitate easy installation on different types of machinery.

What is the standard lead time and capacity?

Our production capacity is approximately 200 tons per month, ensuring a steady supply for large-scale mining and construction projects.

How is the aperture tolerance controlled?

We maintain a strict aperture tolerance of approximately ±3%, ensuring high precision for grading and filtering applications in industrial settings.
