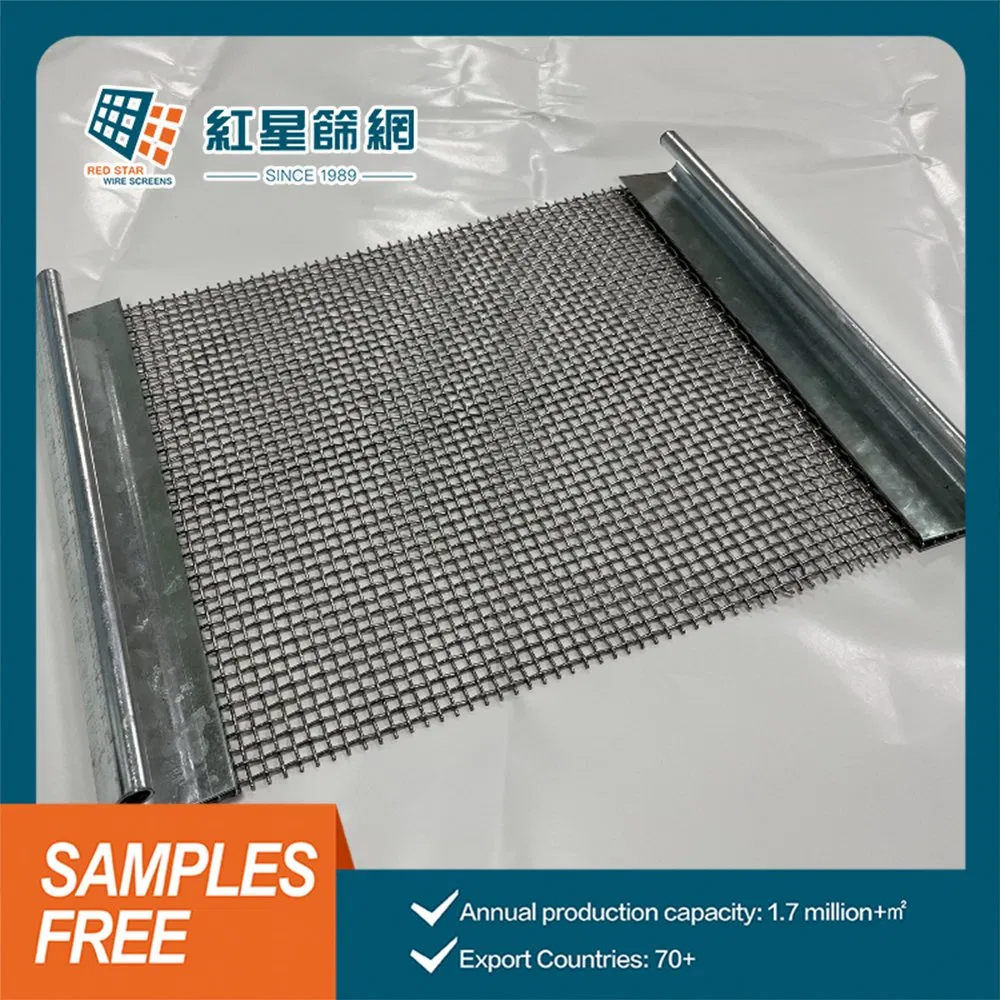

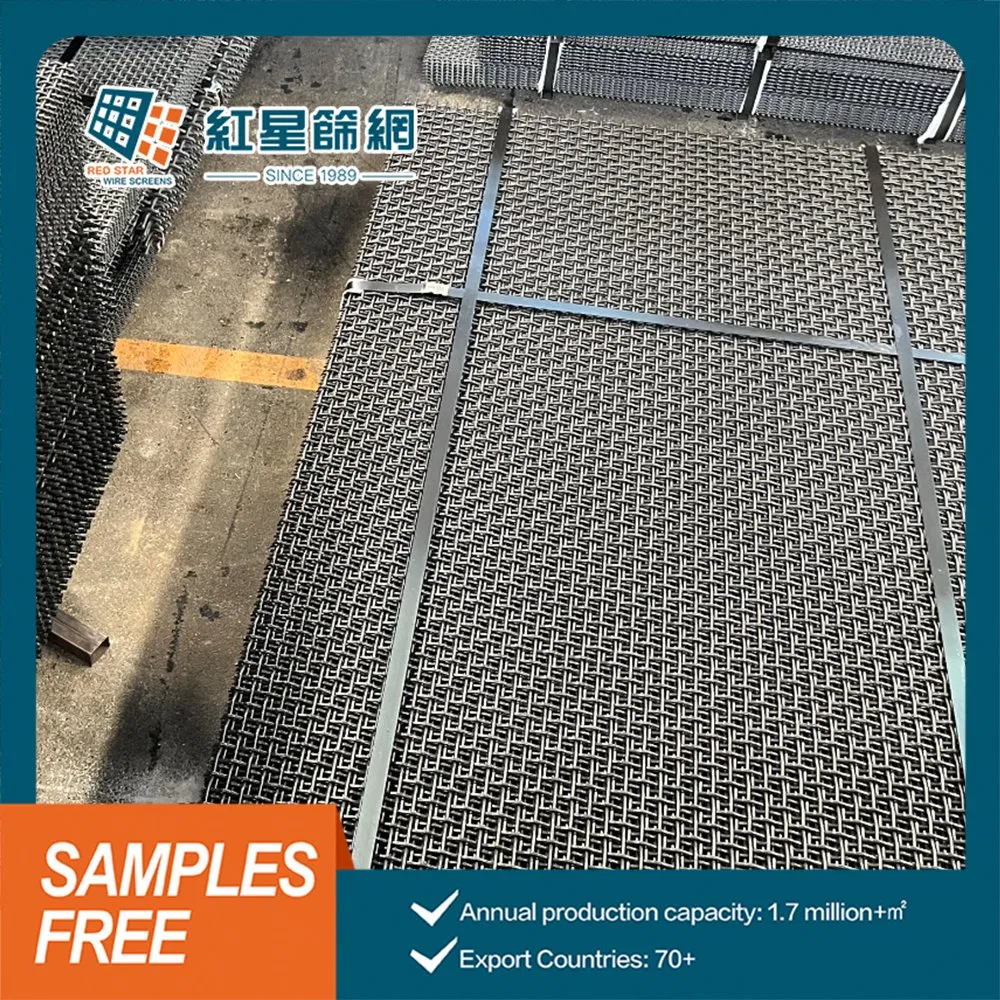

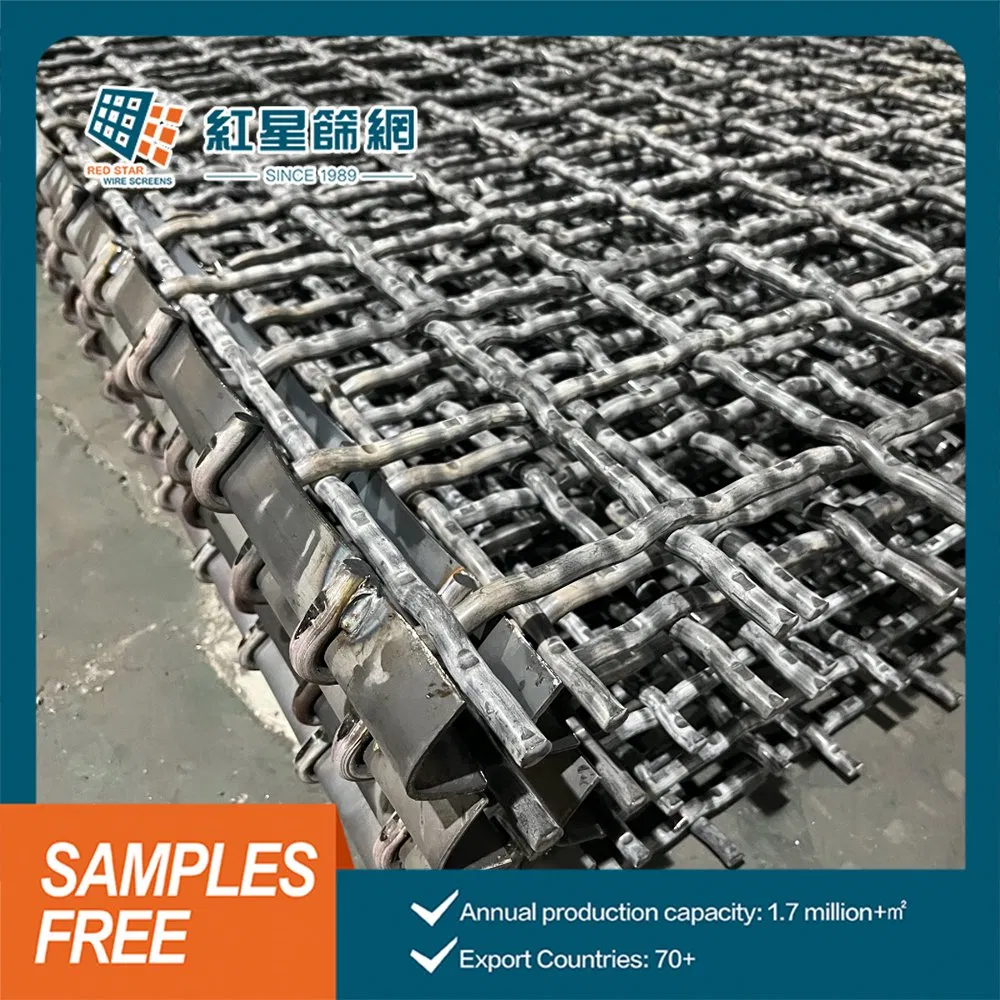

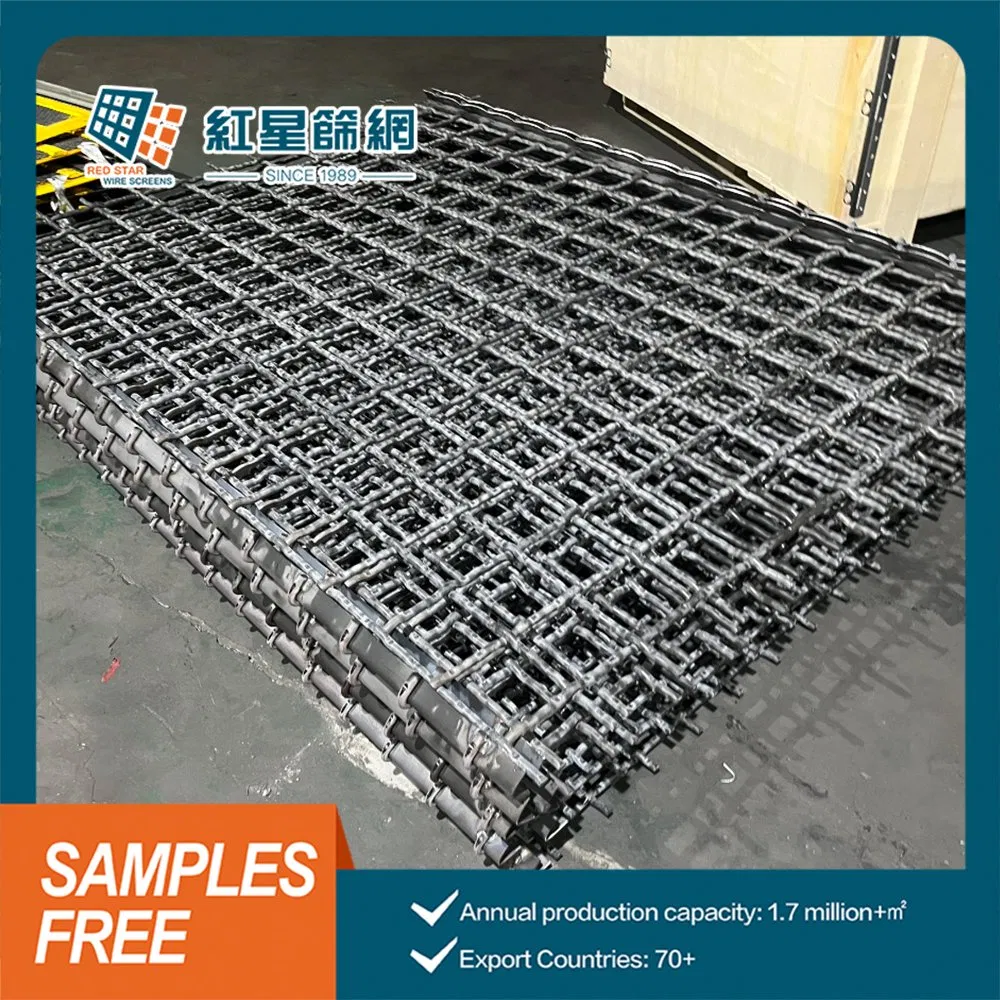

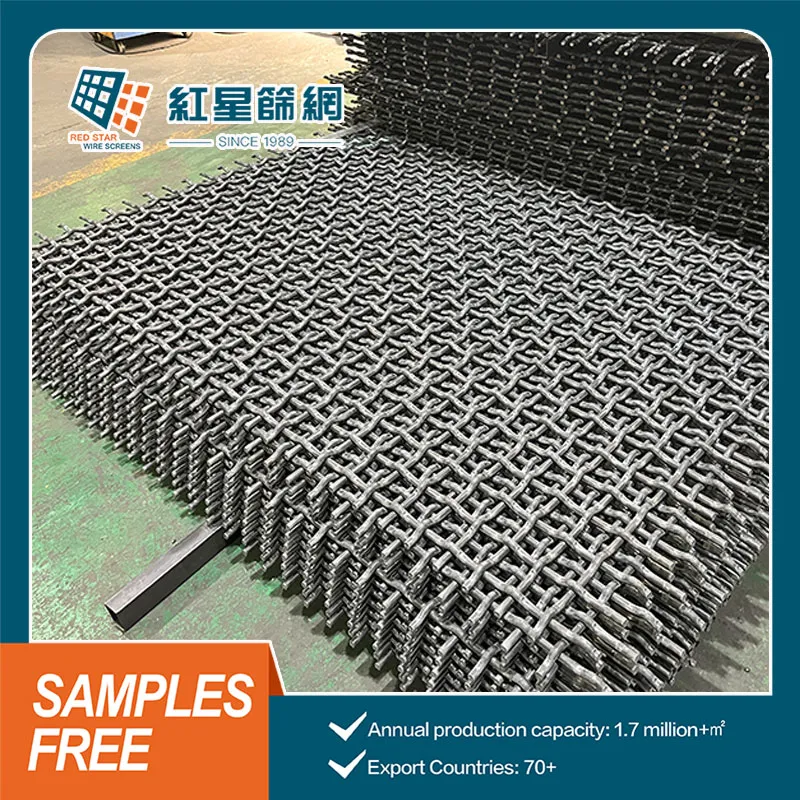

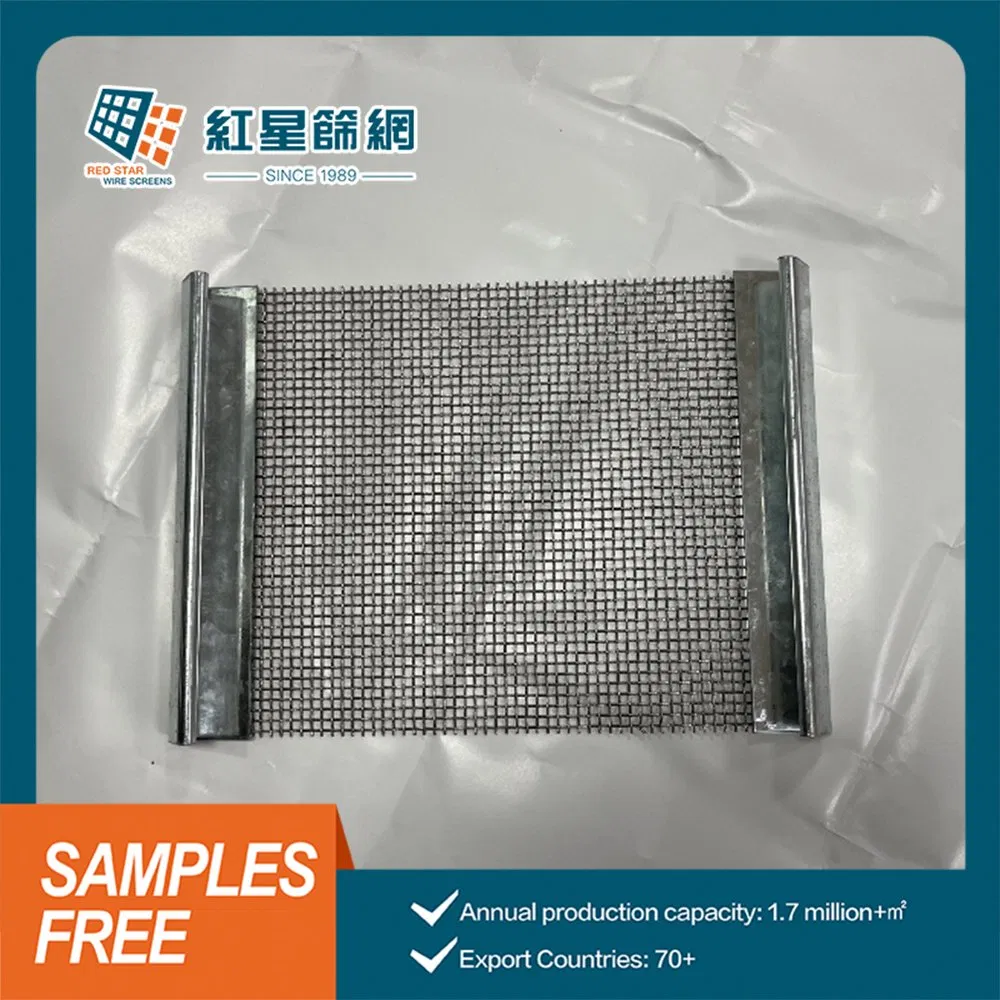

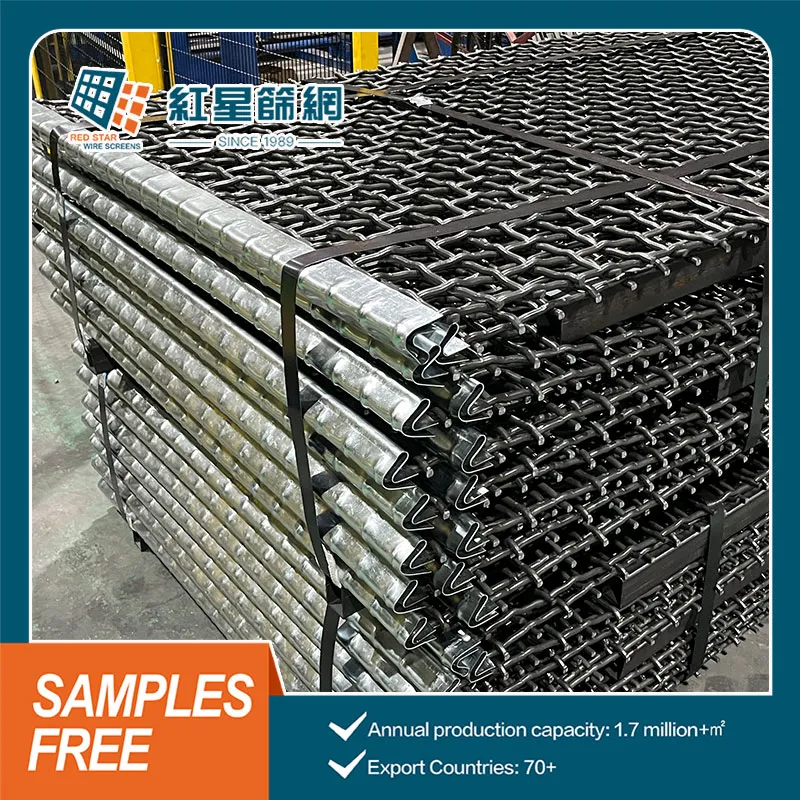

304 Stainless Steel Crimped Wire Mesh Woven Screen Panel for Aggregate Screening
The 304 Stainless Steel Crimped Wire Mesh Woven Screen Panel is a high-performance screening material specifically designed for aggregate screening in quarrying, mining, and construction applications. Made from corrosion-resistant 304 stainless steel, this mesh panel offers excellent durability, resistance to rust, and long service life even in wet, abrasive, or chemically aggressive environments. The crimped weave structure provides enhanced strength, rigidity, and stability, allowing the mesh to withstand heavy loads, high vibration, and continuous operation without deformation. Ideal for classifying and separating aggregates such as gravel, crushed stone, sand, and recycled materials, the woven design ensures precise aperture size for consistent particle sizing. Its smooth surface reduces material clogging and makes cleaning easy, improving overall screening efficiency.
| Aperture Square | Light Duty | Medium Duty | Heavy Duty | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Wire Dia | kg/m² | OA% | Wire Dia | kg/m² | OA% | Wire Dia | kg/m² | OA% | |
| 2.00 | - | - | - | - | - | - | 1.37 | 7.1 | 35 |
| 3.15 | - | - | - | 2.00 | 9.9 | 37 | 2.50 | 14.1 | 31 |
| 4.00 | 2.00 | 8.50 | 44 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.00 | 2.00 | 7.80 | 51 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 10.0 | 3.05 | 9.10 | 58 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 25.0 | 6.80 | 16.10 | 64 | 7.10 | 20.1 | 60 | 8.00 | 24.6 | 57 |
