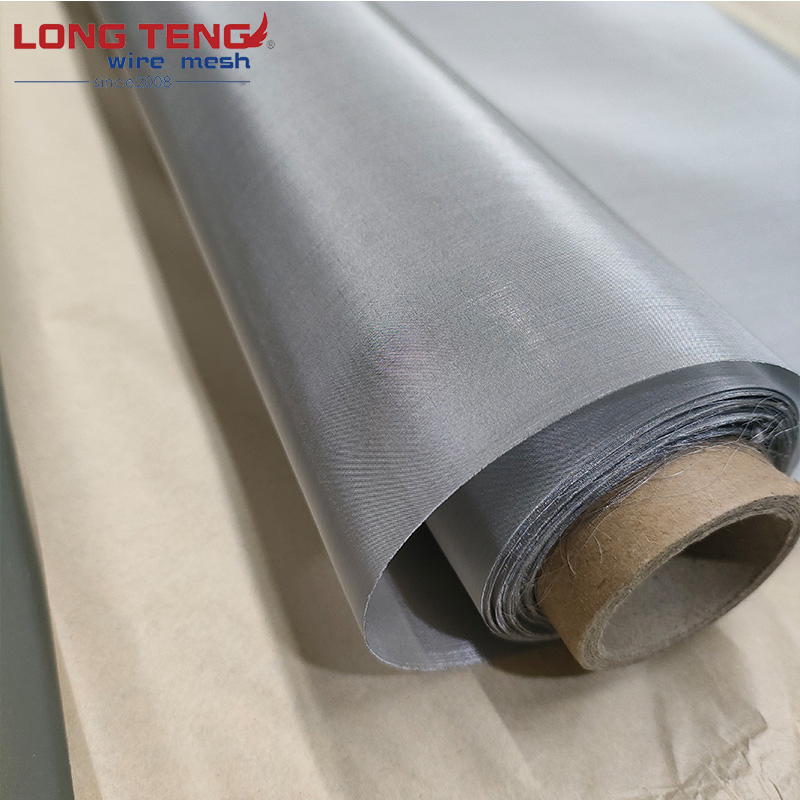

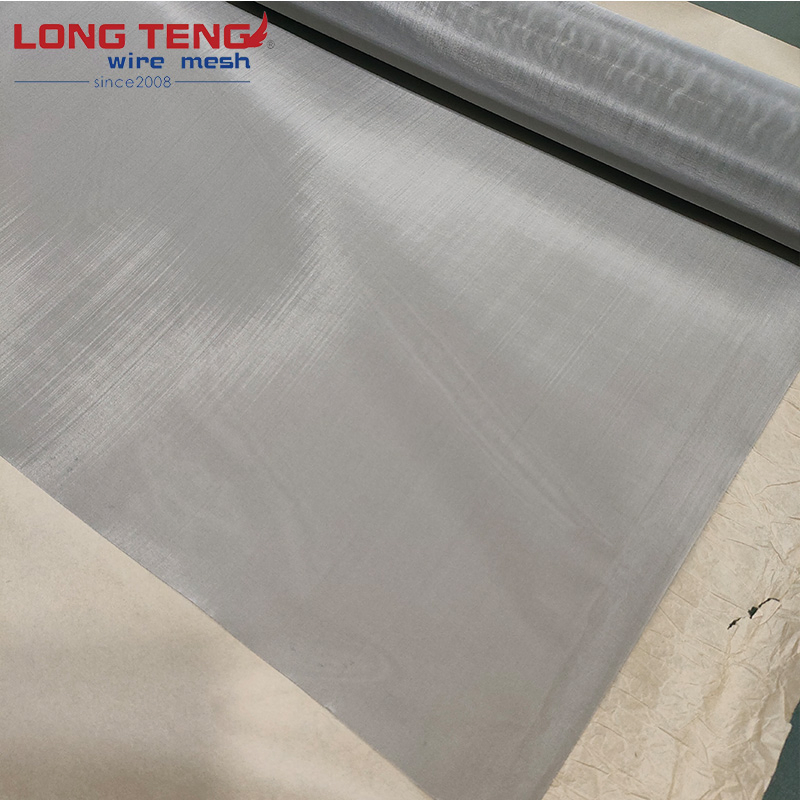

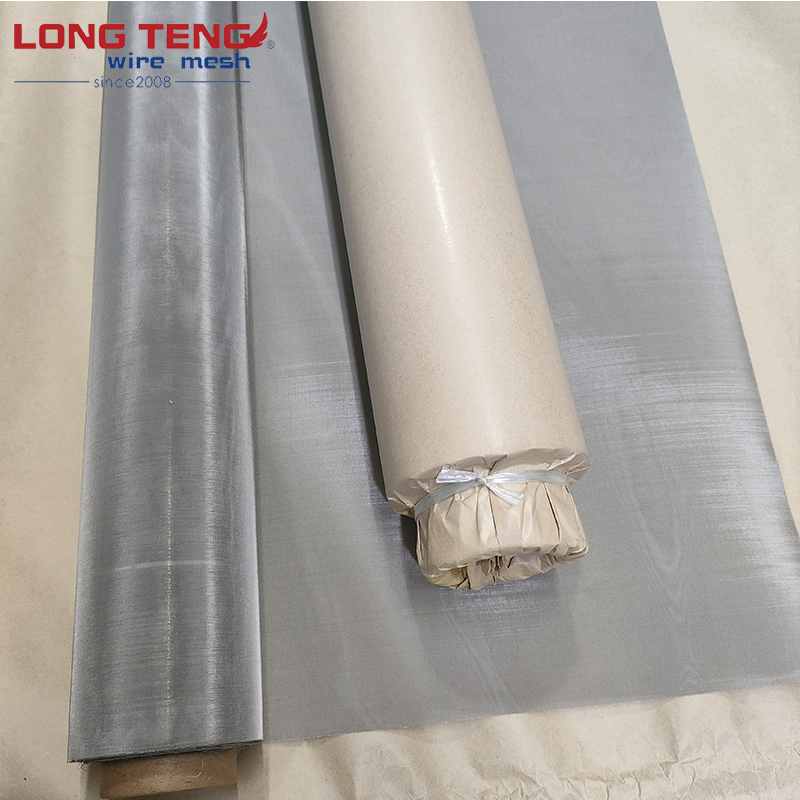

Looking for a robust and reliable solution for your filtration and protection needs? Our Stainless Steel Wire Mesh is built to last and perform under the most demanding conditions.

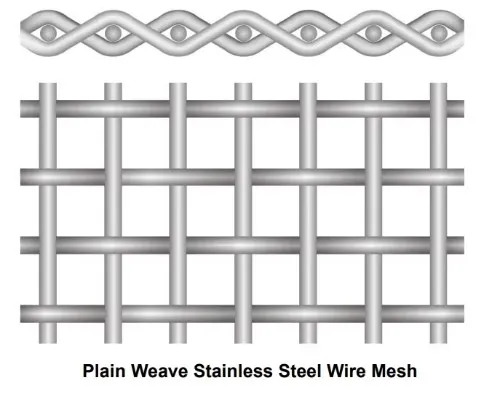

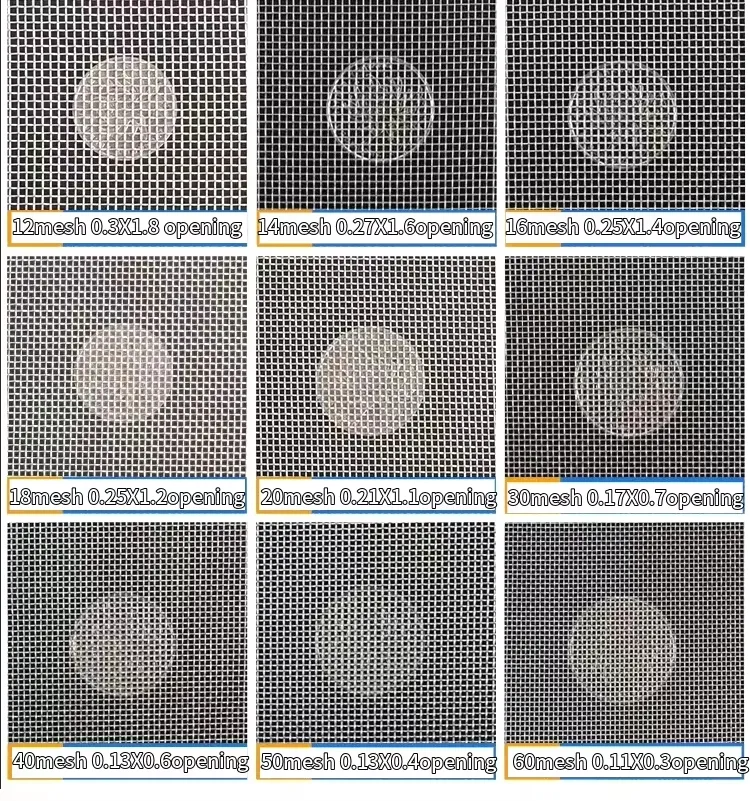

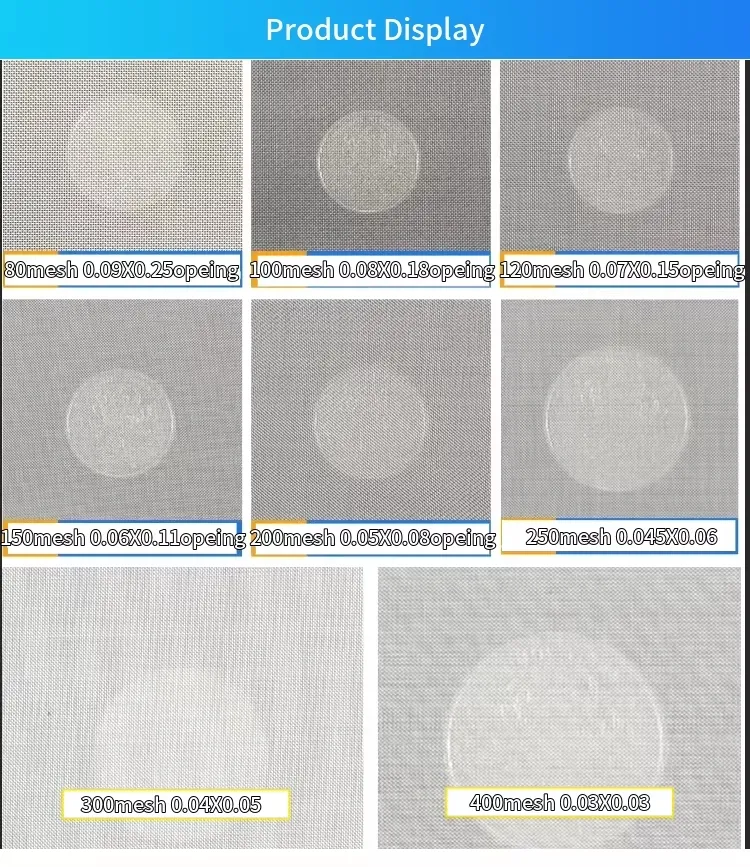

Plain Weave: The most common weave. Matching diameter warp and weft wires are woven in a simple over/under pattern, creating a square opening screen. Woven up to 400 mesh.

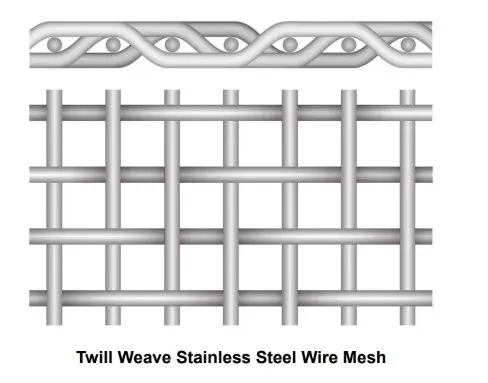

Twill Weave: Each weft wire passes over/under 2 warp wires. Allows for higher diameter wires for increased mechanical strength and density. Woven from 400 to 635 mesh.
Plain Dutch Weave: Warp wires have a greater diameter than the weft wires. Woven up to 3500 mesh.

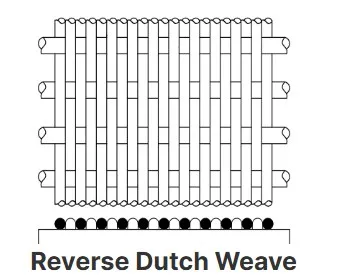

Reverse Dutch Weave: Woven in a reverse manner to plain dutch weave, featuring more and finer warp wires with fewer, heavier weft wires.
| Item | 304 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Composition | 18% Chromium, 8% Nickel | 18% Chromium, 10% Nickel, 2% Molybdenum |
| Benefits | Affordable, standard for most uses | High quality, excellent corrosion resistance (seawater/acids) |
| Continuous Service | Up to 1450°F | Up to 1500°F |
| Primary Uses | Sorting, screening powders & solids | Processing oils, foods, and chemicals |
