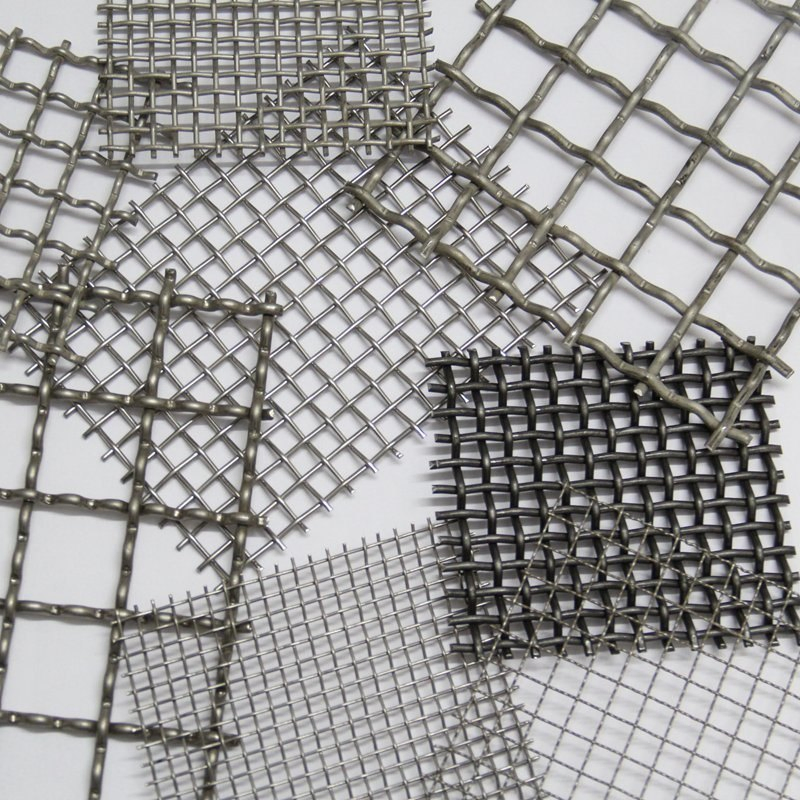

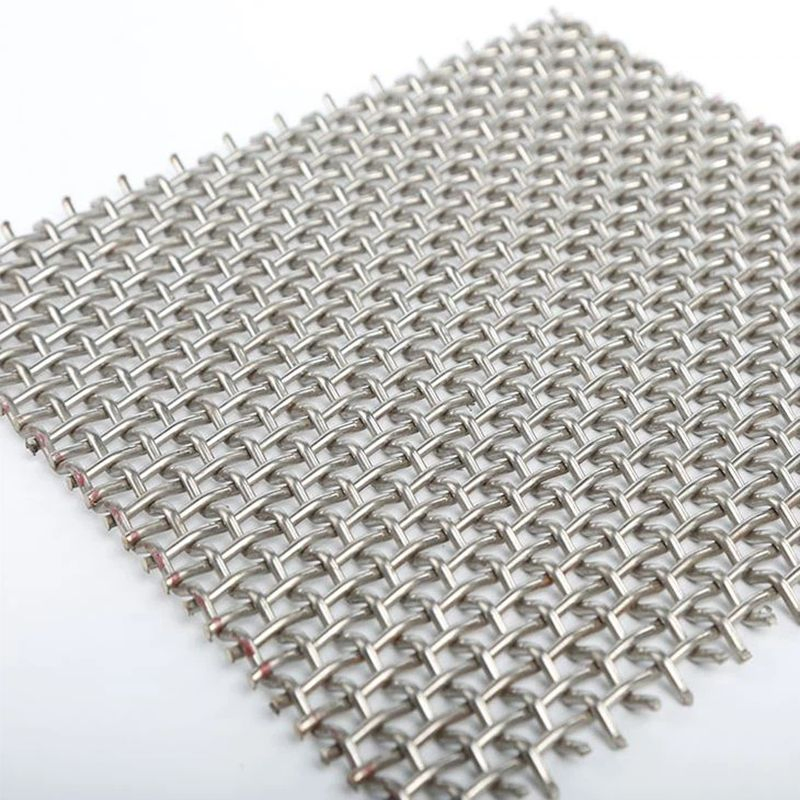

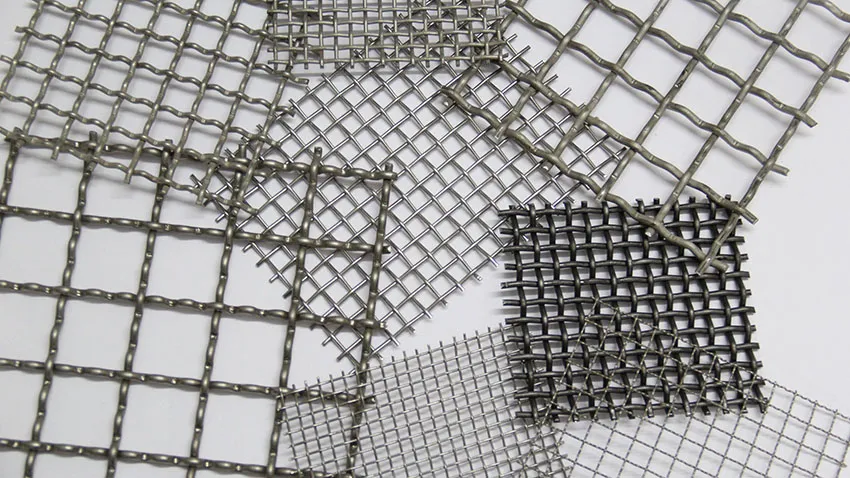

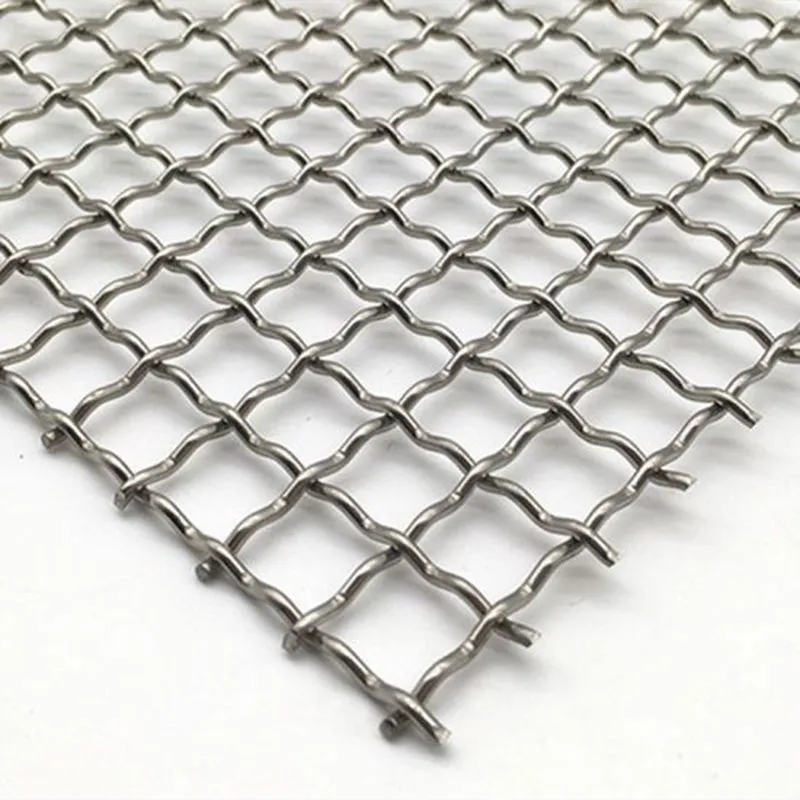

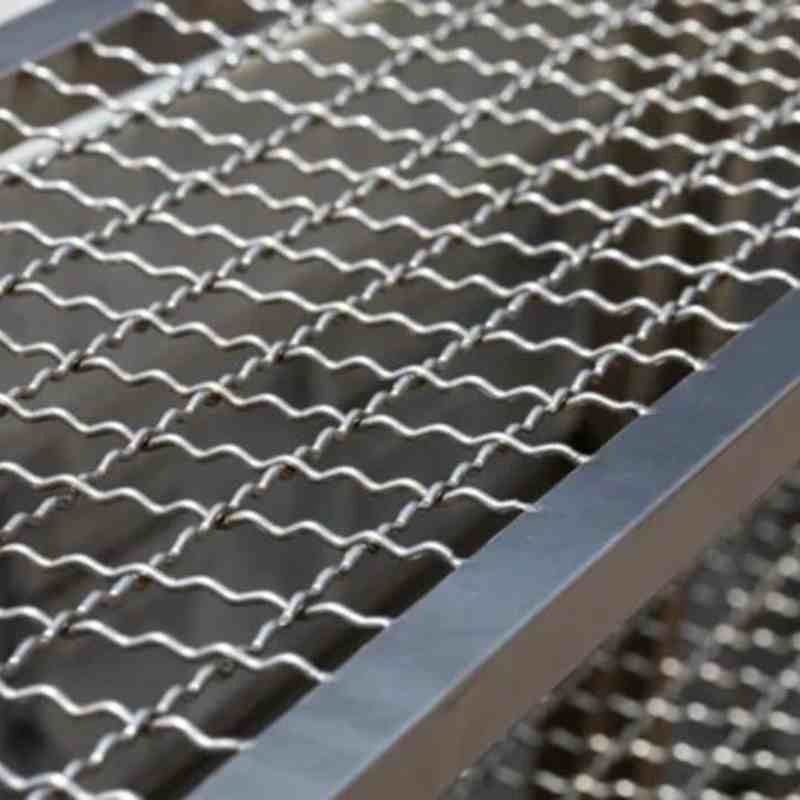

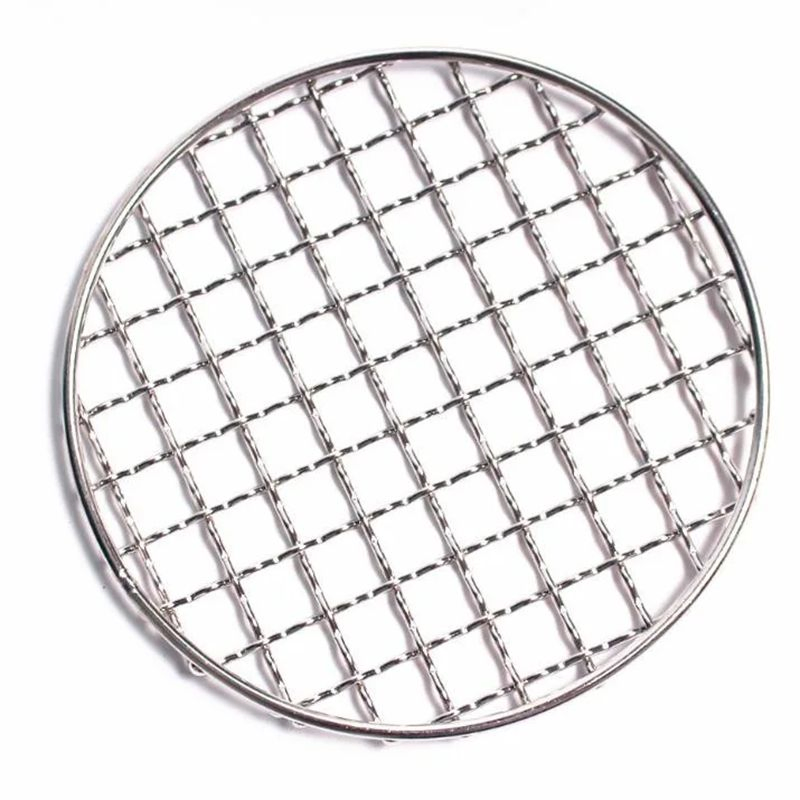

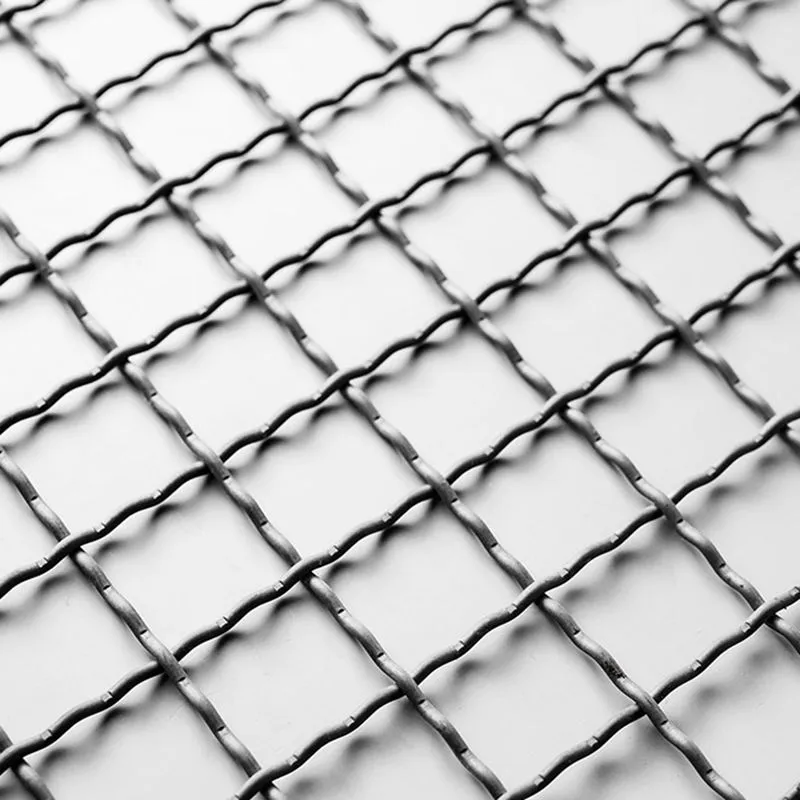

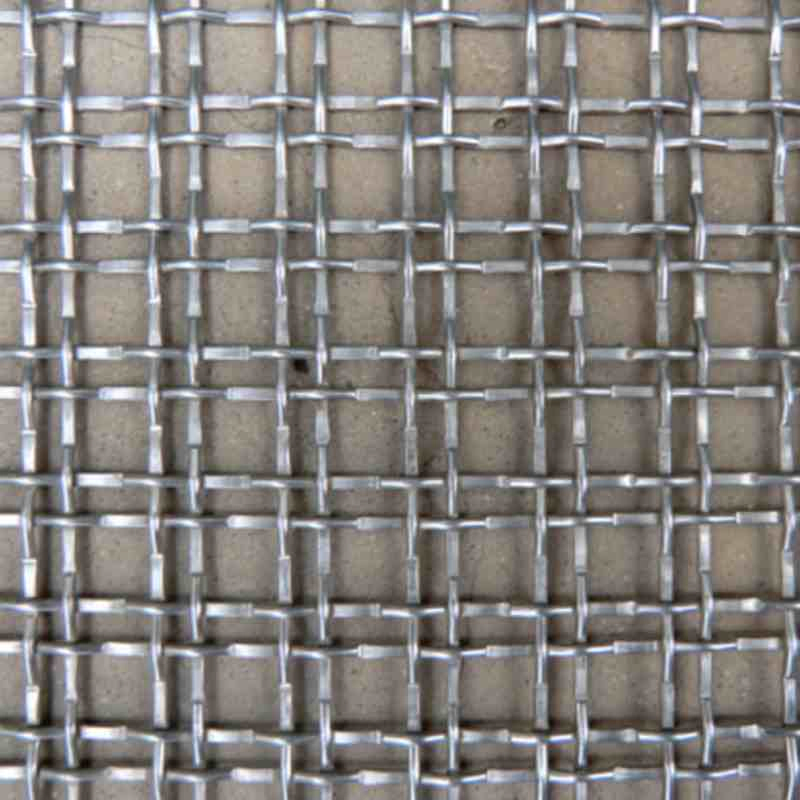

Crimped wire mesh, also known as pre-crimped or woven wire mesh, is a versatile and durable material used in a variety of applications across different industries. This type of wire mesh is created by weaving metal wires together in a specific pattern after they have been crimped or bent into a wave-like shape. The crimping process ensures a stable and rigid structure, which can withstand substantial pressure and weight.
Crimped wire mesh is typically made from materials such as stainless steel, galvanized steel, aluminum, and copper. The weaving patterns include Plain Weave, Lock Crimp, Double Crimp, and Flat-Top Crimp. These patterns provide varying mesh sizes and strength levels, making it adaptable for reinforcement, filtration, and safety barriers.

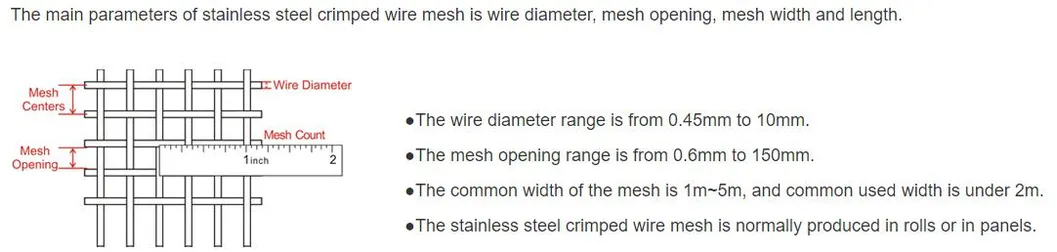

| Crimped Wire Mesh Specifications | |
|---|---|
| Material | Carbon steel wire, galvanized wire, stainless steel wire, copper wire, brass wire |
| Weave Type | Plain crimped, Intermediate crimped, Lock crimped, Flat Top crimped |

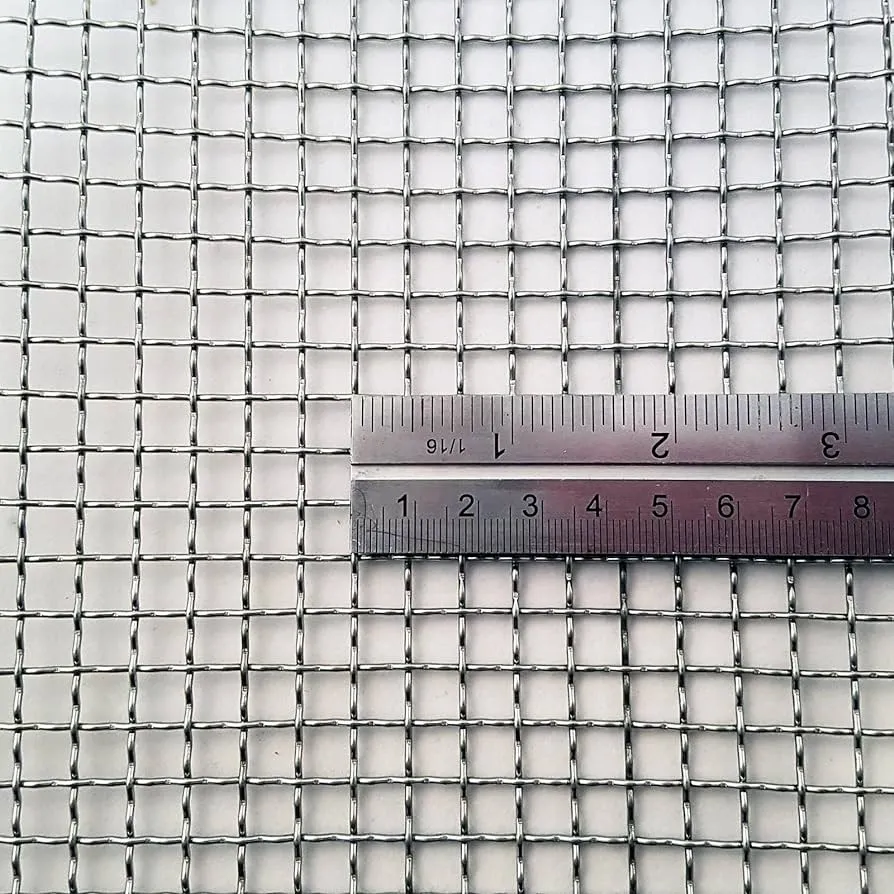

| Mesh Size | Diameter 1.0mm - 1.5mm; Opening 6mm - 25.4mm (Customizable) |
| Width | 0.914m, 1m, 1.2m, 1.5m or customized |
| Length | 15m, 20m, 30m or customized |

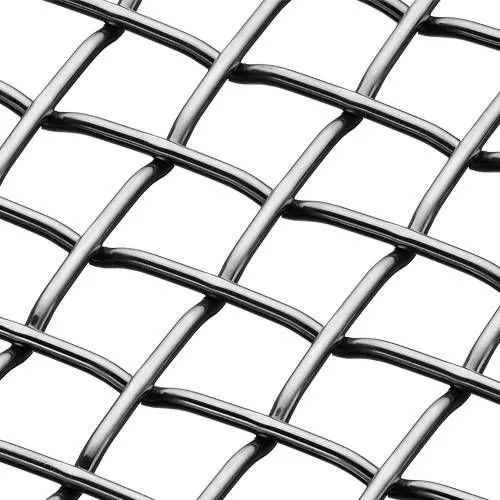

Lock Crimp

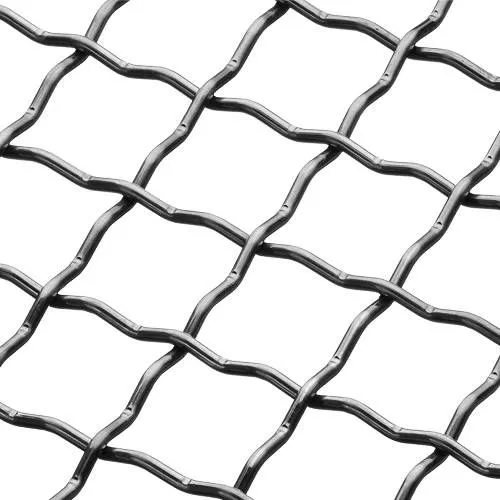

Double Crimp

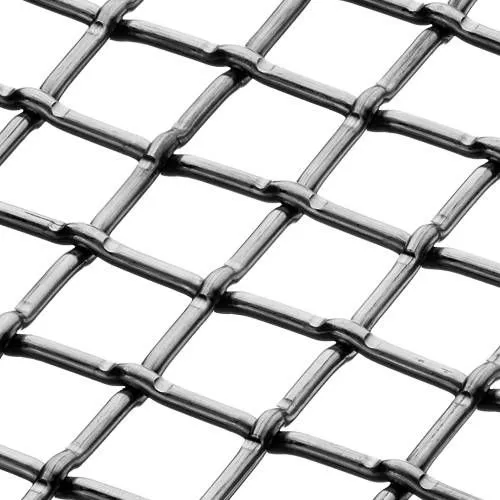

Inter Crimp

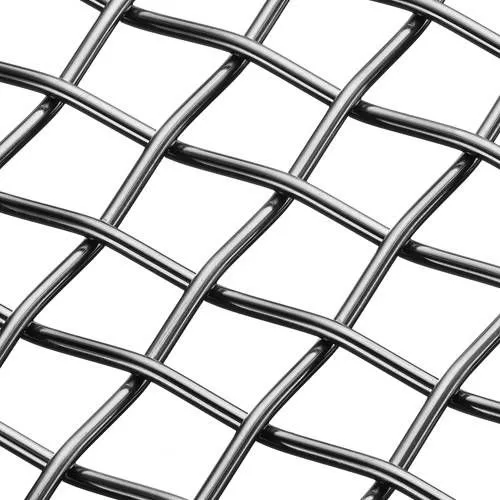

Flat Top Crimp
| Wire Gauge (SWG) | Wire Diameter (mm) | Mesh / Inch | Aperture (mm) | Weight (kg) |
|---|---|---|---|---|
| 6 | 4.8 | 1 | 20.6 | 11.5 |
| 8 | 4.05 | 2 | 9 | 16.5 |
| 10 | 3.2 | 2 | 10 | 10.5 |
| 12 | 2.6 | 3 | 5.9 | 10.5 |
| 14 | 2.0 | 3 | 6.5 | 6 |
| 16 | 1.6 | 4 | 5 | 5.5 |
| 19 | 1.0 | 6 | 3.2 | 3.0 |
| 22 | 0.7 | 8 | 2.5 | 2 |
