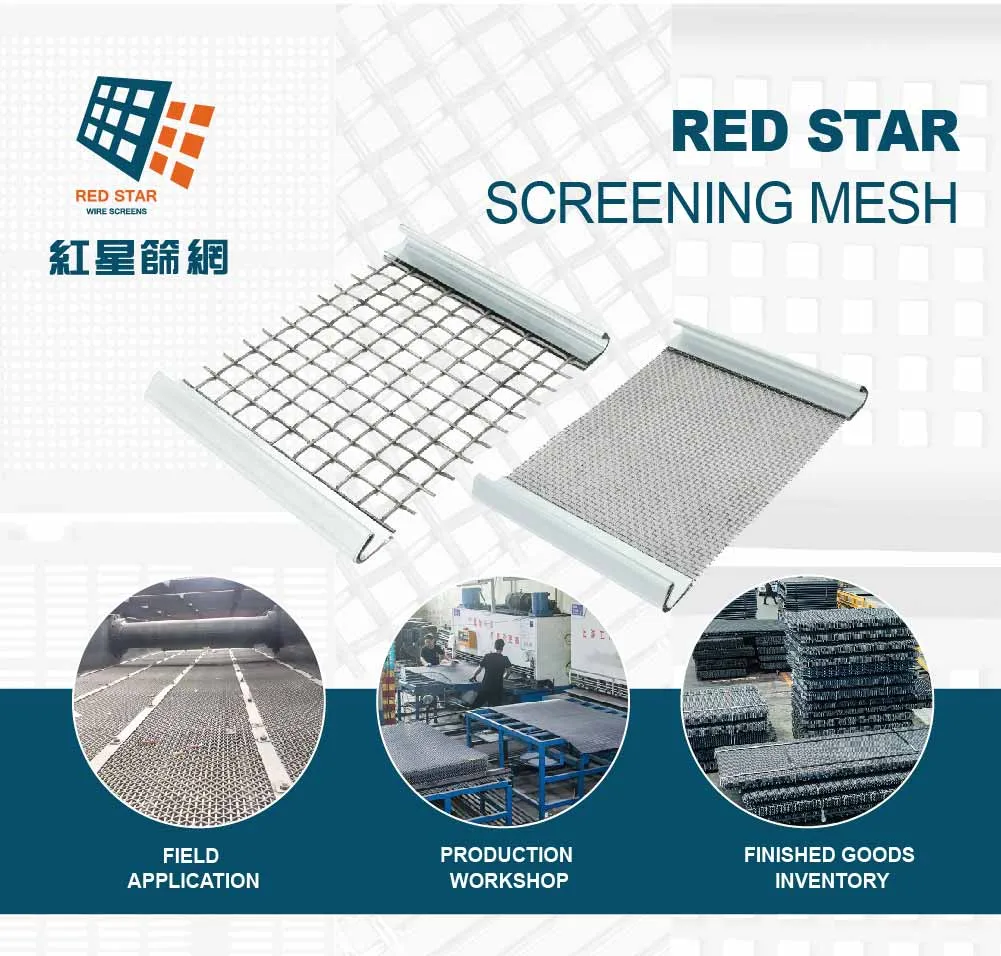

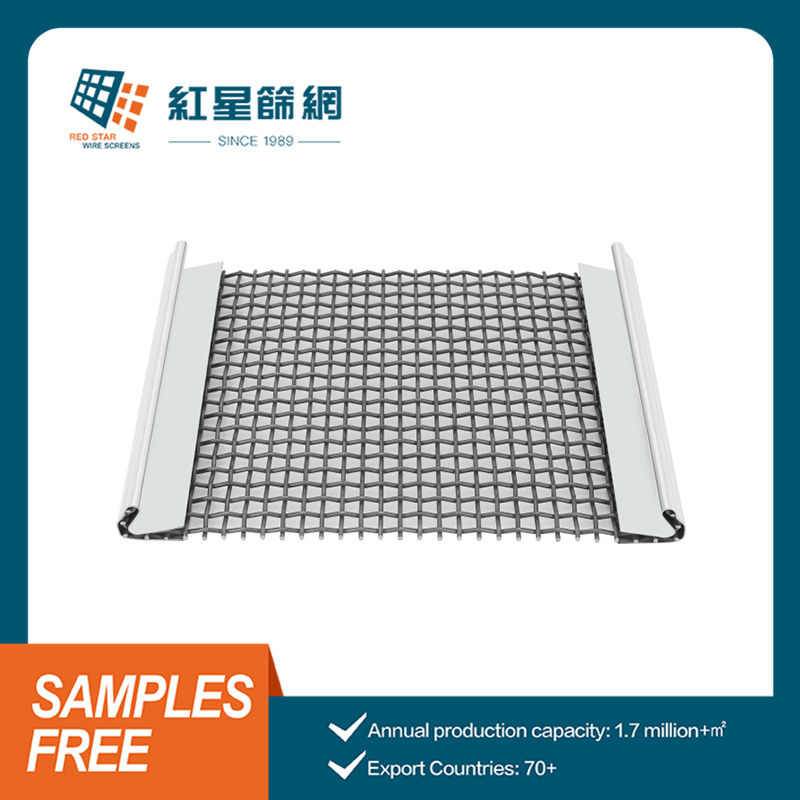

The 65Mn Crimped Wire Mesh Woven Screen is engineered for high-performance crusher and vibrating sieve applications in mining, quarrying, and aggregate processing. Made from premium 65Mn spring steel, this mesh delivers exceptional tensile strength and abrasion resistance.

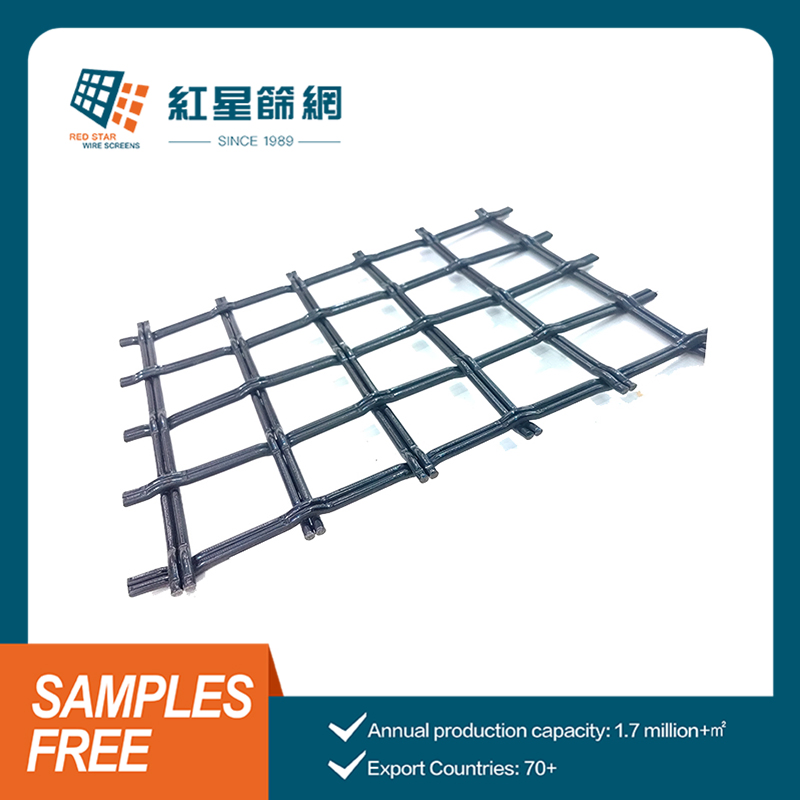

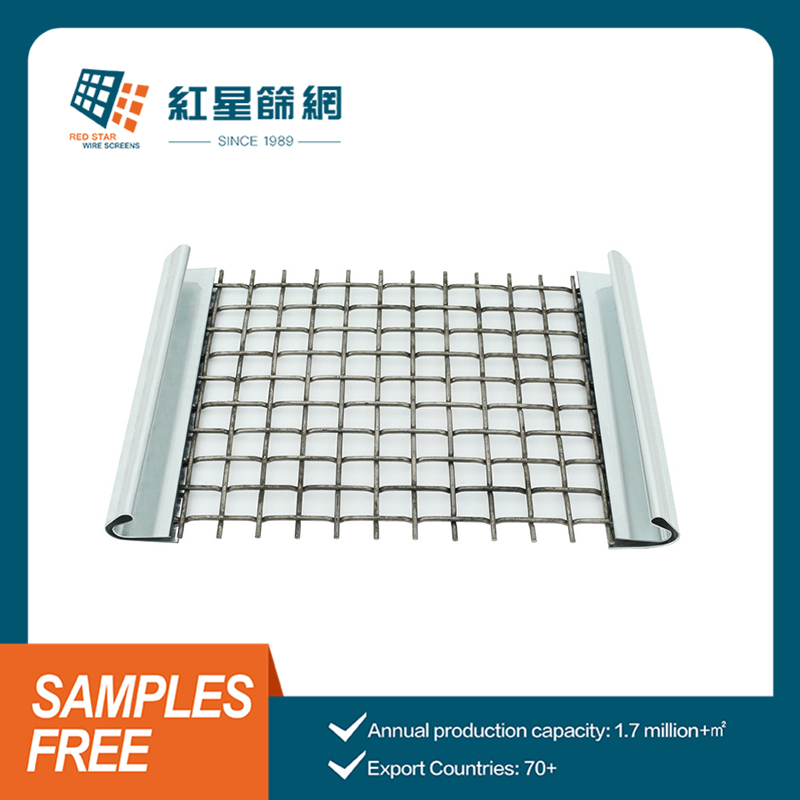

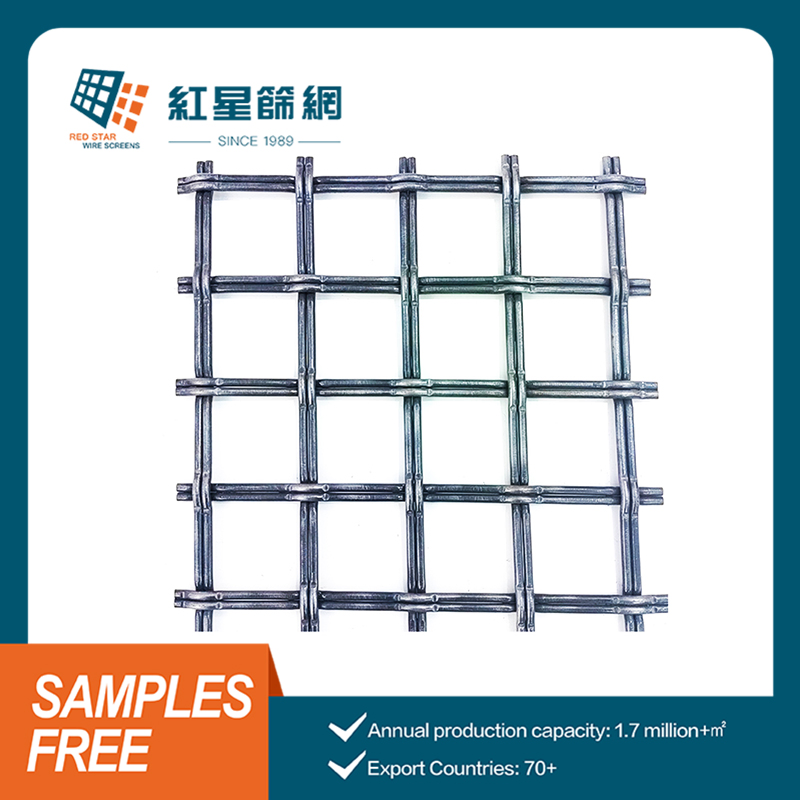

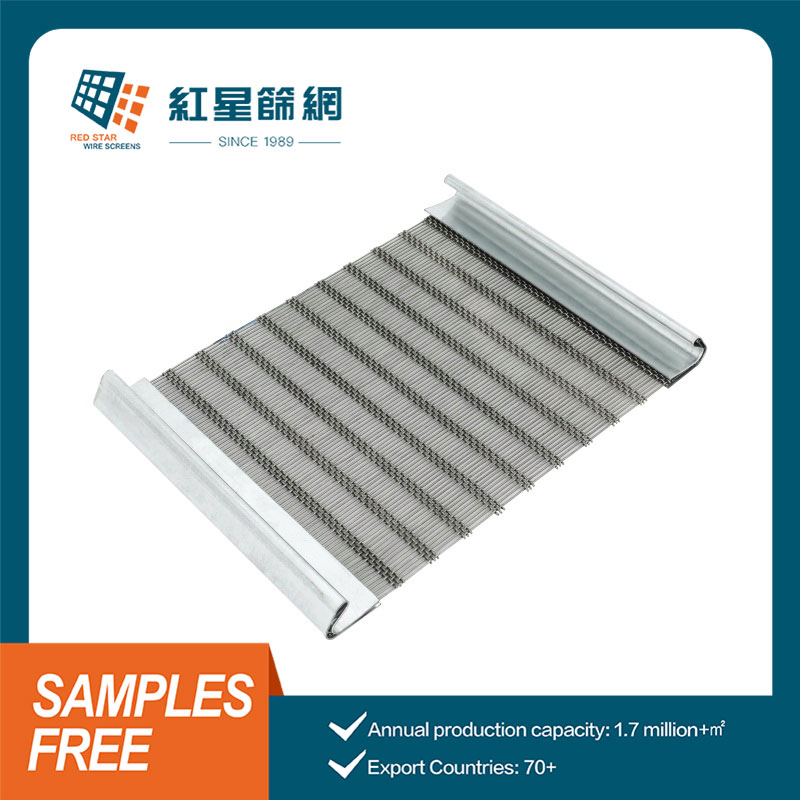

Designed with a crimped wire structure, the mesh maintains stable spacing and prevents sagging or deformation, providing precise particle separation and consistent screening efficiency. Equipped with customized hooks, it allows for secure and easy installation on various screen decks.
Manganese steel mesh exhibits excellent wear resistance. It can withstand high friction and impact from heavy materials, maintaining screening efficiency for extended periods.
High hardness and tensile strength enable the mesh to withstand significant mechanical stress and vibrations without deformation or damage.
Suitable for screening requirements in various environments and materials, including coal, ores, aggregates, and sands in mining and construction industries.
Can be customized into various specifications, sizes, and shapes (including hook types) to meet the requirements of different working scenarios.
| Aperture Square Weave | Light Duty | Medium Duty | Heavy Duty | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Wire Dia | kg/m² | OA% | Wire Dia | kg/m² | OA% | Wire Dia | kg/m² | OA% | |
| 4.0 mm | 2.00 | 8.50 | 44 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.0 mm | 2.00 | 7.80 | 51 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 6.35 mm | 2.50 | 8.89 | 51 | 3.05 | 12.6 | 46 | 4.00 | 19.6 | 38 |
| 10.0 mm | 3.05 | 9.10 | 58 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 20.0 mm | 5.60 | 14.00 | 61 | 6.80 | 19.2 | 58 | 7.10 | 24.0 | 54 |
| 50.0 mm | 10.00 | 23.20 | 69 | 11.20 | 26.0 | 67 | 12.50 | 31.8 | 64 |

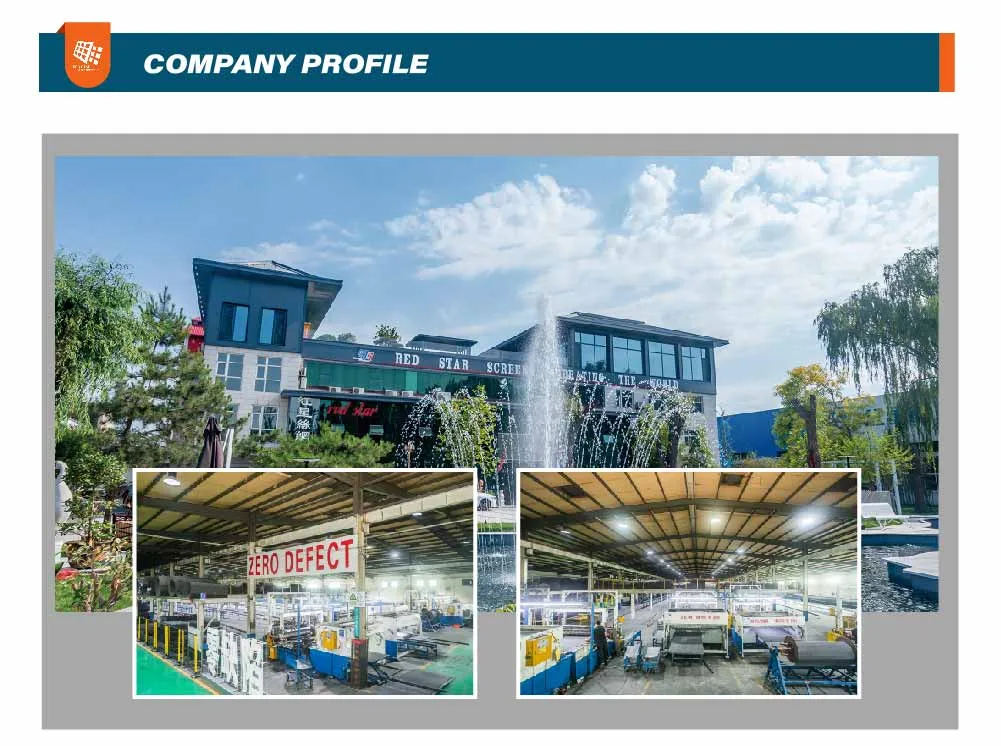

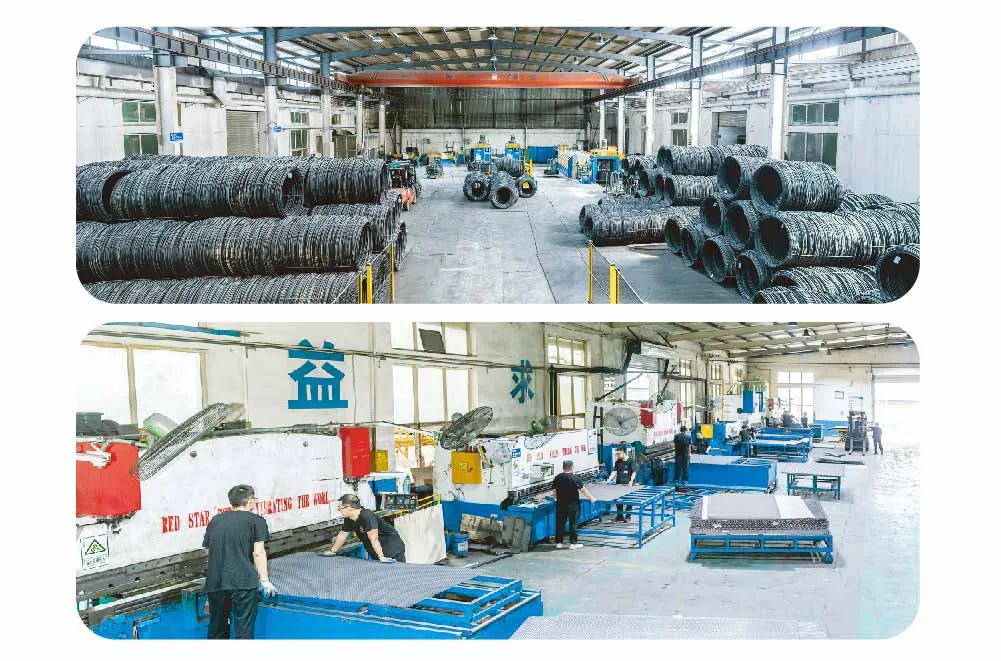

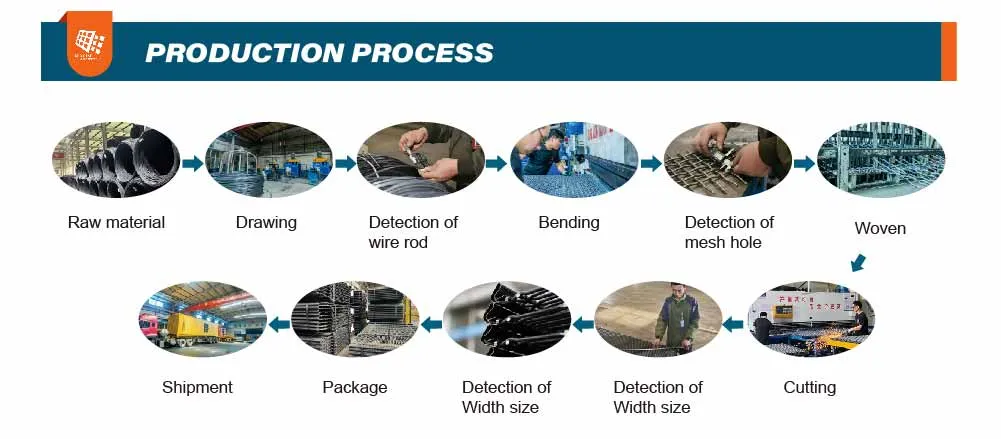

Our manufacturing facility has been a leader in mine screen mesh production since 1989. With over 35 years of experience, the factory covers 58,730 square meters and operates five specialized workshops for steel wire processing, woven mesh, and polyurethane screens.
Equipped with more than 260 sets of advanced machinery, we maintain a production capacity of 50,000 square meters per year. Our R&D center holds 18 patents and collaborates with leading universities to drive material technology reform and innovation.
