| Model NO. | WY-PMS |
|---|---|

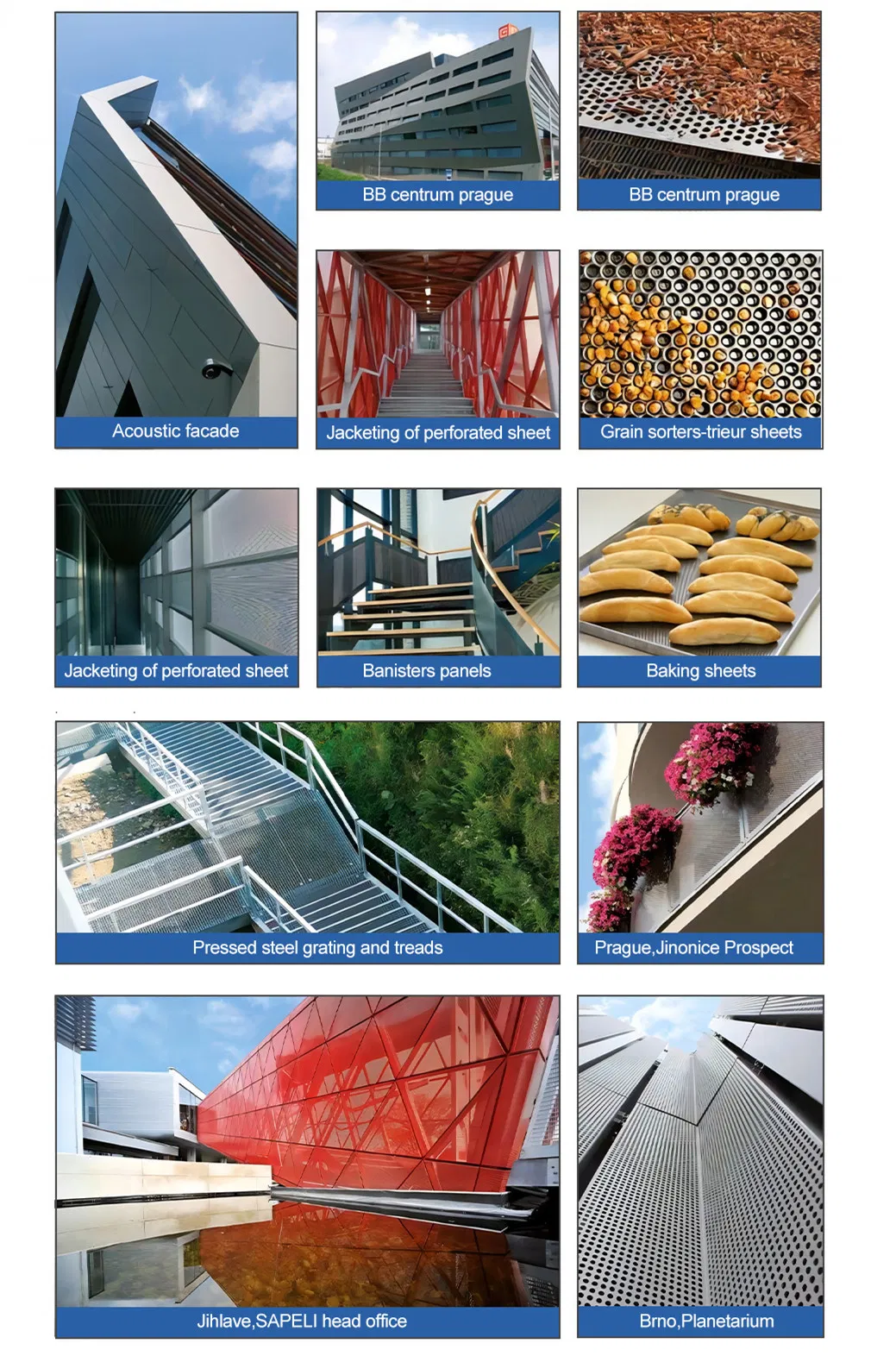

| Usage | Protection, Aquaculture, Water Conservancy Construction, Civil Building, Railway Construction, Road Construction, Decoration |
| Application | Construction Wire Mesh, Protecting Mesh, Decorative Mesh, Filter, Sieving Diversified Pellet, Cages, Wall Panels, Facade |
| Material | Aluminum, Stainless Steel, Galvanized Steel, Iron |
| Hole Shape | Round, Diamond, Square |
| Thickness | 0.3mm ~ 12mm |
| Hole Size | 0.5mm, 0.8mm, 1mm, 1.2mm, 1.5mm, 2mm, etc. |

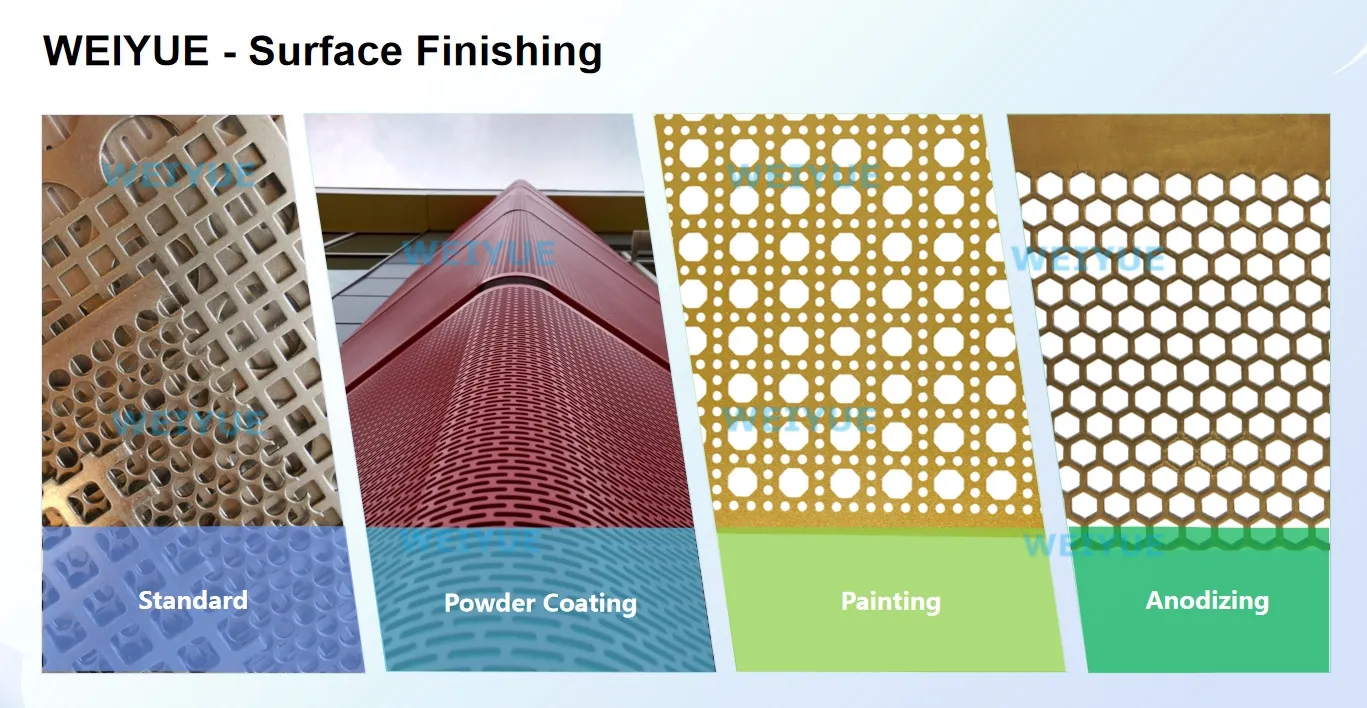

| Surface Finish | Powder Coated, Galvanized, Anodized, Laser |
| Packing | Pallets, Wooden Box |

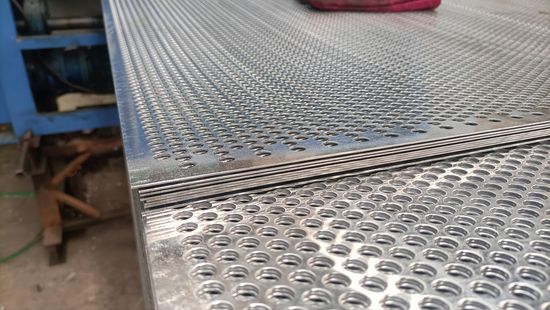

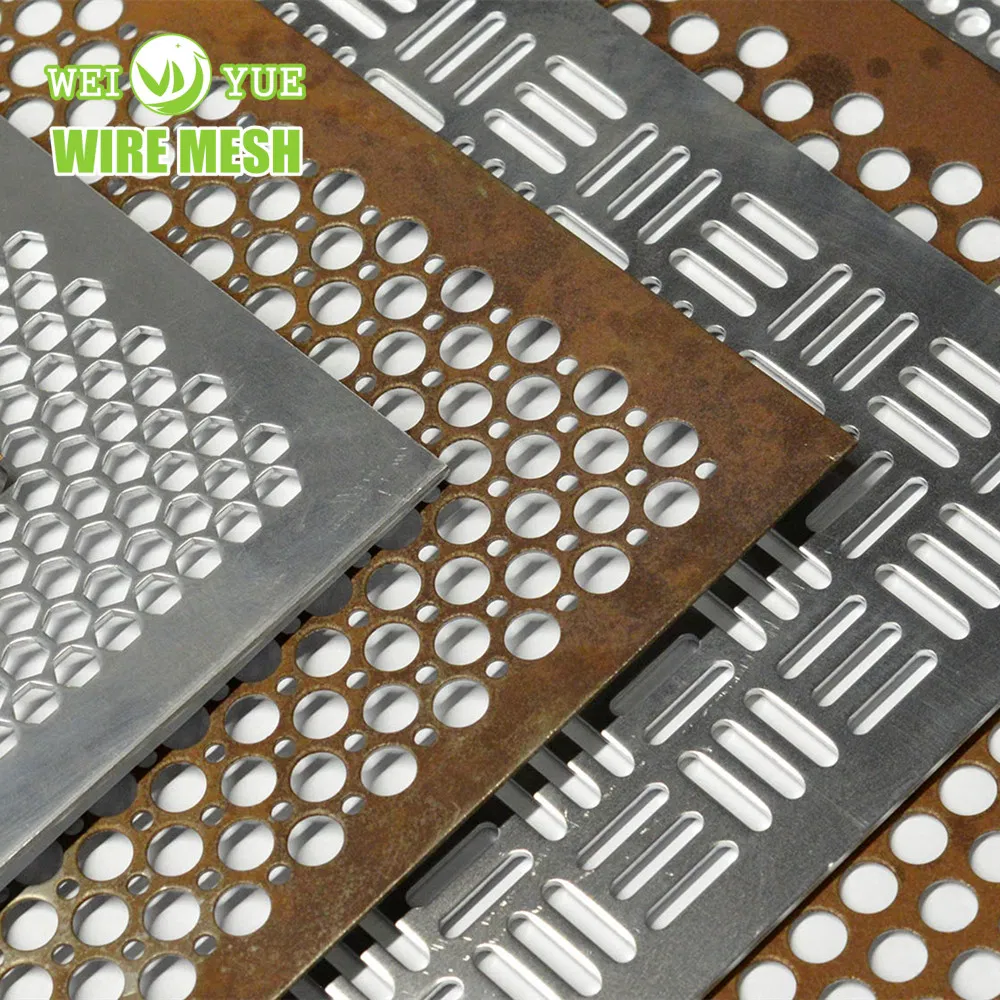

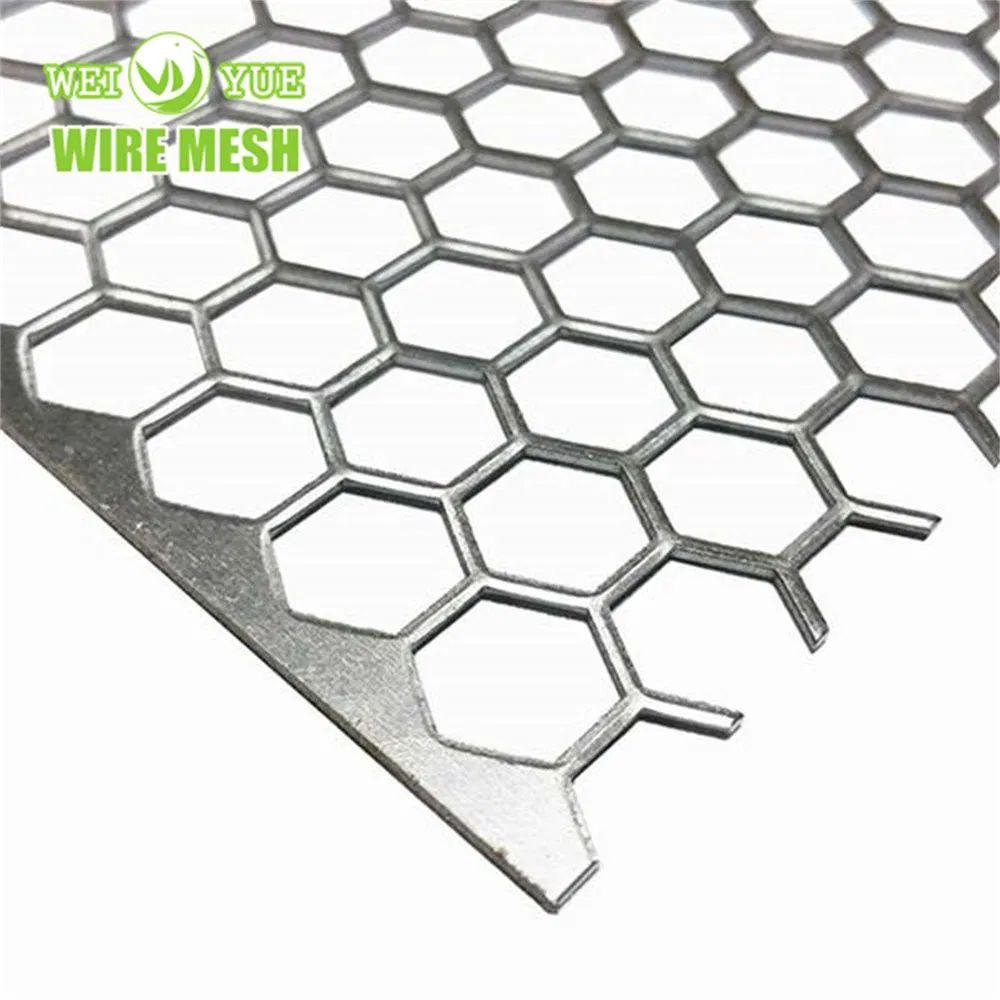

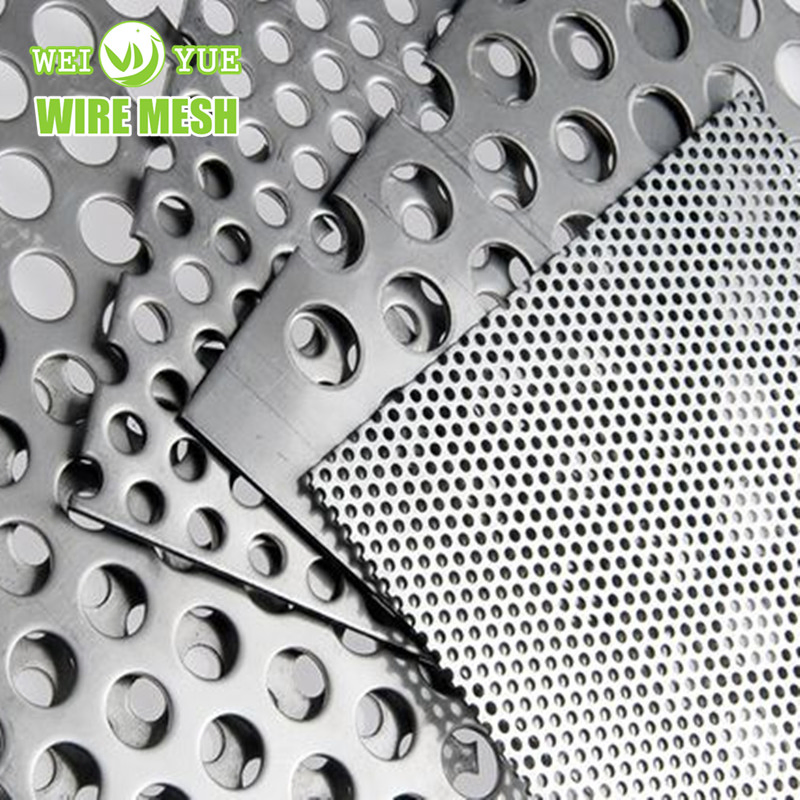

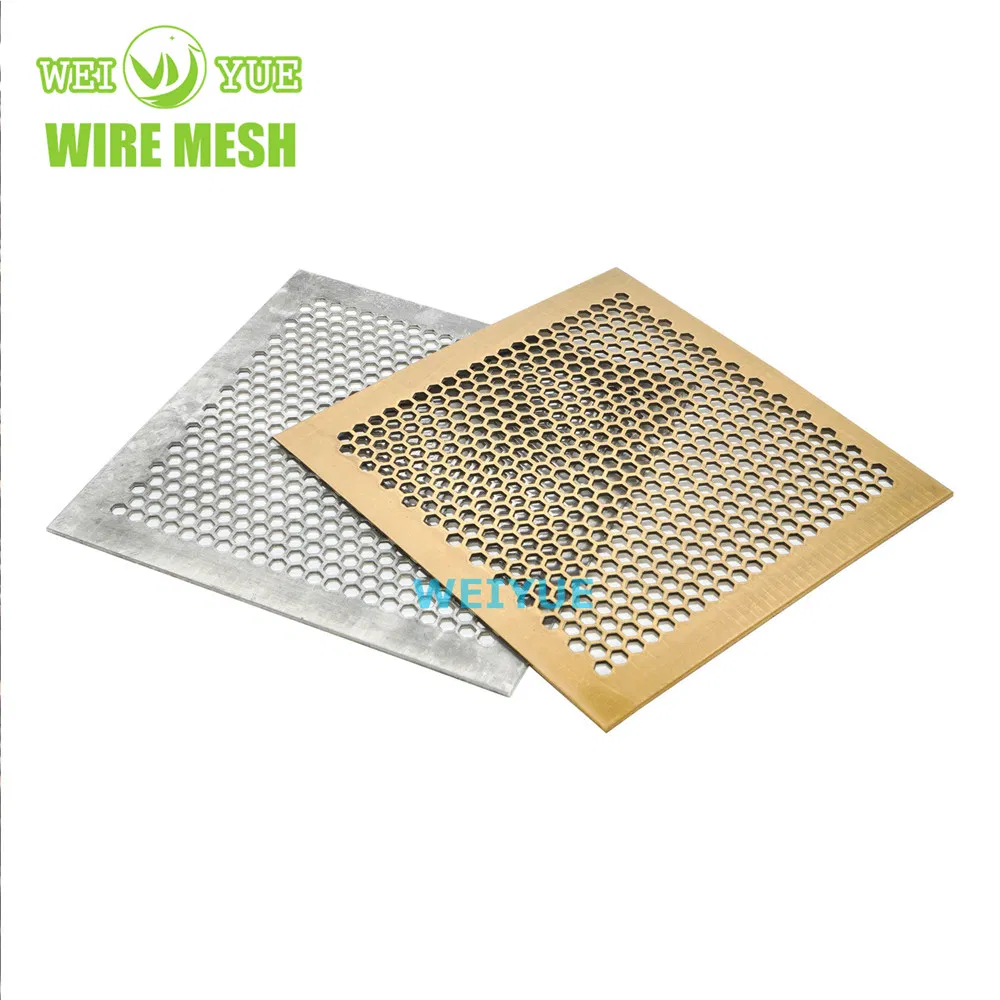

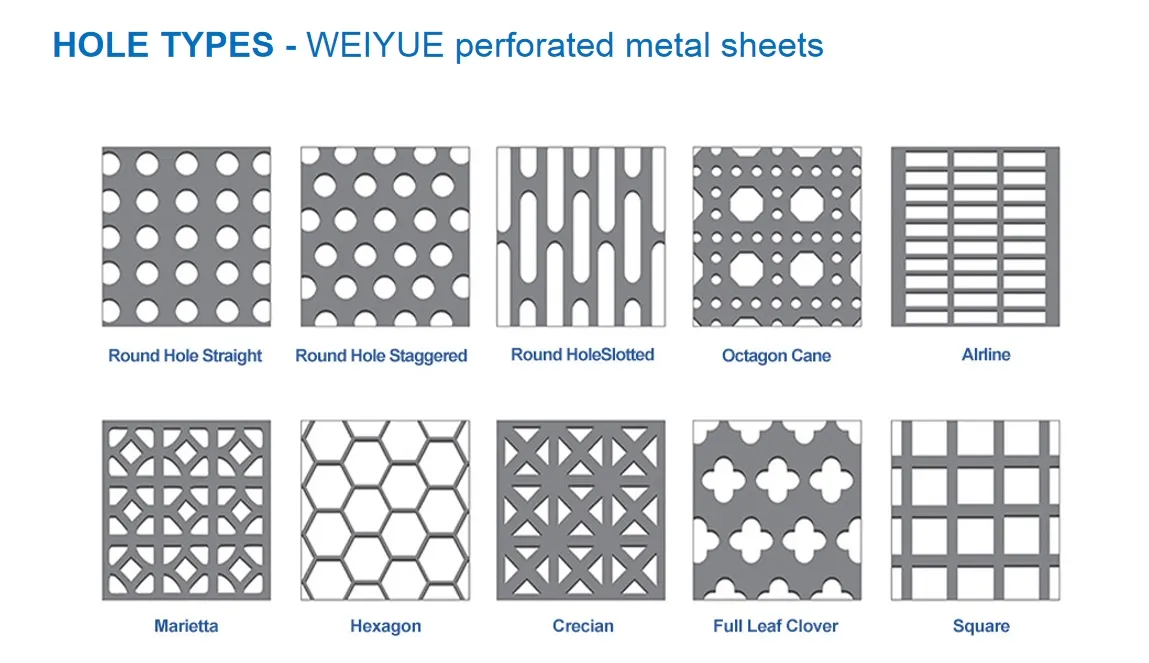

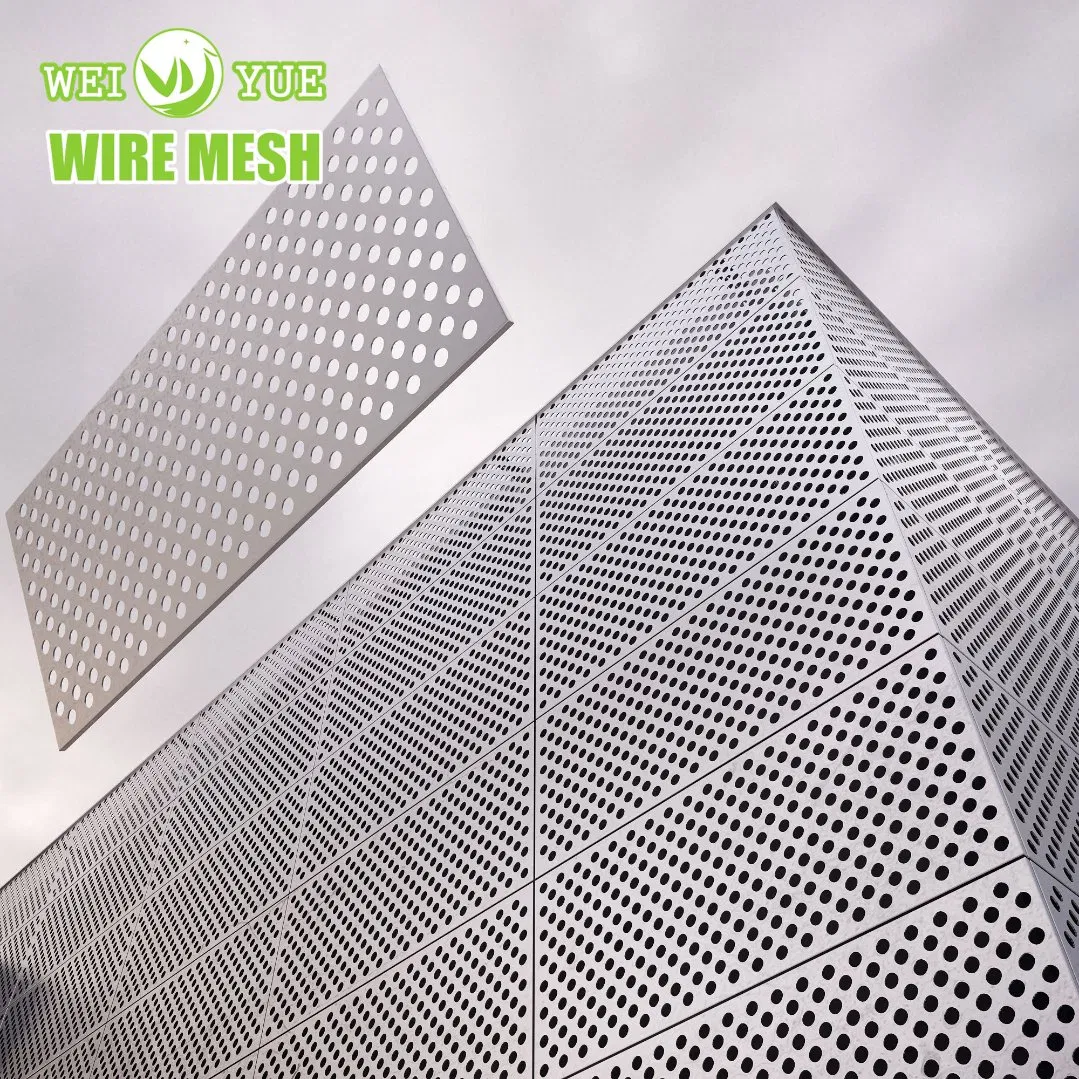

Perforated sheet is a metal sheet that's punched or cut to produce a pattern of holes, slots, or shapes for practical or aesthetic purposes. It's also known as "perforated metal." This type of metal sheet includes decorative hole patterns such as circles, squares, triangles, diamonds, hexes, slots, bars, and more. By combining shapes, it is possible to create complex architectural designs.

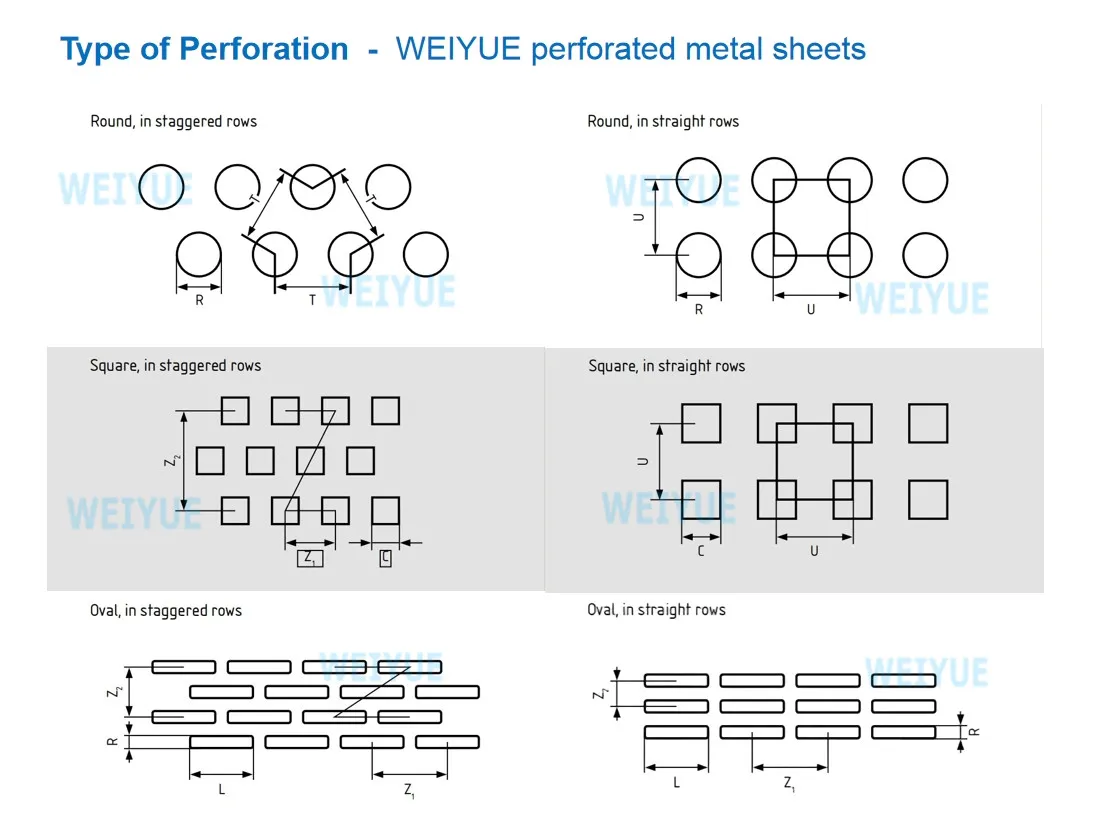

| Arrangement Mode | Straight row, staggered |
|---|---|
| Margins | Finished end Pattern, Unfinished end Pattern, No Margin |
| Sheet Size | 1m*2m, 1.22m*2.44m, 1.5m*3m (Customized sizes available) |
| Note | Perforations must be the same or larger in size than the material thickness. |
| Raw Materials | Thickness (mm) | Hole Size (mm) | Pitch (mm) |
|---|---|---|---|
| Carbon steel plate | 0.5 - 10 | 0.8 - 20 | 1 - 20 |
| Galvanized steel plate | 0.5 - 10 | 0.8 - 20 | 1 - 20 |
| Aluminum plate | 0.3 - 5.0 | 1 - 20 | 1 - 20 |
| Stainless steel | 0.5 - 5.0 | 1 - 20 | 1 - 20 |
We provide a range of thicknesses and surface treatments to suit your project design needs:

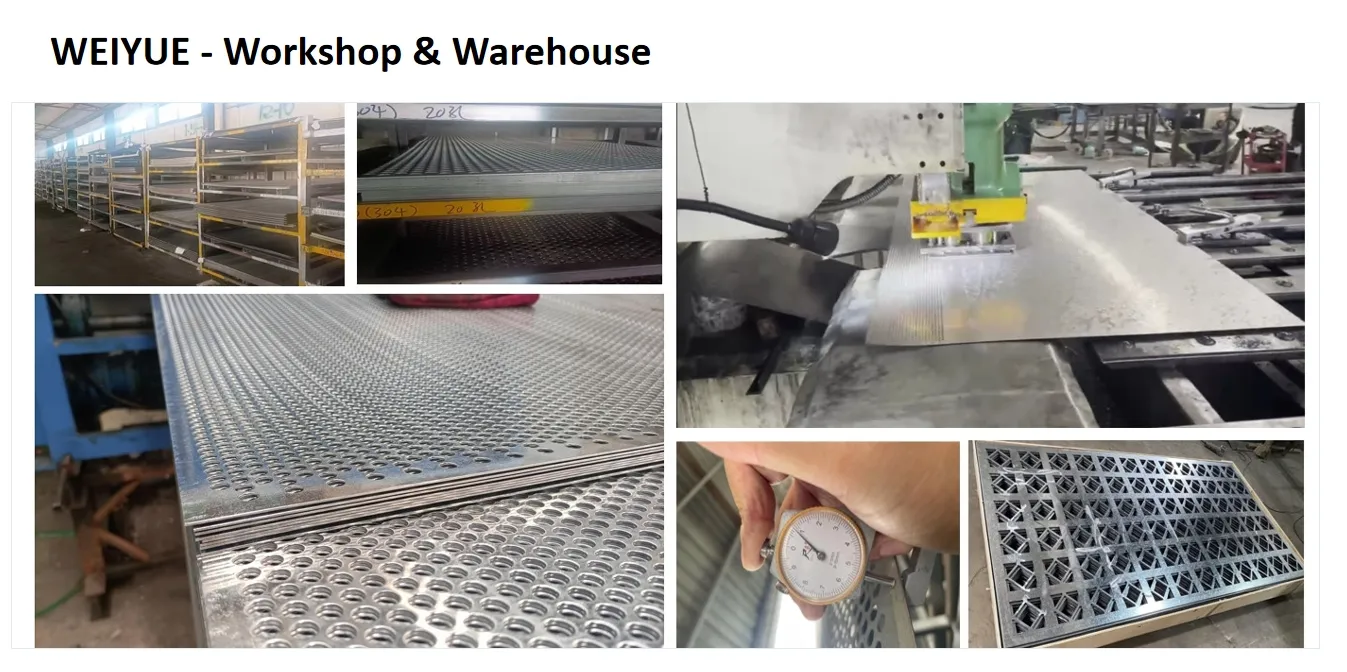

Advanced CNC Precision: Delivering high-quality perforated metal sheets with unmatched precision for diverse applications in architecture, acoustics, and industry.

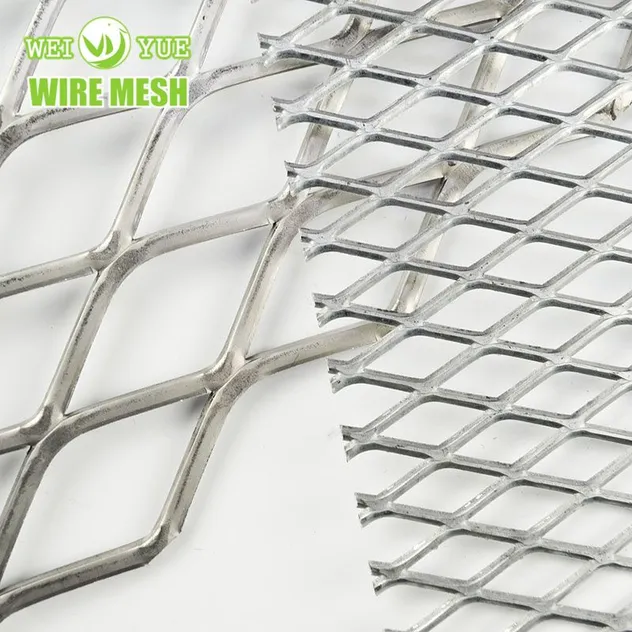

Expanded Metal Mesh
Etched Mesh

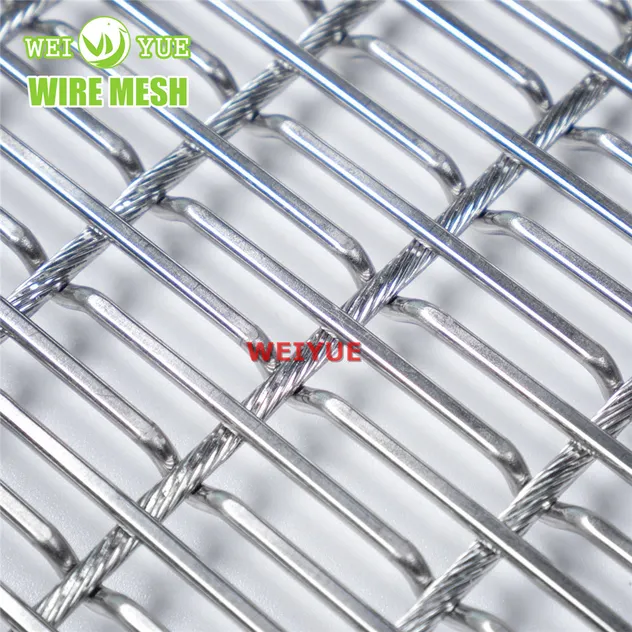

Decorative Mesh
