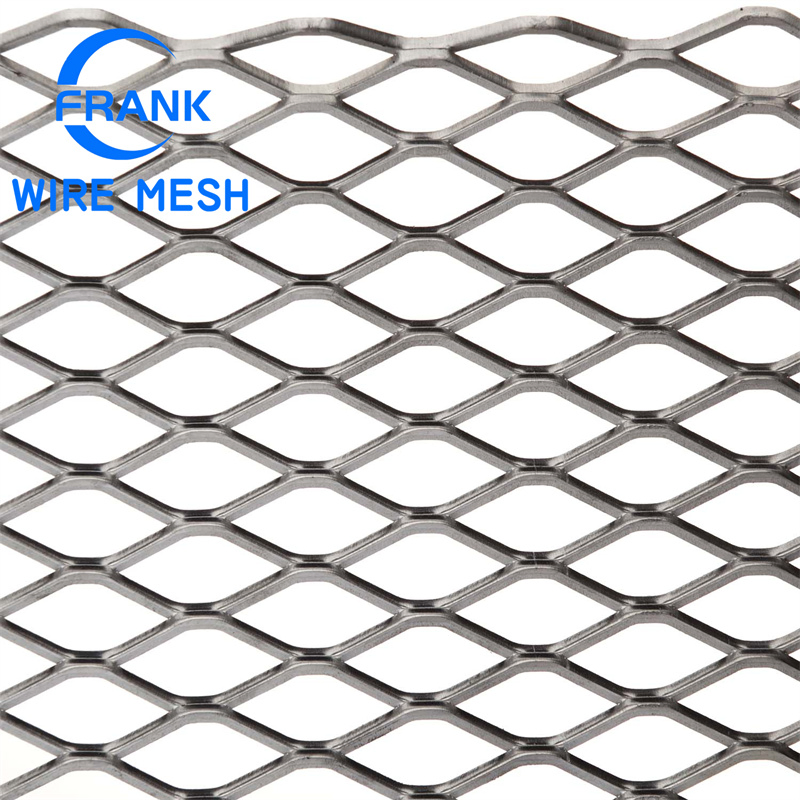

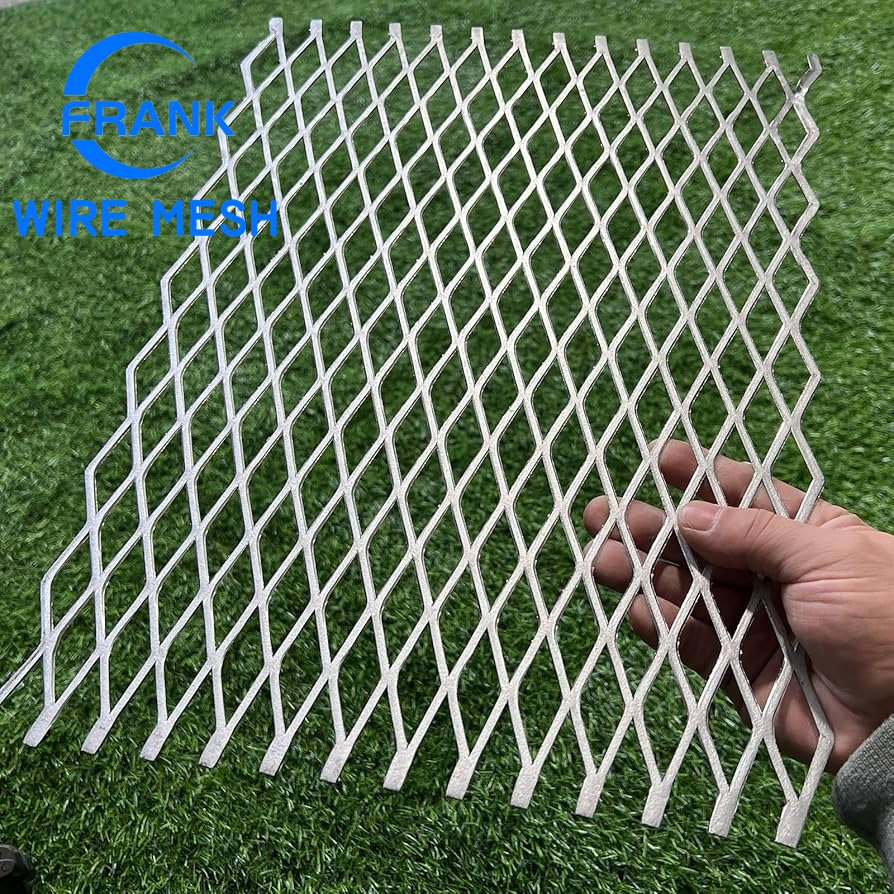

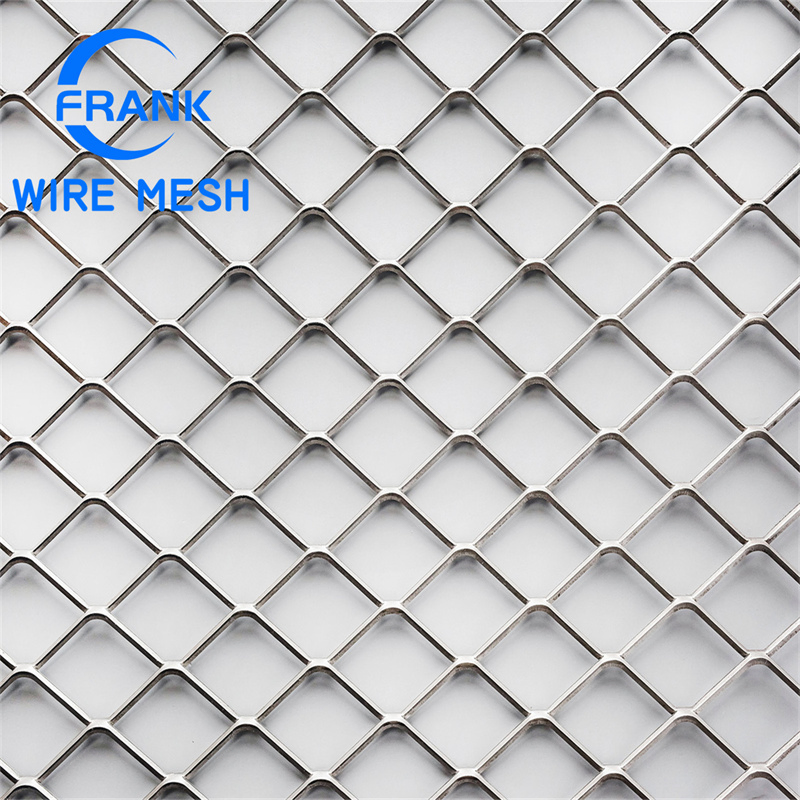

Expanded Metal Mesh is made by slitting and stretching metal sheets to create diamond-shaped openings. This practical and versatile product line forms screens, window security panels, machine guards, and more.

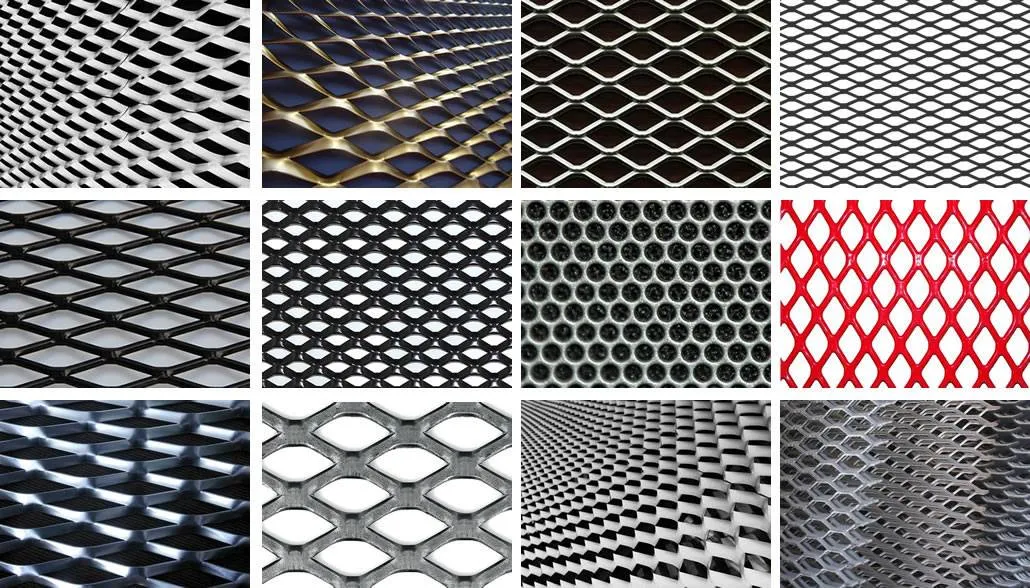

Made from a variety of materials such as black iron, aluminum (anodized or mill finish), brass, copper, stainless steel, and galvanized steel. Available in Standard (Raised) diamond pattern or Flattened variety.

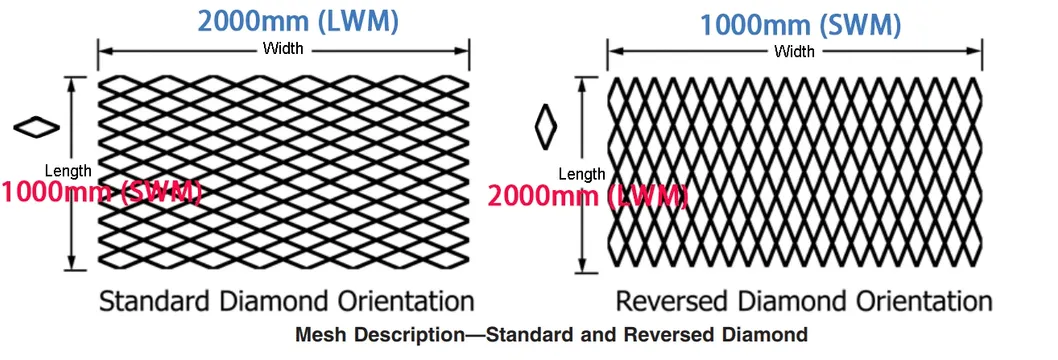

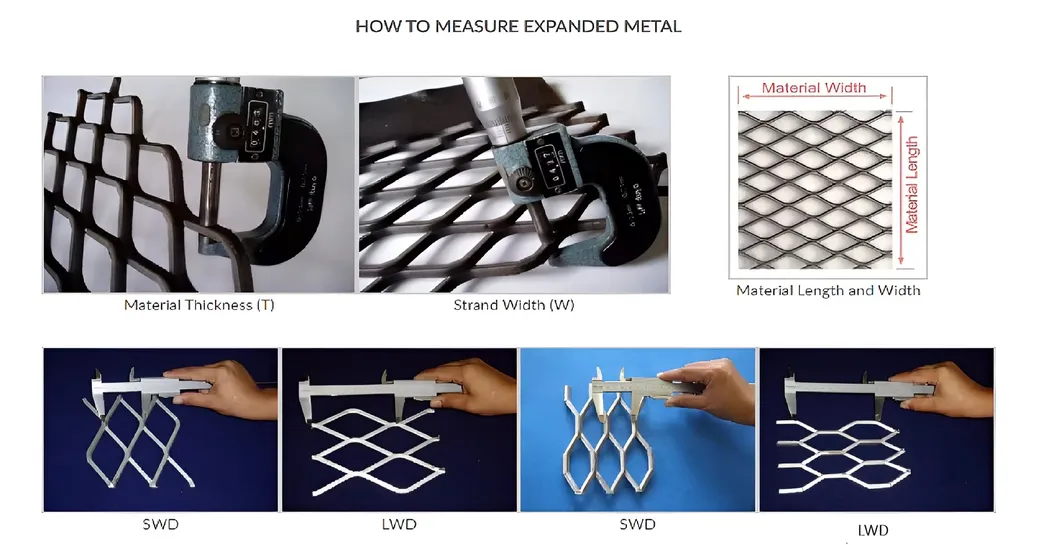

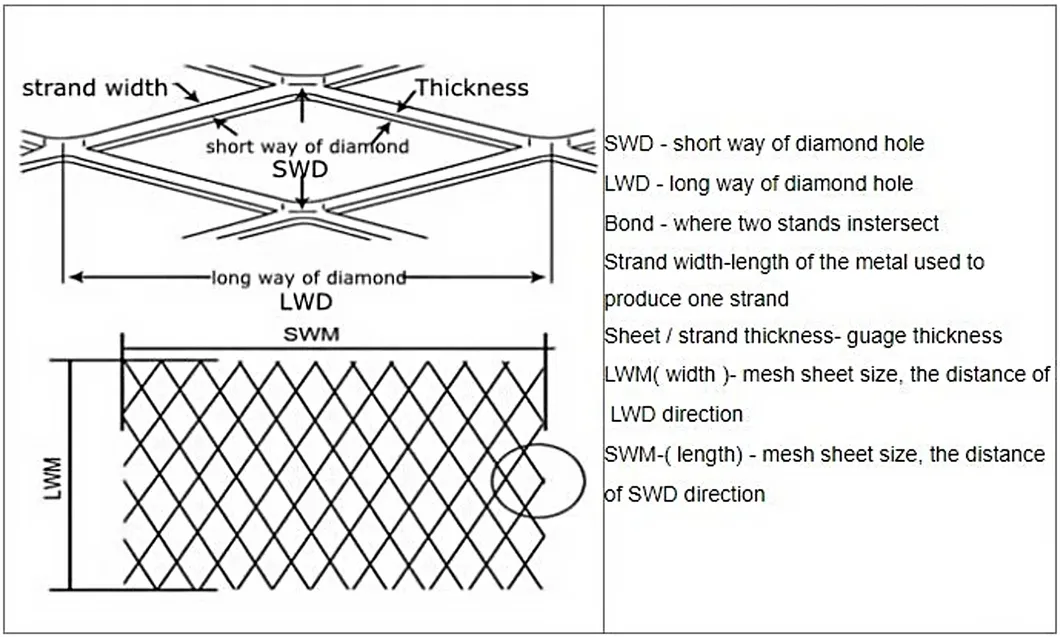

To provide an accurate price, we require the following parameters as shown in the diagram below:
| Thickness(mm) | SWD(mm) | LWD(mm) | Wire Width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
|---|---|---|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 3.0 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 5.0 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
Perforated metal is extremely durable and delivers long-lasting performance in challenging environmental conditions. It offers excellent sound abatement, size accuracy, and strong resistance against abrasion.

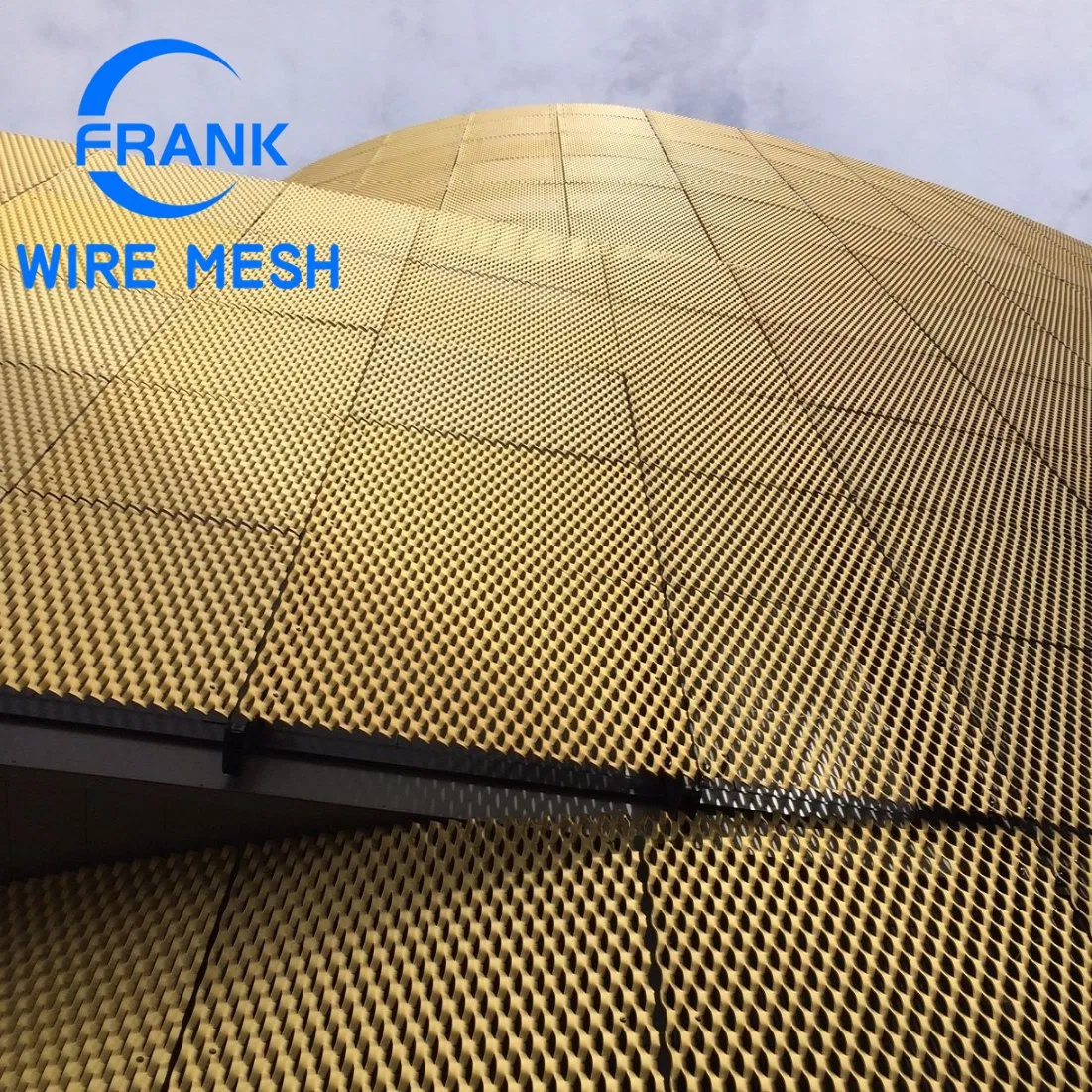

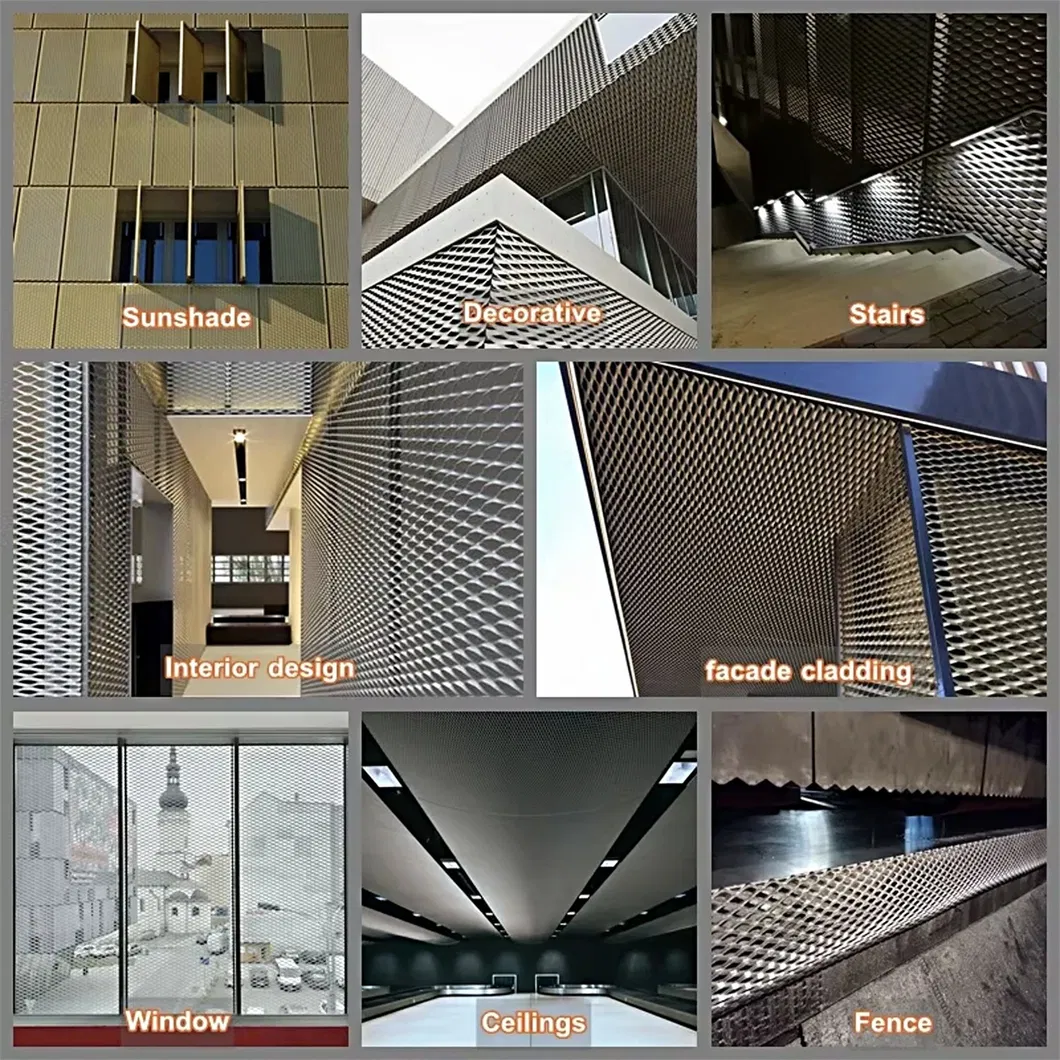

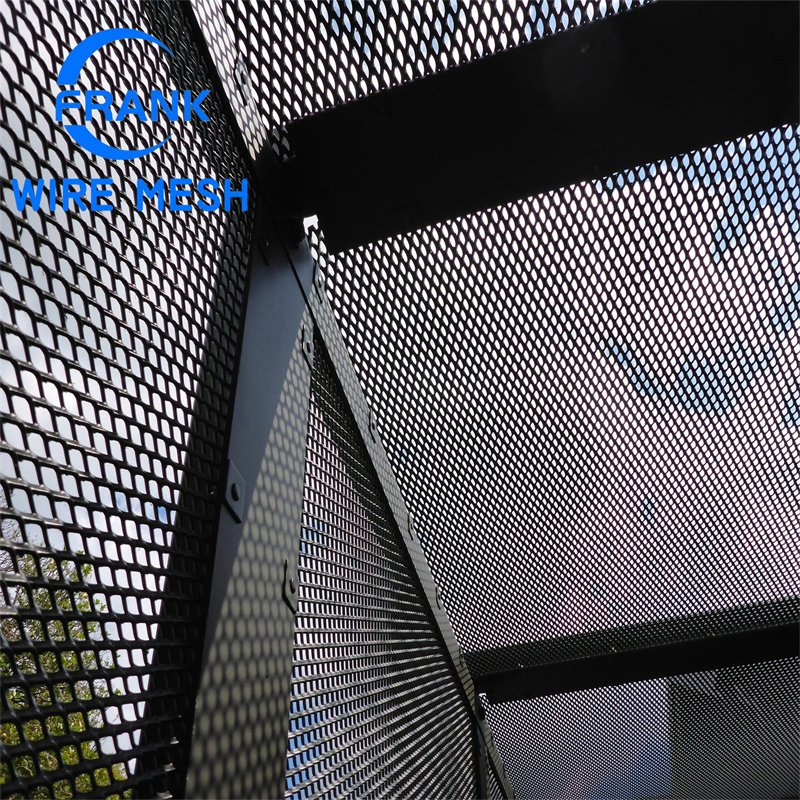

Applications range from civil engineering cement batching to mechanical equipment protection, handicraft manufacturing, and high-end speaker covers. It is also used in stadium fences, highway guardrails, and road green belt protection.
Heavy series are used for tank truck foot nets, working platforms, walkways for heavy machinery, boilers, and shipbuilding. It also serves as steel reinforcement in building construction and bridges.
