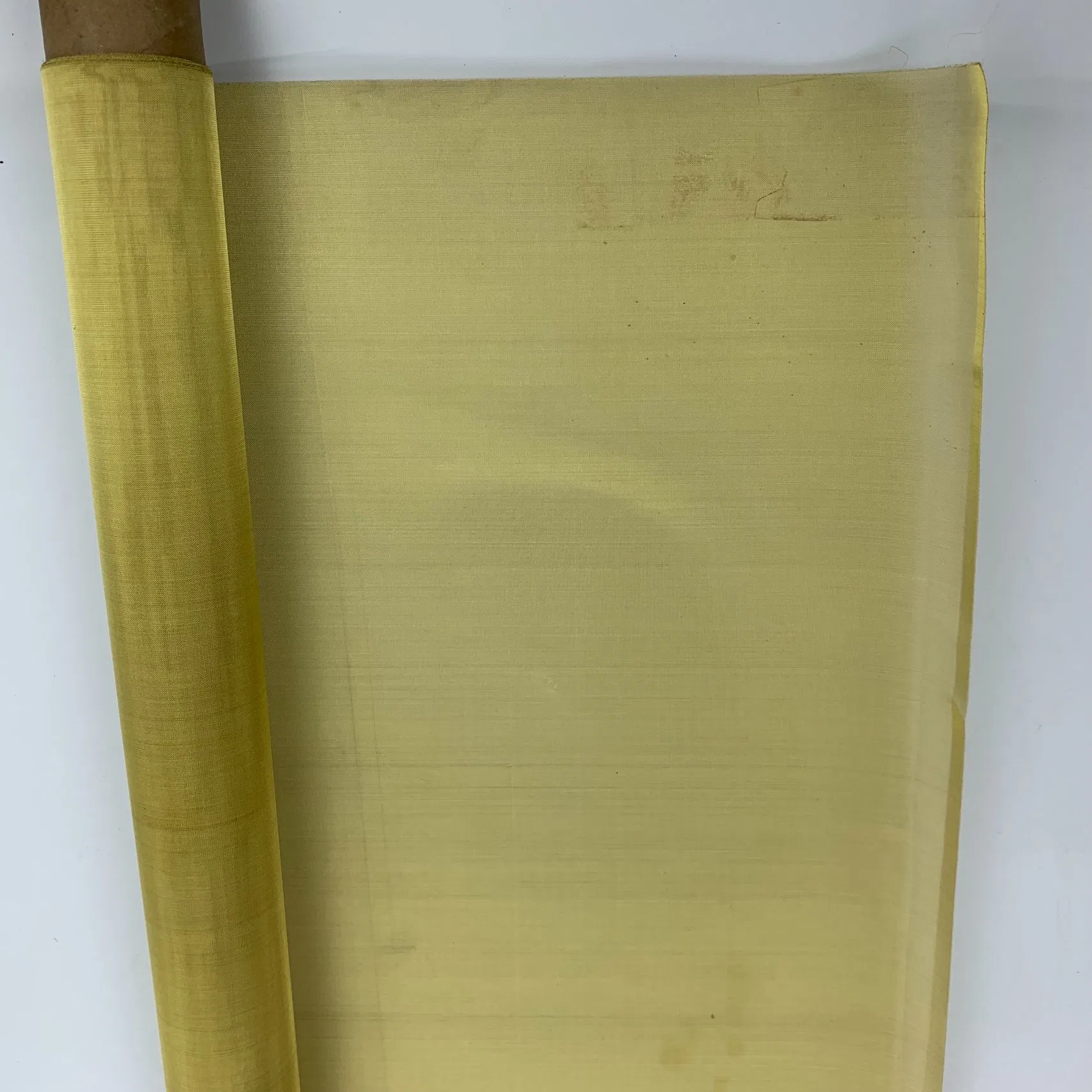

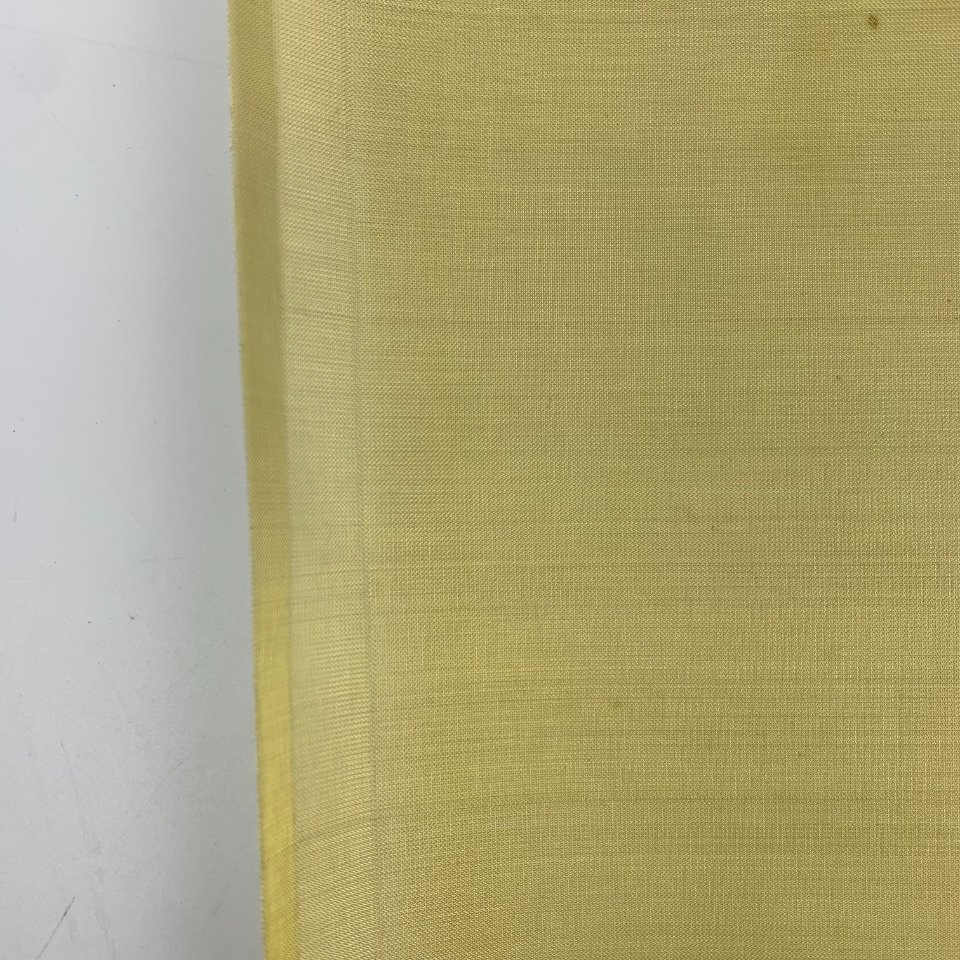

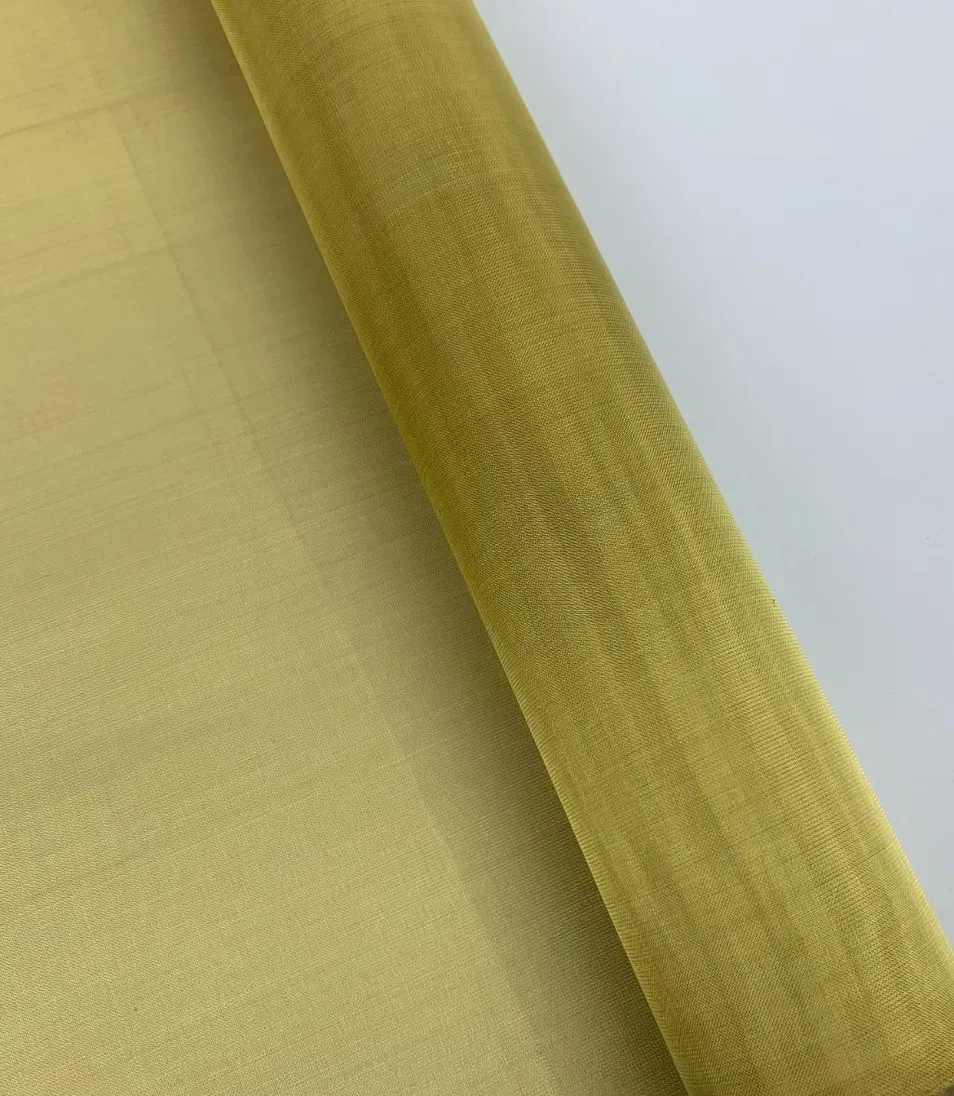

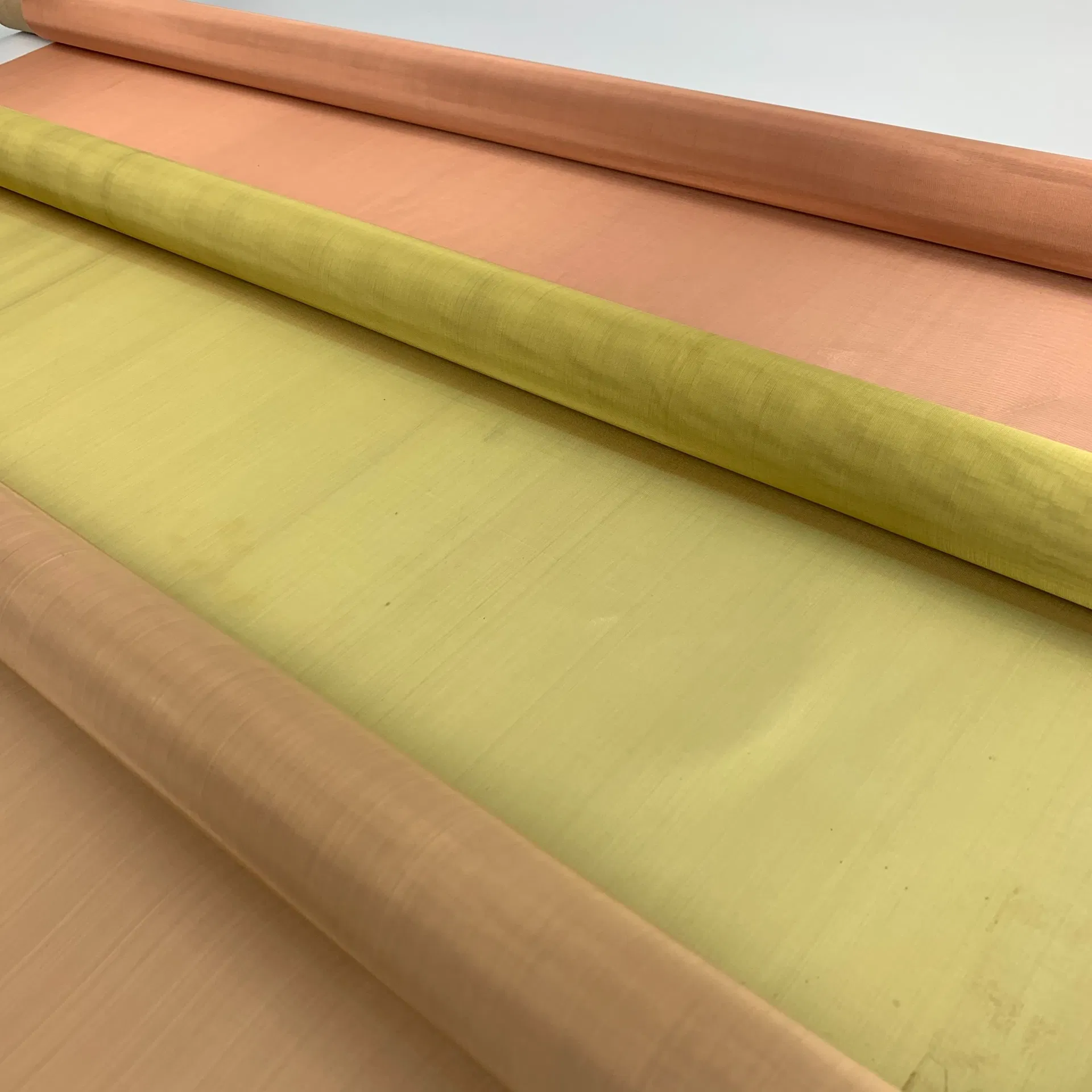

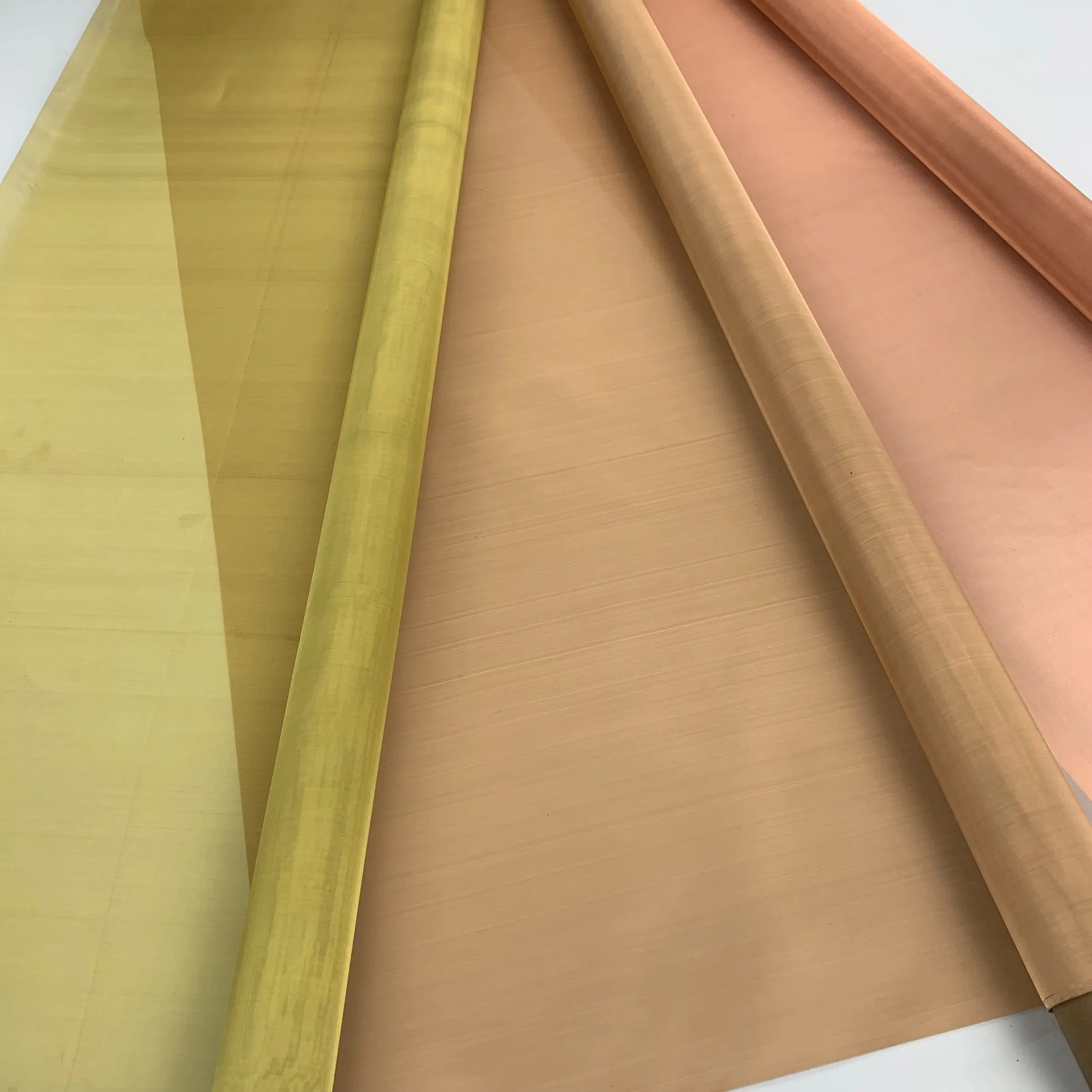

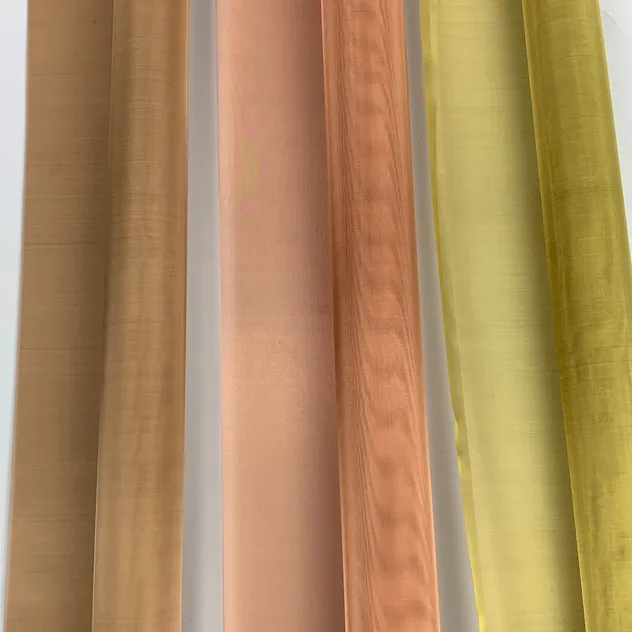

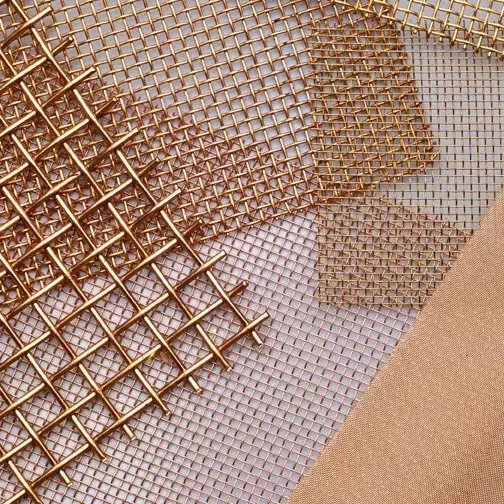

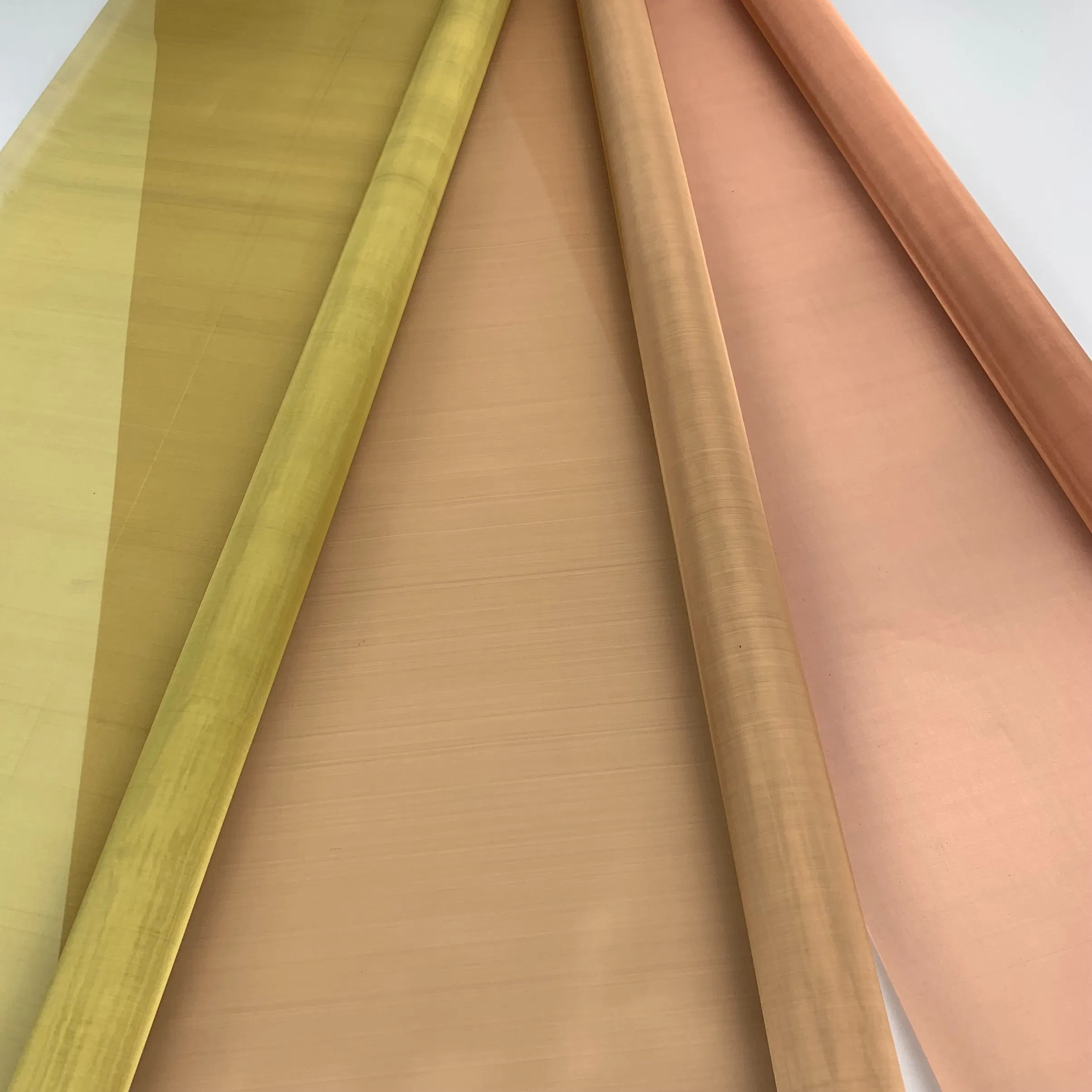

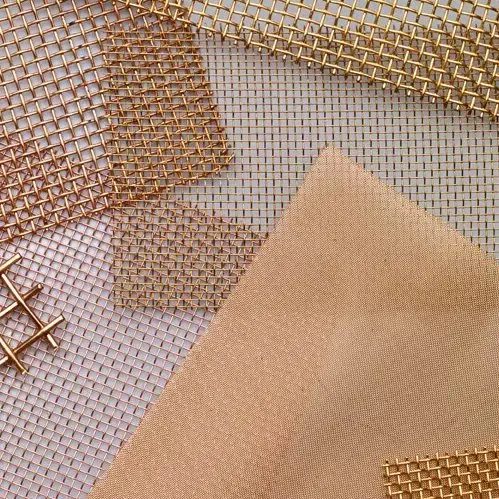

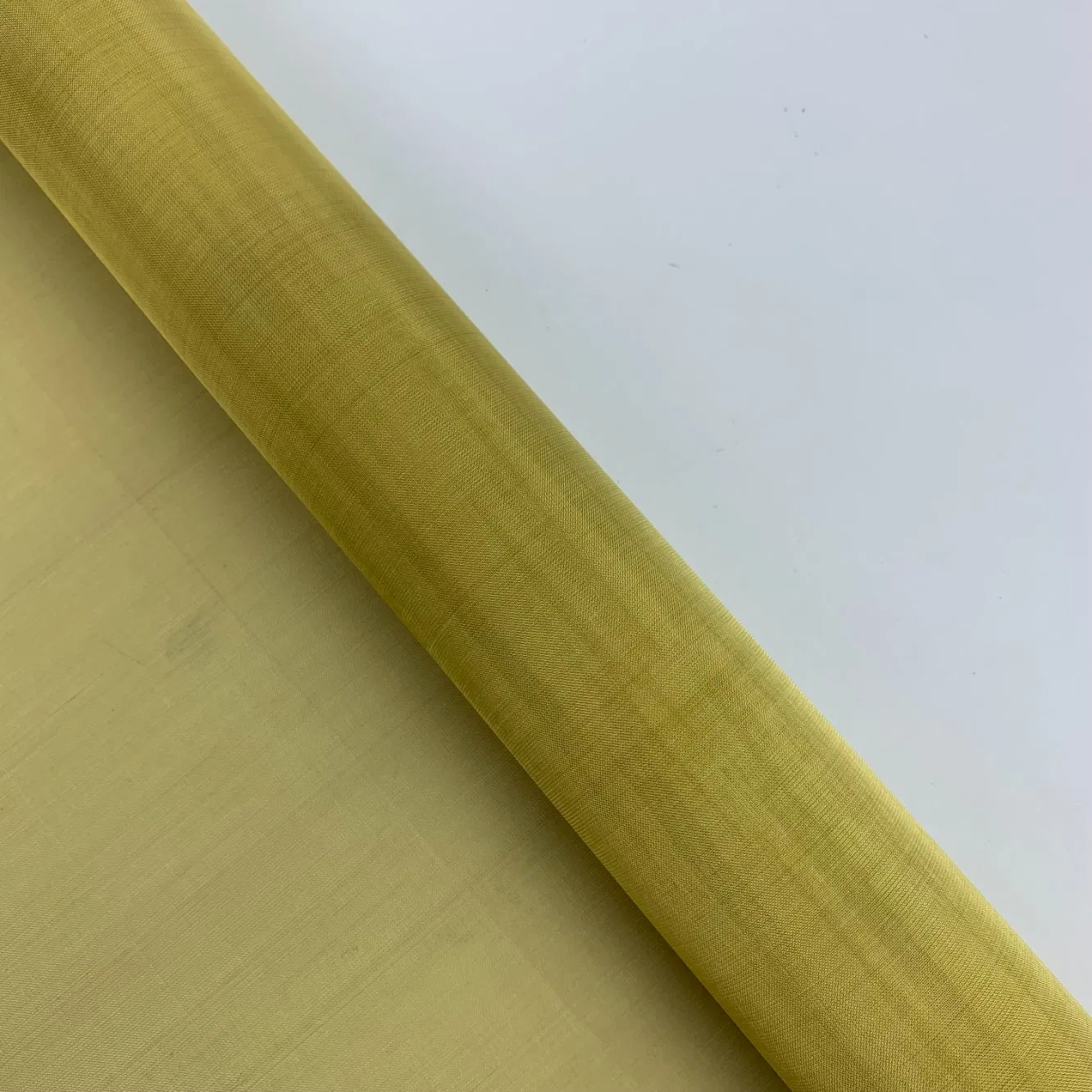

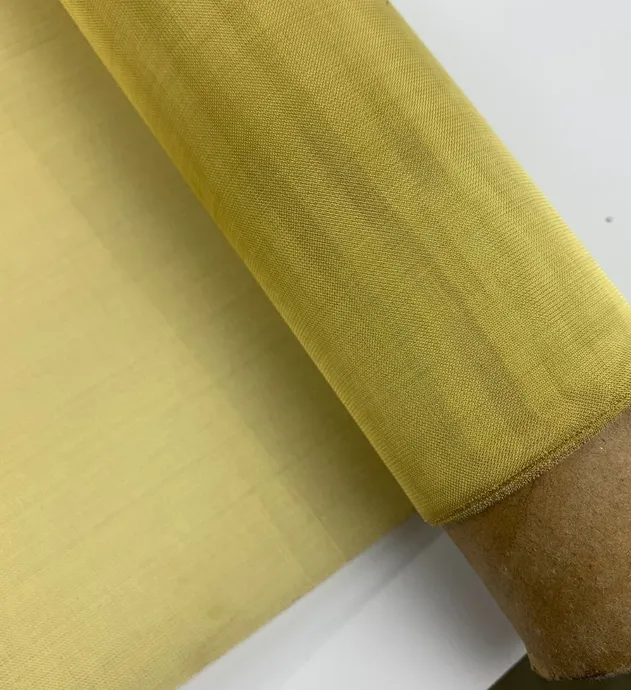

Brass wire mesh is a metal mesh material made from brass alloy wire (mainly copper-zinc alloy) woven together with warp and weft threads. The most common "270 brass" material contains approximately 65% copper and 35% zinc, a ratio that gives it a unique golden color. Its mesh openings are primarily uniform square or rectangular, and the weaving process is mature and stable, resulting in a flat, clean, and oil-free mesh surface with a consistent color. As a basic industrial material, it combines functionality, economy, and aesthetics.
The core specification of this product is defined by "mesh count," which is the number of warp threads per inch. Standard mesh counts range widely, from 1 to 200 mesh (custom sizes up to 300 mesh are available for special requirements). Mesh counts of 1-10 mesh are coarse, 12-40 mesh are medium, and high mesh counts can reach 200 mesh. Standard wire mesh widths are typically 0.914 meters, 1 meter, 1.2 meters, or even 1.6 meters.
| Mesh Count | SWG | Wire Dia (mm) | Wire Dia (inch) | Aperture (mm) |
|---|---|---|---|---|
| 6 | 22 | 0.711 | 0.028 | 3.522 |
| 8 | 23 | 0.610 | 0.024 | 2.565 |
| 10 | 25 | 0.508 | 0.020 | 2.032 |
| 20 | 30 | 0.315 | 0.0124 | 0.955 |
| 50 | 37 | 0.173 | 0.0068 | 0.335 |
| 100 | 42 | 0.012 | 0.004 | 0.152 |
| 200 | 47 | 0.051 | 0.002 | 0.076 |
Note: Copper wire mesh has the highest copper content among copper mesh products (99.9%). It is soft, malleable, and has high electrical and thermal conductivity, widely used for RFI shielding, Faraday cages, and HVAC applications.
• Express (FedEx, DHL, TNT, UPS) for urgent orders.
• Air Freight for medium fast delivery.
• Sea Freight for economical large orders.
• Railway/Truck for landlocked regions.

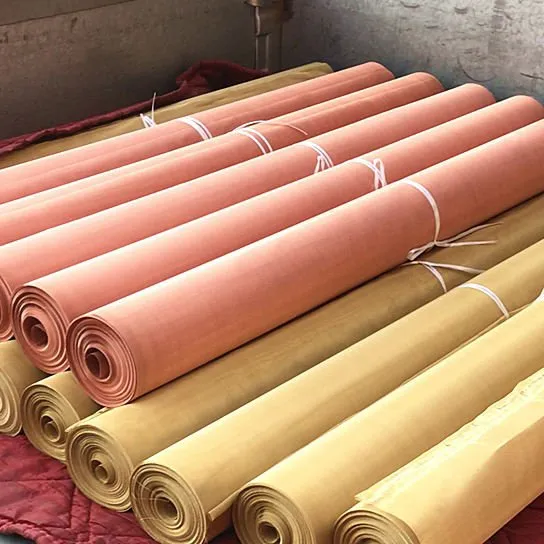

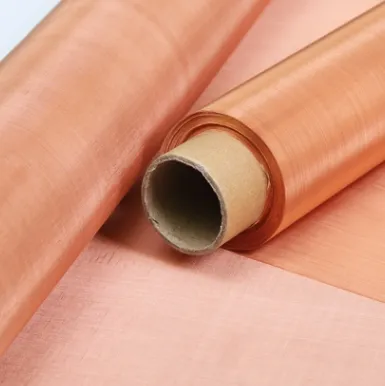

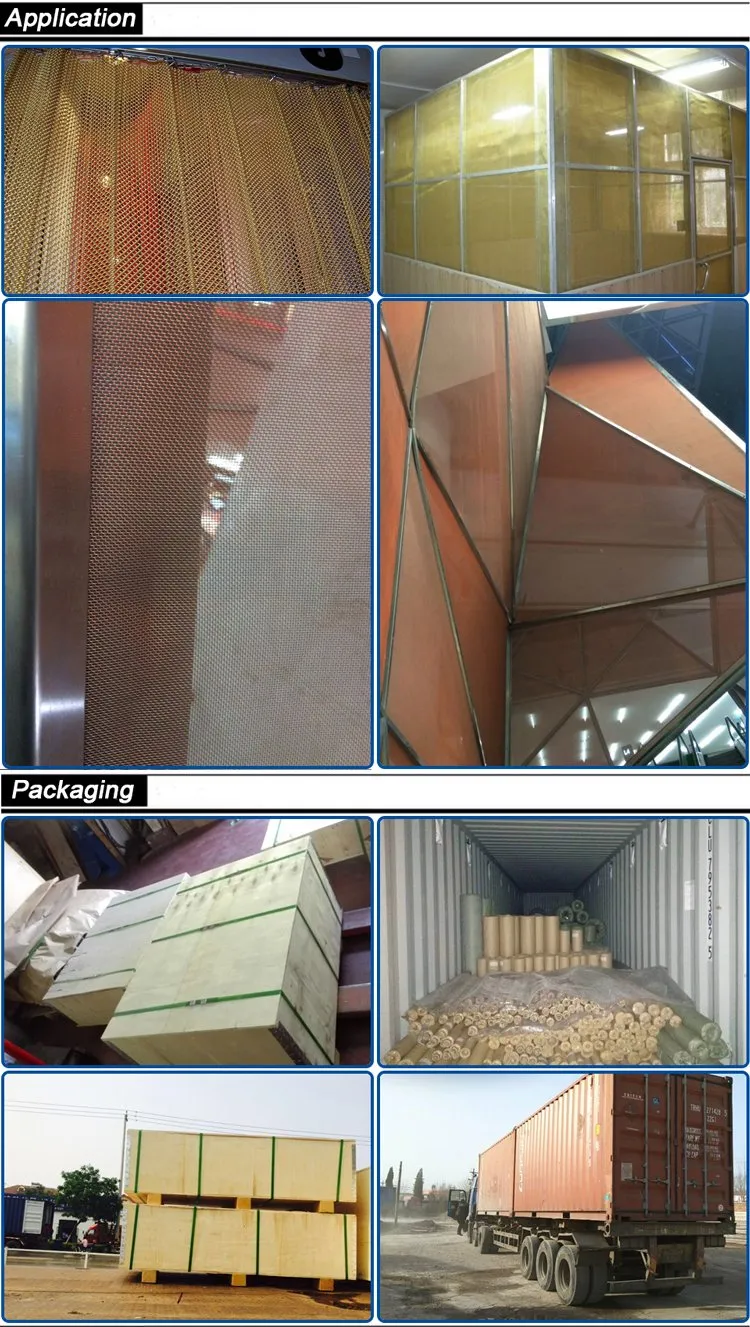

Wound around dry paper tubes, wrapped in moisture-proof paper, and secured in professional wooden boxes or pallets for international transit.
