Cbt65 Bto30 Bto-22 Roll Concertina Double Strand Razor Blade Barbed Wire

Basic Information

Model NO.

XHH-05

Material

Low-Carbon Iron Wire

Twist Method

Cross Razor

Application

Protecting Mesh

Finish

Hot Dipped Galvanized

Razor Barbed Type

Cross Razor

Wire Gauge

1.4mm~2.6mm

Barbed Distance

75mm~150mm

Barb Length

15mm-30mm

Coil Outside Diameter

450mm

Color

Silver/Green

Usage

Security Fence, Anti-Climb, Safety Fencing

Surface

Galvanized/PVC Coated

Feature

Anti-Corrosion

Technical Specification

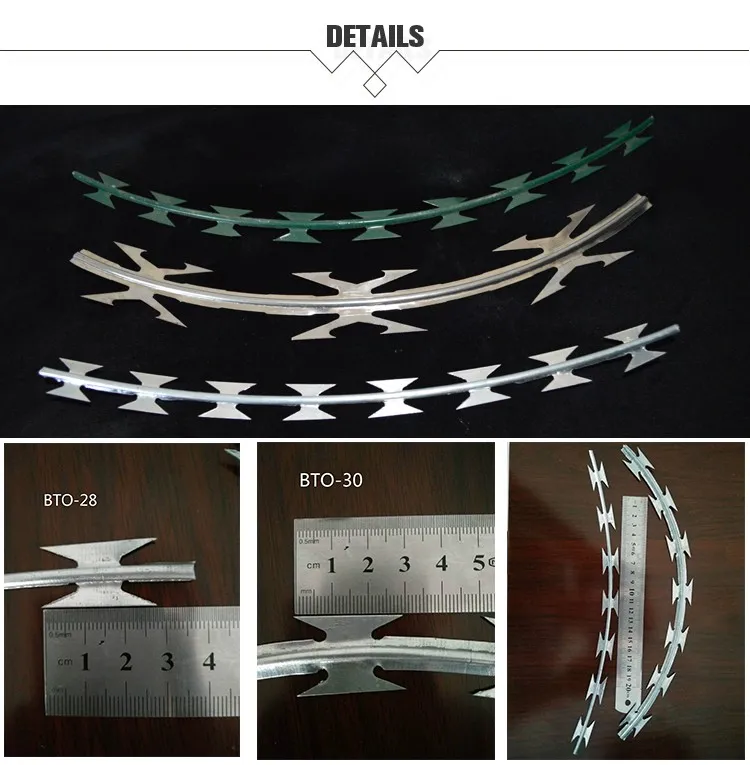

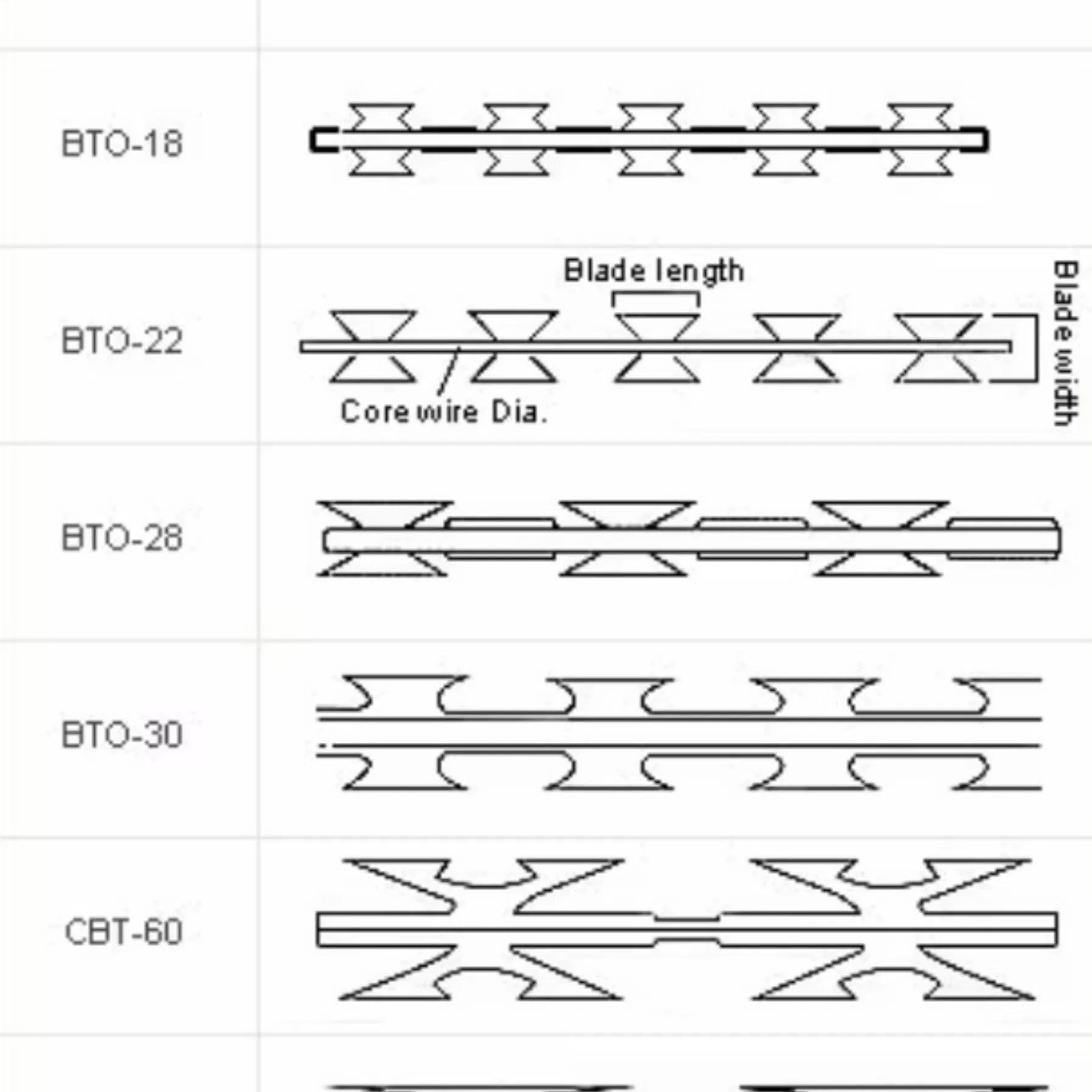

Reference Number	Razor Barbed Wire	Wire Dia. (mm)	Barb Length (mm)	Barb Width (mm)	Barb Spacing (mm)
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-15	0.5±0.05	2.5±0.1	15±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-30	0.5±0.05	2.5±0.1	30±1	18±1	45±1
CBT-25	0.5±0.05	2.5±0.1	25±1	16±1	40±1
CBT-60	0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65	0.6±0.05	2.5±0.1	65±2	21±1	100±2

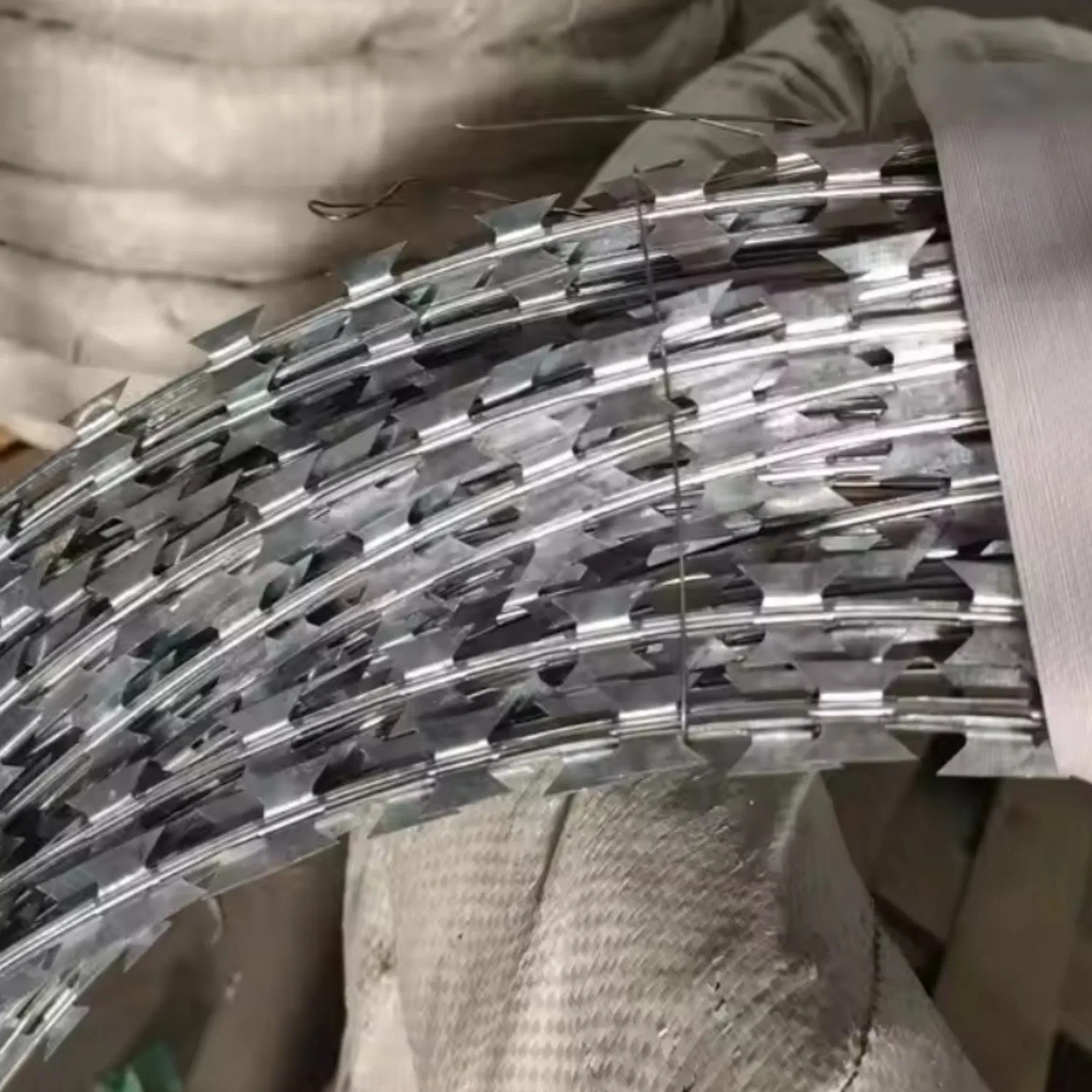

Product Display

Product Features & Applications

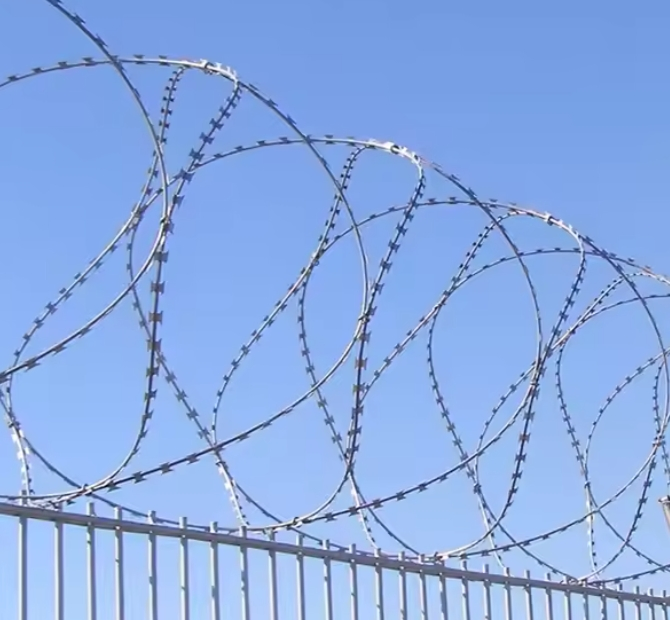

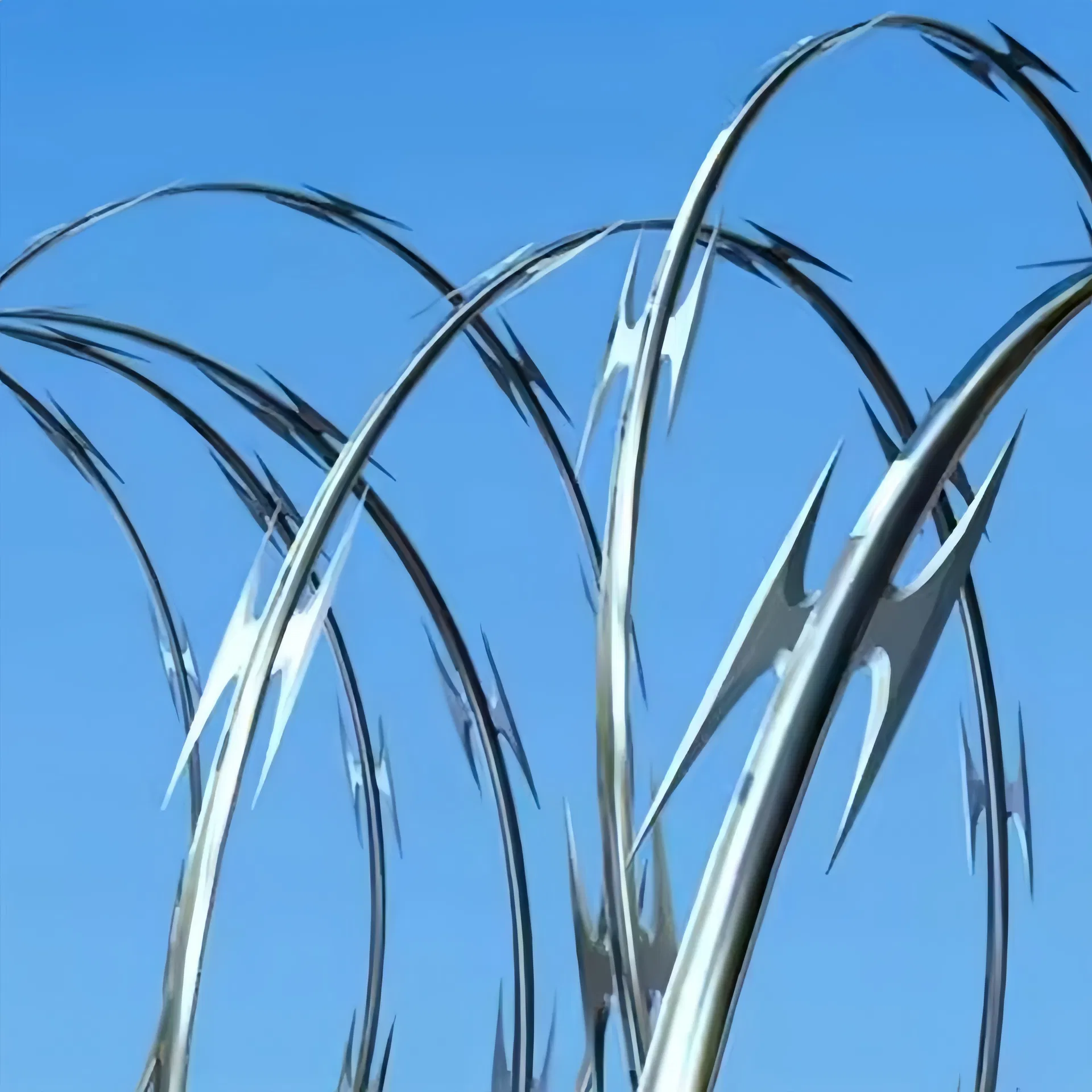

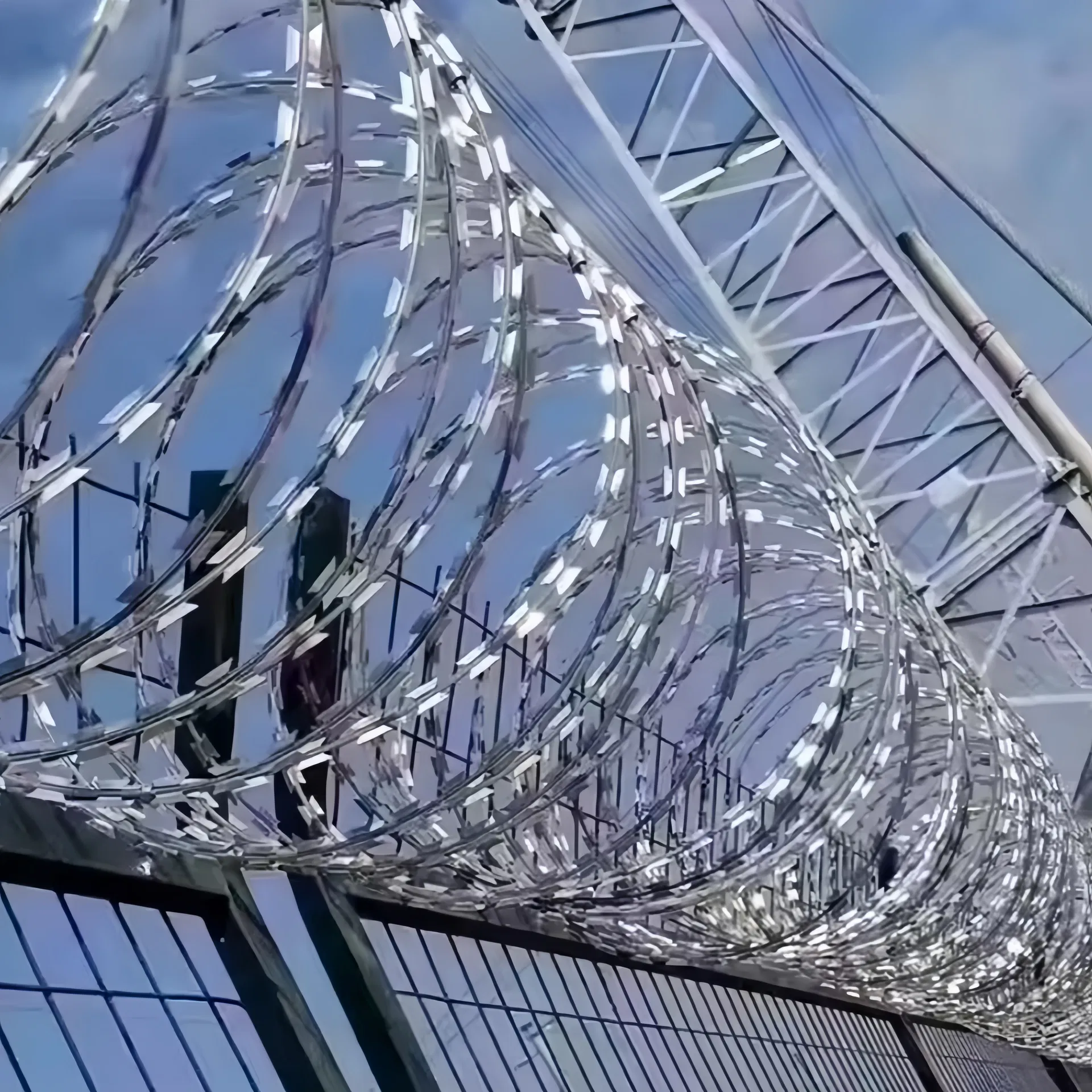

Razor wire fence, also known as concertina wire or razor barbed wire, is a modern security fencing material with sharp steel blades and high-tensile wire. It is designed to prevent intruders along perimeter barriers.

Material: High quality galvanized steel or stainless steel wire.

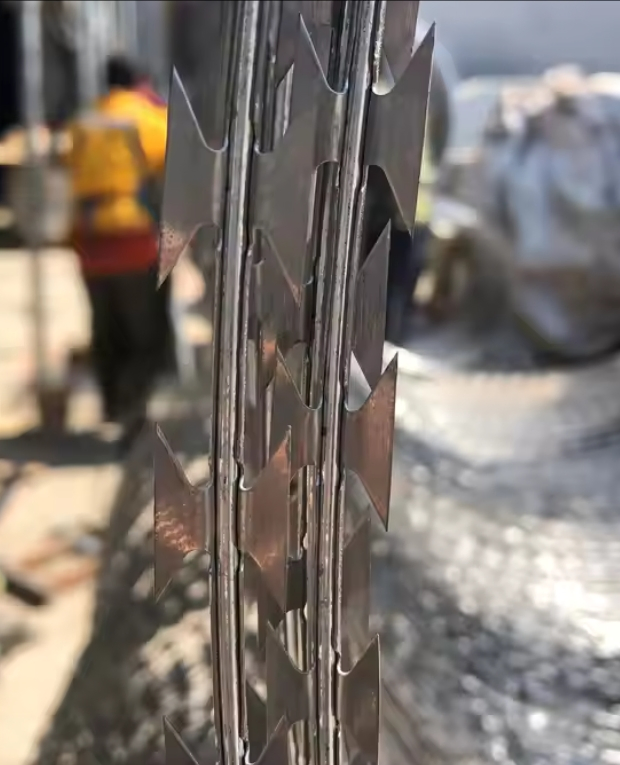

Design: Sharp blades stamped from steel plate, attached to core wire.
Types: Available in spiral, straight line, and crossed spiral types.
Durability: Anti-corrosion, anti-ageing, and anti-solarization.
Application: Ideal for prisons, detention houses, government buildings, residence walls, expressways, and national borders.

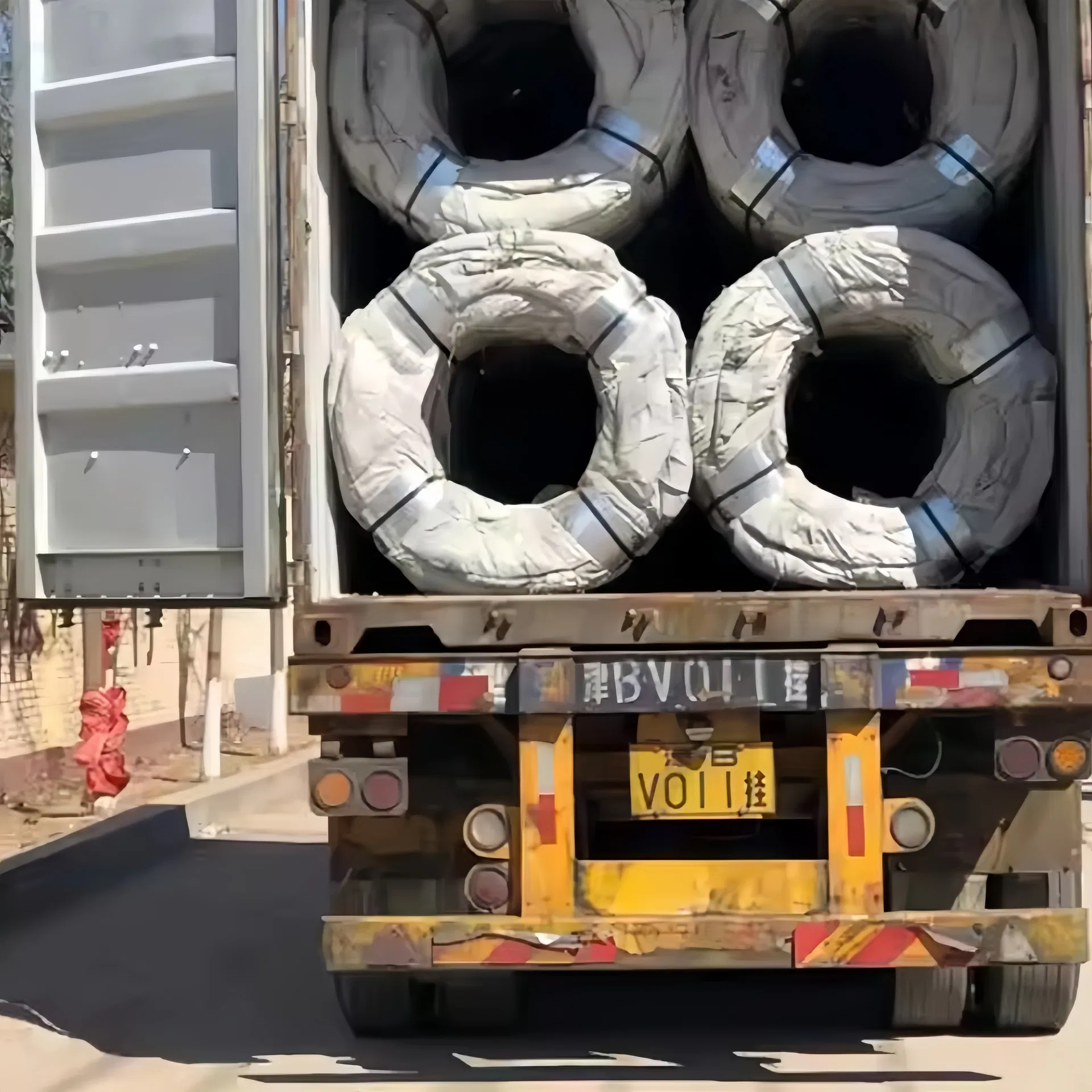

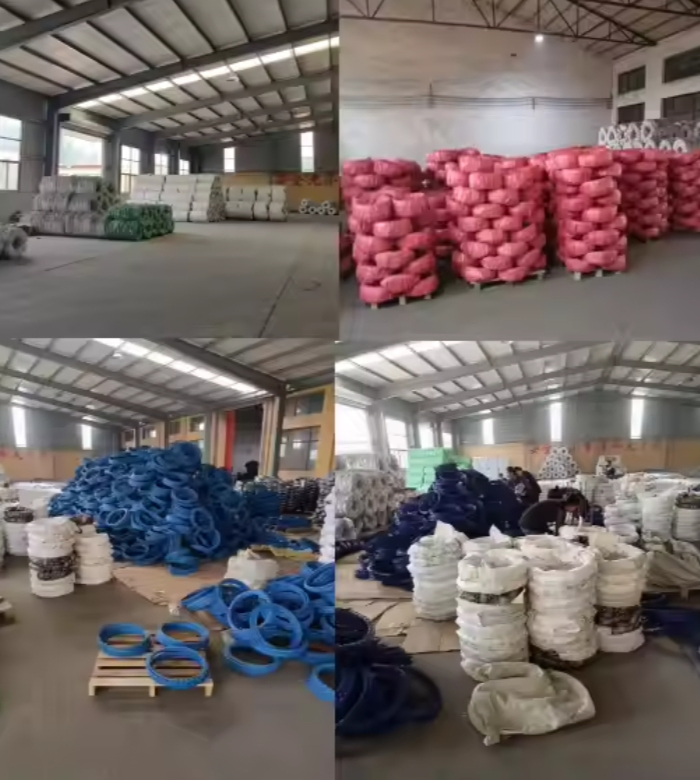

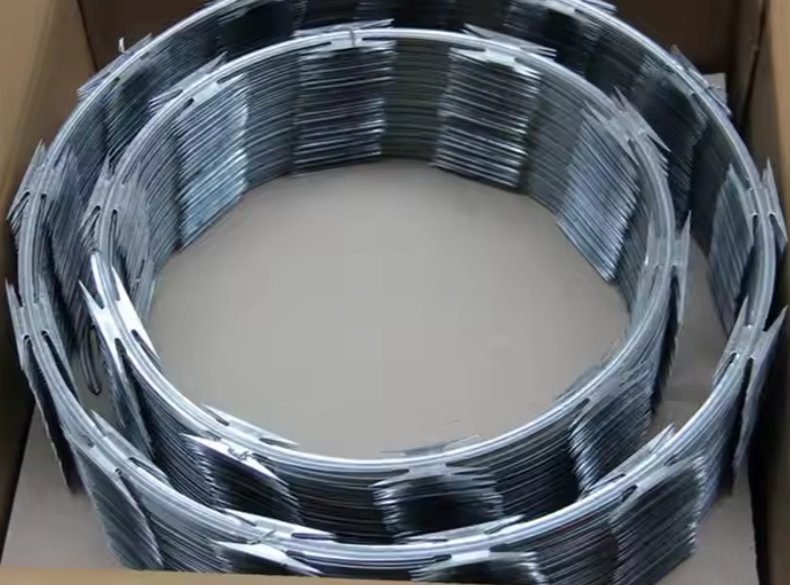

Packing & Delivery

Package Size

100cm * 100cm * 100cm

Gross Weight

1000.00kg

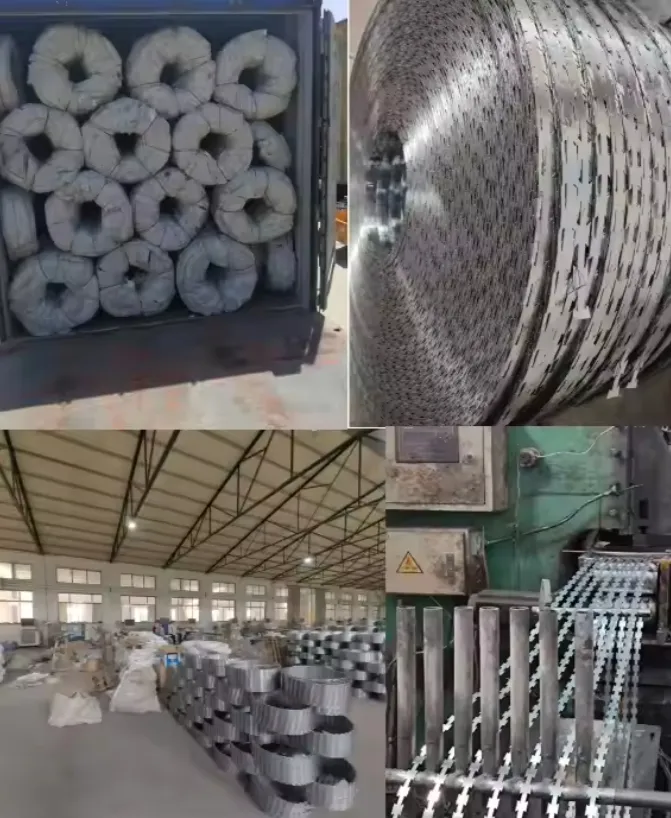

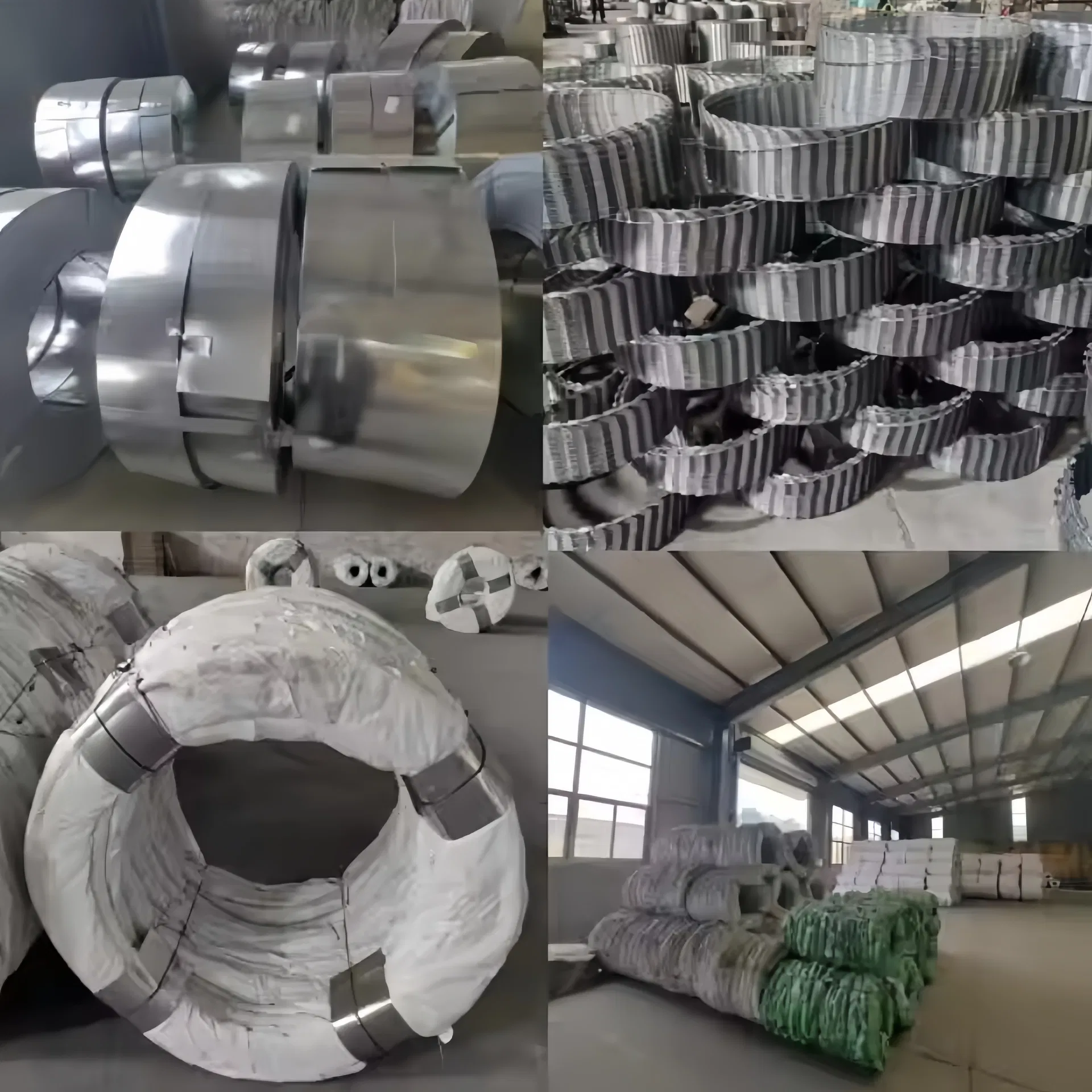

Production Process Video

Frequently Asked Questions

Q1: What materials are used for the razor wire?

A: We use high-quality low-carbon iron wire, hot-dipped galvanized steel, or stainless steel to ensure maximum durability and anti-corrosion properties.

Q2: Can the roll diameter be customized?

A: Yes, we offer standard diameters such as 450mm, 500mm, and 600mm, but we can also produce custom sizes according to your security requirements.

Q3: How do you ensure the quality of the product?

A: We conduct strict inspections at every stage, from sample production to mass production. Final checks are performed before loading to ensure weight and specification accuracy.

Q4: Is the razor wire easy to install?

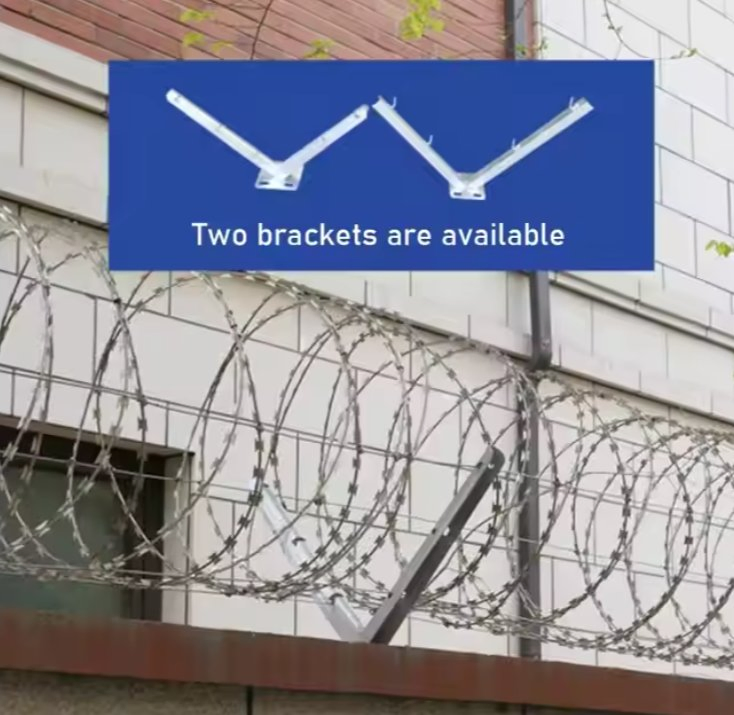

A: Yes, razor wire can be installed quickly on existing fences or walls using tie wires or clips. However, we recommend professional installation due to the sharpness of the blades.

Q5: What are the main advantages of using concertina razor wire?

A: It provides a high level of deterrence, has a professional appearance, is cost-effective, and offers long-lasting security protection for sensitive areas.

Q6: Do you provide after-sales support?

A: Absolutely. We monitor the entire logistics process and provide assistance if there are any issues with damaged goods or quantity discrepancies upon arrival.
