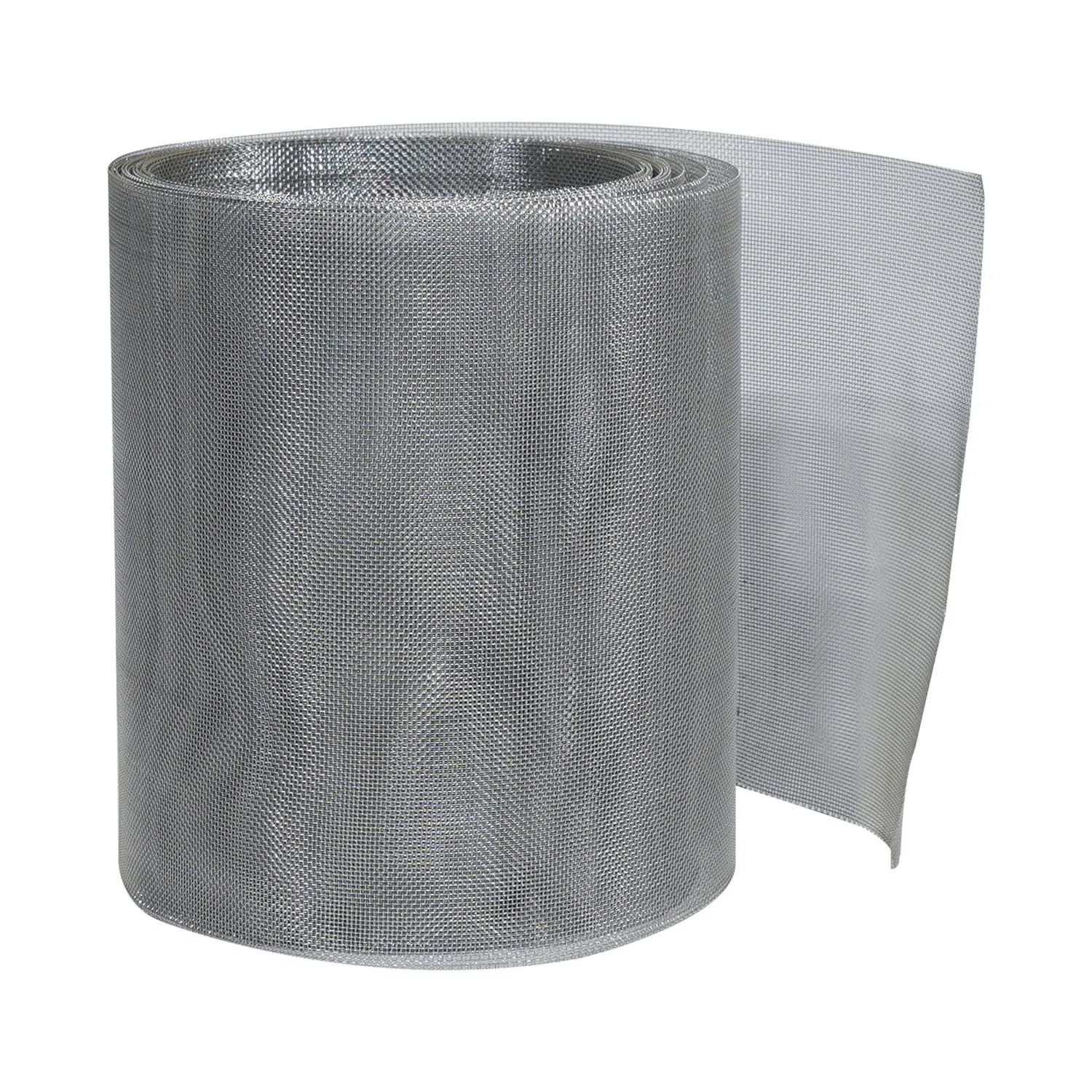

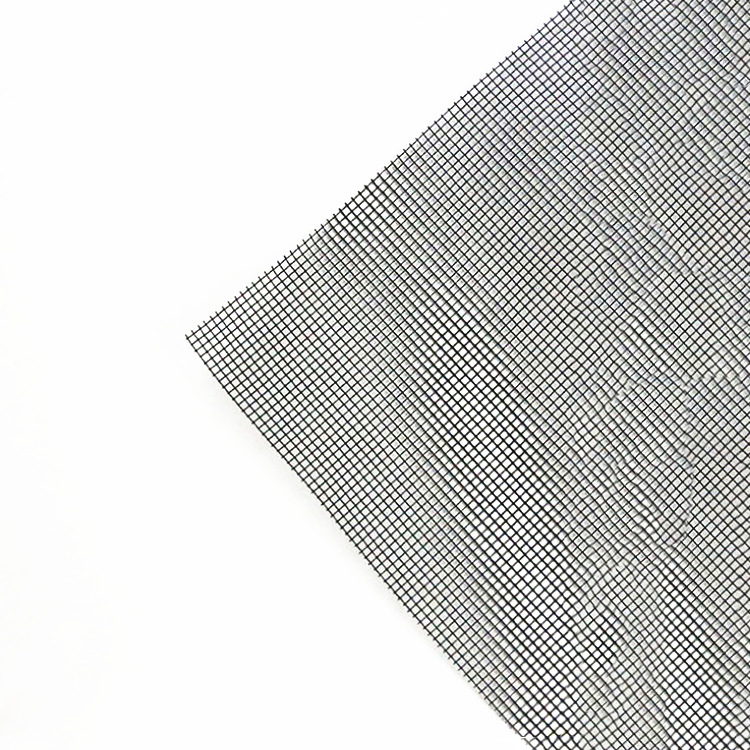

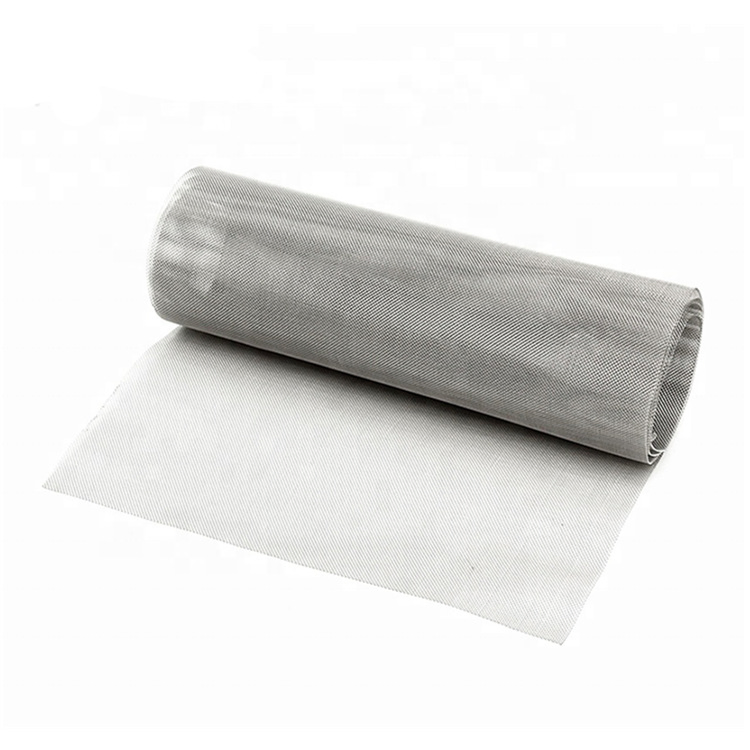

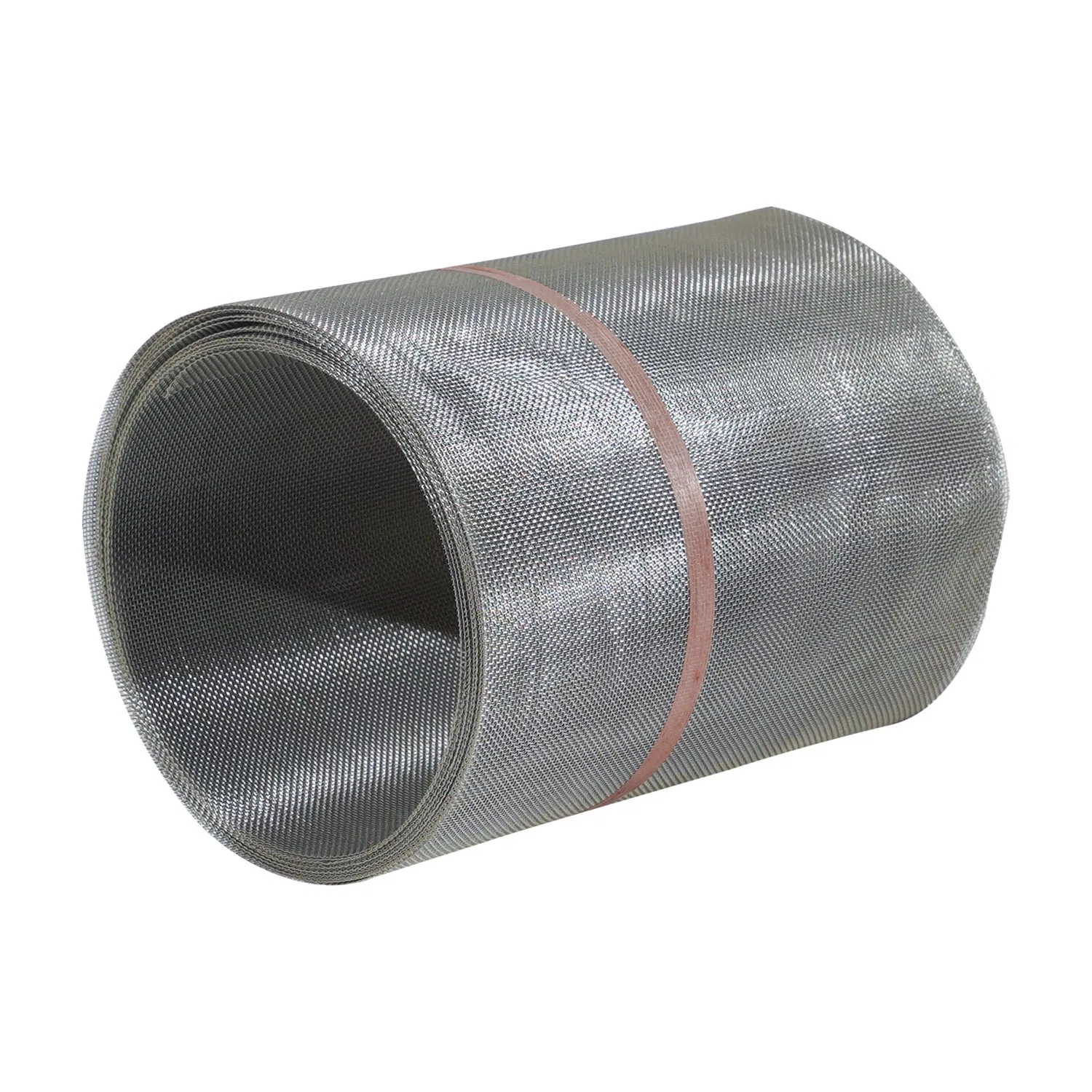

China Factory 201 304 316 Welded Stainless Steel Woven Filter Wire Mesh

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🟦 Basic Information

Model NO.

zxy-01

Material

SUS304

Hole Shape

Square

Application

Filter, Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Barbecue Wire Mesh, Window Curtain, Cages

Type

Stainless Steel Plain Wire Mesh

Weave Technique

Plain Weave

Width

Mesh Size

6-600 Mesh

Wire Diameter

0.035-2.03mm

Color

Silver

Certification

ISO9001

Origin

China

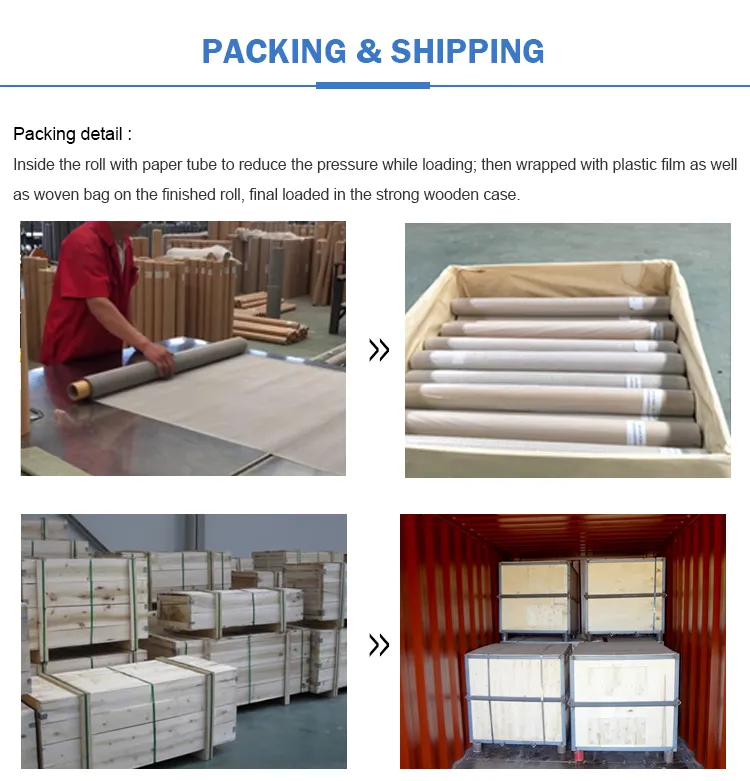

📦 Packaging & Delivery

Package Size

100.00cm * 80.00cm * 70.00cm

Gross Weight

10.000kg

Capacity

500,000 PCS Per Month

📄 Product Description

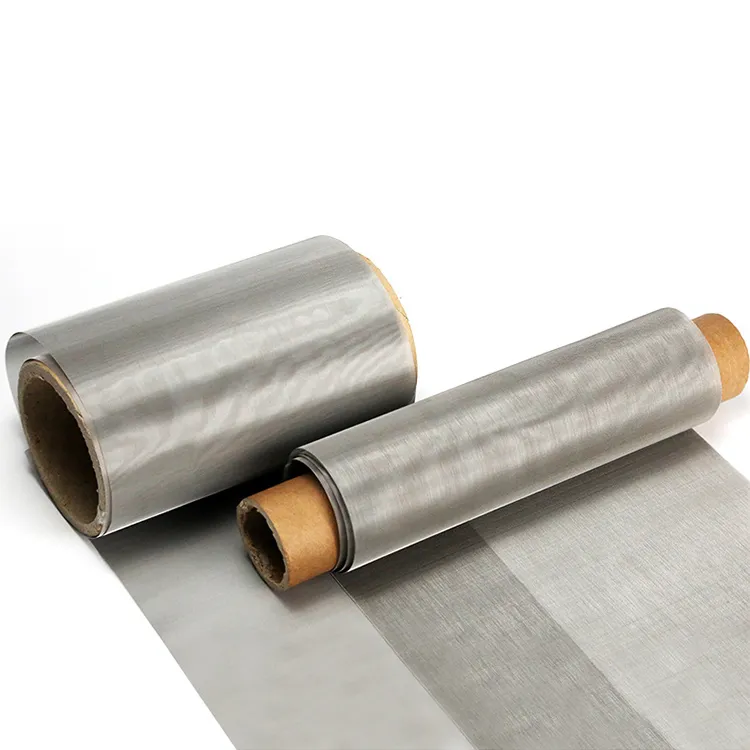

Stainless Steel Woven Filter Wire Mesh (201, 304, 316)

High-quality stainless steel woven wire mesh designed for industrial filtration, construction, and protective applications. Features excellent corrosion resistance and precise aperture sizing.

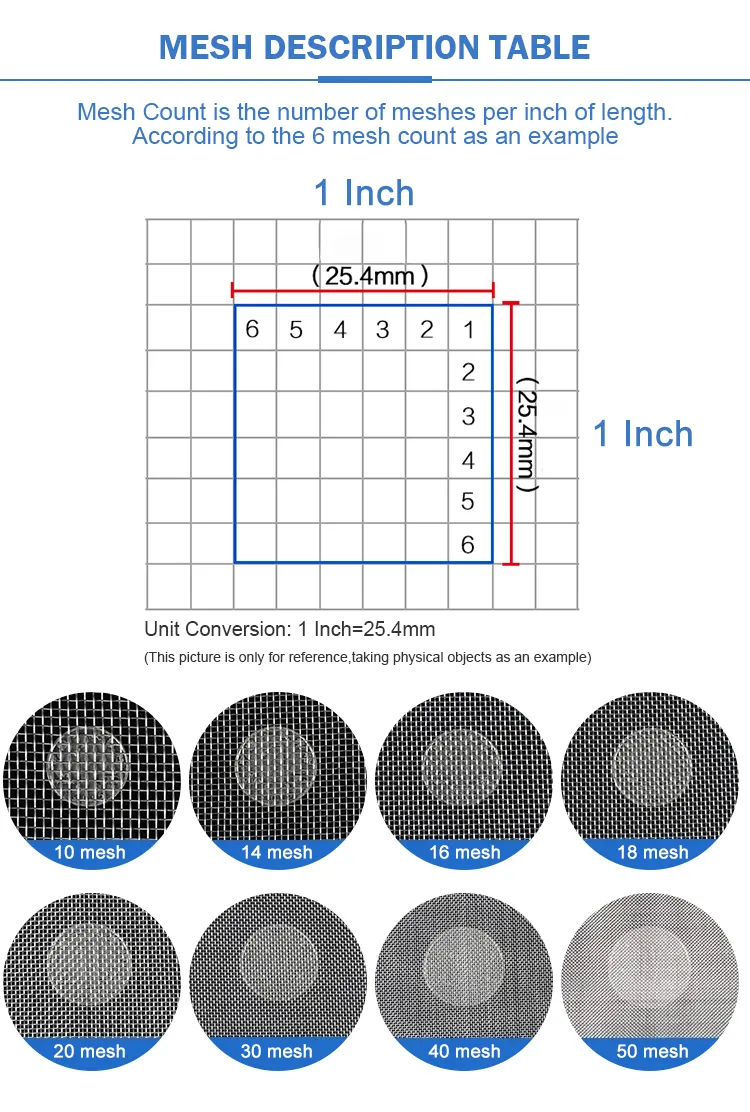

Mesh/inch	Wire Dia (mm)	Aperture (mm)	Mesh/inch	Wire Dia (mm)	Aperture (mm)
2	1.80	10.90	60	0.15	0.273
3	1.60	6.866	70	0.14	0.223
4	1.20	5.15	80	0.12	0.198
5	0.91	4.17	90	0.11	0.172
6	0.80	3.433	100	0.10	0.154
8	0.60	2.575	120	0.08	0.132
10	0.55	1.990	140	0.07	0.111
12	0.50	1.616	150	0.065	0.104
14	0.45	1.362	160	0.065	0.094
16	0.40	1.188	180	0.053	0.088
18	0.35	1.060	200	0.053	0.074
20	0.30	0.970	250	0.04	0.061
26	0.28	0.696	300	0.035	0.049
30	0.25	0.596	325	0.03	0.048
40	0.21	0.425	350	0.03	0.042
50	0.19	0.318	400	0.025	0.0385

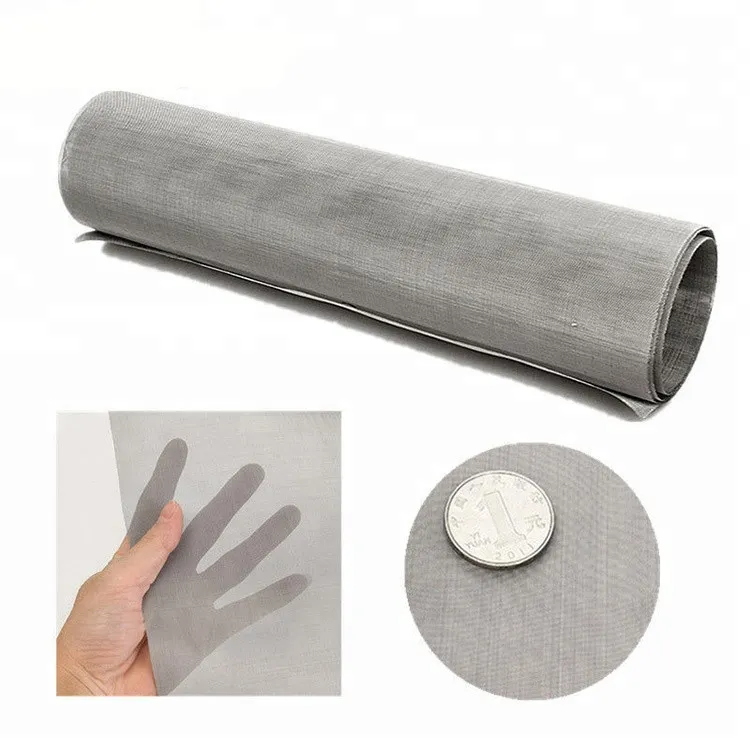

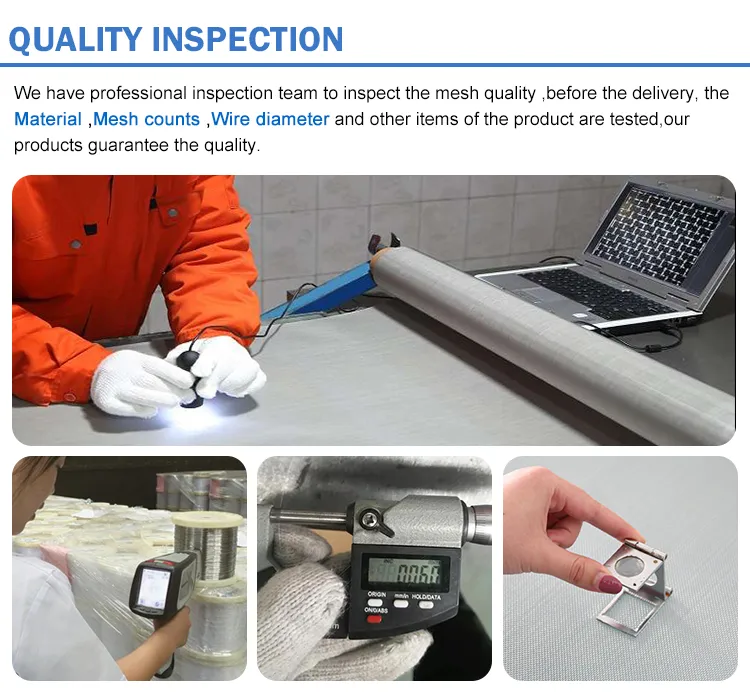

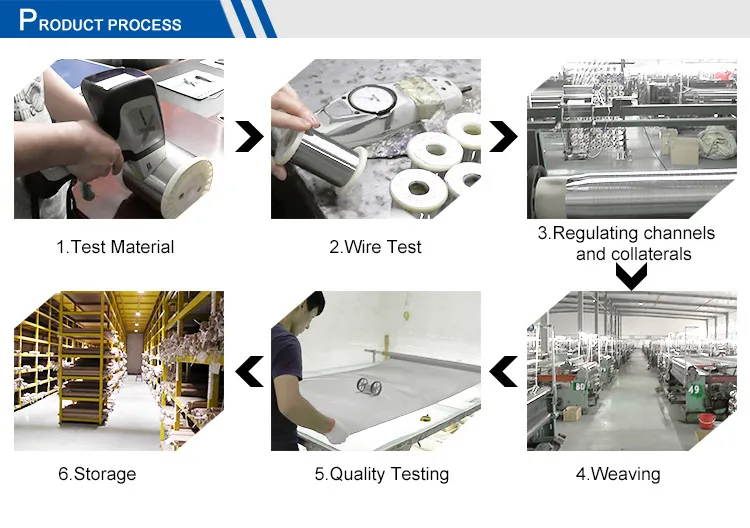

🖼️ Detailed Photos

❓ Frequently Asked Questions

What materials are available for the woven wire mesh?

We primarily use high-grade stainless steel including SUS304, 316, 201, and other variations depending on your specific requirements.

What are the main applications of this product?

The mesh is versatile and used for liquid filtration, construction reinforcement, window screens, protective cages, decorative mesh, and fence panels.

What mesh sizes can you provide?

We offer a wide range of sizes from 6 mesh up to 600 mesh, with wire diameters ranging from 0.035mm to 2.03mm.

What weave styles are available?

Our techniques include Plain Weave (PW), Twill Weave (TW), Plain Dutch Weave (PDW), and Twill Dutch Weave (TDW).

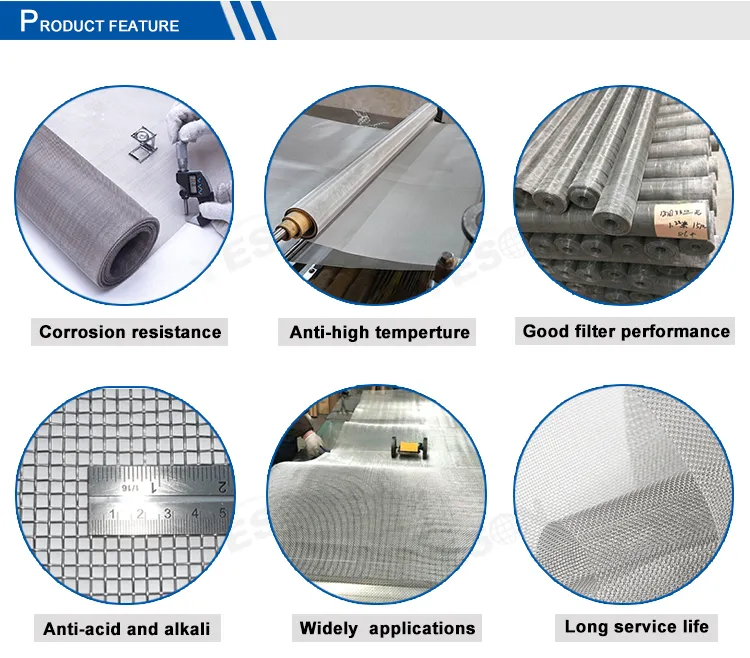

Is the stainless steel wire mesh corrosion-resistant?

Yes, the high nickel content (approx. 8%) and the nature of SUS304/316 materials provide excellent resistance to corrosion and oxidation.

Can the roll size be customized?

Standard rolls are typically 0.9m to 1.6m in width and 30m in length, but we can accommodate special packaging needs according to your requirements.
