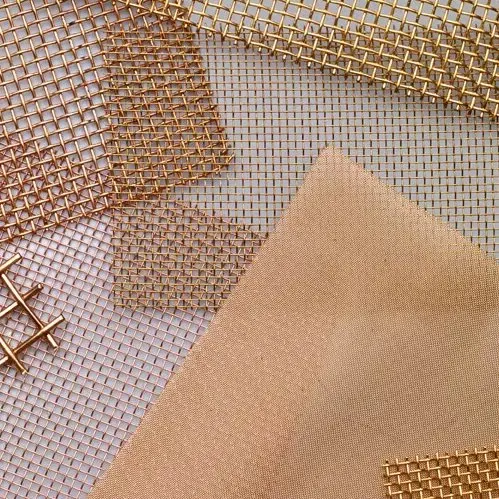

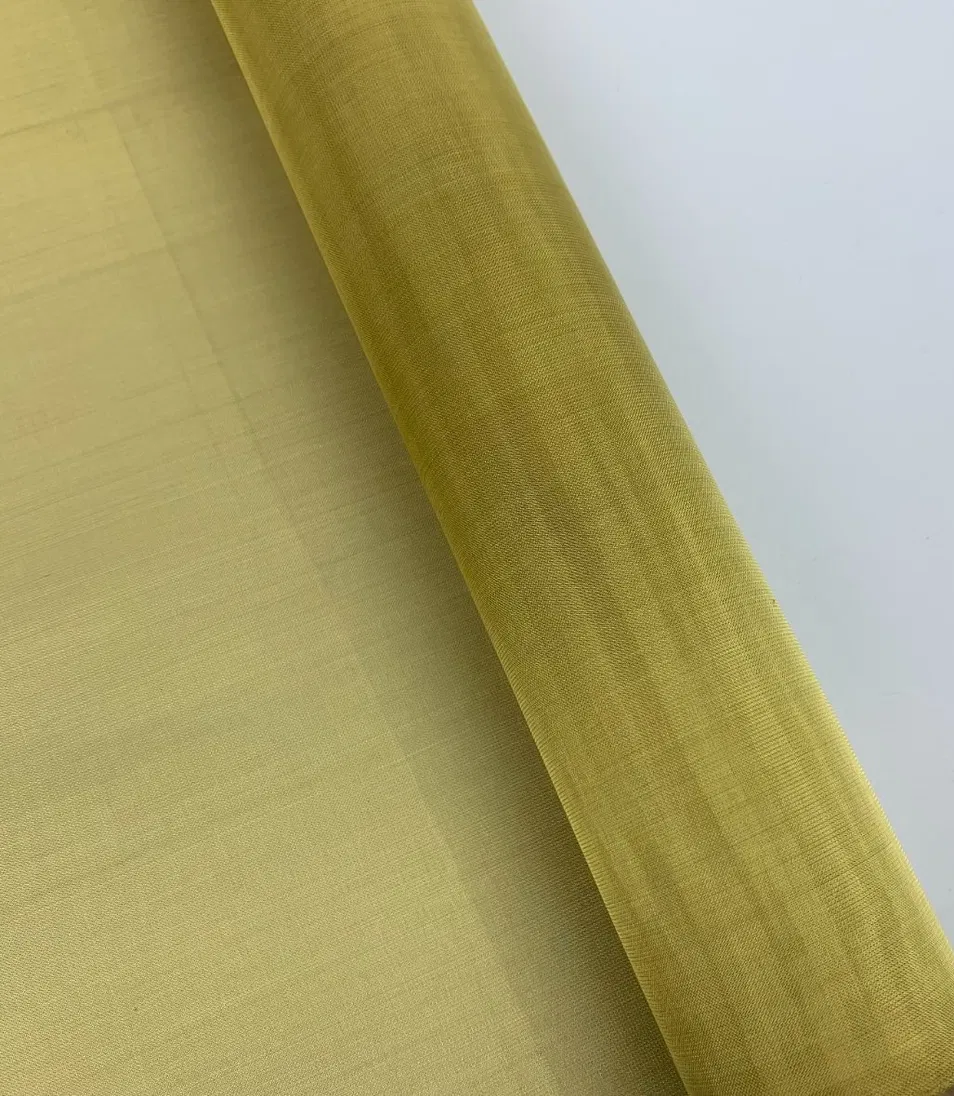

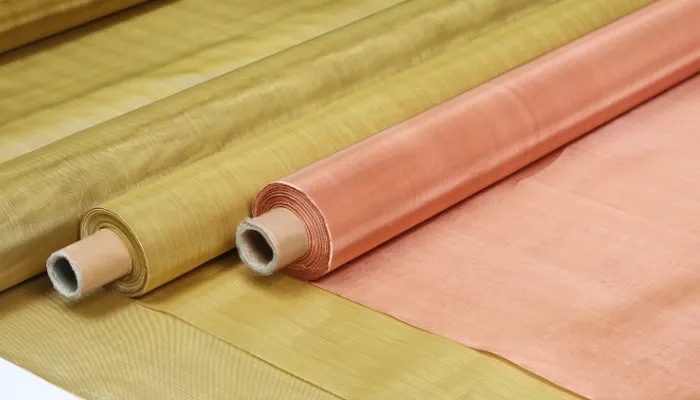

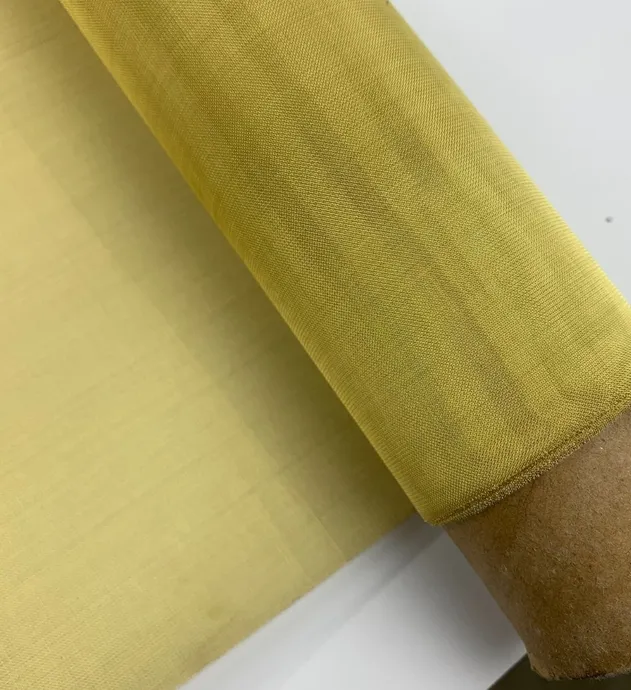

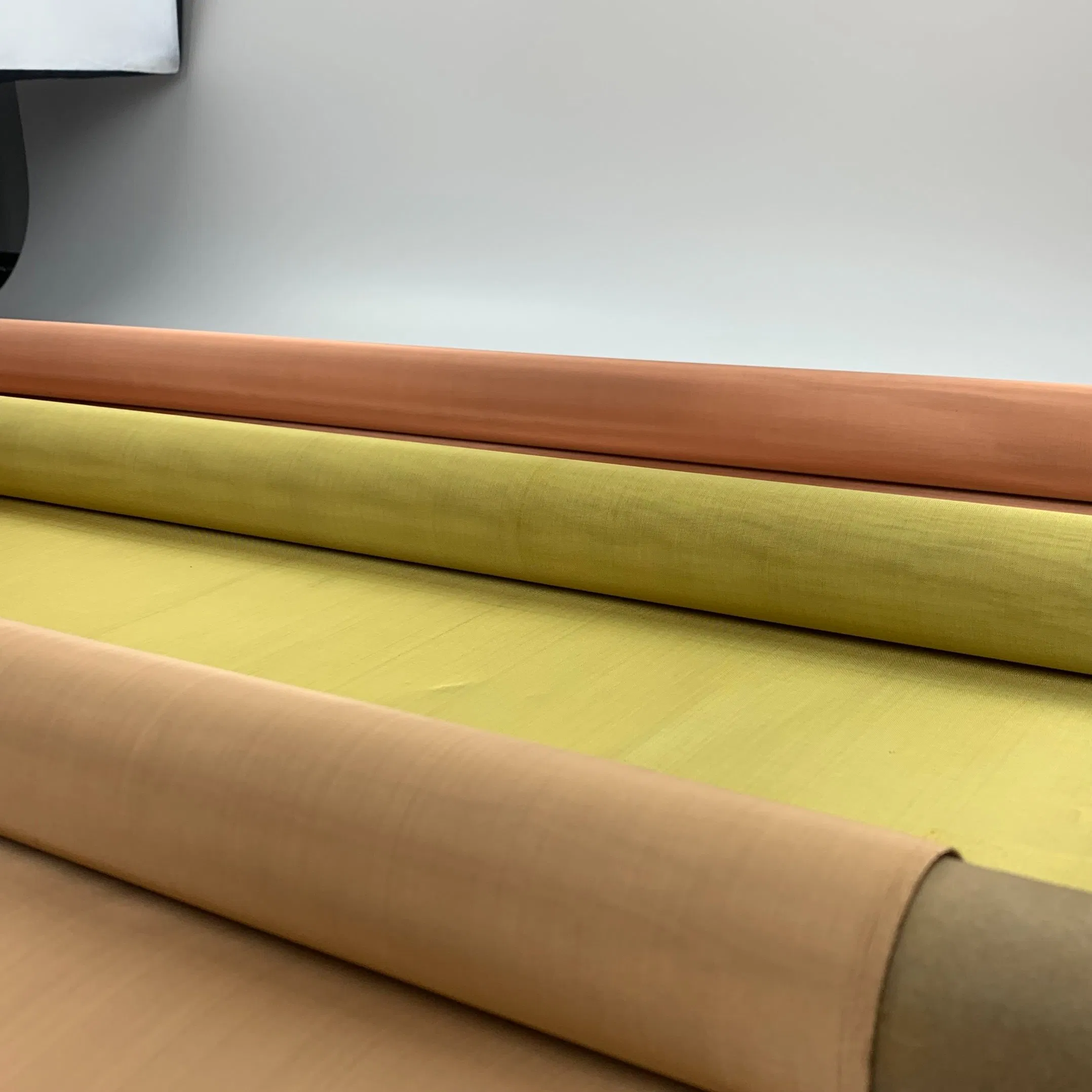

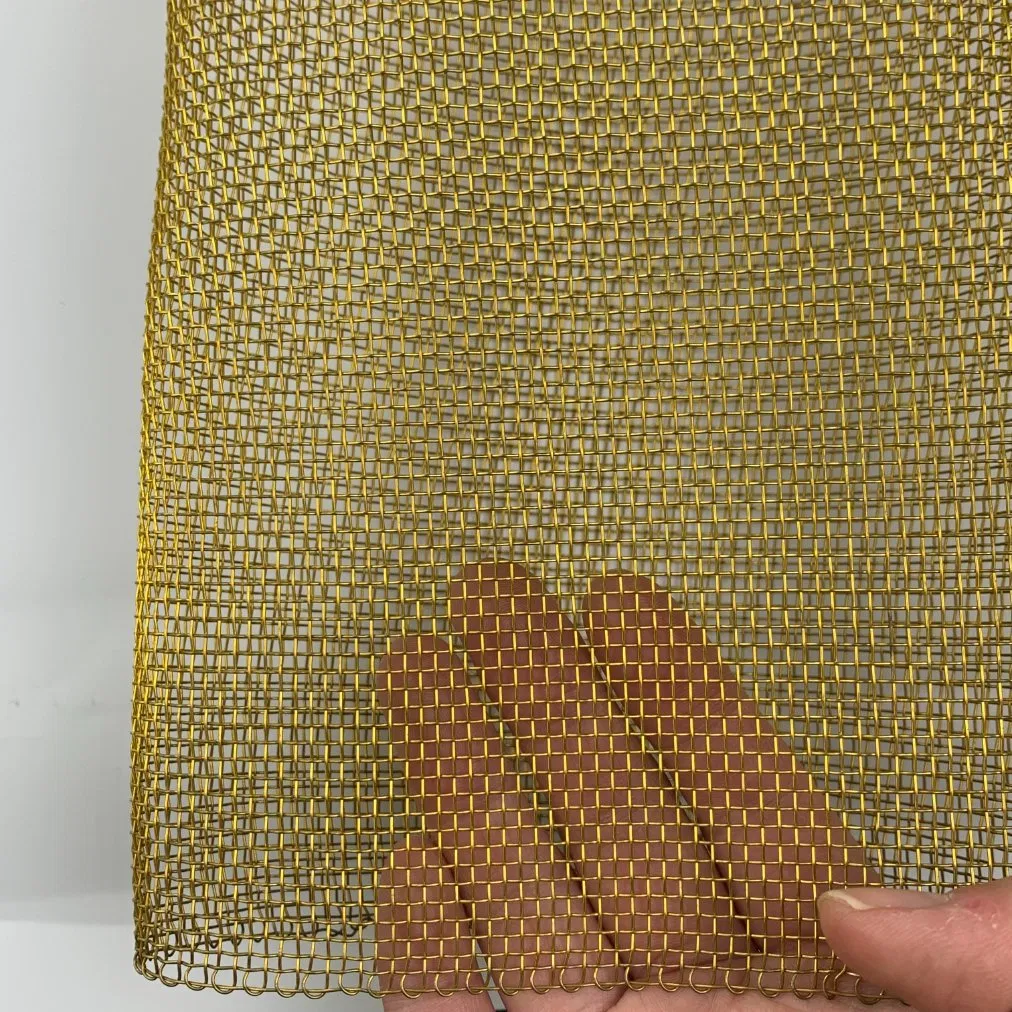

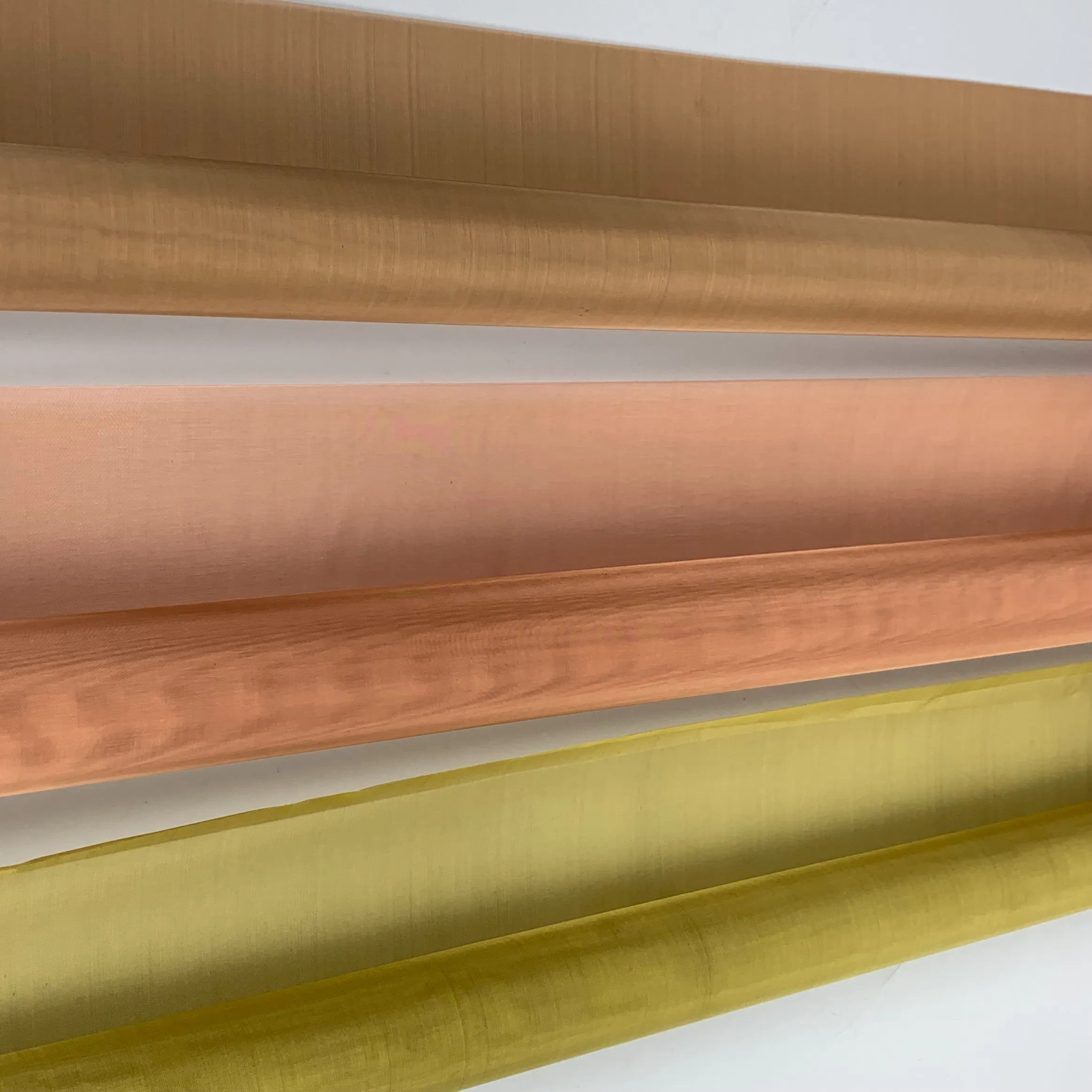

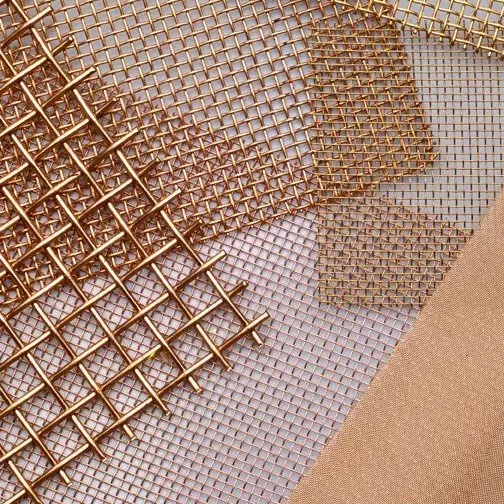

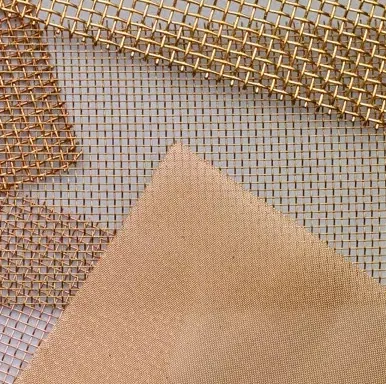

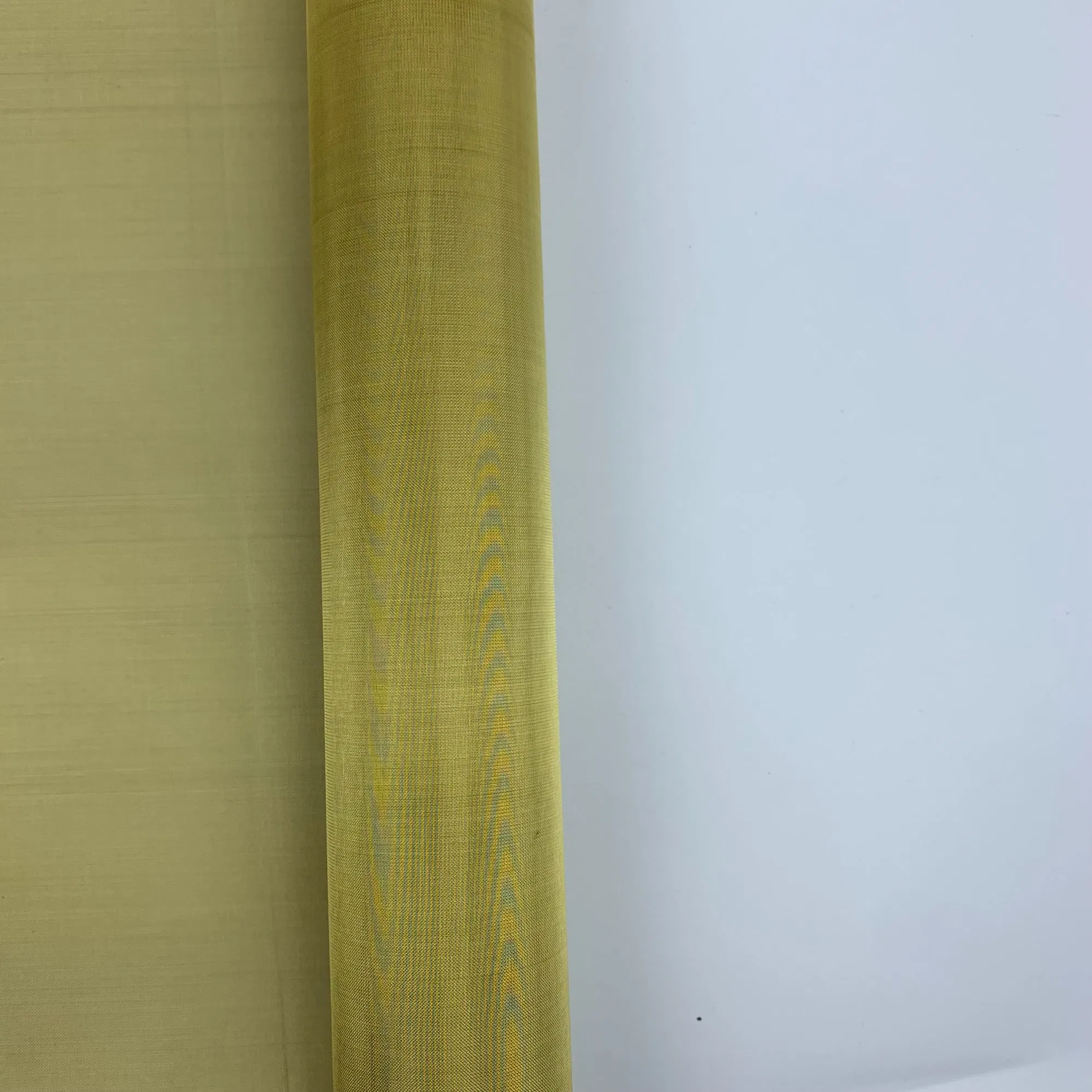

Brass wire mesh is a metal mesh material made from brass alloy wire (mainly copper-zinc alloy) woven together with warp and weft threads. The most common "270 brass" material contains approximately 65% copper and 35% zinc, a ratio that gives it a unique golden color. Its mesh openings are primarily uniform square or rectangular, and the weaving process is mature and stable, resulting in a flat, clean, and oil-free mesh surface with a consistent color.
The core specification is defined by "mesh count," which is the number of warp threads per inch. Standard mesh counts range widely, from 1 to 200 mesh (custom sizes up to 300 mesh available). Mesh counts of 1-10 mesh are coarse, 12-40 mesh are medium, and high mesh counts can reach 200 mesh.
| Mesh Count | SWG | Wire Dia (mm) | Wire Dia (inch) | Aperture (mm) |
|---|---|---|---|---|
| 6 | 22 | 0.711 | 0.028 | 3.522 |
| 8 | 23 | 0.610 | 0.024 | 2.565 |
| 10 | 25 | 0.508 | 0.020 | 2.032 |
| 20 | 30 | 0.315 | 0.0124 | 0.955 |
| 40 | 36 | 0.193 | 0.0076 | 0.442 |
| 60 | 37 | 0.173 | 0.0068 | 0.250 |
| 100 | 42 | 0.012 | 0.004 | 0.152 |
| 200 | 47 | 0.051 | 0.002 | 0.076 |

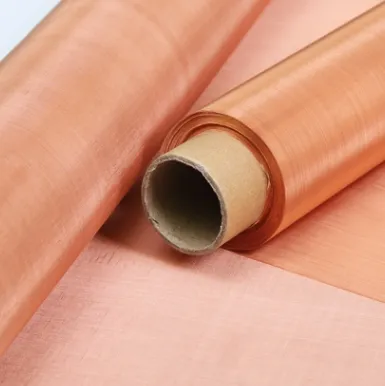

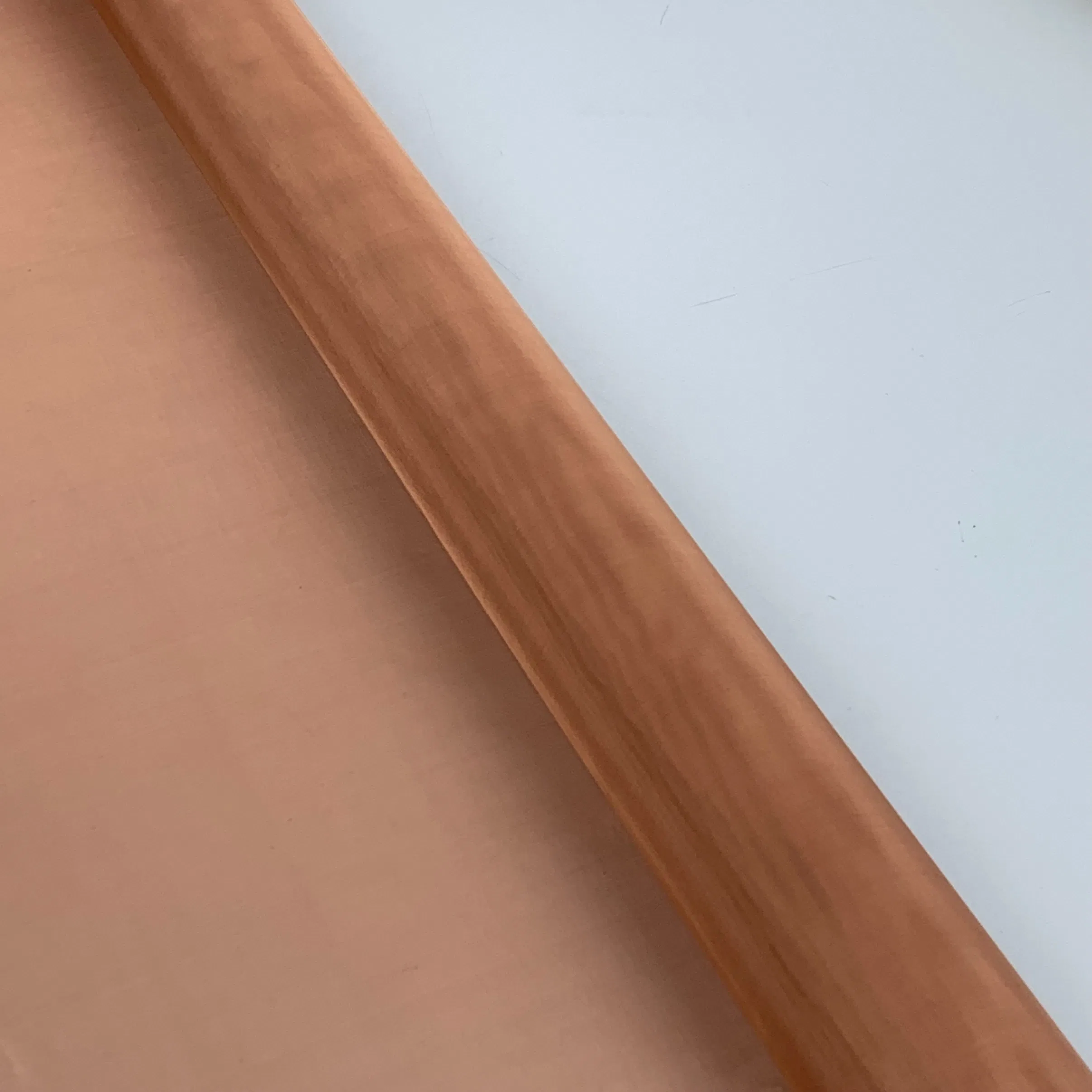

Copper wire mesh has the highest copper content among copper mesh products (99.9%). It is soft, malleable, and has high electrical and thermal conductivity, widely used as RFI shielding, Faraday cages, and electrical applications.
