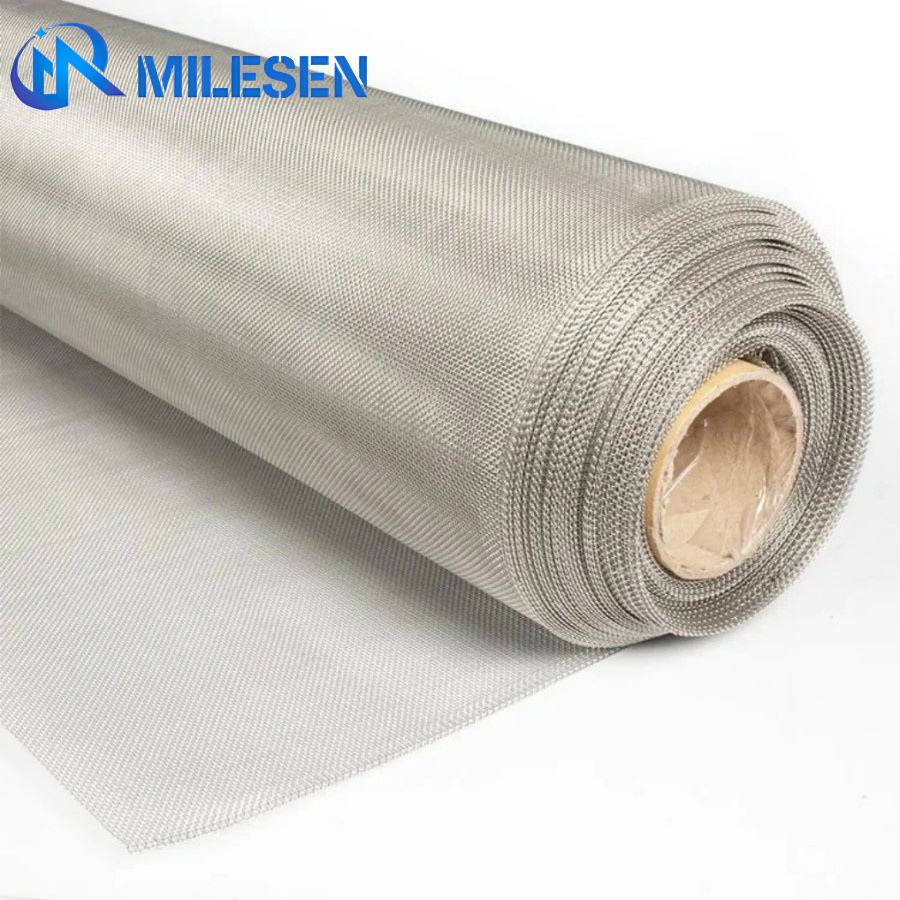

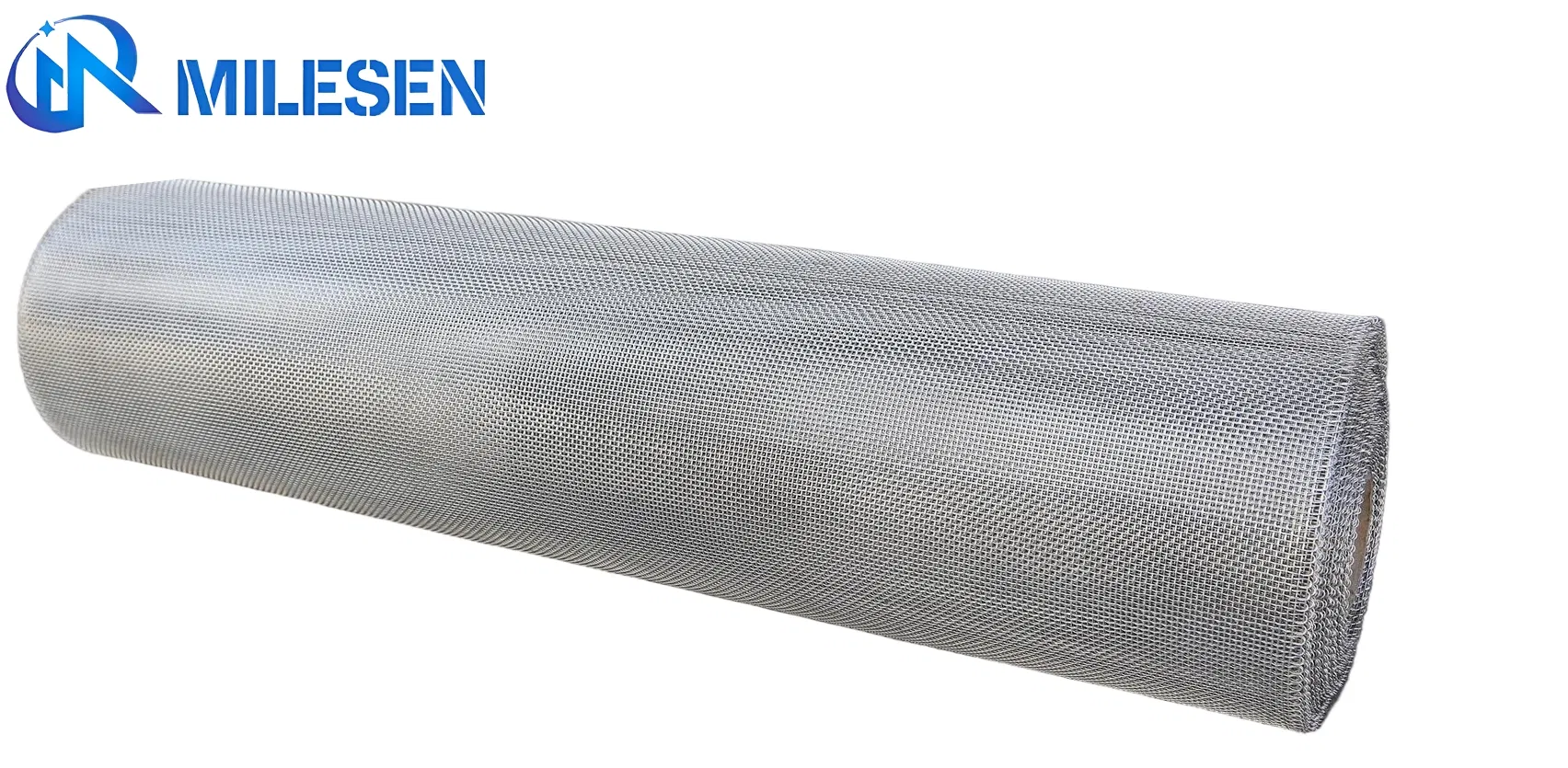

Factory Custom Filter Mesh Stainless Steel Wire Mesh Woven Wire Mesh for Industrial Screening

1 / 5

Factory Custom Filter Mesh Stainless Steel Wire Mesh Woven Wire Mesh for Industrial Screening

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

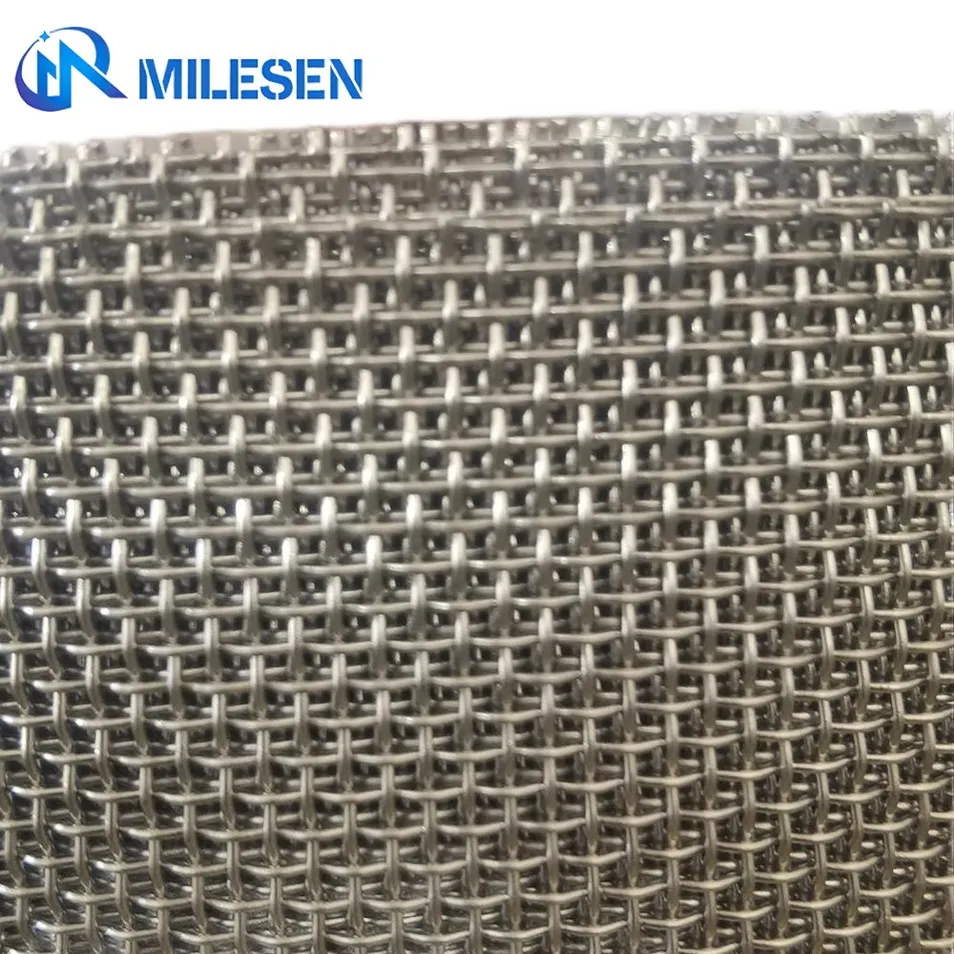

Square Mesh

Material

304, 304L, 316L, 321, 430, Inconel, etc.

Weave Technique

Plain Weave, Twill Weave

Mesh Count

1-635 Mesh

Wire Diameter

0.02 - 4mm

Aperture Size

0.02 - 22mm

Standard Length

30m

Certification

ISO9001

🔍

Product Description

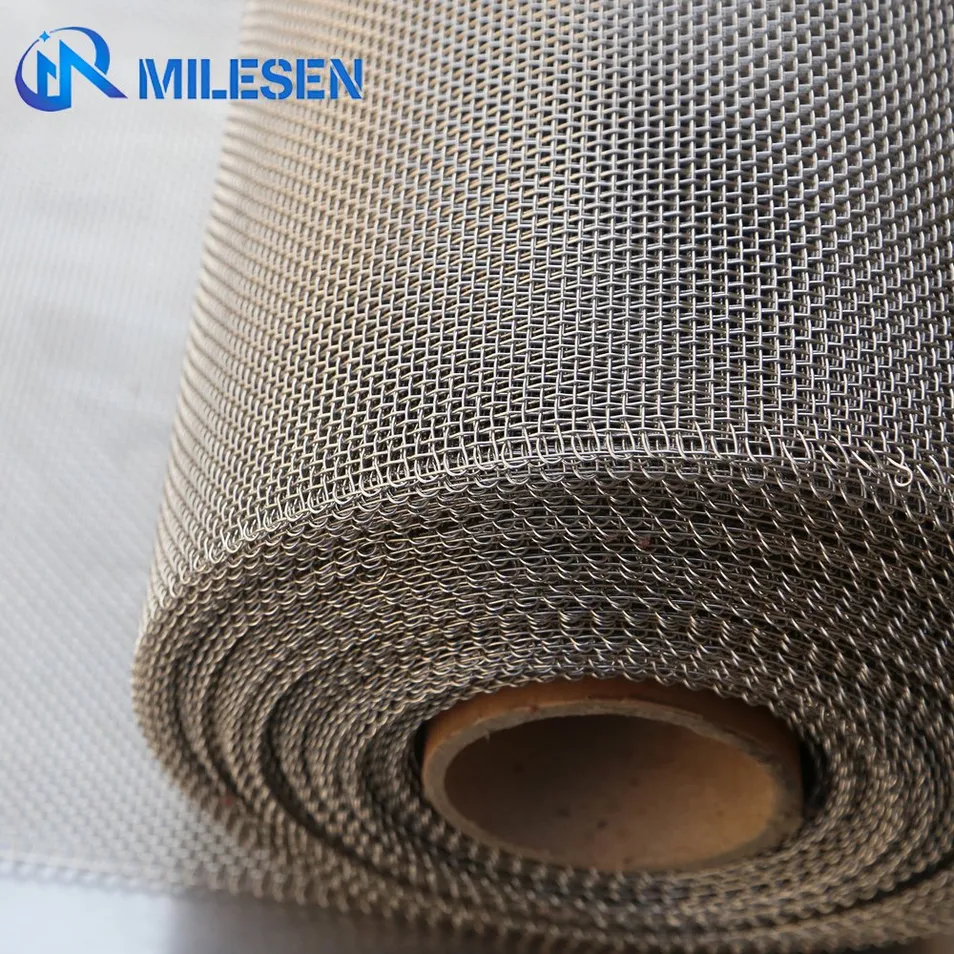

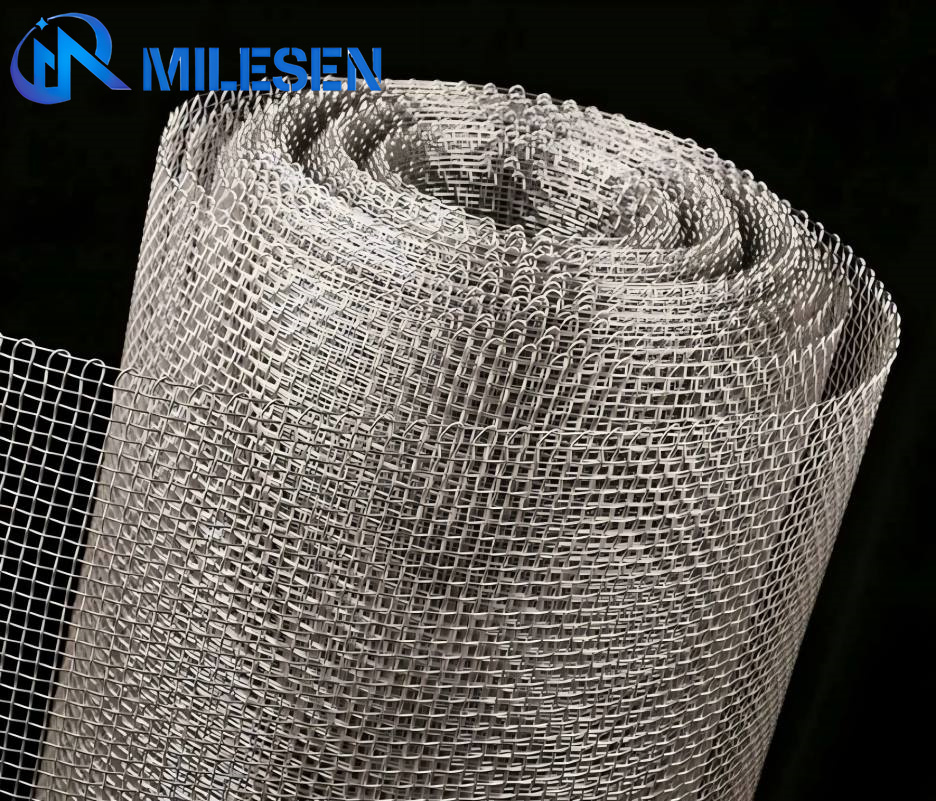

Stainless Steel Square Mesh is a versatile woven mesh featuring uniform square openings, offering high open area, consistent aperture size, and reliable strength. Engineered from high-grade materials like 304 and 316L stainless steel, it provides exceptional durability, corrosion resistance, and stable filtration performance across various industrial environments.

Key Features

Precision: Uniform pore size for high accuracy screening.
Strength: Sturdy structure with high tensile strength.
Durability: Excellent resistance to acid, alkali, and corrosion.
Flexibility: Easily customized to specific sizes and specifications.

Main Applications

Chemical and Pharmaceutical filtration.
Food processing and plastic granulation.
Mining and industrial screening.
Construction reinforcement and liquid filtration.

📊

Technical Data Sheets

Plain Weave Mesh Normal Spec.

Mesh Count	Wire Dia (mm)	Opening (mm)	Open Area (%)
1X1	4.0	21.4	71
2X2	2.5	10.2	64
10X10	0.51	2.03	64
20X20	0.406	0.86	46.2
100X100	0.10	0.154	36.8
635X635	0.0203	0.0203	25

Twill Weave Mesh Normal Spec.

Mesh Count	Wire Dia (mm)	Opening (mm)	Open Area (%)
20	0.6	0.67	44.89
80	0.18	0.138	1.89
250	0.04	0.062	0.38
635	0.02	0.02	0.04

🖼️

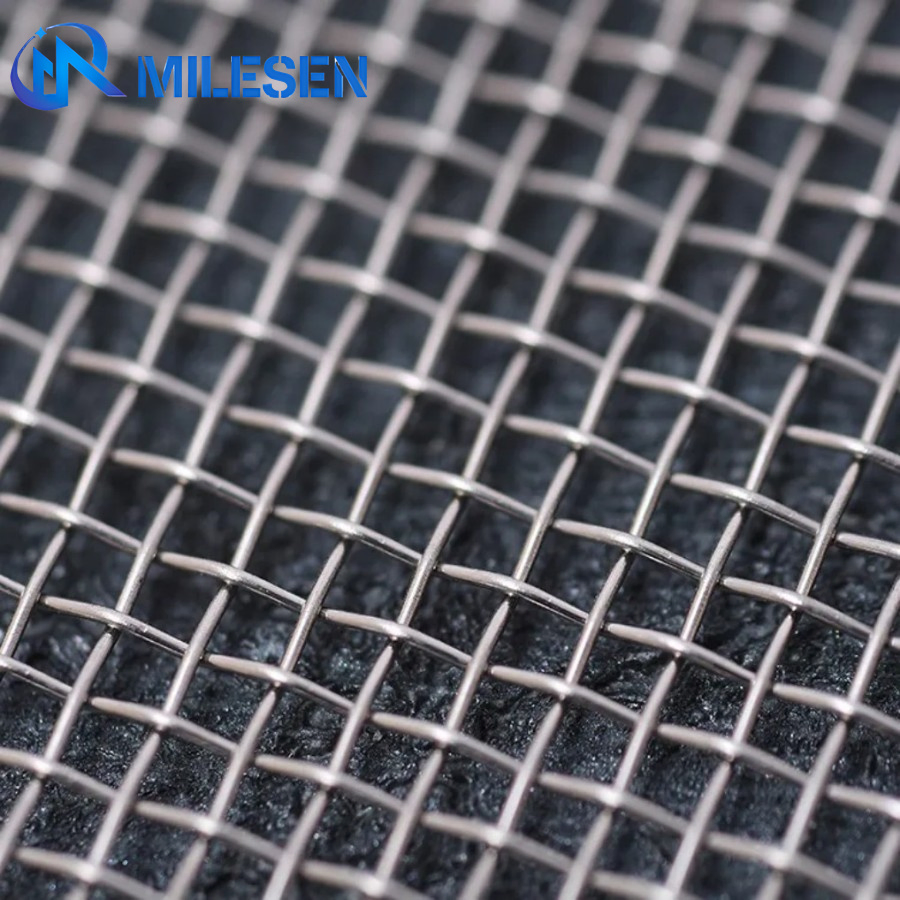

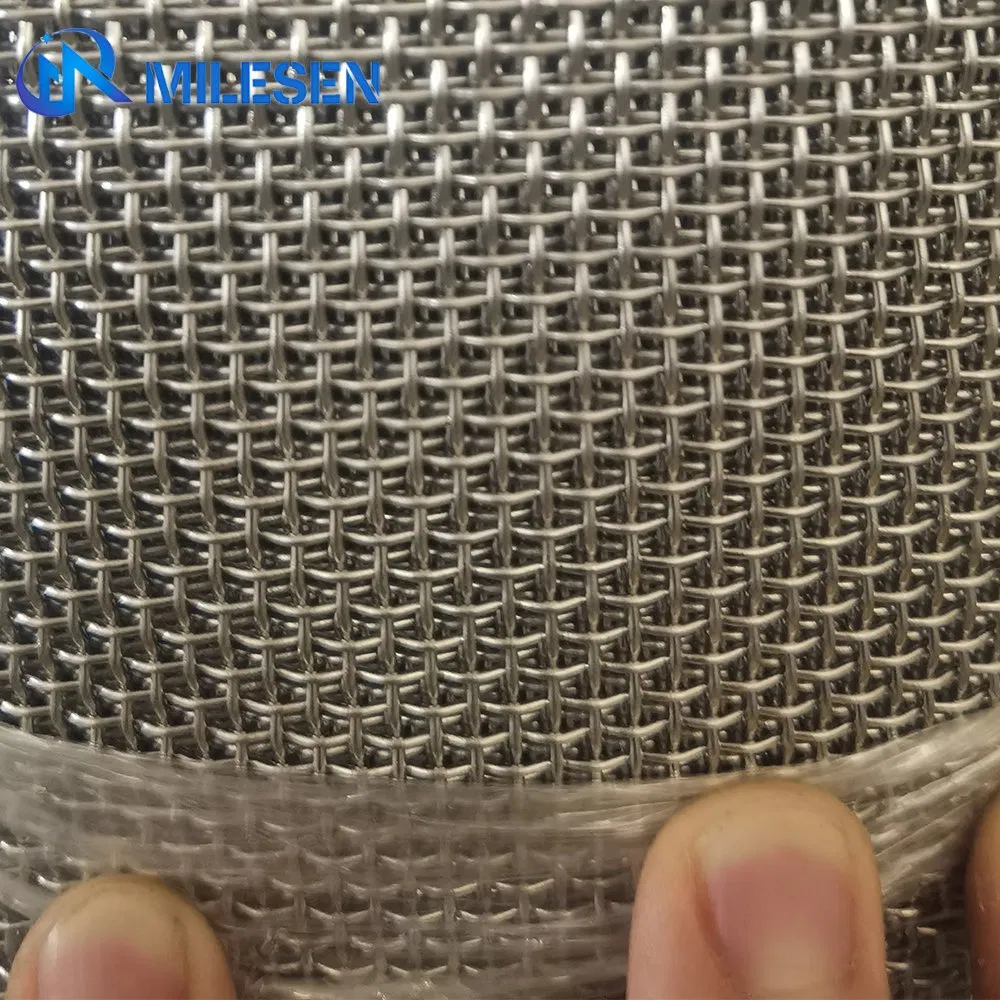

Product Gallery

❓

Frequently Asked Questions

What materials are available for the square mesh?

We provide various grades including Stainless Steel 304, 304L, 316, 316L, 321, 430, and specialized alloys like Inconel and Hastelloy.

What is the difference between Plain Weave and Twill Weave?

Plain weave is the most common with a simple over-under pattern. Twill weave allows for a heavier wire in a fine mesh by passing each shute wire over and under two warp wires.

Can the mesh count and wire diameter be customized?

Yes, we offer fully customized solutions ranging from 1 to 635 mesh with wire diameters from 0.02mm to 4mm to meet your specific industrial needs.

Is the stainless steel mesh resistant to chemicals?

Absolutely. Our mesh is designed to be acid and alkali resistant, as well as highly corrosion-resistant, making it ideal for harsh chemical environments.

How is the product packaged for delivery?

The mesh is typically wrapped in waterproof paper and then secured in sturdy wooden cases to prevent damage during transport.

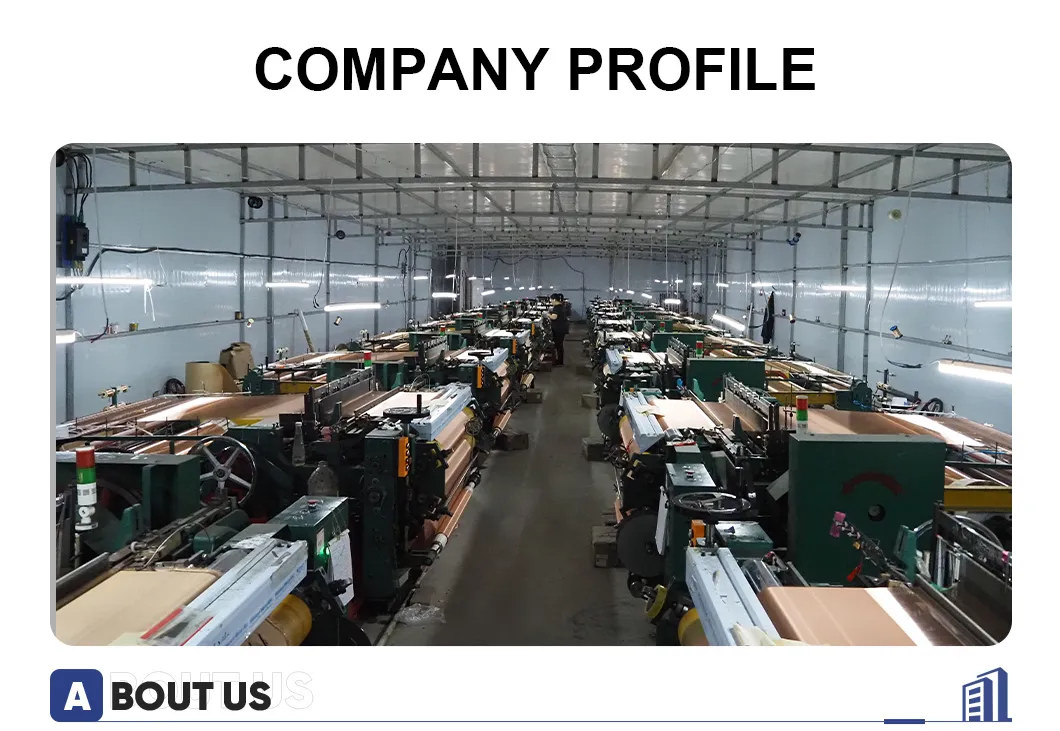

What is the standard production capacity?

Our facility has a robust production capacity of approximately 2 million square meters per year, ensuring timely delivery for large-scale orders.
