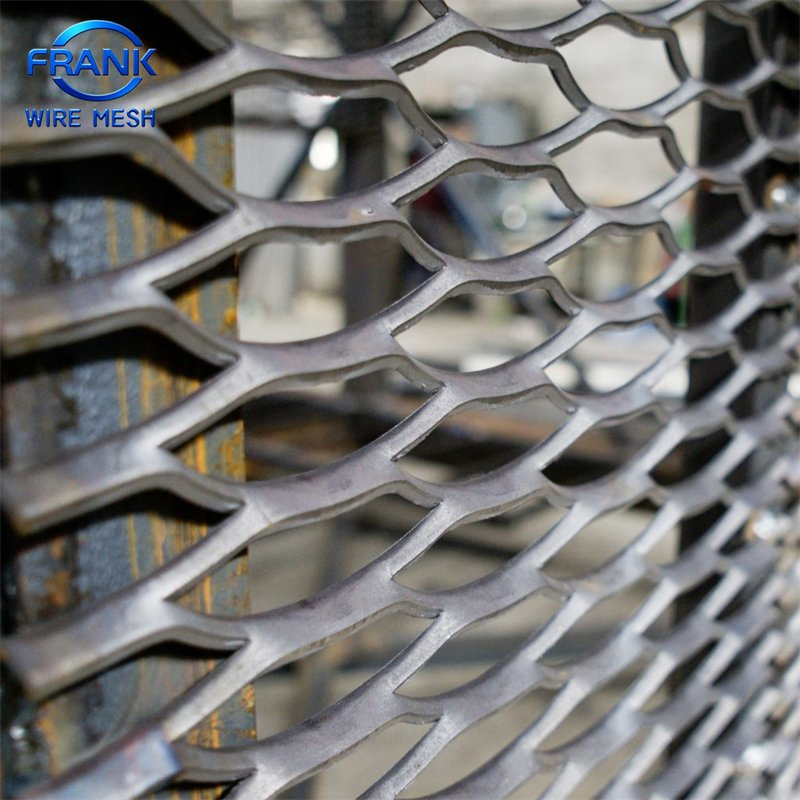

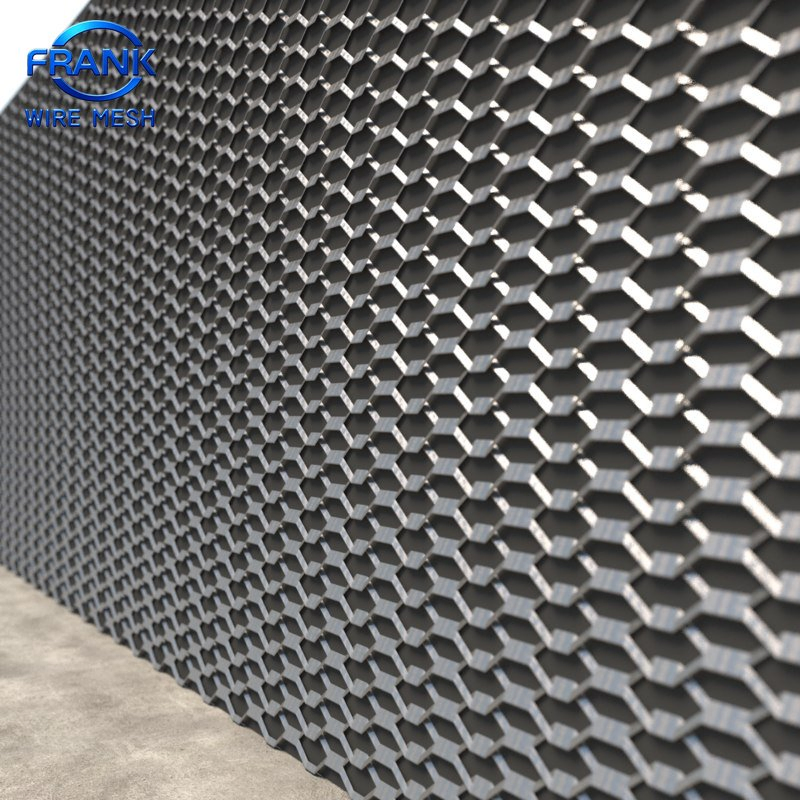

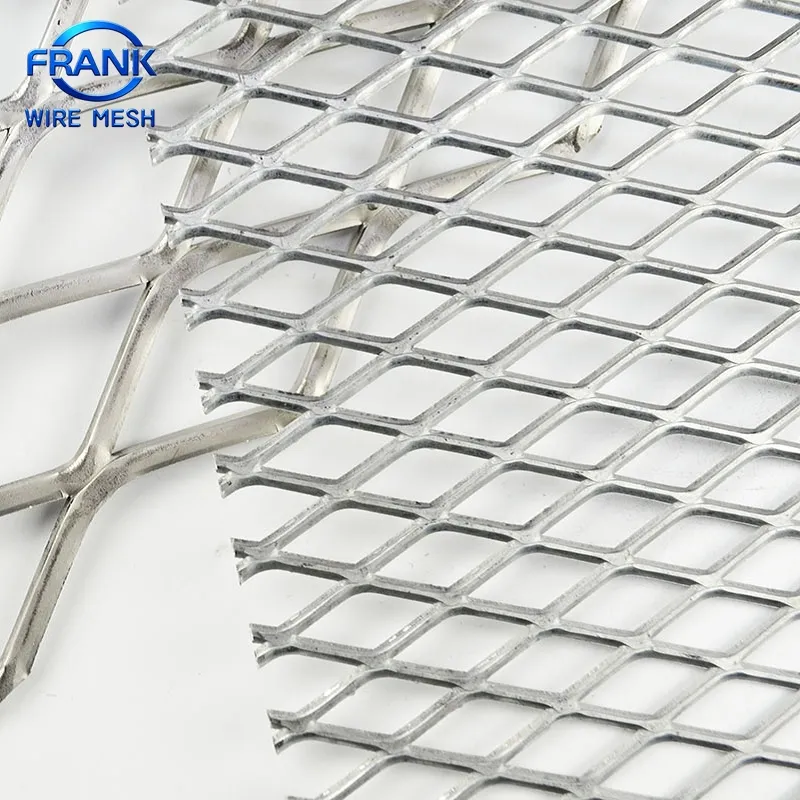

Expanded Metal Sheet is produced from metal sheet or roll through stamping and expanding, which forms a wide array of diamond shaped openings with uniform sizes. Due to the expanding process, the metal sheet can be expanded up to 8 times its original width, losing up to 75% of its weight per meter while becoming harder and more rigid.
| Parameter | Details |
|---|---|
| Material Options | Carbon steel, Aluminum, Stainless steel, Copper, Titanium |

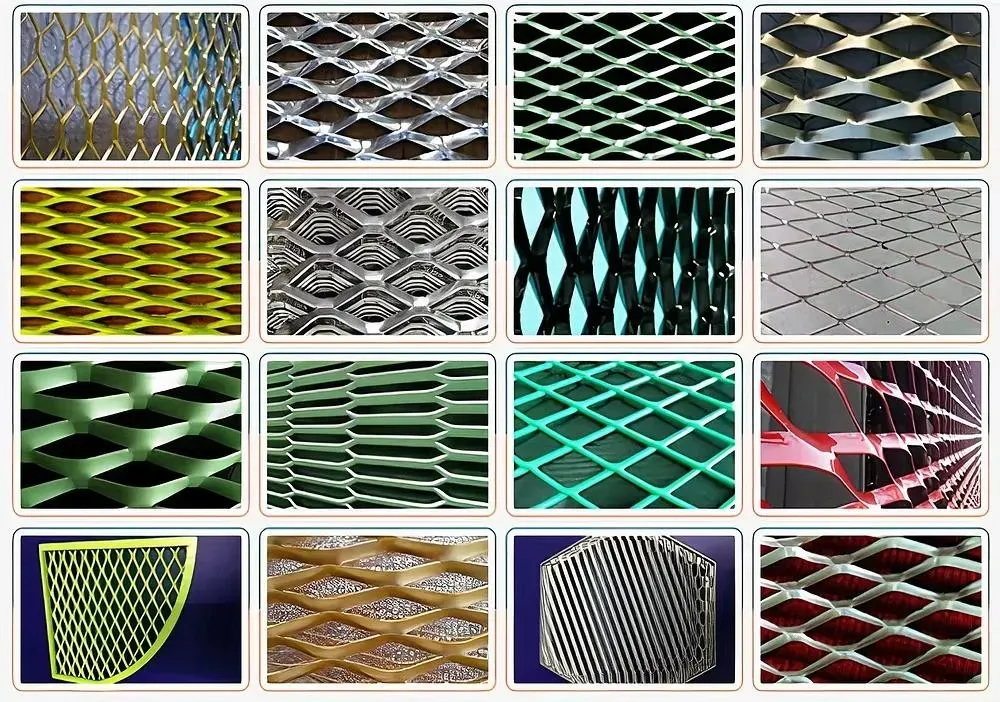

| Hole Patterns | Fish scale, Hexagonal, Fancy, Tortoise shell |
| Thickness Range | 0.5mm - 8mm |
| LWD Range | 3.0mm - 200mm |
| SWD Range | 2.0mm - 100mm |

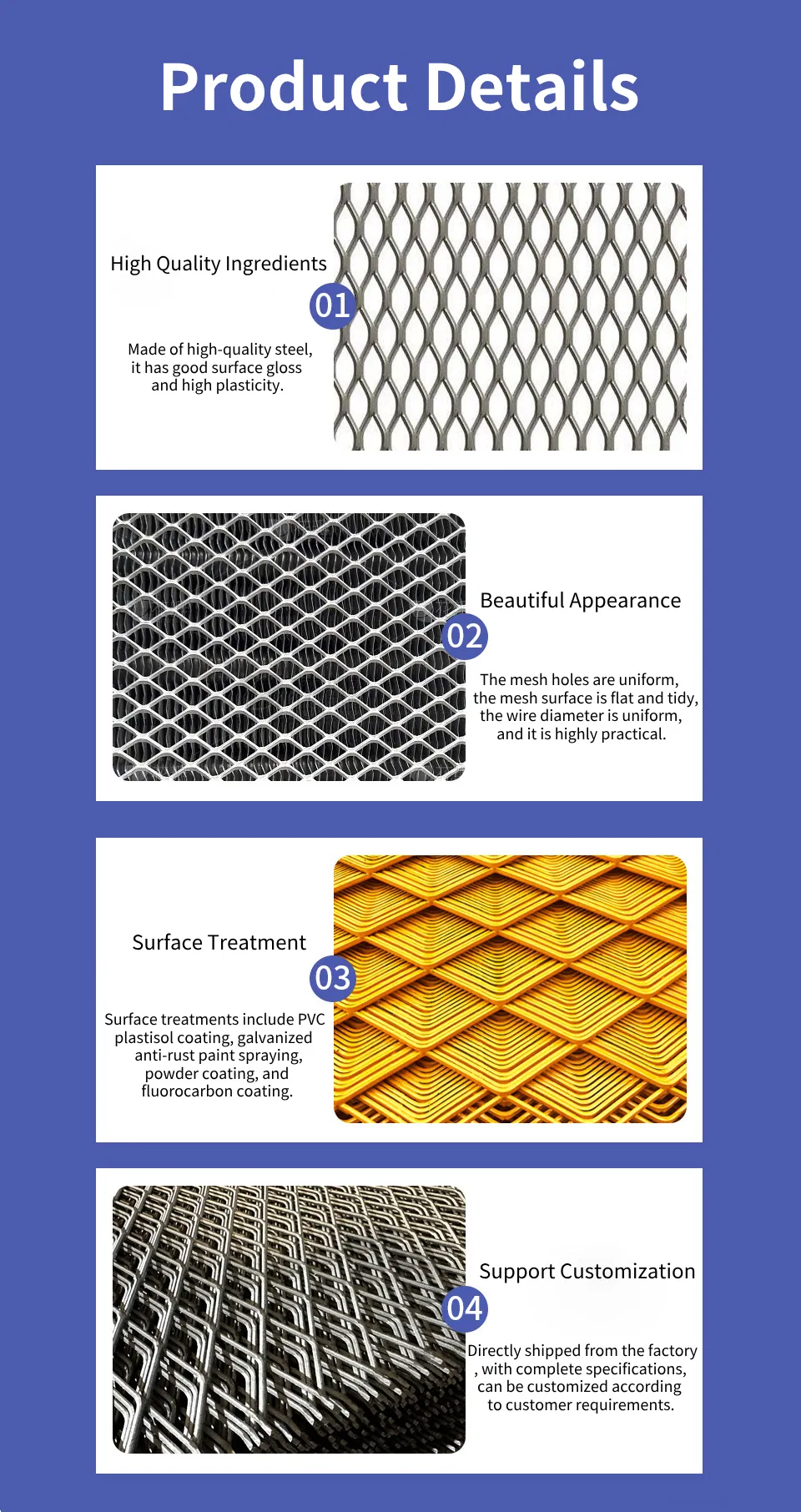

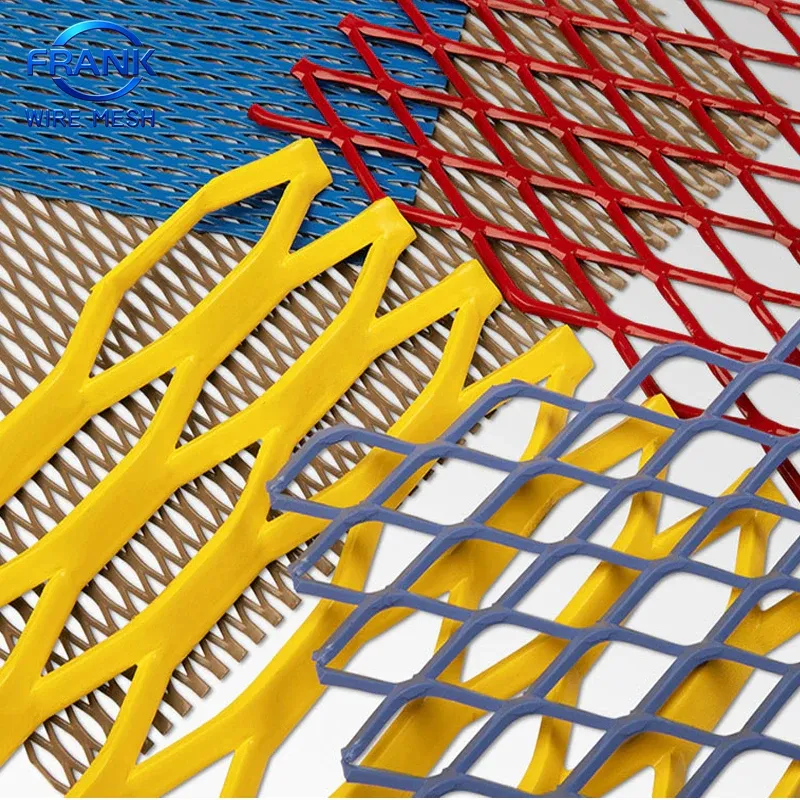

| Surface Finishing | PVC coating, Hot dip galvanizing, Anodizing, Anti-rust paint |

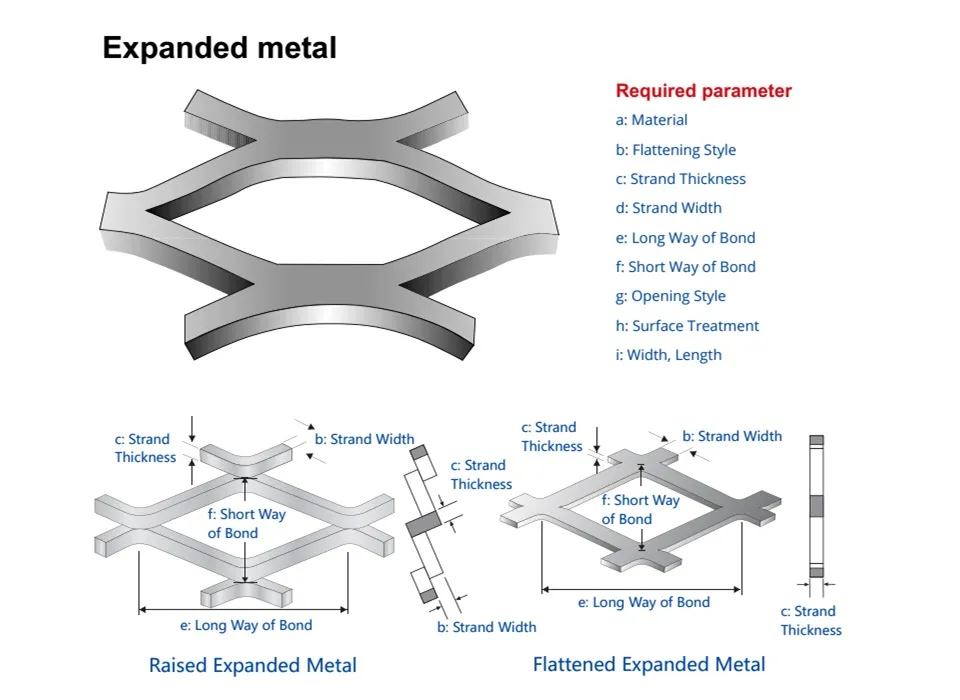

| Thickness(mm) | SWD(mm) | LWD(mm) | Strand Width(mm) | Weight(kg/m2) |
|---|---|---|---|---|
| 1 | 10 | 25 | 1.1 | 1.77 |
| 2 | 18 | 50 | 2.1 | 3.69 |
| 3 | 40 | 80 | 3.8 | 5.00 |
| 4 | 50 | 100 | 4 | 11.15 |
| 6 | 50 | 100 | 6 | 17.35 |
As a leading manufacturer and exporter, we provide high-performance metal mesh products including perforated sheets, expanded metal, and wire mesh solutions. We serve global industries including construction, filtration, security, and mining with customized materials and sizes.
