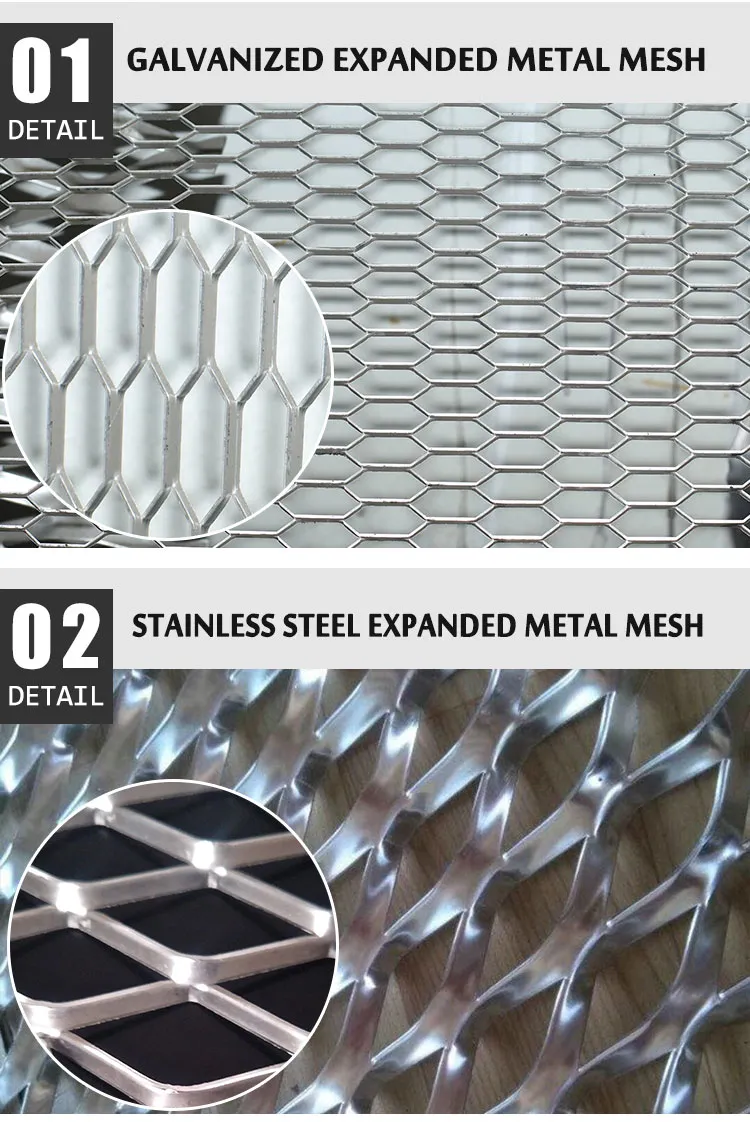

Expanded metal mesh is a multipurpose and economical product made from metal coil sheets that are uniformly die-cut and expanded. When the sheet moves through progressive dies on a press, it is cut and expanded to many uniform diamond shapes. The pattern can be customized using different gauges, materials, and diamond sizes.

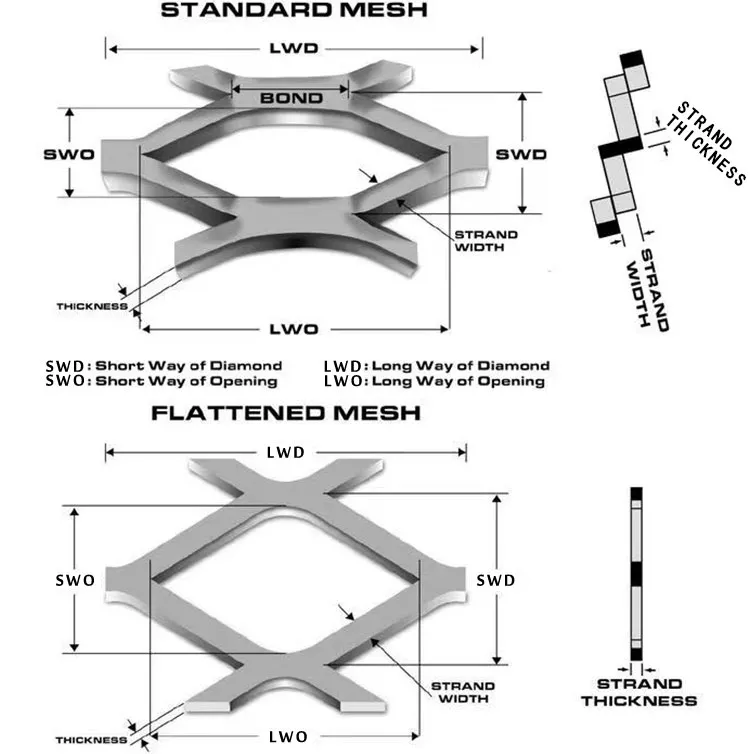

| Mesh thickness(mm) | Distance short(mm) | Distance long(mm) | Strip(mm) | Width (m) | Length(m) | Weight(kg/m2) |
|---|---|---|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |

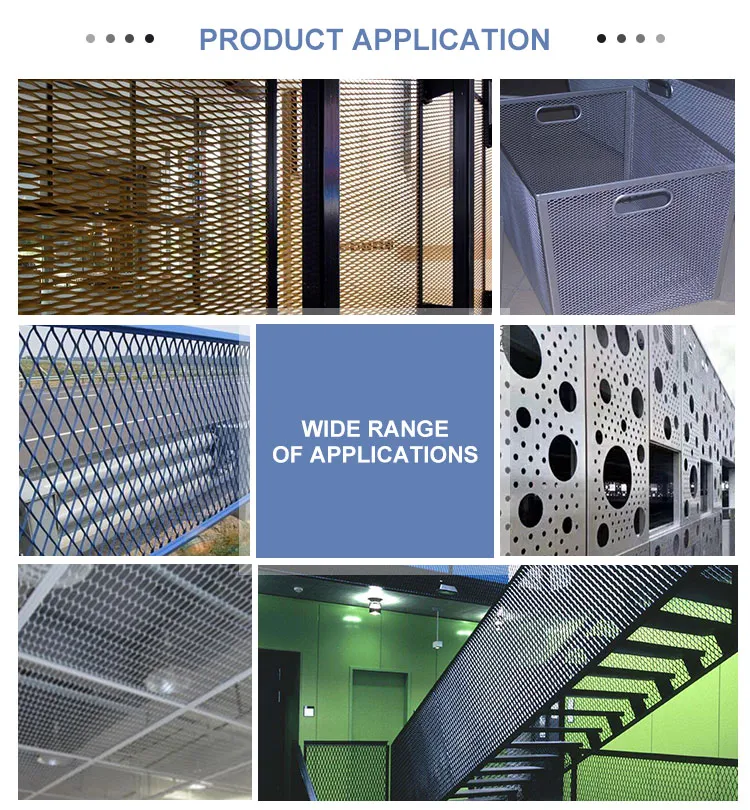

Expanded metal mesh is an economical and practical solution for ensuring strength and safety. It is widely used in:
