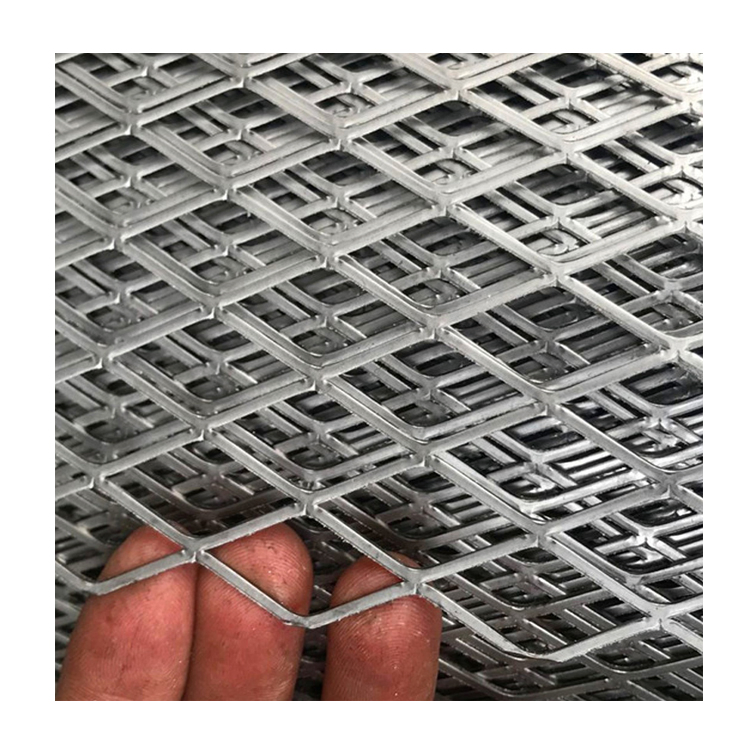

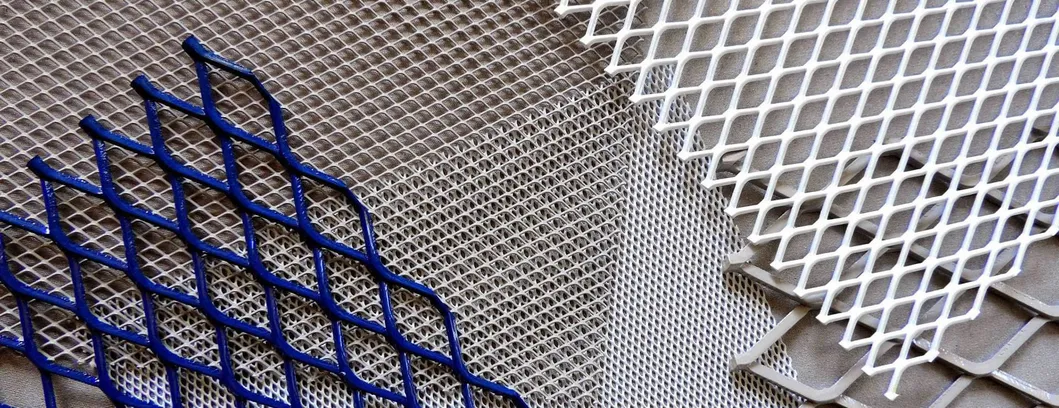

Expanded metal mesh is also called pulled plate wire mesh. A rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation. It is stronger, lighter in weight and more rigid than the original base metal.

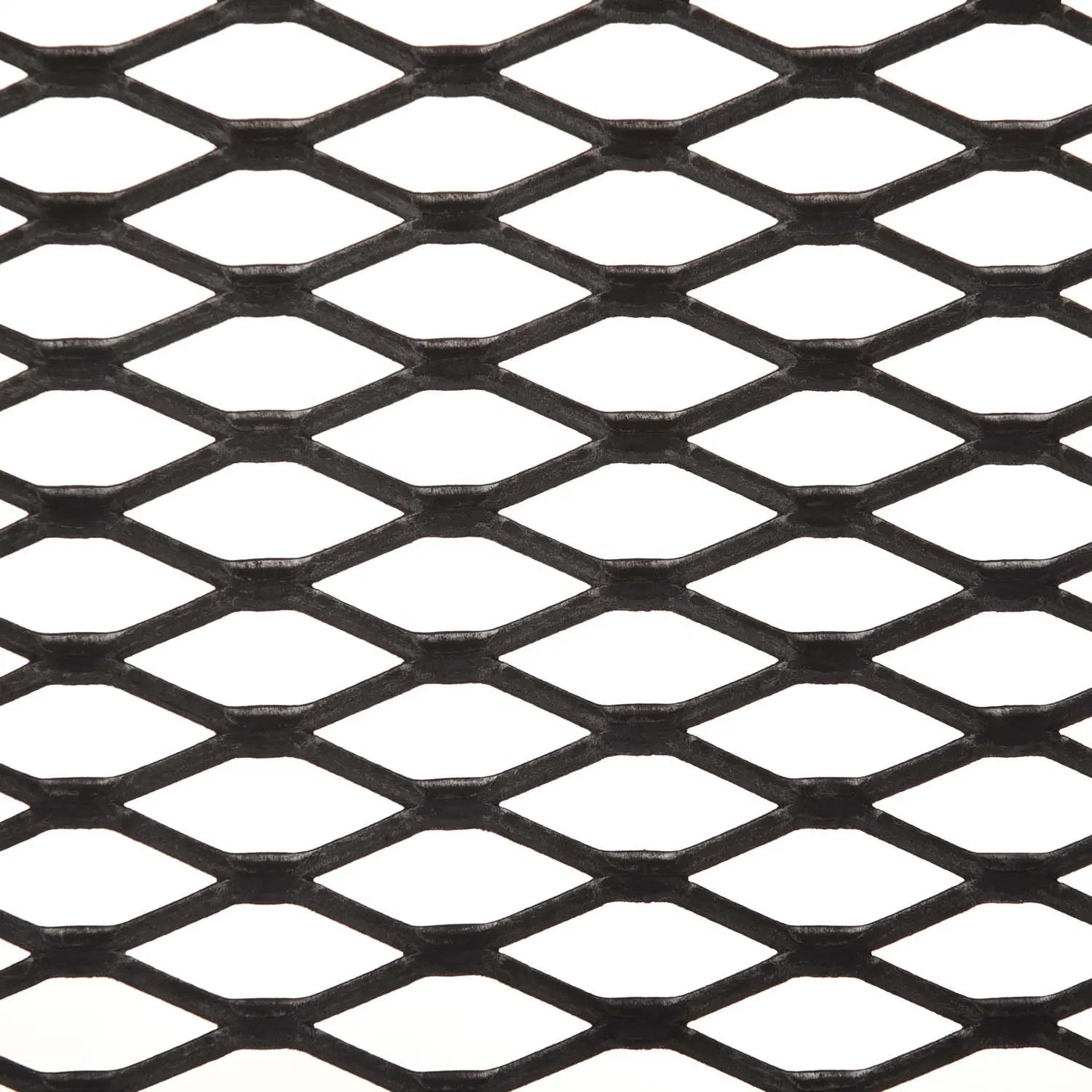

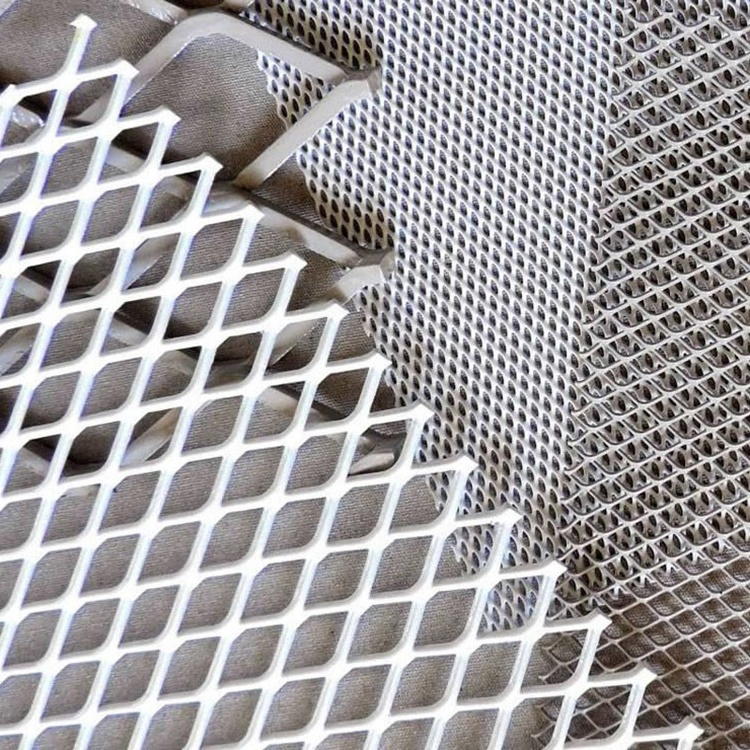

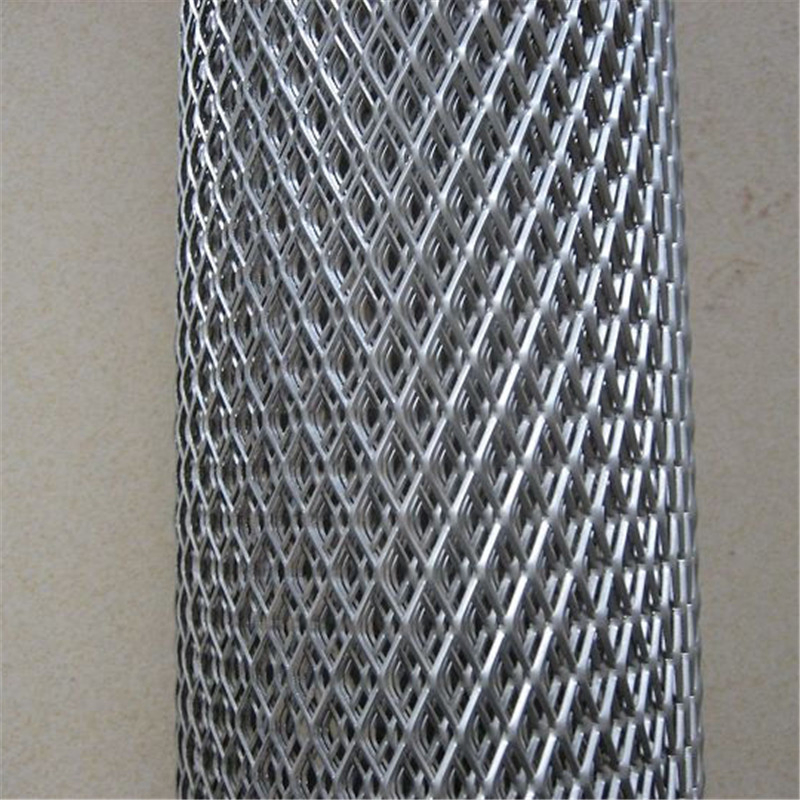

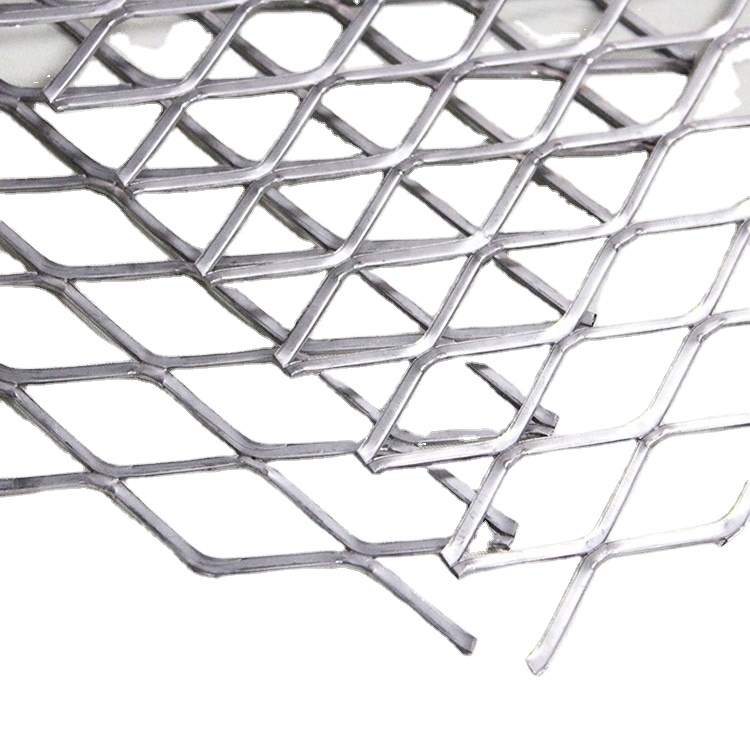

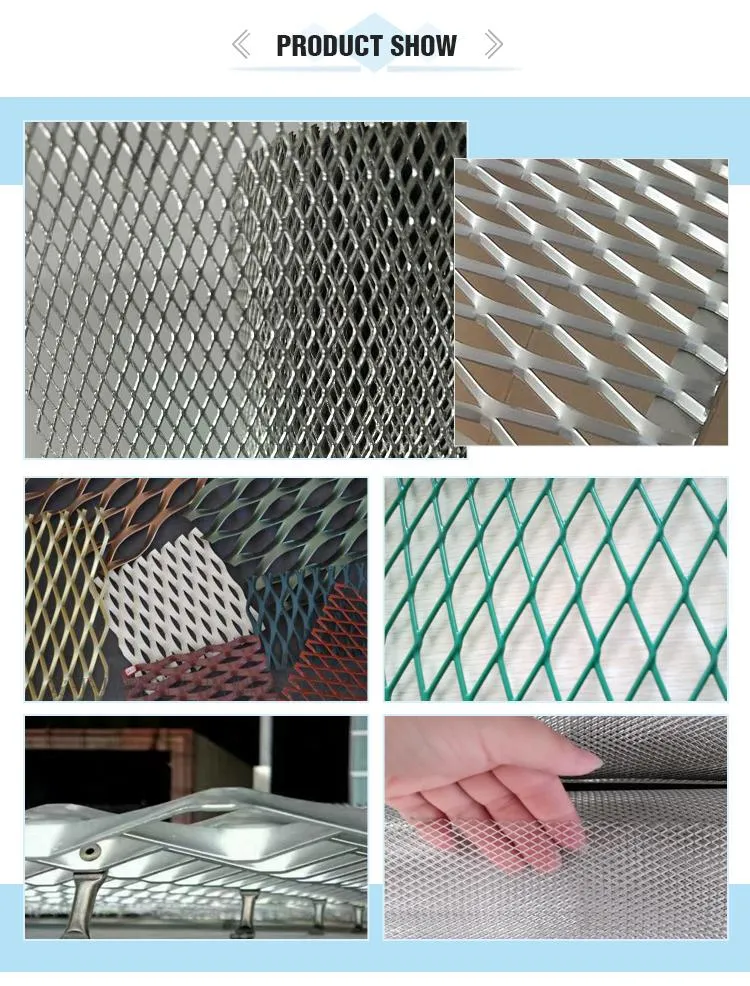

Material options include carbon steel plate, stainless steel, galvanized steel, aluminum, aluminum foil, lead, nickel plate, titanium, and aluminum-magnesium alloy panels. Conventional mesh is formed in a diamond pattern, but it can also be produced in hexagonal, round, triangle, and scale-like openings.

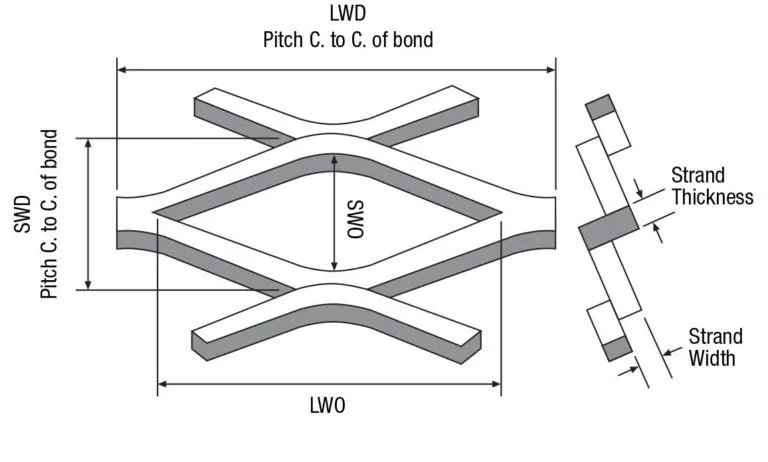

| Mesh Thickness (mm) | Short Distance (mm) | Long Distance (mm) | Strip (mm) | Width (m) | Length (m) | Weight (kg/m²) |
|---|---|---|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |

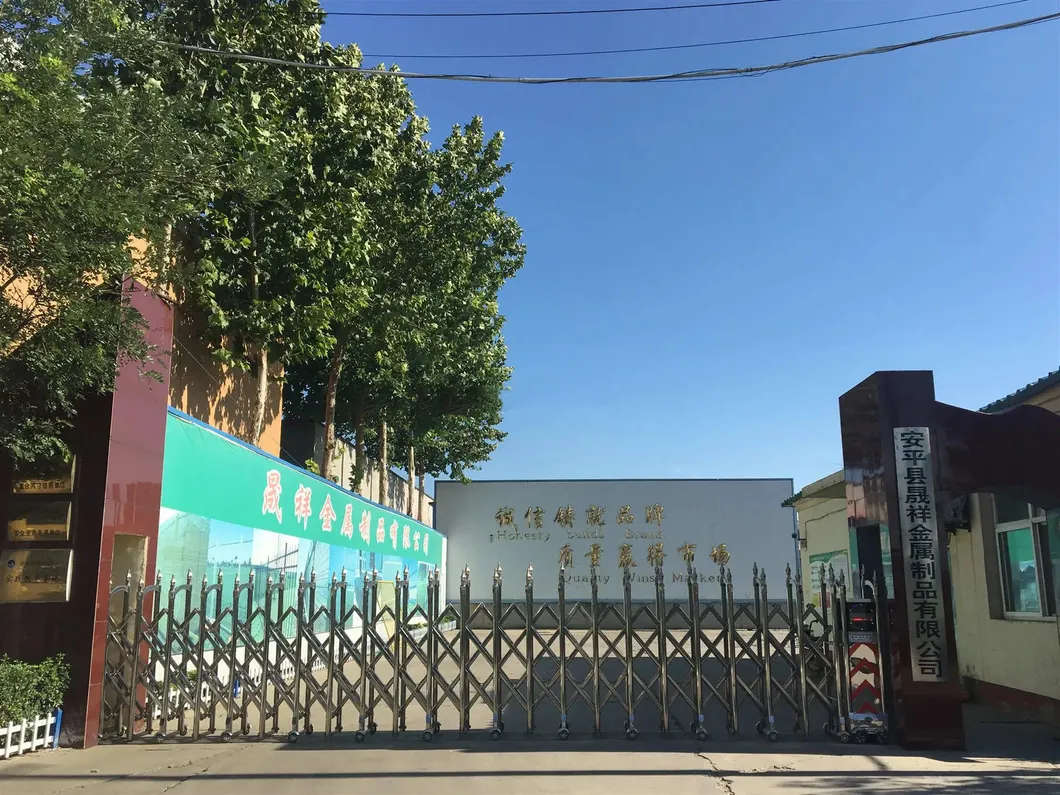

Our facility is located in the renowned production and distribution base of wire mesh. Founded in 1998, we have established ourselves as a leader in the field, certified with ISO9001:2000 and ISO14000:2000 Quality and Environmental Systems.
With 20,000 square meters of production space, 280 sets of advanced equipment, and a skilled team including 28 dedicated technicians, we focus on constant innovation. Approximately 90 percent of our products are exported globally. We can weave mesh up to 6 meters in width and customize products according to specific client requirements.
