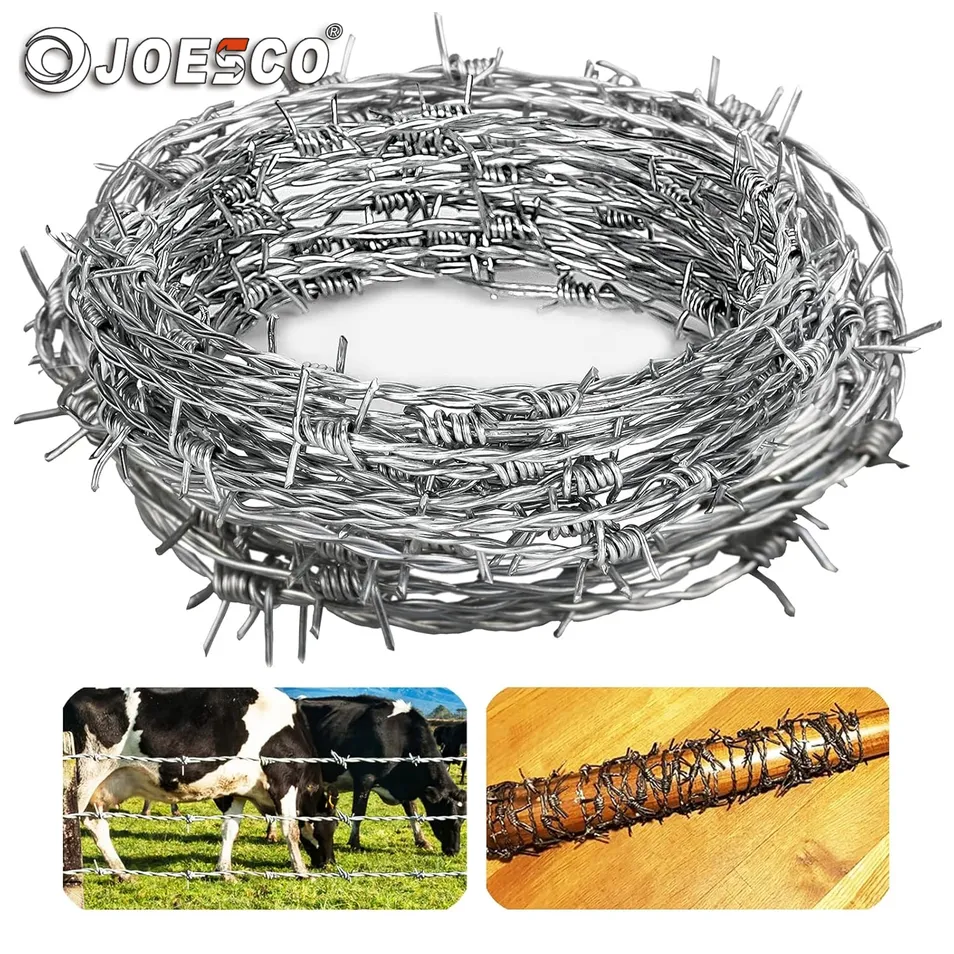

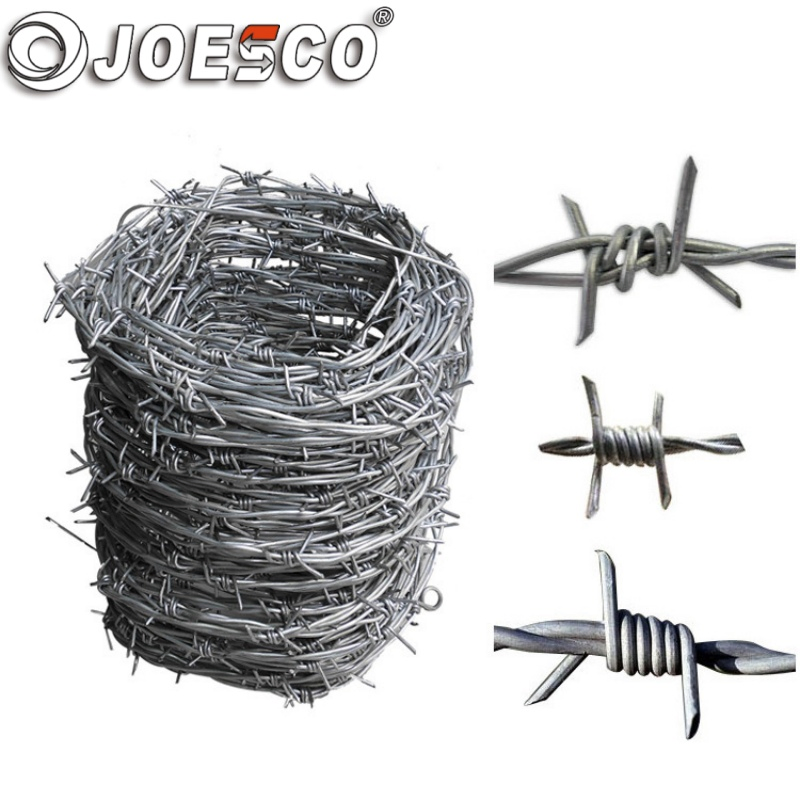

Barbed Wire is a type of twisted metal wire fitted with sharp barbs. Double-twist barbed wire is made by twisting two wire strands together and comes with four-point barbs. Single-twist barbed wire uses carbon steel wire as its core and can be equipped with either two-point or four-point barbs. It is a widely used fencing material, mainly applied in livestock enclosures and for deterring trespassers. It is suitable for a wide range of security applications such as agricultural production, livestock boundary demarcation, and prison security.

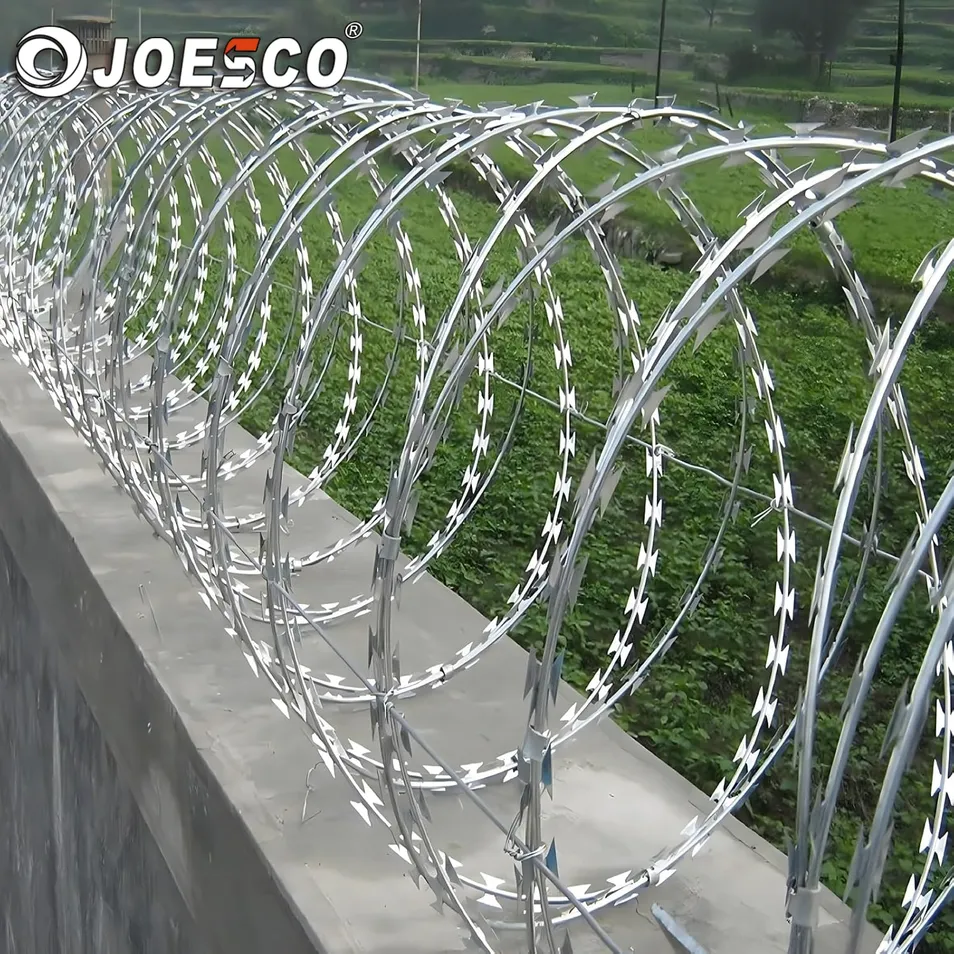

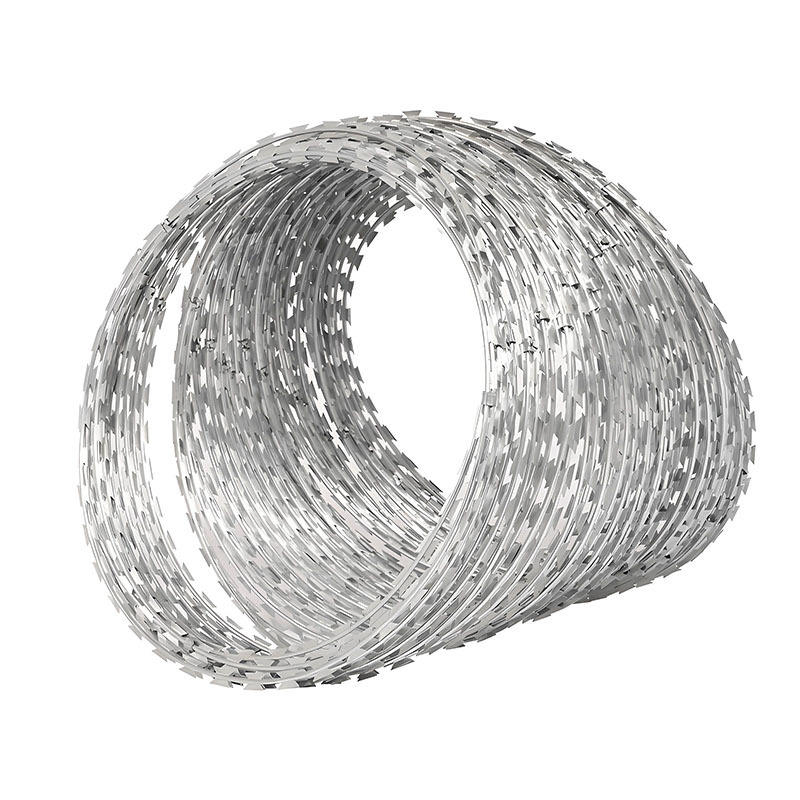

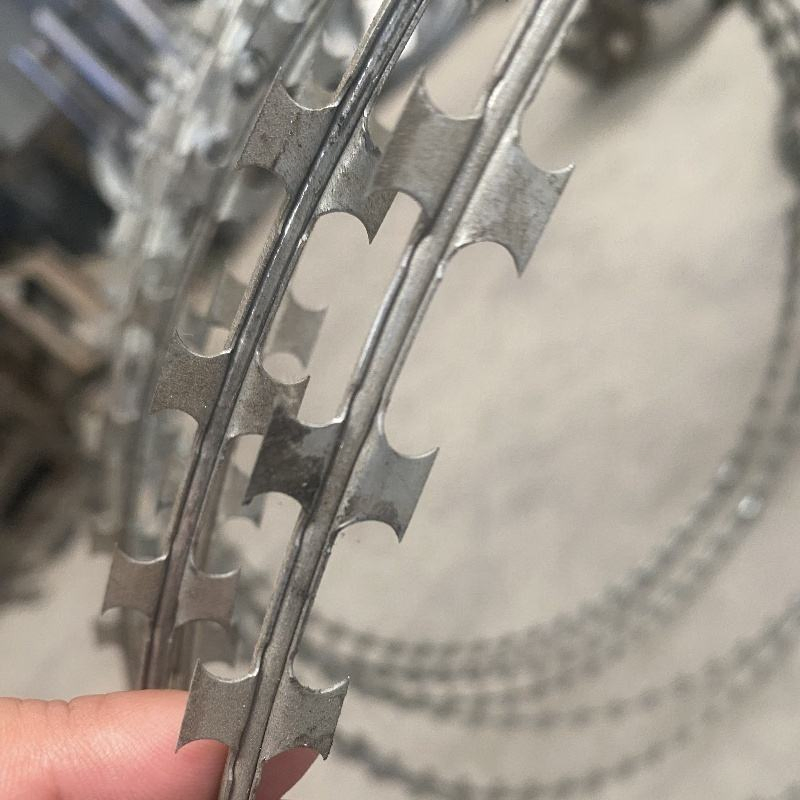

Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

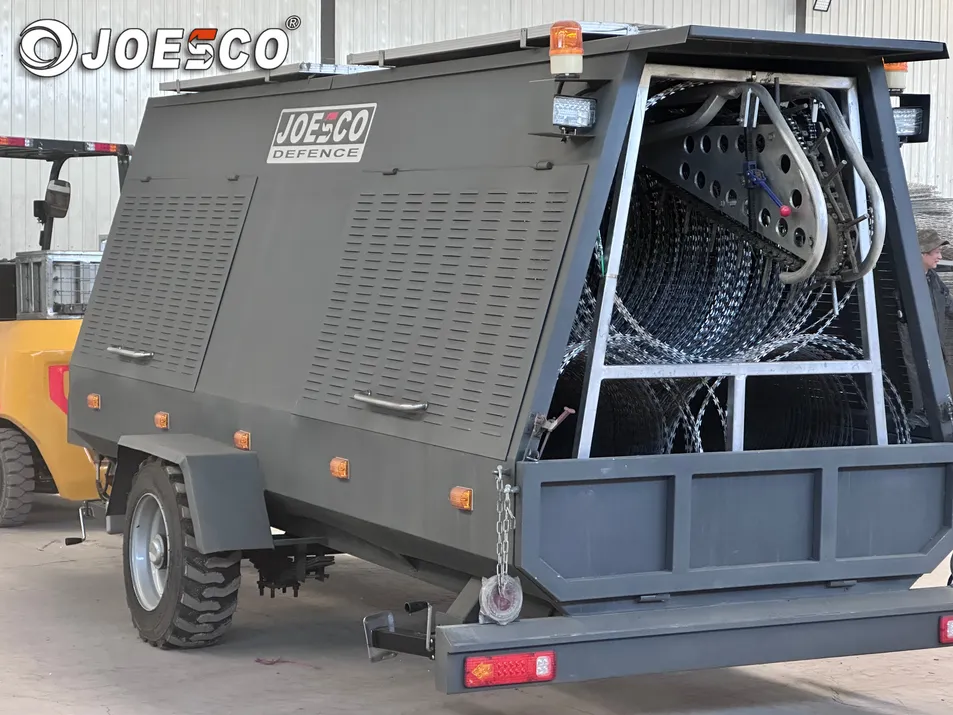

Razor Wire Trailer are designed for the rapid deployment of effectively layered concertina coils. This is a serious obstacle for rebels or demonstrators and vehicles to gain entry.

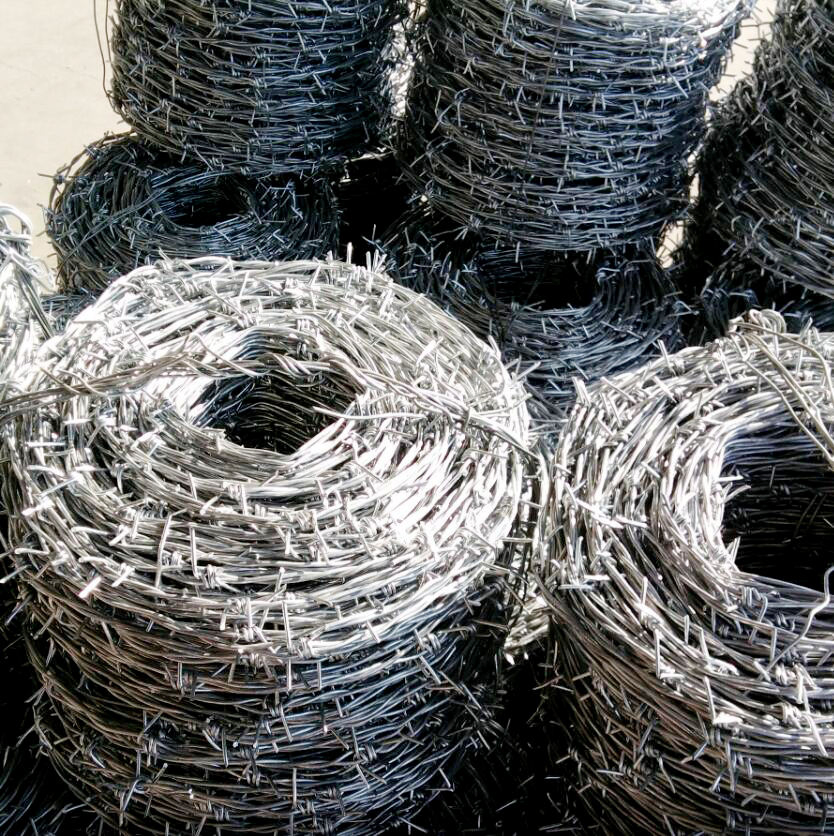

Consists of two wire strands together with four point barbs, placed at predetermined distances (3", 4", or 5"). Available in Electro-galvanized, Hot-dipped galvanized, and PVC Coated types. It's cost-effective and non-climbable, ideal for animal boundaries and prison protection.

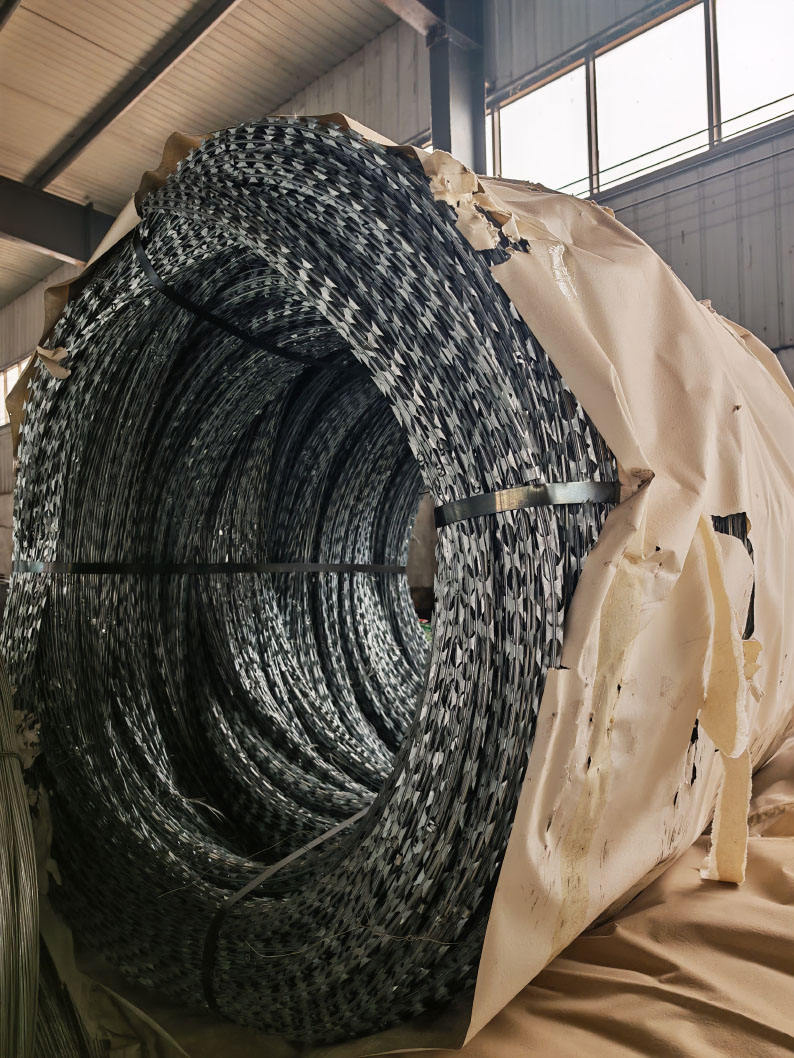

Manufactured from top-grade hot-dipped galvanized or stainless steel. Available in straight lines, single concertina coils, and crossed concertina coils. Offers superior protection and flexible installation for high-security areas.
Rapid deployment system for layered concertina coils. Can be hitched to any vehicle. Automatically releases and stretches the barrier, providing 1.7m high protection over a 150m distance using a 3-coil configuration.
| Razor Wire Fence Specification | |||||
|---|---|---|---|---|---|
| Blade Type | Thickness(mm) | Wire Dia(mm) | Barb Length(mm) | Barb Width(mm) | Spacing(mm) |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Concertina Razor Wire Specification | |||||
|---|---|---|---|---|---|
| Outside Dia (mm) | No. of Loops | Std Length (m) | Blade Type | Notes | Clips |
| 450 | 33 | 7-8 | CBT-60/65 | Single coil | 0 |
| 500 | 56 | 9-10 | BTO-10/22 | Cross-type | 3 |
| 960 | 56 | 13-15 | BTO-10/22 | Cross-type | 5 |
