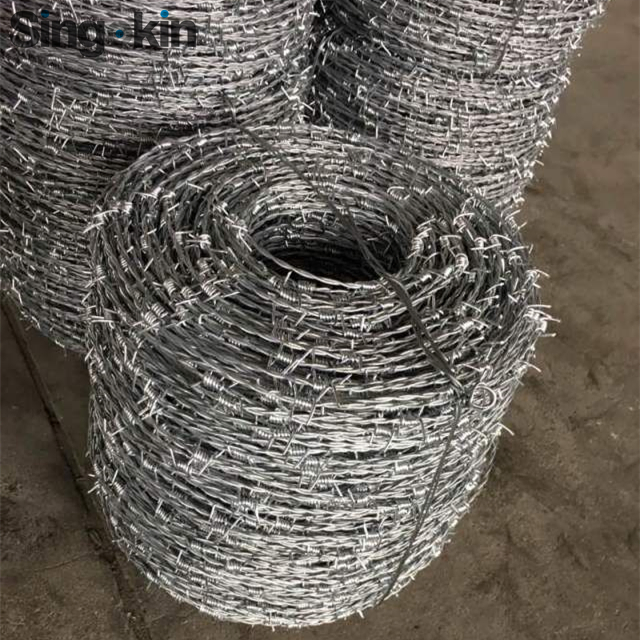

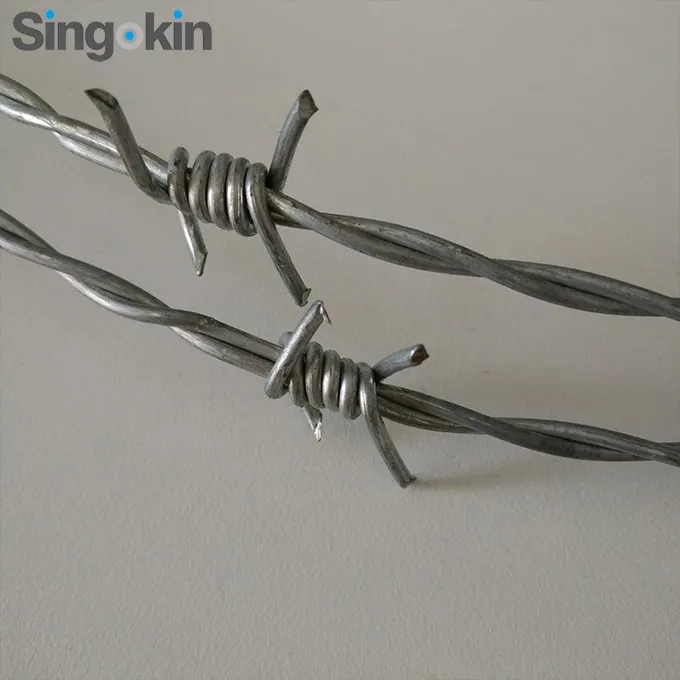

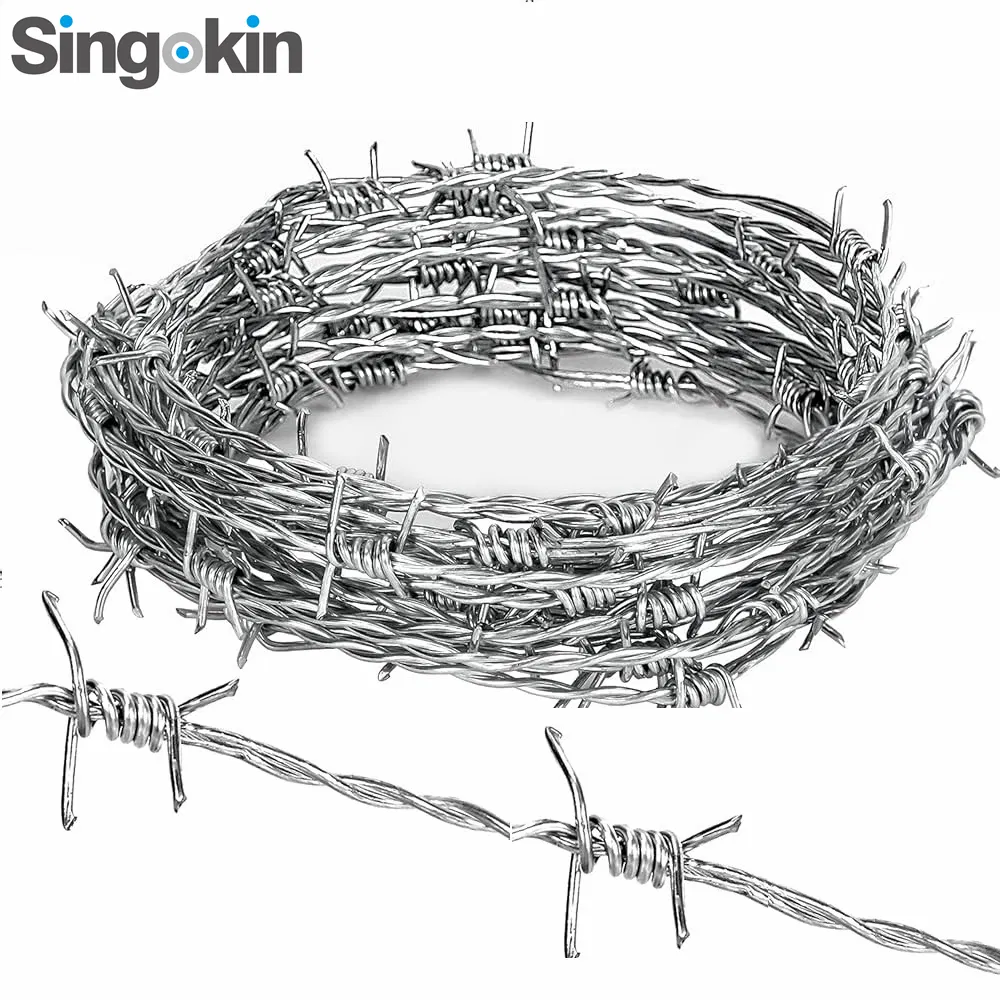

Barbed wire, also known as barb wire, is a premium type of fencing wire constructed with sharp edges or points arranged at regular intervals along the strands. It is an essential component for constructing inexpensive yet highly effective fences and is commonly used atop walls to secure property.
Mainly utilized for the protection of grass boundaries, railways, highways, national defense, airports, and orchards, it offers excellent protective performance combined with a professional appearance available in various patterns.

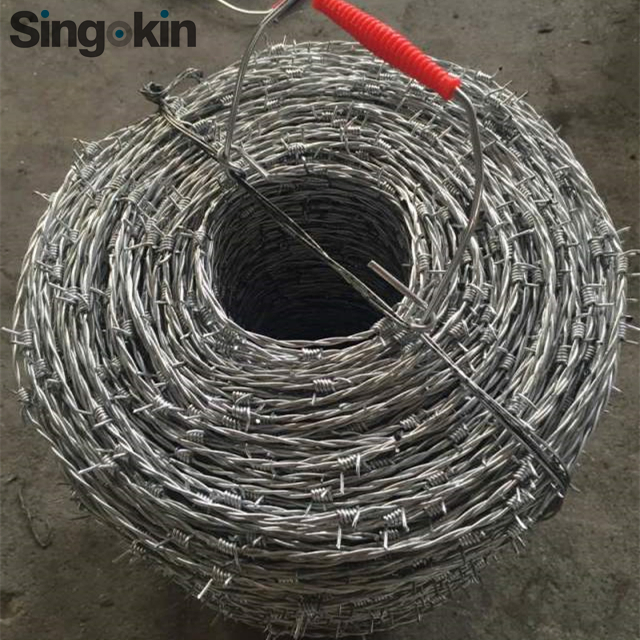

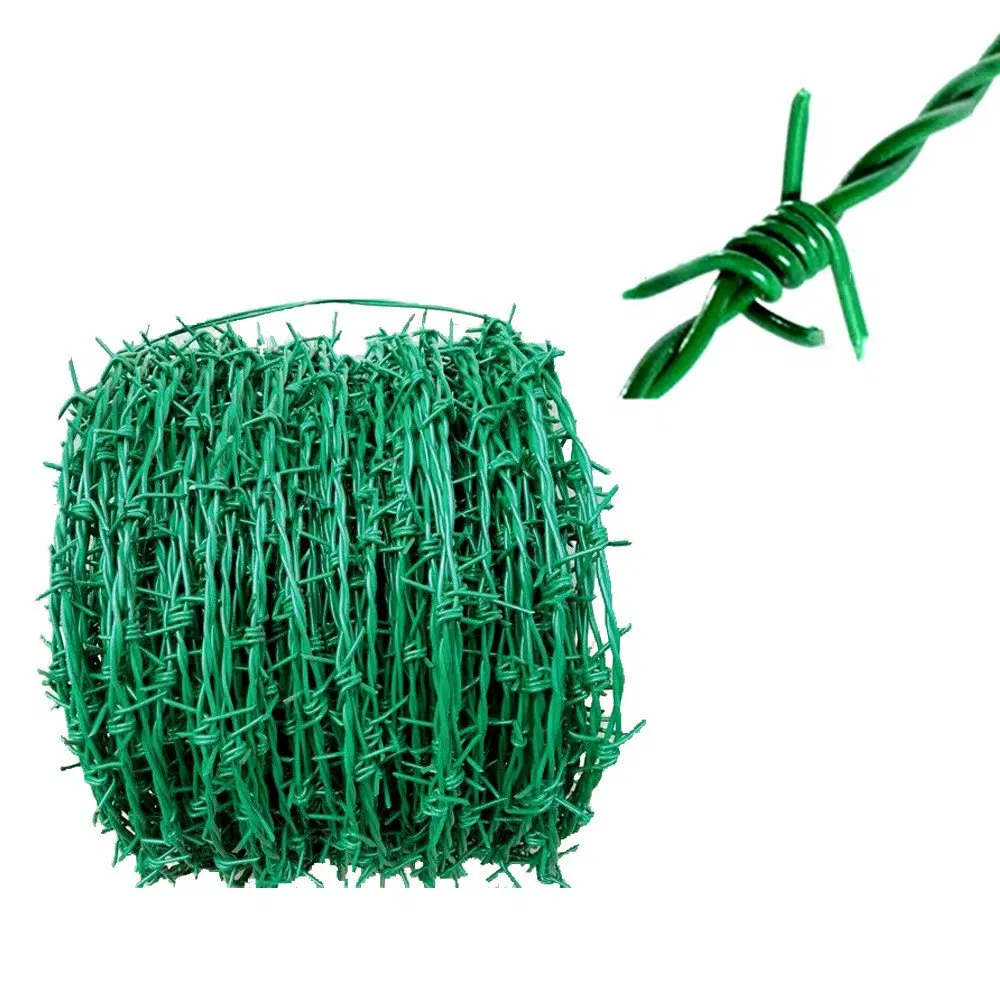

Available Types: Double twisted barbed wire, general barbed wire, single strand barbed wire, PVC coated barbed wire, and stoving varnish barbed wire.
Performance: Manufactured through precise twisting and weaving, ensuring the structure is firm, durable, and aesthetically clean.
| Strand * Barb (BWG) | Barbs Spacing 3" | Barbs Spacing 4" | Barbs Spacing 5" | Barbs Spacing 6" |
|---|---|---|---|---|
| 12*12 | 6.0617 | 6.759 | 7.27 | 7.6376 |
| 12*14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2*12-1/2 | 6.9223 | 7.719 | 8.3022 | 8.7221 |
| 12-1/2*14 | 8.1096 | 8.814 | 9.2242 | 9.562 |
| 13*13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 14*14 | 10.4569 | 11.659 | 12.5426 | 13.1752 |
| 15*15 | 13.8927 | 15.4942 | 16.6666 | 17.507 |
1) Key Features:
• High corrosion and oxidation resistance
• Wire Dia: 1.40mm to 2.60mm (Line wires)
• Barb Dia: 1.40mm to 2.50mm
• Barb Length: 1.5cm - 3cm
• Barb Spacing: 100mm - 150mm

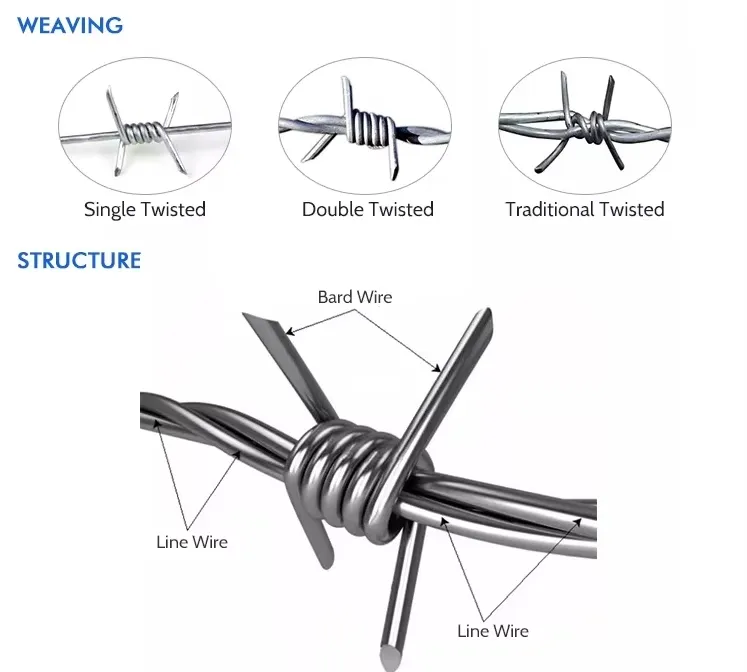

• Types: 4 pointed, reverse twist, 2 strands
2) Pattern Options:
• Single Twisted Barbed Wire

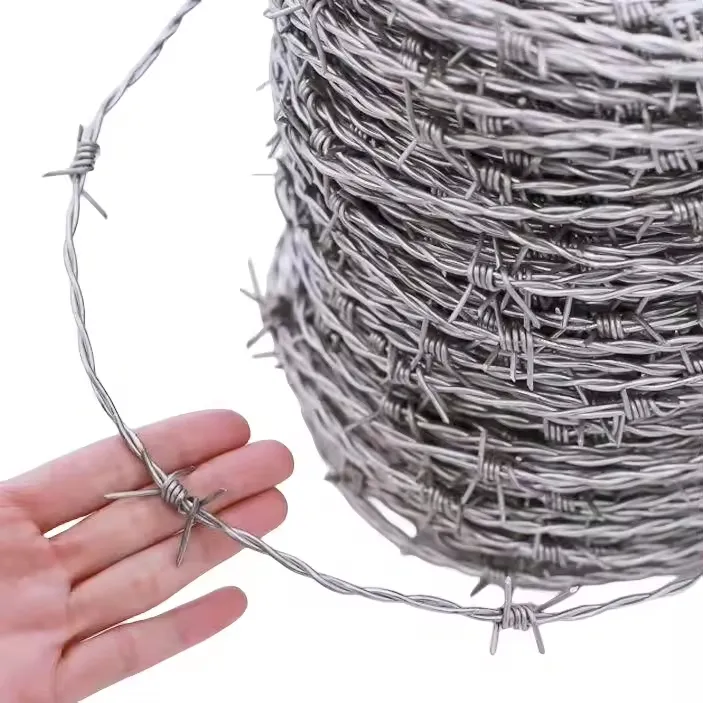

• Double Twisted Barbed Wire
• Colors: White, Green, Blue, Yellow, Gray, Silver
