Basic Information
Model NO.
SW-E
Hole Shape
Diamond
Usage
Protection, Civil Building, Railway/Road Construction
Weave Characteristic
Stamping Expanded
Common Width
60cm, 80cm, 354mm
Thickness
0.002" - 0.003" (50 - 70 Micron)
Weight Category
Miniature
Origin
China
Product Description

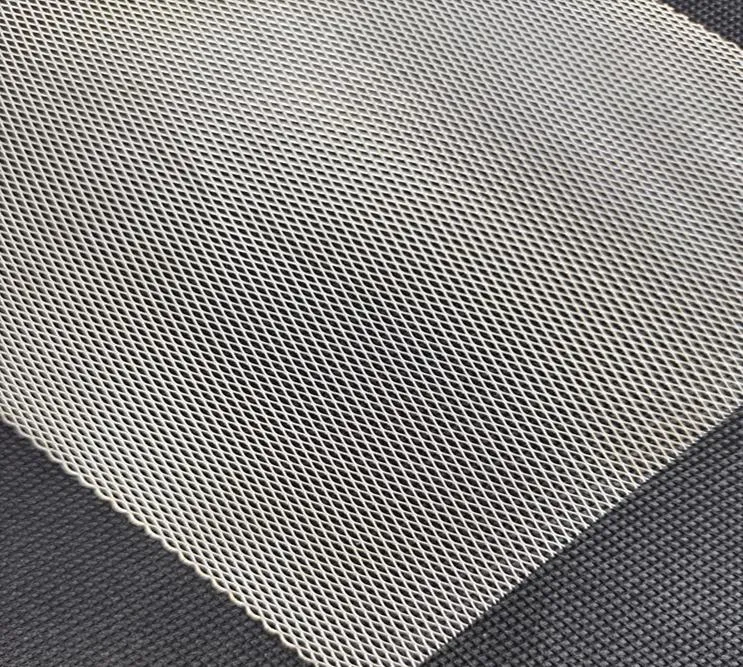

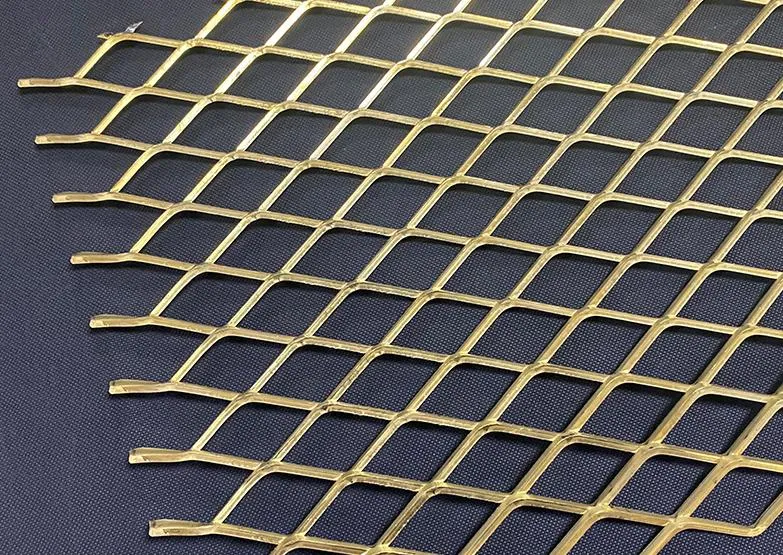

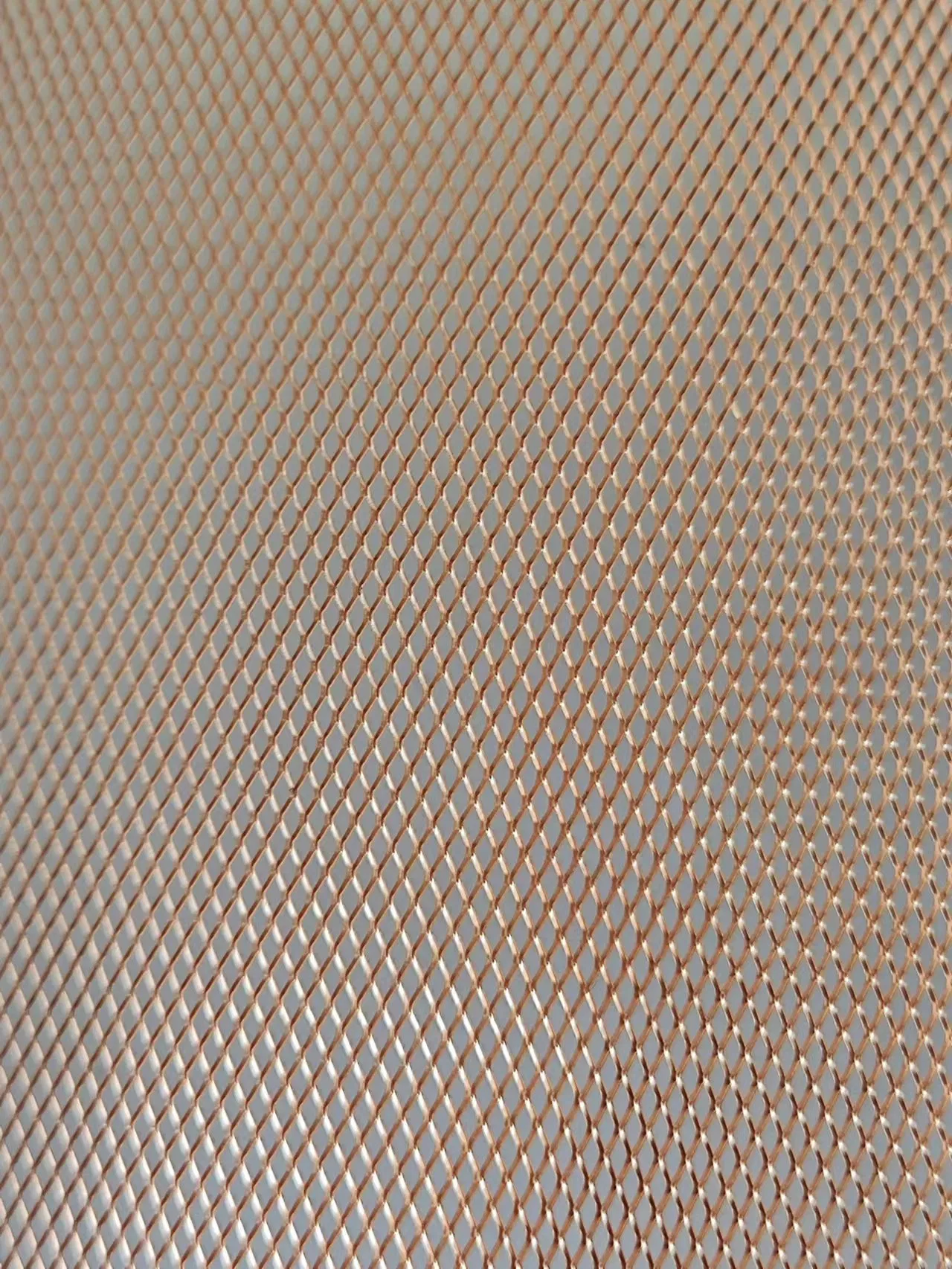

Precision expanded metal screen, also known as diamond hole mesh, is manufactured using metal sheets through specialized machine stamping and drawing processes.
Material Range: Our expanded metal mesh is available in stainless steel, aluminum, copper, silver, nickel, titanium, and more.
| Item |
Size (mm) |
| Mesh thickness |
0.04 - 5.0 |
| Mesh hole |
0.3x0.6, 0.5x1.0, 0.6x1.2, 0.8x1.6, 1x2, 1.25x2.5, 1.5x2, 2x2.5, 1.5x3, 2x3, 2x4, 3x6, 4x8, 5x10, 6x12, 8x16, 10x20, 15x30, 20x40, 30x60 etc. |

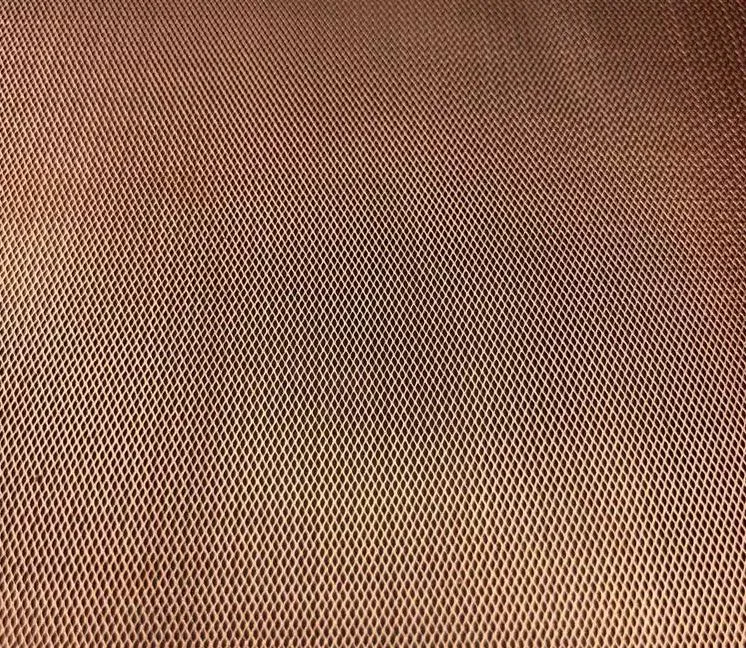

Applications & Industries
Expanded metal mesh serves diverse industries including:
- Aerospace & Cockpit Electronics
- EMI/EMP Shielding & RFID Signal Blocking
- Chemical Industry & Filter Media
- Battery Current Collectors & Hydrogen Making
- Shielded Enclosures, Gaskets, and Ventilation Screens
- Wind Energy & Sound Insulation

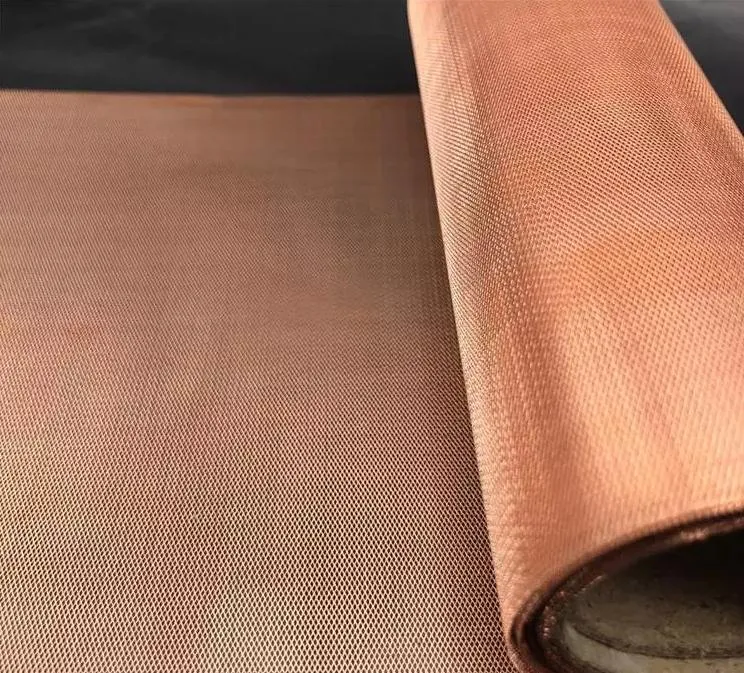

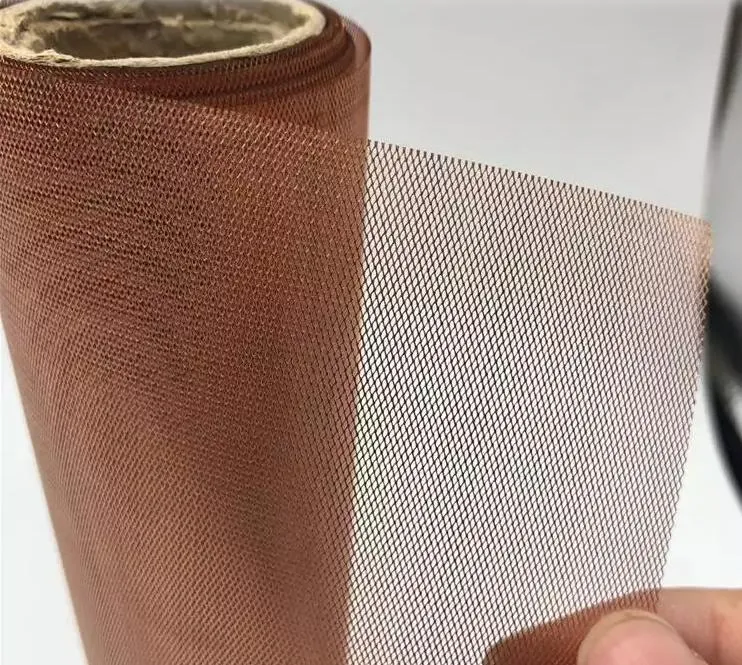

Detailed Specifications
| Type |
SW600-220 |
SWN600-300 |
SW600-420 |
SW800-420 |
SW600-300 |
SW800-120 |
| Weight (±10%) |
220g/m² |
300g/m² |
420g/m² |
420g/m² |
300g/m² |
120g/m² |
| Thickness (±10%) |
0.05mm |
0.08mm |
0.1mm |
0.1mm |
0.07mm |
0.1mm |

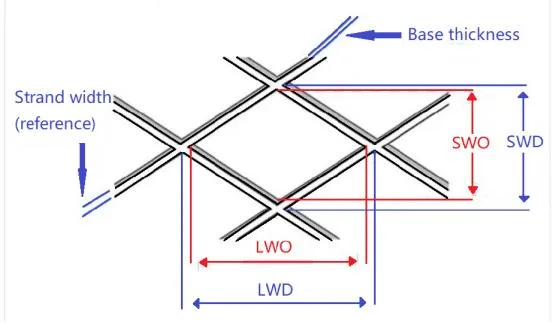

| LWD (±5%) |
0.85mm |
1mm |
2.5mm |
2.5mm |
0.8mm |
2.5mm |
| Open Area |
69% |
58% |
68% |
68% |
58% |
86% |
| Width (+20mm) |
600mm |
600mm |
600mm |
800mm |
600mm |
800mm |

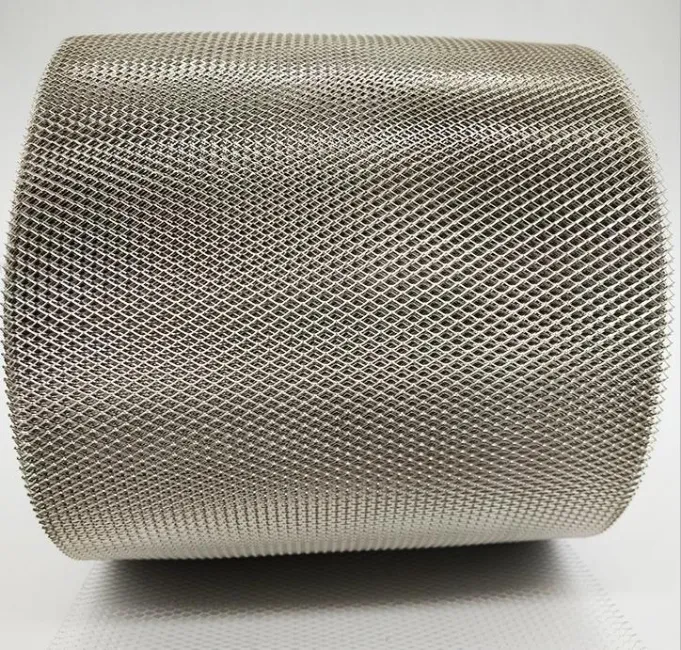

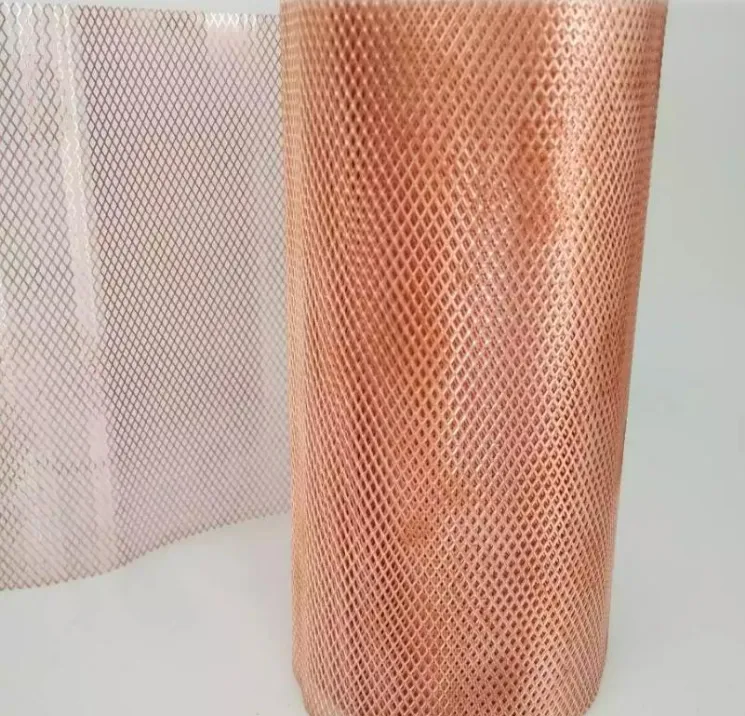

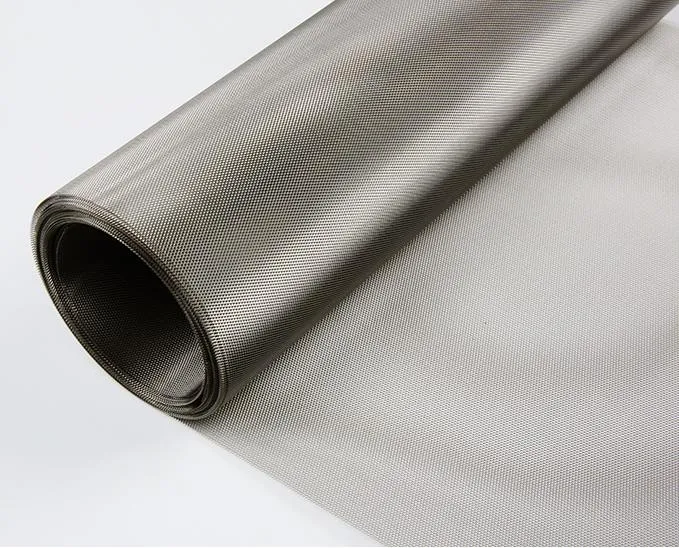

Advantages of Micro Copper Mesh
- Excellent conductivity and heat transfer performance.
- Non-magnetic and corrosion-resistant properties.
- Superior wear resistance and sound insulation.
- Effective signal shielding for high-security environments.

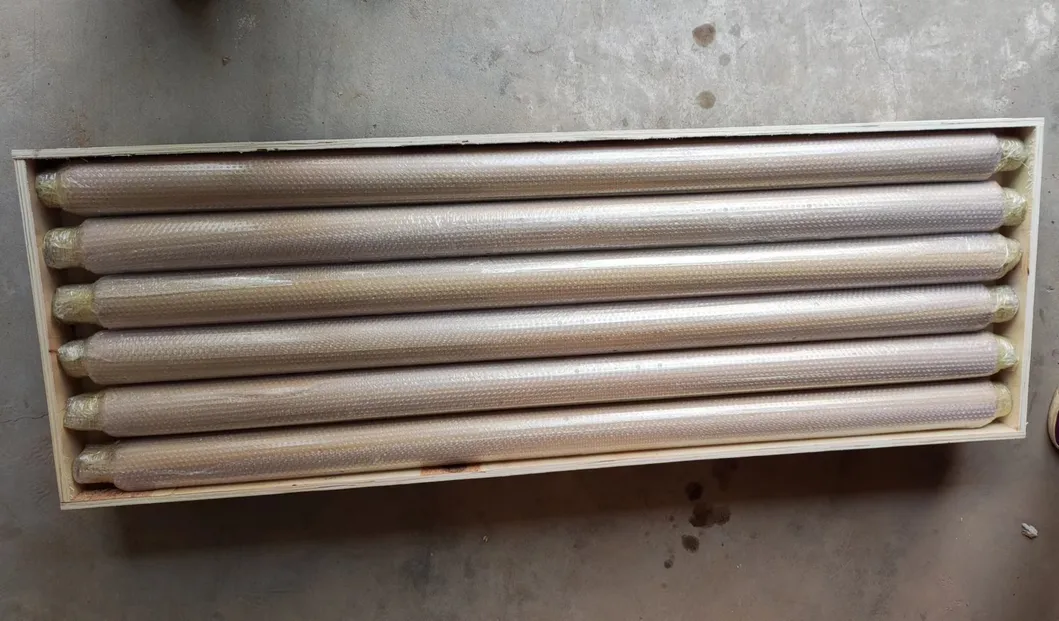

Packaging & Delivery
Package Materials
Water-Proof Paper, Air Bubble Film, Carton
Package Size
50.00cm * 13.00cm * 15.00cm
Gross Weight
10.000kg
Capacity
50 Ton / Month
Frequently Asked Questions
What materials can be used for precision expanded metal mesh?
Our precision mesh can be manufactured from various materials including stainless steel, aluminum, copper, silver, nickel, titanium, and monel to suit different industrial requirements.
How is the mesh produced?
The mesh is produced through a precise machine stamping and drawing process, which transforms metal sheets into a continuous diamond-hole pattern without any material waste.
Is this product suitable for EMI or RFID shielding?

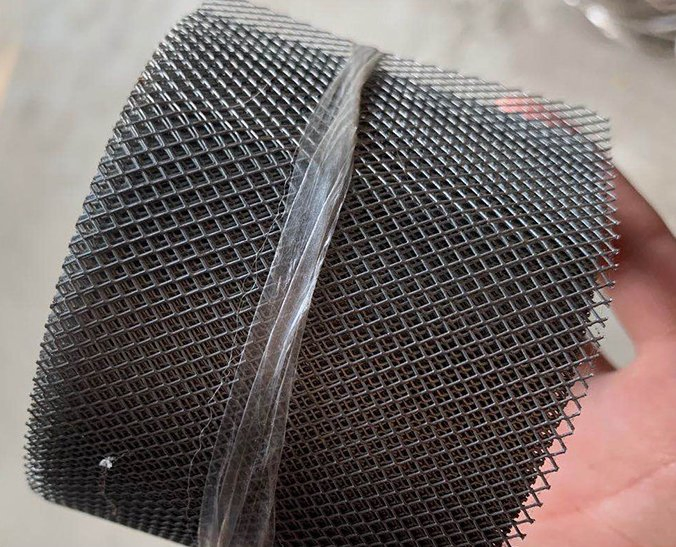

Yes, expanded copper and aluminum meshes are highly effective for EMI/EMP shielding, used in shielded enclosures, gaskets, cockpit electronics, and information-safe Faraday cages.
What are the typical thicknesses available?
We offer a wide range of thicknesses, from miniature foils (50-70 microns) up to 5.0mm, depending on the application needs.
In what forms is the mesh delivered?

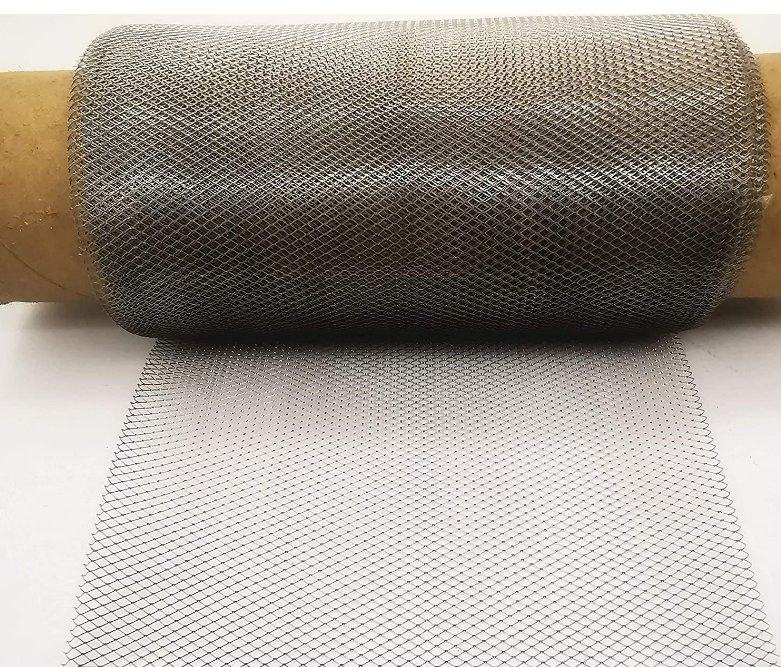

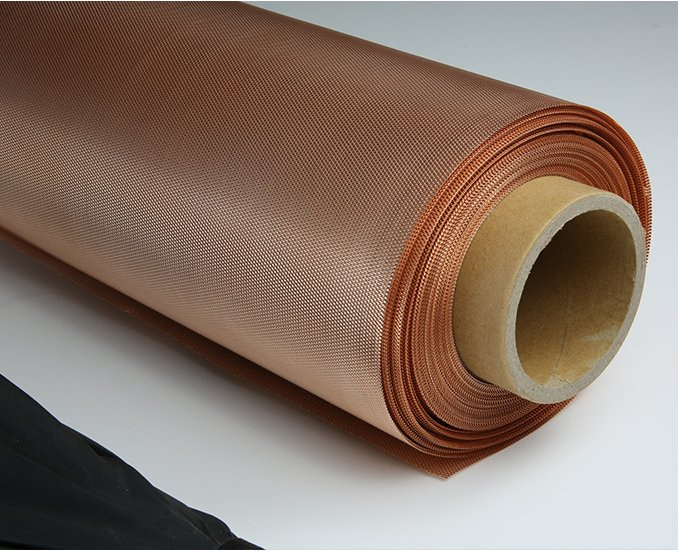

The mesh is typically delivered in rolls. For safety and quality preservation, we use water-proof paper, air bubble film, and sturdy cartons for packaging.
What are the main advantages of using micro copper mesh?
Micro copper mesh offers exceptional conductivity, non-magnetic properties, corrosion resistance, and excellent heat transfer, making it ideal for battery collectors and shielding.
