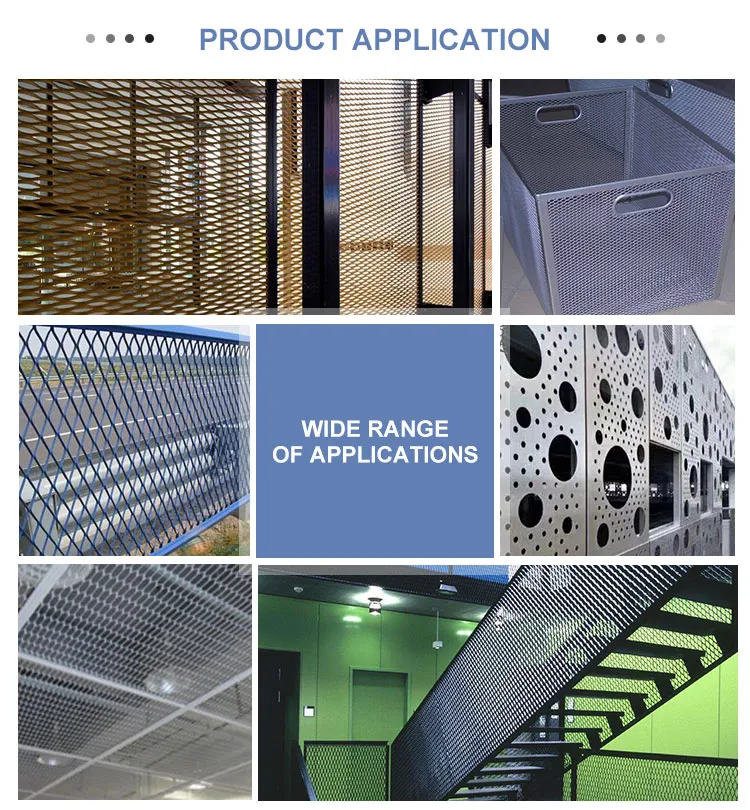

Expanded Metal is used widely throughout the transportation industry, Agriculture, Security, Machine guards, Flooring, Construction, Architecture and interior design. The use of this kind of expanded metal mesh is highly beneficial, cost saving, and requires low maintenance. Different styles available allow for multiple uses. It can be made to match your patterns and designs.

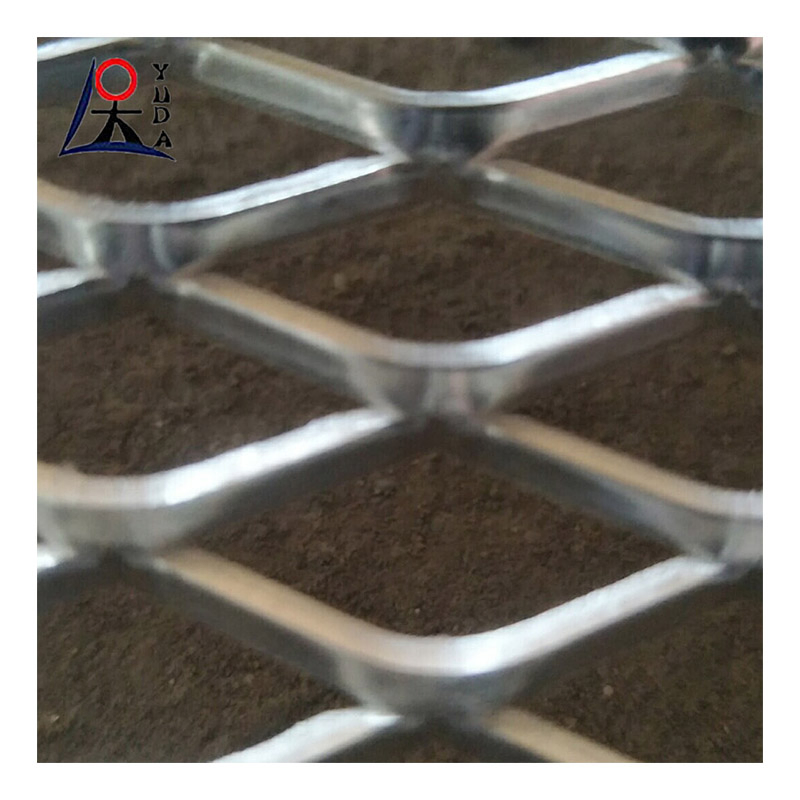

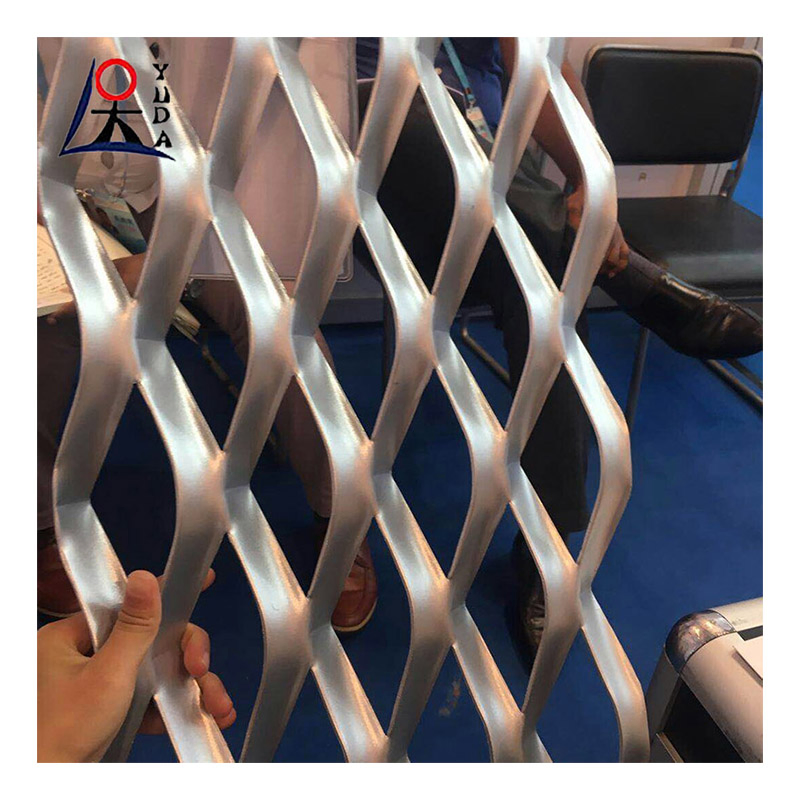

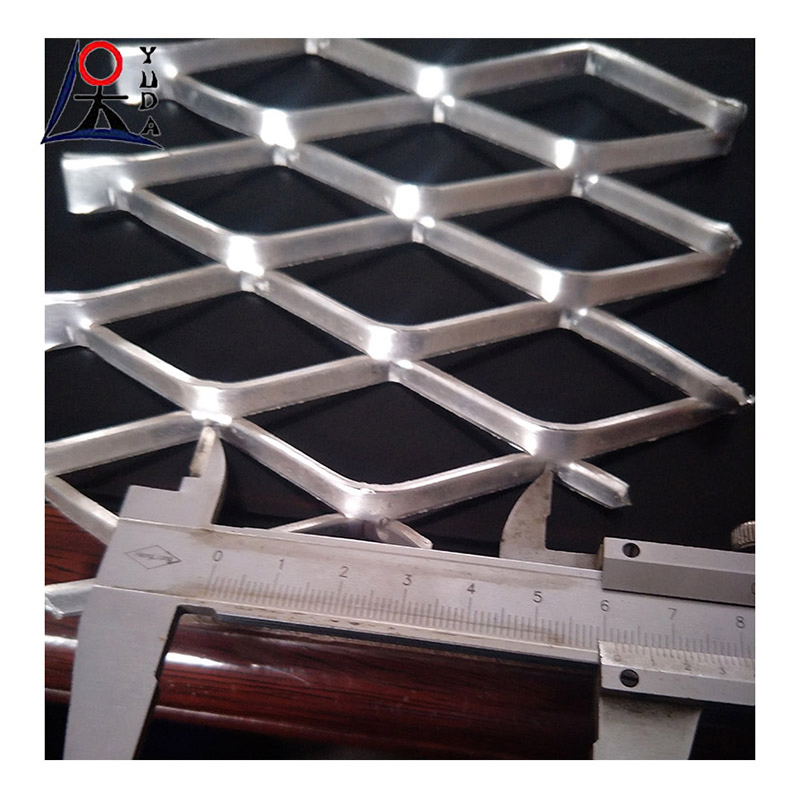

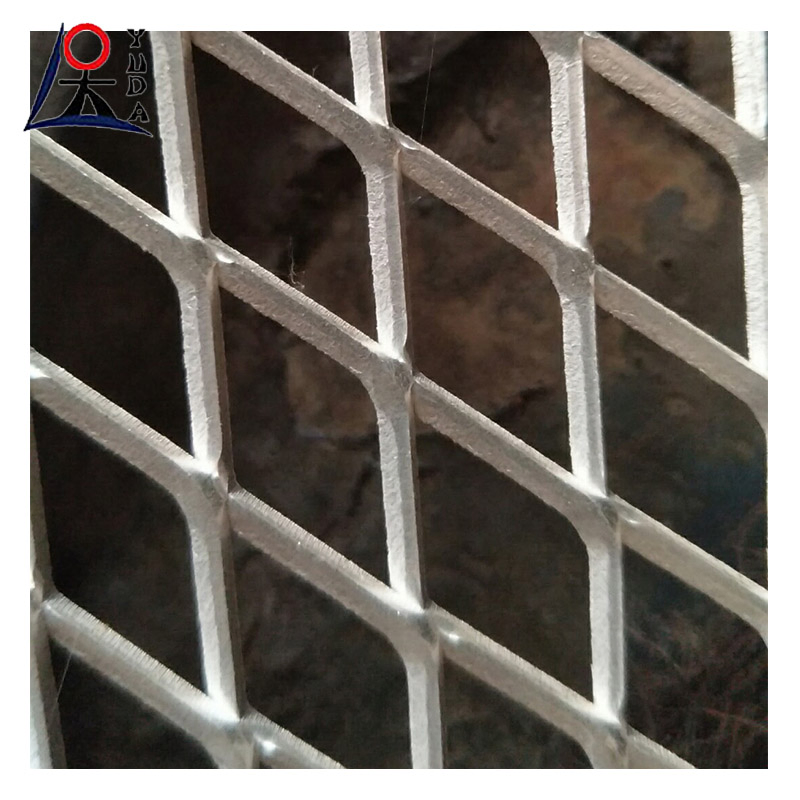

Expanded metal mesh or Expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press. The sheet is cut and expanded to many uniform diamond shapes. The pattern can be made by using different gauges and materials as well as the size of the diamond.
| Mesh thickness(mm) | Distance short(mm) | Distance long(mm) | Strip(mm) | Width (m) | Length(m) | Weight(kg/m2) |
|---|---|---|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
