Aluminum/Galvanized/Stainless Steel /Carbon Steel/Heavy-Duty Expanded Metal Wire Mesh Expanded

1 / 5

Aluminum/Galvanized/Stainless Steel /Carbon Steel/Heavy-Duty Expanded Metal Wire Mesh Expanded

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

4*6Mesh

Material

Galvanized Sheet Plate

Application

Construction Wire Mesh, Protecting Mesh, Decorative Mesh, Filter, Sieving Diversified Pellet, Barbecue Wire Mesh, Cages

Hole Shape

Fish Scale

Usage

Protection, Aquaculture, Water Conservancy, Civil Building, Railway/Road Construction

Surface Treatment

Hot-galvanized

Weave Technique

Stamping

Category

Small Steel Plate Mesh

Product Overview

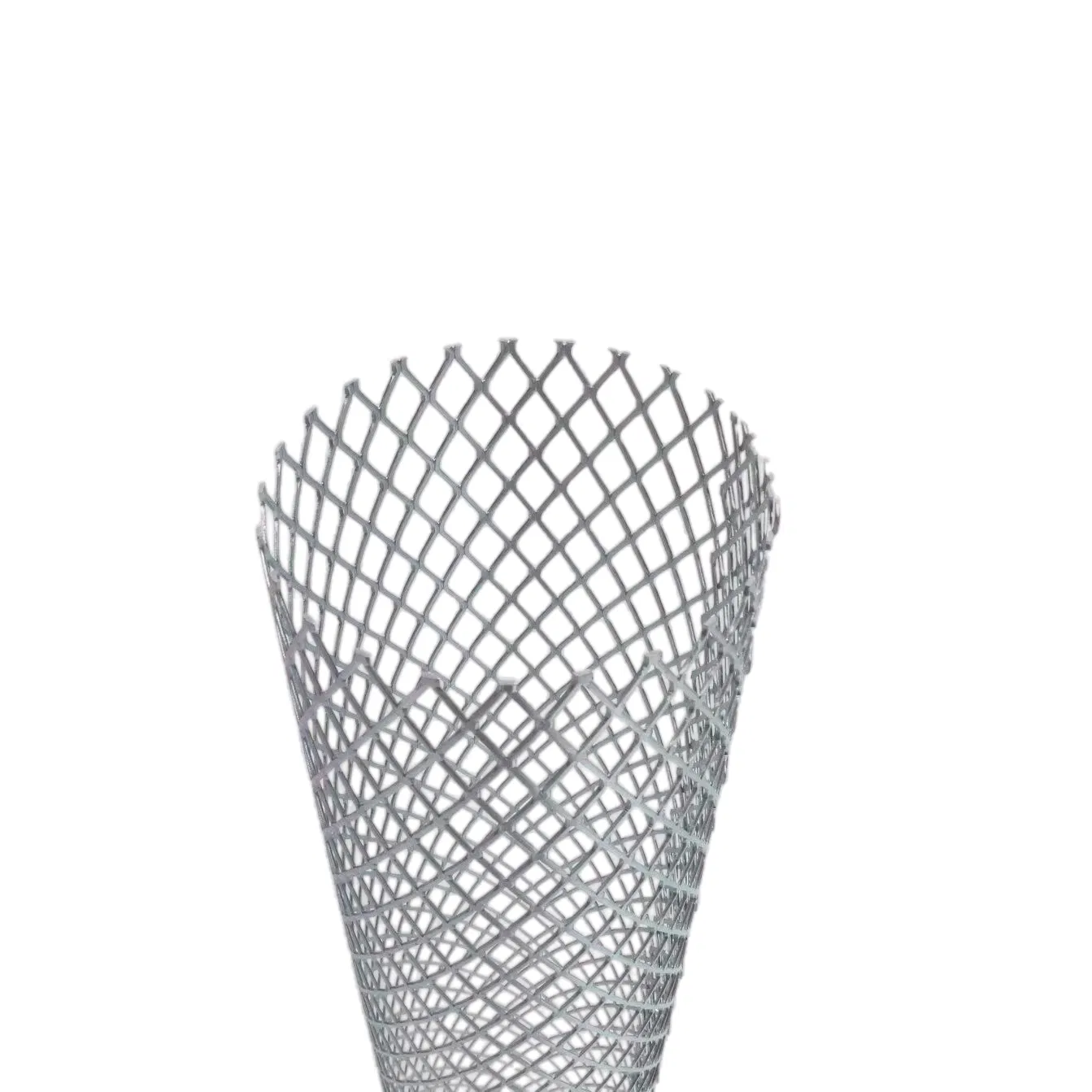

Expanded metal filters, also referred to as expanded mesh filter cylinders, are manufactured from expanded metal sheets. Common structural types include both longitudinal welded pipes and spiral welded pipes. The expanded metal is slit and stretched using punching machines to create various hole patterns, resulting in a product with a robust structure that maintains its shape over time without deformation.

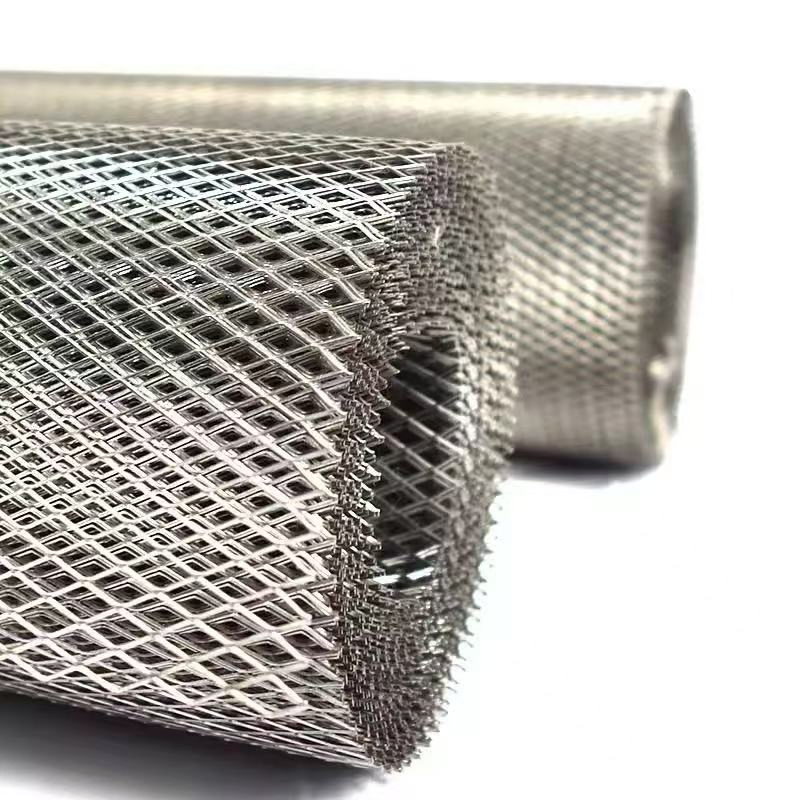

Expanded mesh tubes offer greater rigidity and durability compared to standard wire mesh filter tubes. Standard specifications feature diameters ranging from 10 mm to 300 mm and lengths up to 3 meters, typically produced in aluminum, galvanized steel, or stainless steel.

Key Characteristics

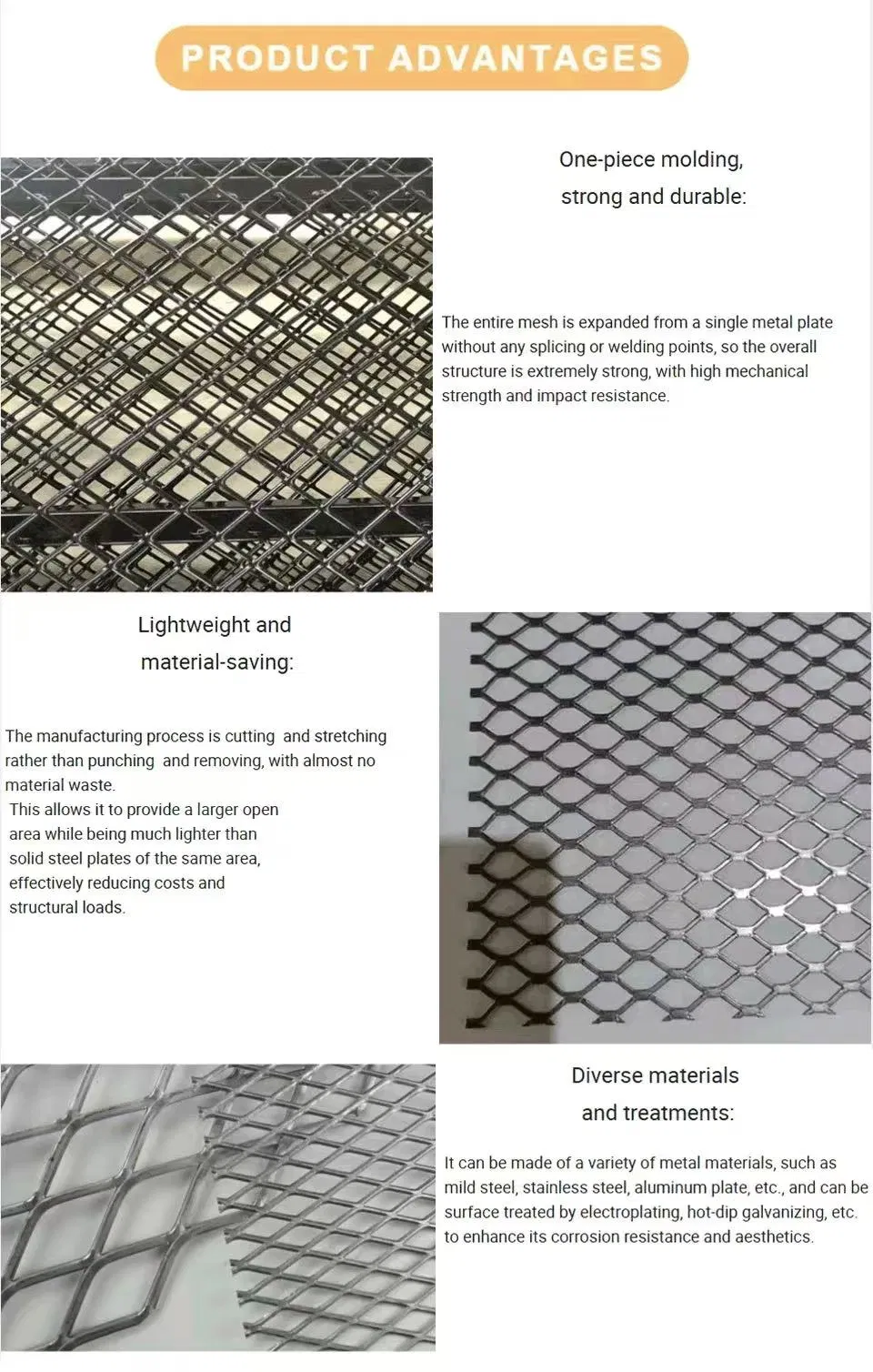

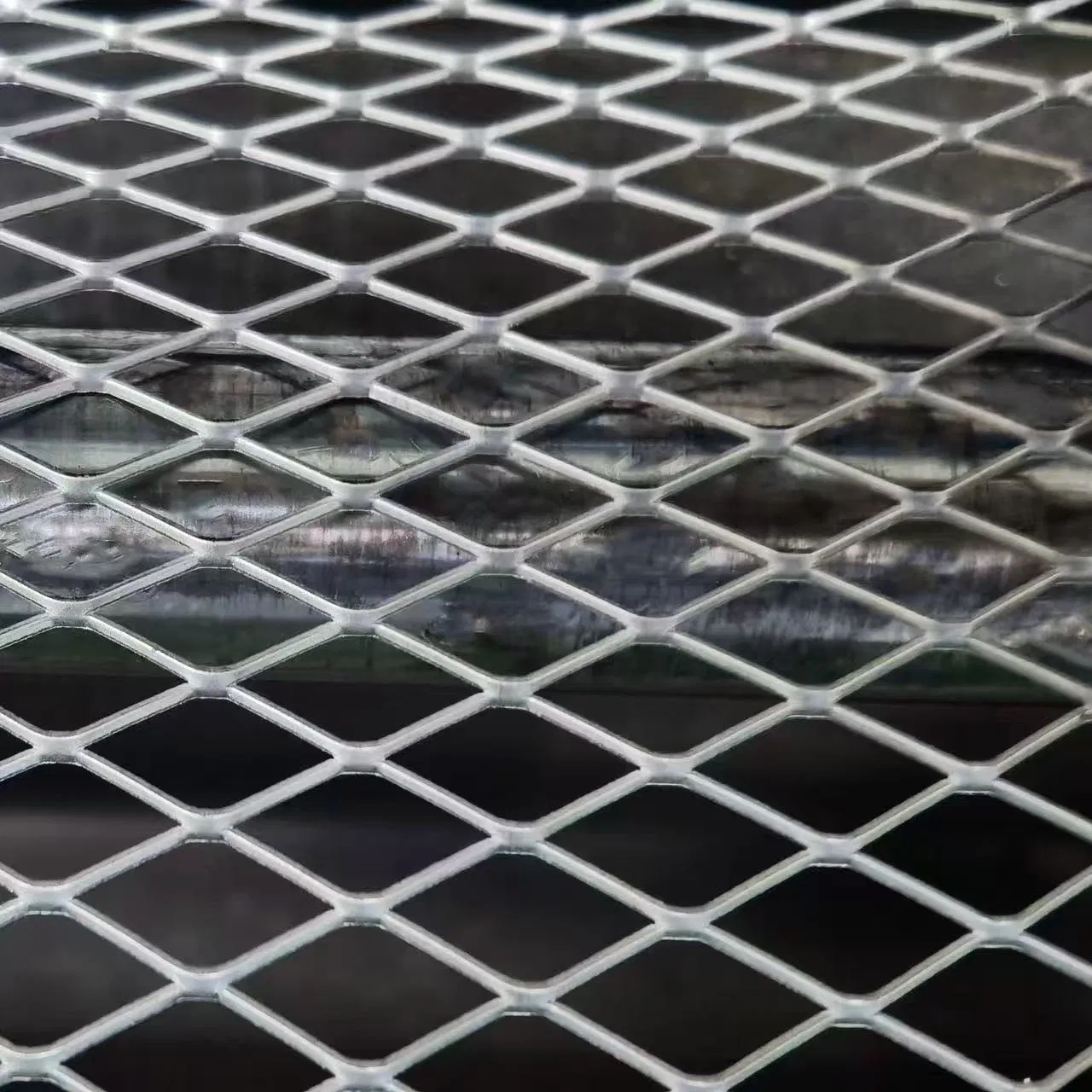

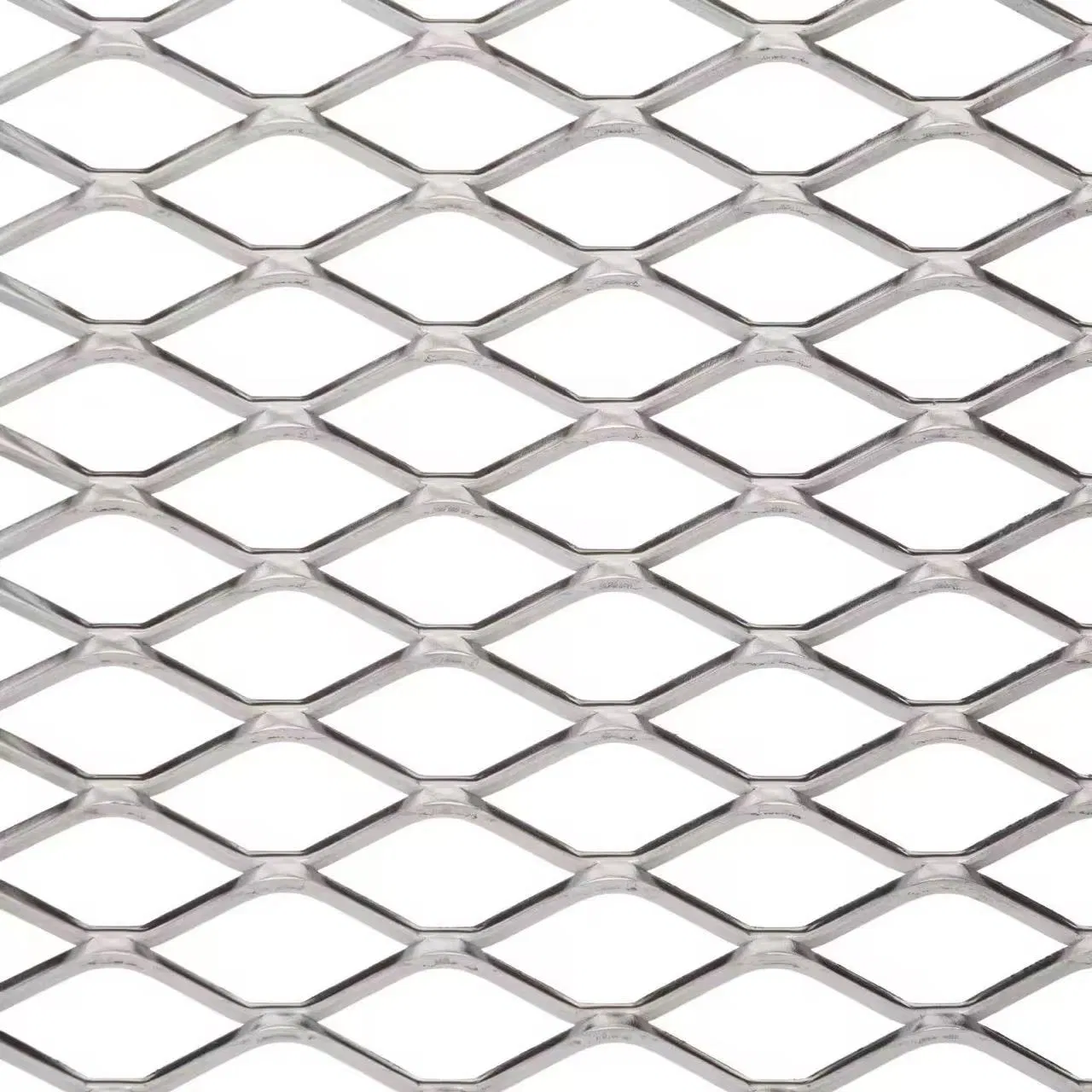

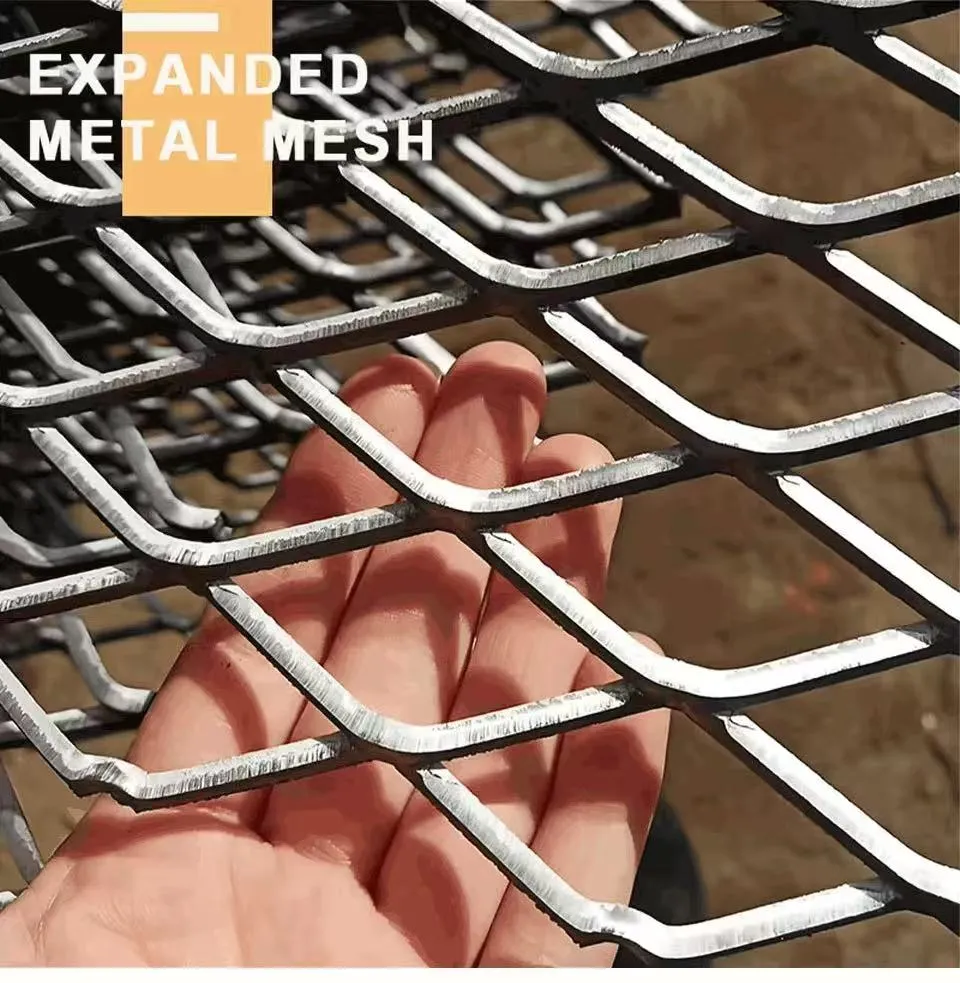

Expanded metal mesh is a mesh material that is precision-cut and stretched from a single piece of sheet metal. It is not woven or welded together. Its most notable feature is the absence of welds and waste, resulting in a unique diamond-shaped mesh structure that provides high strength and structural integrity.

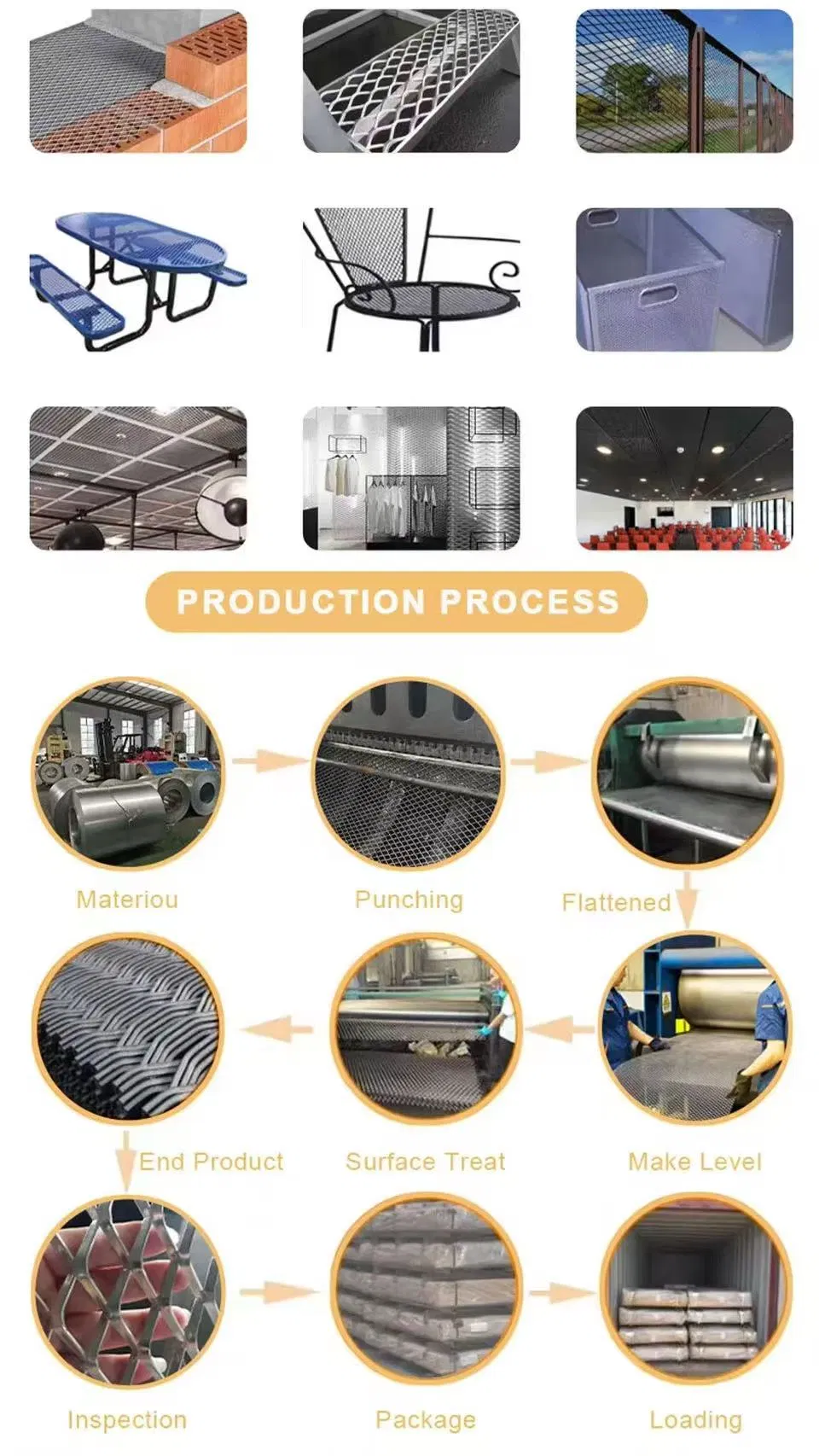

Application Scenarios

Construction & Design: Decorative curtain walls, interior partitions, ceiling panels, balcony railings, and staircase safety screens.

Industrial Use: Nonslip flooring for factory platforms, walkways, ship decks, and efficient filters in mining or chemical processing.

Infrastructure: Durable ventilation grilles, protective covers for machinery, garden fencing, and safety enclosures.

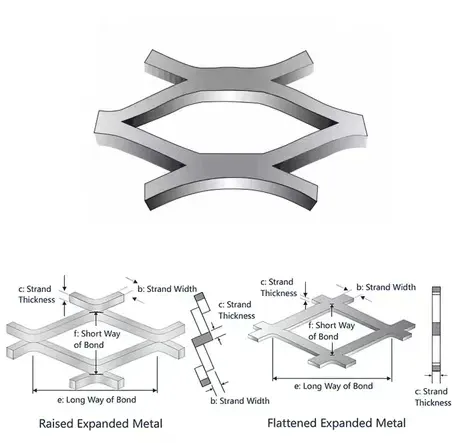

Technical Specifications

Thickness (mm)	Short Distance (mm)	Long Distance (mm)	Strip (mm)	Width (m)	Length (m)	Weight (kg/m²)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
1.0	10	25	1.1	0.6	2	1.77
2.0	18	50	2.1	2	4	3.69
3.0	40	80	3.8	2	4	5.00
5.0	50	100	5	1.4	2.6	12.39

Frequently Asked Questions

What materials are available for expanded metal filters?

Our expanded metal filters are typically manufactured from high-quality aluminum, galvanized steel, or stainless steel to suit various environmental requirements.

Is expanded metal mesh welded or woven?

Neither. Expanded metal mesh is precision-cut and stretched from a single sheet of metal, ensuring a weld-free, integral structure that is stronger than traditional mesh.

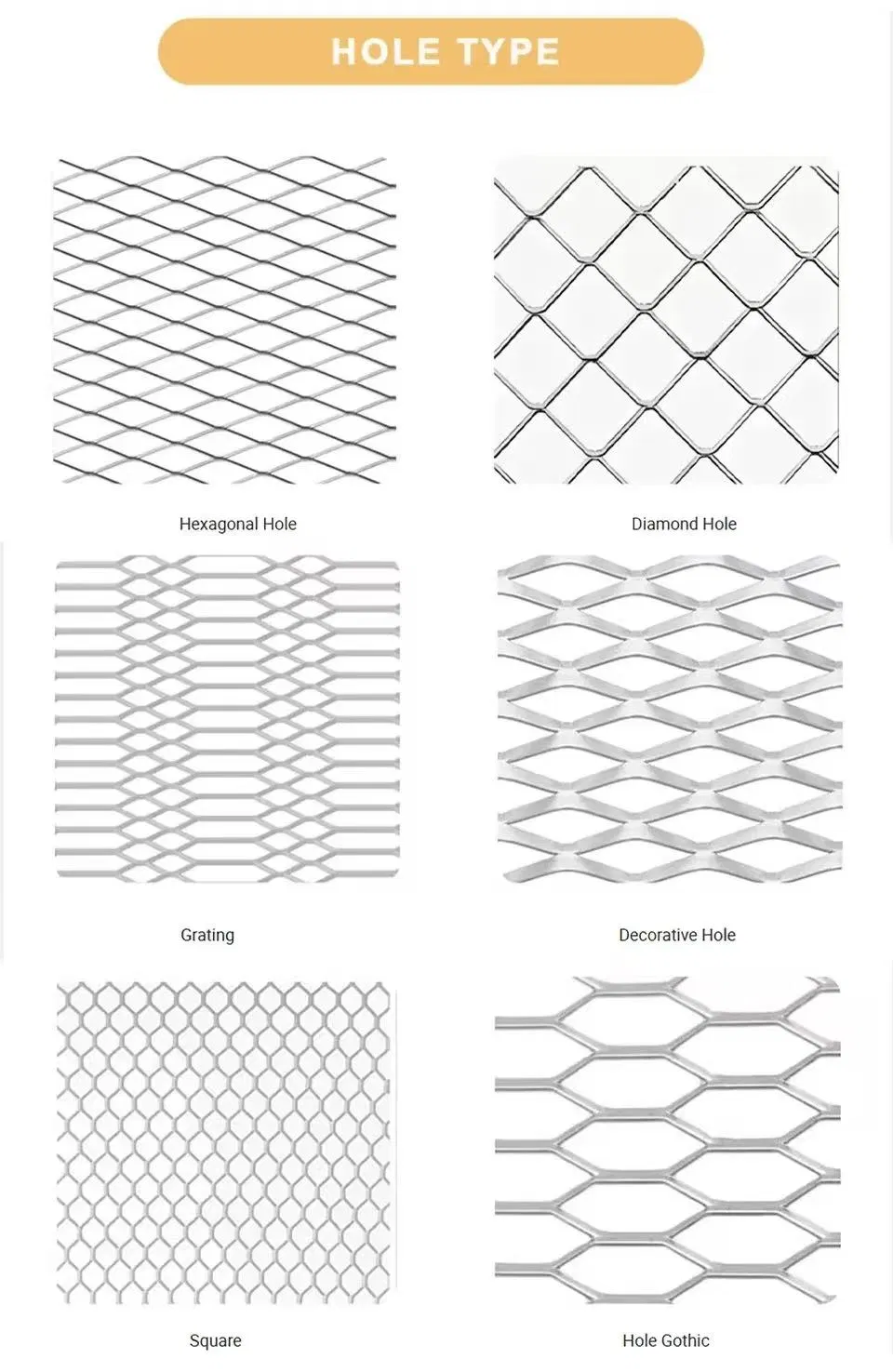

What are the common hole patterns?

The most common patterns are diamond-shaped and fish scale, which provide excellent permeability and structural rigidity.

Can these be used for heavy-duty applications?

Yes, heavy-duty expanded metal mesh is ideal for factory platforms, walkways, and machinery protection due to its anti-slip properties and high strength.

What are the size limitations for the filter tubes?

We offer diameters from 10 mm up to 300 mm, with lengths customizable up to 3 meters.

What are the benefits of hot-galvanized surface treatment?

Hot-galvanizing provides superior corrosion resistance, making the mesh suitable for outdoor construction and aquaculture applications.
