📋 Basic Info.
Application
Liquid Filtration, Screening, Solid-Liquid Separation, Gas-Liquid Separation, Dry Filtration, Dustproof, Gas Filtration
Mesh Name
Brass Wire Mesh
Material
Brass Wire (H65)
Hole Size
10mesh to 250mesh
🛠️ Product Description
Brass fuel filter wire mesh: High brass (70% copper, 30% zinc) wire and low brass (80% copper, 20% zinc) wire have much better abrasion resistance, better corrosion resistance and lower electrical conductivity when compared to copper wire.
- Materials: H65 brass wire (65% Cu, 35% Zn)
- Mesh Count: 2-250 mesh
- Weaving: Plain and twill weave
- Roll Width: 0.914m, 1.0m, 1.2m, 1.5m, 2.0m
- Roll Length: 30m standard
⭐ Key Features
Brass wire mesh features non-magnetic properties, excellent wear-resistance, good ductility, high tension stress, bright color, and a smooth surface finish.
🚀 Applications
Brass wire mesh is widely used for:
- Screening all kinds of particles, powder, porcelain clay, and glass.
- Chinaware printing and paper production (newsprint, printing paper).
- Filtering liquid and gas (60-70 mesh for standard applications).
- Typing paper production (90-100 mesh).
📊 Technical Specifications
| Mesh |
Wire Diameter (mm) |
Aperture (mm) |
| 2 | 1.6 | 11.10 |
| 4 | 0.91 | 5.44 |
| 6 | 0.71 | 3.52 |
| 8 | 0.50 | 2.67 |
| 10 | 0.50 | 2.04 |
| 20 | 0.25 | 1.02 |
| 40 | 0.19 | 0.45 |
| 60 | 0.15 | 0.27 |
| 80 | 0.12 | 0.197 |
| 100 | 0.10 | 0.154 |
| 150 | 0.06 | 0.109 |
| 200 | 0.053 | 0.074 |
| Roll Width range: 0.60m - 1.8m |

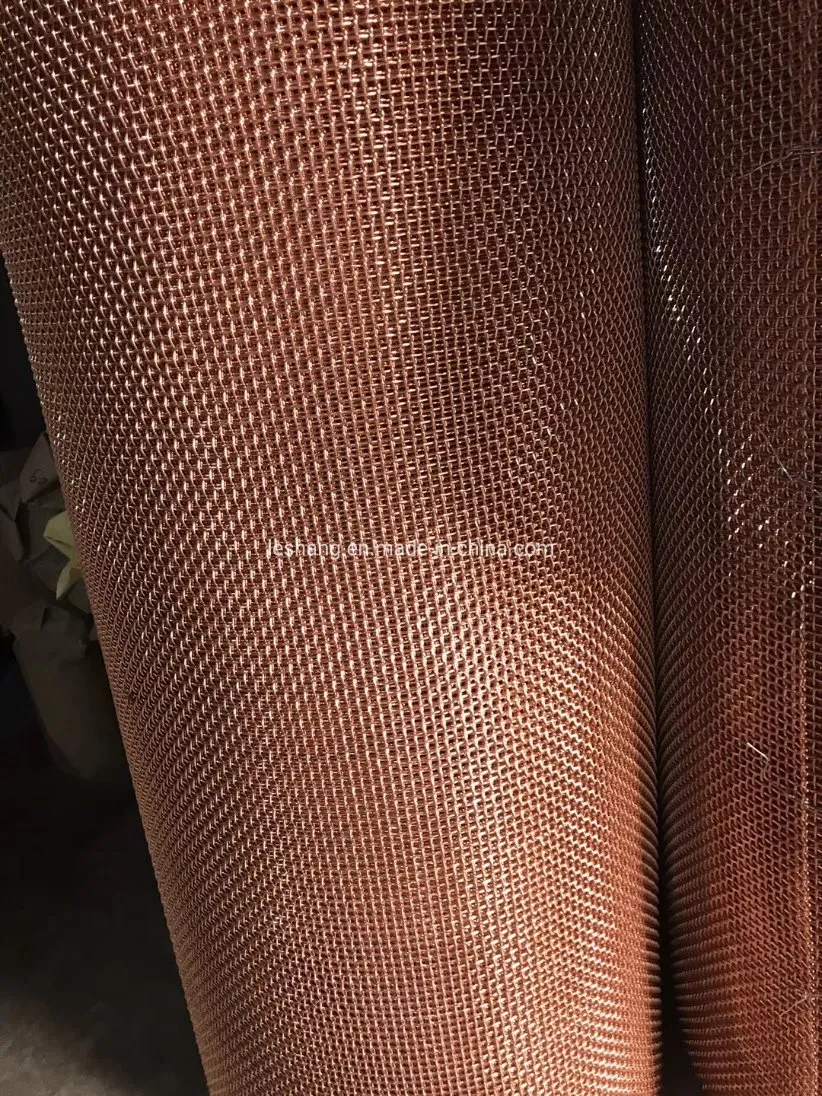

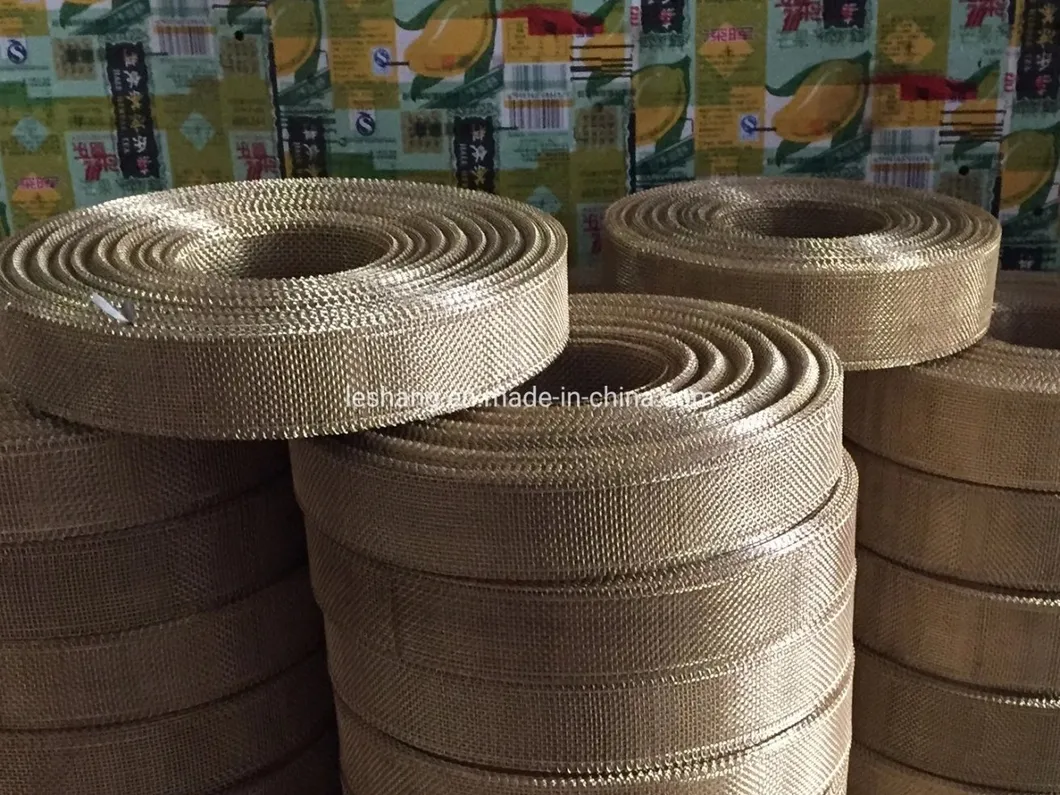

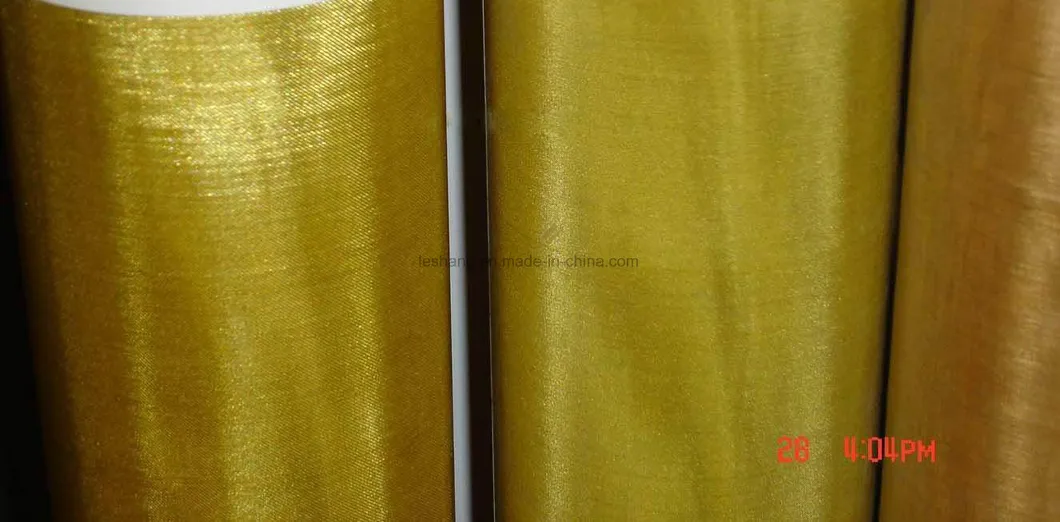

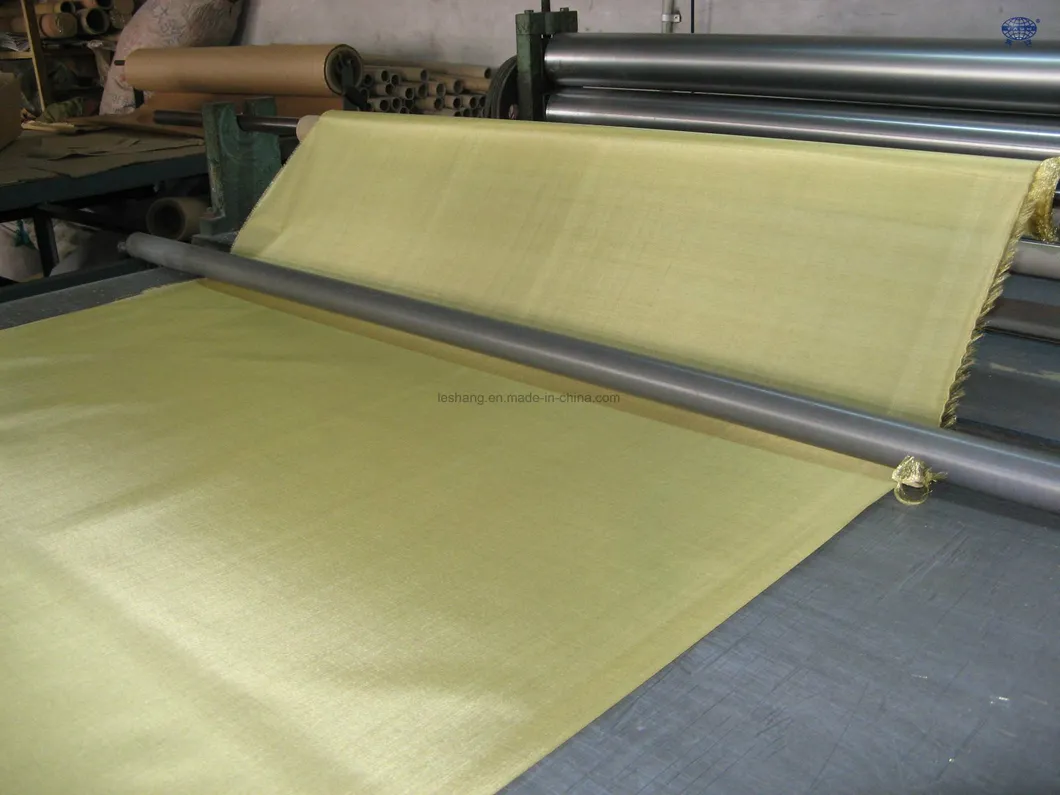

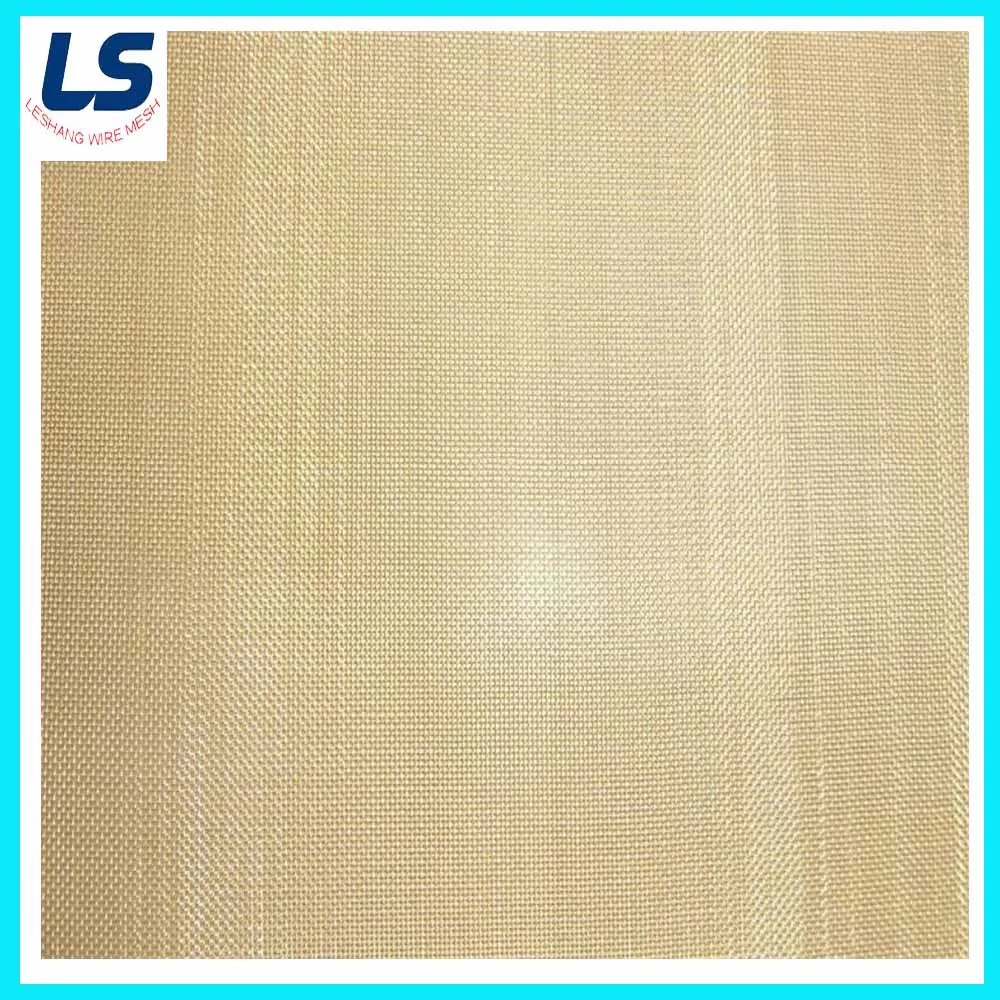

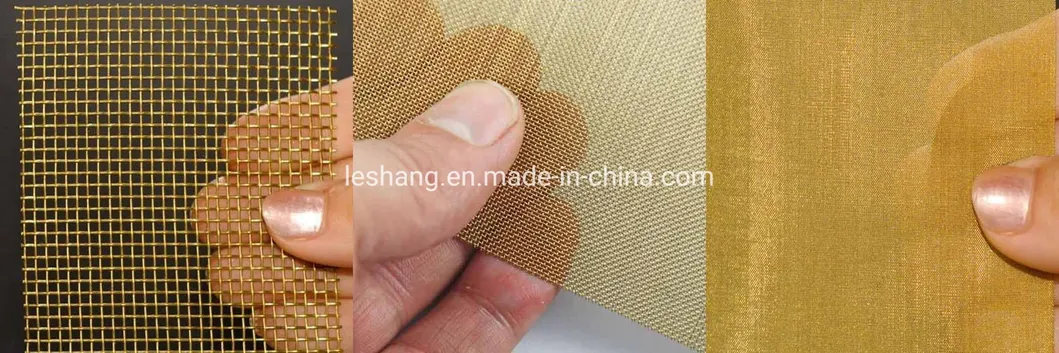

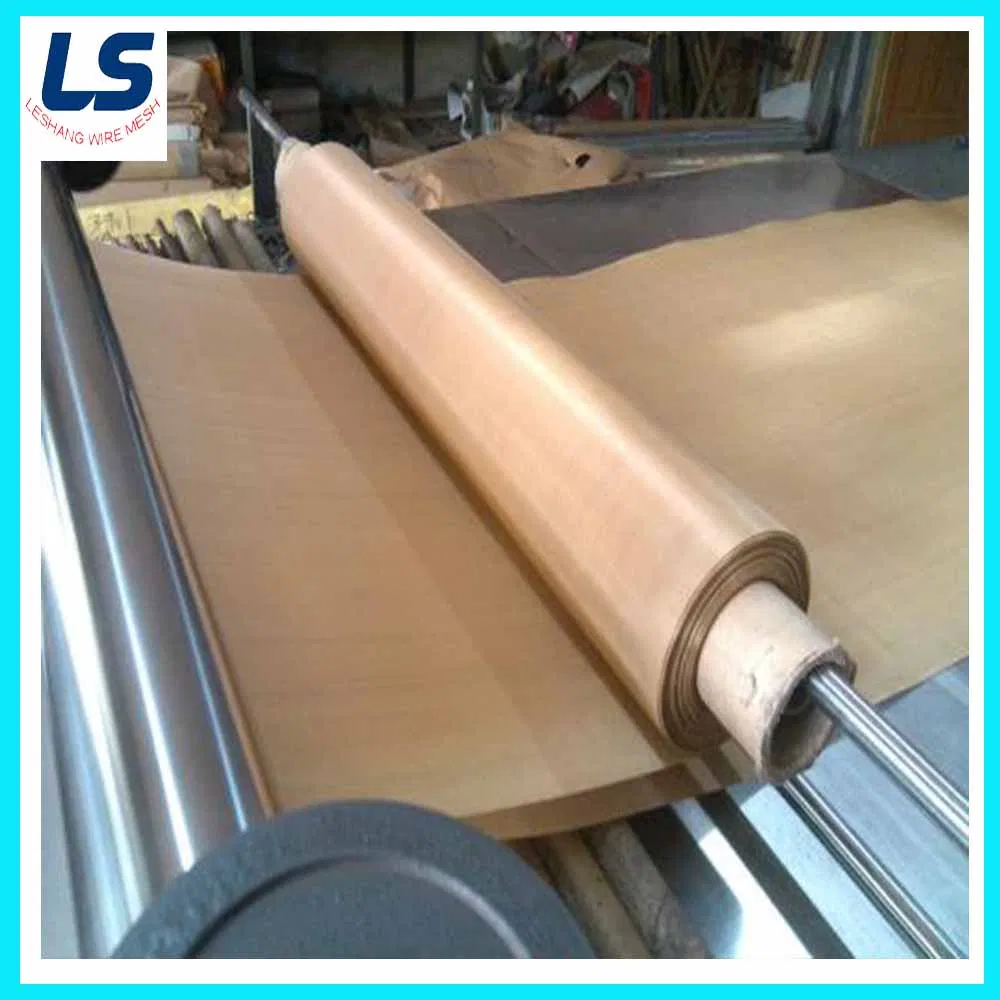

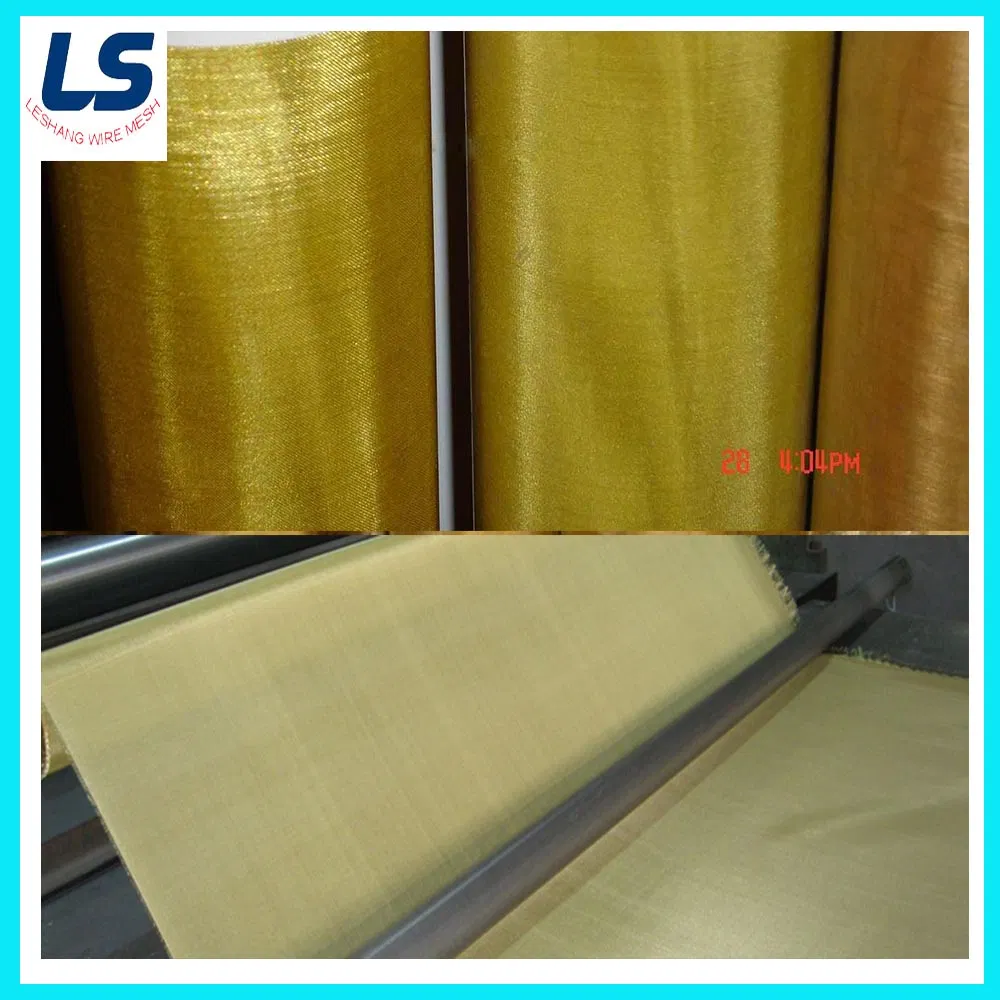

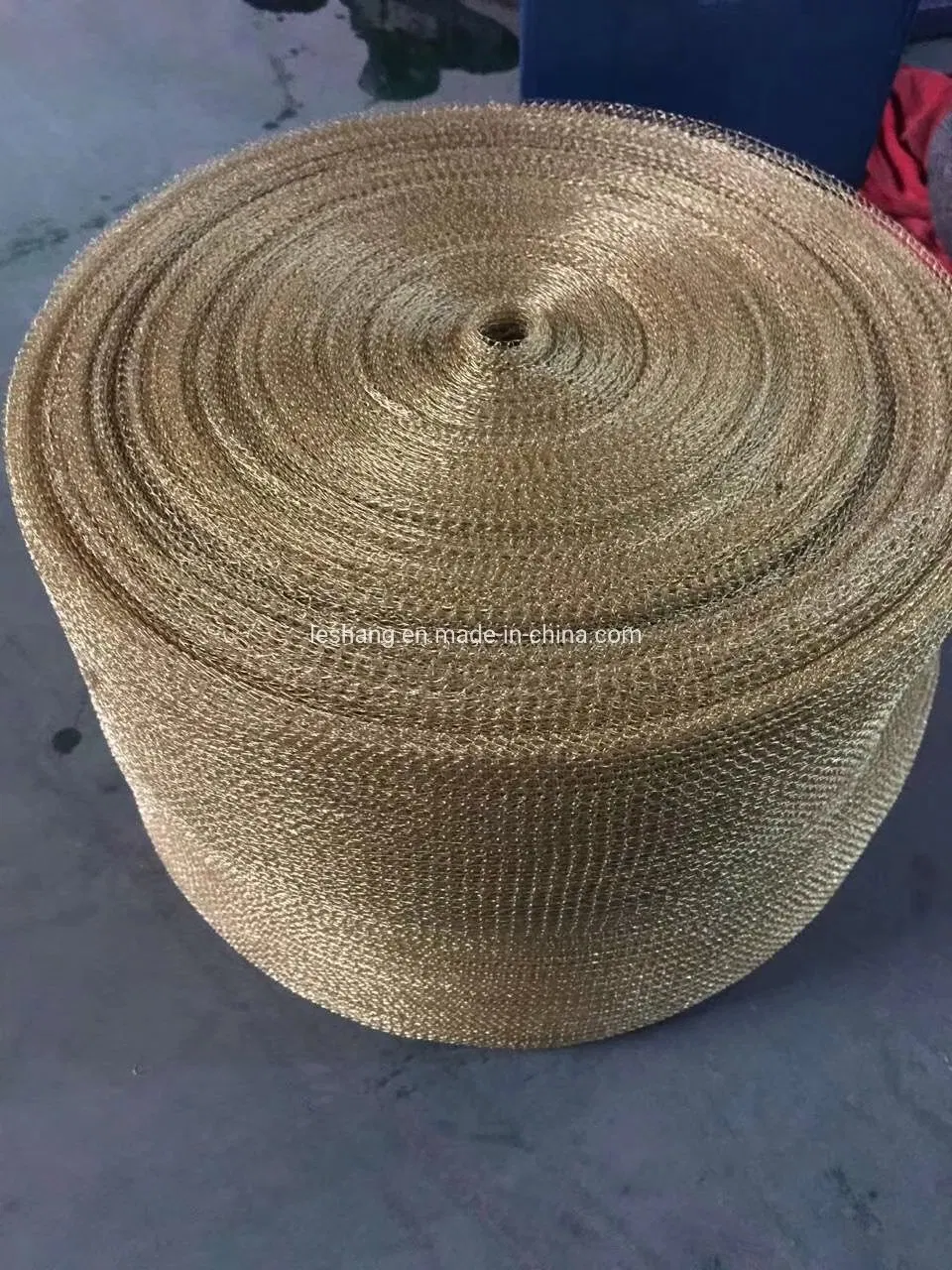

🖼️ Product Gallery

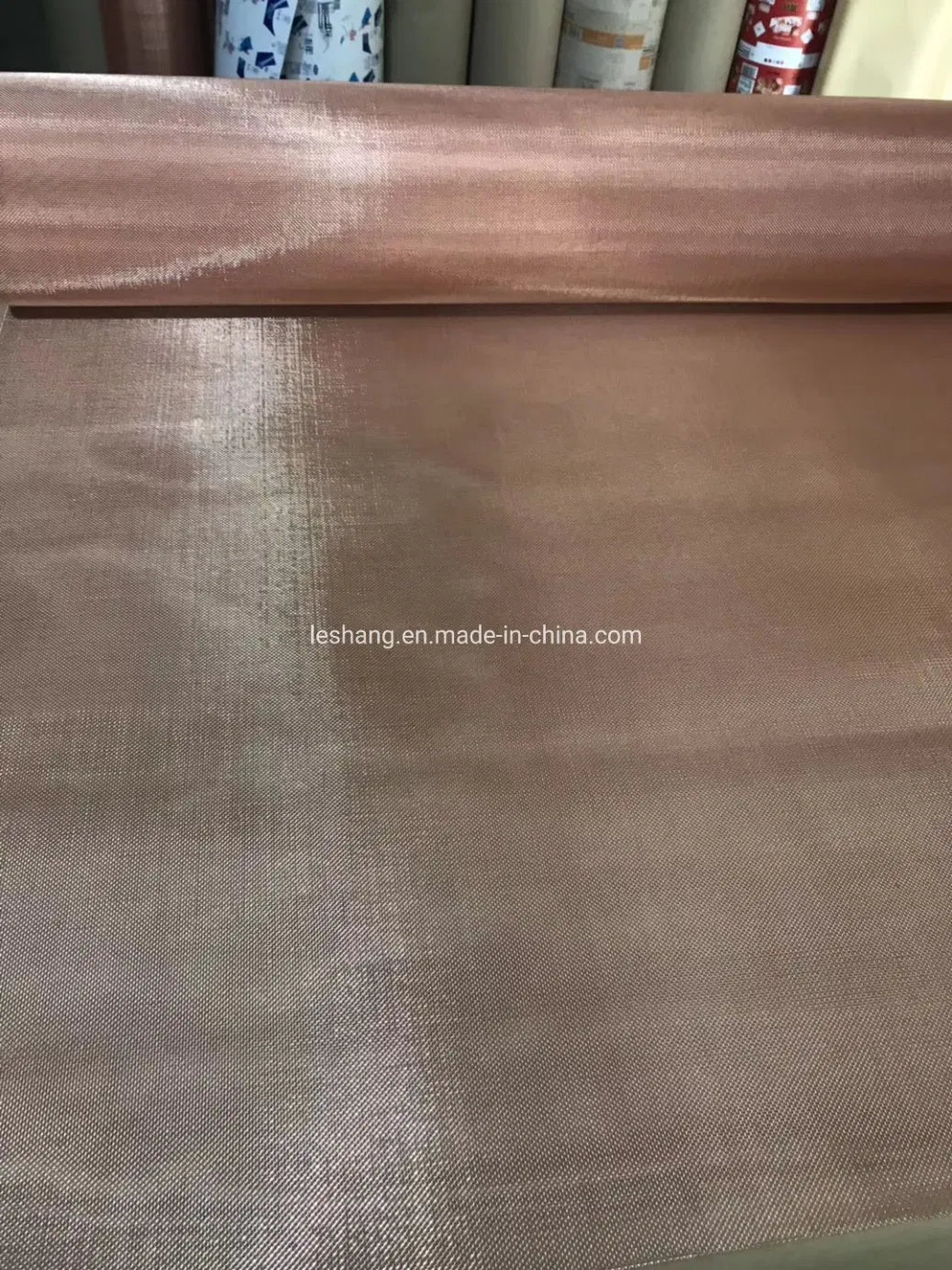

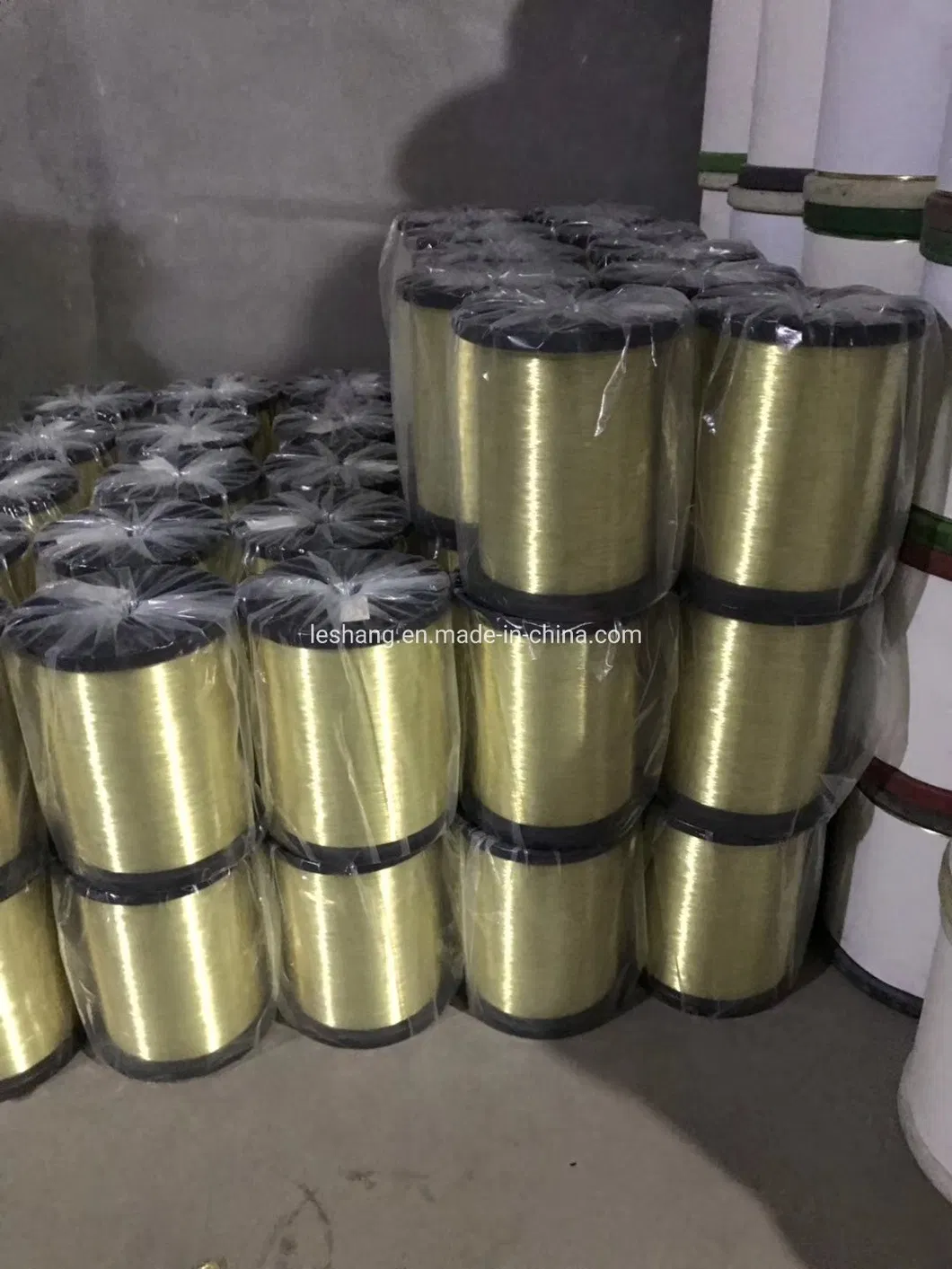

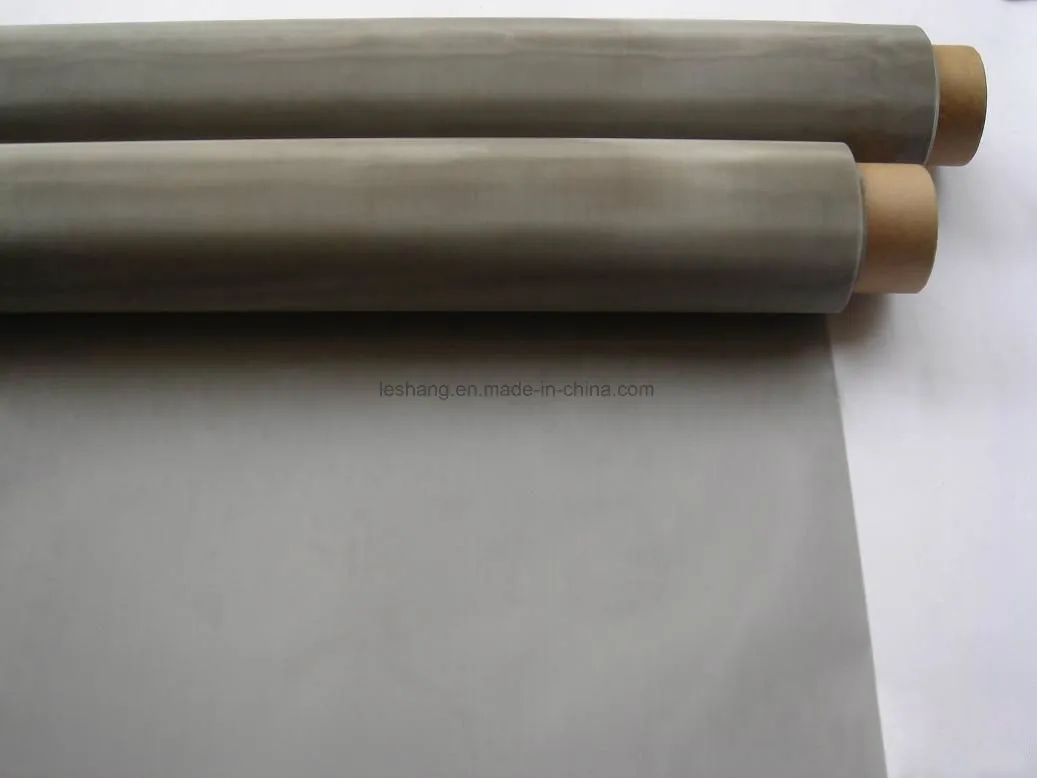

🔗 Relative Filter Mesh
FAQ
What is the difference between brass wire mesh and copper wire mesh?
Brass wire mesh (an alloy of copper and zinc) offers better abrasion and corrosion resistance compared to pure copper wire, though it has lower electrical conductivity.
What are the most common applications for brass fuel filter mesh?
It is primarily used for liquid and gas filtration, screening particles in porcelain and glass industries, and in the paper manufacturing process.
What weaving types do you provide?
We provide both plain weave and twill weave patterns to suit different filtration and strength requirements.
Can the roll dimensions be customized?
Our standard roll length is 30m, and widths typically range from 0.6m to 2.0m, including 0.914m, 1.2m, and 1.5m options.
Is the brass wire mesh magnetic?
No, one of the key features of our brass wire mesh is that it is non-magnetic, making it suitable for specialized industrial uses.
What mesh counts are available for fine filtration?
We offer a range from 2 mesh up to 250 mesh. For high-precision filtering like typing paper, 90-100 mesh is commonly used.
