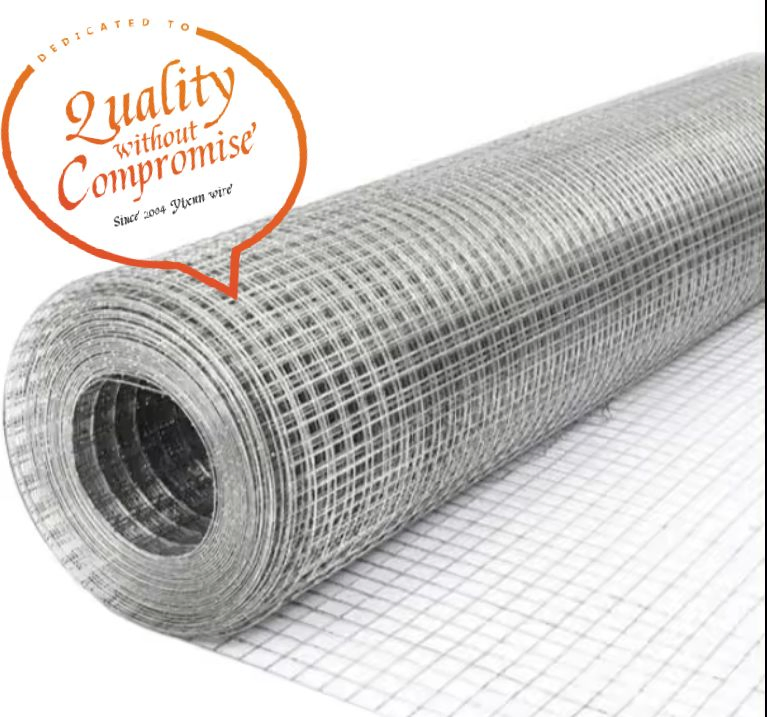

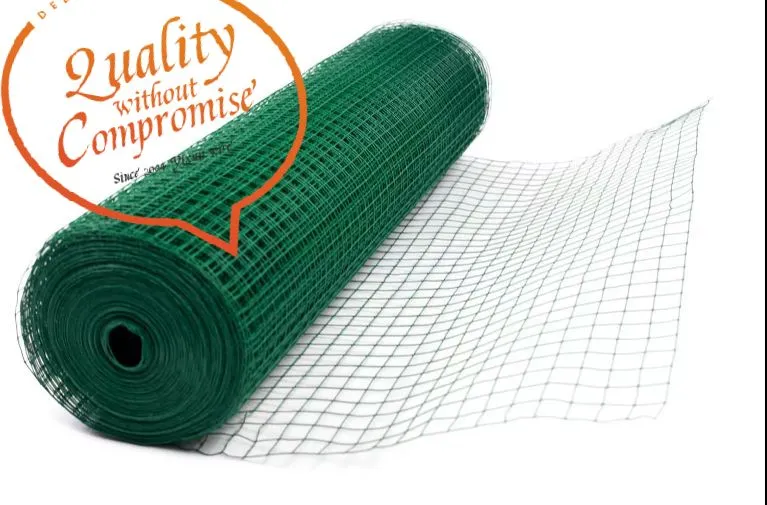

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh

1 / 5

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

welded wire mesh003

Material

Stainless Steel Wire

Hole Shape

Square

Mesh Size

2 Inch

Surface Treatment

Galvanized

Weave Technique

Plain Weave

Color

Silver

Type

Welded Mesh

Certification

ISO9001

Material Grade

SUS304 Stainless Steel

Width

1 Feet - 8 feet

Length

10 meters - 100 meters

HS Code

73143900

Lead Time

7-30 Days

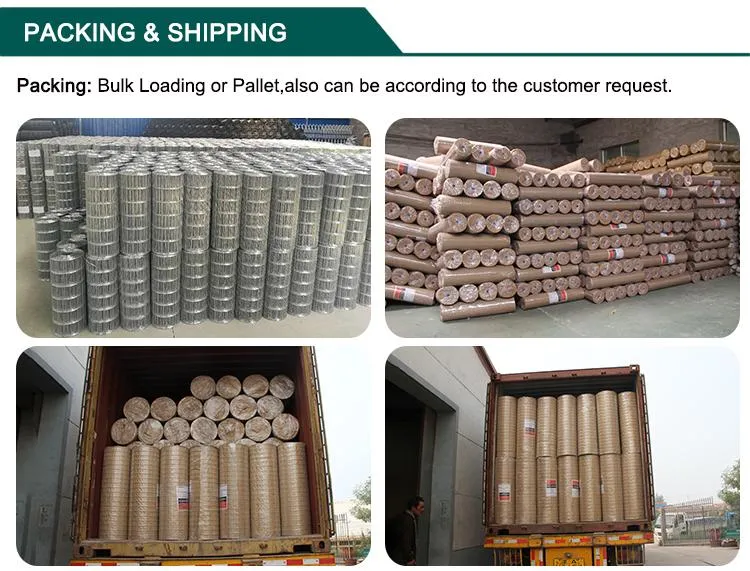

Packaging & Delivery

Package Size

25.00cm * 25.00cm * 20.00cm

Gross Weight

1.000kg

Packing Method

Waterproof Paper Inside, Woven Bag Outside

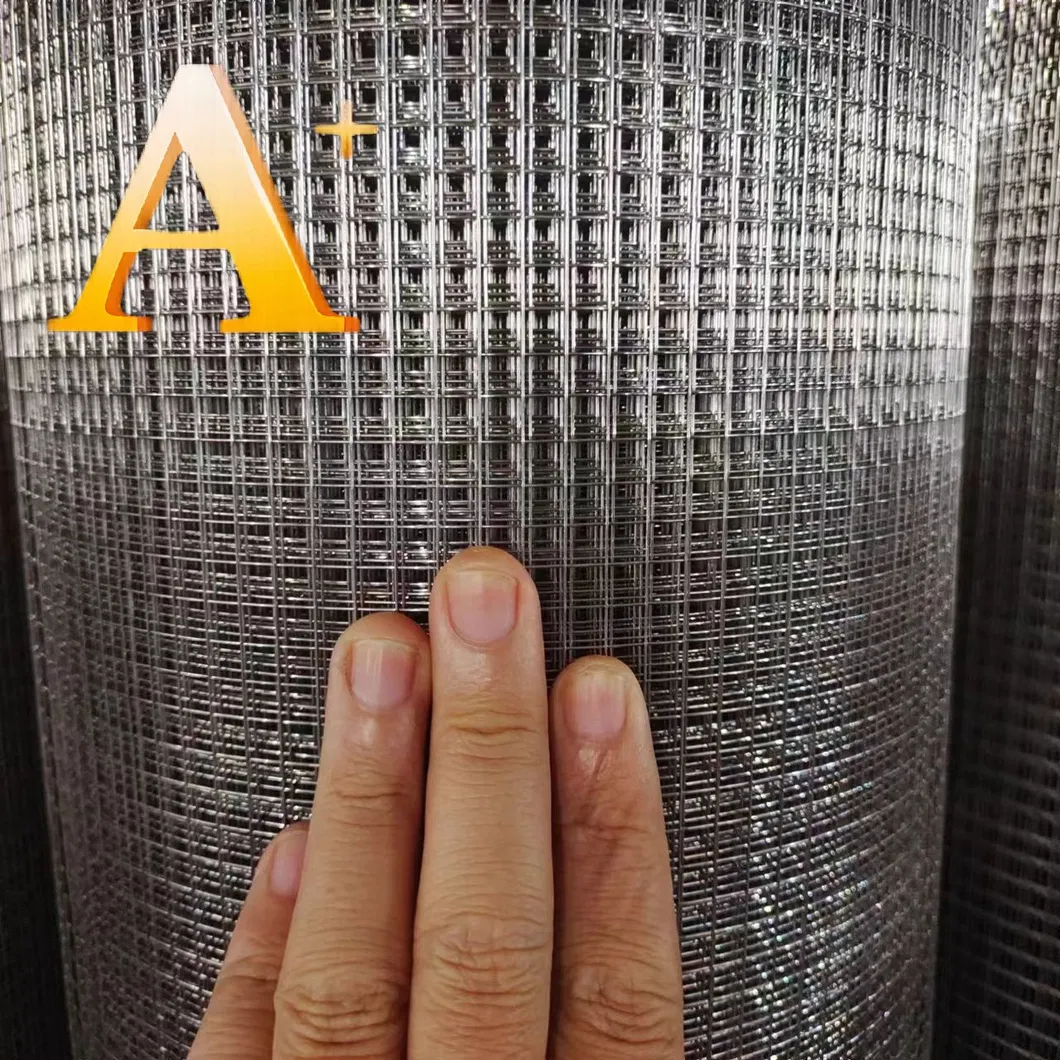

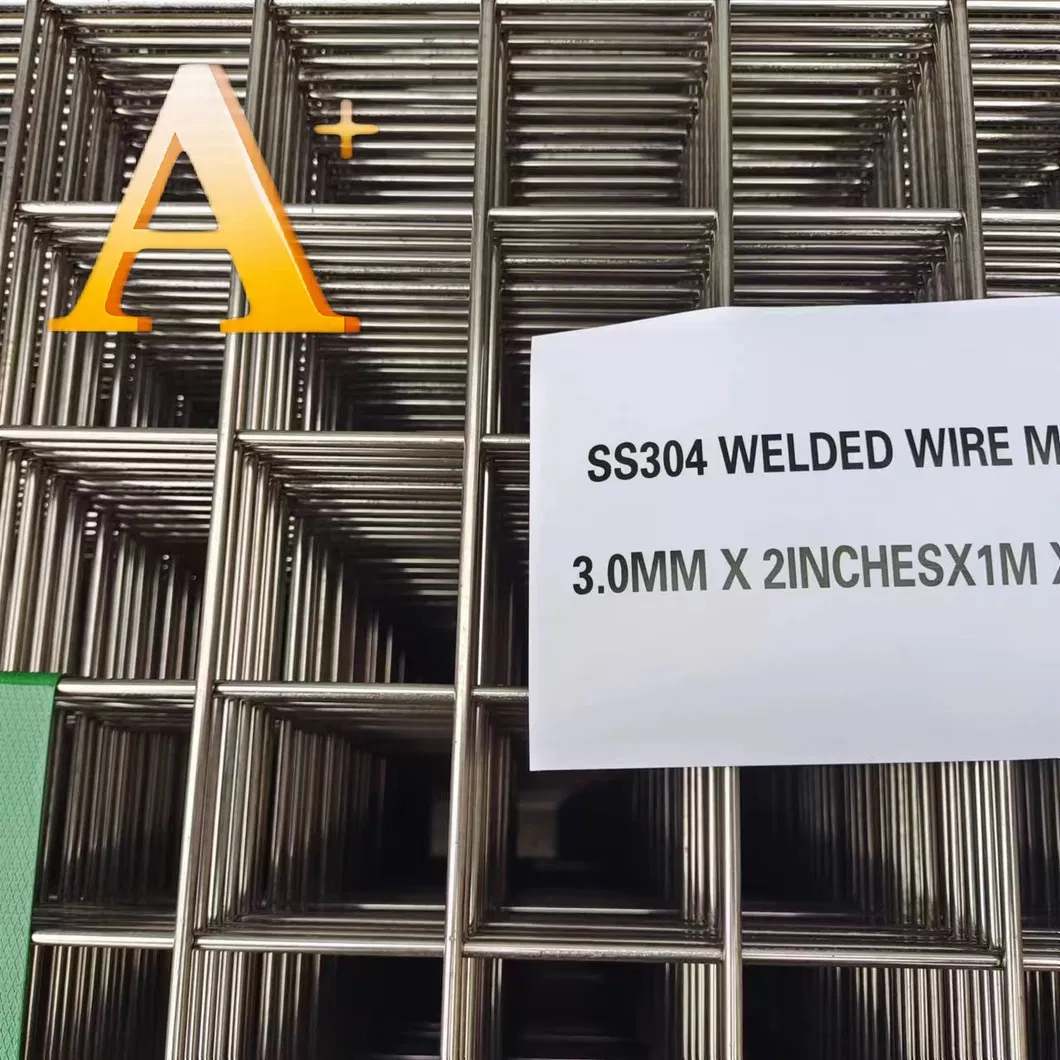

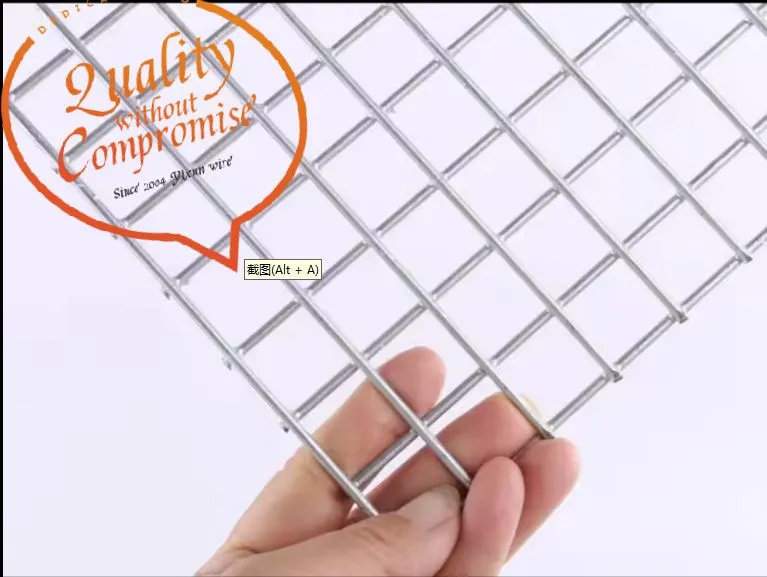

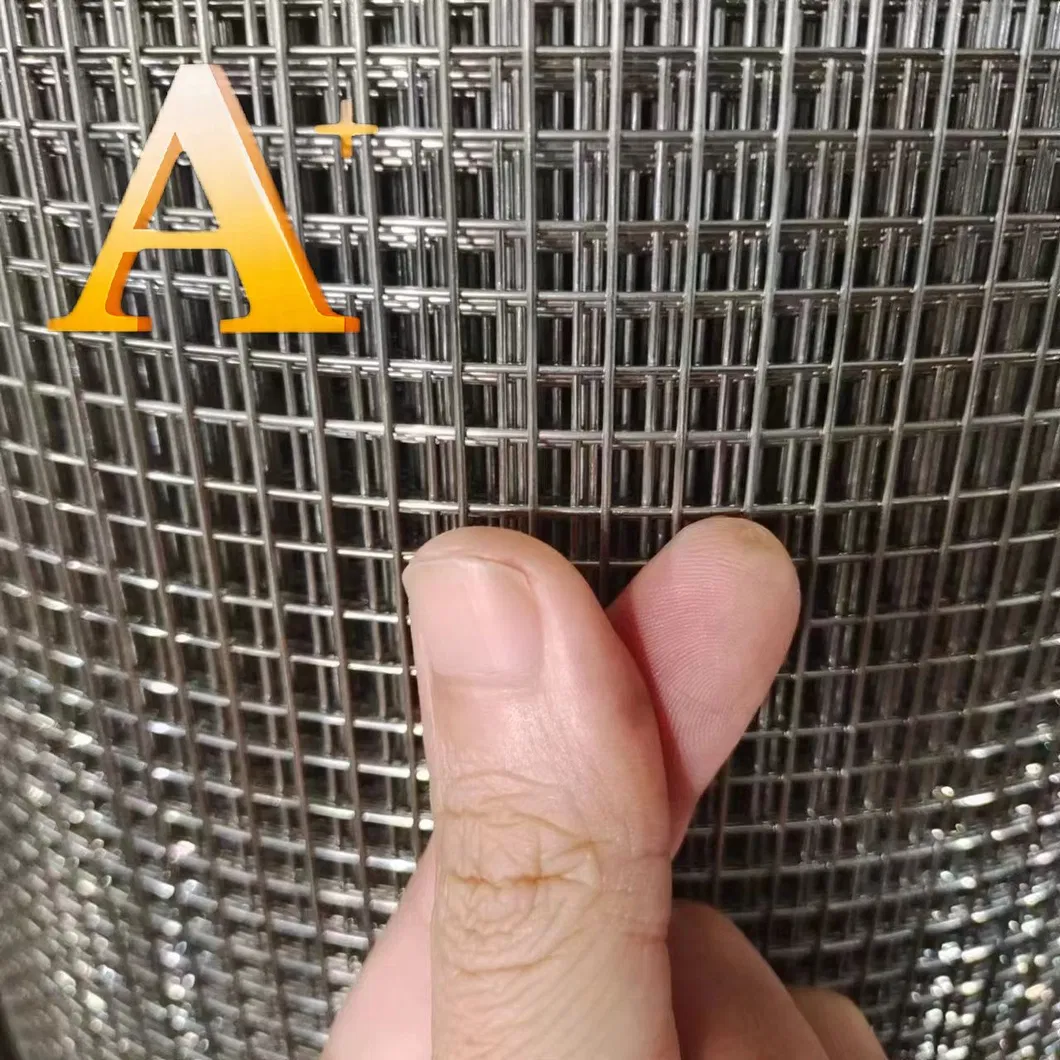

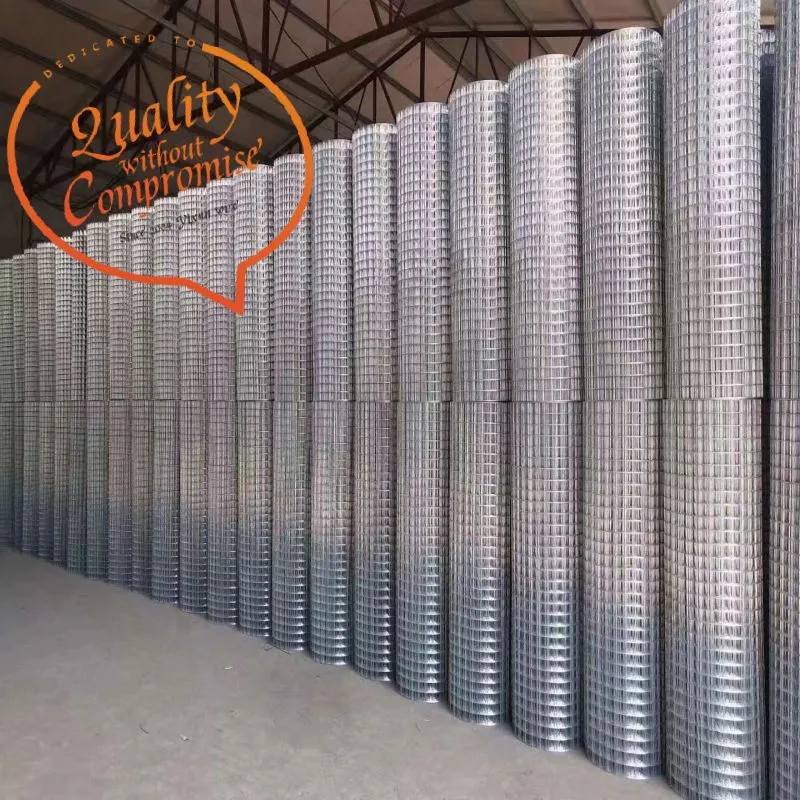

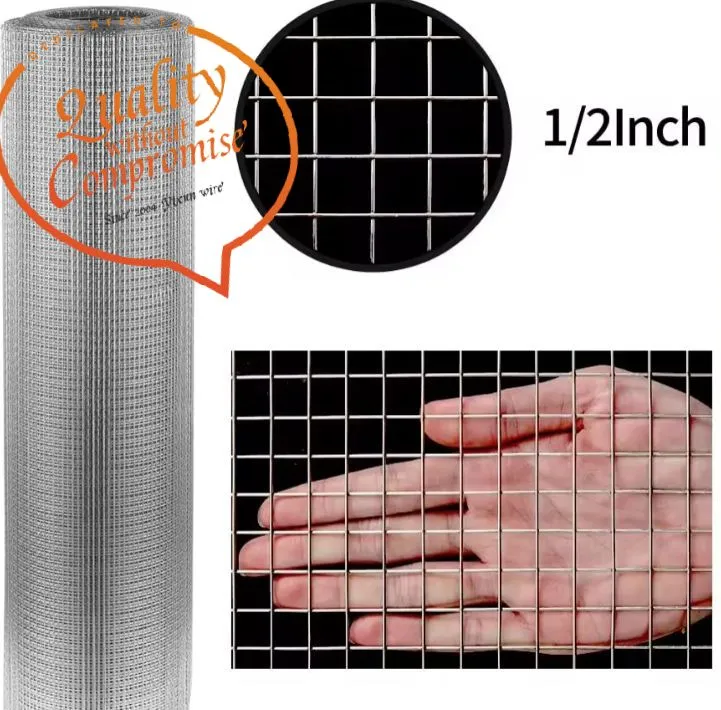

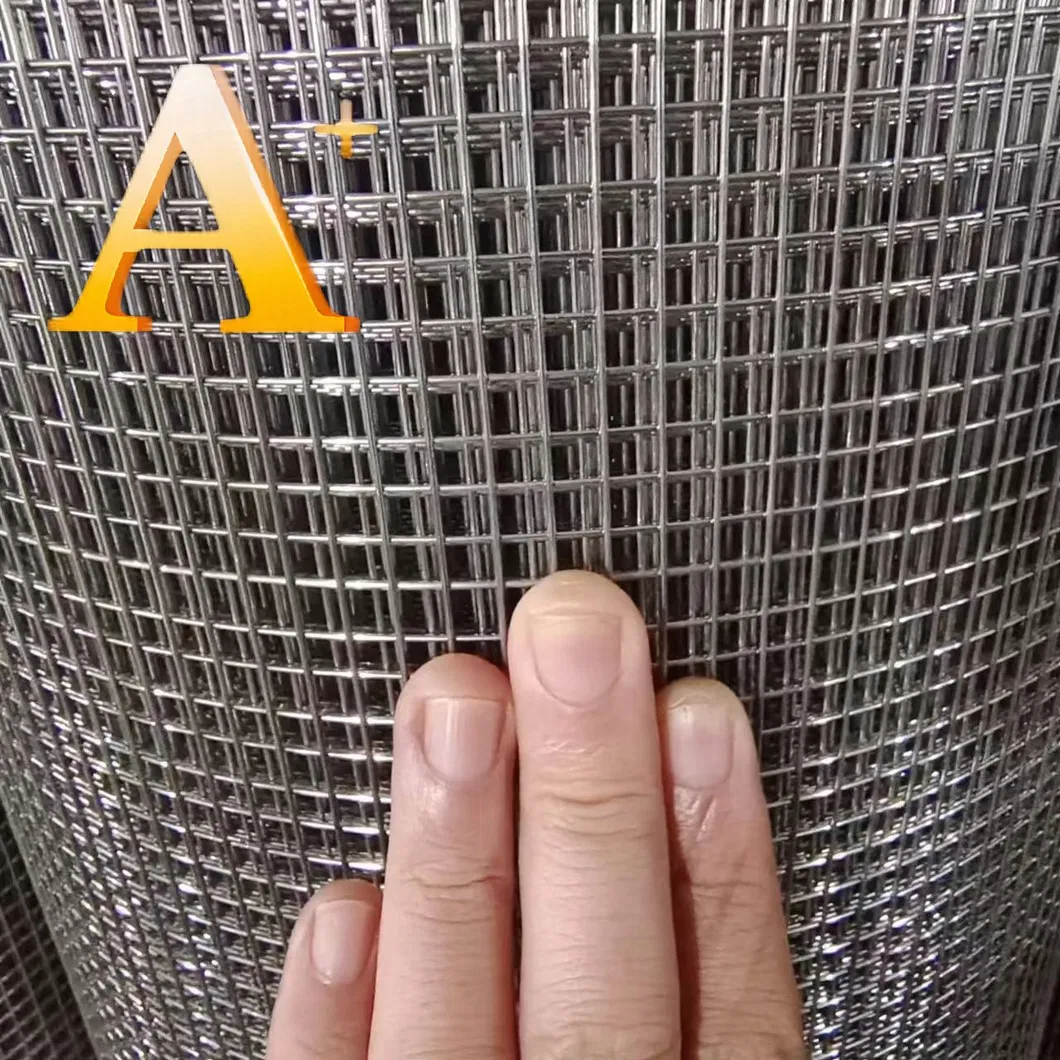

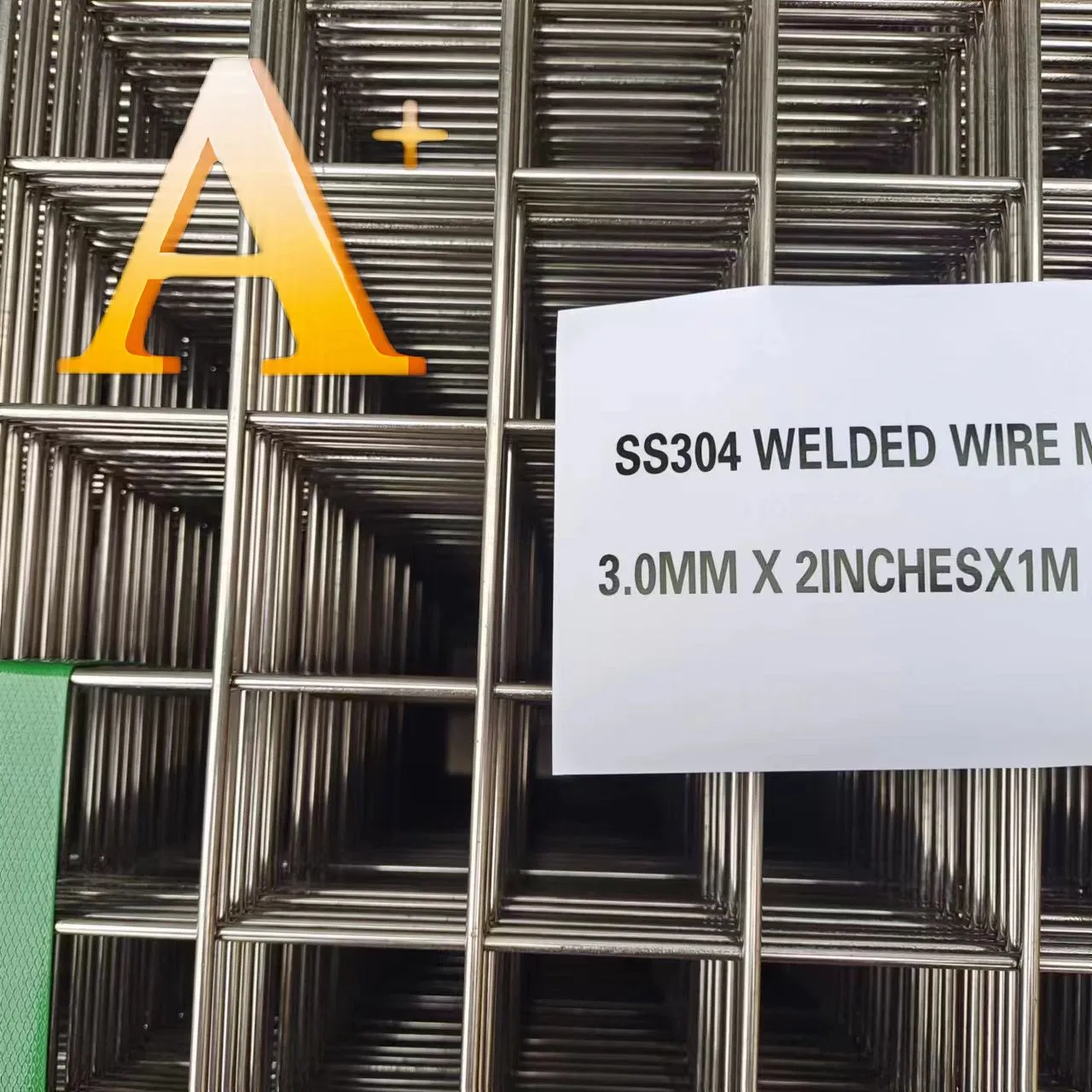

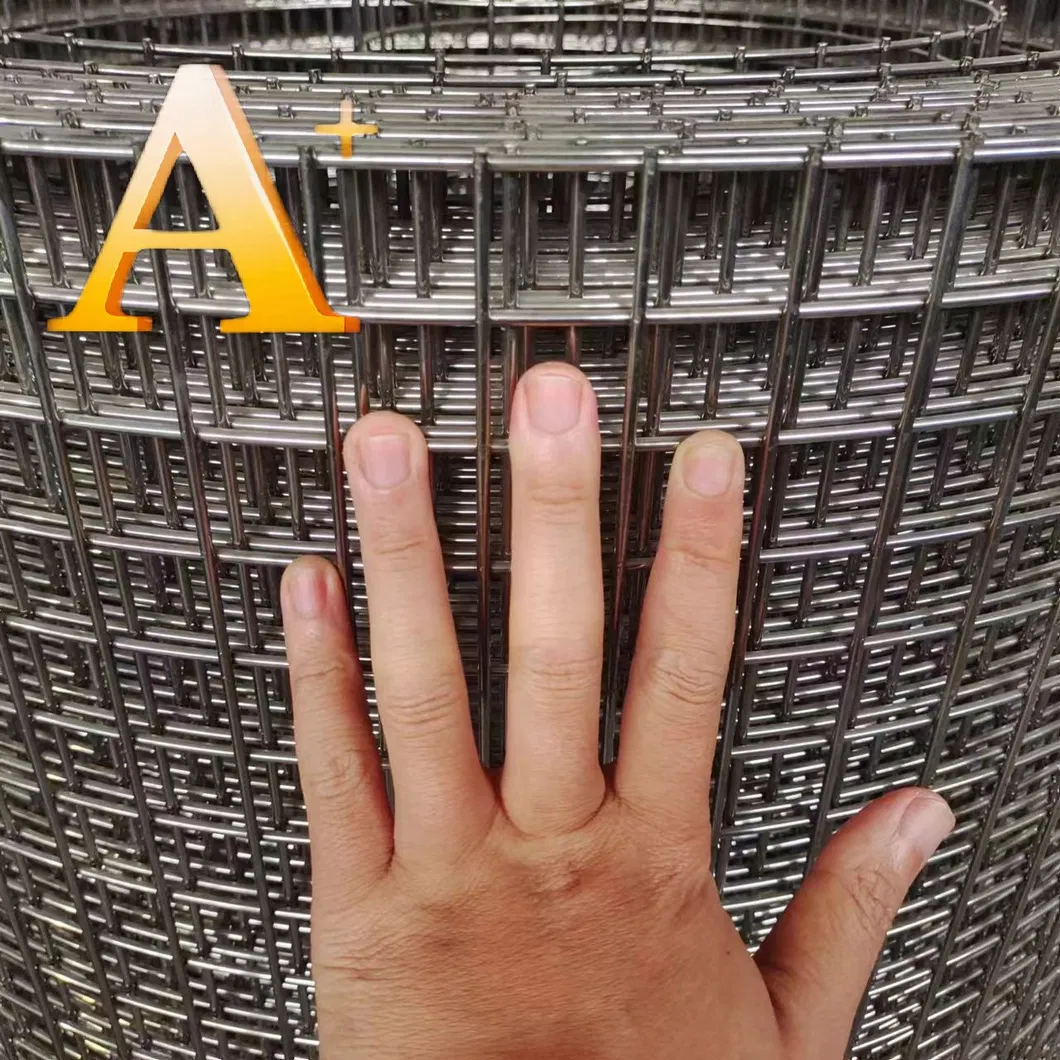

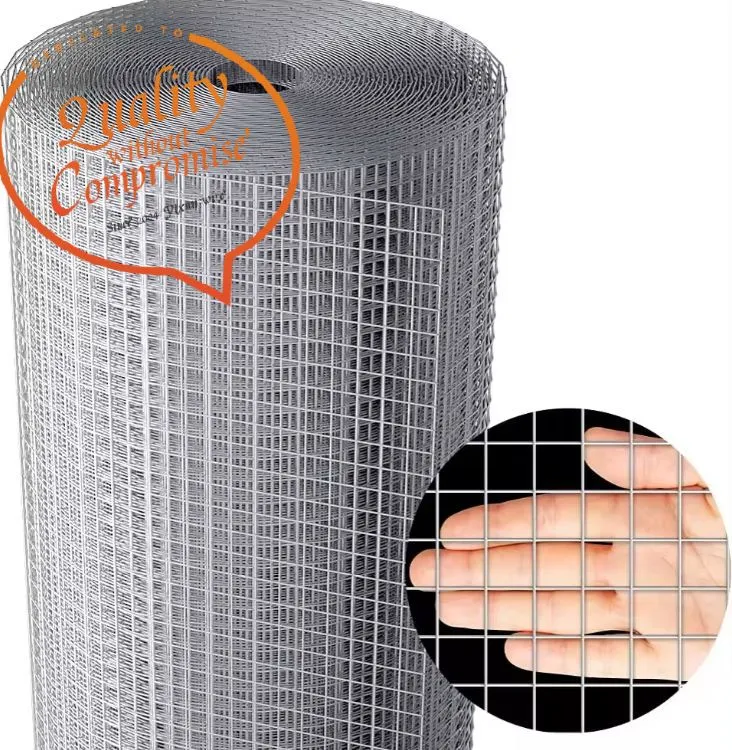

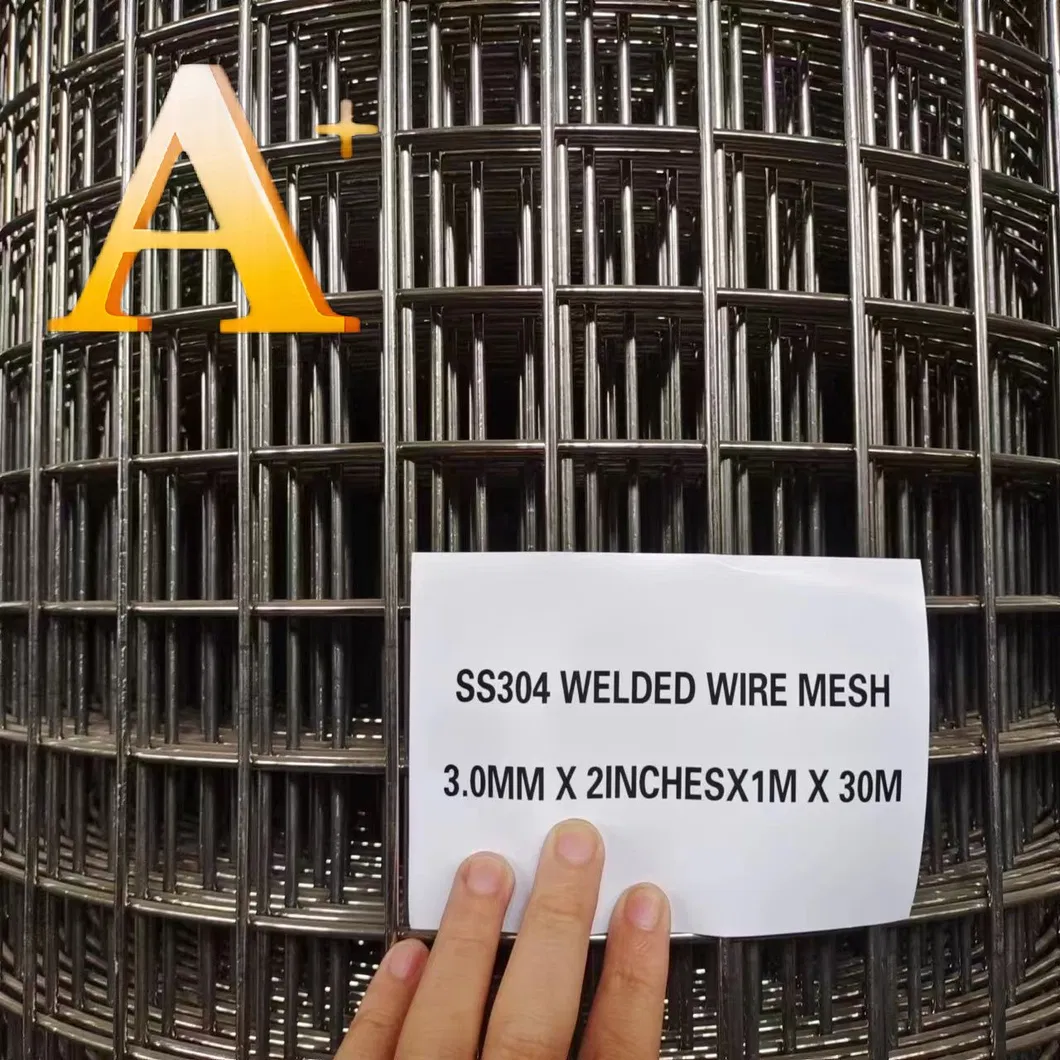

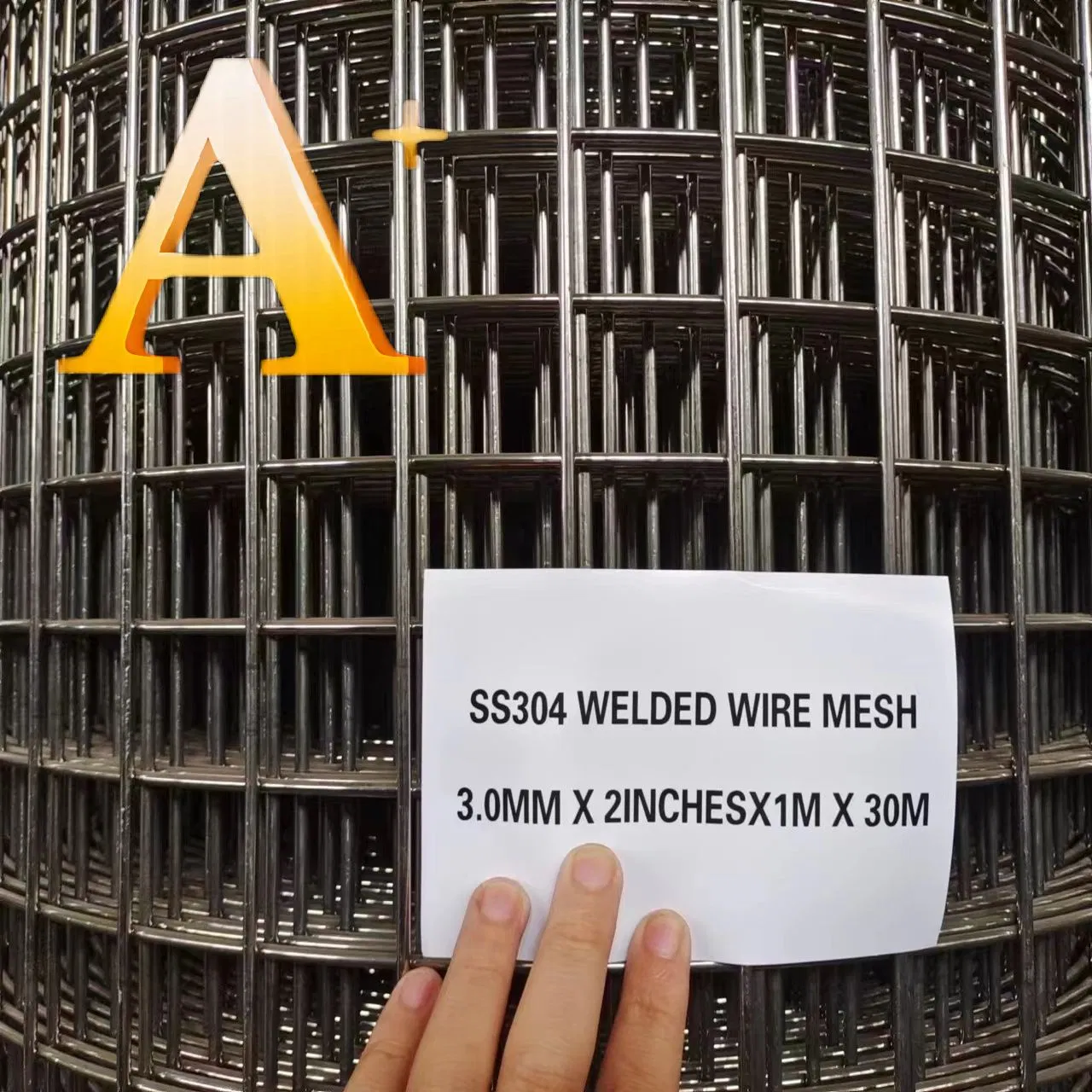

Detailed Photos

Product Description

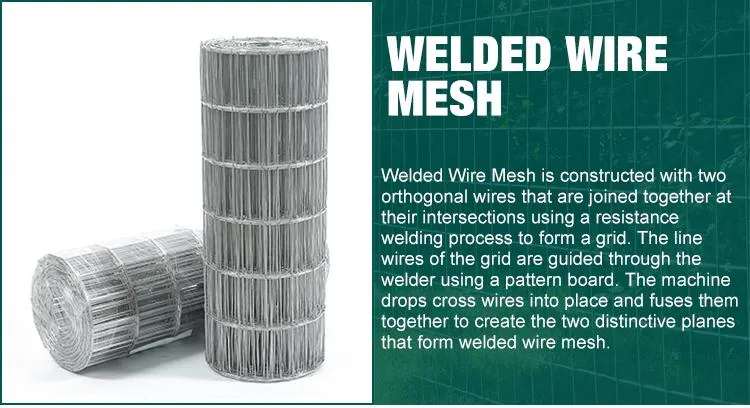

ASTM DIN Standard Stainless Steel / Galvanized Welded Wire Mesh

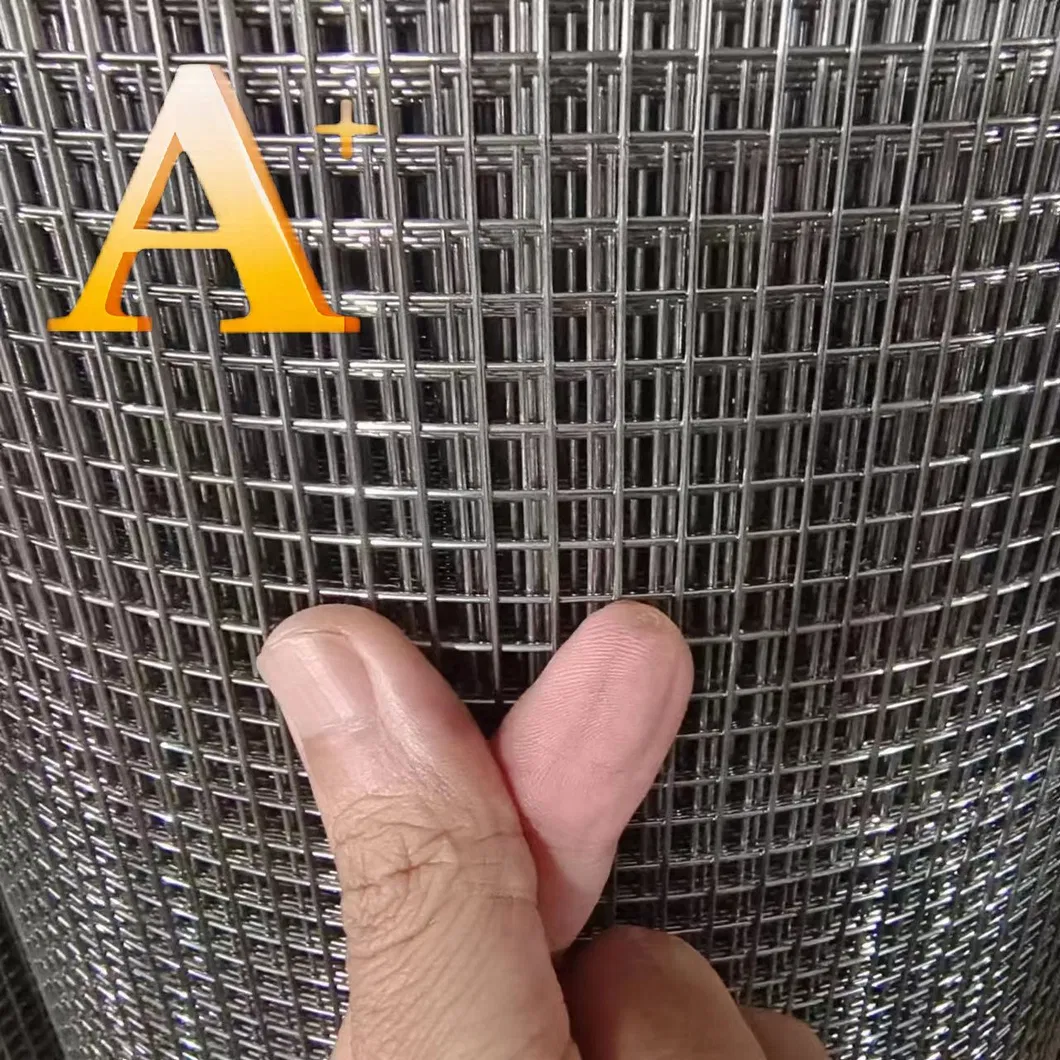

Stainless Steel welded wire mesh is crafted from high-quality materials including SS316, SS316L, SS304L, SS304HC, SS304, and SS302. Our welding spots are engineered to be exceptionally strong and firm.

Key Characteristics:

Superior corrosion protection and anti-oxidation properties.
Firmly welded spots with high tensile strength.
Excellent acid and alkaline resistance.
Smooth surface treatment for diverse applications.

Applications:

Transport: Security and isolation fencing.
Agriculture: Livestock fencing for goats, horses, and farms.
Industrial: Machine protection, equipment cages, and ventilation covers.
Construction: Reinforcement brick mesh and earth surface stability support.
Civil Use: Pedestrian pavements and public transport centers.

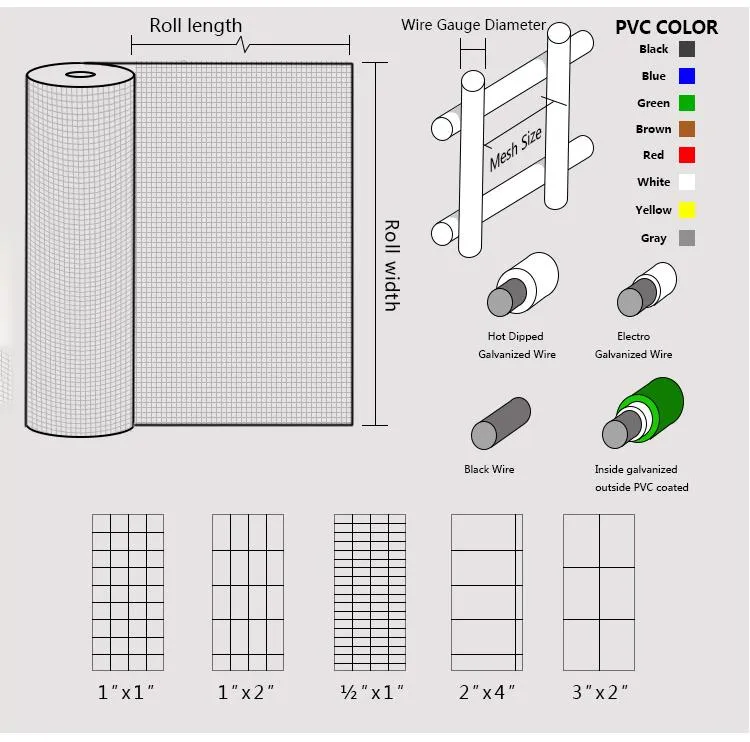

Stainless Steel Welded Wire Mesh Specifications
Mesh (inch)	Wire Dia (mm)	Width (m)	Mesh (inch)	Wire Dia (mm)	Width (m)
1/4×1/4	0.4-1.2	0.3-1.5	3/4×1.5"	0.8-2.0	0.5-1.5
1/4×1/2	0.4-1.2	0.3-1.5	1.5"×1.5"	0.8-2.0	0.5-2.1
1/4×1"	0.4-1.2	0.3-1.5	1/2×1/2	0.4-2.0	0.3-2.1
3/8×3/8	0.4-1.2	0.5-1.5	1/2×1"	0.4-2.0	0.3-2.1
1"×1"	0.6-2.5	0.5-2.1	2"×2"	0.6-2.5	0.5-2.1

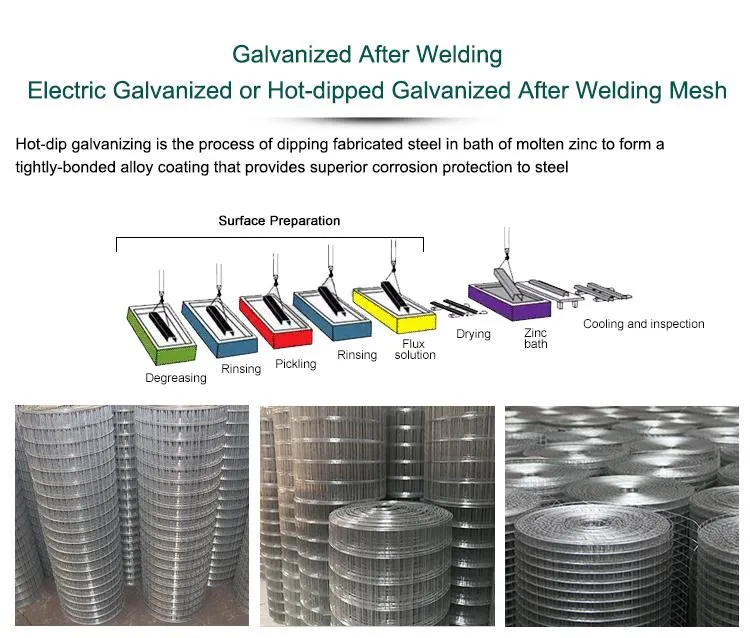

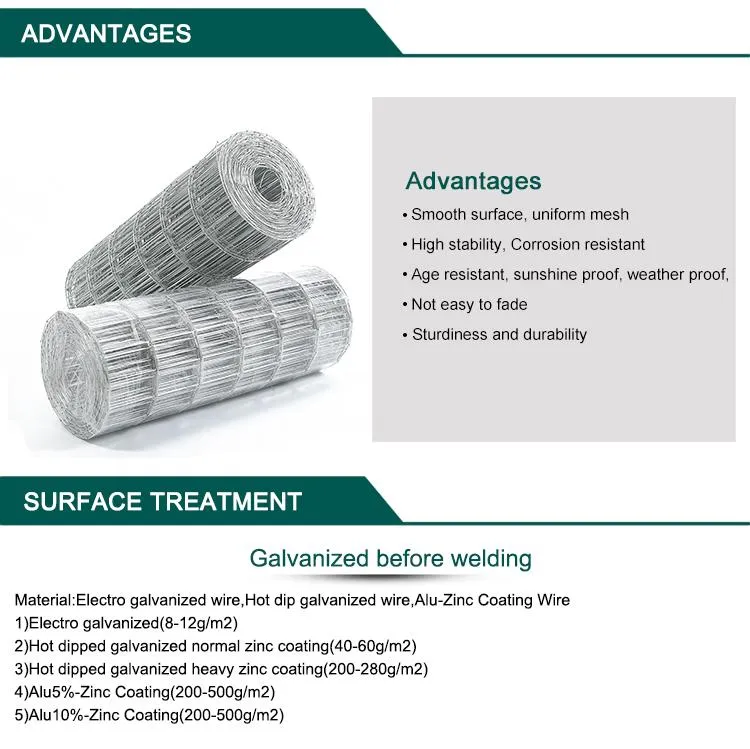

Galvanized Welded Wire Mesh

Our galvanized options include Electrical Galvanized and Hot Deep Galvanized processes. We offer both "Galvanized Before Welding" and "Galvanized After Welding" to meet specific durability requirements.

Electrical Galvanized: Common 15g/m² zinc coating, ideal for general industrial and building use.
Hot Deep Galvanized: Thick zinc coating (over 122g/m²), superior quality for external wall insulation and poultry farms.

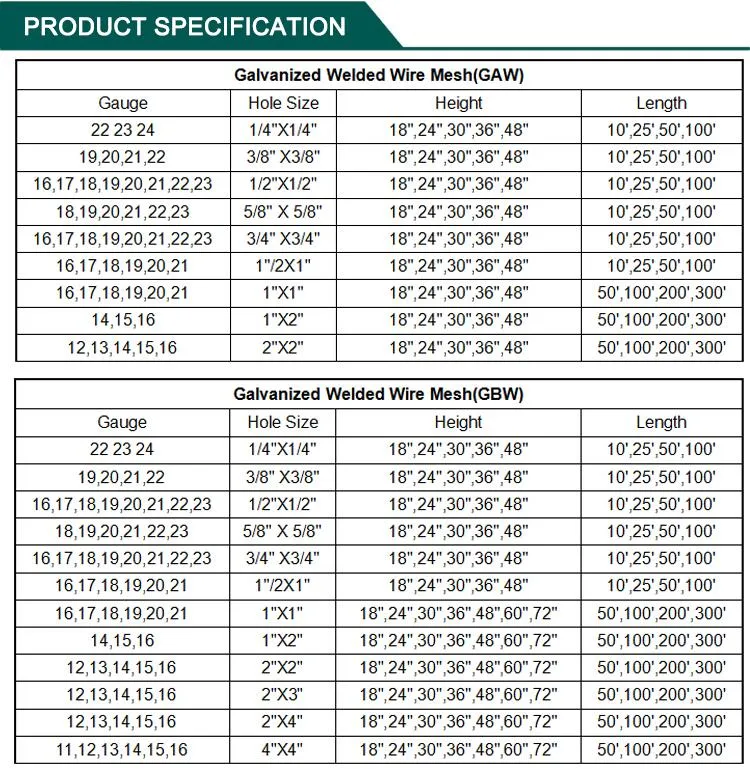

Specification List of Galvanized Welded Wire Mesh
Opening (Inch)	Opening (Metric mm)	Wire Diameter (BWG)
1/4" x 1/4"	6.4mm x 6.4mm	21-27
1/2" x 1/2"	12.7mm x 12.7mm	16-27
1" x 1"	25.4mm x 25.4mm	14-23
2" x 2"	50.8mm x 50.8mm	12-20
Note: Standard roll length is 30m. Special sizes available upon request.

Frequently Asked Questions

What materials are available for the welded wire mesh?

We provide high-quality stainless steel (SUS 304, 316, 316L, 304L, 302) and various grades of galvanized low-carbon steel.

What is the difference between electrical and hot-deep galvanized mesh?

Electrical galvanized mesh typically has a 15g/m² zinc coating for general use, while hot-deep galvanized mesh features a much thicker coating (over 122g/m²) for superior corrosion resistance in harsh environments.

Can you produce custom mesh sizes?

Yes, while we have standard widths (0.5m to 2.1m) and roll lengths (30m), special sizes and custom specifications can be produced by order.

What are the primary applications for this product?

It is widely used in construction reinforcement, agricultural fencing, industrial machine protection, equipment cages, and filtration systems.

How is the wire mesh packaged for delivery?

Standard packaging includes waterproof paper on the inside and a woven bag on the outside to ensure protection during transport. Custom packing is also available.

Are the welding spots reliable?

Yes, our welding spots are very firm and offer high tensile strength, ensuring the stability and durability of the mesh structure.
