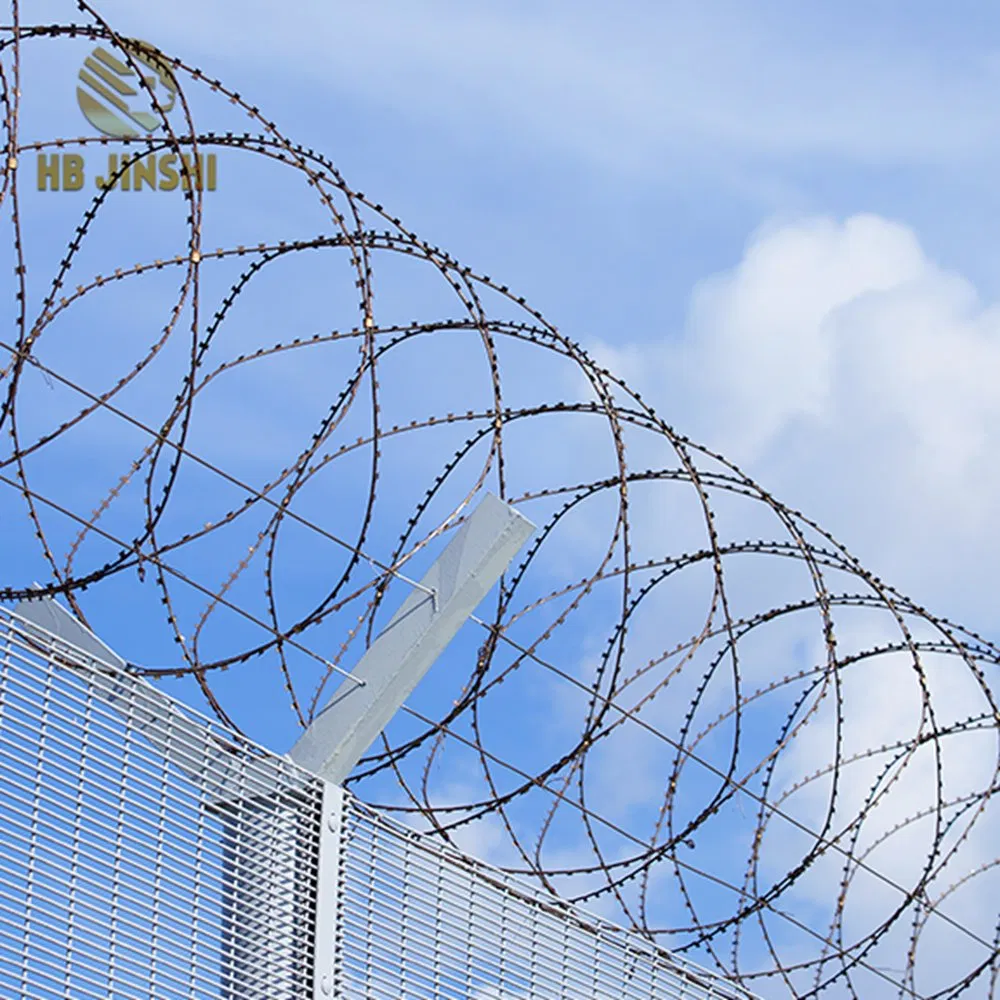

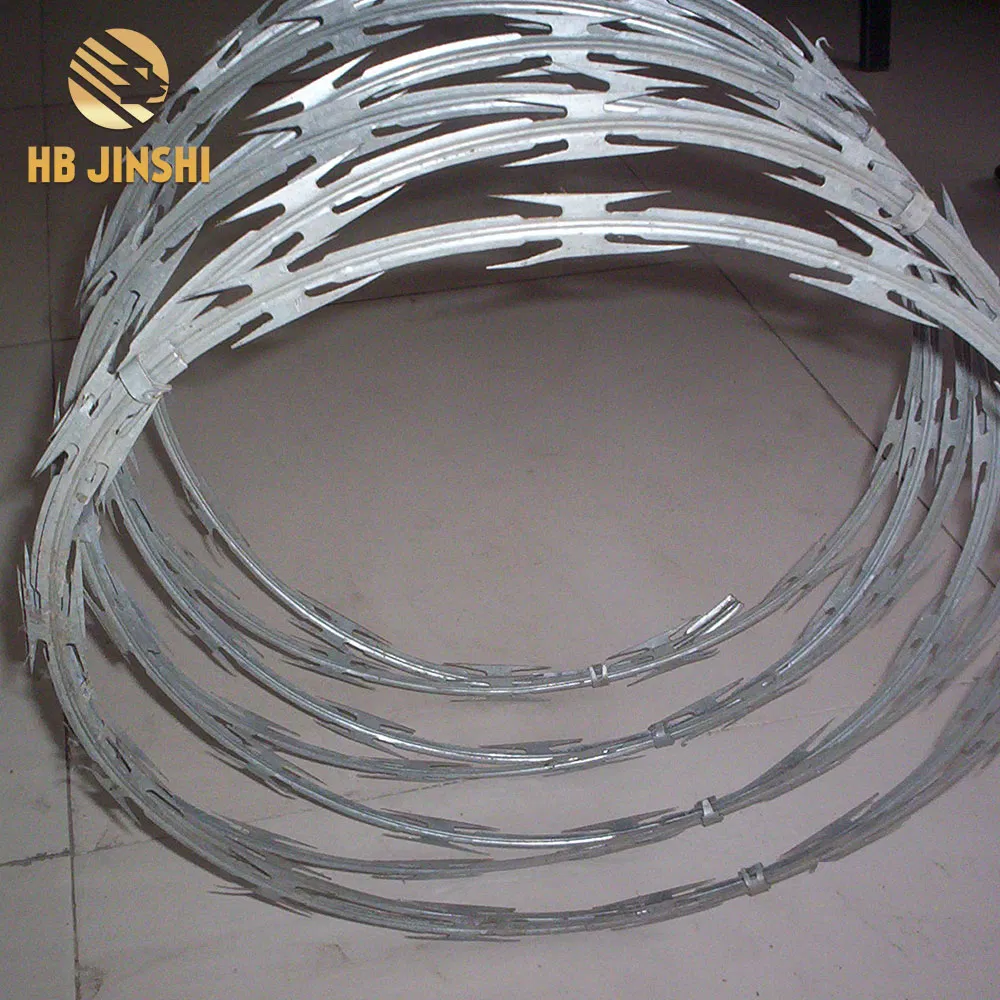

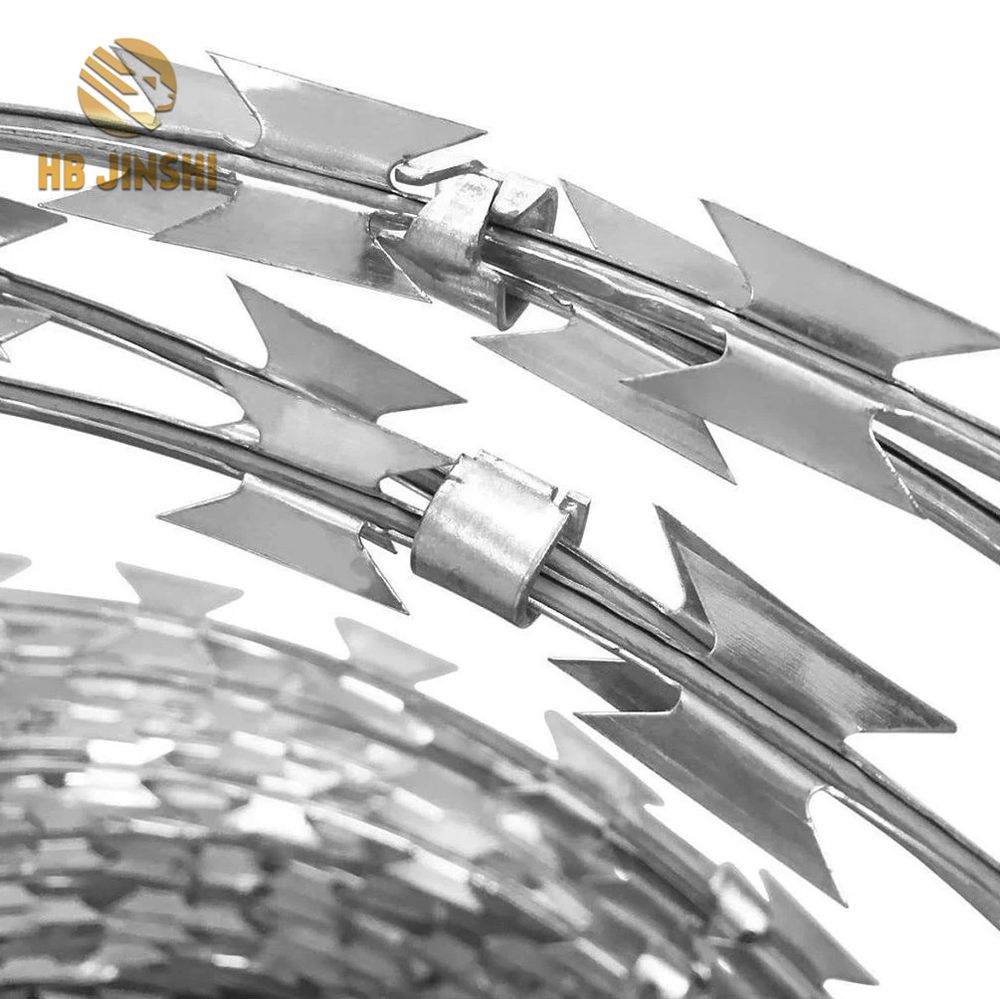

BTO-22 Hot Dipped Galvanized Concertina Razor Wire Fence
Razor Barbed Wire, also known as concertina wire, fencing wire, or razor type barbed wire, is a modern security fencing material designed for superior protection and fencing strength. Constructed from hot-dipped galvanized steel sheets or stainless steel sheets, it features sharp blades and a strong core wire, offering excellent secure fencing, easy installation, and age resistance.
📍 I. Razor Wire Materials:

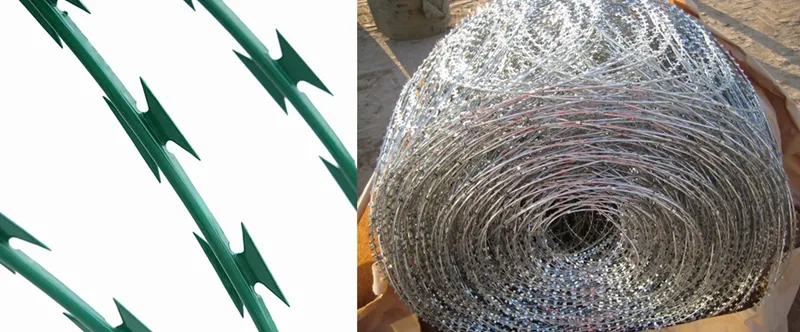

📍 II. Surface Treatment:
Electro galvanized, hot dipped galvanized, or PVC coated.
| Reference Number | Thickness (mm) | Wire Dia (mm) | Barb Length (mm) | Barb Width (mm) | Barb Space (mm) |
|---|---|---|---|---|---|
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100± |

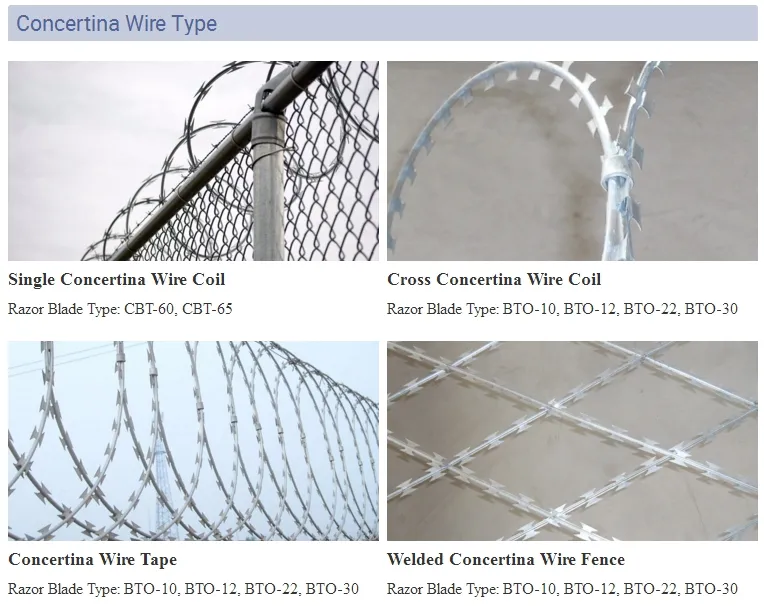

| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
|---|---|---|---|---|
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10/15/22 | Cross type |
| 600mm | 86 | 14M | BTO-10/15/22 | Cross type |
| 700mm | 72 | 12M | BTO-10/15/22 | Cross type |
| 800mm | 64 | 10M | BTO-10/15/22 | Cross type |
| 960mm | 52 | 9M | BTO-10/15/22 | Cross type |
