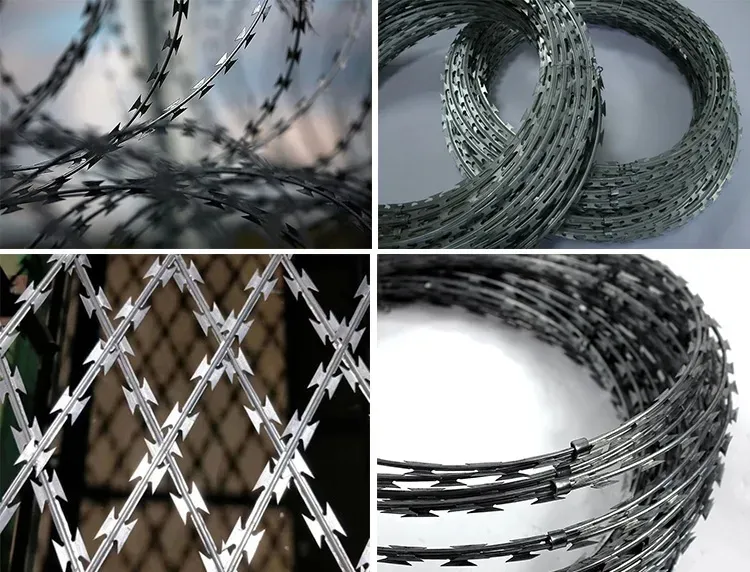

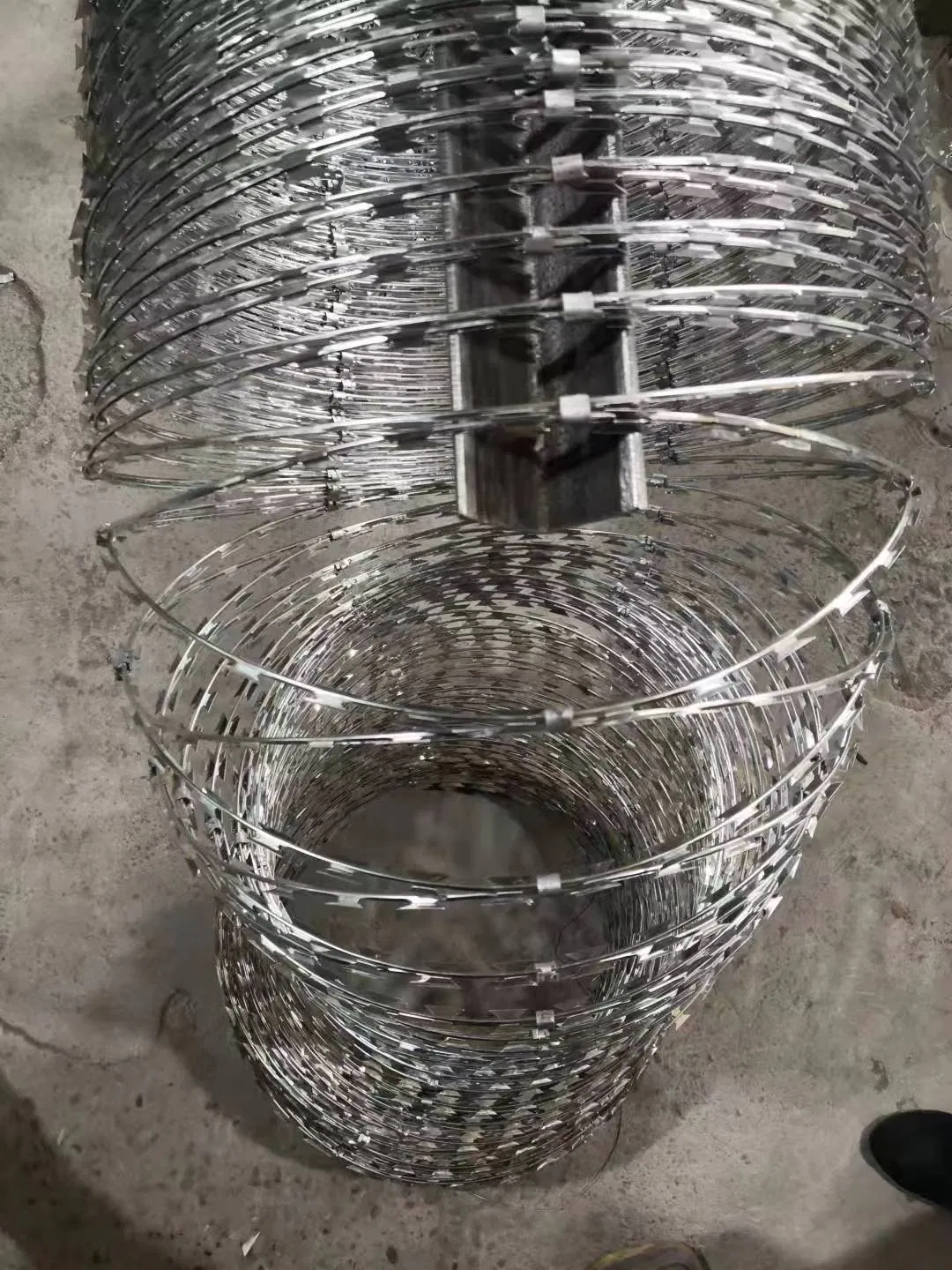

Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.
| Product name | Material | Surface treatment |
|---|---|---|
| Razor Barbed Wire | Hot Dipped Galvanized Sheet / Wire | E.G , H.D.G, PVC coated |
| Reference Number | Thickness (mm) | Wire Dia (mm) | Barb Length (mm) | Barb Width (mm) | Barb Spacing (mm) |
|---|---|---|---|---|---|
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 12±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 96±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| No. of Loops | Standard Length per Coil | Razor Type | Notes |
|---|---|---|---|
| 33 | 7M-8M | CBT-60, 65 | Single Coil |
| 56 | 12M-15M | CBT-60, 65 | Single Coil |
| 56 | 8M-11M (3clips) | BTO Series | Cross Type |
| 56 | 8M-16M (5clips) | BTO Series | Cross Type |

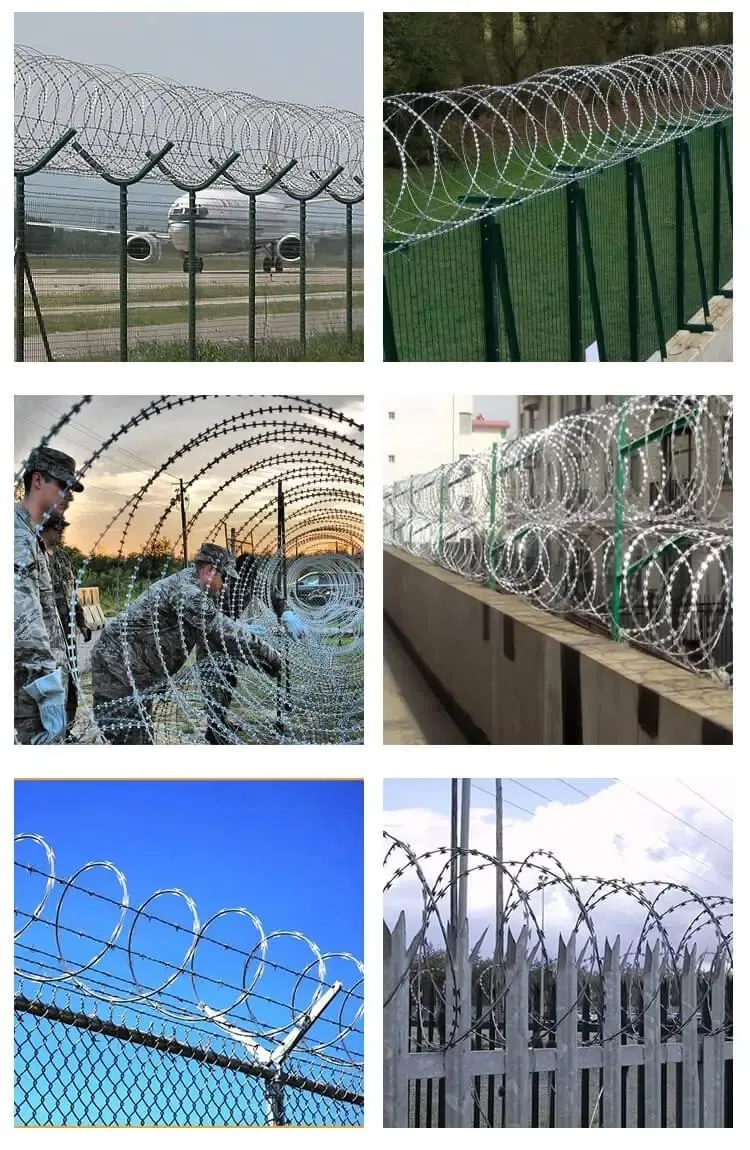

Mainly used for gardening apartments, organs, prisons, sentinels, frontier defense and other confinement protection.
Razor Barbed Wire features sharp steel blades and a high-tensile core wire, providing a much higher level of security and psychological deterrent compared to standard barbed wire. It is harder to cut and cross.
Hot-dipped galvanized steel is excellent for general outdoor use, providing a thick zinc coating (40-60g/sqm or higher) to prevent rust. For extreme environments, stainless steel sheets are recommended.

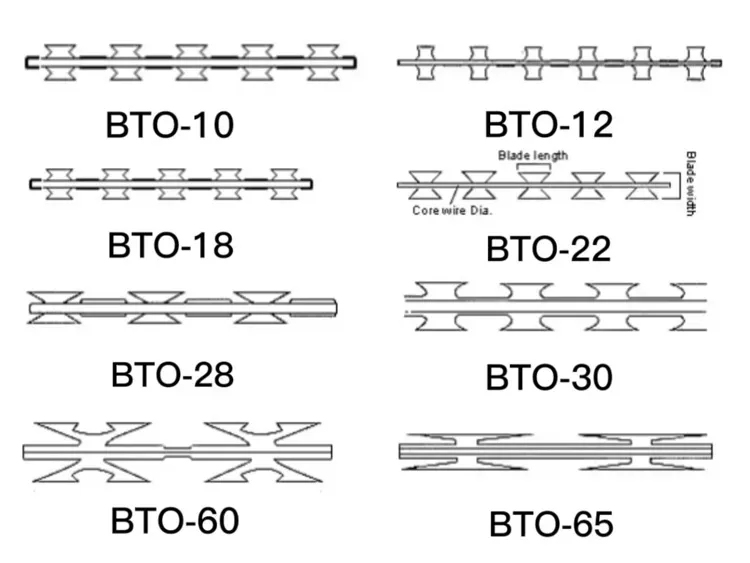

These are razor profile designations. BTO-22 is a medium-length blade (approx 22mm) and is the most common type for general security. CBT-65 features a much longer blade (65mm) for high-security applications like prison perimeters.

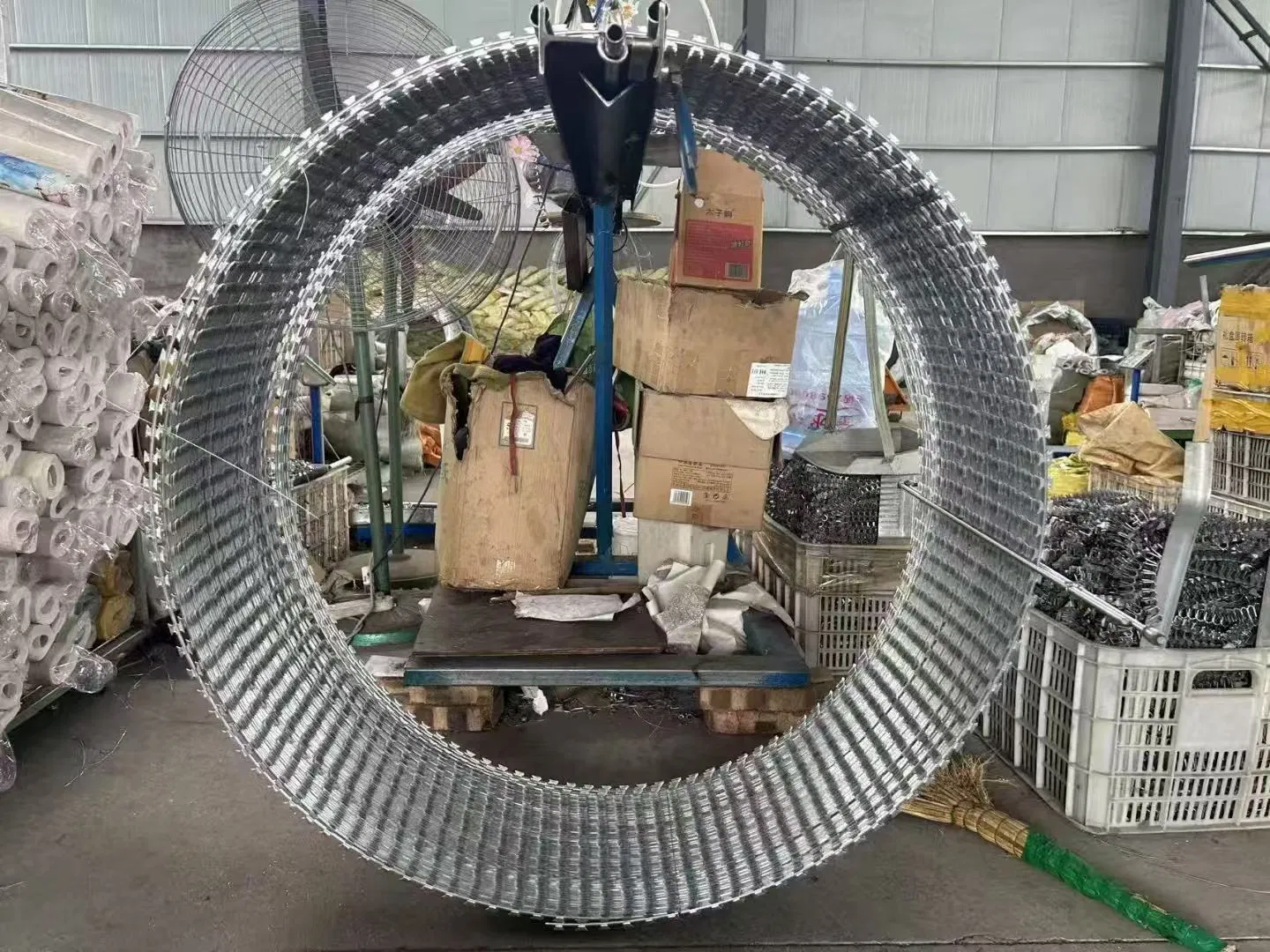

Yes, while 800mm is a standard outside diameter, coils can be manufactured in various sizes ranging from 450mm to 1000mm depending on specific fencing requirements.

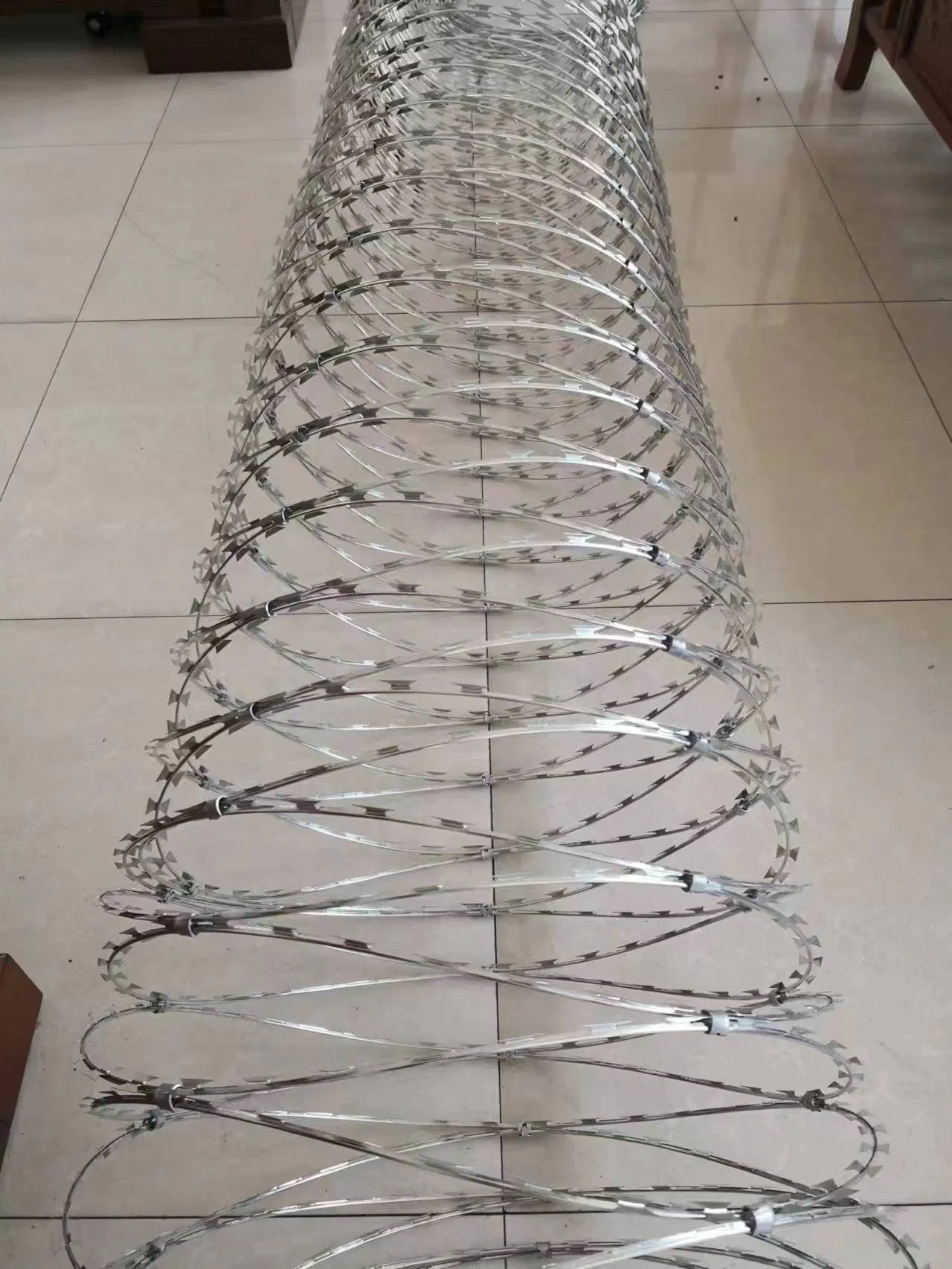

It can be installed as a single coil (straight) or as concertina (cross type) using clips to link loops together, which creates a denser, more effective barrier. It is often mounted on top of existing fences or walls.

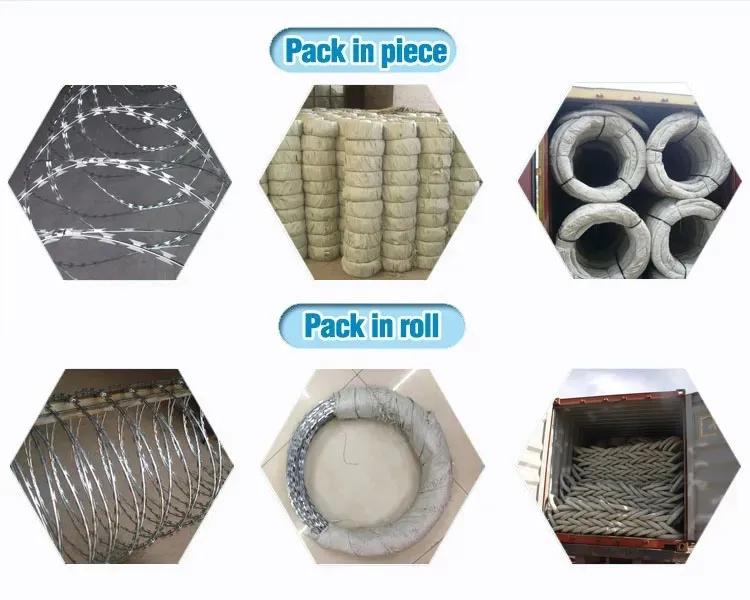

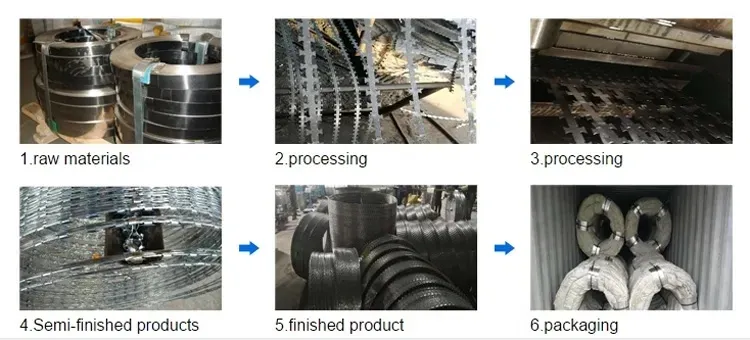

We typically use waterproof paper inside with woven bags outside for individual coils. For bulk orders, compression bundles or cartons on pallets are used to optimize shipping space and protect the product.
