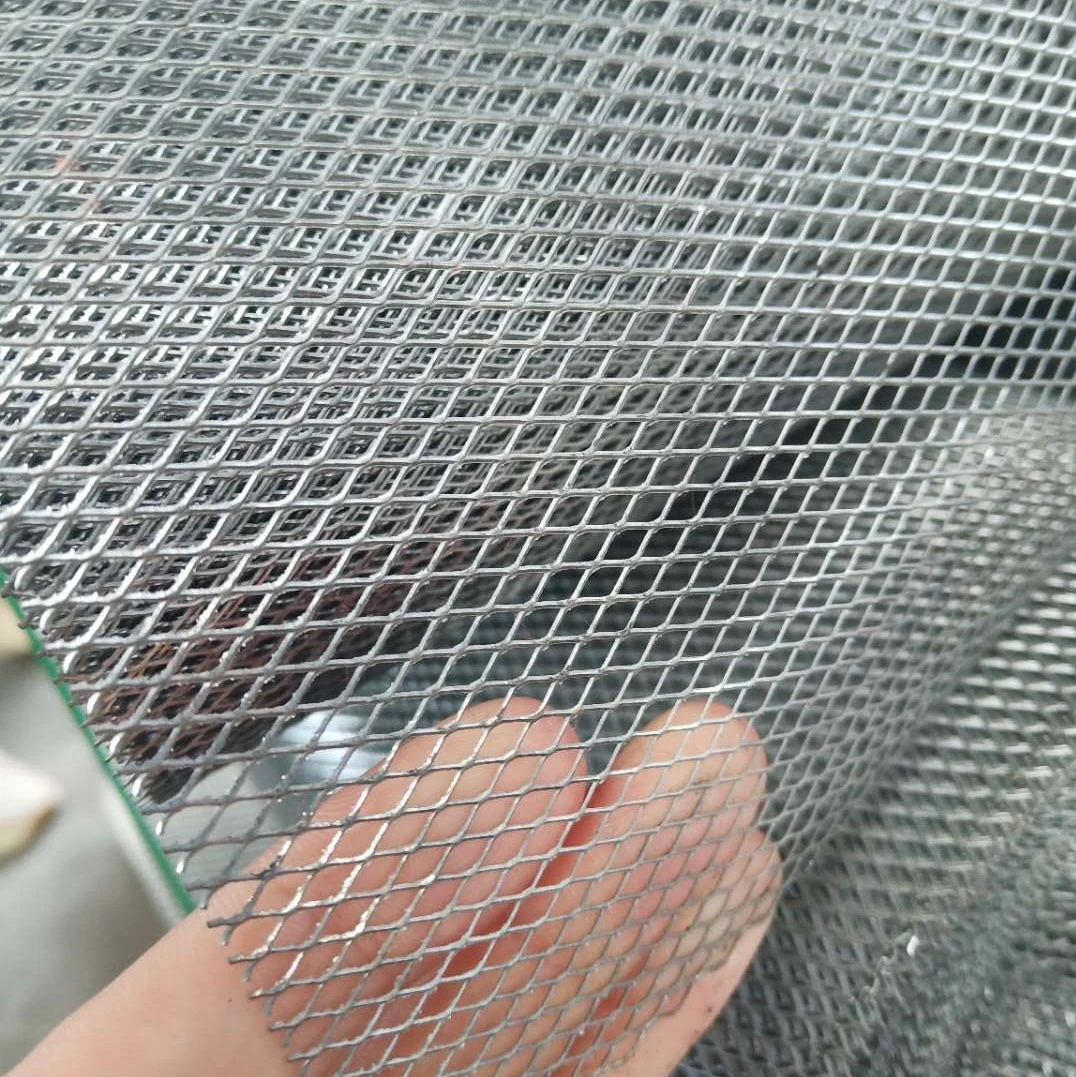

Galvanized /Stainless Steel Mesh Panel Expanded Metal Mesh for Building

Basic Specifications

Model NO.

YQ-W283

Hole Shape

Diamond

Usage

Protection, Civil Building, Railway Construction, Road Construction

Weave Characteristic

Stamping

Surface Treatment

Galvanized, Hot-galvanize

Category

Expanded Metal Mesh

Hole Sizes

10X25mm to 60X100mm

Production Capacity

100,000 Rolls / Month

Product Description

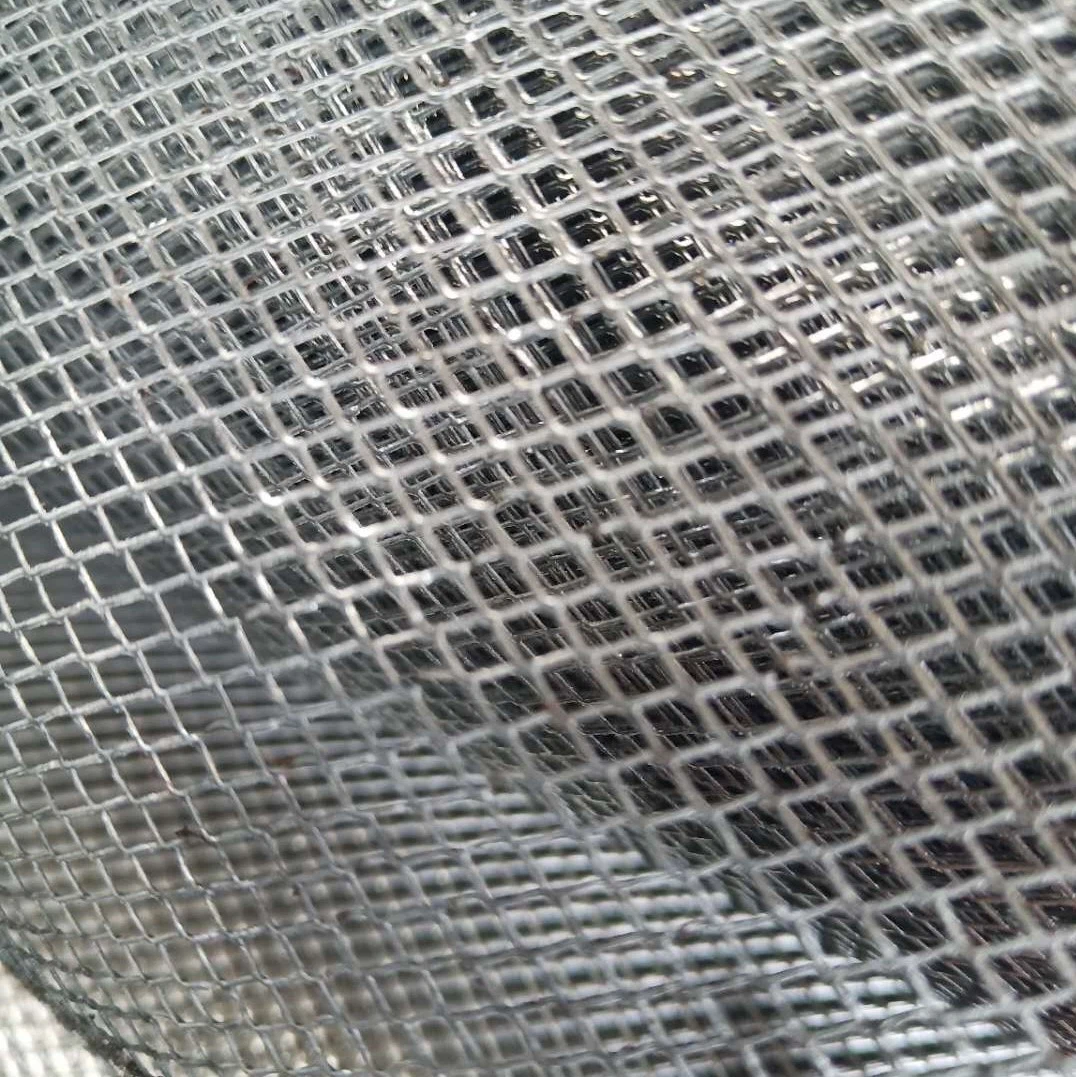

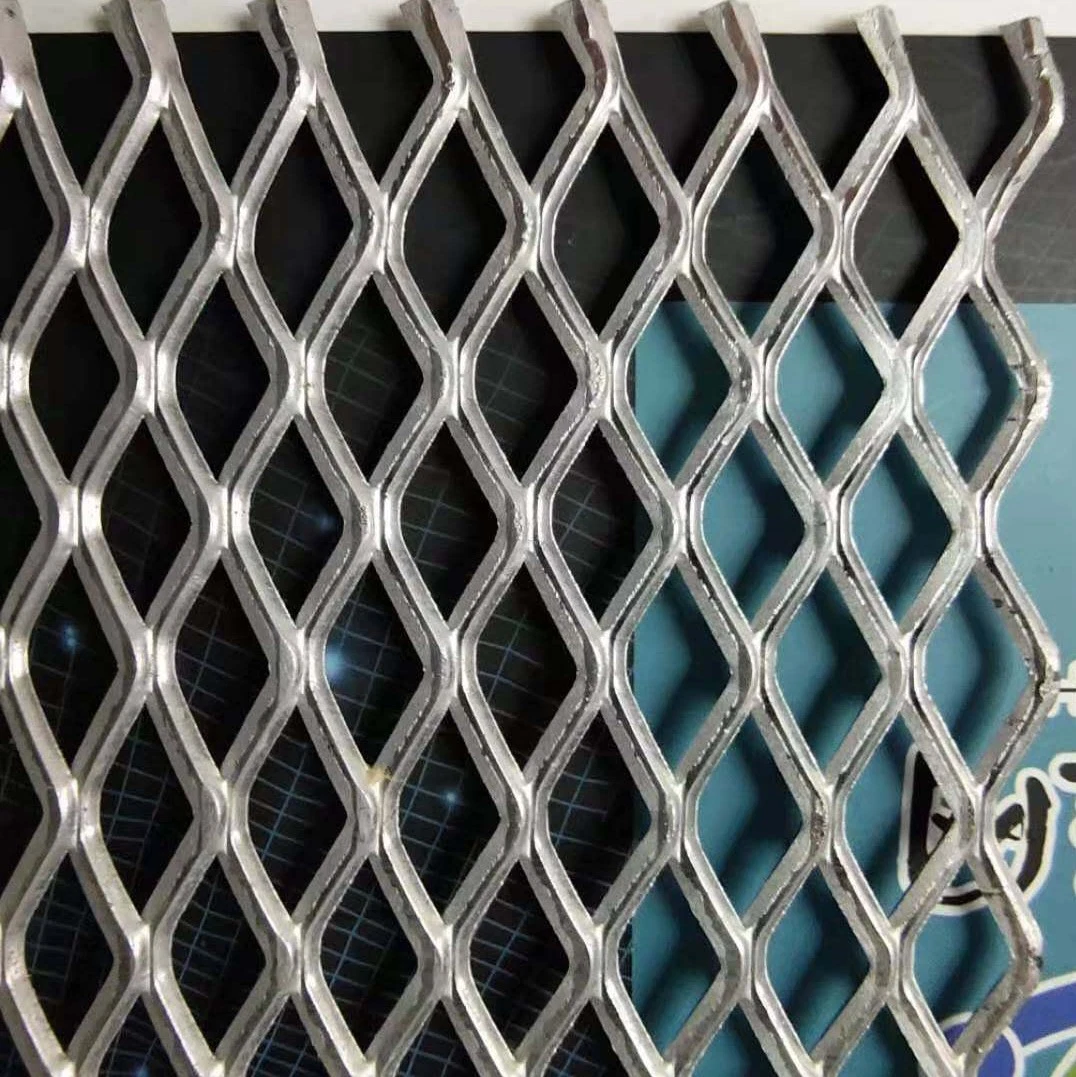

Expanded metal mesh, also known as pulled plate wire mesh, is a rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation. This specialized process ensures the resulting mesh is stronger, lighter, and more rigid than the original base material.

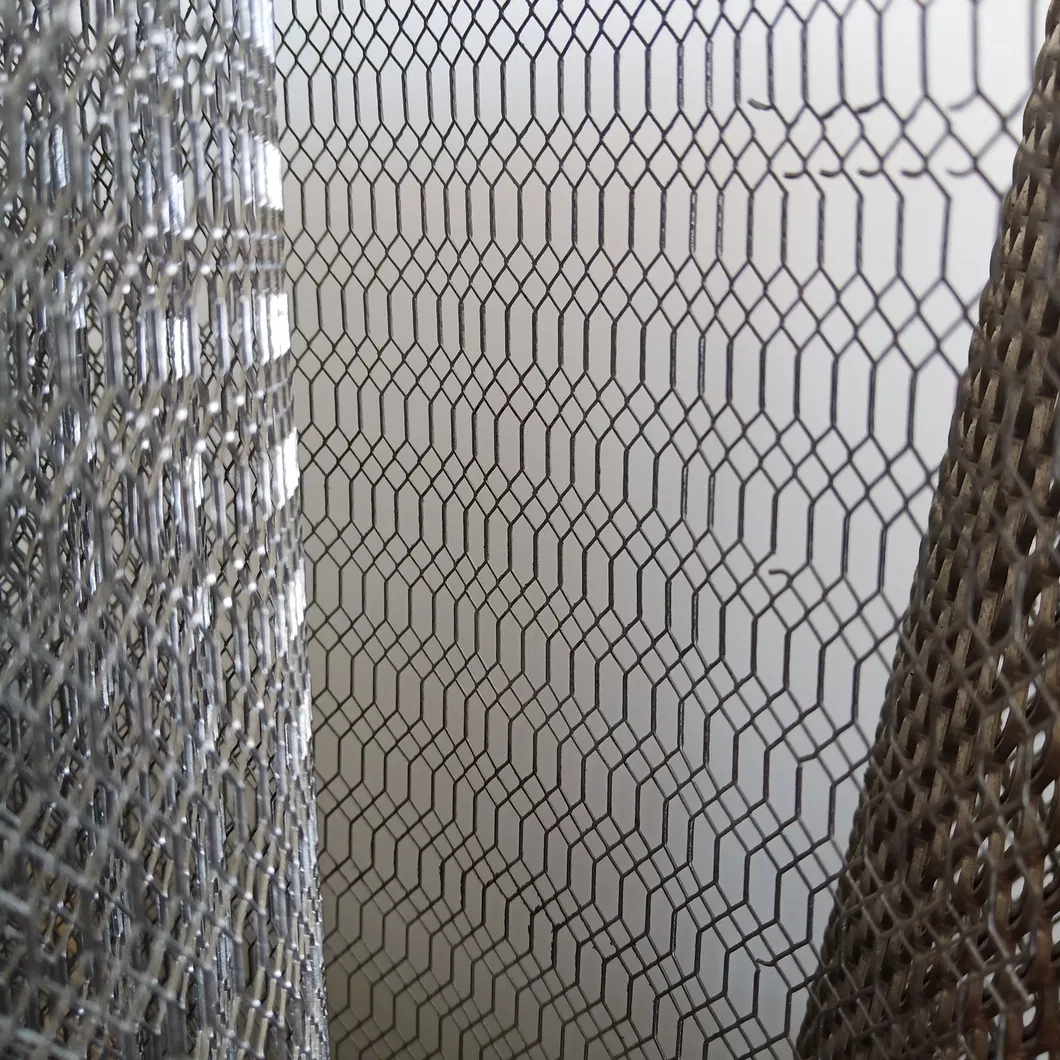

Available in materials such as carbon steel, stainless steel, galvanized steel, aluminum, and nickel plate. While conventional mesh is formed in a diamond pattern, other options include hexagonal, round, and scale-like openings.

Key Features & Benefits

Formed from a single piece of metal
Zero-waste manufacturing process
Superior strength-to-weight ratio
Anti-slip surface for safety
Effective screening and conductors
Excellent corrosion resistance

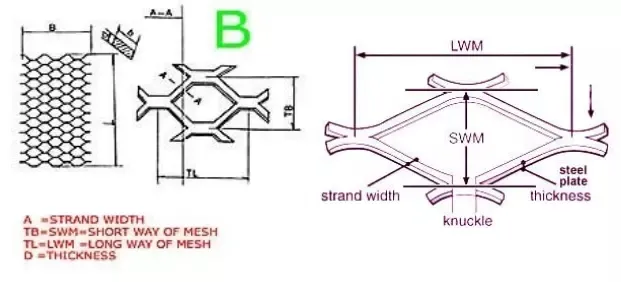

Technical Parameters

Thickness (mm)	SWD (mm)	LWD (mm)	Strand (mm)	Width (m)	Length (m)	Weight (kg/m²)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
1.0	10	25	1.1	0.6	2	1.77
2.0	22	60	2.6	2.0	4	3.69
4.0	50	100	4.0	2.0	2	11.15
6.0	50	100	6.0	2.0	2.5	17.35

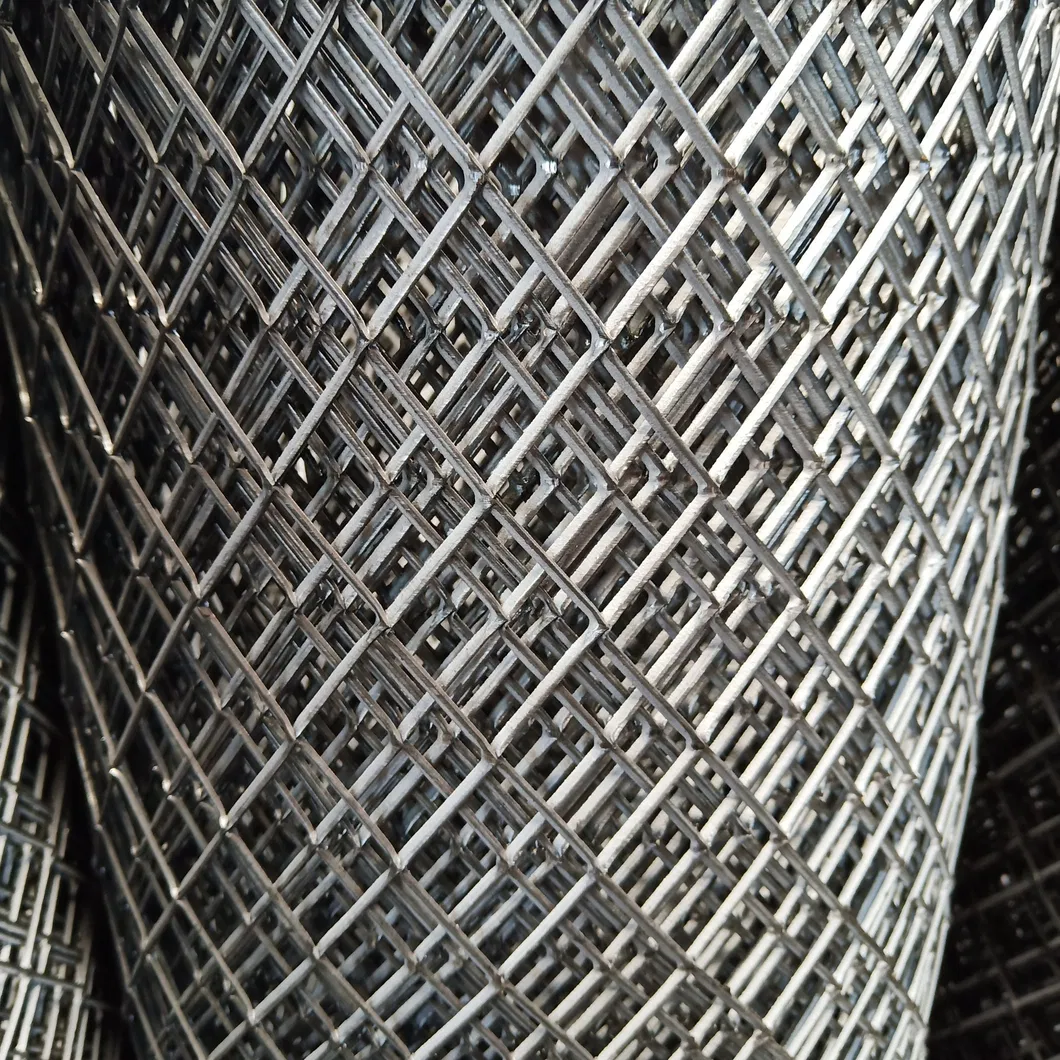

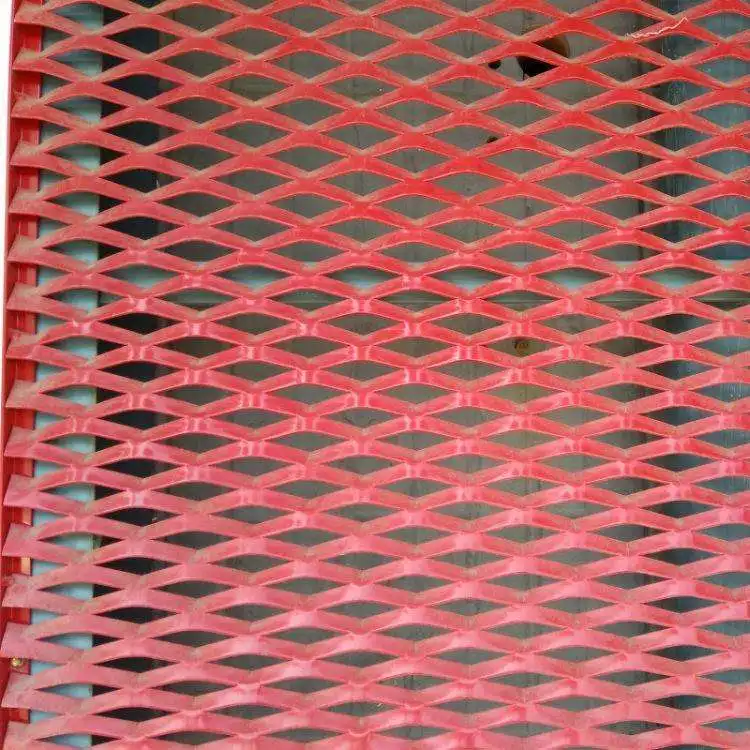

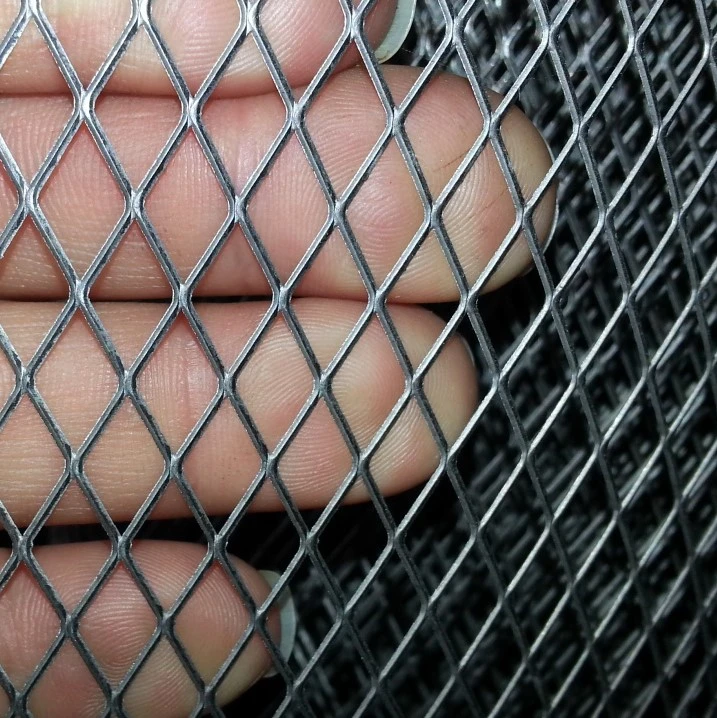

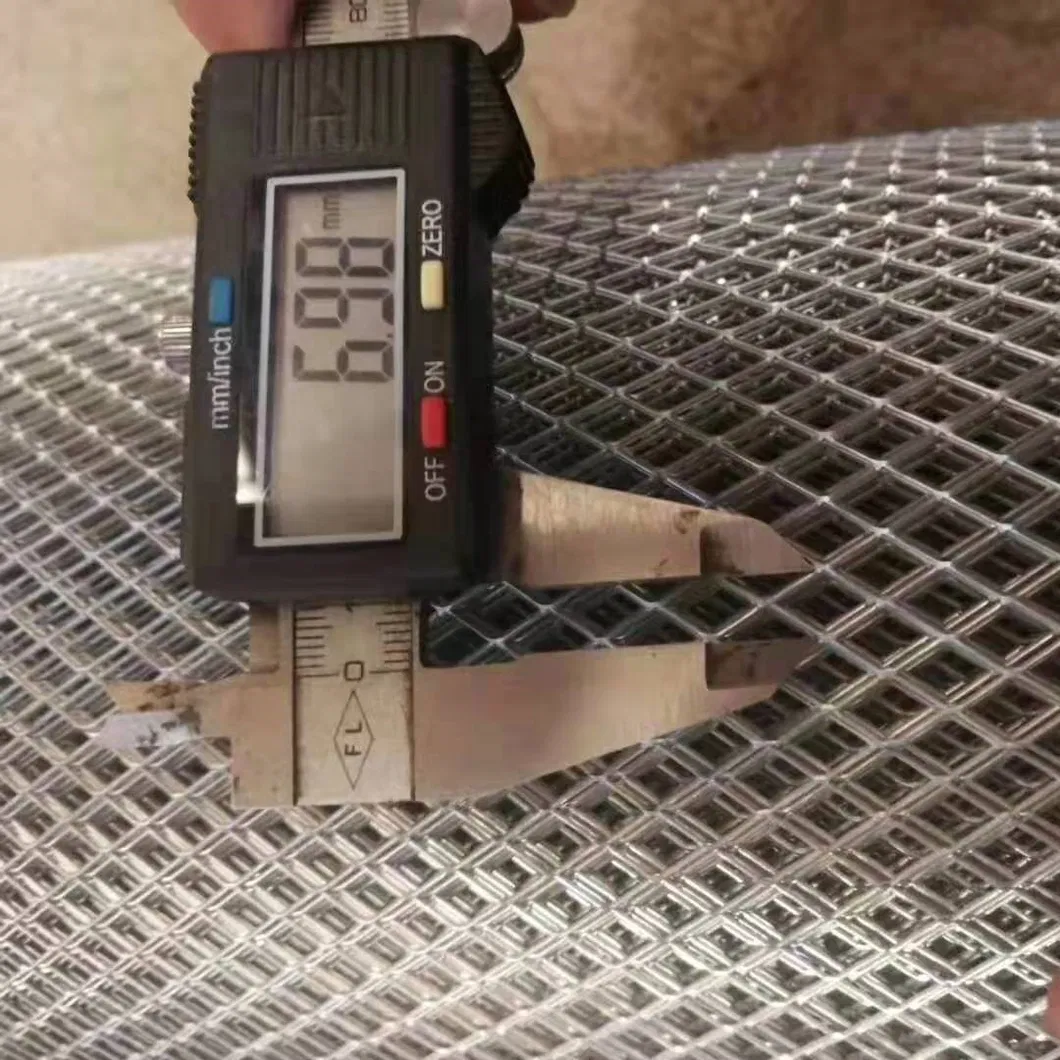

Visual Showcase

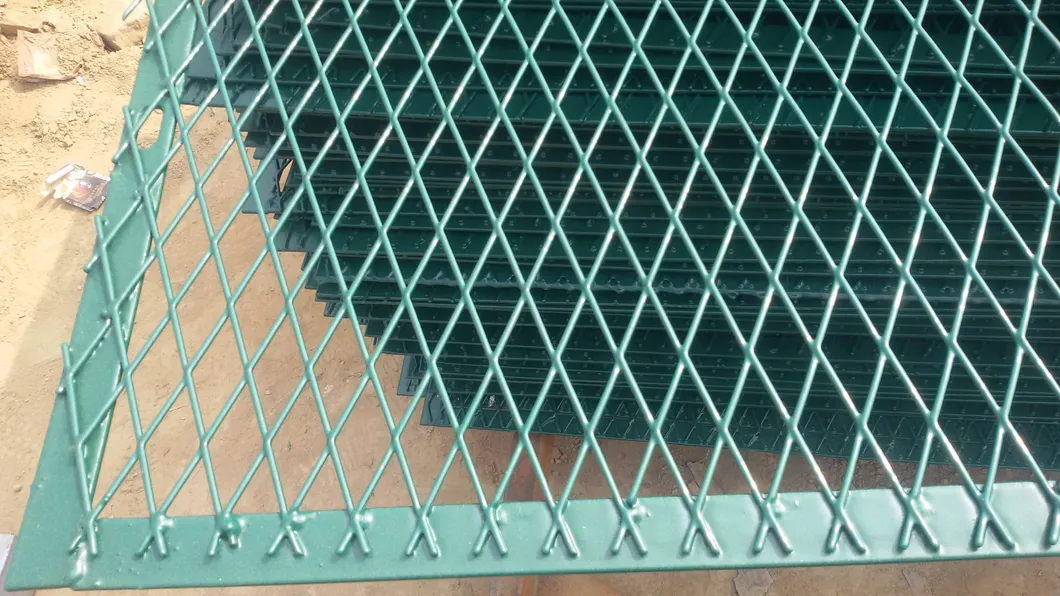

Primary Uses: Railway Fences, Bridge Protection, Highway Barriers, Sports Enclosures, and Airport Fencing.

Frequently Asked Questions

1. What is expanded metal mesh?

It is a rigid metal sheet that has been slit and stretched into a diamond or other patterned mesh. This process creates a single-piece structure that is stronger than traditional woven wire.

2. What are the common materials used?

Common materials include carbon steel, stainless steel, aluminum, galvanized steel, and specialty alloys like nickel or titanium depending on the industrial requirement.

3. Why is it considered more efficient than sheet metal?

Expanded metal has a higher strength-to-weight ratio. The stretching process expands the material without losing structural integrity, making it lighter yet very rigid.

4. Is the surface slip-resistant?

Yes, the multi-directional pattern and raised edges of the strands provide an excellent anti-slip surface, making it ideal for walkways and ramps.

5. What are its typical applications?

It is widely used for security fencing (highways, railways, airports), civil building reinforcement, protective screening, and high-efficiency conductors.

6. Does it offer good corrosion resistance?

When treated with hot-dip galvanizing or made from stainless steel, the mesh provides superior resistance to corrosion and environmental wear.
