Basic Information
Model NO.
XZ-Razor Wire-044
Application
Protecting Mesh, Fence Mesh
Finish
Hot Dipped Galvanized
Razor Barbed Type
Cross Razor
Coil Diameter
300mm-1000mm
Surface Treatment
Galvanized, Stainless Steel, PVC Coated
Blade Thickness
0.5mm, 0.6mm
Usage
Airport Fence, Prison, Security Protection
Production Capacity
10 Containers/Month
Product Description

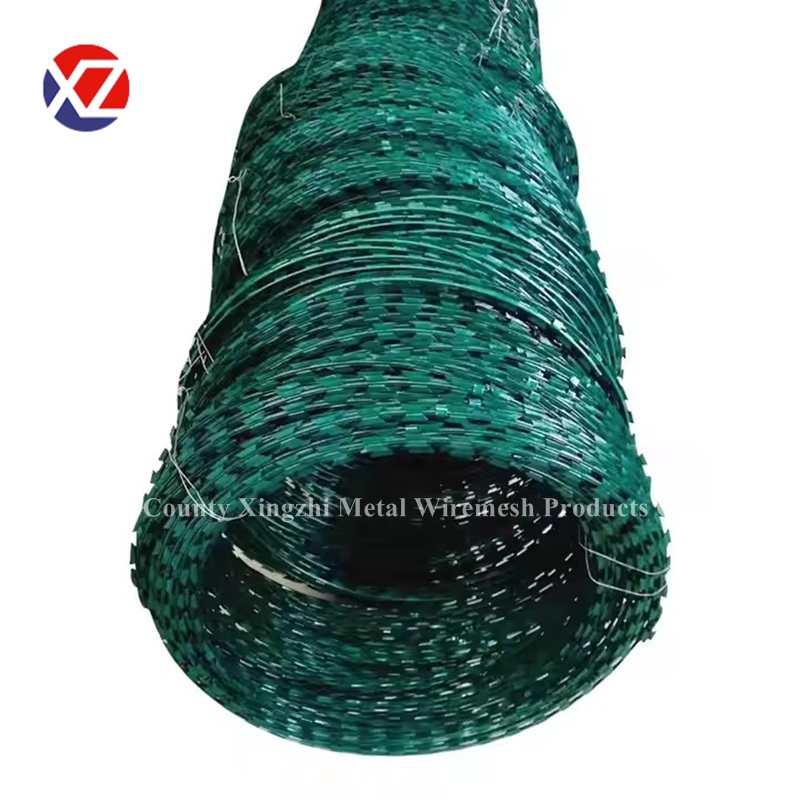

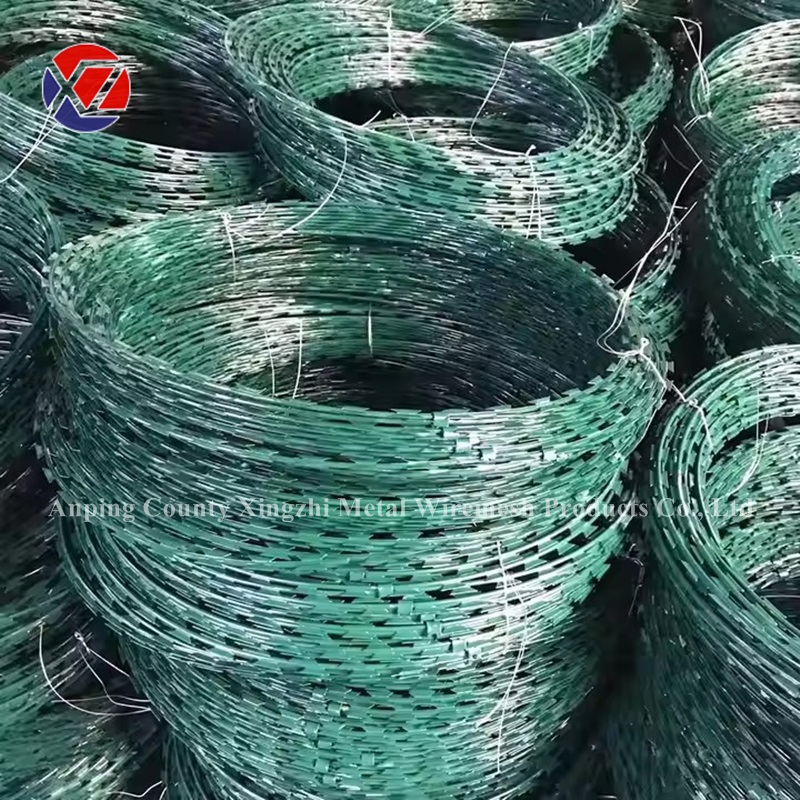

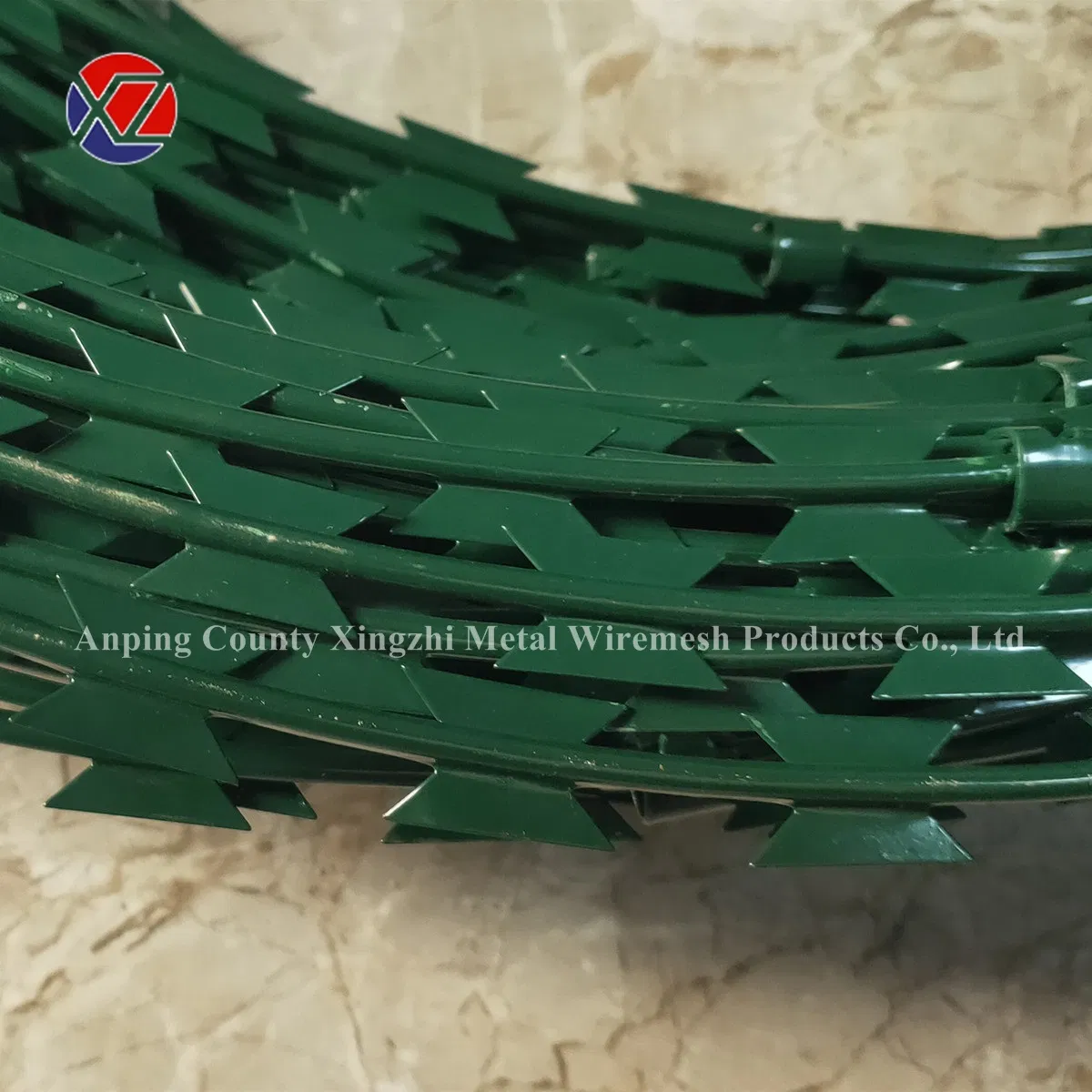

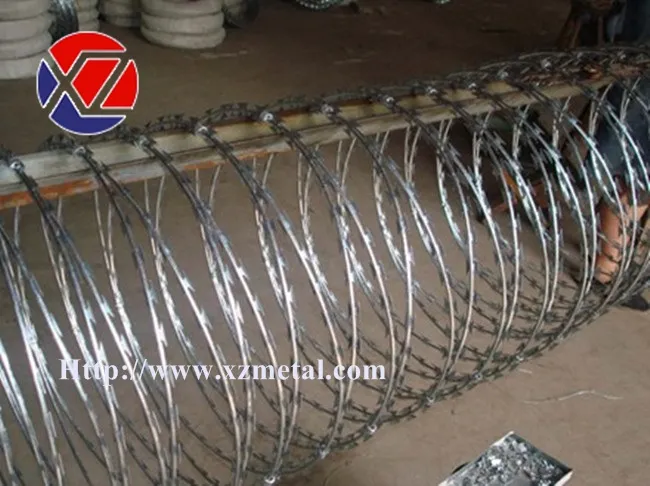

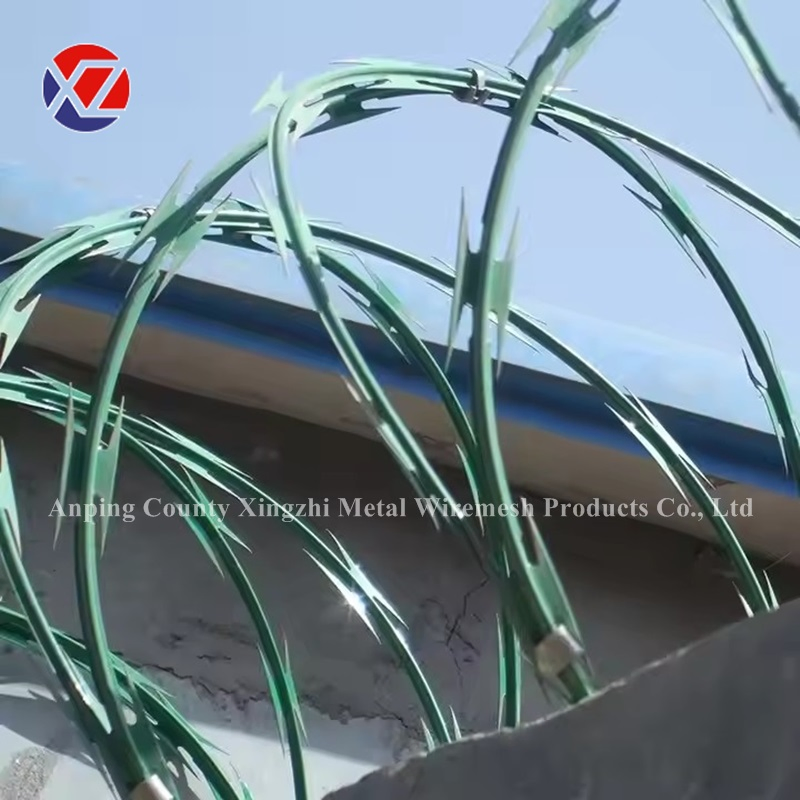

Green Color PVC Coated Razor Barbed Wire
Razor barbed wire is crimped on a hot dip galvanized high tensile spring steel core wire and hence cannot be cut by ordinary means. It is easily and expediently installation. It has been widely used in airport, key sites, border line, prison, government, bank, bounding wall of villa, highway, security window, fence of railway and etc.

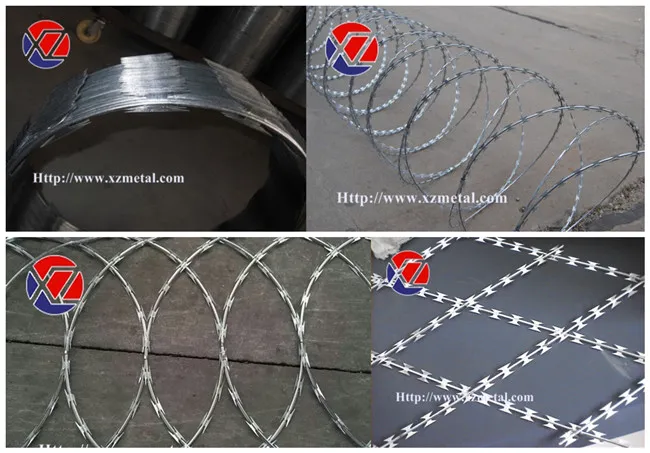

Sorts of Razor Blade Wire
- Single loop razor wire
- Concertina/Cross type razor wire
- Welded razor wire (razor mesh)
- Flat razor wire
Regular Specifications (CBTO-22)
- Material & Finishing: Electro galvanized, Hot-dip galvanized, Heavy hot-dip galvanized, PVC Coated, Stainless steel.
- Blade Style: BTO-10, 12, 22, 28, 30, CBT-60, 65 etc.
- Loop Diameter: 300mm, 450mm, 500mm, 600mm, 730mm, 800mm, 980mm or customized.
- Cover Length: 7m, 8m, 10m, 12m, 15m or customized.

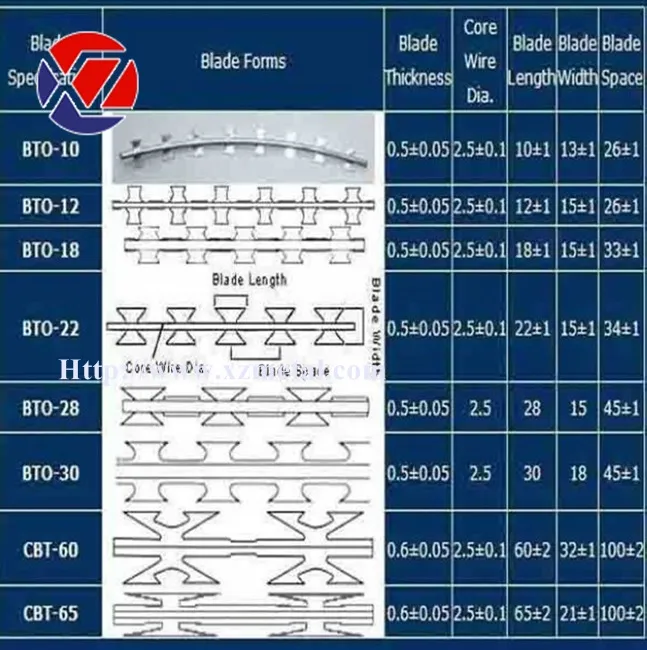

Blade Types & Regular Sizes
| Outside Diameter |
No. of Loops |
Standard Length |
Type |
Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9M | BTO-10, 22, 30 | Cross type (3 Clips) |
| 600mm | 56 | 10-11M | BTO-10, 22, 30 | Cross type (3 Clips) |
| 800mm | 56 | 11-13M | BTO-10, 22, 30 | Cross type (5 Clips) |
| 980mm | 56 | 14-16M | BTO-10, 22, 30 | Cross type (5 Clips) |

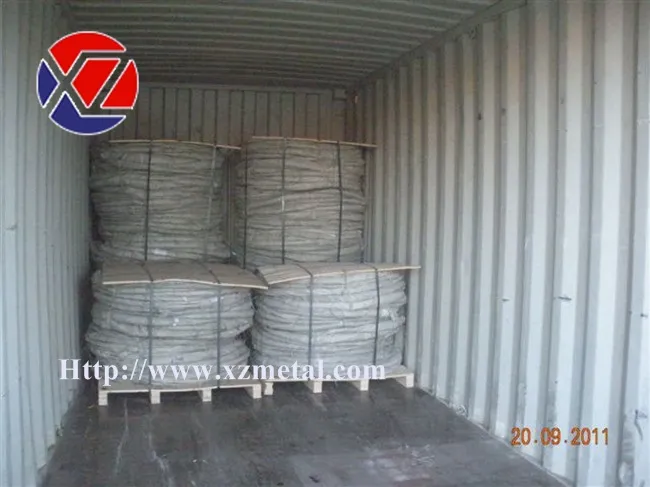

Packing & Loading

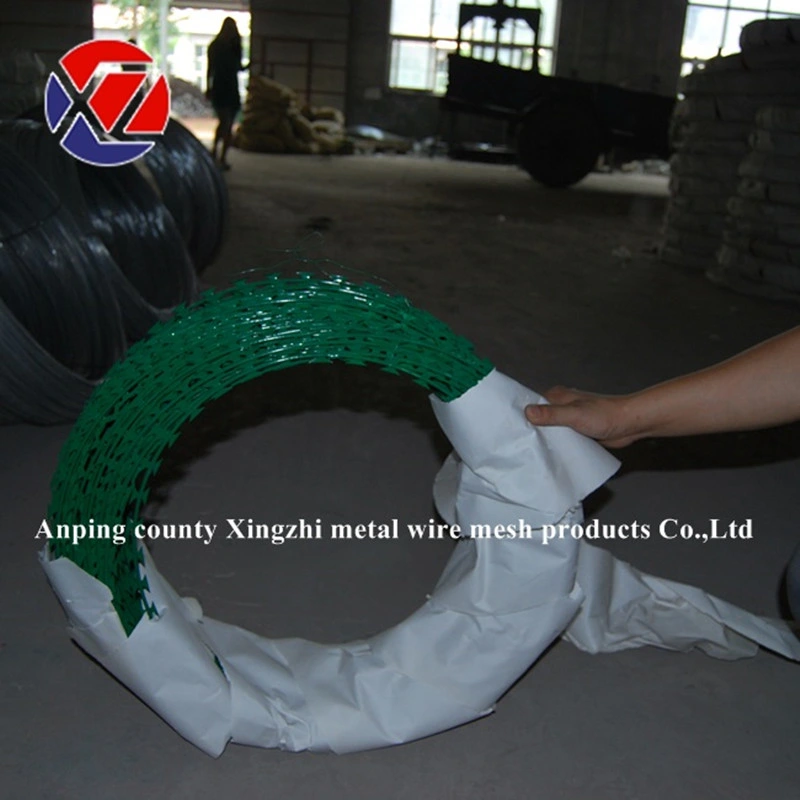

- Common packing: compression rolls, water-proof paper inside, woven bag outside.
- In cartons for enhanced protection.
- Secured with pallets for bulk transport.

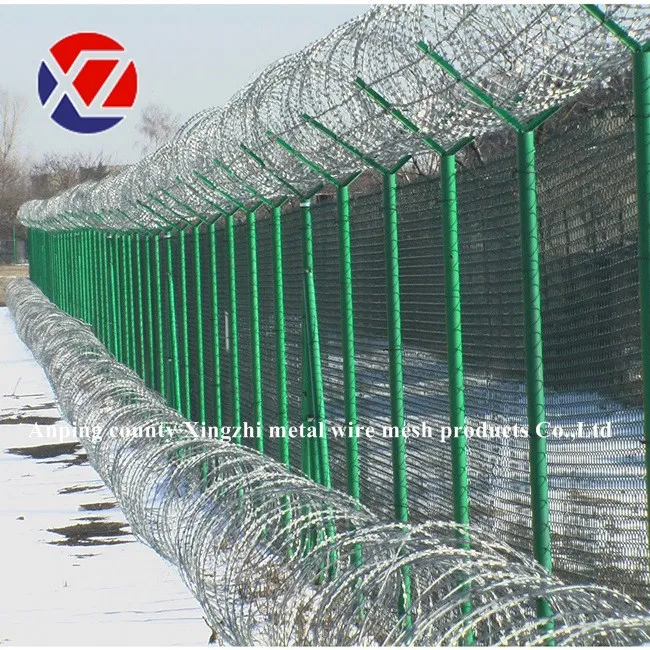

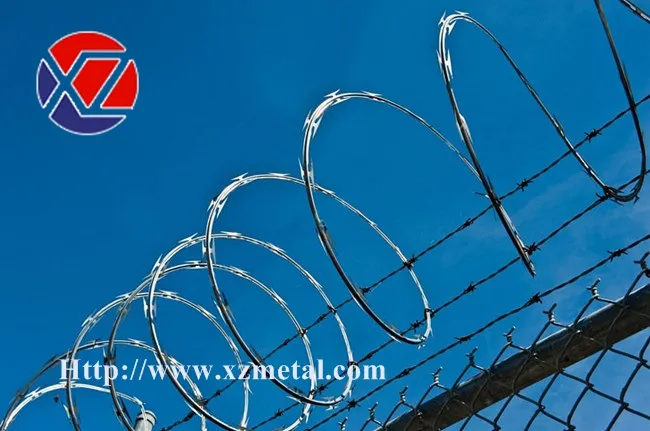

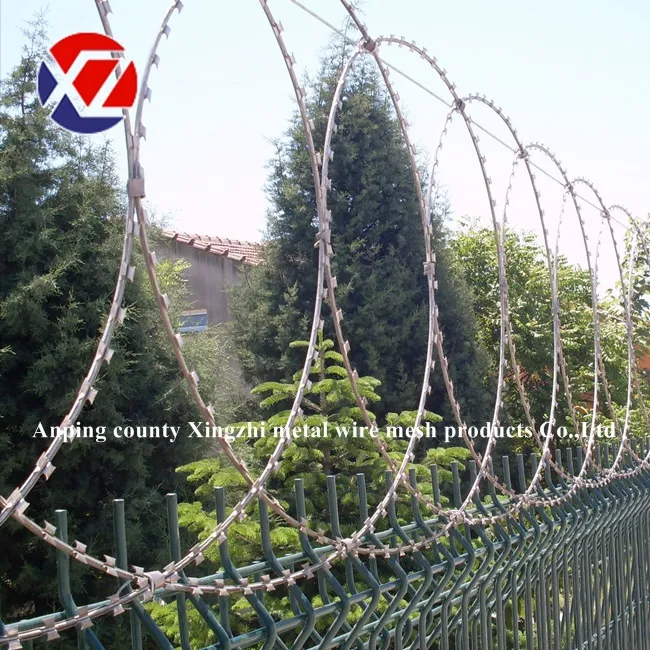

High Security Applications
Razor Barbed Tape is widely used in fencing protection fields across various high-security sectors:
- Heavy land borders and national security facilities.
- Prisons and detention houses.
- Government agencies, banks, and private residential communities.
- Sea boats, ships, and large vessels.
- Highway and railway guardrails.
Frequently Asked Questions (FAQ)
1. What materials are used for razor barbed wire?
Our razor wire is made from high-quality electro galvanized steel, hot-dip galvanized steel, stainless steel, or PVC coated materials to ensure durability and corrosion resistance.
2. What is the difference between single coil and cross type razor wire?
Single coil razor wire runs in a simple loop, while cross type (Concertina) razor wire is fastened together with clips at intervals to create a dense, more secure diamond-patterned barrier.
3. What are the common applications for PVC coated razor wire?
PVC coated razor wire is ideal for airports, prisons, military zones, and residential boundaries where extra corrosion protection and a specific aesthetic (like green) are required.
4. Can razor wire be easily cut?
No, razor wire is manufactured with a high-tensile spring steel core wire, making it extremely difficult to cut with standard tools, providing a high level of security.
5. What standard roll lengths are available?
Standard cover lengths typically range from 7 meters to 15 meters per roll, depending on the loop diameter and the number of clips used.
6. How is the product packed for shipping?
The product is typically packed in compression rolls with waterproof paper and woven bags, or securely placed in cartons and on pallets to ensure safe delivery.
