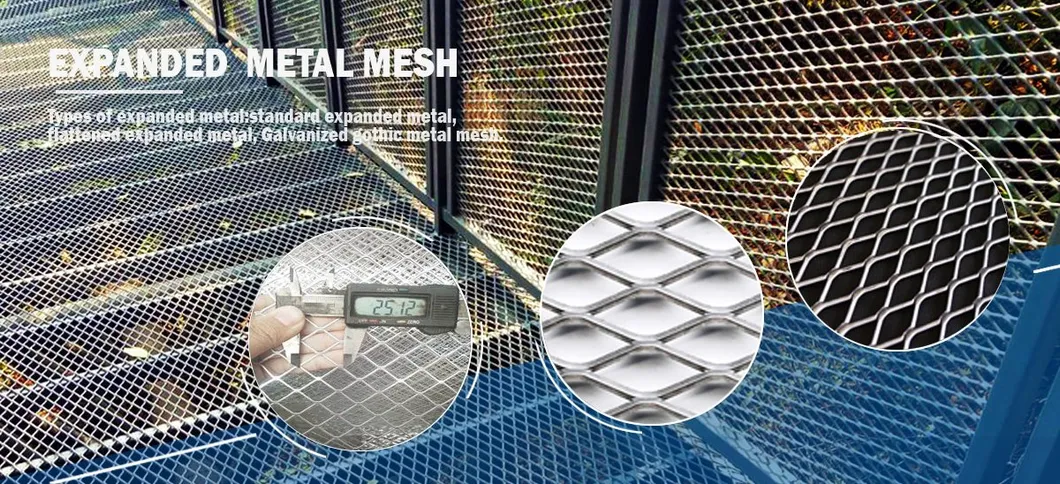

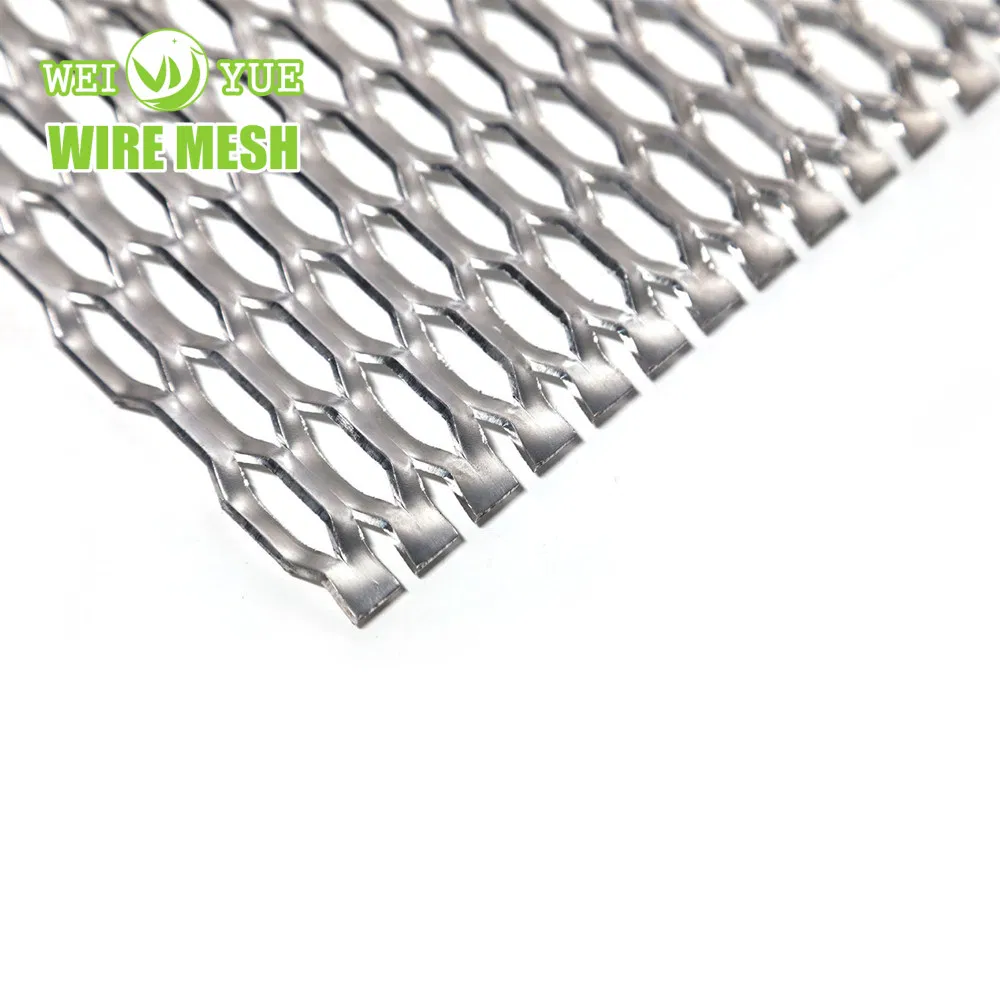

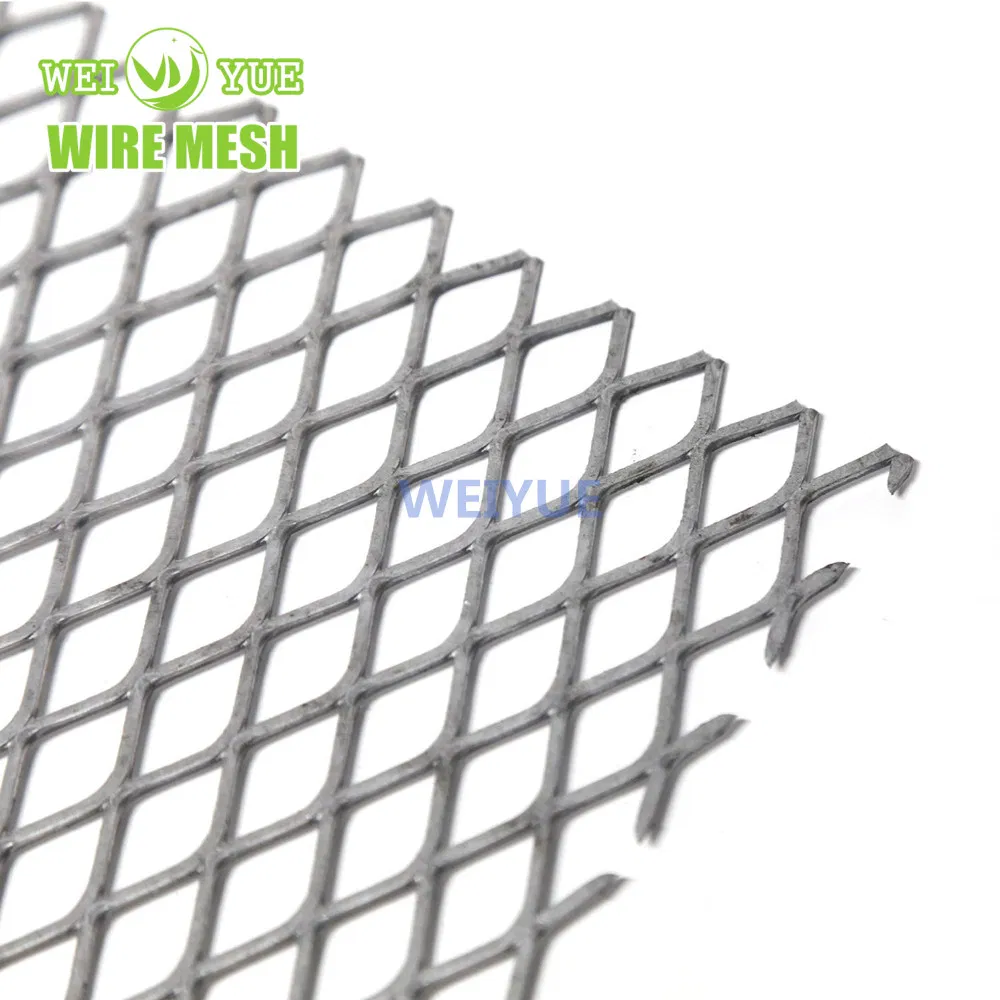

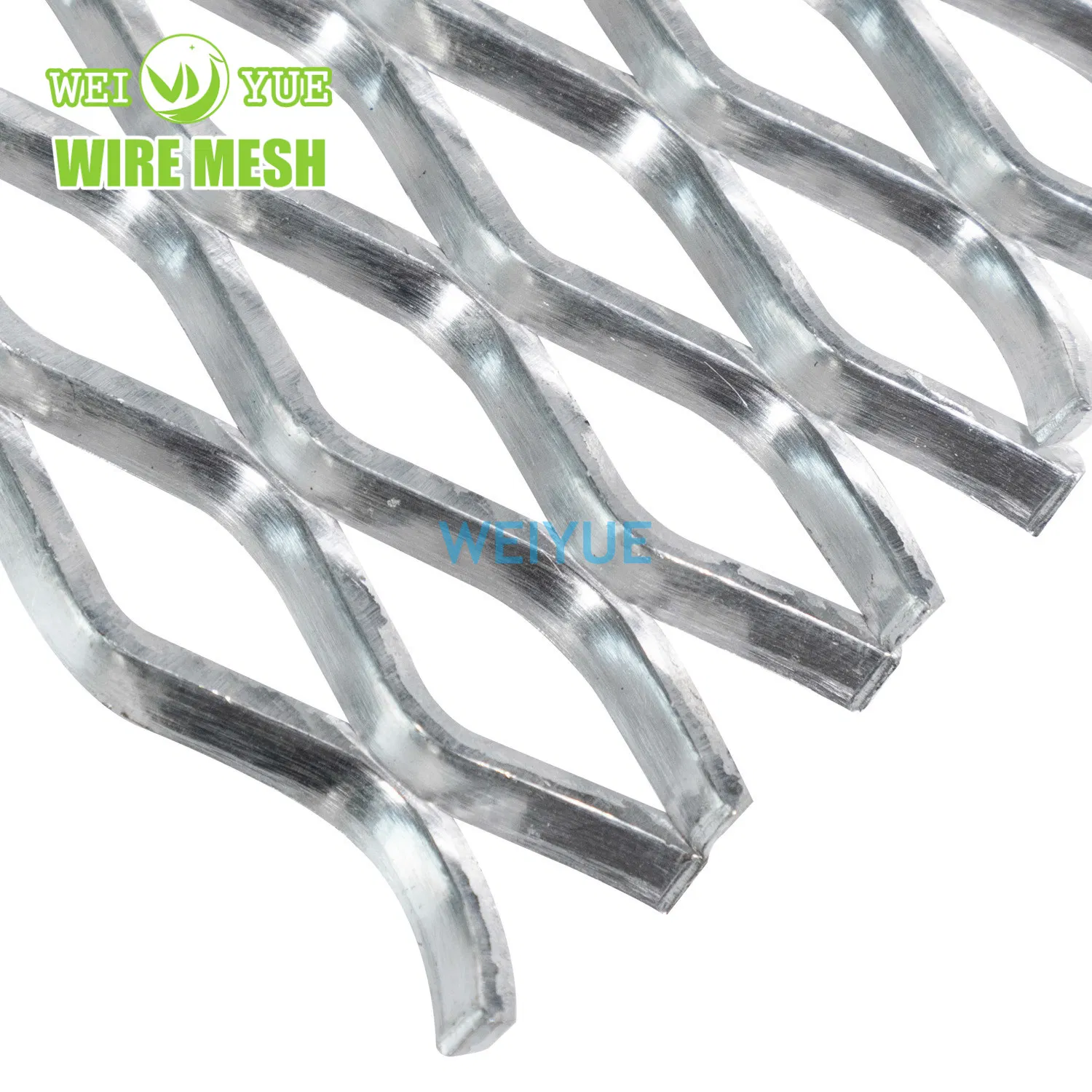

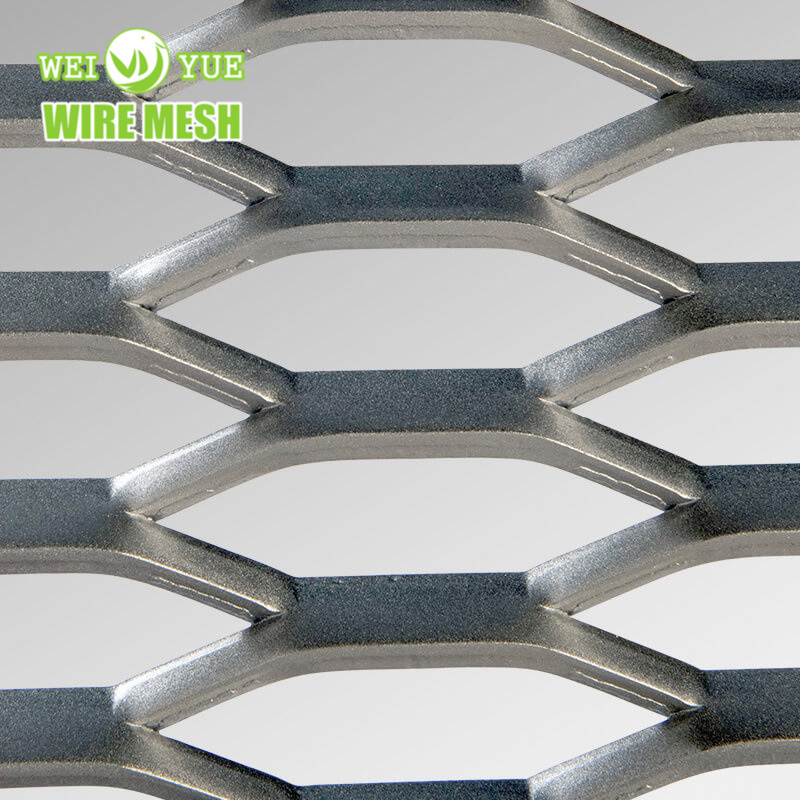

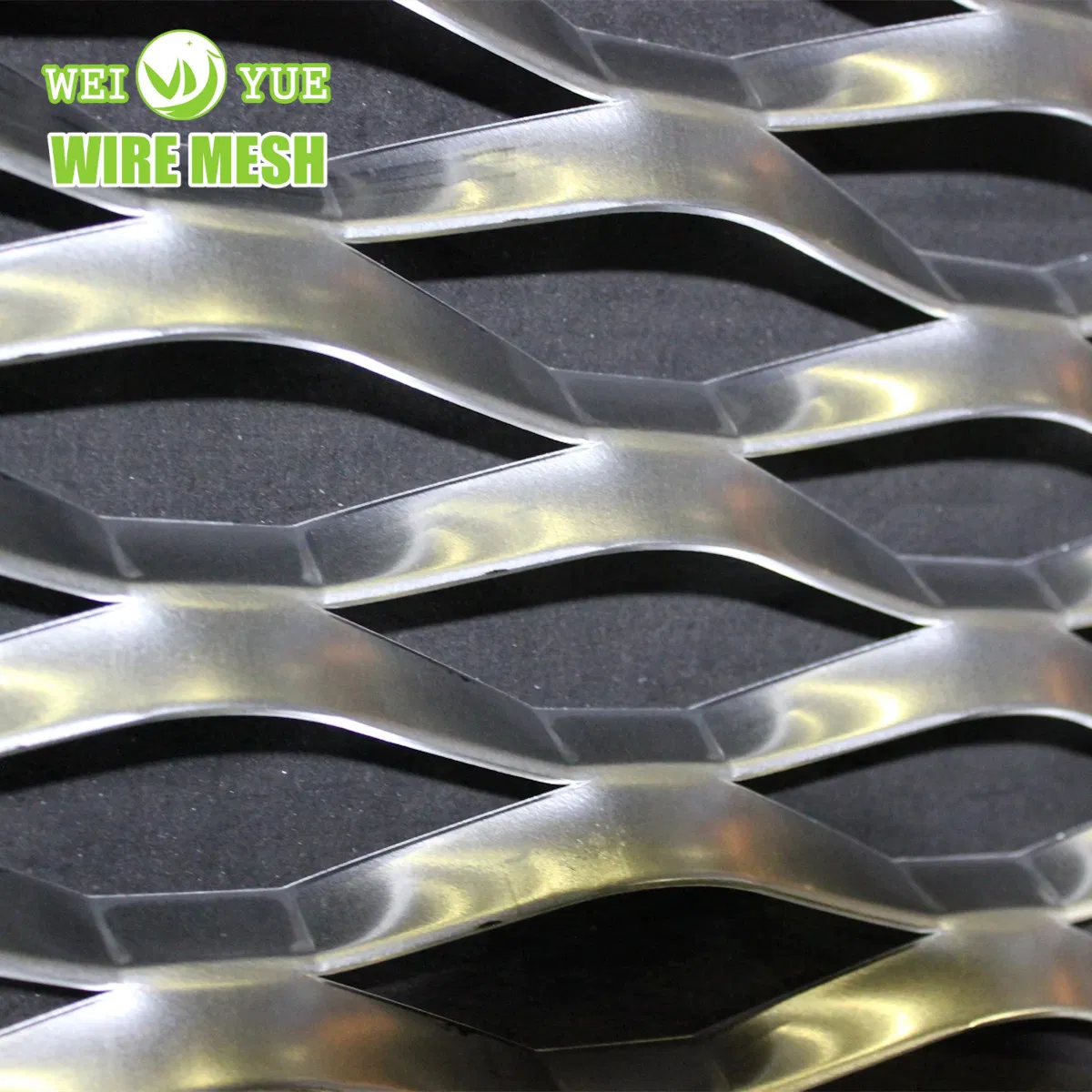

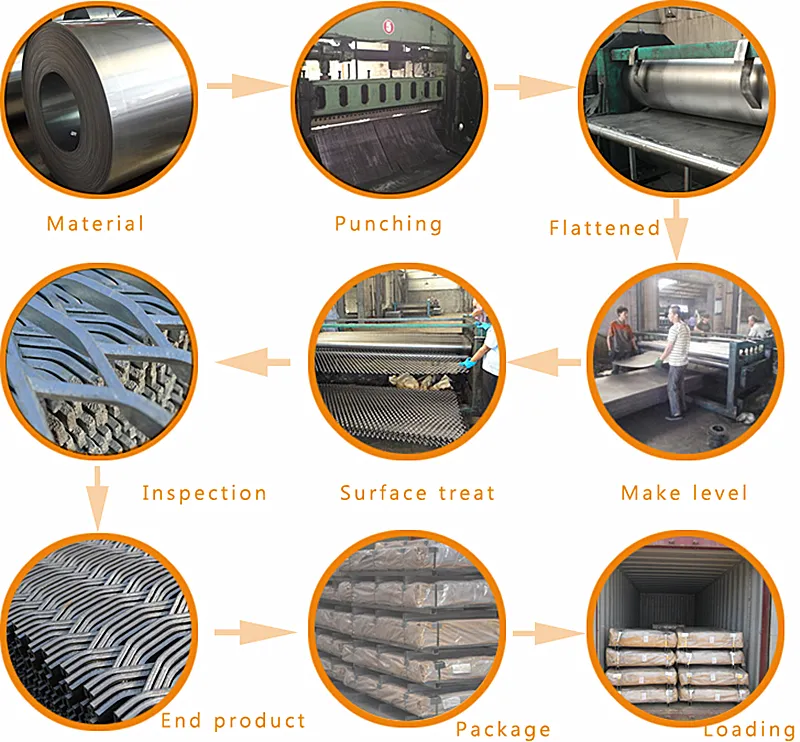

Expanded metal mesh or Expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press, and the sheet is cut and expanded to many uniform diamond shapes. The pattern can be made by using different gauge and material as well as the size of the diamond.

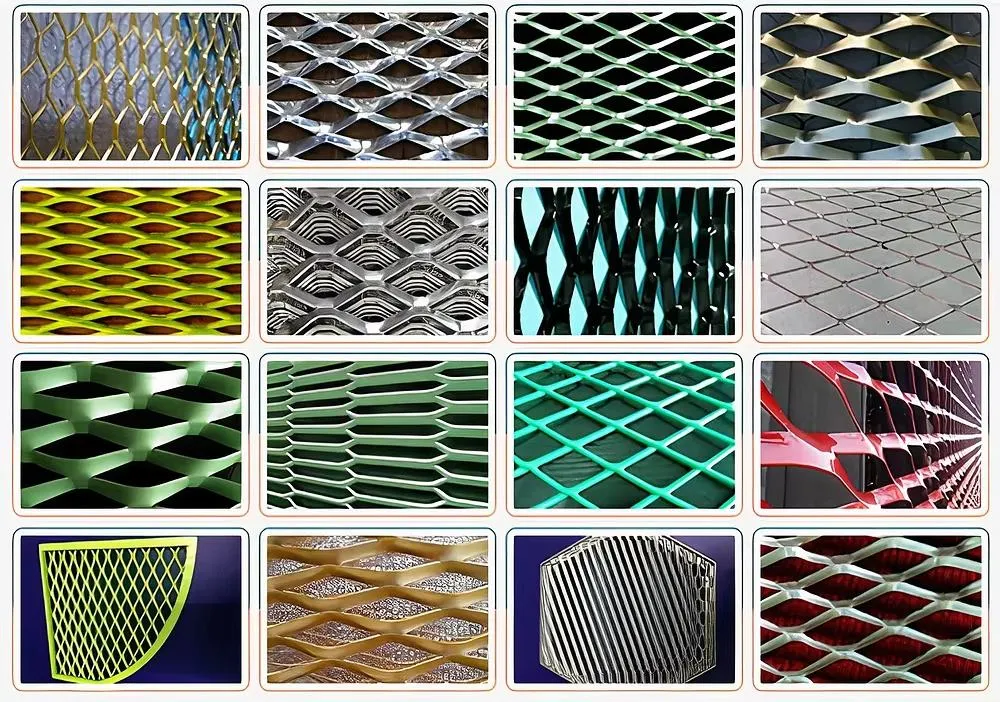

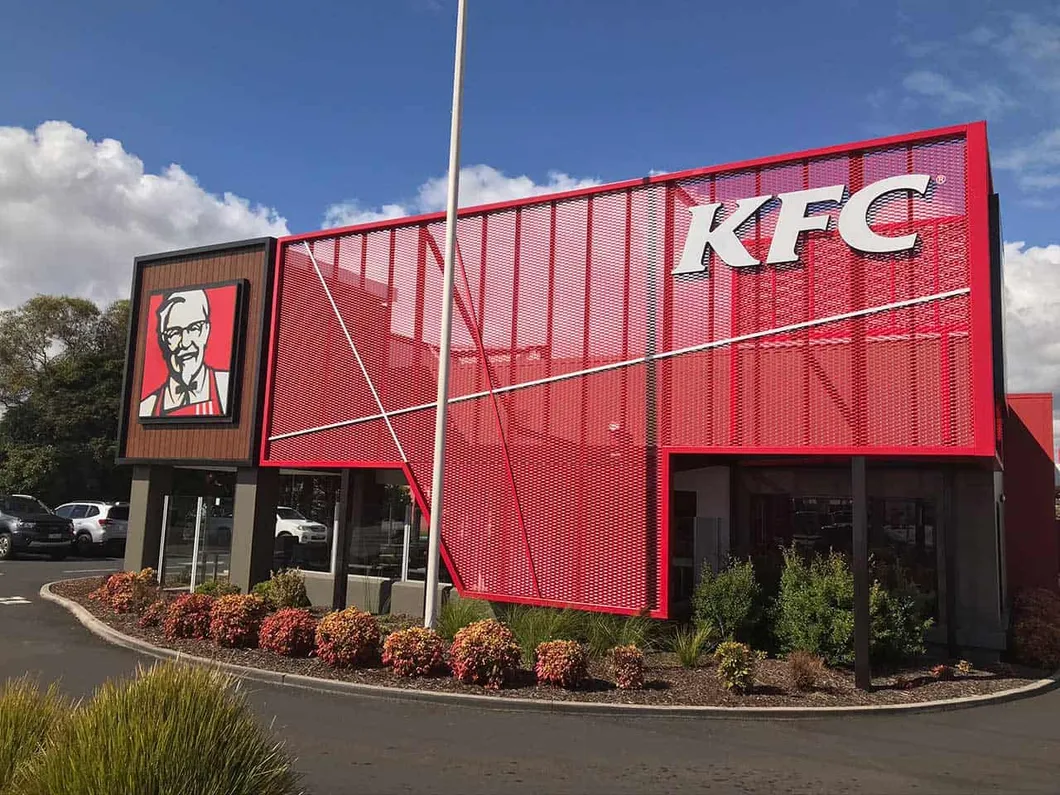

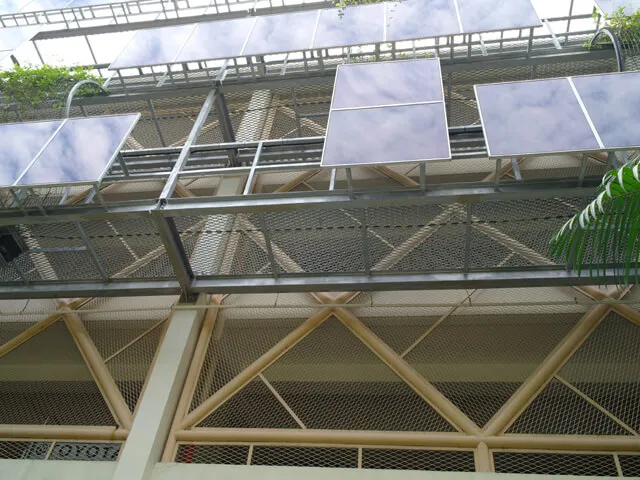

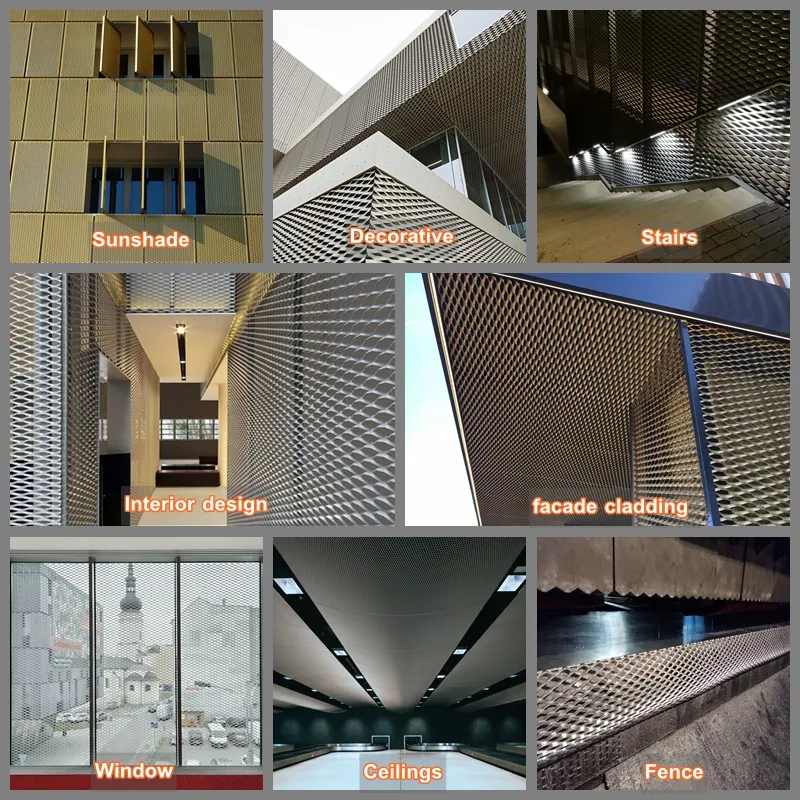

Expanded metal mesh is a very economical and practical way to assure strength and safety, so it has a wide range of applications like EMI/RFI shielding, furniture, security walls, protection cover, floors and doors, and fencing, etc. We offer Standard Expanded Metal Mesh and Flattened Expanded Metal made from a wide range of materials including carbon steel sheet, stainless steel sheet, aluminum sheet, brass sheet and copper sheet, etc.

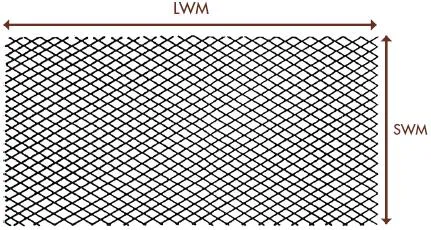

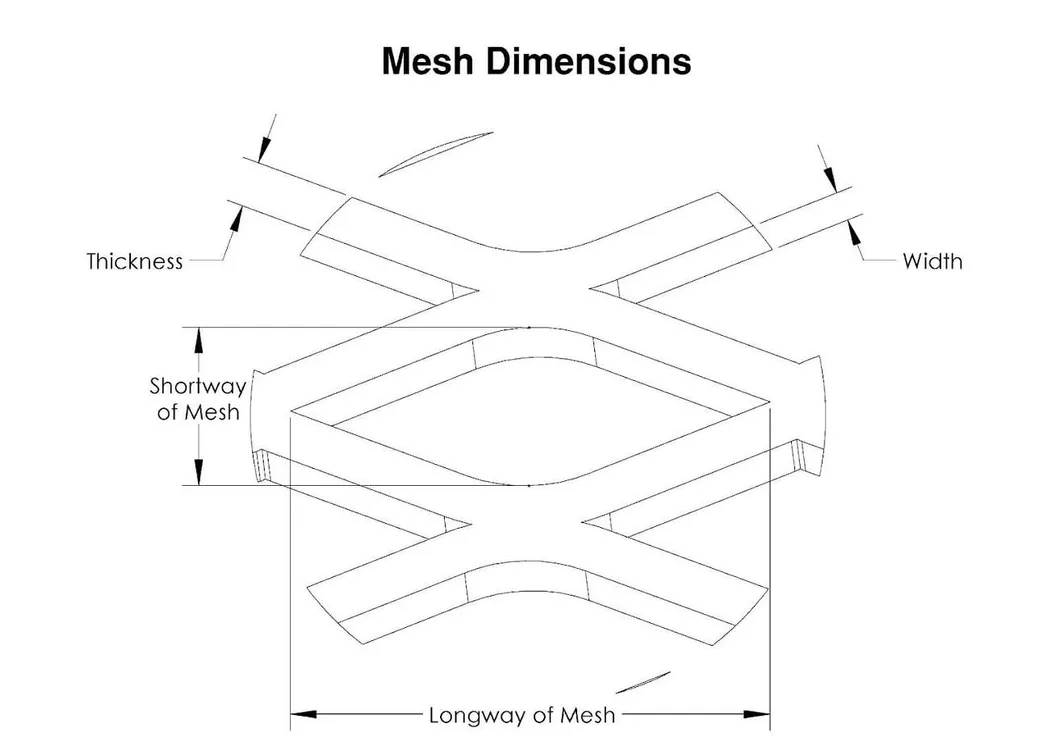

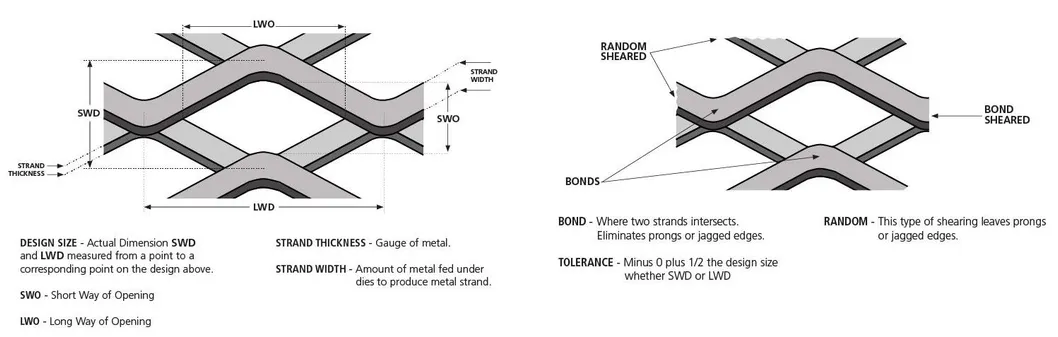

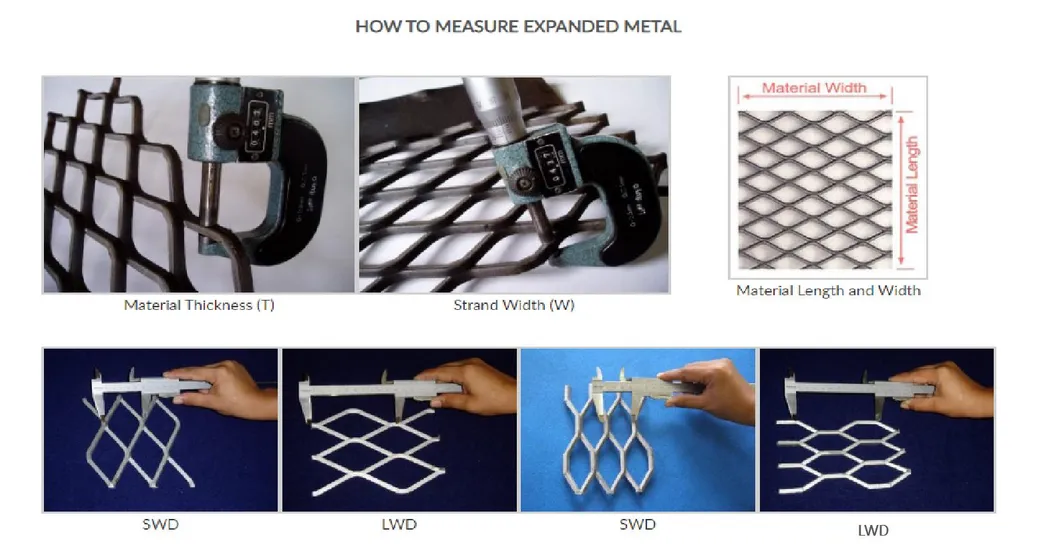

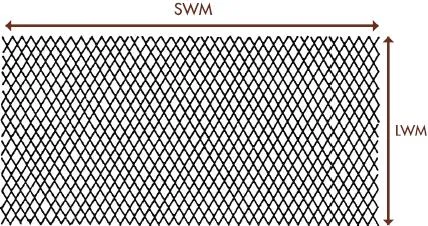

| Mesh thickness(mm) | Distance short(mm) | Distance long(mm) | Strip(mm) | Width (m) | Length(m) | Weight(kg/m2) |
|---|---|---|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
