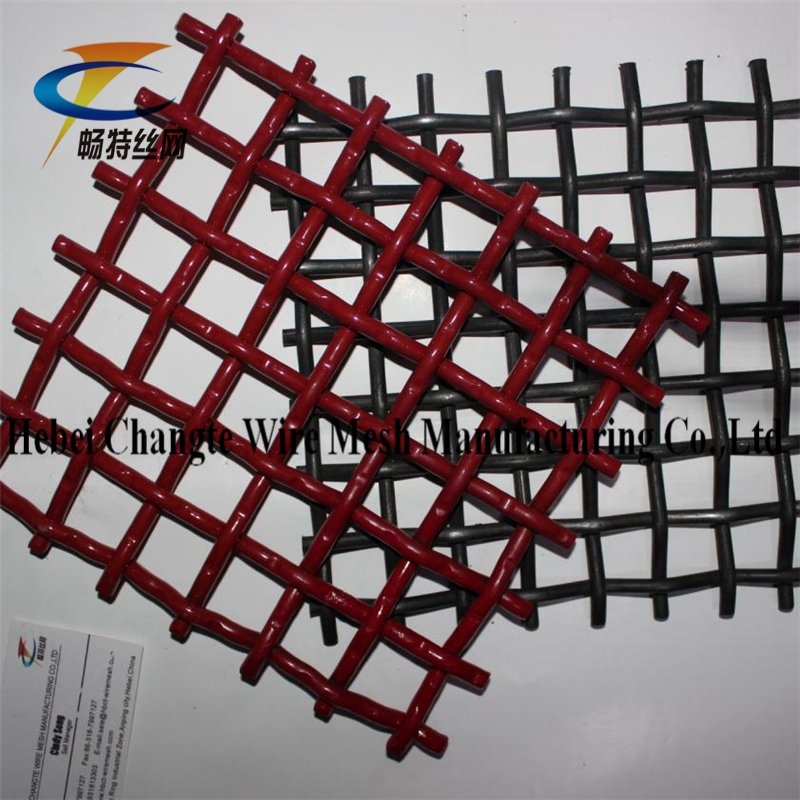

High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh

Technical Specifications

Model NO.

CT-V10

Hole Shape

Square

Weave Technique

Plain Weave

Feature

Anti Wear and Anti Earthquake

Wire Diameter

0.2mm to 15mm

Open Size

0.5-100mm

Steel Grade

Stainless Steel, 45#, 55#, 65mn, 72b

Tensile Strength

1000-1800MPa

Edge Type

Flat or Hooked Edge

Surface Treatment

Anti Rust Oil/Paint

Product Description

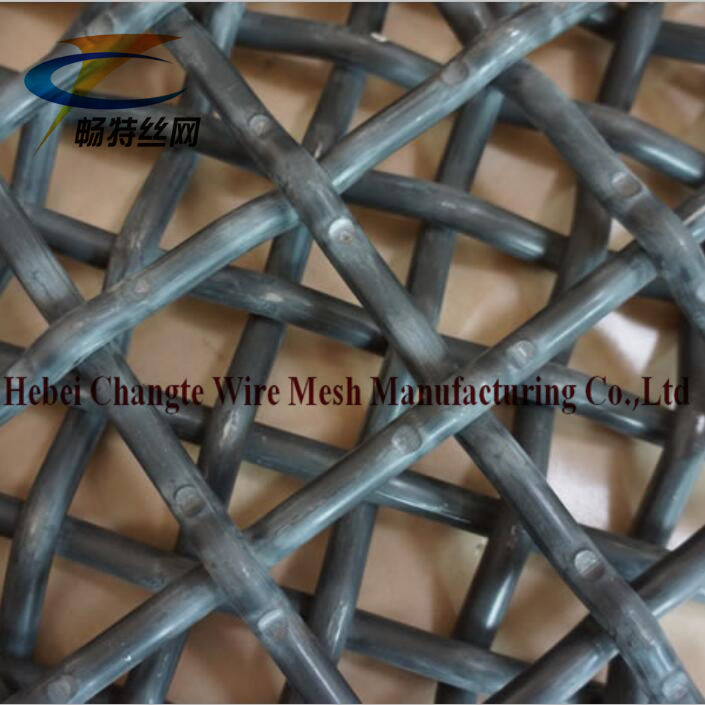

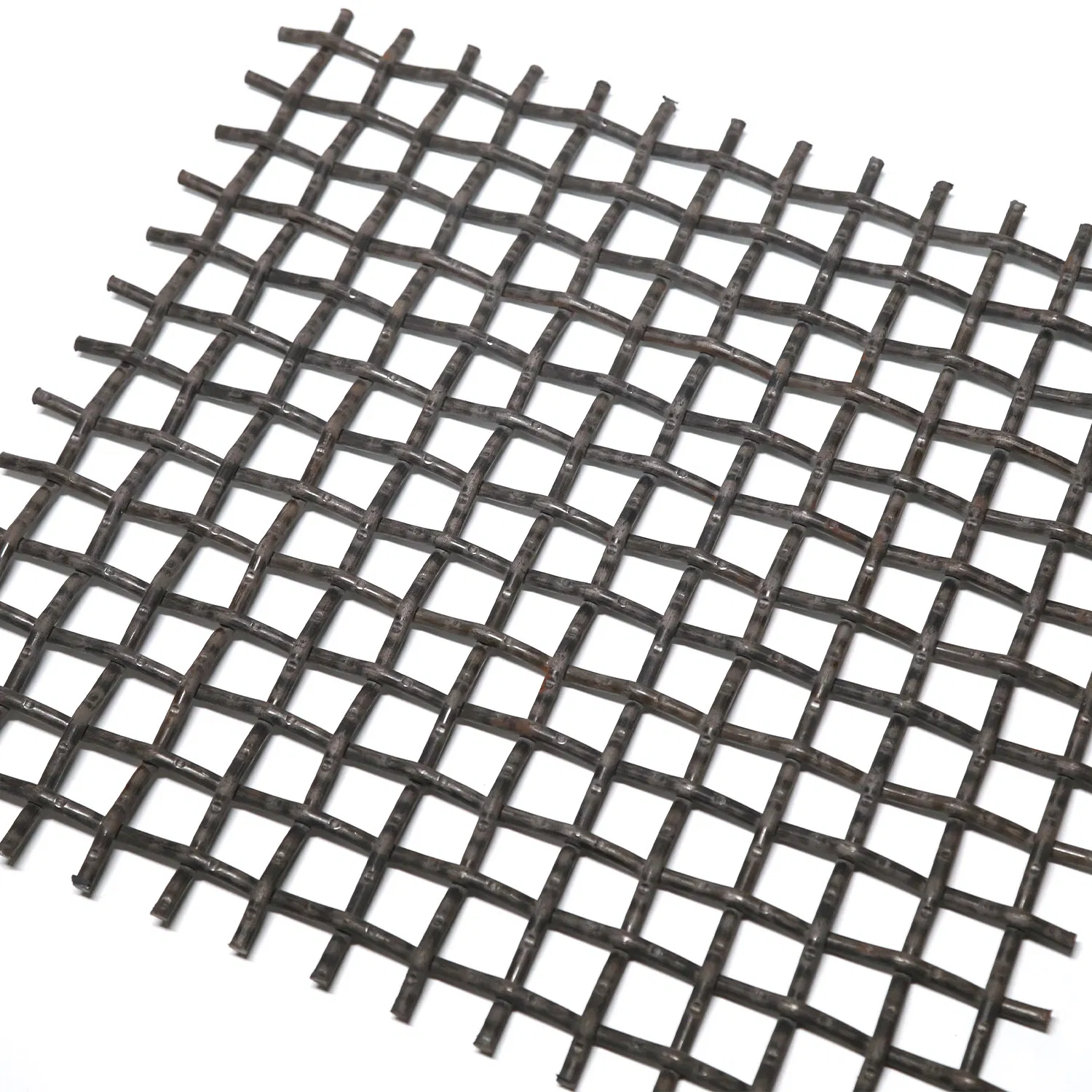

65mn 45mn Woven Crimped Wire Mesh / Vibrating Screen Mesh / Stone Crusher Screen Mesh

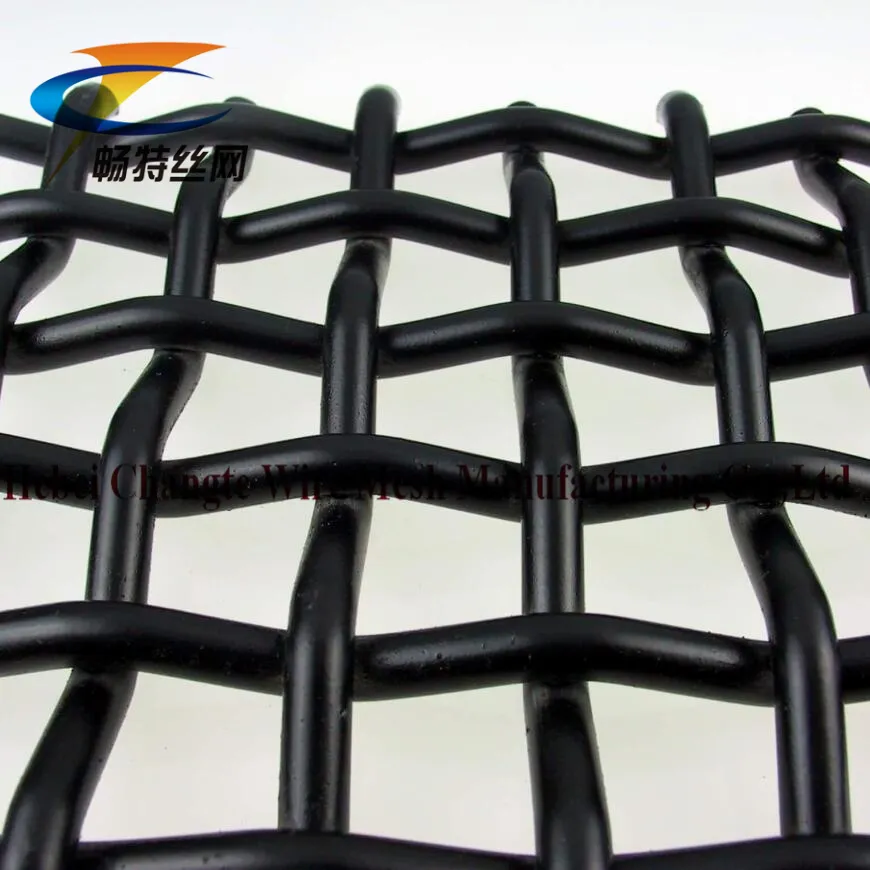

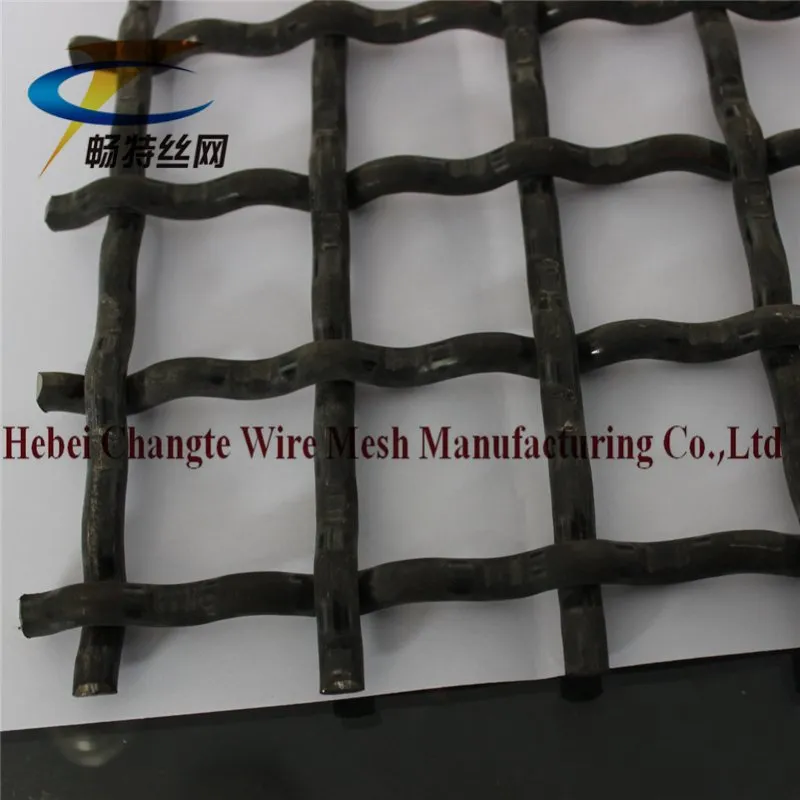

Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Our pre-crimped woven wire mesh is available in intercrimp, lock crimp, plain weave and flat top woven styles.

🔹

Angle Options: 30 degrees, 45 degrees

🔹

Mesh Shapes: V-shaped, U-shaped

🔹

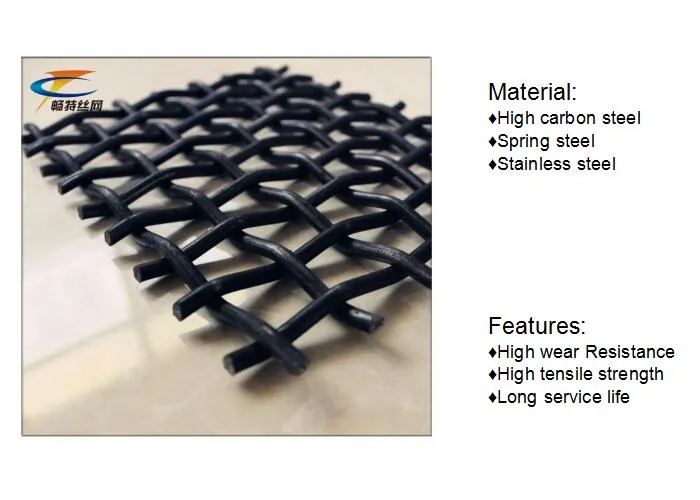

Materials: Stainless steel wire, 45Mn, 65Mn, high carbon steel, carbon steel, nickel steel.

Woven Wire Crimp Styles

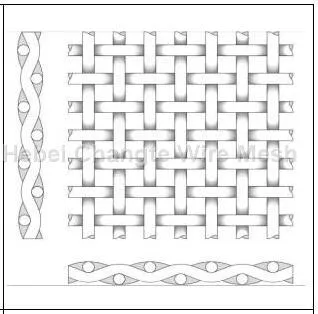

Double Crimp: Used for medium to heavy wire in relation to screen opening size.

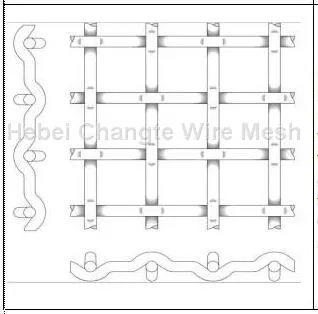

Lock Pre-crimp: Characterized by straight sections and defined bumps to lock wires together.

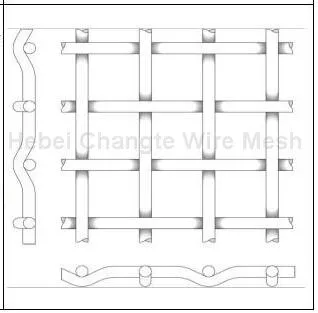

Flat Top: Smooth top surface for easy material flow, ideal for aggregate sizing.

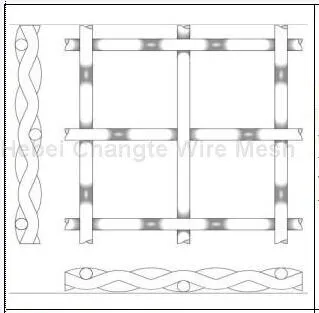

Intermediate Crimp: Provides greater stability and rigidity for coarse weaves.

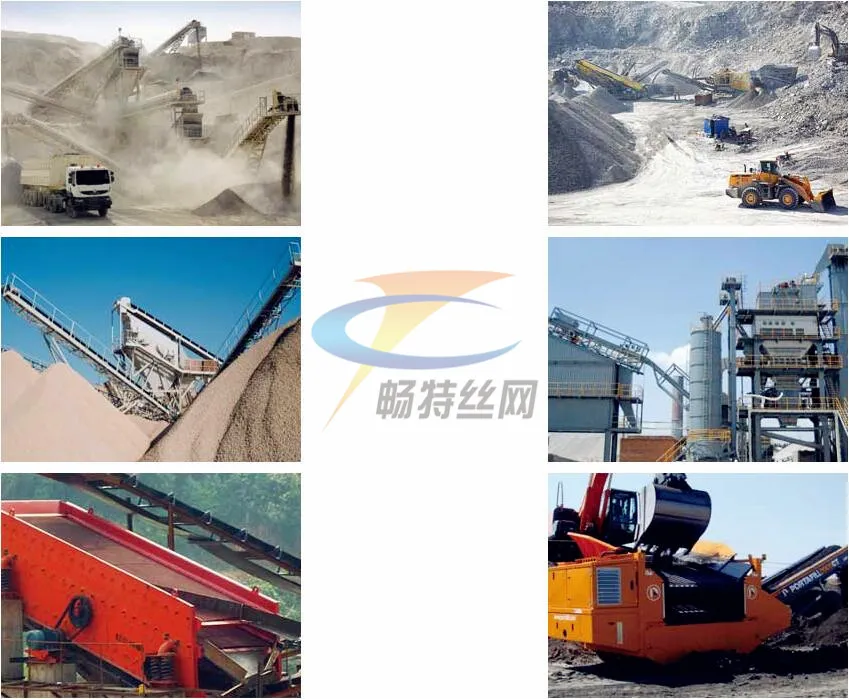

Industry Applications

Mining & Coal: Screening and grading of solid materials.
Construction: Concrete reinforcement and grid windows.
Food Processing: Filtering and machinery parts.
Agriculture: Poultry protection and wire baskets.

Aperture & Weight Data

Aperture (mm)	Min Aperture Tol.	Max Aperture Tol.	Wire (mm)	Min Edge (mm)	Max Edge (mm)	Weight (kg/m²)
101.60	98.55	104.65	12.70	12.70	50.80	17.92
88.90	86.23	91.57	12.70	12.70	44.45	20.16
76.20	73.91	78.49	12.70	12.70	38.10	23.04
63.50	61.60	65.41	12.70	12.70	31.75	26.88
50.80	49.28	52.32	11.10	11.10	25.40	25.28
25.40	24.64	26.16	7.19	7.19	12.70	20.14
10.00	9.70	10.03	4.00	4.00	5.00	14.51

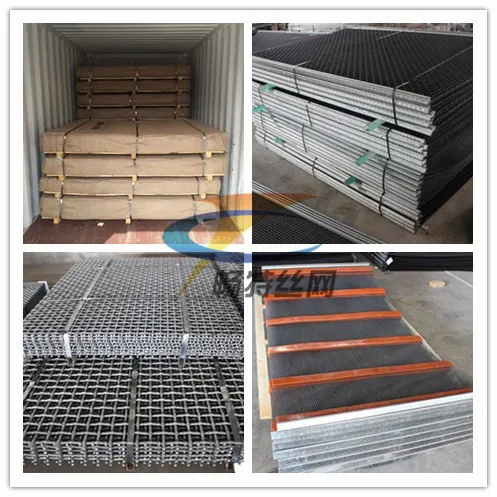

Packaging & Logistics

📦

Standard Packing: In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing can be arranged.

Frequently Asked Questions

Q1: What materials are available for the crimped wire mesh?

We provide various materials including Stainless Steel wire, 45Mn steel, 65Mn steel (high carbon), nickel steel, and other non-ferrous wires.

Q2: What are the main applications of this screen mesh?

It is primarily used in the mining, coal, petroleum, chemical, and building industries for screening solid materials, liquid filtration, and stone crushing.

Q3: Can the edge of the mesh be customized?

Yes, we offer both Flat Edges and Hooked Edges (positive check, V-shaped, or U-shaped) to fit different screening machinery.

Q4: What is the benefit of the Flat Top woven style?

The Flat Top style provides a smooth surface on one side, allowing materials to flow more easily across the screen and reducing high-point wear.

Q5: How is the aperture tolerance maintained?

Our manufacturing process ensures an aperture tolerance of approximately ±3%, providing high precision for grading and sizing.

Q6: What information should I provide to get a quotation?

Please specify the Material, Wire Diameter, Mesh/Aperture size, Width/Length, Edge/Hook type, and the total Quantity required.
