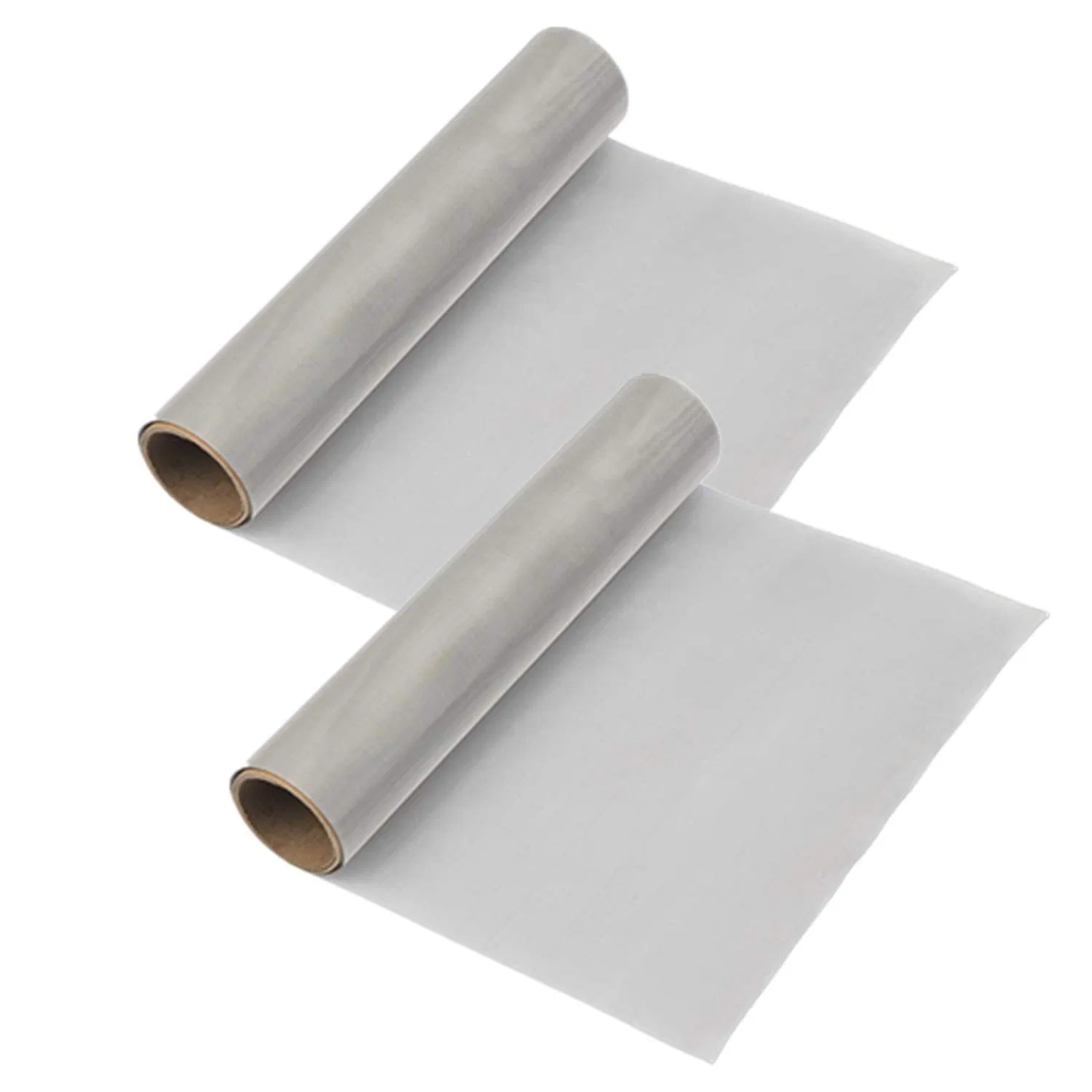

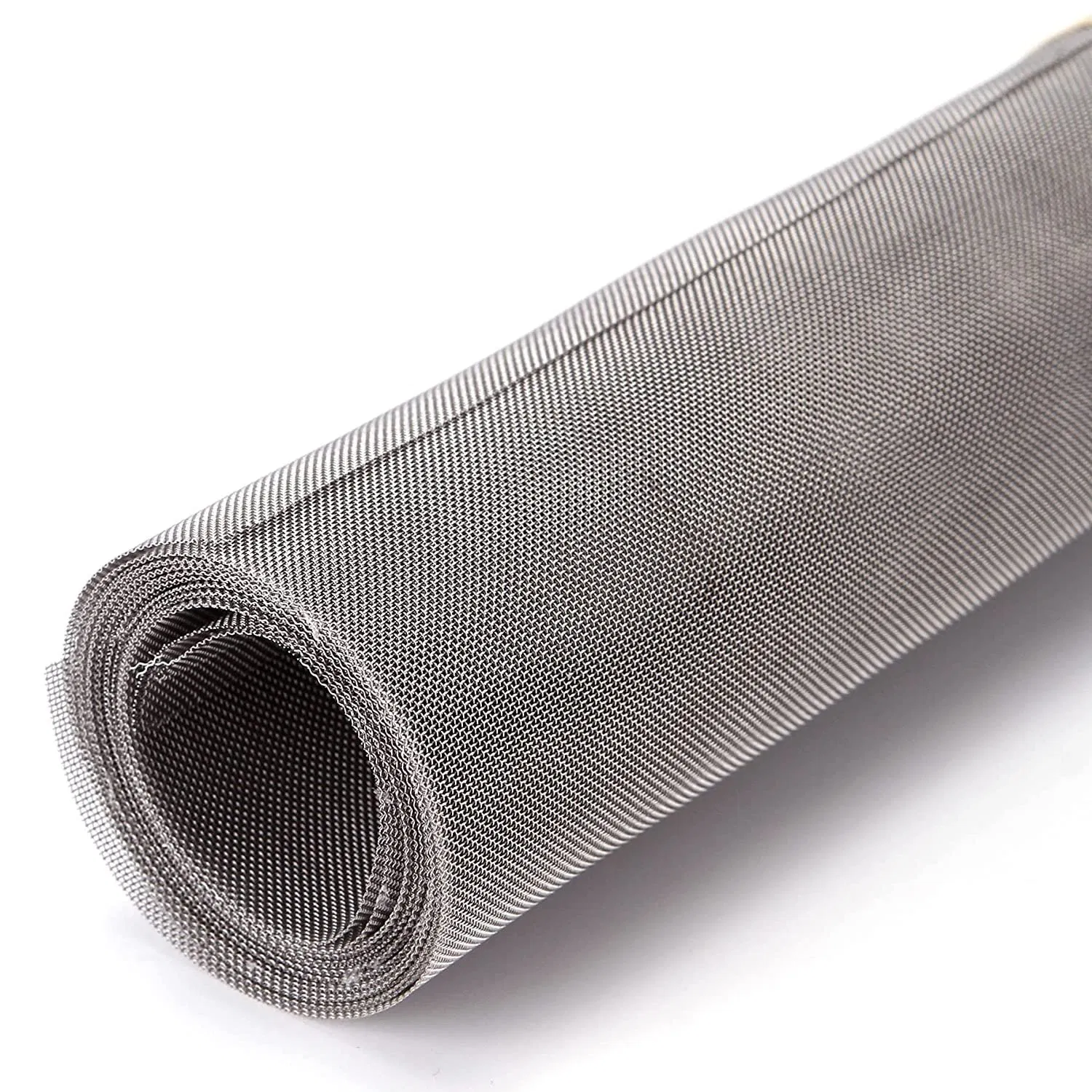

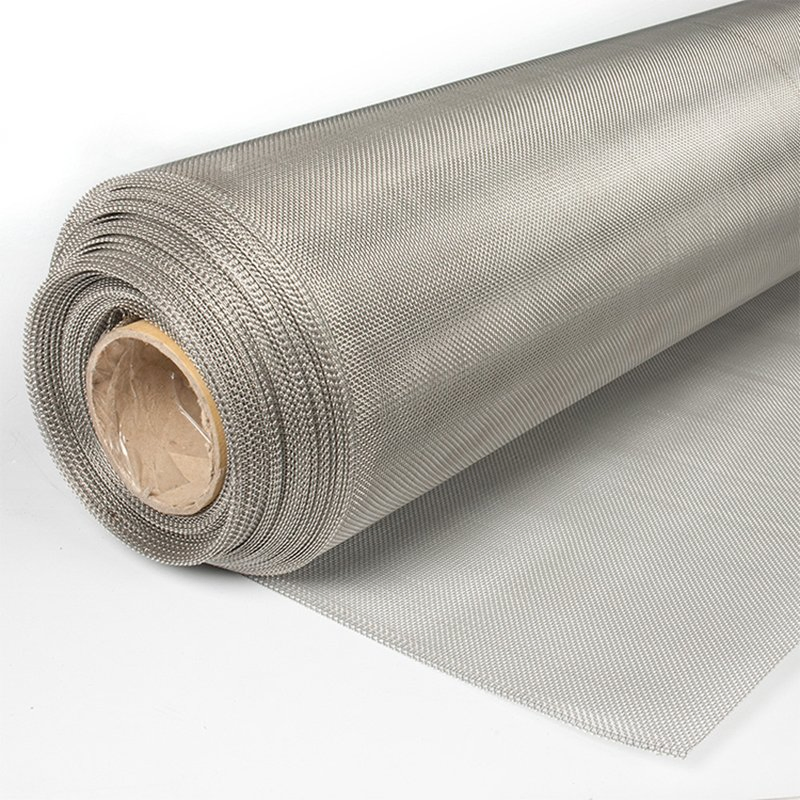

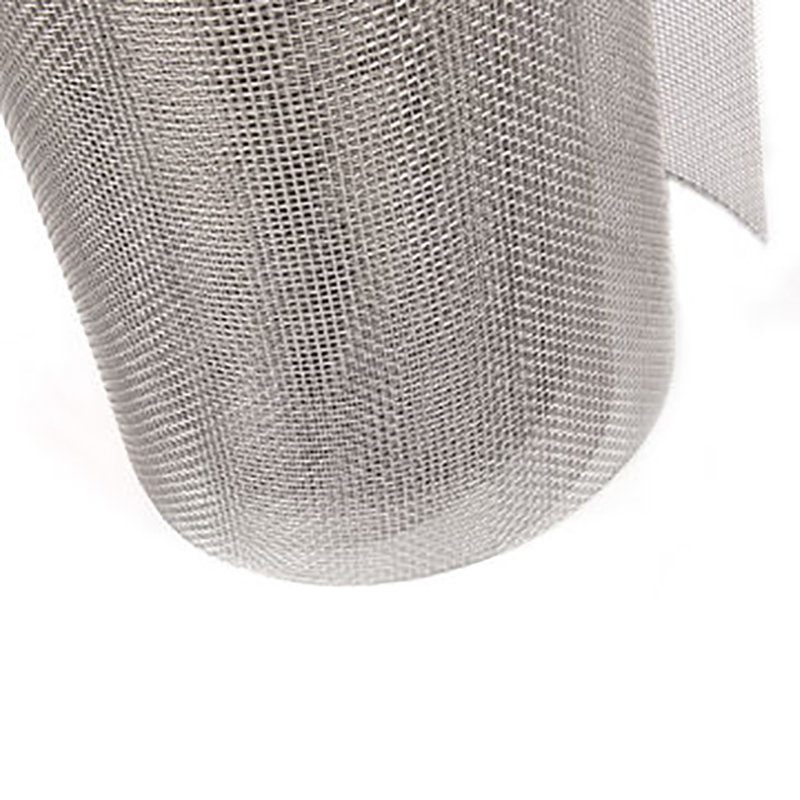

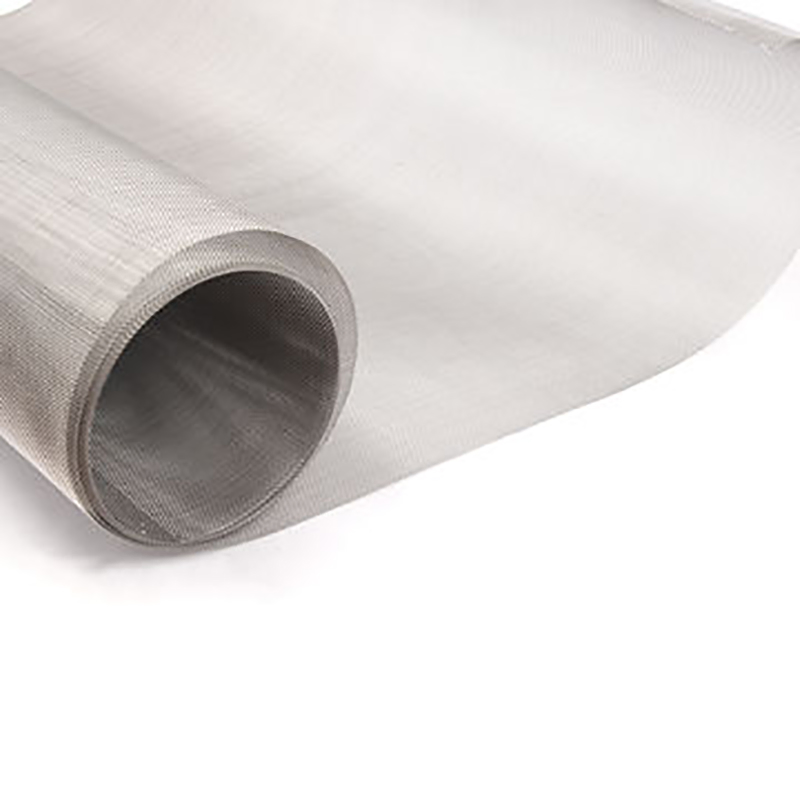

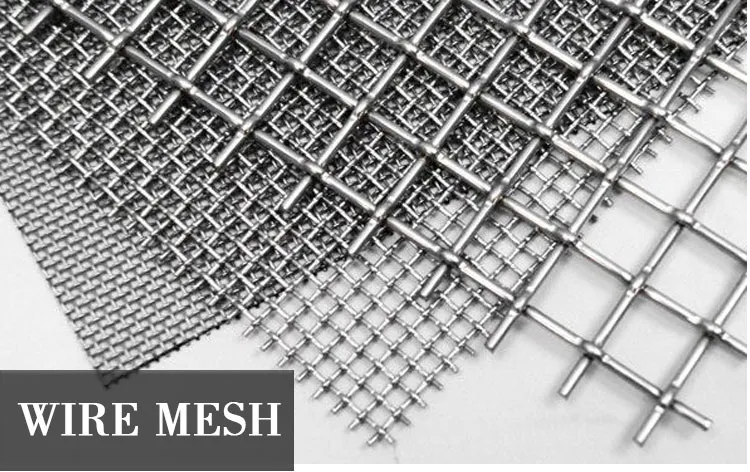

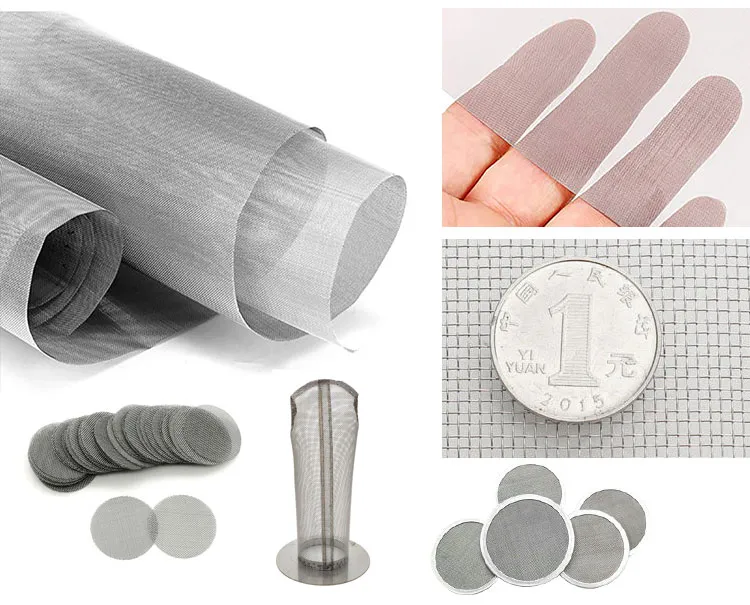

Offering you a complete choice of metal wire screen mesh products which include Twill Weave Stainless Steel Wire Mesh, plain weave stainless steel wire mesh, Stainless steel crimped wire mesh, dutch weave stainless steel wire mesh, stainless steel punching mesh.
| Stainless steel wire mesh Technical Data | |
|---|---|
| Material | SUS302, 304, 304L, 316, 316L, etc. |
| Specifications | 1×1-635×635 mesh (0.02-23mm) |
| Width | 1 meter, 1.22 meters, customizable |
| Roll length | 30 meters, Customizable |
| Weaving method | Twill weave; Plain weave |

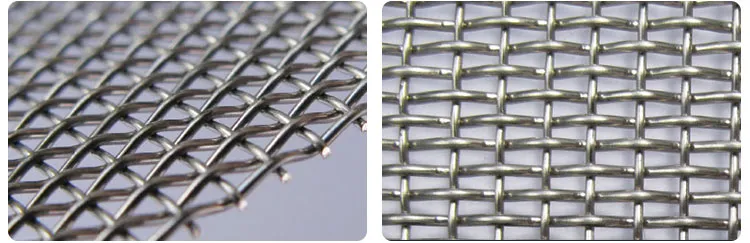

Twill Weave & Plain Weave Comparison
| Mesh/Inch | Wire Dia (mm) | Aperture (mm) | Open Area % | Weight (LB/100 sq.ft) |
|---|---|---|---|---|
| 1 * 1 | 2.03 | 23.37 | 84.6 | 41.1 |
| 2 * 2 | 1.6 | 11.1 | 76.4 | 51.2 |
| 5 * 5 | 1.04 | 4.04 | 63.2 | 54.9 |
| 10 * 10 | 0.64 | 1.91 | 56.3 | 41.2 |
| 20 * 20 | 0.406 | 0.86 | 46.2 | 34.4 |
| 50 * 50 | 0.229 | 0.28 | 30.3 | 28.4 |
| 100 * 100 | 0.102 | 0.15 | 36 | 11 |
| 200 * 200 | 0.0533 | 0.0737 | 33.6 | 6.2 |
| 400 * 400 | 0.0254 | 0.37 | 36 | 3.3 |
*The above data are theoretical, please reference the actual data if there are differences.
Stainless steel filter screen features heat resistance, acid resistance, corrosion resistance, and abrasion resistance. It is widely utilized across various industries:
