Material
Galvanized Sheet Plate
Hole Shape
Round/Square/Rectangle/Star/Customized
Usage
Protection, Aquaculture, Civil Building, Railway/Road Construction
Capacity
500,000 sqm/Month
Package Size
100.00cm * 100.00cm * 110.00cm
Transport
Pallet/Wooden Box and Plastic Films

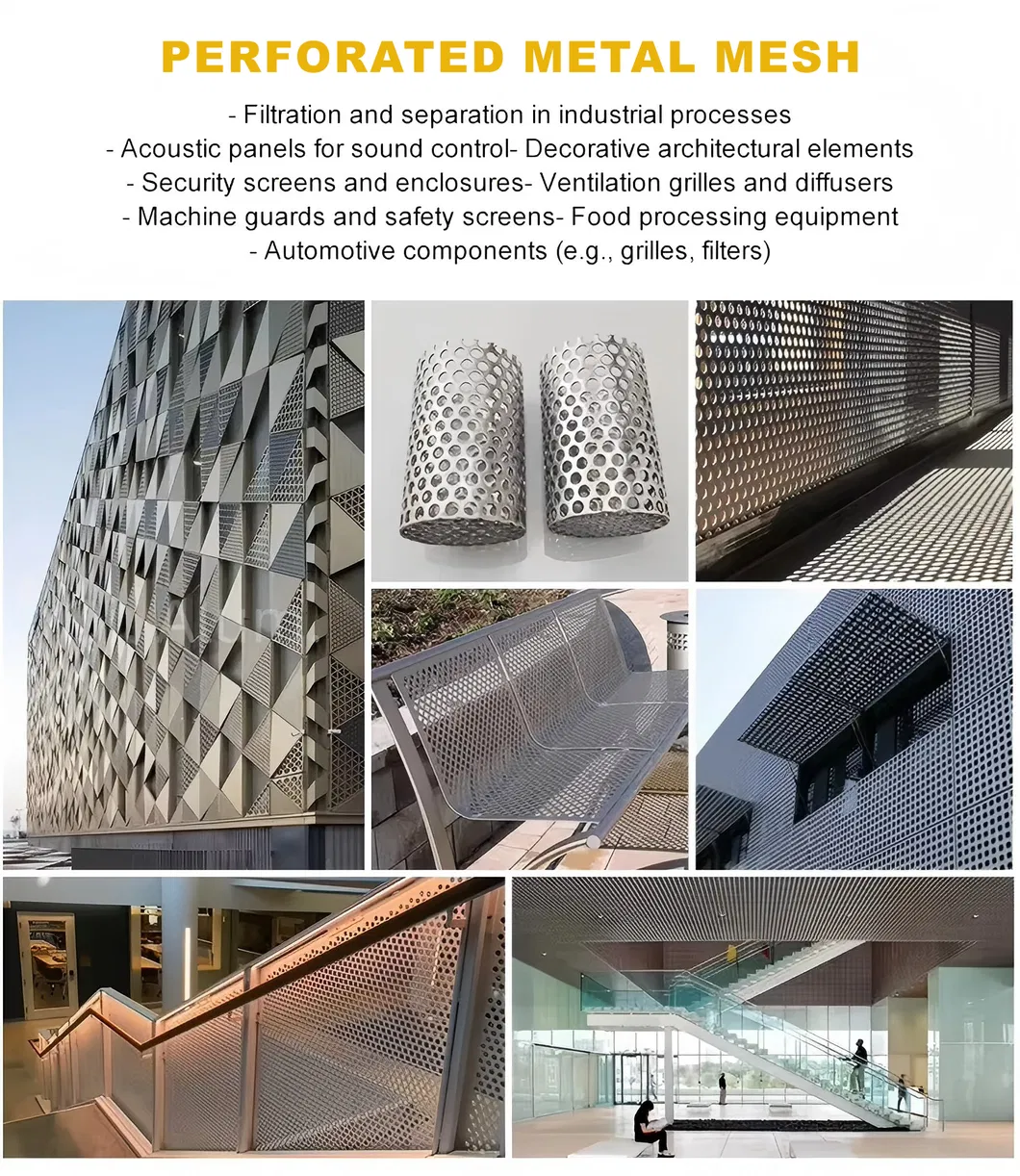

Key Application: Construction Wire Mesh, Protecting Mesh, Decorative Mesh, Filter, Sieving Diversified Pellet, Barbecue Wire Mesh, Cages.

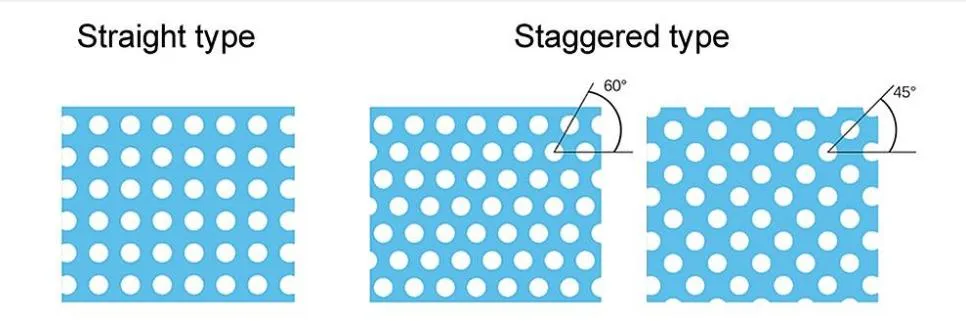

| Perforated Sheet Specification – Round hole |
Sheet Thickness (Available Range) |
| Description |
Hole Size (mm) |
Pitch (mm) |
Open Rate |
0.4 | 0.5 | 0.8 | 1 | 1.2 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 |
| R0.8 T2 | 0.8 | 2 | 0.15 | * | * | * | - | - | - | - | - | - | - | - | - |
| R1 T2 | 1 | 2 | 0.23 | * | * | * | * | - | - | - | - | - | - | - | - |
| R2 T3 | 2 | 3 | 0.4 | - | * | * | * | - | - | - | - | - | - | - | - |
| R3 T5 | 3 | 5 | 0.33 | - | * | * | * | * | * | * | - | - | - | - | - |
| R5 T8 | 5 | 8 | 0.35 | - | * | * | * | * | * | * | * | * | - | - | - |
| R10 T15 | 10 | 15 | 0.4 | - | - | - | * | * | * | * | * | * | * | * | * |

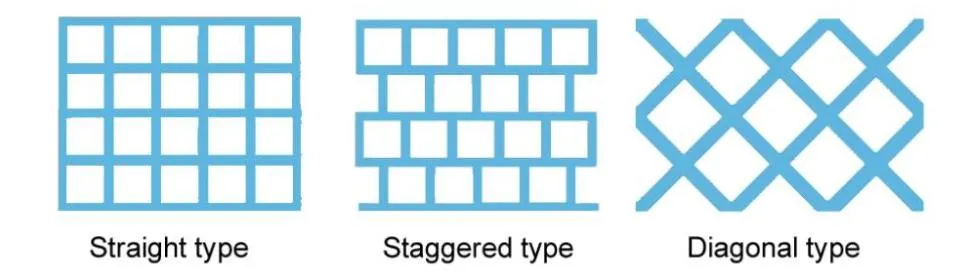

Hole Patterns of Square Hole Punched Sheet
| Specification Item |
Details & Options |
| Hole Size | 1mm x 1mm, 2mm x 2mm, 3mm x 3mm, 5mm x 5mm, 10mm x 10mm Or customized |
| Thickness | 0.5mm, 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, etc |
| Sheet Size | 1m x 2m, 1.22m x 2.44m, 1.5m x 3m, customizable sizes available |
| Open Area | 23% - 79% (depending on configuration) |
| Surface Treatment | Powder Coating, Galvanizing, Anodizing, Polishing, etc. |
| Production Tolerance | +/- 0.1mm to +/- 0.5mm |
?

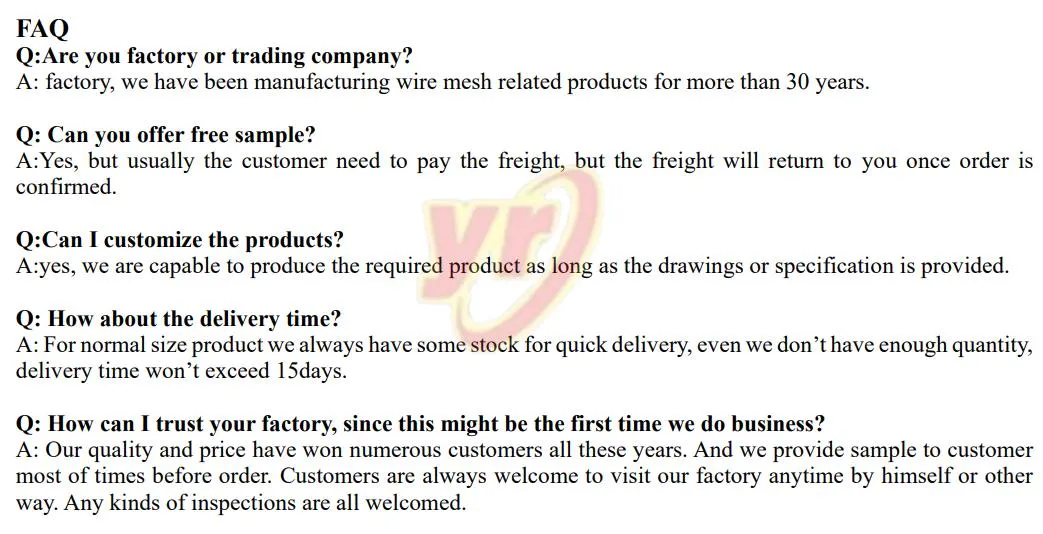

Frequently Asked Questions
What materials can be used for perforated metal mesh?
The most common material is Galvanized Sheet Plate, but we can also process other metals depending on your specific requirements.
What hole shapes can you produce?
We offer a variety of shapes including Round, Square, Rectangle, and Star. Customized shapes are also available upon request.
What is the typical production lead time?
Standard production usually takes between 10 to 30 days, depending on the order size and customization complexity.
Can the sheet thickness and size be customized?
Yes, we provide fully customized sizes and a wide range of thicknesses from 0.4mm up to 6mm and beyond.
What surface treatments do you offer?
Options include Powder Coating, Galvanizing, Anodizing, and Polishing to ensure durability and aesthetic appeal.
What is your monthly production capacity?
As a source factory, our production capacity is approximately 500,000 square meters per month.
