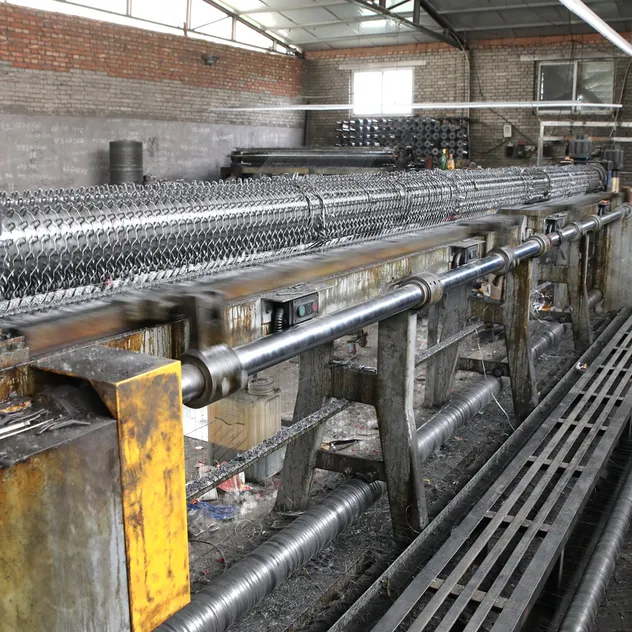

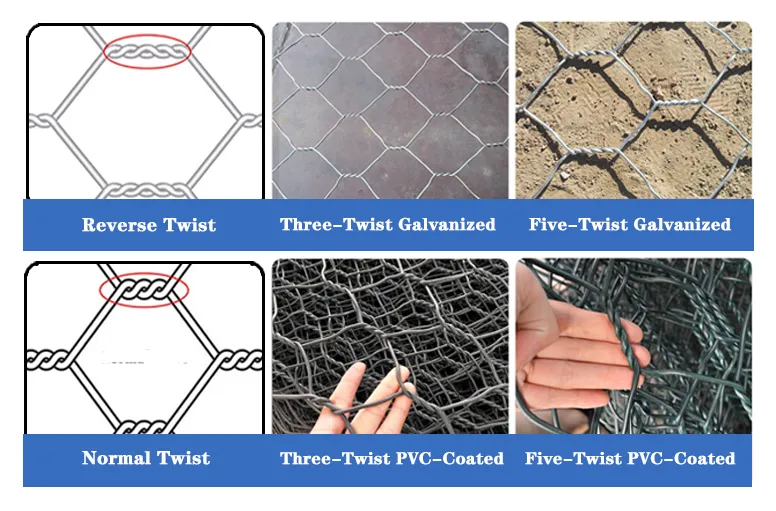

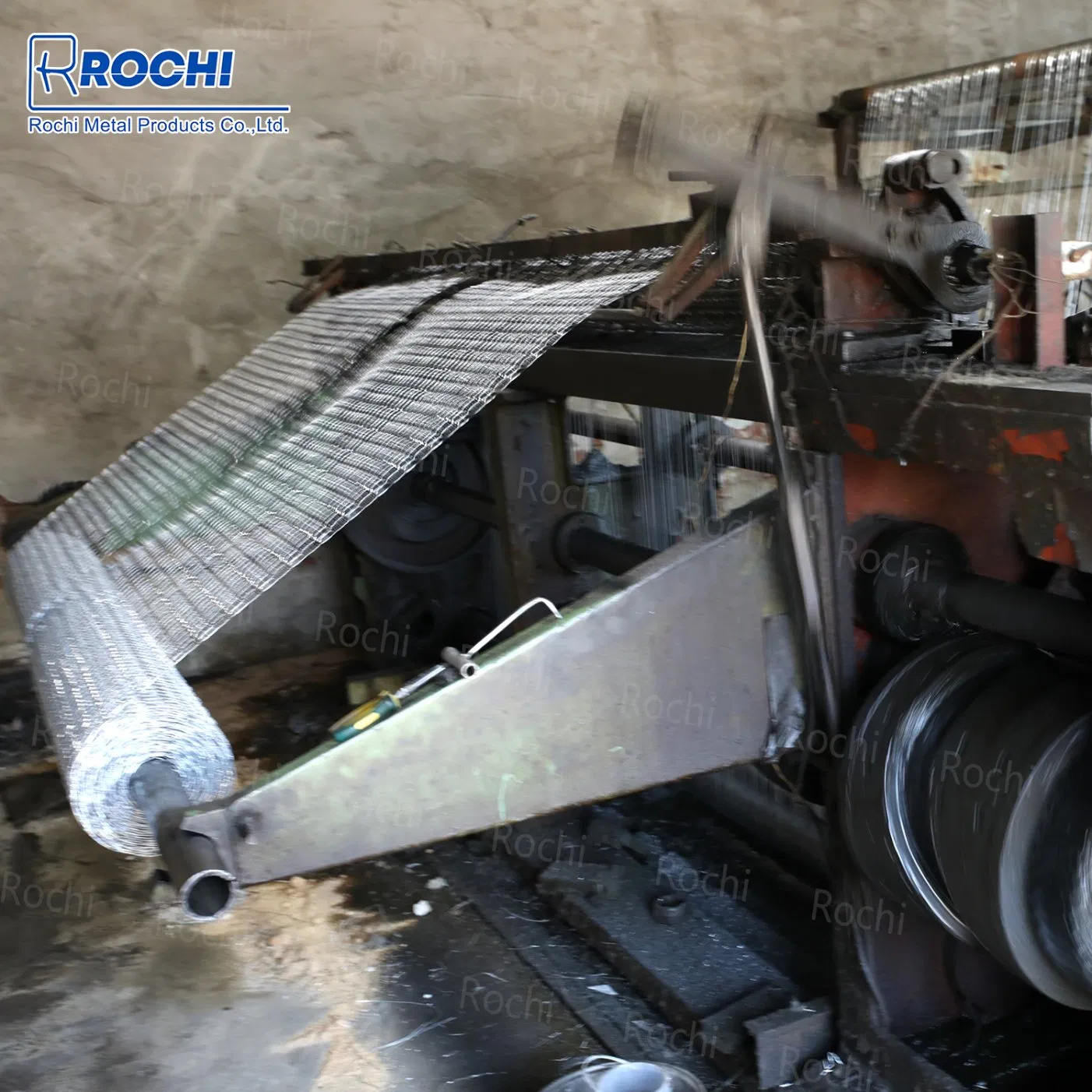

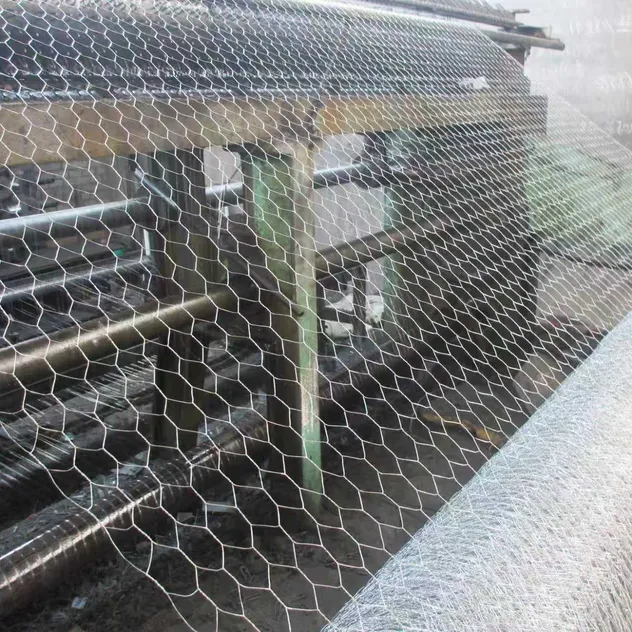

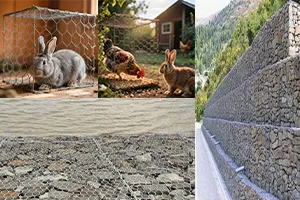

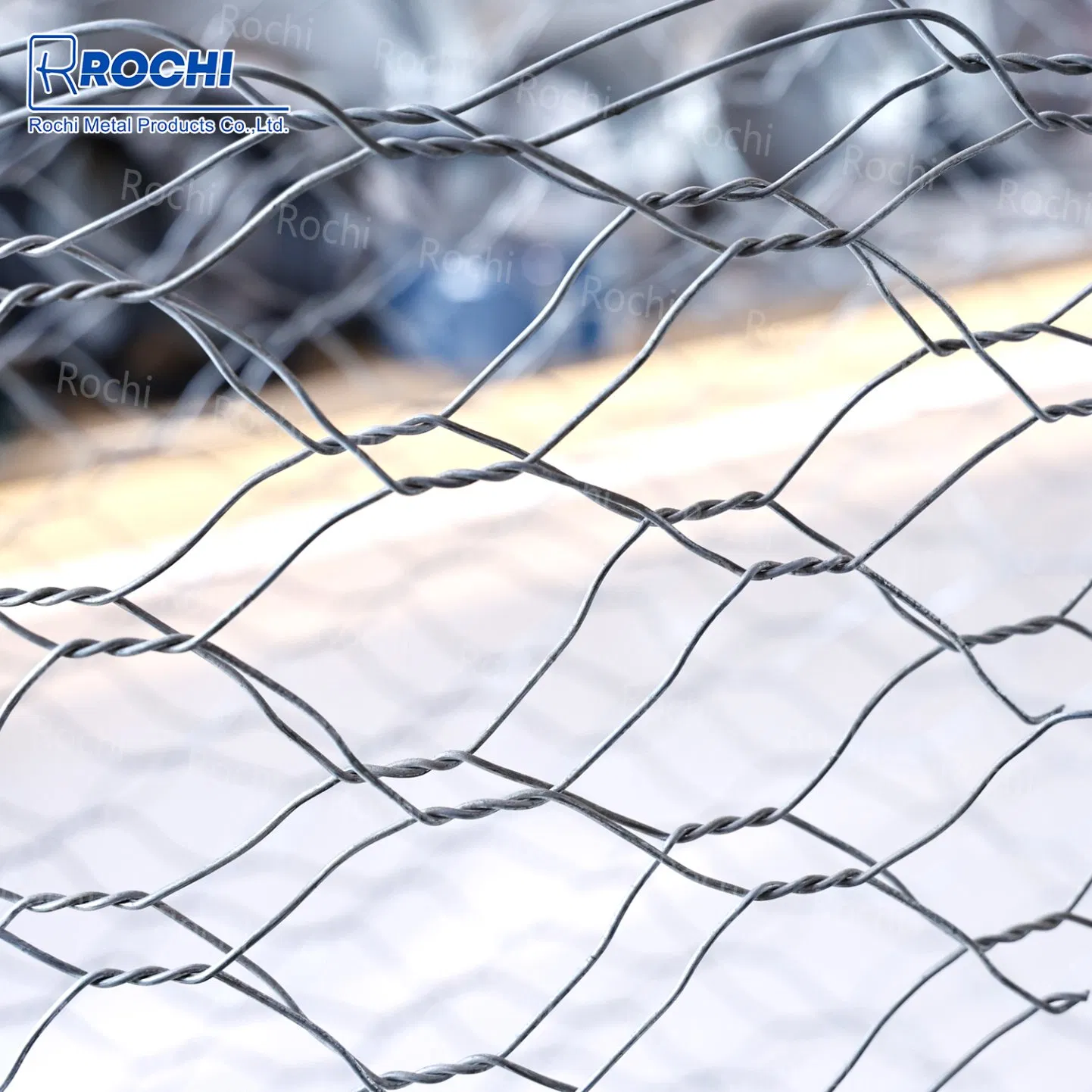

Hexagonal wire mesh—alternatively called hexagonal wire netting, chicken wire, or hexagonal gabion box—is a kind of wire mesh featuring a unique hexagonal pattern. It is produced by either weaving or twisting wires into a hexagonal grid, which forms a set of evenly spaced and interlinked hexagons. Thanks to this structure, the mesh boasts flexibility, sturdiness, and adaptability, making it suitable for a wide range of uses.
Material: High quality low carbon steel Q195 Q235

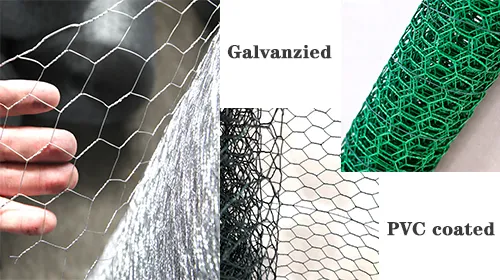

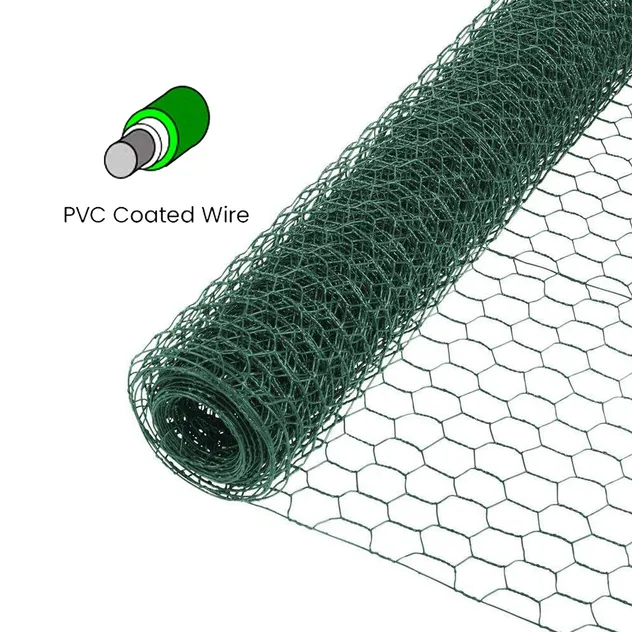

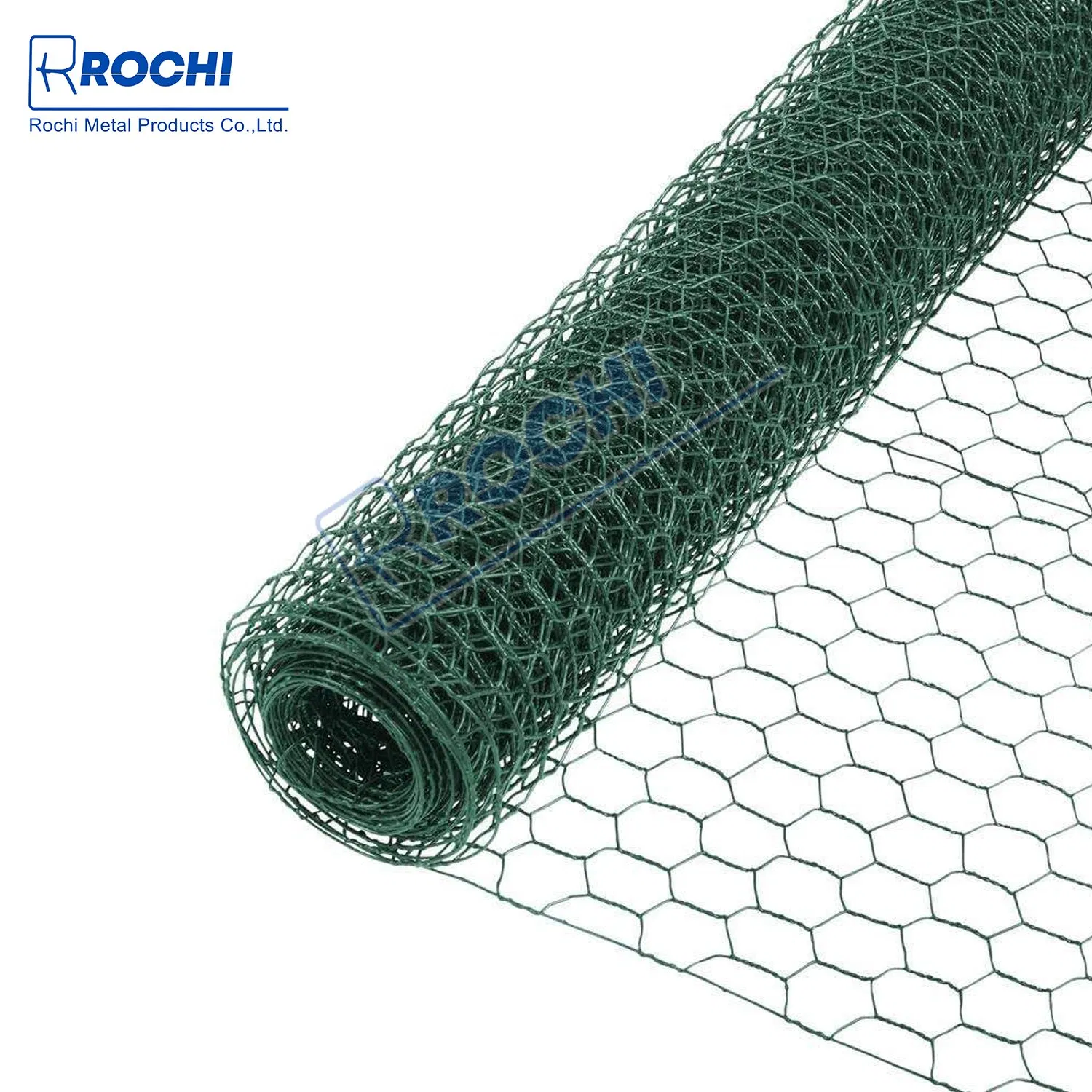

Surface treatment: Galvanzied, PVC coated

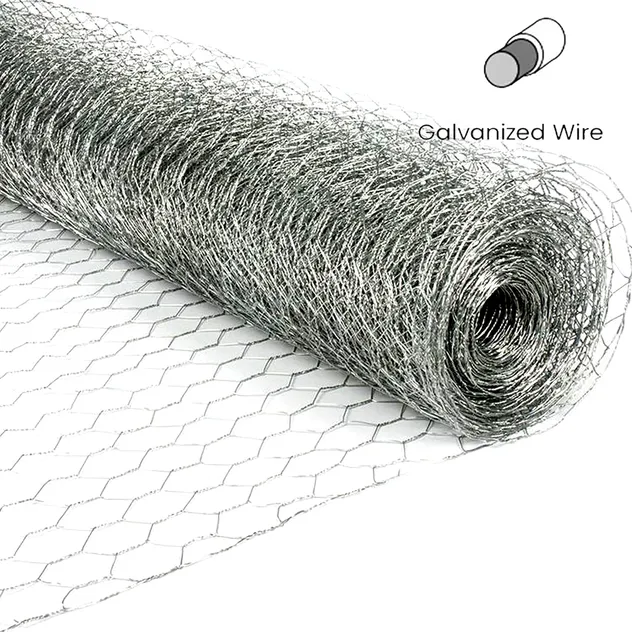

Raw materials: Annealed black iron wire, Electric galvanzied iron wire, Hot dip galvanized iron wire, PVC-coated wire

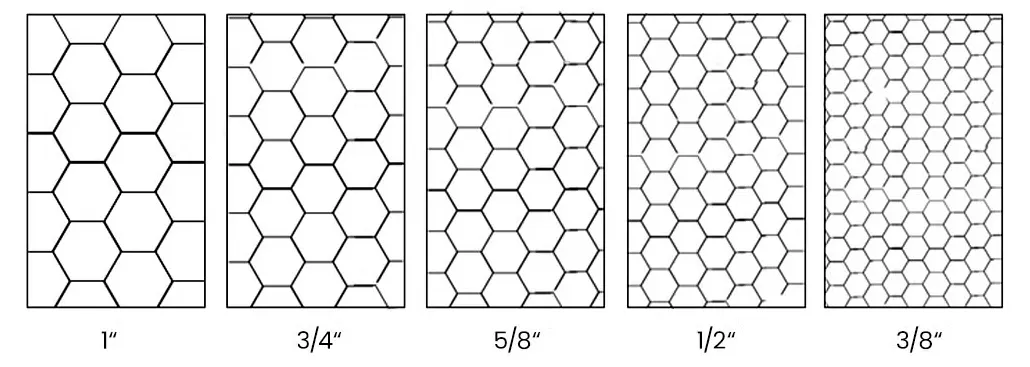

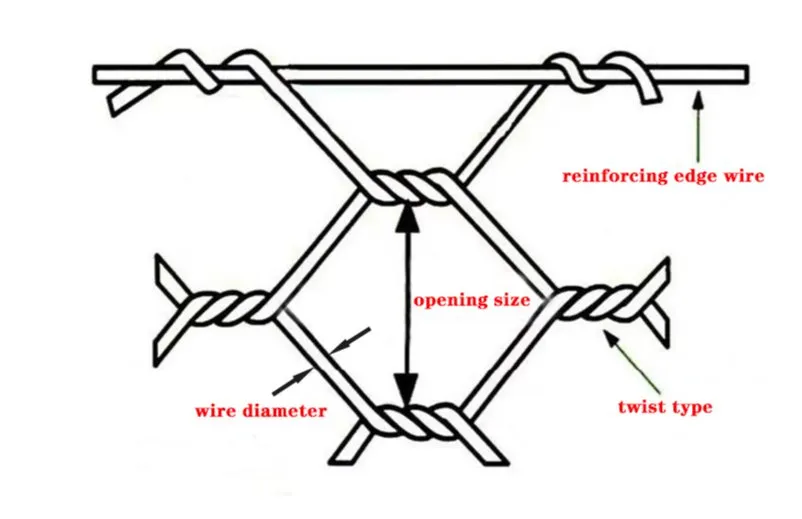

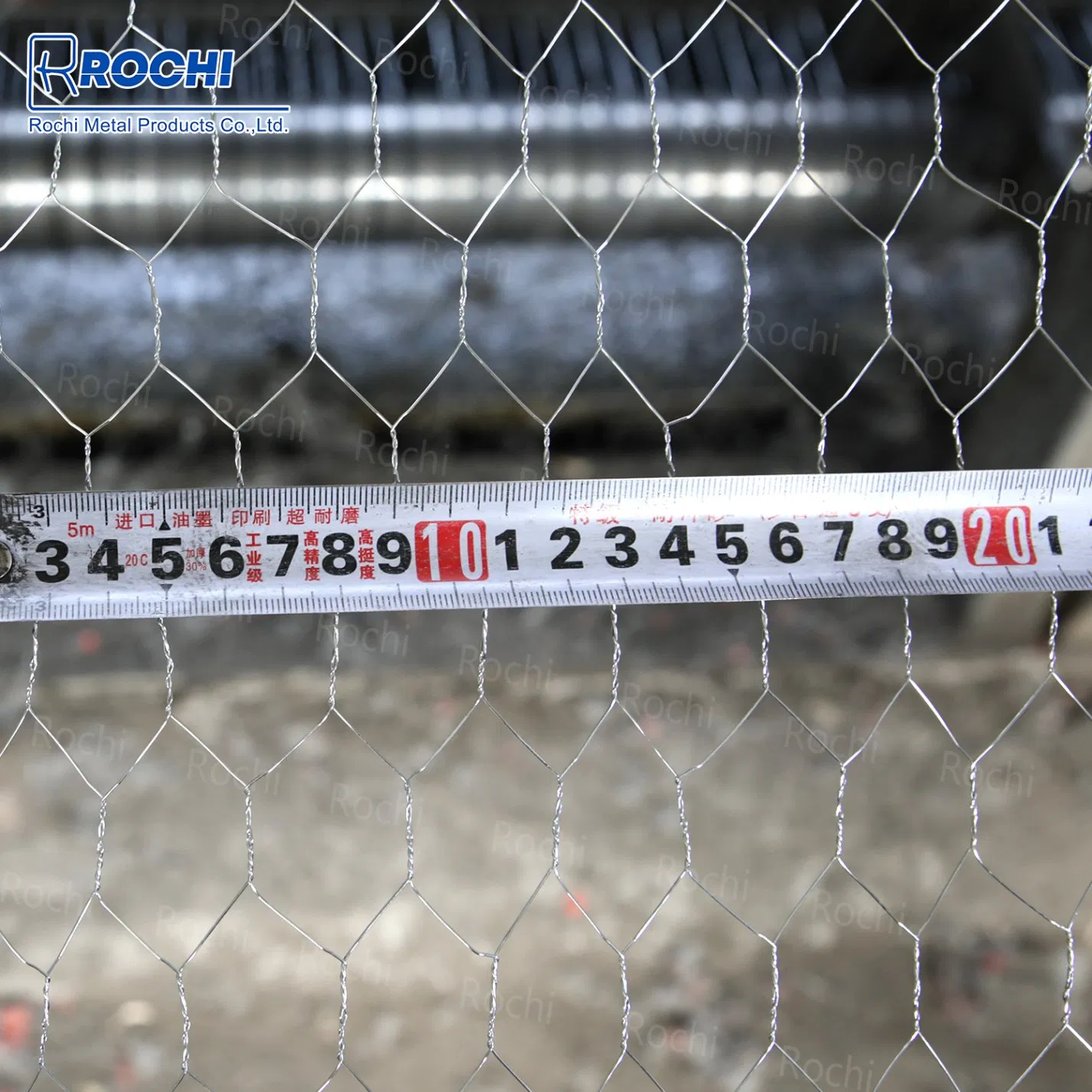

| Mesh opening size | Wire diameter (mm) | Common width (m) | Common length (m) |
|---|---|---|---|
| 3/8" | BWG27-BWG16 | 0.3-1.8 | 2.5-50 |
| 1/2" | BWG27-BWG16 | 0.3-1.8 | 2.5-50 |
| 3/4" | BWG27-BWG16 | 0.3-1.8 | 2.5-50 |
| 1" | BWG27-BWG16 | 0.3-1.8 | 2.5-50 |
| 2" | BWG27-BWG16 | 0.3-1.8 | 2.5-50 |
| Roll Length can be customized upon request | |||
The unique mesh cage structure offers excellent anti-scouring and anti-deformation capabilities; Corrosion-resistant materials ensure a long service life.

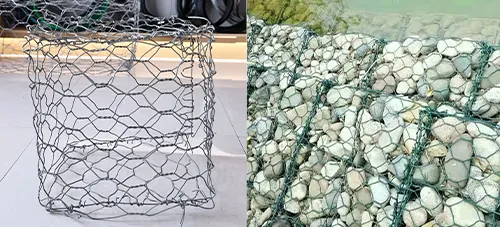

When filled with stones, it forms a flexible structure that adapts to foundation settlement; Its good water permeability promotes soil conservation.

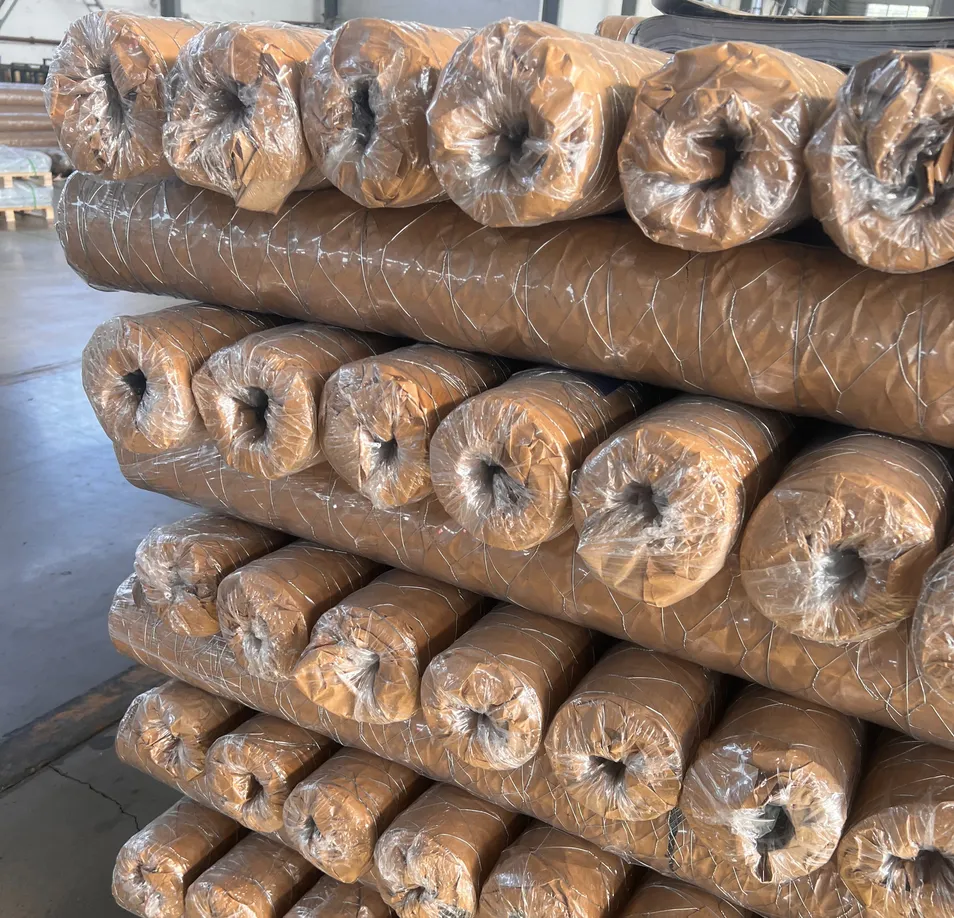

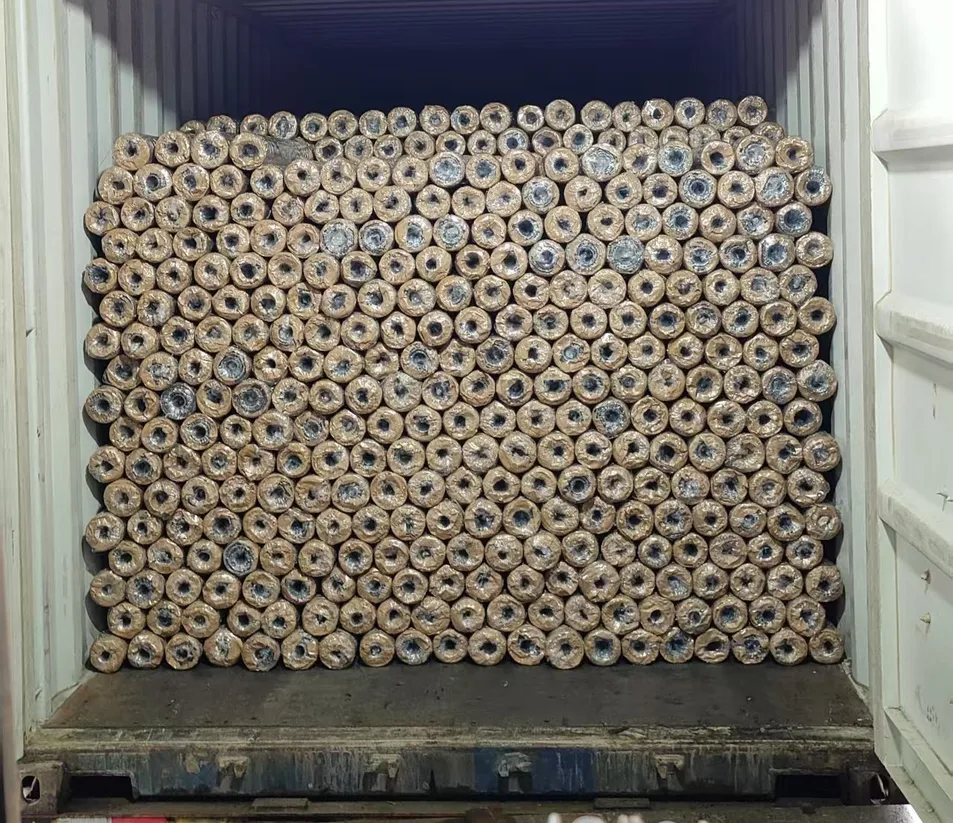

Regular packaging: Inner moisture-proof paper, outer plastic film. Custom packaging is available upon request.
