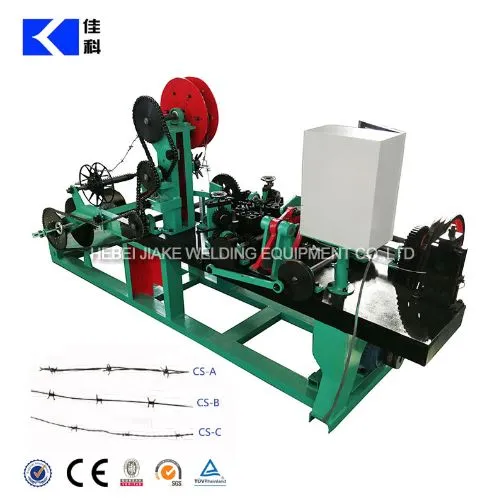

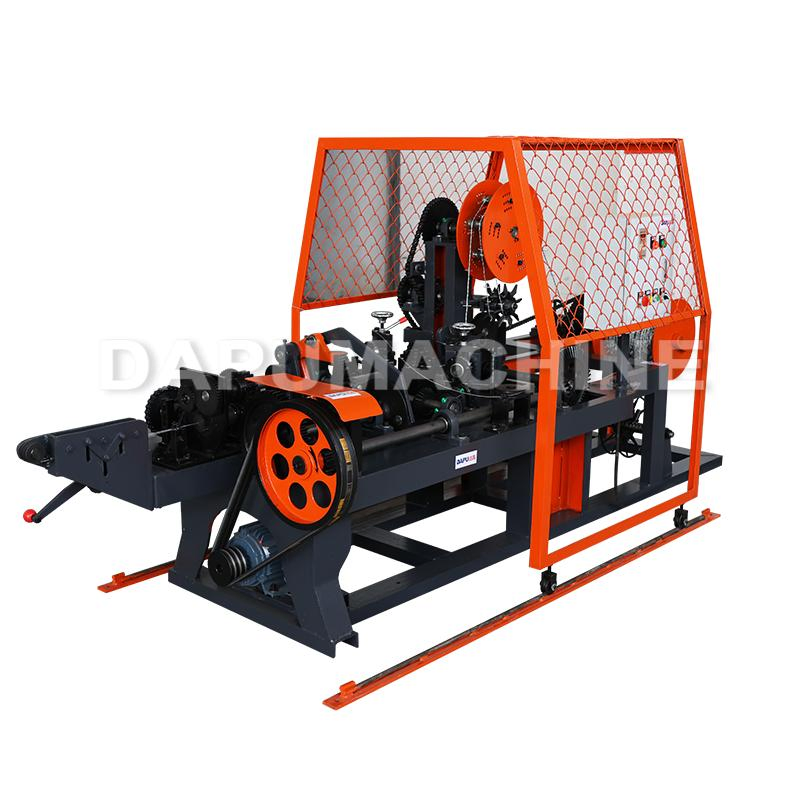

This machine is specialized in producing barbed wires used for protection and fencing of playgrounds, livestock breeding, national borders, national defense, agriculture, highways, and more.
| Items | CS-C Technical Data |
|---|---|
| Main wire Diameter | 1.6-2.8mm (Max. 1300MPA) |
| Barbed wire diameter | 1.4-2.8mm (Max. 700MPA) |
| Barbed space | 4”, 5”, 6” |
| Motor power | 2.2kw |
| Twisted number | 7 |
| Production Capacity | 80kgs/hour (with 2.0mm wire) |

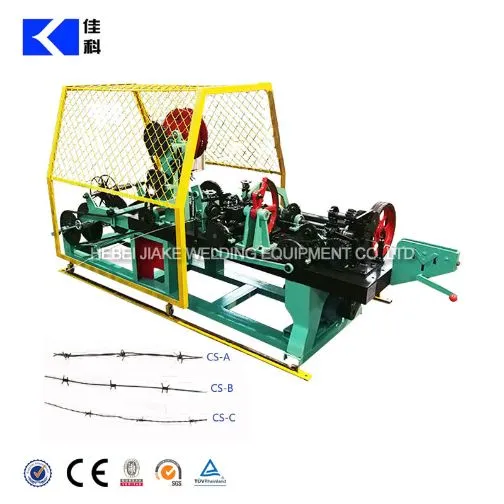

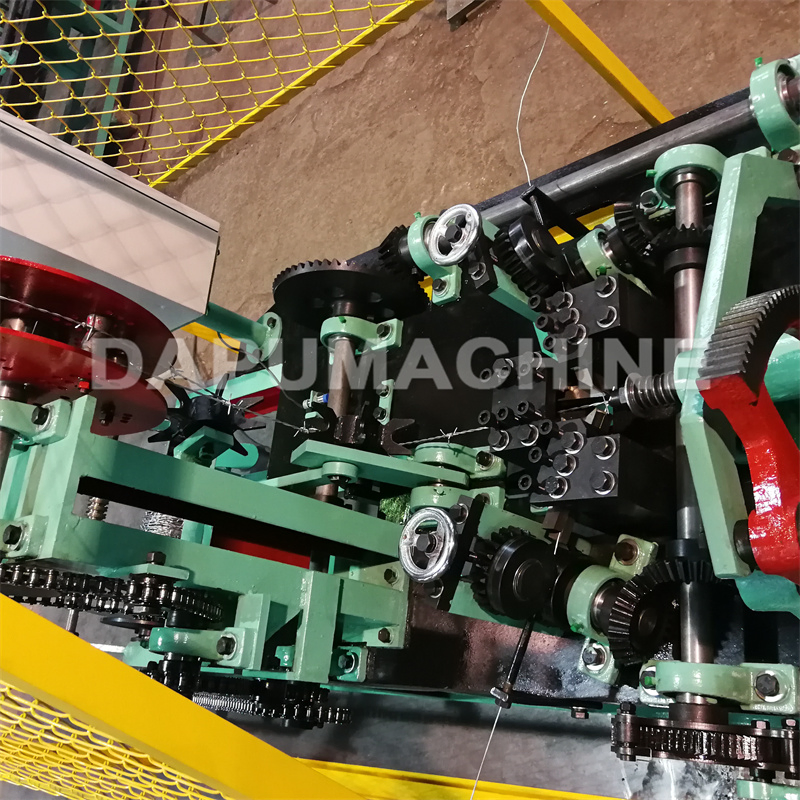

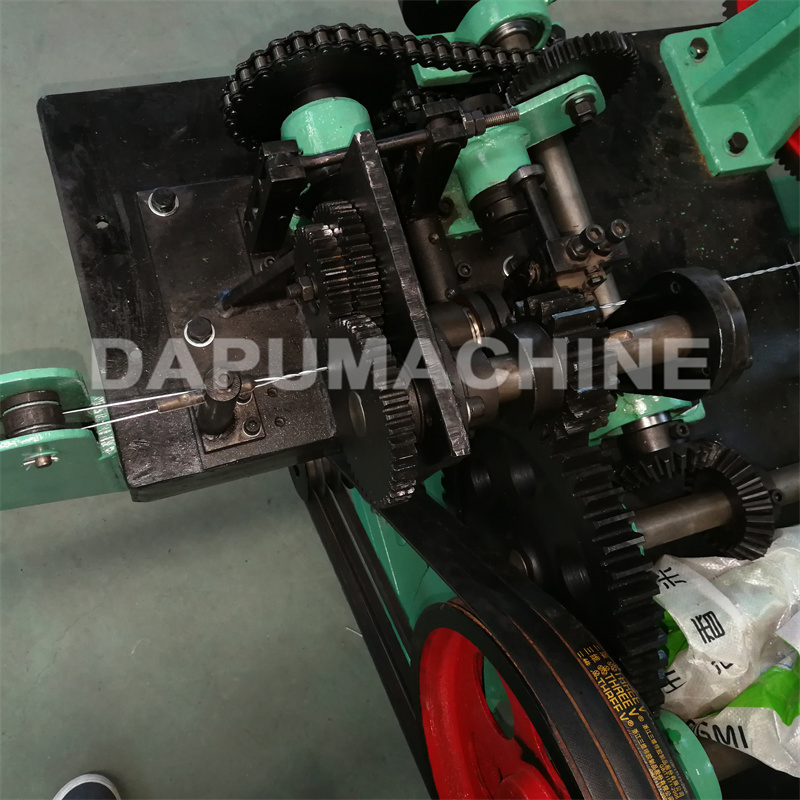

(1) Steel cover on driving shaft: Enhanced safety protection during operation.
(2) Integrated Counter: Accurately counts the number of barbs to calculate overall length.

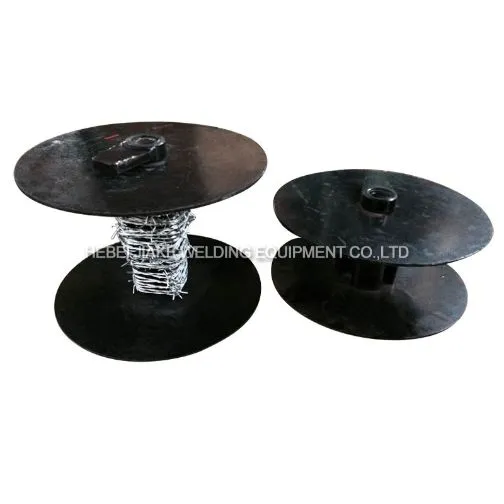

(3) Easy Handling: The barbed roll is designed to be easily removed from the machine.

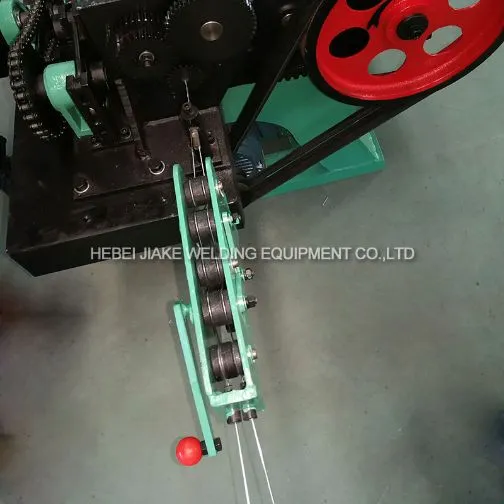

(4) Advanced Guiding System: Built-in mechanism to prevent wire snarls and tangles.

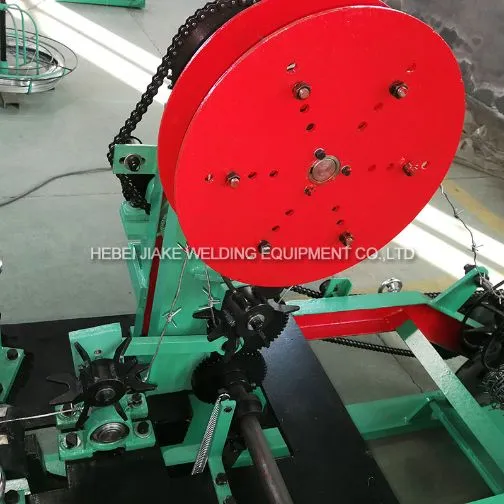

(5) Precision Adjustment: Red roller designed specifically to adjust barbed spacing.

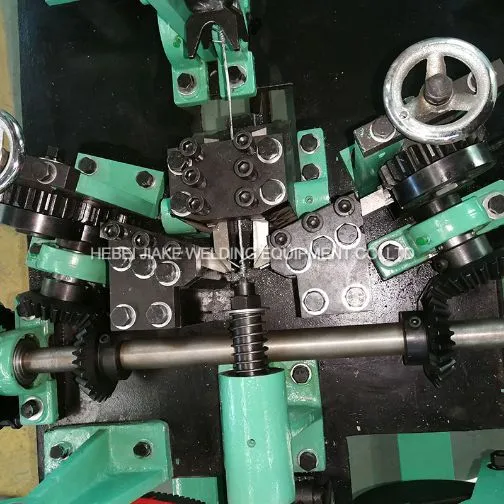

(6) High Durability: Equipped with hard steel twisted components and precision cutters.
(7) Automatic Feeding: Both barbed and main wires are fed automatically from wire spools.
Our products are popular globally and have been successfully exported to South Africa, Russia, Mexico, Tanzania, Georgia, Kenya, and more.

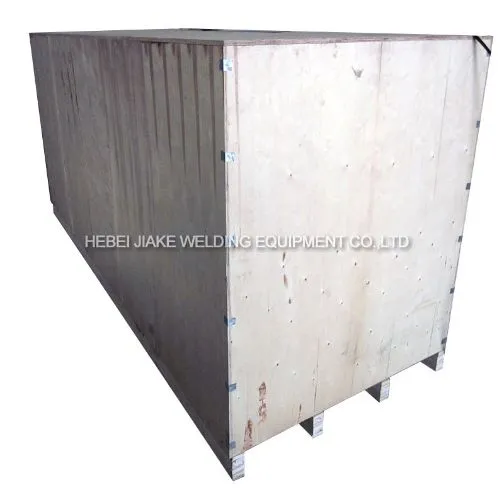

We utilize fumigation-free wooden crates to ensure the machine remains protected and intact during international transportation.
