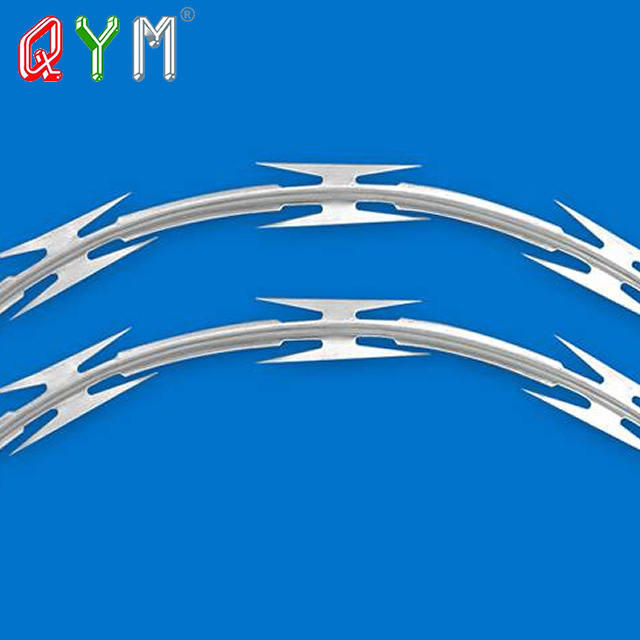

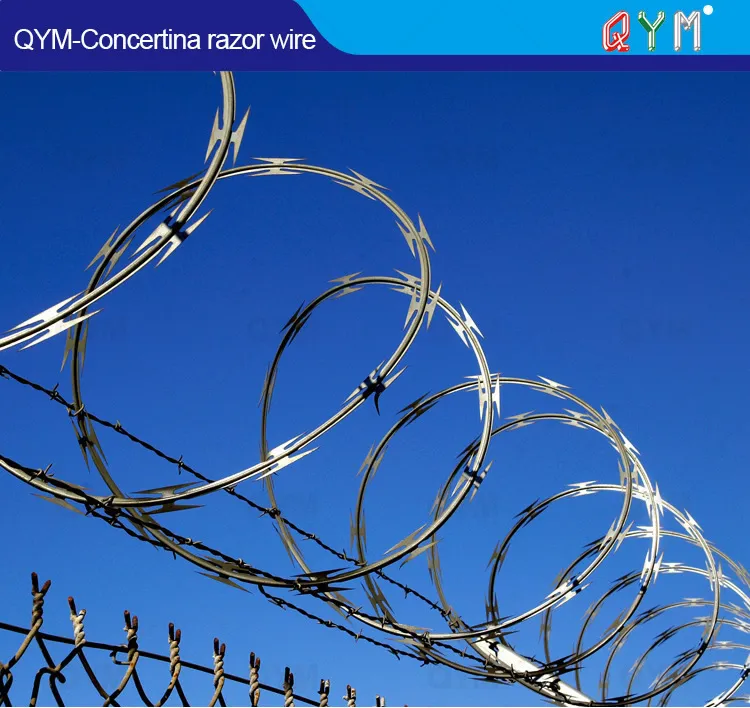

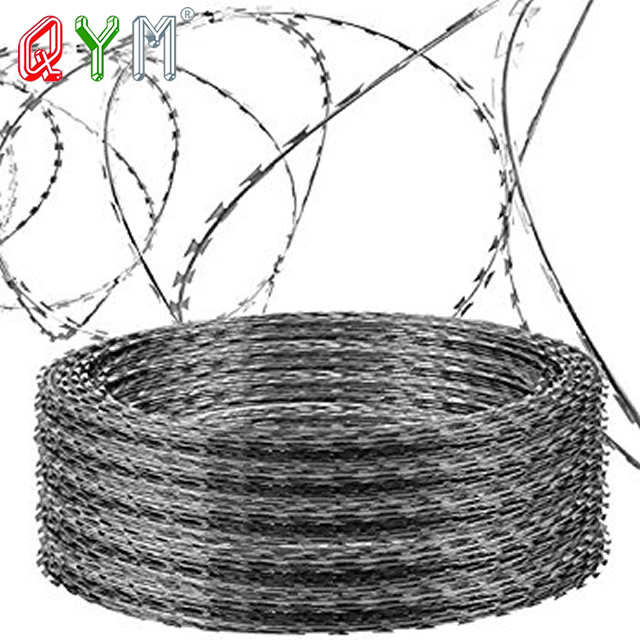

Concertina Razor Wire is the premier choice when security is a priority. Due to its cost-effectiveness and high efficiency, it is widely utilized in high-security applications. It features a central strand of high tensile strength steel wire and a steel tape punched into sharp barbs. The multiple blades are specifically designed to inflict serious injury, serving as a powerful psychological and physical deterrent against intruders.
It is extremely difficult to cut or bypass without specialized tools, making it a trusted safety barrier for security professionals worldwide.

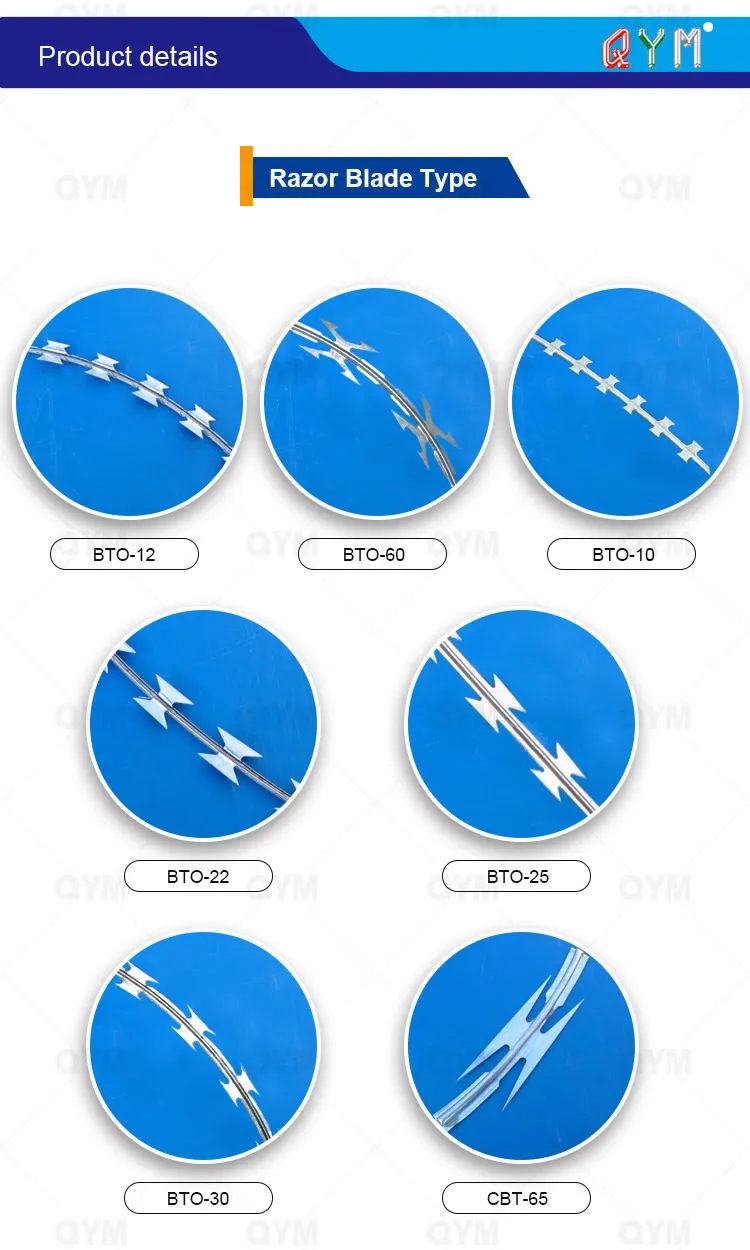

| Reference Number | Thickness (mm) | Wire Dia (mm) | Blade Length (mm) | Blade Width (mm) | Blade Spacing (mm) |
|---|---|---|---|---|---|
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 15±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-25 | 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 |
| CBT-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Concertina Razor Wire Standard Use | ||||
|---|---|---|---|---|
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8M | 10 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9M (3 CLIPS) | BTO Series | Cross type |
| 600mm | 56 | 10-11M (3 CLIPS) | BTO Series | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO Series | Cross type |

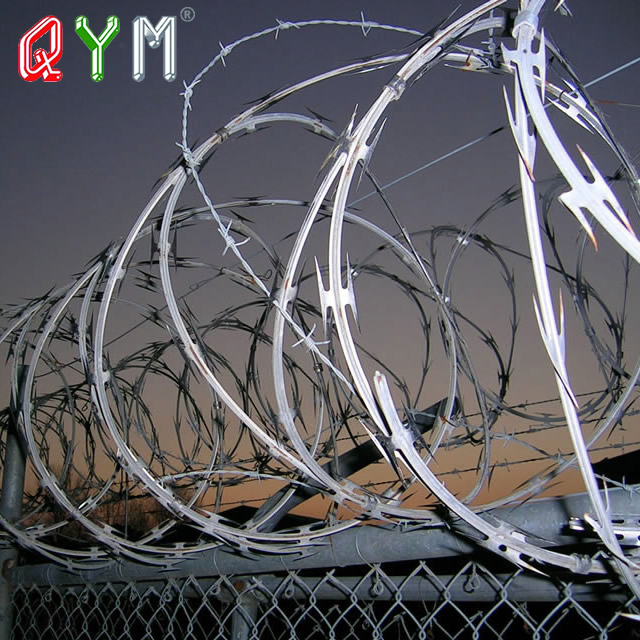

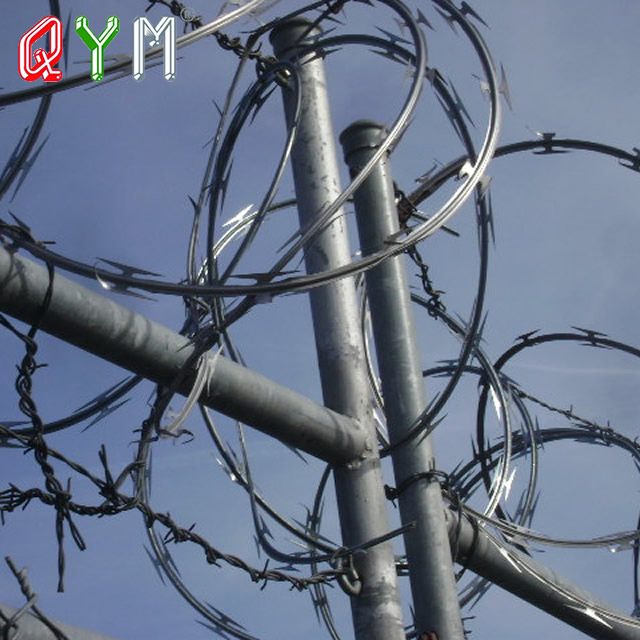

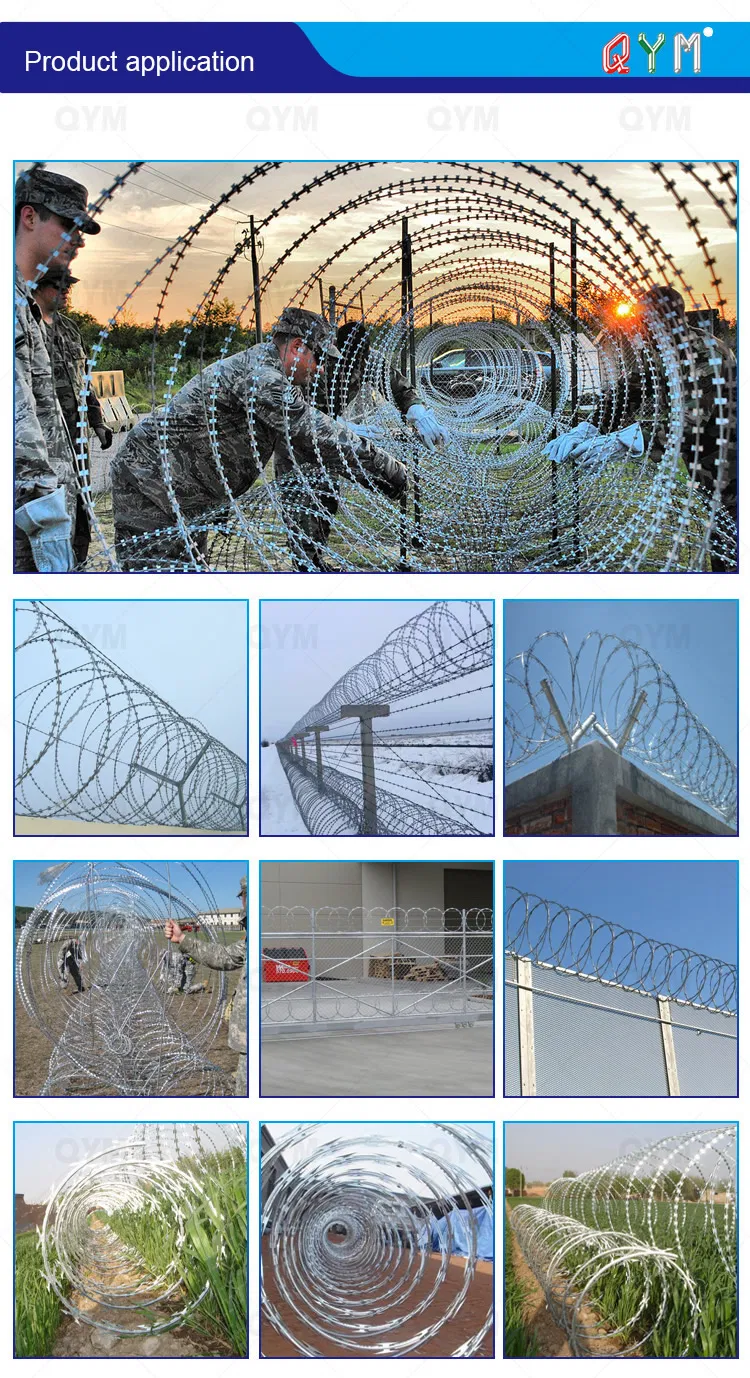

Concertina Razor Wire is widely used for national security facilities and private properties, including:
1. Quality Commitment: We focus on seeking development through quality and establishing a reputation via excellent products to meet all customer requirements.
2. Honest Service: We provide sincere and professional service with prompt delivery for all orders.
3. Continuous Innovation: Equipped with advanced inspection and production technology, we develop new products to meet market demands and accept customized orders.
