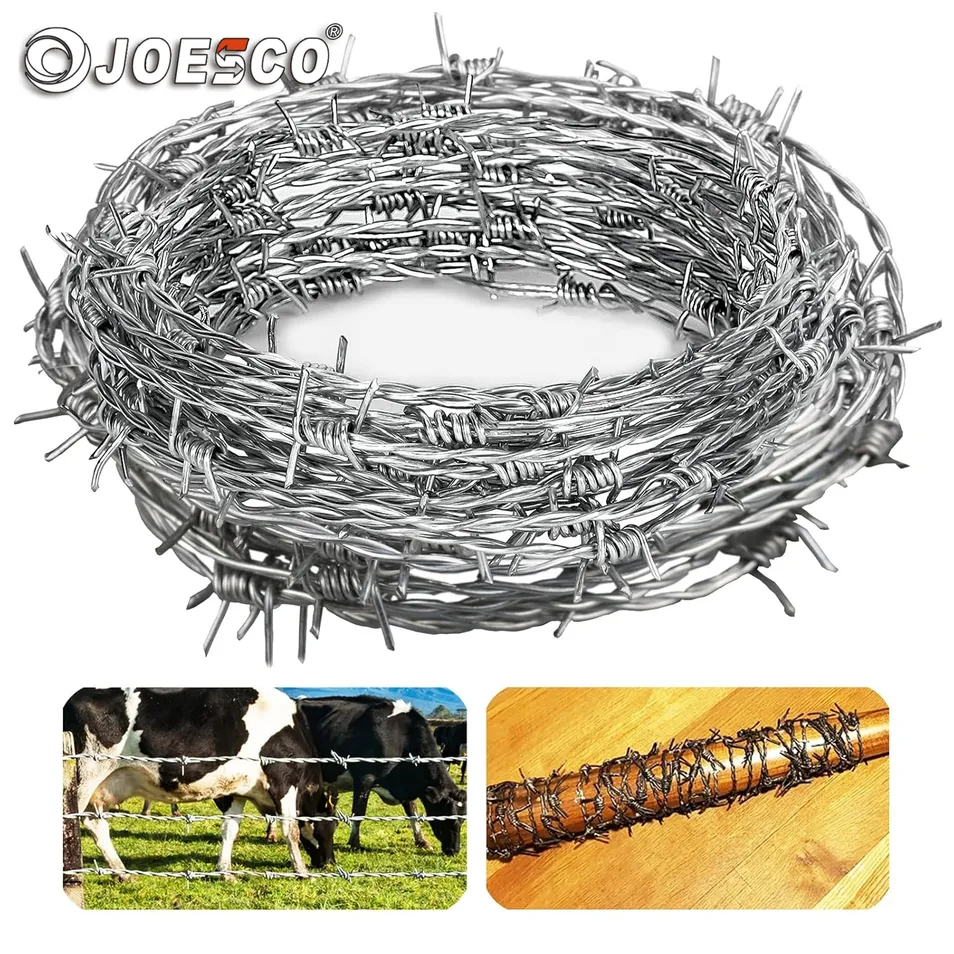

Barbed Wire is a type of twisted metal wire fitted with sharp barbs. Double-twist barbed wire is made by twisting two wire strands together and comes with four-point barbs. It is a widely used fencing material, mainly applied in livestock enclosures and for deterring trespassers. It is suitable for agricultural production, livestock boundary demarcation, and prison security.

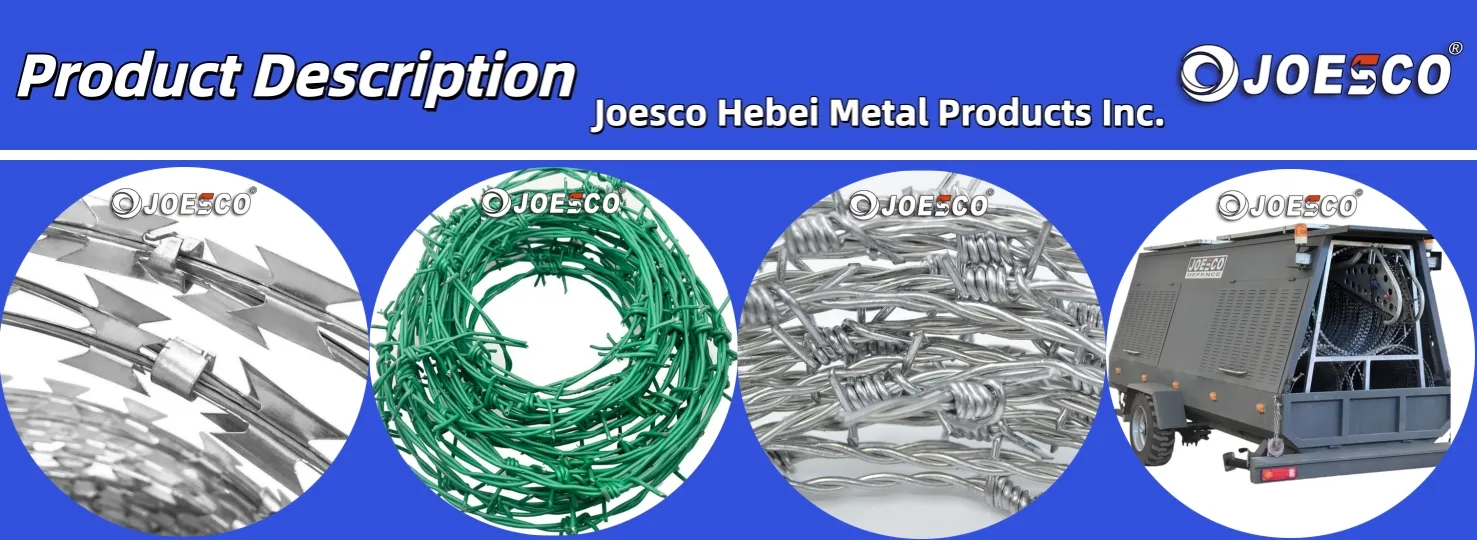

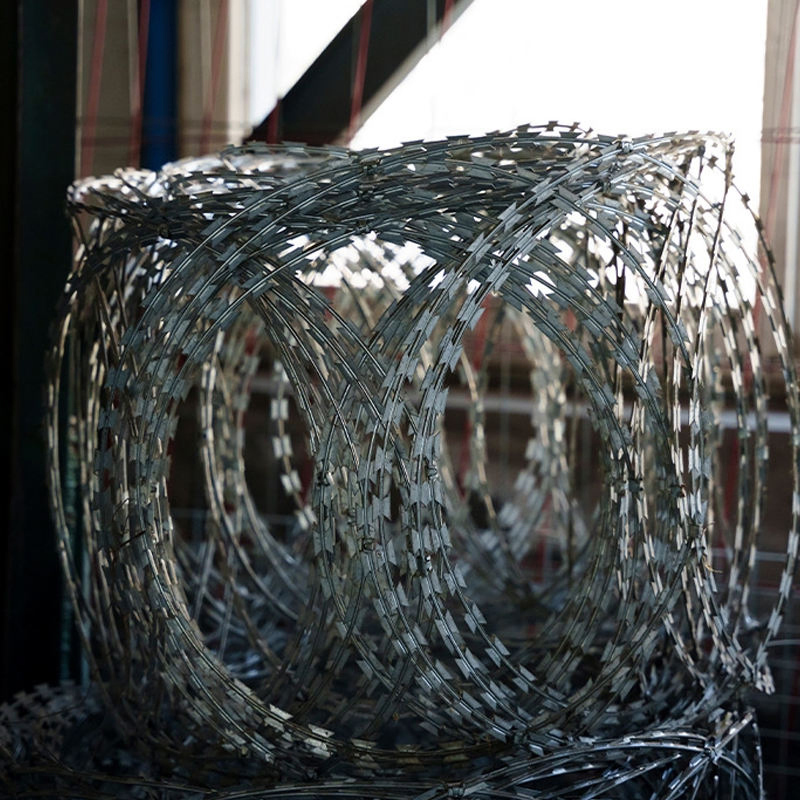

Razor Barbed Wire (concertina razor wire) is a modern security fencing material with superior protection and fencing strength. Made of hot-dipped galvanized steel or stainless steel sheets, it features sharp blades and a strong core wire, ensuring high security and age resistance.
Barbed Wire Fence

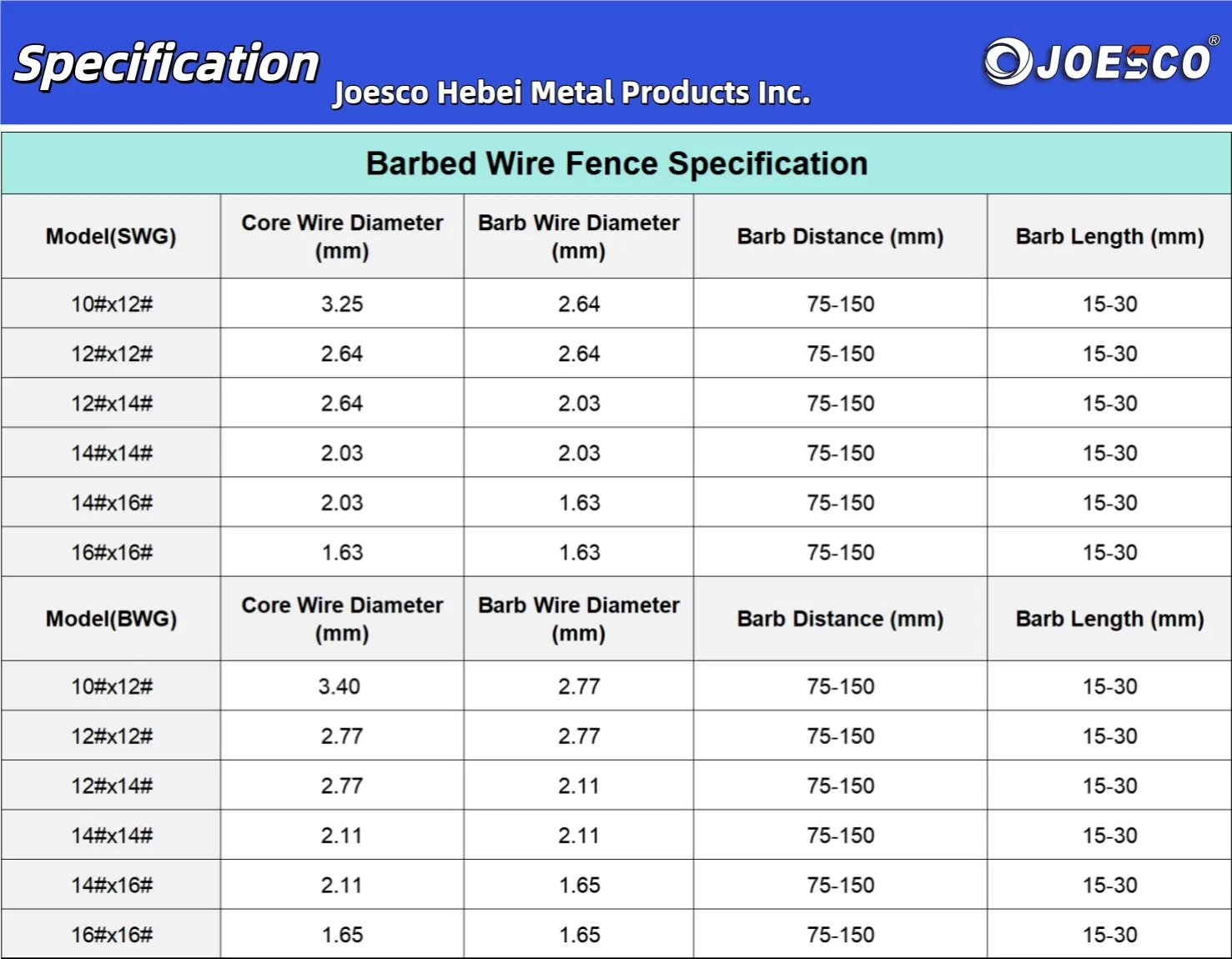

Standard barb distances include 3", 4", and 5". Features low cost and non-climb properties. Types include Electro-galvanized, Hot-dipped galvanized, and PVC coated.

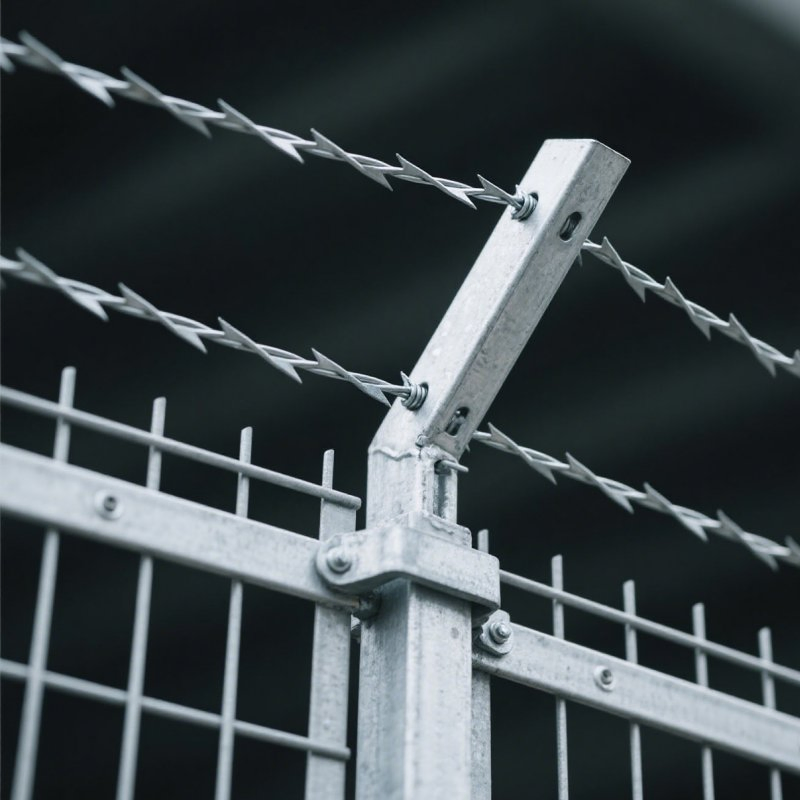

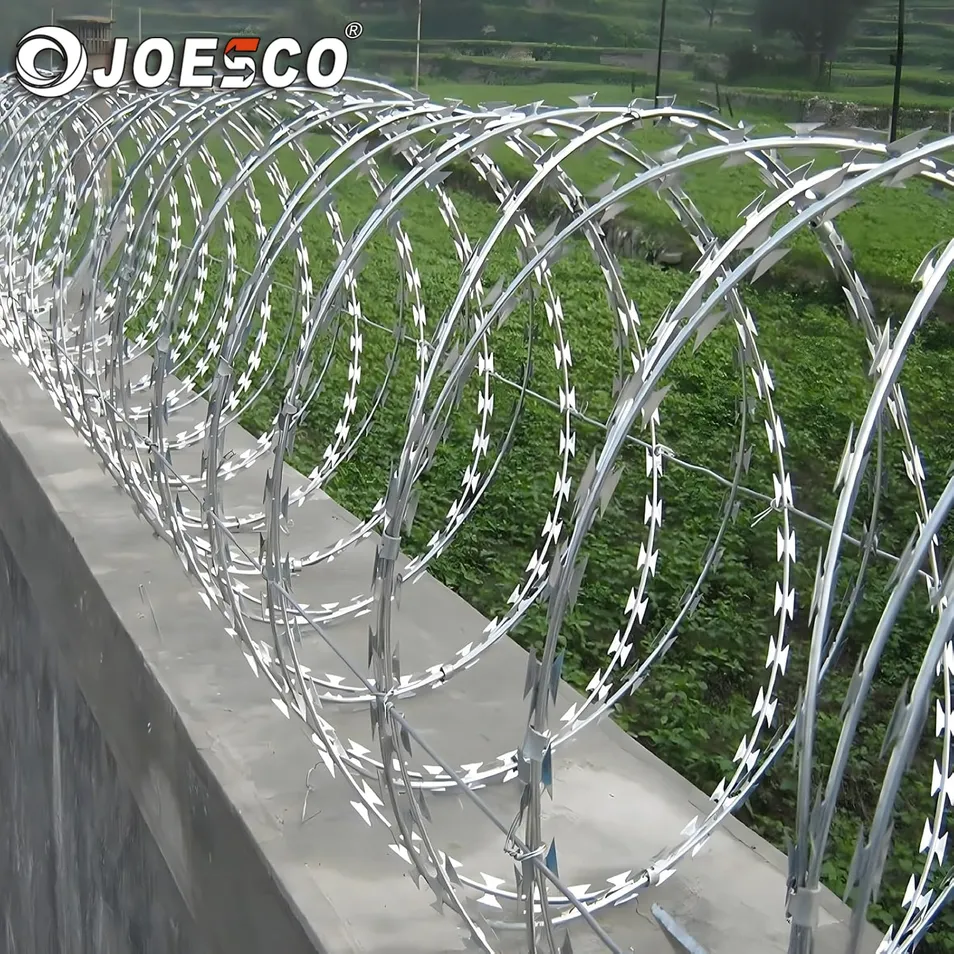

Razor Wire Fence

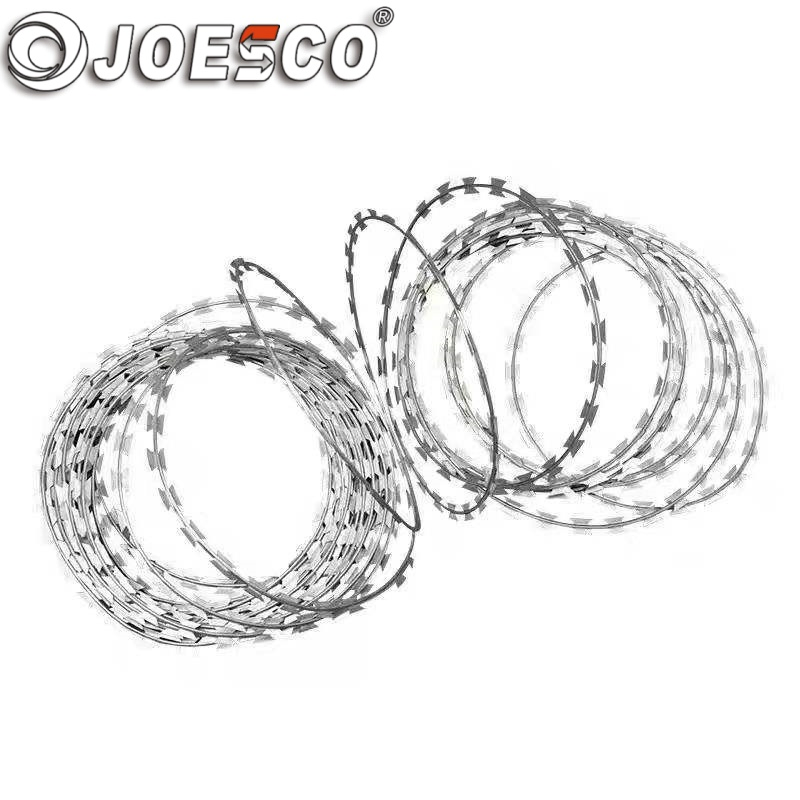

Available in straight lines, single concertina coils, and crossed concertina coils. It provides flexible options for diverse high-level security needs.

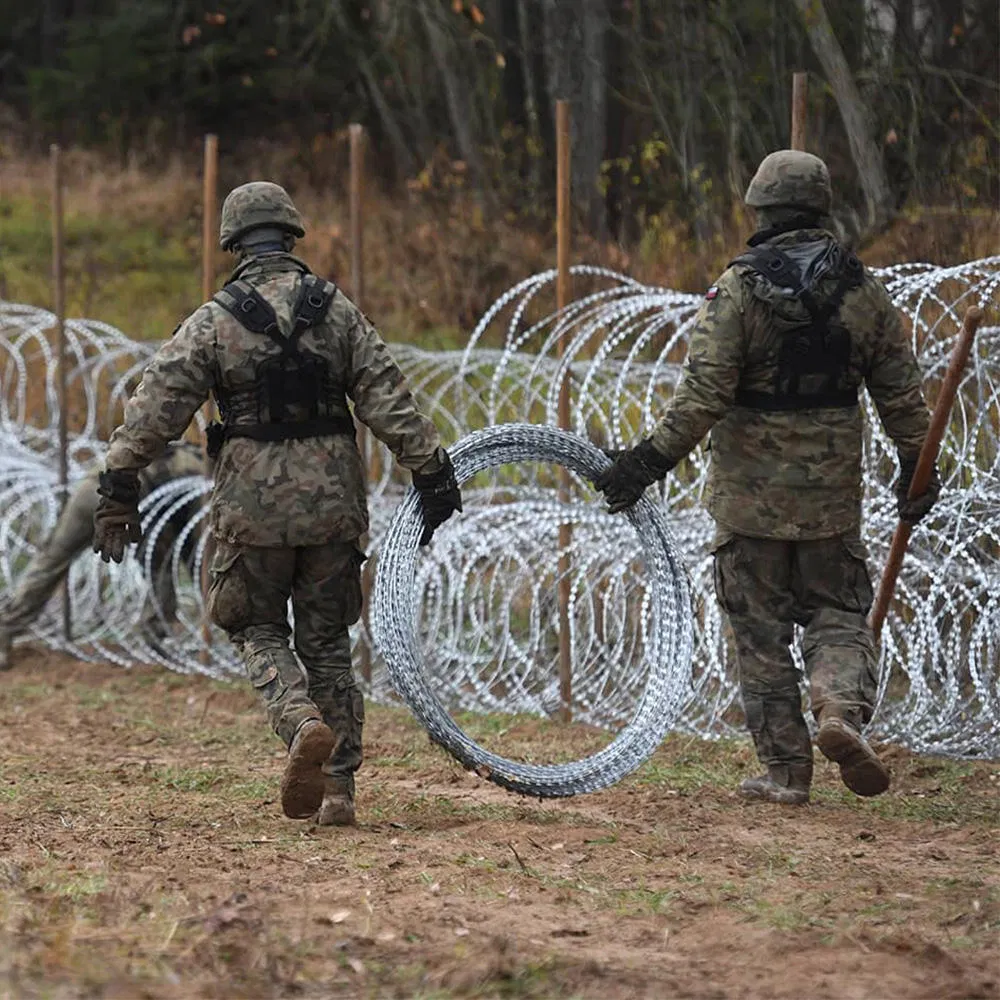

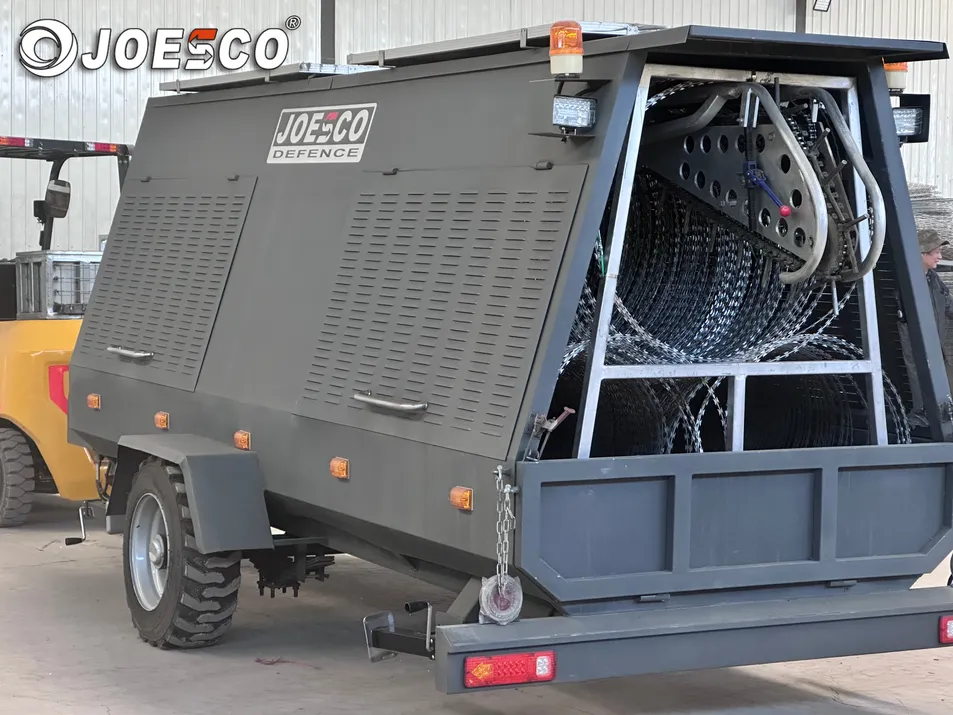

Designed for rapid deployment of effectively layered concertina coils. This system creates a serious obstacle for entry. The rapid deployment barrier system can provide 1.7m high protection over a 150m distance using 3 coils. It can be hitched to any type of vehicle for automatic releasing.
| Blade Type | Thickness (mm) | Wire Dia (mm) | Barb Length (mm) | Barb Width (mm) | Barb Spacing (mm) |
|---|---|---|---|---|---|
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Outside Dia (mm) | Loops | Standard Length (m) | Blade Type | Notes |
|---|---|---|---|---|
| 450 | 33 | 7-8 | CBT-60/65 | Single coil |
| 500 | 56 | 9-10 | BTO-22 | Cross-type |
| 960 | 56 | 14-15 | CBT-60/65 | Single coil |
