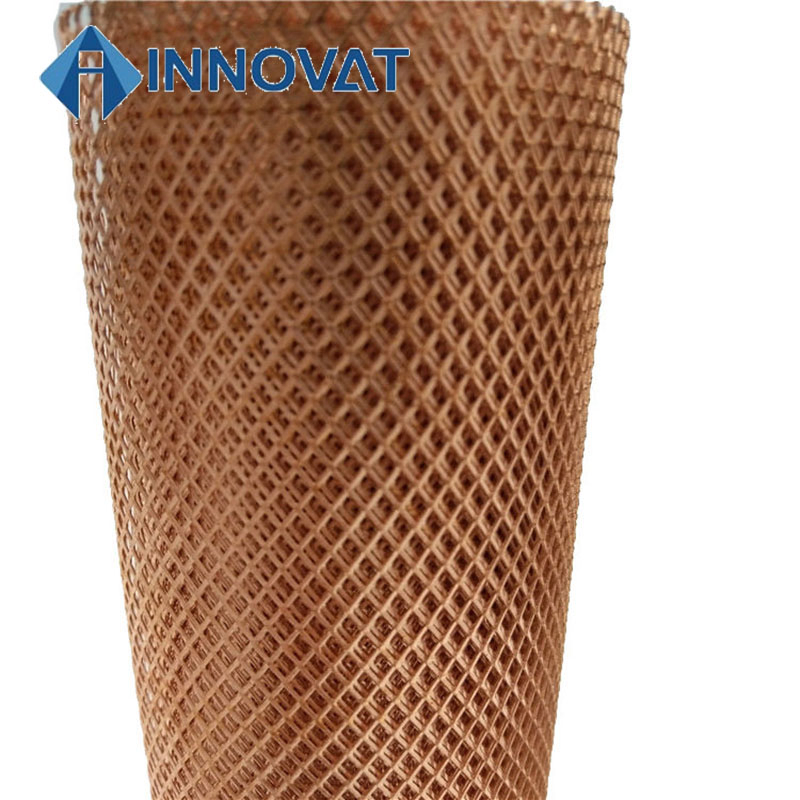

Mesh Fabric/Copper Wire Mesh/Wire Netting/Metal Woven Mesh

1 / 5

Mesh Fabric/Copper Wire Mesh/Wire Netting/Metal Woven Mesh

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Material:

99.9% Copper Wire

Hole Shape:

Square

Weave Technique:

Plain Weave

Surface Treatment:

Natural

Color:

Red Copper

Mesh Count:

2-350 mesh

Feature:

Anti-Corrosion

Certification:

ISO9001

✓

Product Description

Red copper wire mesh features the highest copper content among copper mesh products, reaching 99.9% purity.

Applications:

● Shielding screen in cable circuits, laboratories, and computer rooms.

● RFI and EMF shielding for electronic devices, power sectors, and aerospace.

● Building walls for noise insulation.

● Electronic displays to filter electron beams.

▤

Product Parameters

Mesh	Aperture(mm)	Wire Diameter	Effective (%)	Weight (Kg/m2)
Mesh 3	6.27	2.2	62	7
Mesh 5	4.36	0.711	76	1.6
Mesh 6	3.52	0.711	63	1.6
Mesh 8	2.5	0.559	67	1.5
Mesh 10	2.08	0.46	67	1.1
Mesh 12	1.74	0.457	68	1.4
Mesh 14	1.36	0.46	57	1.4
Mesh 16	1.21	0.376	55	1.2
Mesh 18	1.1	0.315	60	0.85
Mesh 20	0.95	0.315	58	0.95
Mesh 30	0.67	0.274	55	0.85
Mesh 40	0.44	0.152	46	0.58
Mesh 50	0.36	0.152	50	0.45
Mesh 60	0.3	0.122	50	0.45
Mesh 80	0.198	0.12	44	0.58
Mesh 100	0.154	0.1	37	0.5
Mesh 120	0.13	0.081	40	0.39
Mesh 150	0.097	0.61	32	0.3
Mesh 200	0.086	0.041	46	0.17

📷

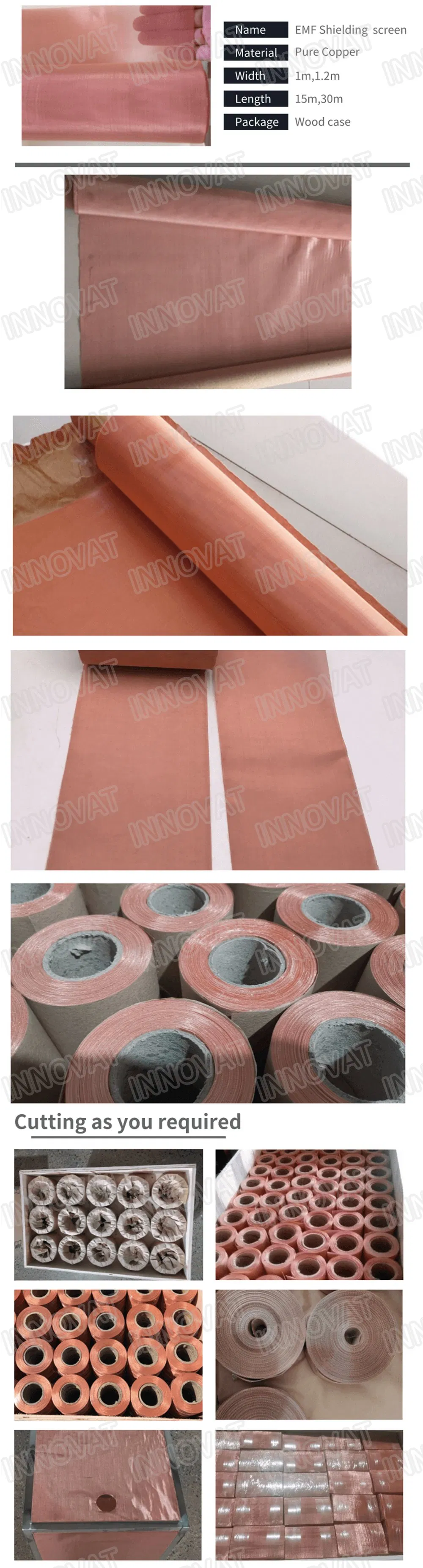

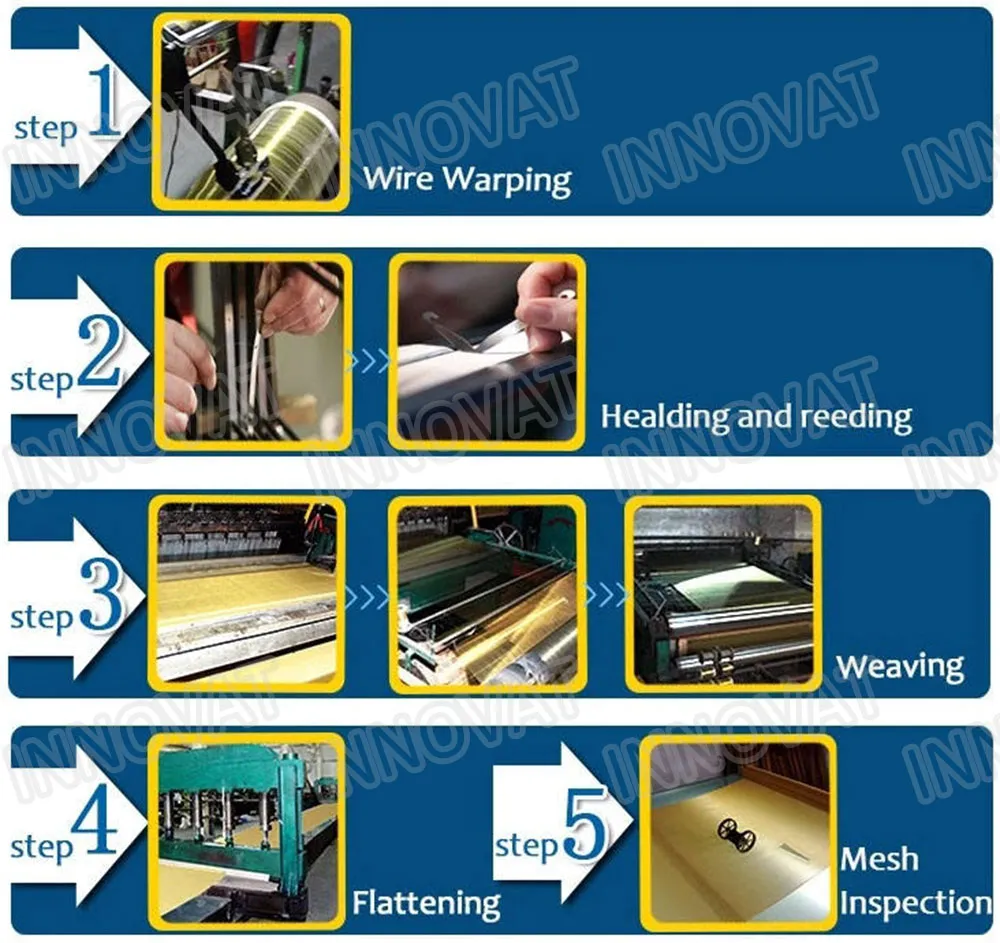

Detailed Photos & Process

★

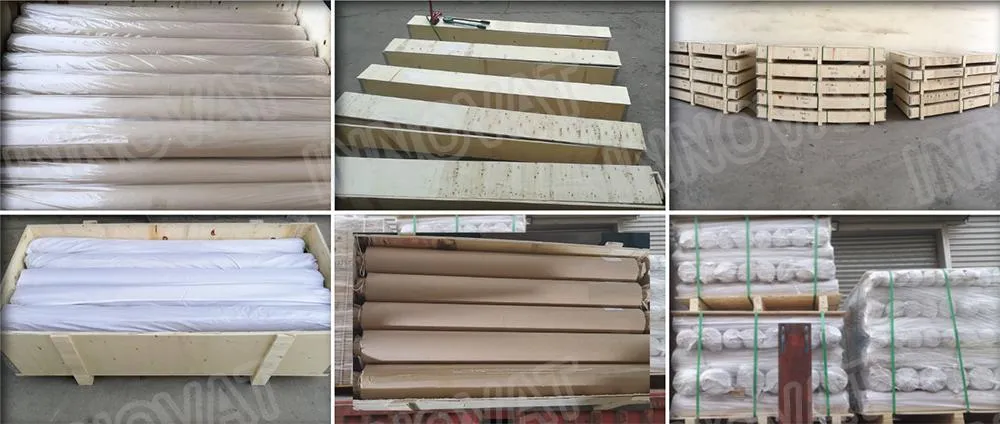

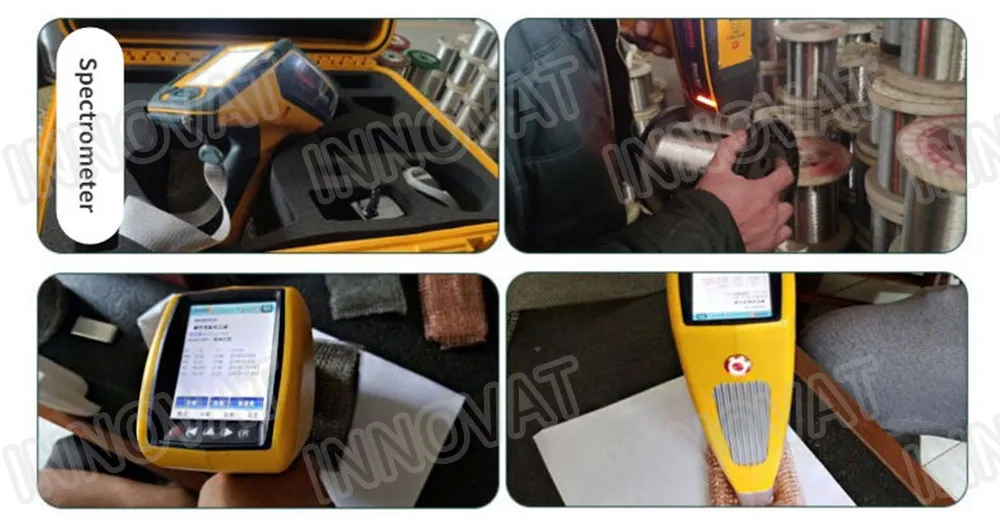

Quality Control & Shipping

☀

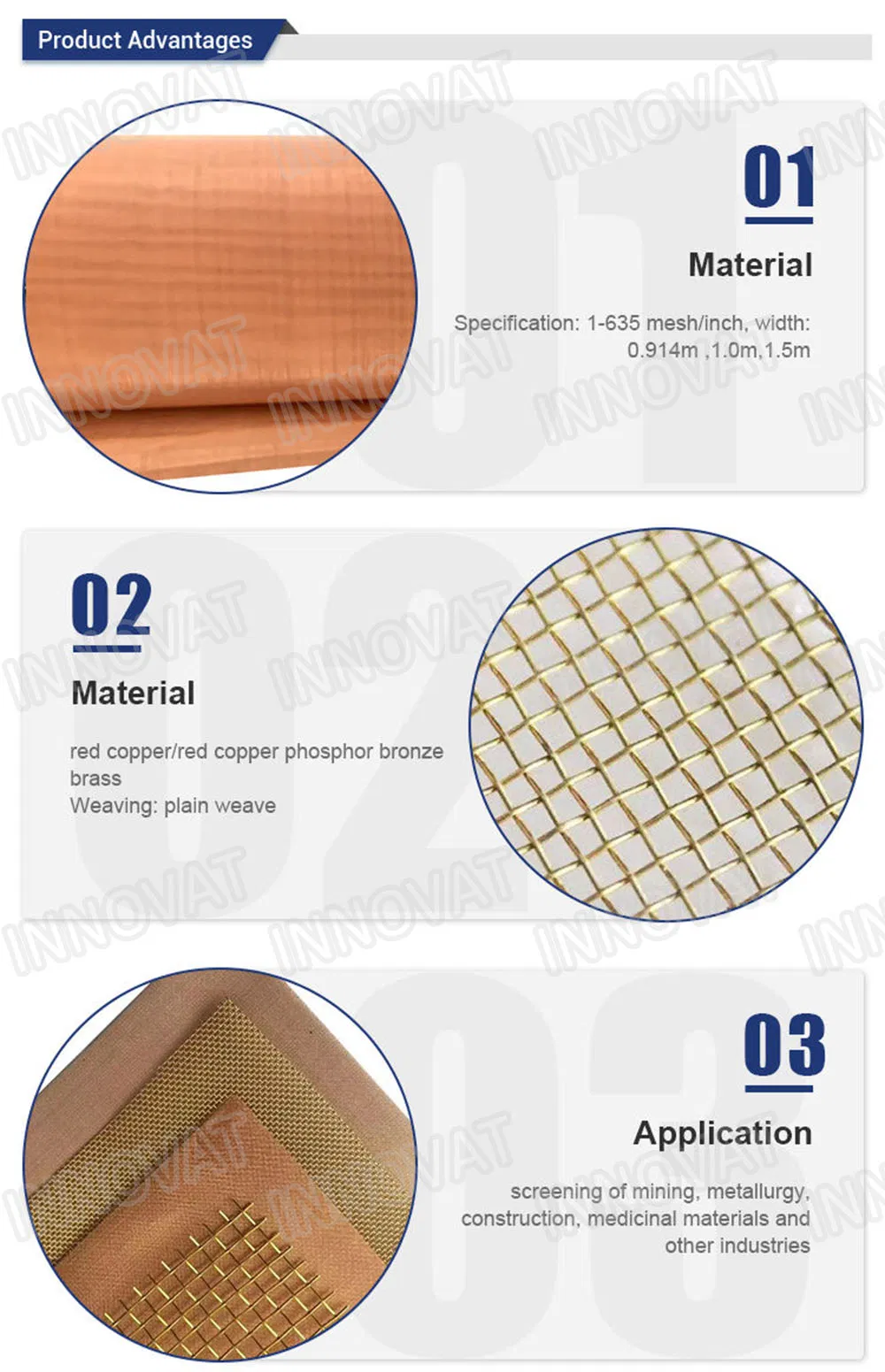

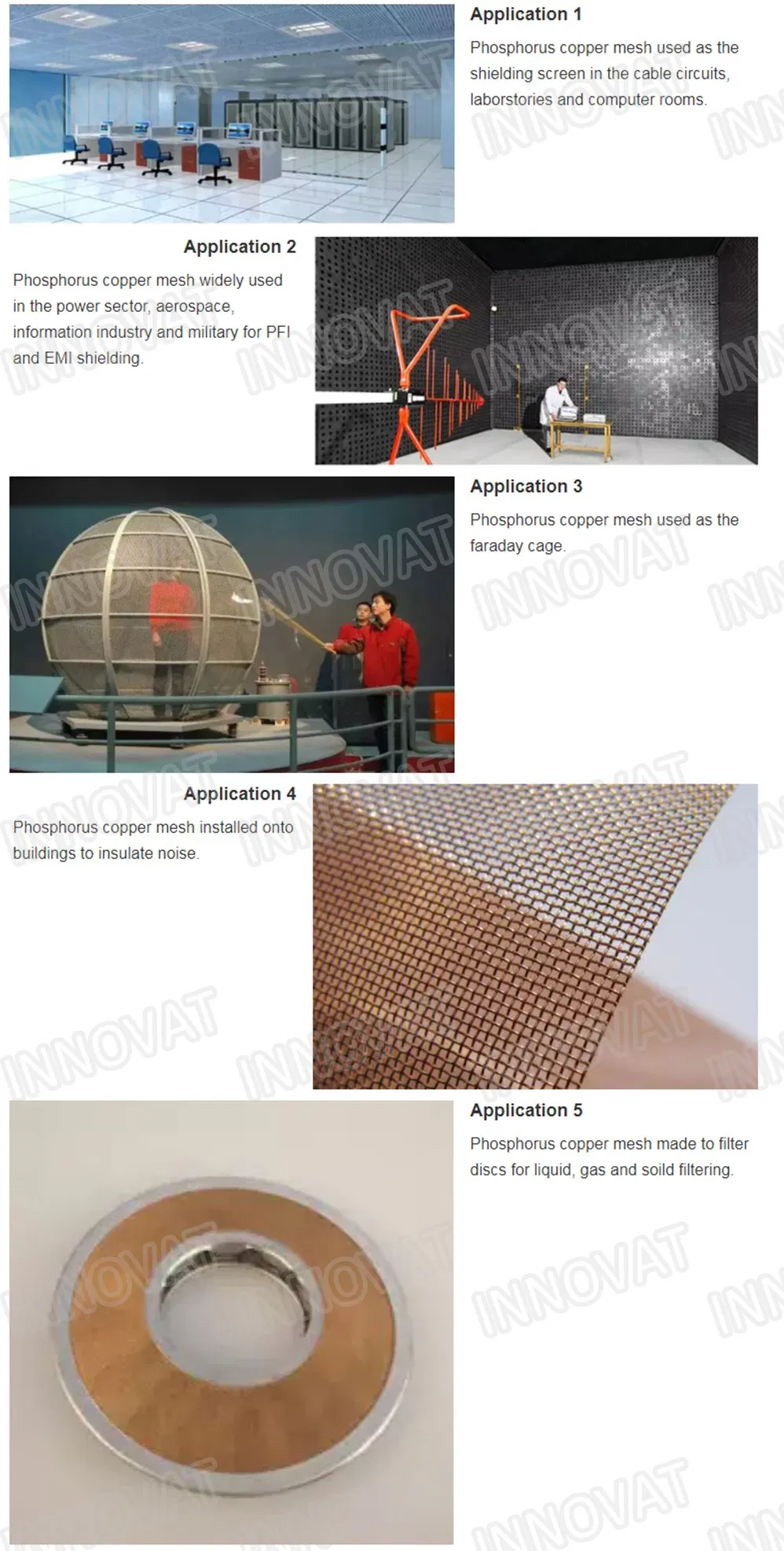

Advantages & Application

Frequently Asked Questions

1. What is the purity of the copper used in this mesh?

Our red copper wire mesh is made of 99.9% pure copper, providing excellent conductivity and shielding properties.

2. What are the main shielding applications for this product?

It is widely used for RFI and EMF shielding in cable circuits, laboratories, computer rooms, and aerospace equipment.

3. Can the dimensions and mesh size be customized?

Yes, we provide mesh counts ranging from 2 to 350 mesh and can customize the length and width according to specific customer requirements.

4. How is the product packaged for shipping?

The copper wire mesh is typically packed in secure cartons to ensure it remains flat and protected during transit.

5. Is the red copper mesh resistant to corrosion?

Yes, the material possesses natural anti-corrosion features, making it durable for both industrial and construction applications.

6. What weave technique is applied to the mesh?

We primarily use the Plain Weave technique, which ensures a uniform square hole shape and structural stability.
