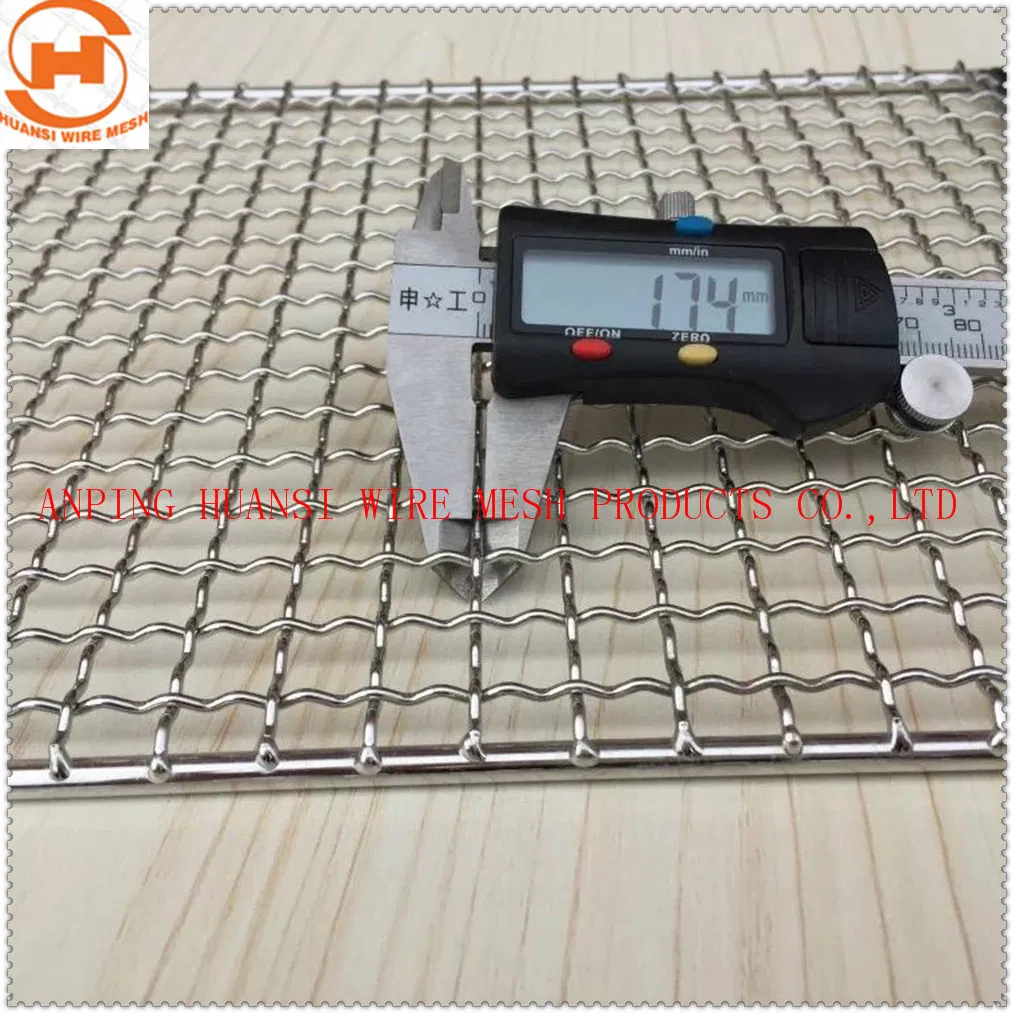

Stainless Steel/Galvanized/65mn/Copper/Titanium Metal Crimped Woven Wire Mesh for Viberating Crusher Screen/Decoration

1 / 5

Stainless Steel/Galvanized/65mn/Copper/Titanium Metal Crimped Woven Wire Mesh for Viberating Crusher Screen/Decoration

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Crimped Wire Mesh

Hole Shape

Square

Weave Technique

Pre-Crimped

Weave Method

Flat-Topped Curved

Feature

Easily Assembled

Wire Diameter

14.0mm

Color

Primary Colors

Packaging

Pallet

Certification

ASTM, ISO9001, CE

Wire Dia. Range

0.5-20mm

Hole Size

1mm-100mm

Production Capacity

10000 Sqm Per Week

Product Description

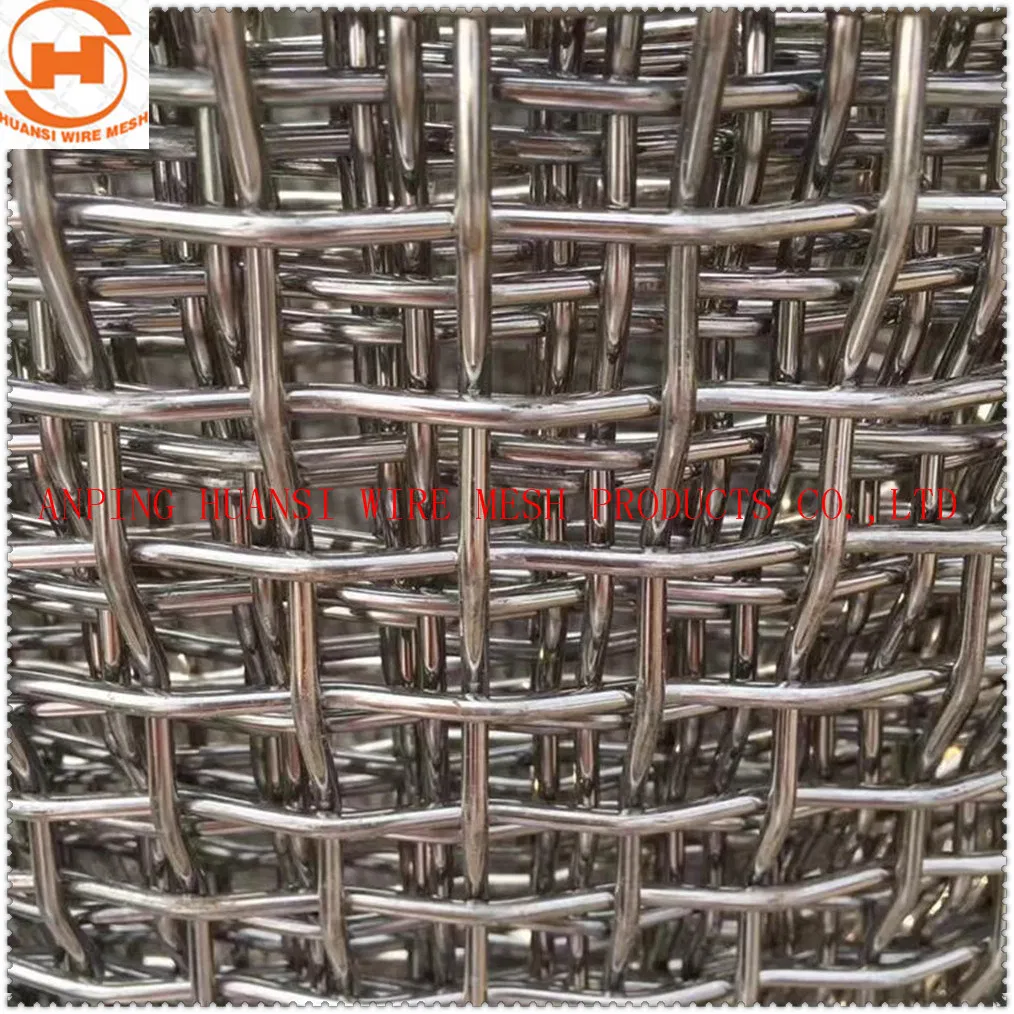

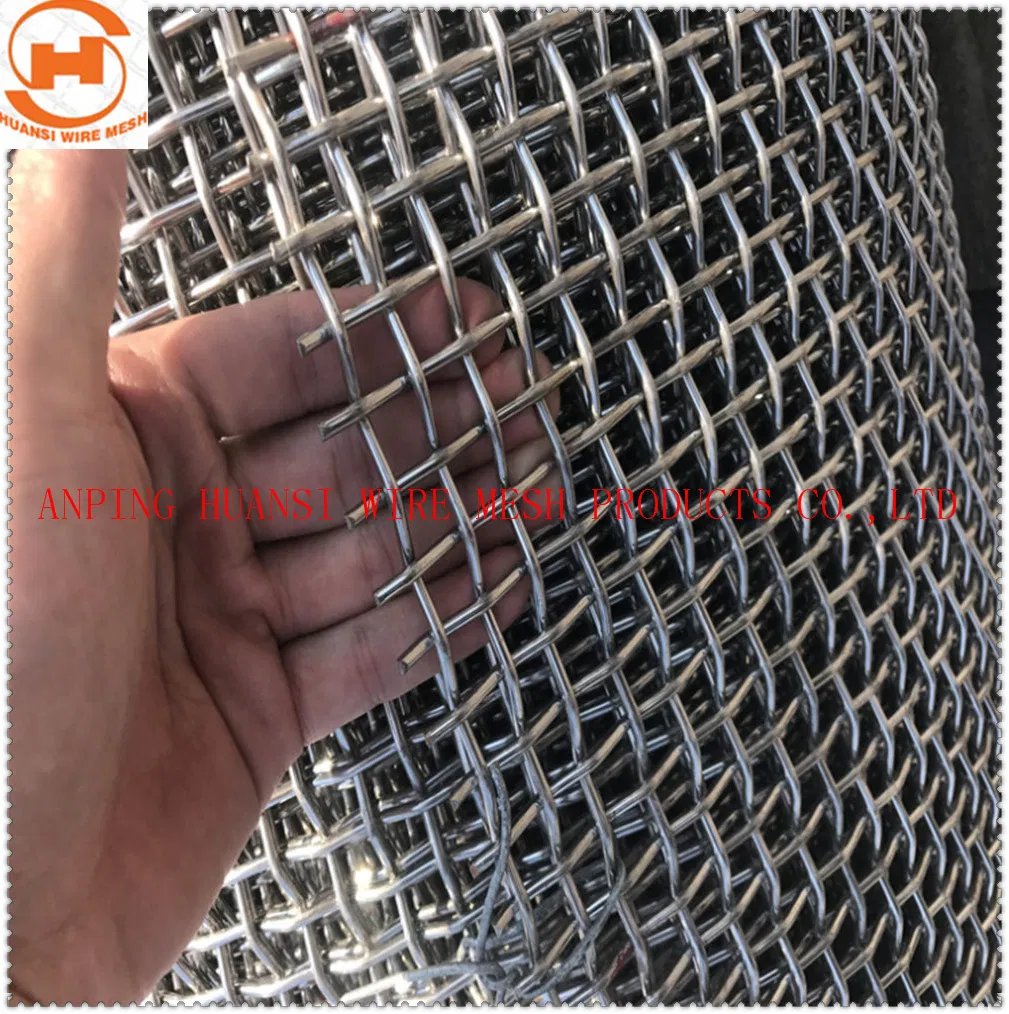

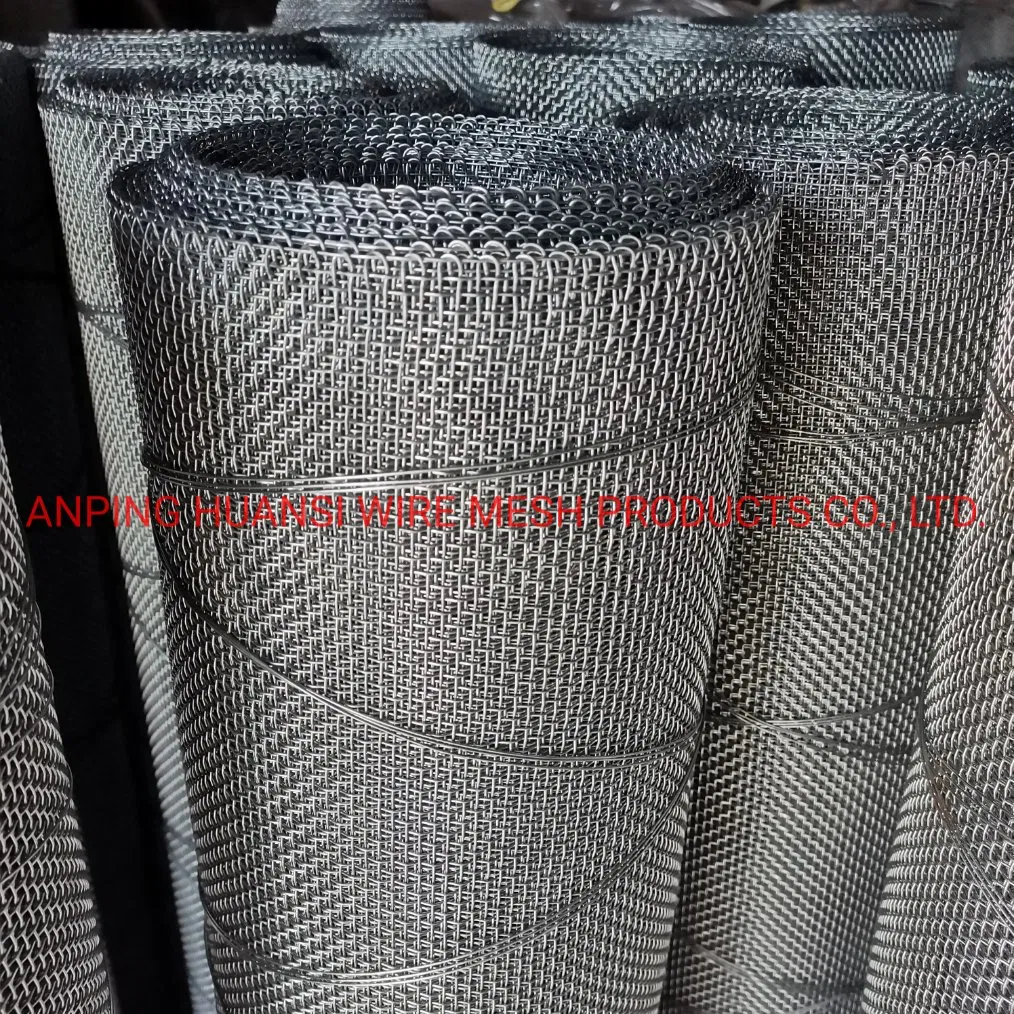

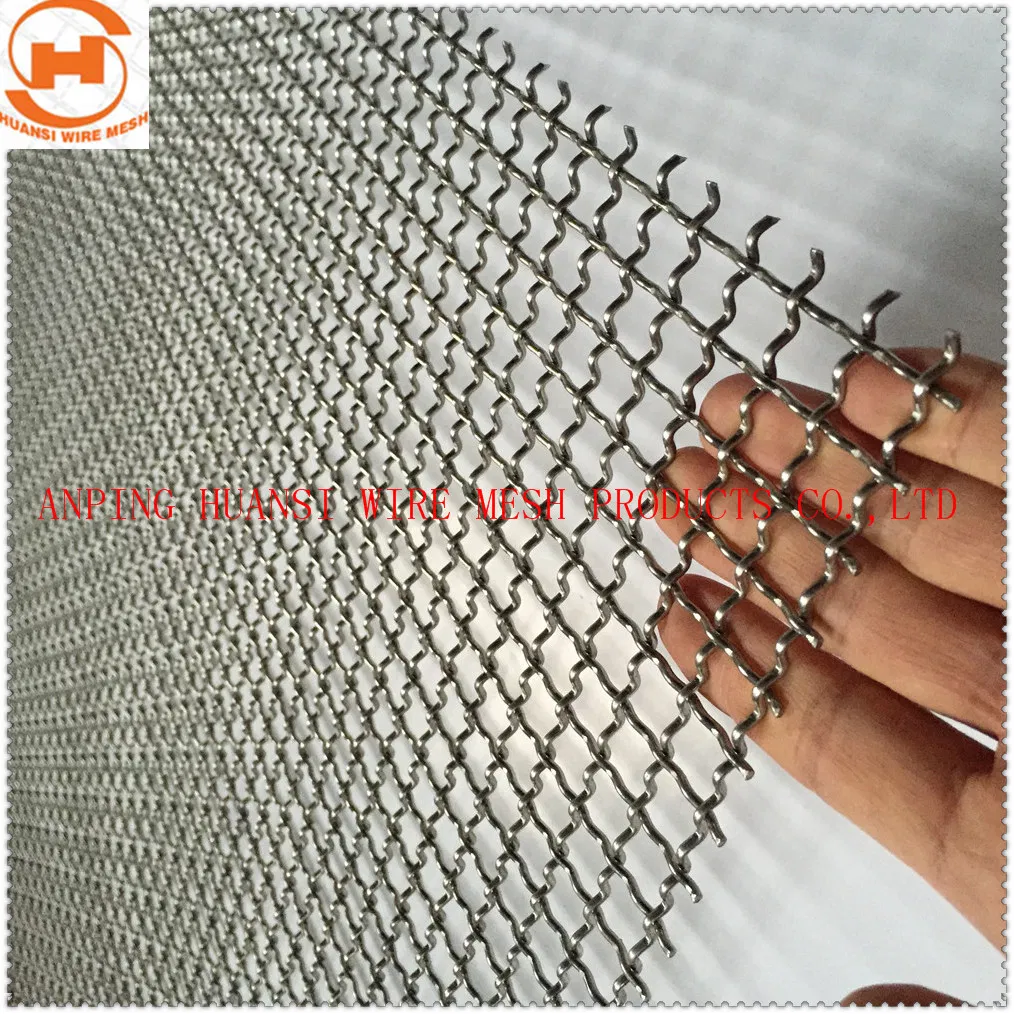

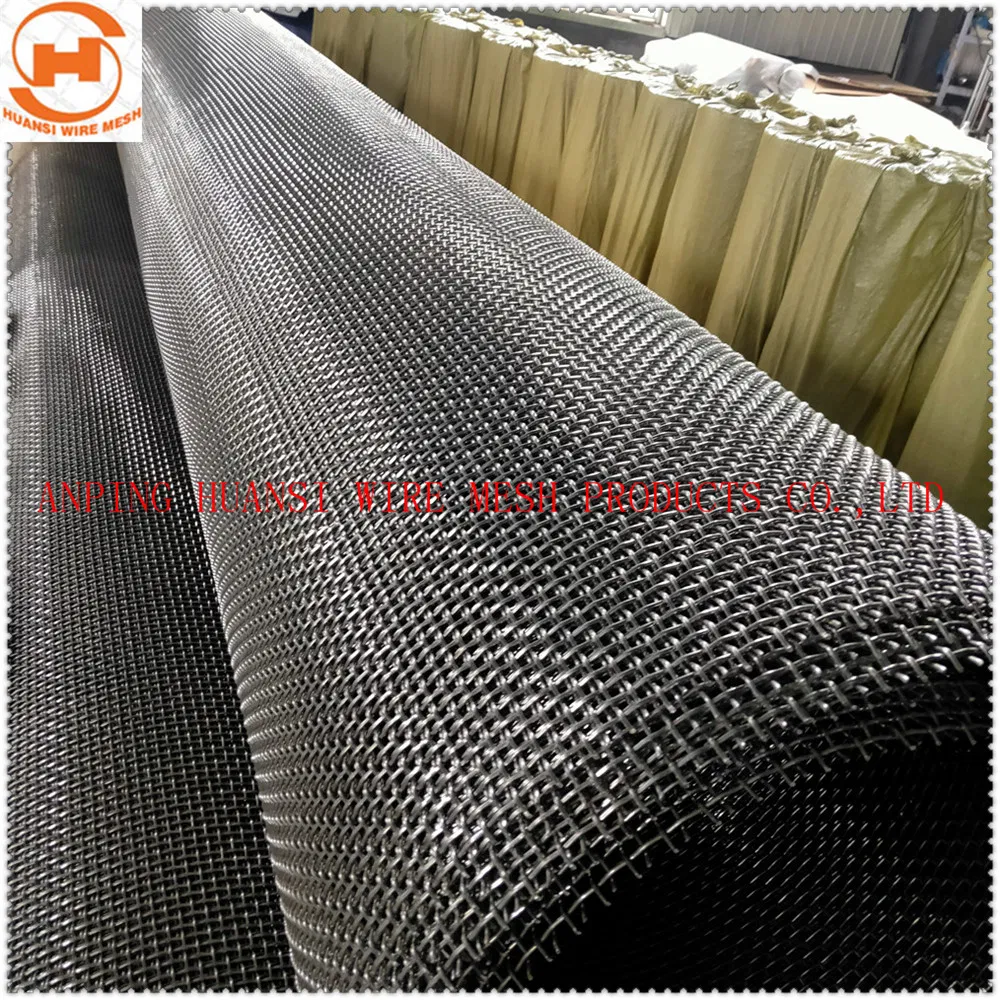

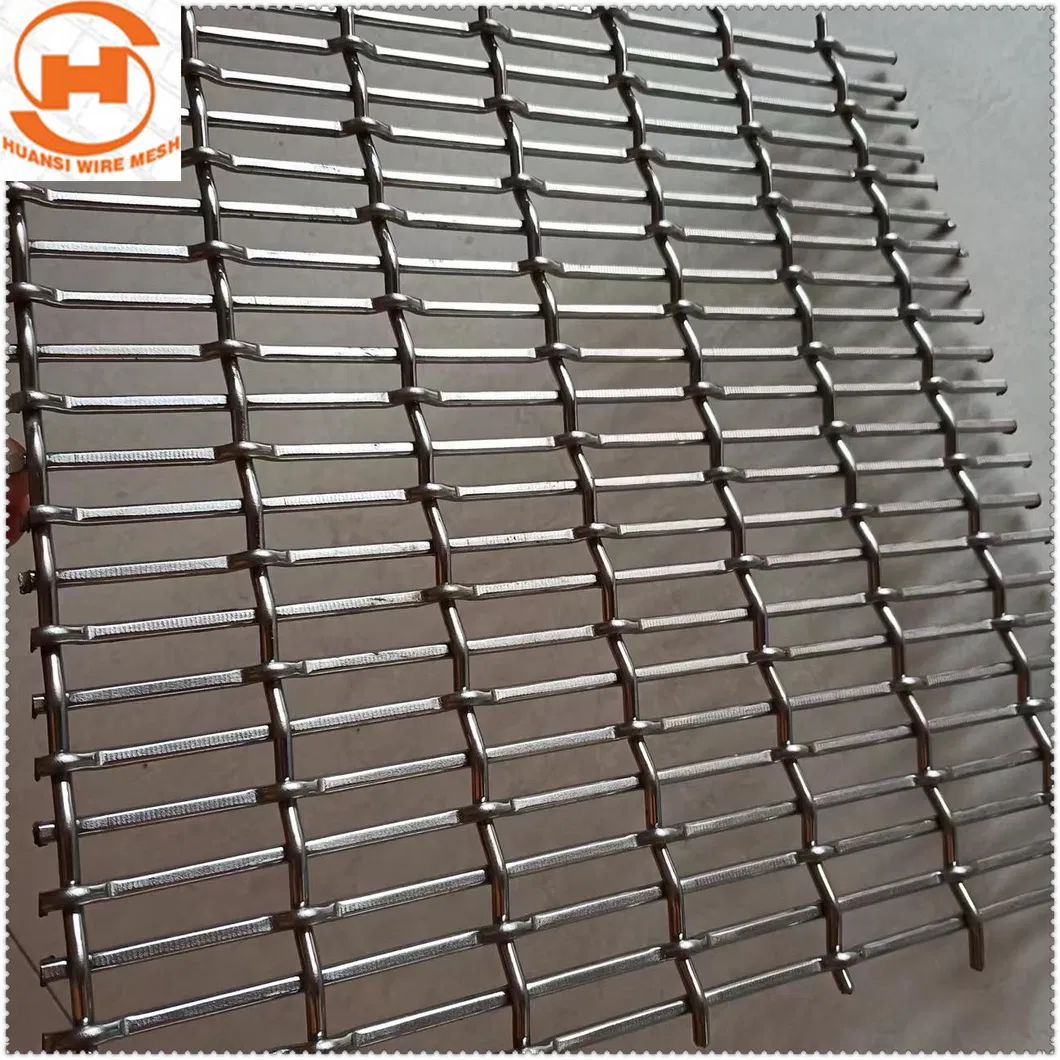

Crimped wire mesh is also known as pre-crimped wire mesh or plaited wire mesh.

Available Types:

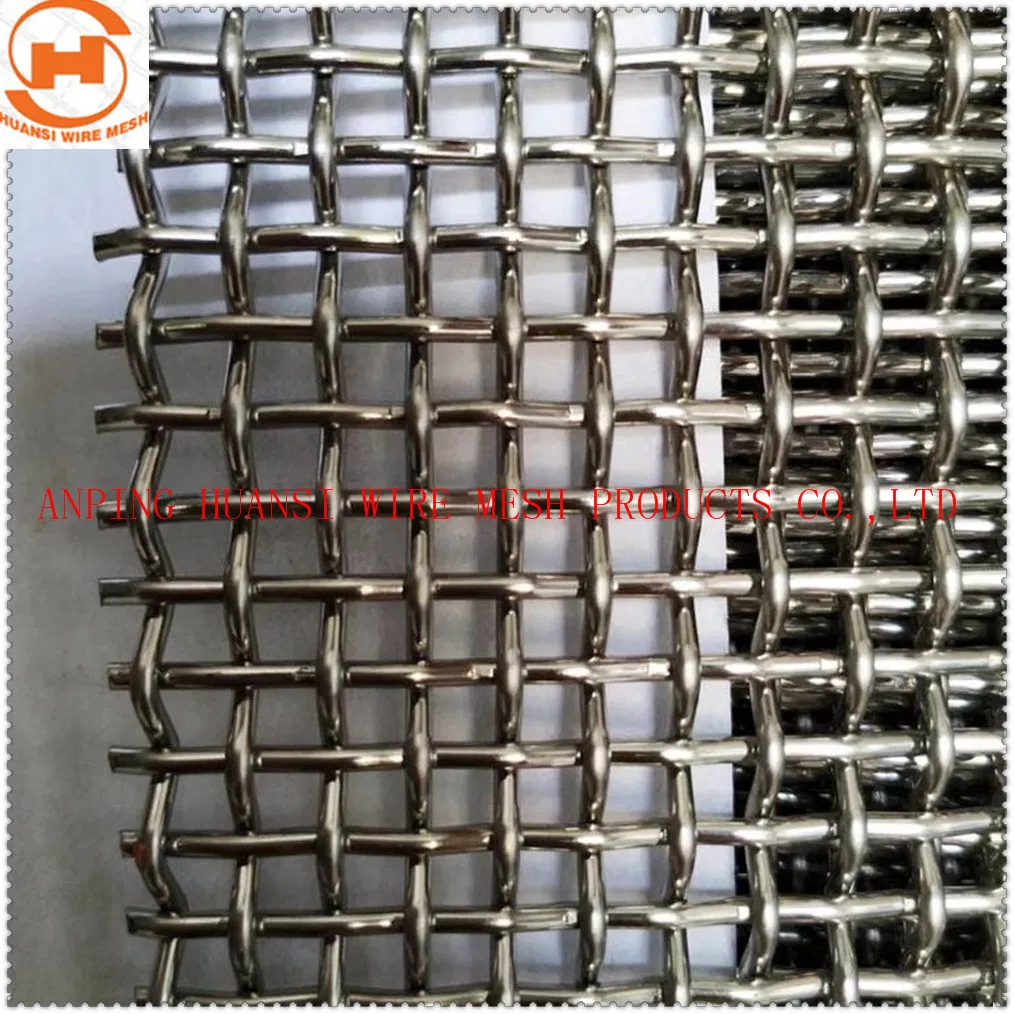

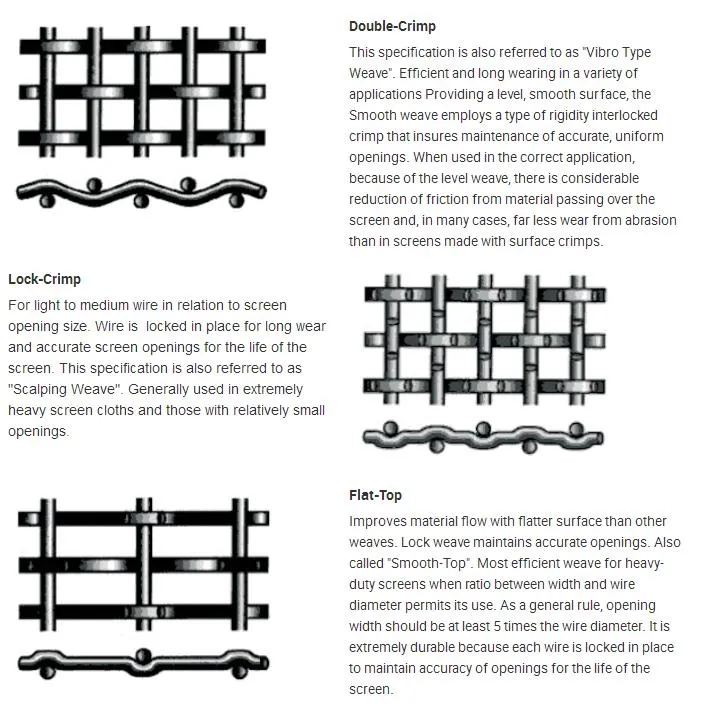

✔ Lock-crimped, inter-crimped, double-crimped, flat top crimped, multi-crimped or plain weave.

Raw Materials:

✔ Stainless steel wire, Manganese steel wire (65Mn), low carbon steel wire, copper wire, Titanium wire, etc.

Applications

❶ Stainless steel crimped wire mesh for screening / sieving, commonly used in food processing industry, such as barbeque mesh.

❷ Powder coated, brass or stainless steel crimped wire mesh can be used in decoration, such as exterior wall.

❸ High tensile steel crimped wire mesh generally used in mine industry, such as quarry screen mesh.

❹ Flat top crimped wire mesh used for pig raising.

❺ Crimped wire mesh for fan cover.

❻ Crimped wire mesh used as fence.

Specifications Table

Aperture (mm)	Aperture Tolerance (mm)		Wire Dia. (mm)	Edge Length (mm)		Weight (KG/SQM)
Aperture (mm)	Min.	Max.	Wire Dia. (mm)	Min.	Max.	Weight (KG/SQM)
101.60	98.55	104.65	12.70	12.70	50.80	17.92
88.90	86.23	91.57	12.70	12.70	44.45	20.16
76.20	73.91	78.49	12.70	12.70	38.10	23.04
63.50	61.60	65.41	12.70	12.70	31.75	26.88
50.80	49.28	52.32	12.70	12.70	25.40	32.26
44.45	43.12	45.78	9.19	9.19	22.23	20.00
31.75	30.80	32.70	7.92	7.92	15.88	20.08
19.05	18.48	19.62	5.72	5.72	9.53	16.78
10.00	9.70	10.03	4.00	4.00	5.00	14.51
2.00	1.94	2.06	1.50	1.50	1.50	8.99

Frequently Asked Questions

What are the primary materials used for crimped wire mesh?

The mesh is available in stainless steel, Manganese steel (65Mn), low carbon steel, copper, and Titanium wire, depending on the application requirements.

What are the different weave techniques available?

Common techniques include lock-crimped, inter-crimped, double-crimped, flat top crimped, and multi-crimped weave.

In which industries is crimped wire mesh most commonly used?

It is widely used in mining for screening, food processing (barbeque mesh), decorative architecture, pig raising, and industrial safety covers.

Can the specifications of the mesh be customized?

Yes, the wire diameter (from 0.5mm to 20mm) and hole sizes (from 1mm to 100mm) can be customized to suit specific project needs.

What are the key features of the flat top crimped method?

The flat top weave provides a smooth surface on one side, which is ideal for material flow or animal flooring, such as in pig raising.

Is the crimped wire mesh certified for international standards?

Yes, our products generally meet ASTM standards and carry ISO9001 and CE certifications for quality assurance.
