Military Security Mobile Razor Barbed Wire

1 / 5

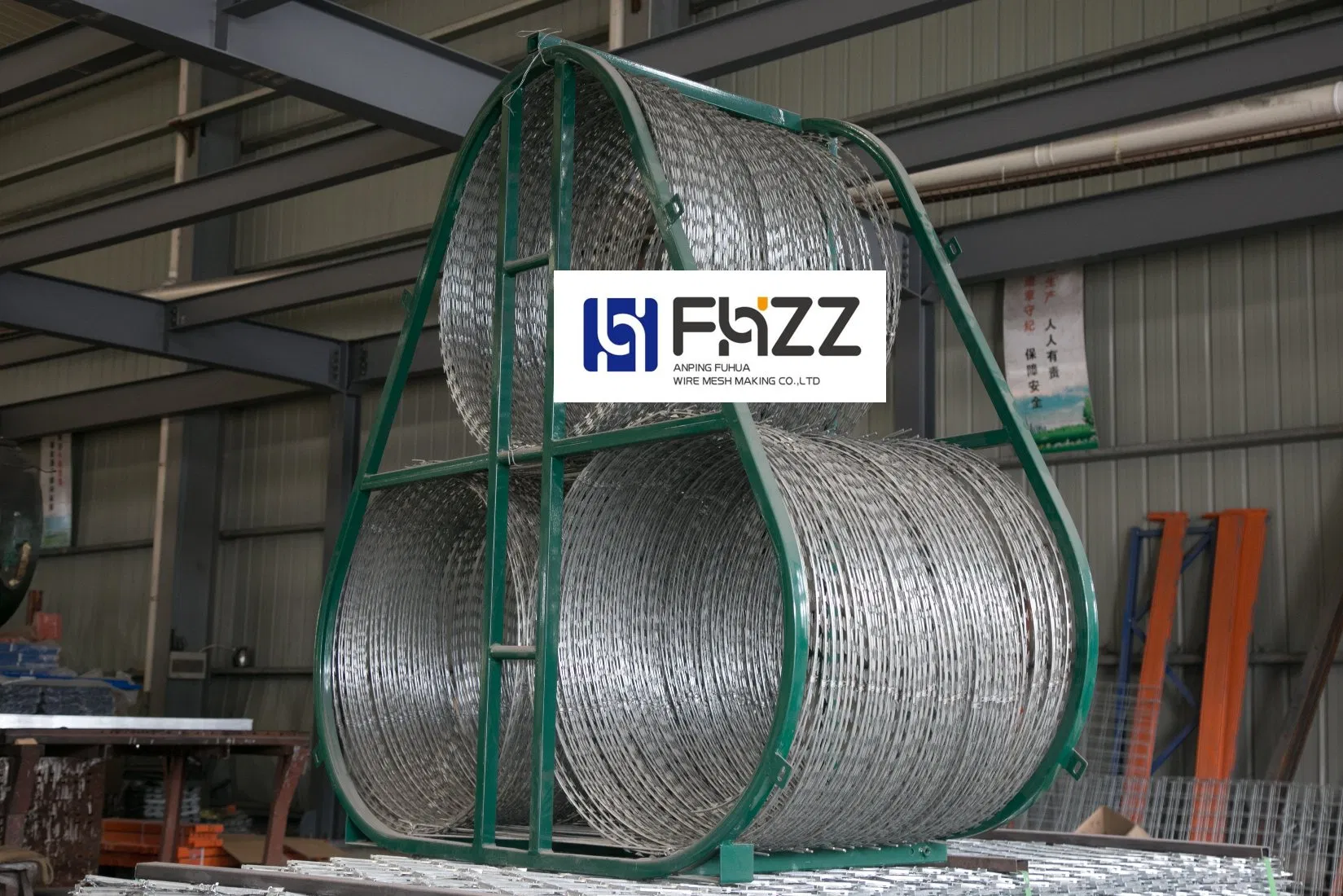

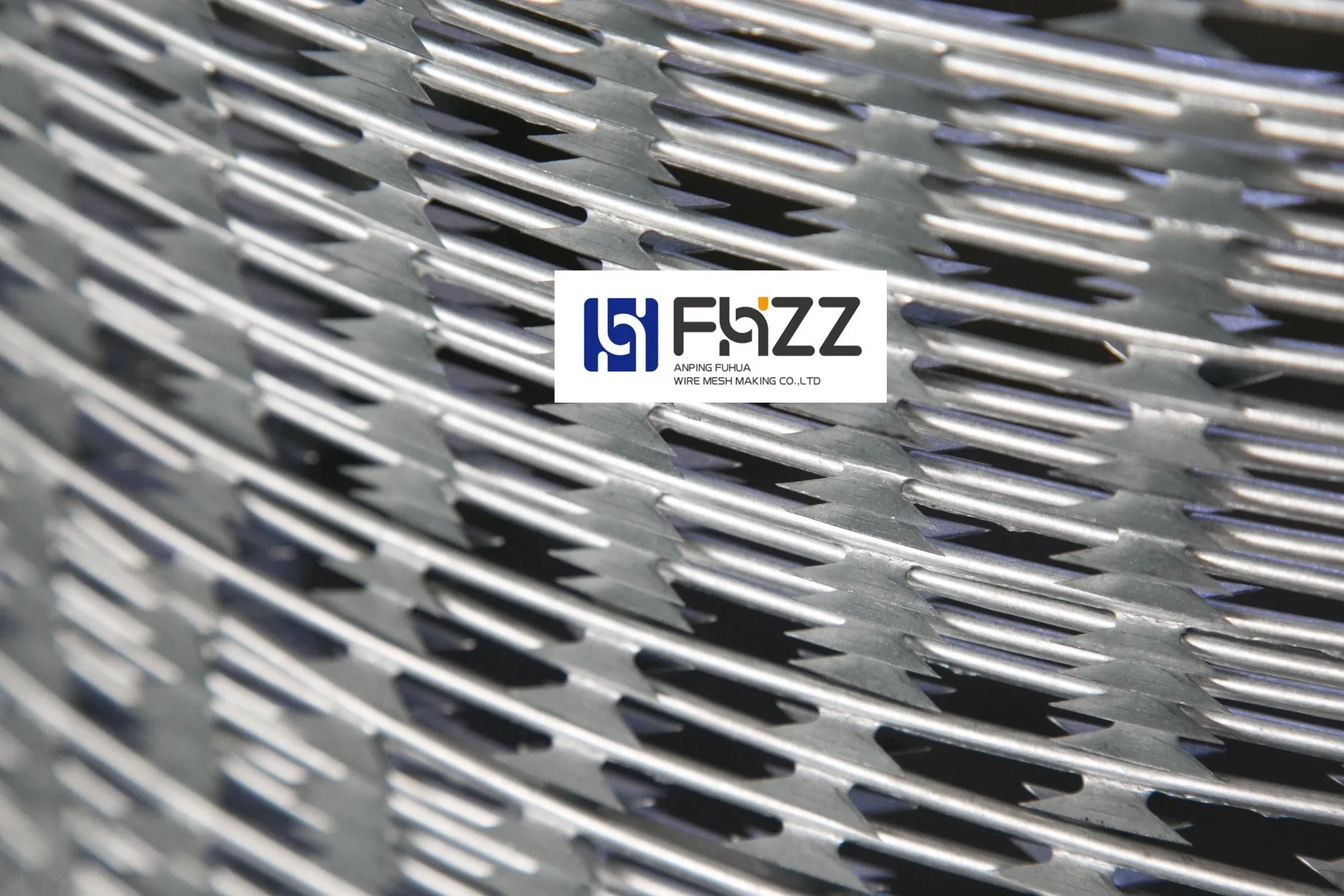

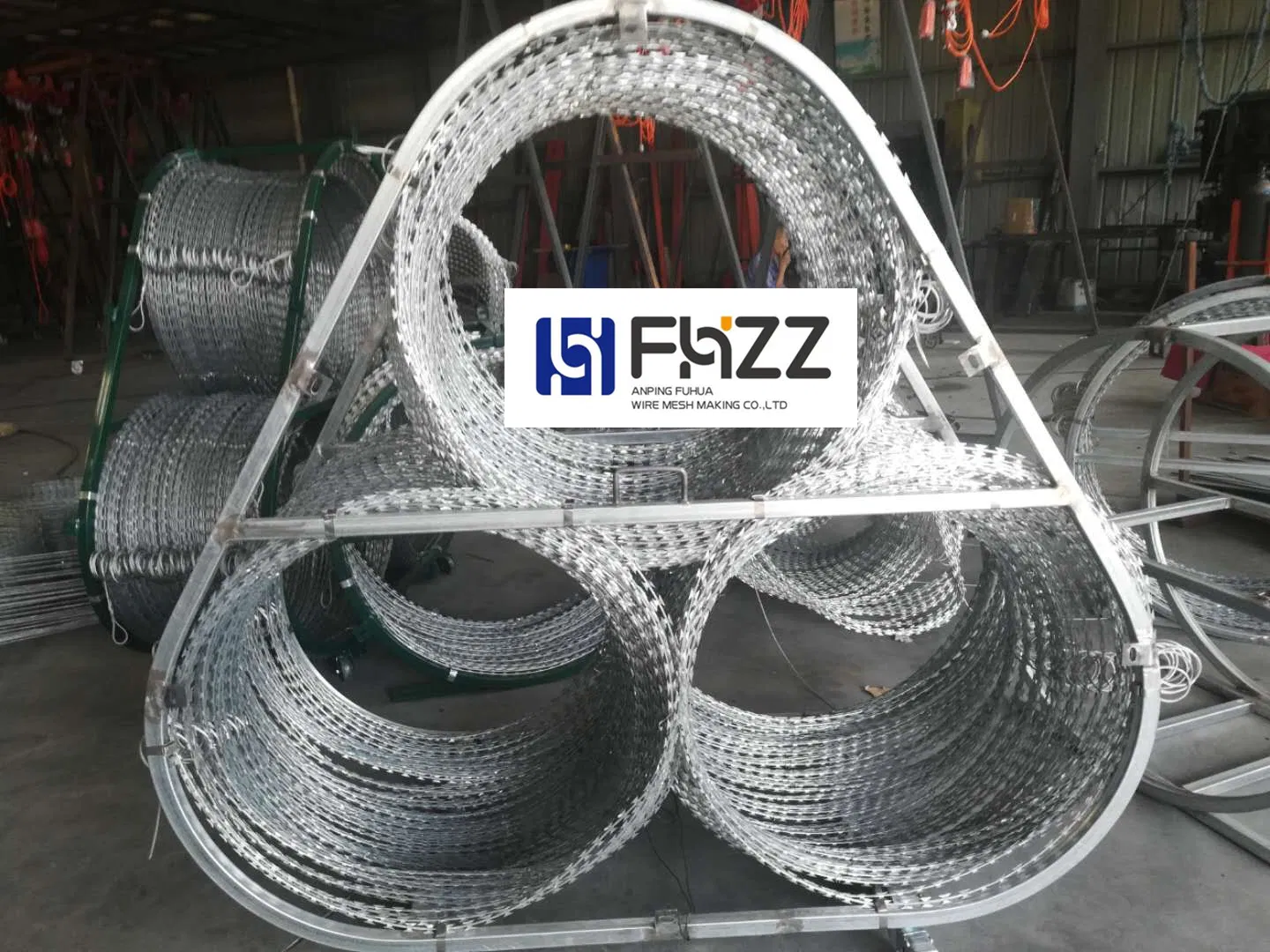

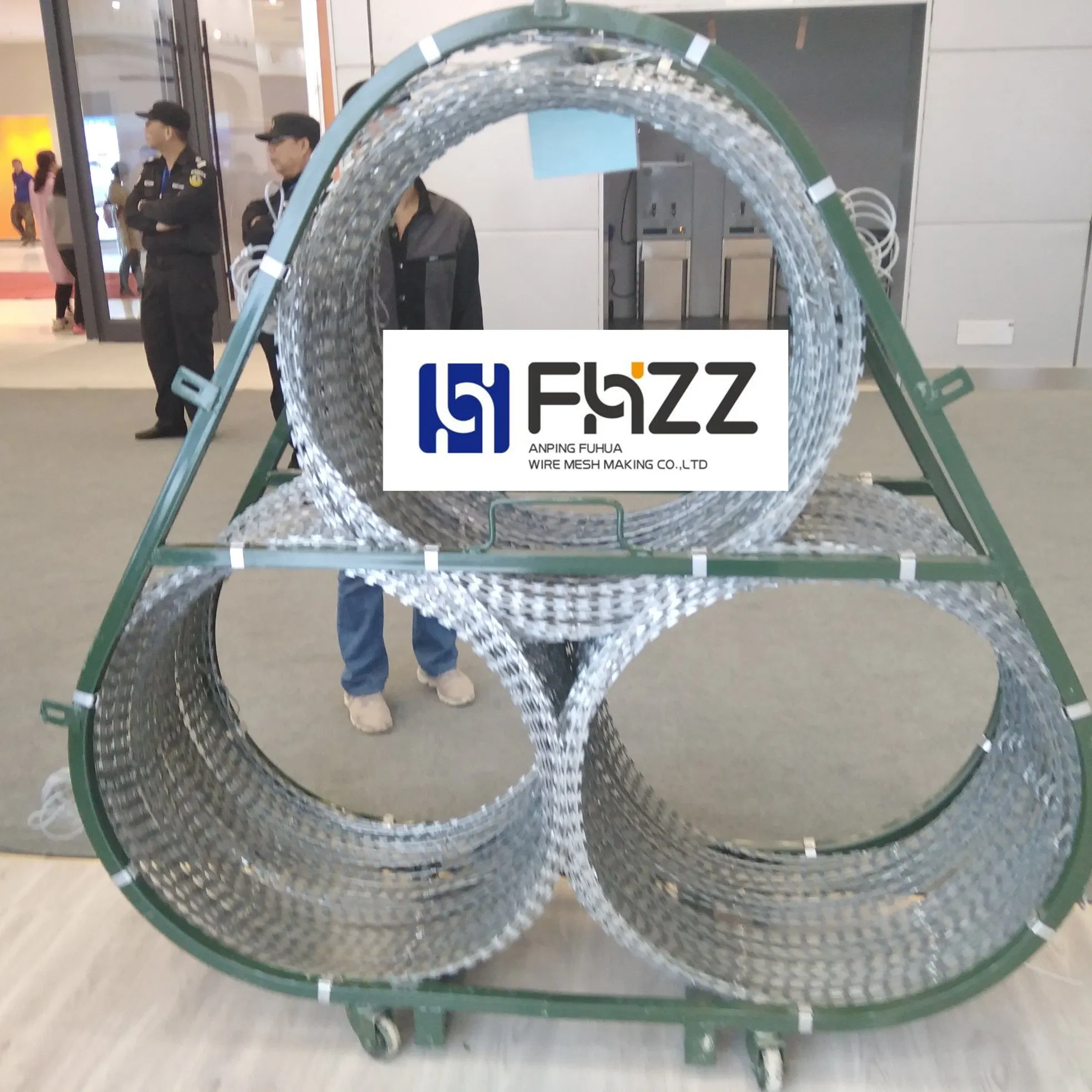

Military Security Mobile Razor Barbed Wire

Customization:	Available
Material:	Galvanized Steel Wire
Twist Method:	Corros Type

Send Inquiry

Product Description

Basic Info.

Application

Protecting Mesh, Fence Mesh

Finish

Hot Dipped Galvanized

Razor Barbed Type

Cross Razor

Wire Gauge

2.5mm

Barbed Distance

38mm

Barb Length

22mm

Coil Outside Diameter

450,500,600,700,800,900,960mm

Color

Bright Color

Thickness

0.5+/-0.5mm

Transport Package

Weave Bag

Specification

BTO18 BTO22, BTO28, CBT65

HS Code

73130000

Production Capacity

100 Tons/Month

Product Description

Specifications & Materials

Material: Hot-dip galvanized sheet and wire or Stainless steel sheet and wire (AISI 430 and AISI 304)

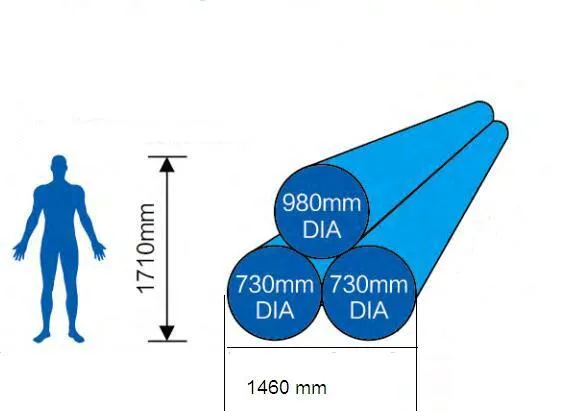

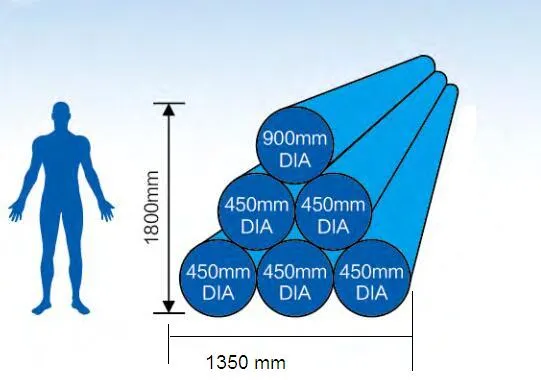

Height of Barricades: 1m, 1.6m, 1.7m, 1.8m
Distance between loops: 20 cm, 30 cm

Key Features

Strong protective capabilities
Excellent intimidation ability
Easy to install
Long service life

Usages

Widely used in military fields, prisons, detention houses, government buildings, and other national security facilities.

Model	Thickness	Wire dia	Barb Length	Barbed Width	Barb Spacing
BTO-10	0.5+/-0.05 mm	2.5+/-0.1mm	10+/-1mm	13+/-1mm	26+/-1mm
BTO-12	0.5+/-0.05 mm	2.5+/-0.1mm	12+/-1mm	15+/-1mm	26+/-1mm
BTO-18	0.5+/-0.05 mm	2.5+/-0.1mm	18+/-1mm	15+/-1mm	38+/-1mm
BTO-22	0.5+/-0.05 mm	2.5+/-0.1mm	22+/-1mm	15+/-1mm	38+/-1mm
BTO-28	0.5+/-0.05 mm	2.5+/-0.1mm	28+/-1mm	15+/-1mm	53+/-1mm
BTO-30	0.5+/-0.05 mm	2.5+/-0.1mm	30+/-1mm	21+/-1mm	54+/-1mm
CBT-60	0.6+/-0.05 mm	2.5+/-0.1mm	60+/-2mm	32+/-1mm	102+/-1mm
CBT-65	0.3+/-0.05 mm	2.5+/-0.1mm	65+/-2mm	21+/-1mm	102+/-1mm

Outside diameter	No. of loops	Effective length	Type	Notes
450 mm	33	7 - 8 M	CBT 60.65	Single coil
500 mm	56	12 - 13 M	CBT 60.65	Single coil
700 mm	56	13 - 14 M	CBT 60.65	Single coil
960 mm	56	14 - 15 M	CBT 60.65	Single coil
450 mm	56	8 - 9 M	BTO-10..30	Cross type
600 mm	56	10 - 11 M	BTO-10..30	Cross type
800 mm	56	11 - 13 M	BTO-10..30	Cross type
980 mm	56	14 - 16 M	BTO-10..30	Cross type

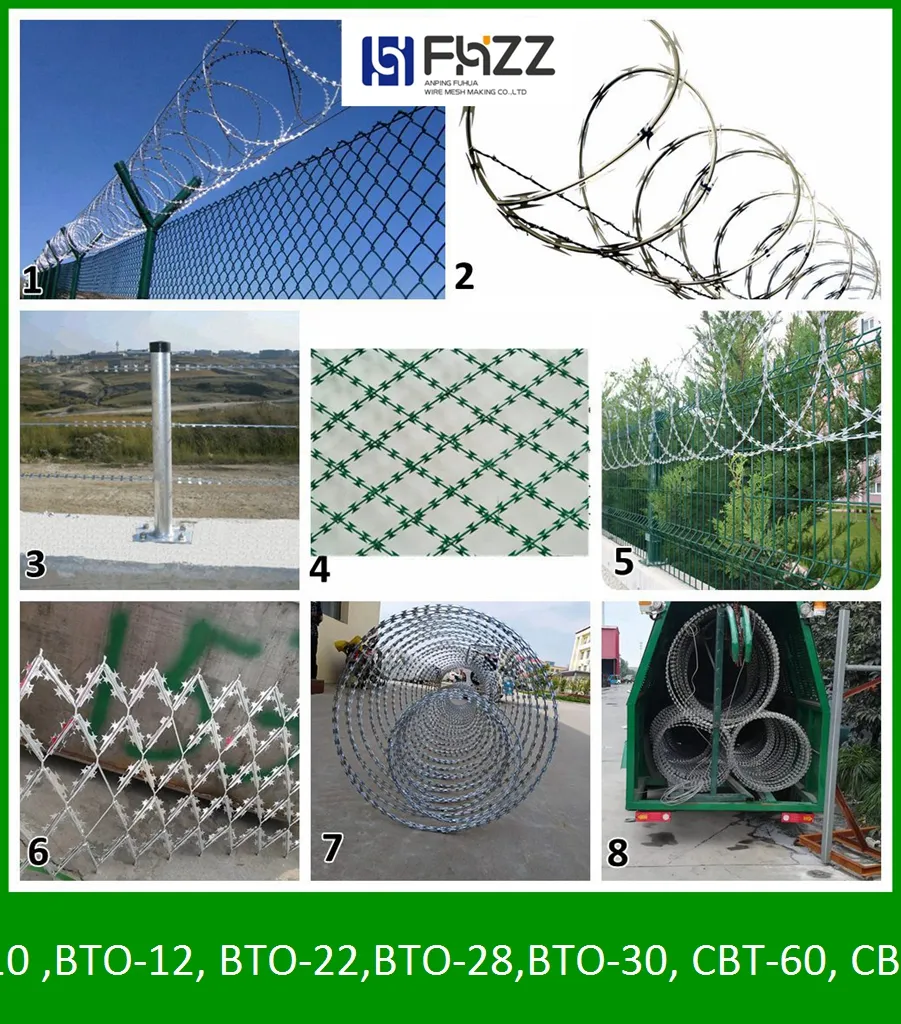

PRODUCTION OVERVIEW

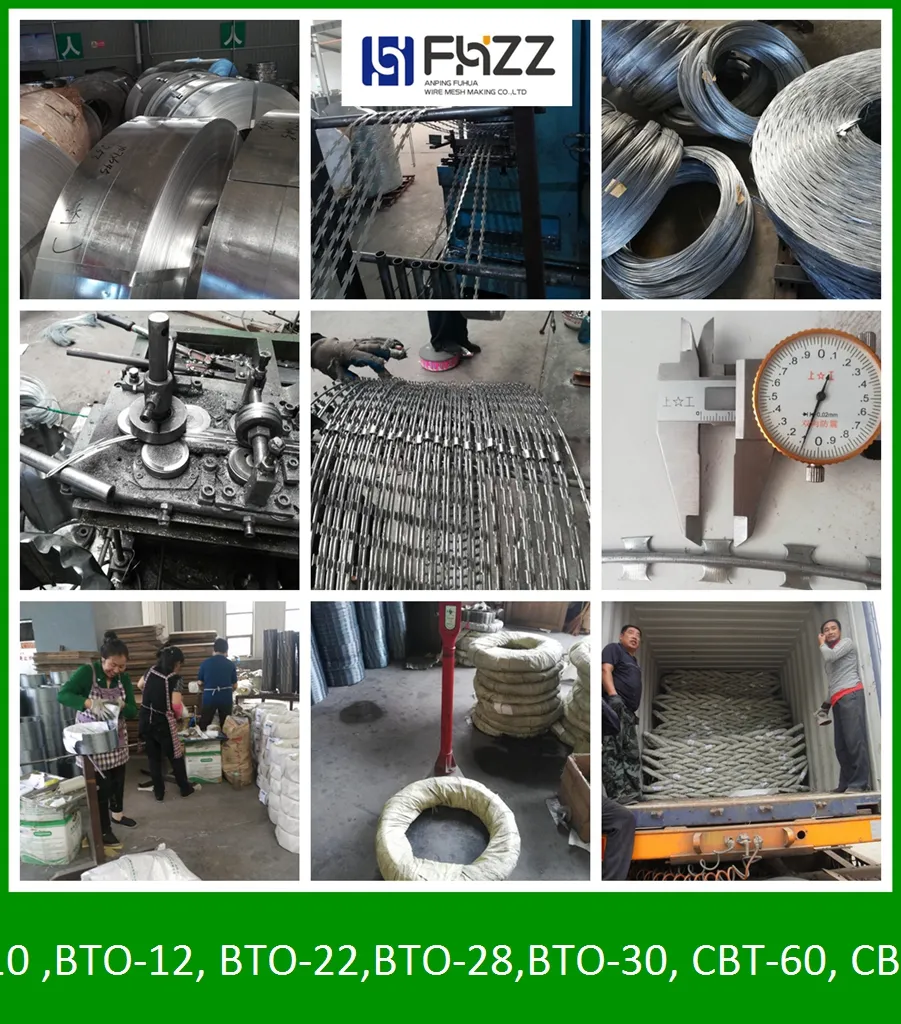

PRODUCTION PROCESS

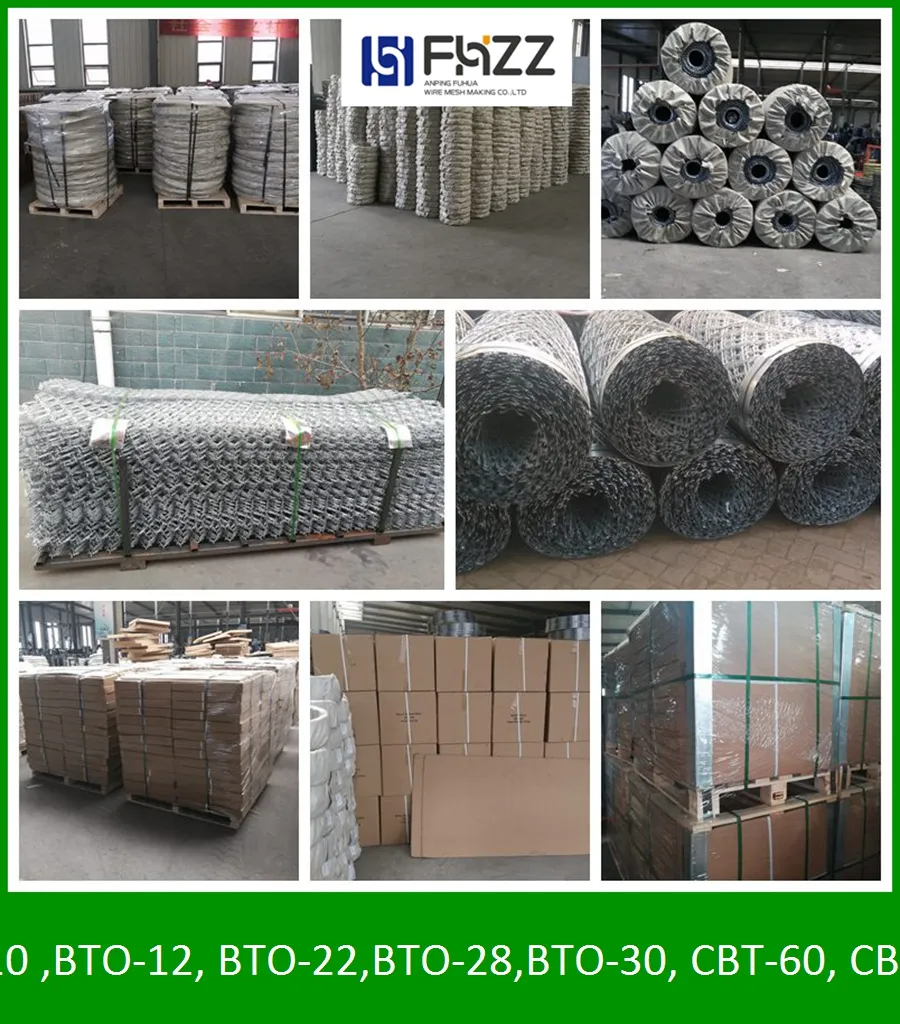

PRODUCTION PACKAGE

LOADING CONTAINERS

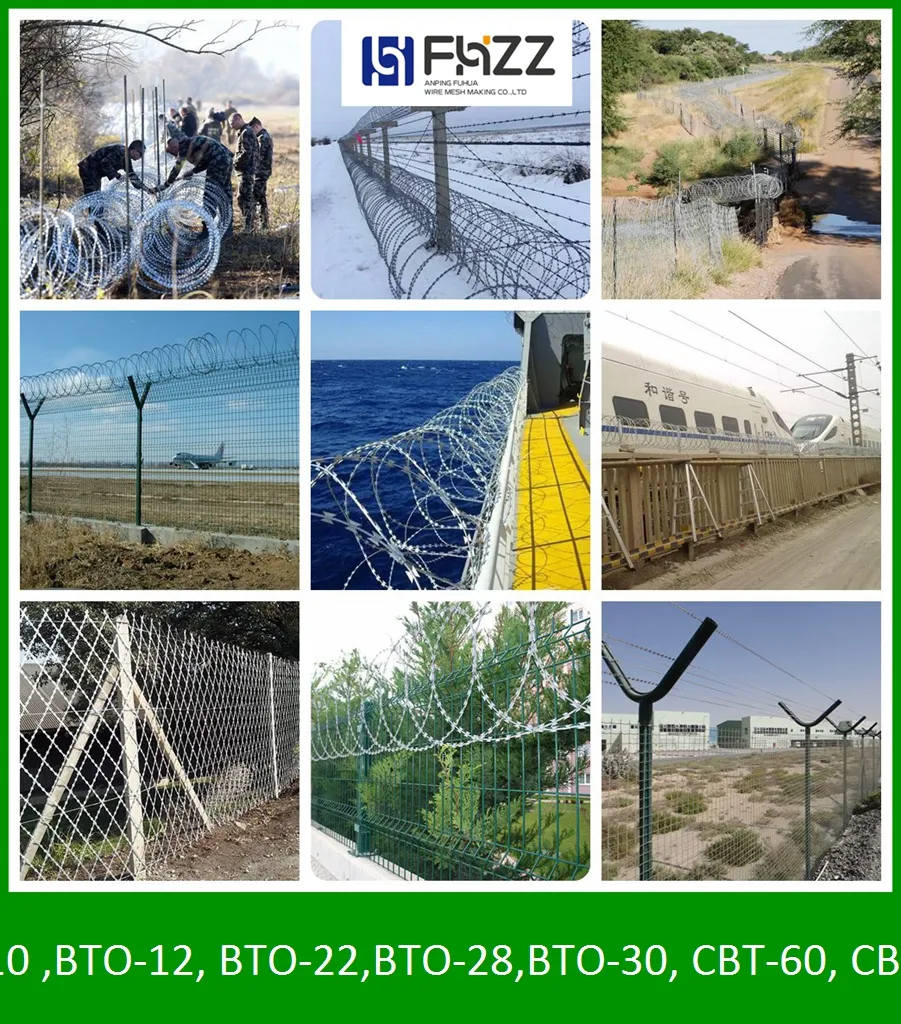

PRODUCTION APPLICATION

Frequently Asked Questions

What materials are used for the razor barbed wire?

Our razor barbed wire is manufactured using high-quality hot-dip galvanized sheet and wire, or stainless steel sheet and wire (specifically AISI 430 and AISI 304 grades) for superior corrosion resistance.

What are the primary applications of this product?

It is widely utilized for high-security areas including military installations, prisons, detention centers, government buildings, and other national security facilities to prevent unauthorized access.

Can the specifications be customized?

Yes, all specifications including coil diameter, barb length, and packaging can be custom-designed to meet specific customer requirements and security needs.

What is the difference between Single Coil and Cross Type?

Single coil consists of a single loop of razor wire, while the Cross Type (concertina) features loops clipped together at intervals, creating a more dense and difficult-to-penetrate barrier.

What is the production capacity for this razor wire?

Our facility has a stable production capacity of approximately 100 tons per month, ensuring timely delivery for large-scale security projects.

How is the product packaged for transport?

The razor wire is typically packed in durable weave bags to ensure safety during handling and protection from the elements during international shipping.
