Basic Information
Model NO.
MESH-FILTER-SERIES
Usage
Liquid, Air, Solid Filter, Oil and Power Filtration
Specification
100% Nylon or Polyester
Capacity
10,000,000 sqm/Month
Product Features
Nylon mesh exhibits exceptional characteristics including high toughness, high tensile strength, and low elongation. It offers excellent elasticity, corrosion resistance, and durability against oil, water, and wear. It is also designed to withstand high temperatures and various weather conditions while providing good insulation and low coefficient of lubrication.
🛡️
Durability
Wear & Corrosion Resistant
🌡️
Stability
High Temperature Resistance
💧
Versatility
Water & Oil Resistance
🏗️
Strength
High Tension & Toughness
Technical Specifications
Thread Diameter
35 - 550 micron
Mesh Opening
5 - 2000 micron
Thickness
60 - 1100 micron
| Model |
Mesh Count (/cm) |
Mesh Count (/inch) |
Thread Dia (μm) |
Opening (μm) |
Thickness (μm) |
Weight (g/m²) |
| NL4/1950 | 4 | 10 | 550 | 1950 | 1045 | 303 |
| NL6/1317 | 6 | 15 | 350 | 1317 | 665 | 184 |
| NL10/750 | 10 | 25 | 250 | 750 | 475 | 156 |
| NL20/350 | 20 | 50 | 150 | 350 | 285 | 113 |
| NL40/150 | 40 | 100 | 100 | 150 | 190 | 100 |
| NL80/75 | 80 | 200 | 50 | 75 | 95 | 50 |
| NL120/48 | 120 | 300 | 35 | 48 | 67 | 37 |
| NL240/5 | 240 | 600 | 39 | 5 | 74 | 91 |
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Outer Pack
Export Cartons

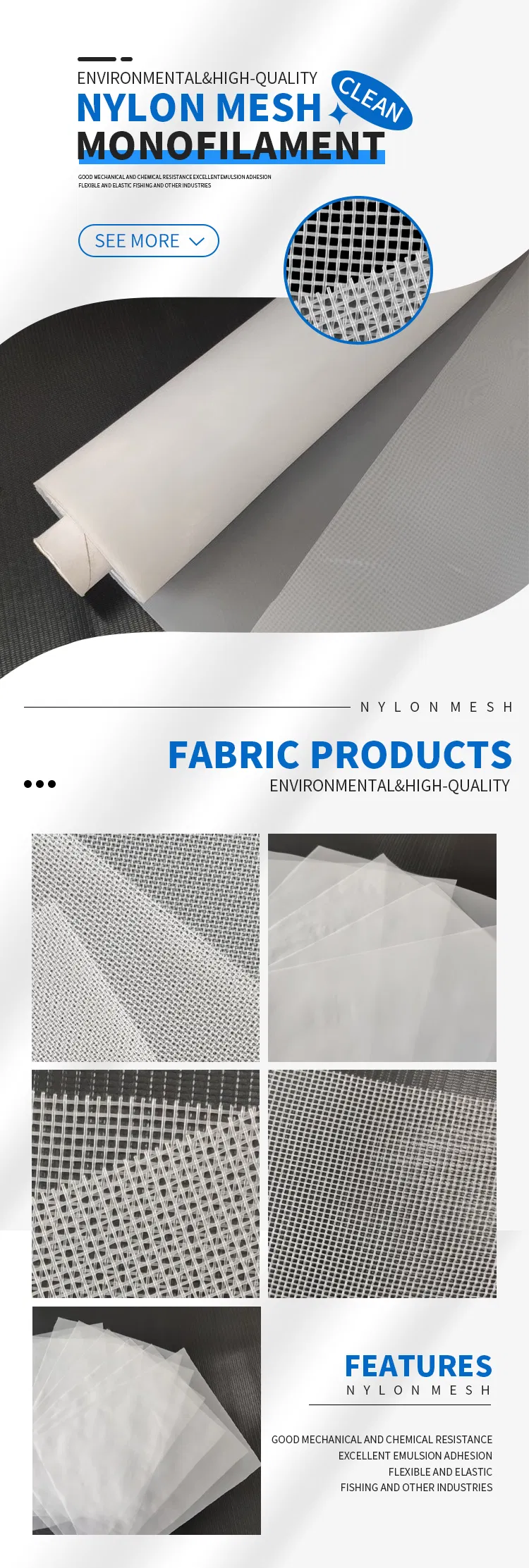

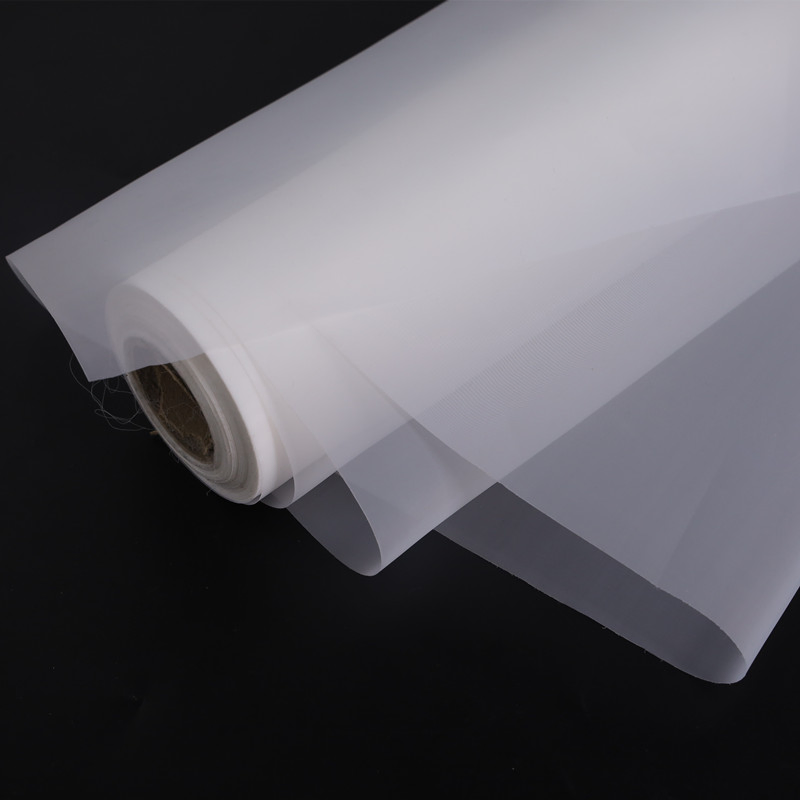

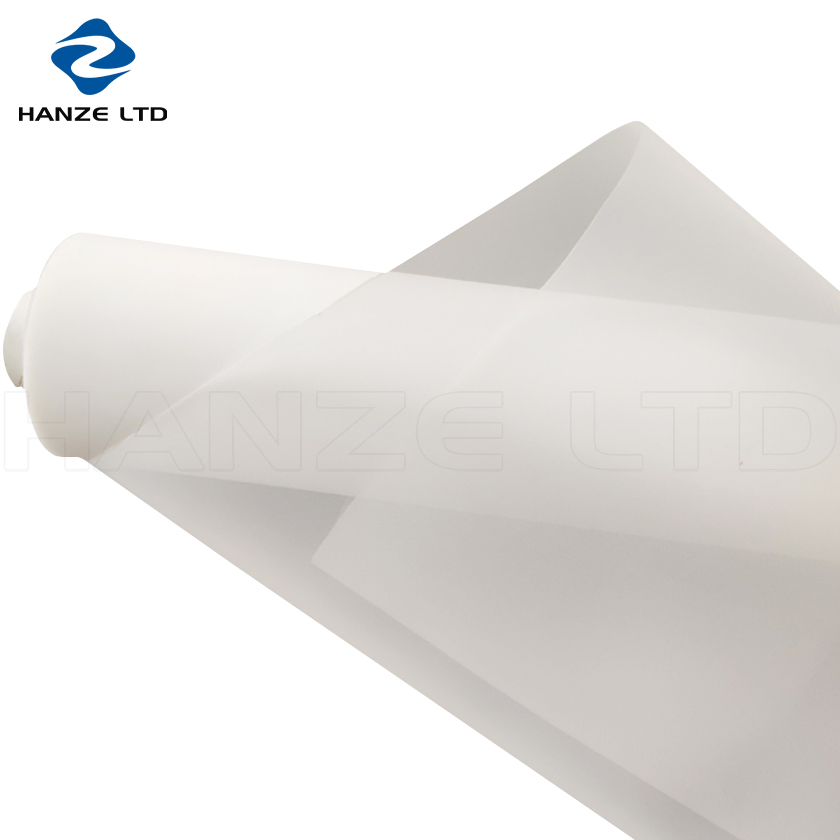

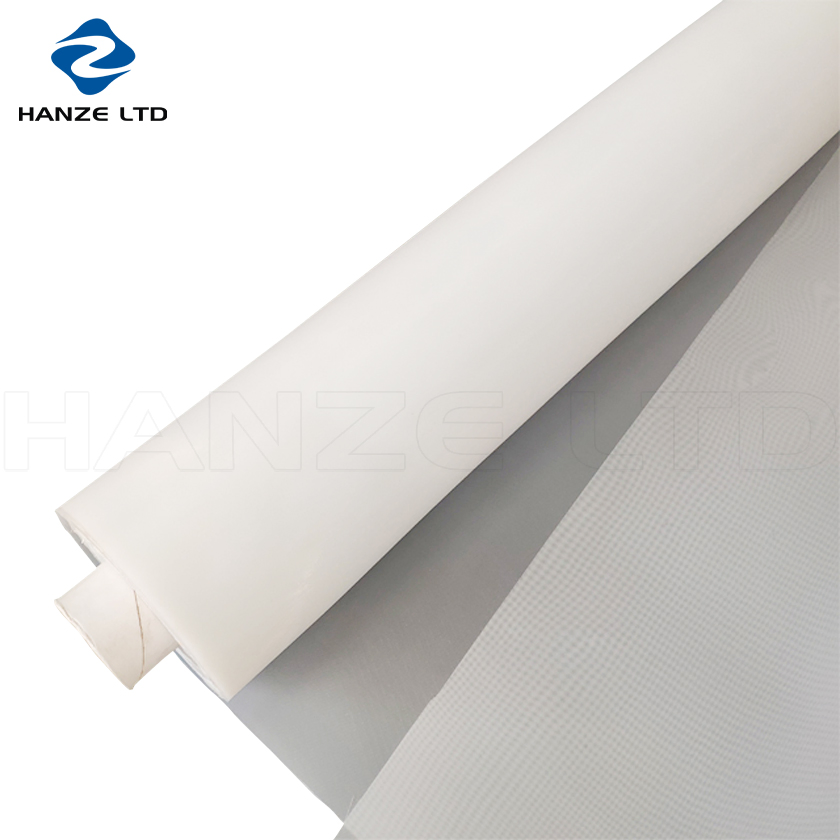

Product Display
Frequently Asked Questions
What material is used for the filter mesh?
The filter mesh is made from 100% Nylon monofilament, known for its high toughness and tension strength.
What are the main applications of this mesh?
It is widely used for liquid, air, and solid filtration, specifically in industries such as oil, power, and food beverage shops.

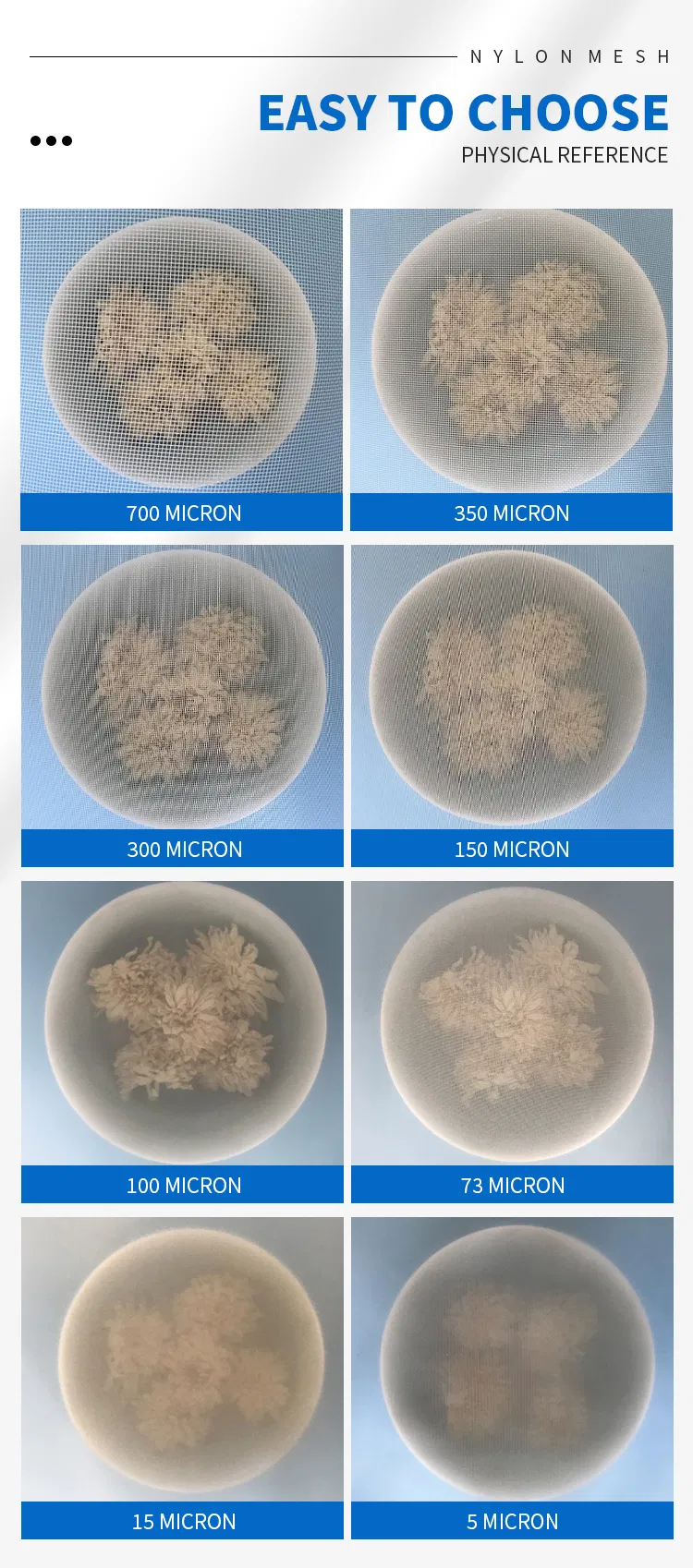

How fine can the mesh openings be?
We offer a wide range of openings from 5 microns up to 2000 microns to suit various filtration needs.
Does the mesh have chemical resistance?
Yes, nylon mesh provides excellent corrosion resistance and oil resistance, making it suitable for industrial environments.

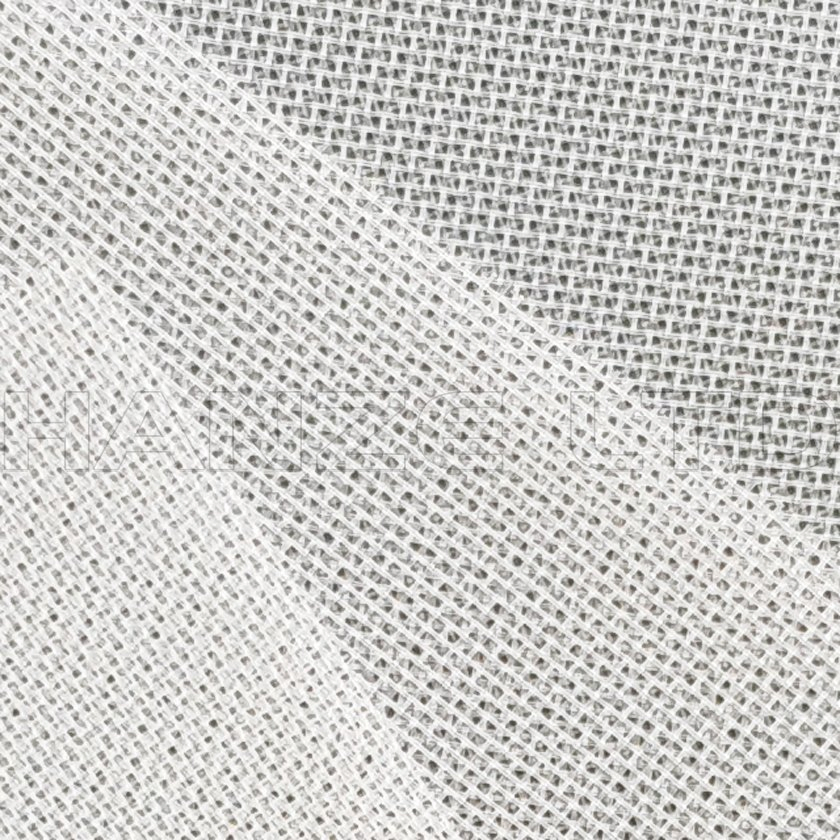

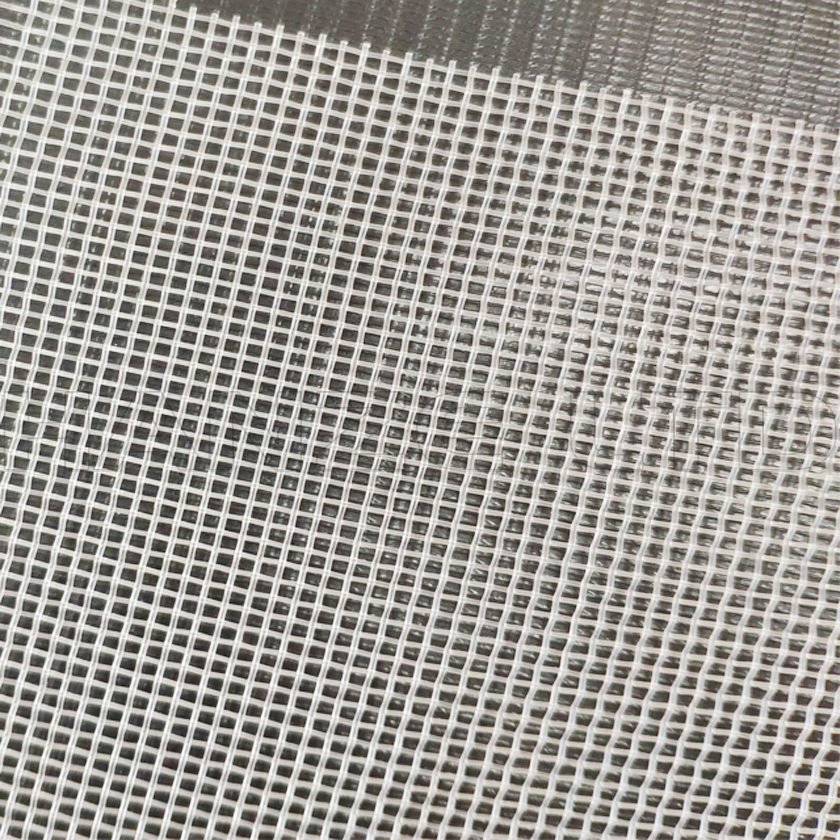

What is the standard weave type?
The standard construction is a plain weave, which ensures consistent square hole shapes and structural integrity.
How is the product packaged for export?
The products are typically packed in PVC bags first and then placed into sturdy export cartons to ensure safety during transport.
