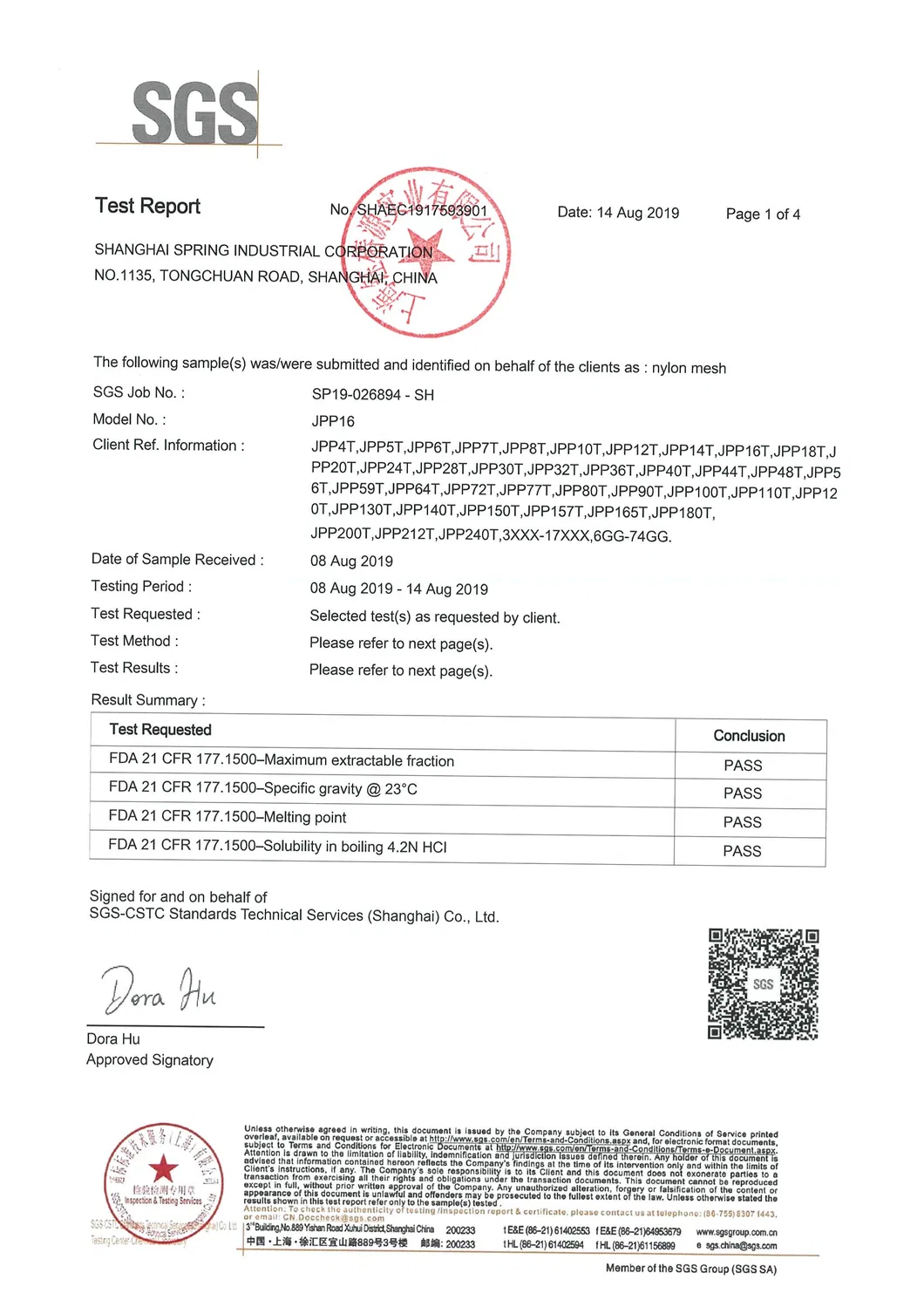

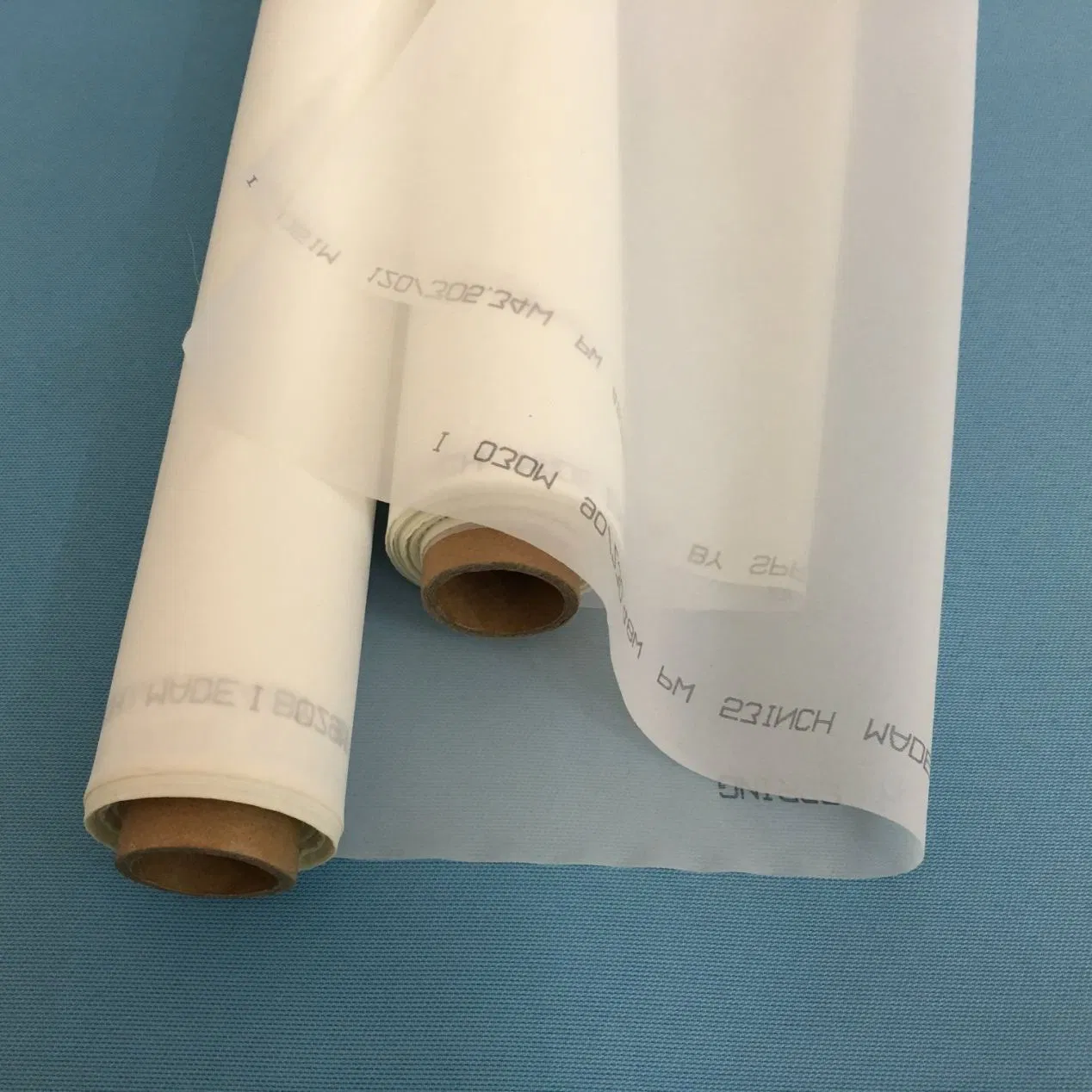

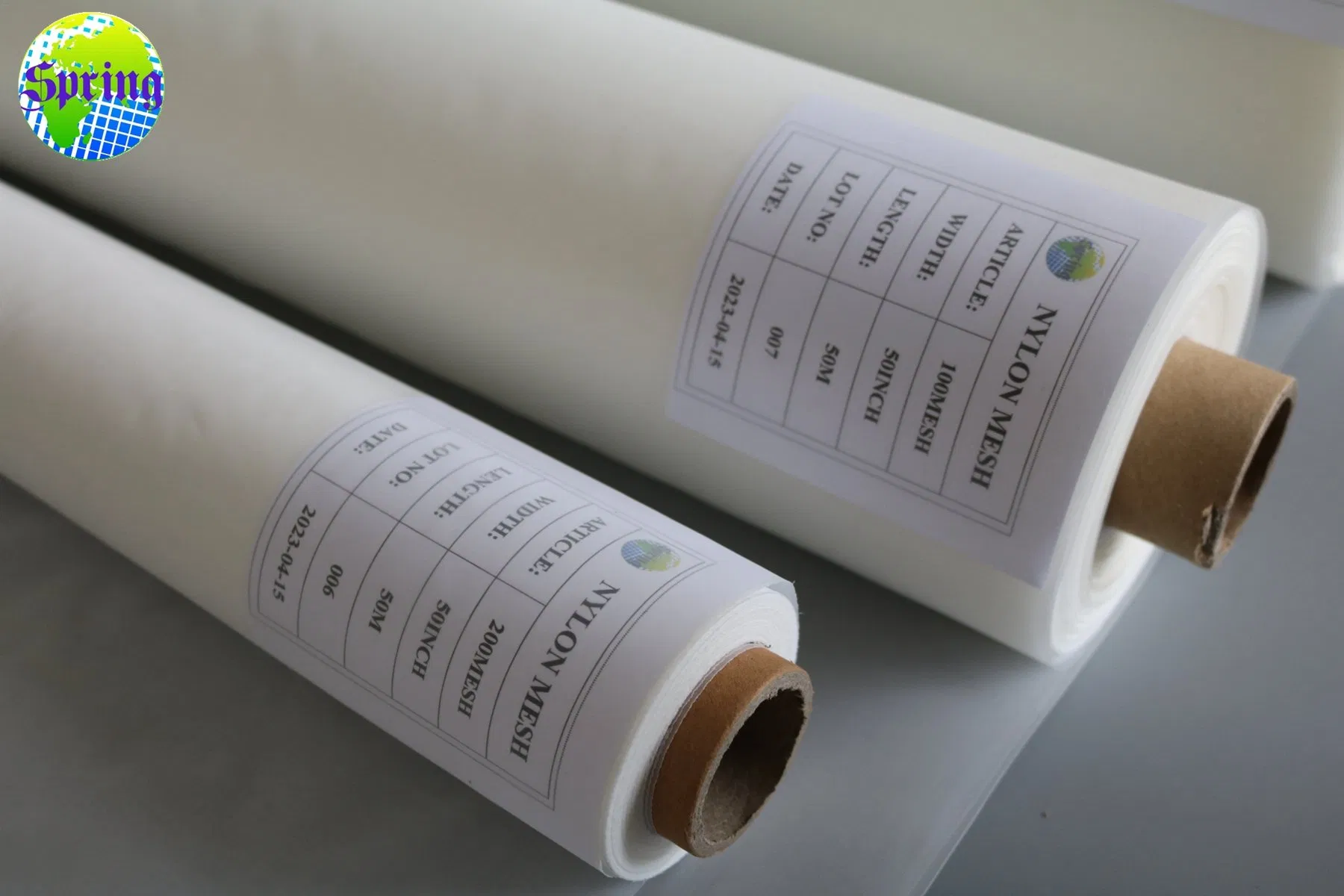

50GG mesh flour sieve / FDA Approval 10GG-74GG Nylon Mesh for Flour Milling Process Filtration
This flour mesh sieve features high extraction and quality that meets FDA standards. The mesh opening can reach 80 microns, making it ideal for ultra-fine flour milling. Available materials include nylon, polyester, and stainless steel, with standard widths of 127cm, 145cm, and 165cm, or customizable as per request. Suitable for soft wheat and rye.
It is widely used in flour milling machines to sieve wheat flour, corn flour, and grains. The fabric has been brushed, making it more flexible and thicker, with a dedusting efficiency reaching up to 99.99%.
| Type | Mesh Count (/inch) | Thread Diameter (um) | Mesh Opening (um) | Open Area (%) | Thickness (um) |
|---|---|---|---|---|---|
| PA-12GG | 11.4 | 400 | 1822 | 67 | 760 |
| PA-15GG | 14 | 400 | 1418 | 61 | 780 |
| PA-20GG | 19 | 300 | 1033 | 60 | 560 |
| PA-30GG | 28 | 250 | 659 | 53 | 480 |
| PA-45GG | 42.7 | 180 | 400 | 47 | 375 |
| PA-60GG | 58.4 | 150 | 285 | 43 | 280 |
| PA-74GG | 81.3 | 100 | 213 | 46 | 170 |
| Specification | Mesh Opening (um) | Thread Diameter (um) | Warp/weft (cm) | Open Area (%) |
|---|---|---|---|---|
| 3xx | 300 | 100+2*60 | 24.0/25.0 | 54 |
| 6xx | 214 | 90+2*60 | 32/34 | 49 |
| 9xx | 146 | 70+2*60 | 43/48 | 44 |
| 12xx | 112 | 60+2*50 | 55/63 | 40 |
| 15xx | 88 | 50+2*43 | 65/74 | 34 |
| 17xx | 80 | 50+2*43 | 68.0/81.0 | 35 |
