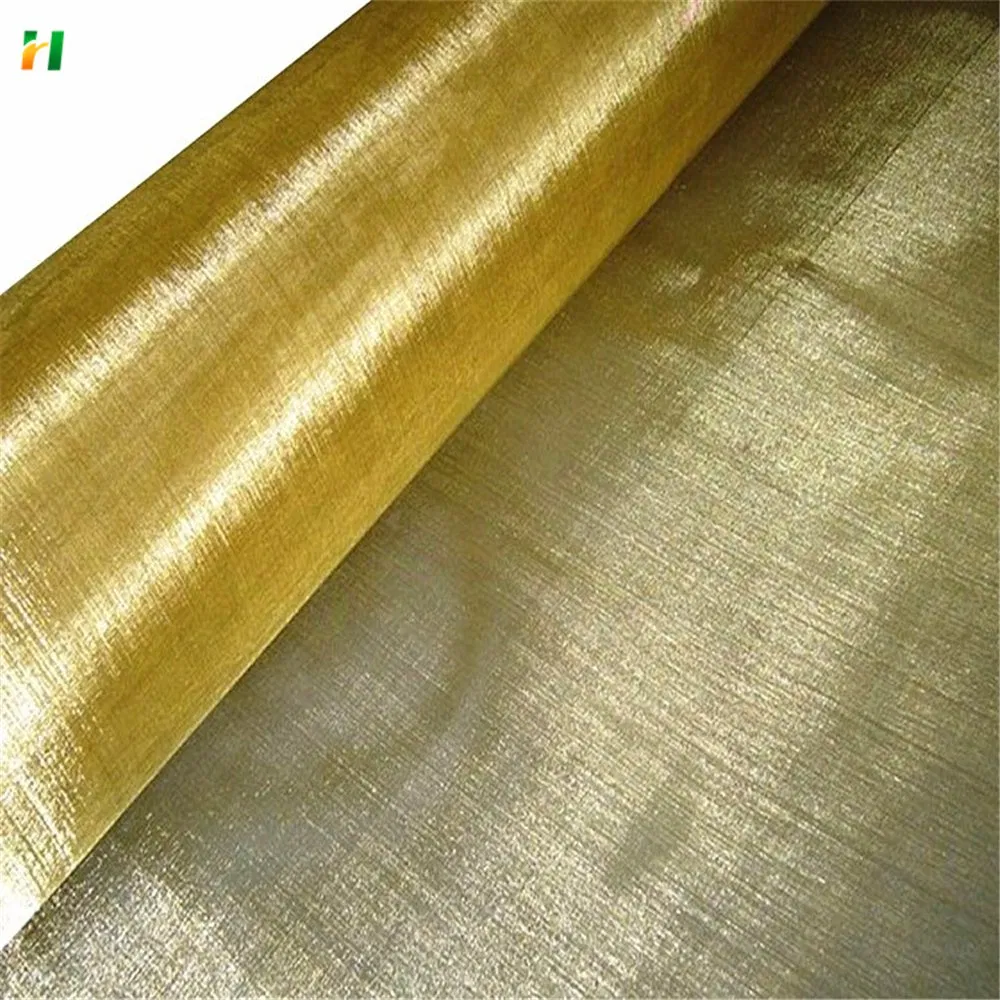

Phosphor Bronze Woven Wire Mesh Brass Wire Mesh Pure Copper Decorative Mesh Price
Phosphor Bronze Woven Wire Mesh Brass Wire Mesh Pure Copper Decorative Mesh Price
Phosphor Bronze Woven Wire Mesh Brass Wire Mesh Pure Copper Decorative Mesh Price
Phosphor Bronze Woven Wire Mesh Brass Wire Mesh Pure Copper Decorative Mesh Price
Phosphor Bronze Woven Wire Mesh Brass Wire Mesh Pure Copper Decorative Mesh Price
1 / 5
Phosphor Bronze Woven Wire Mesh Brass Wire Mesh Pure Copper Decorative Mesh Price
Phosphor Bronze Woven Wire Mesh Brass Wire Mesh Pure Copper Decorative Mesh Price
Phosphor Bronze Woven Wire Mesh Brass Wire Mesh Pure Copper Decorative Mesh Price
Phosphor Bronze Woven Wire Mesh Brass Wire Mesh Pure Copper Decorative Mesh Price
Phosphor Bronze Woven Wire Mesh Brass Wire Mesh Pure Copper Decorative Mesh Price

Phosphor Bronze Woven Wire Mesh Brass Wire Mesh Pure Copper Decorative Mesh Price

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
Cu
Type
Primary Filter
Woven Type
Plain, Twill or Dutch Weave
Mesh Range
6-200 mesh
Sample
Provide
Specification
1x30m
HS Code
7419994000
Capacity
3000 Rolls/Day
Brass & Copper Wire Mesh Introduction

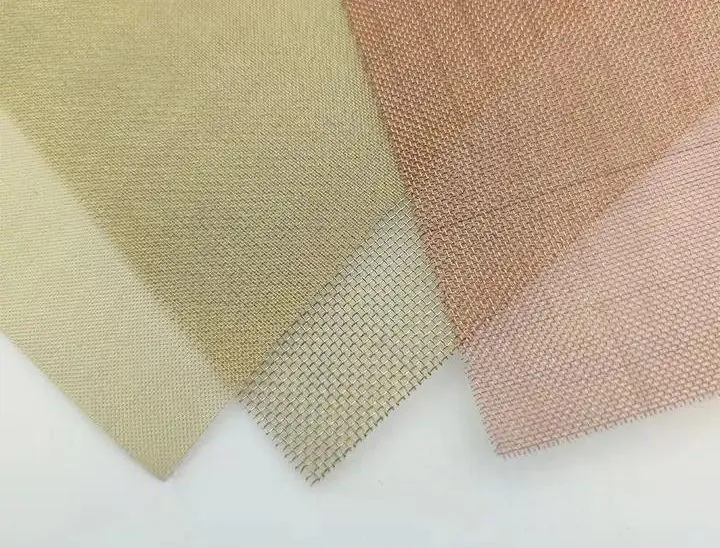

Brass Wire Mesh
Brass Wire Mesh is woven by copper wires in different warp and weft, usually with square holes. It is extensively used to screen particles, powder, porcelain clay, glass, and for porcelain printing. It is also an ideal material for filtering liquids and gases.
Technical Specifications

Material: Brass Wire & Copper Wire

Weaving Type: Plain, Twill Weave and Dutch Weave

Mesh Count: 6 mesh/inch - 200 mesh/inch

Key Features: Non-Magnetic, good ductility, wear resistance, fast heat transfer, good electrical conductivity, electron beam filtration.

Applications: Decorative wire mesh, Filter Mesh, paper printing, and chinaware printing.

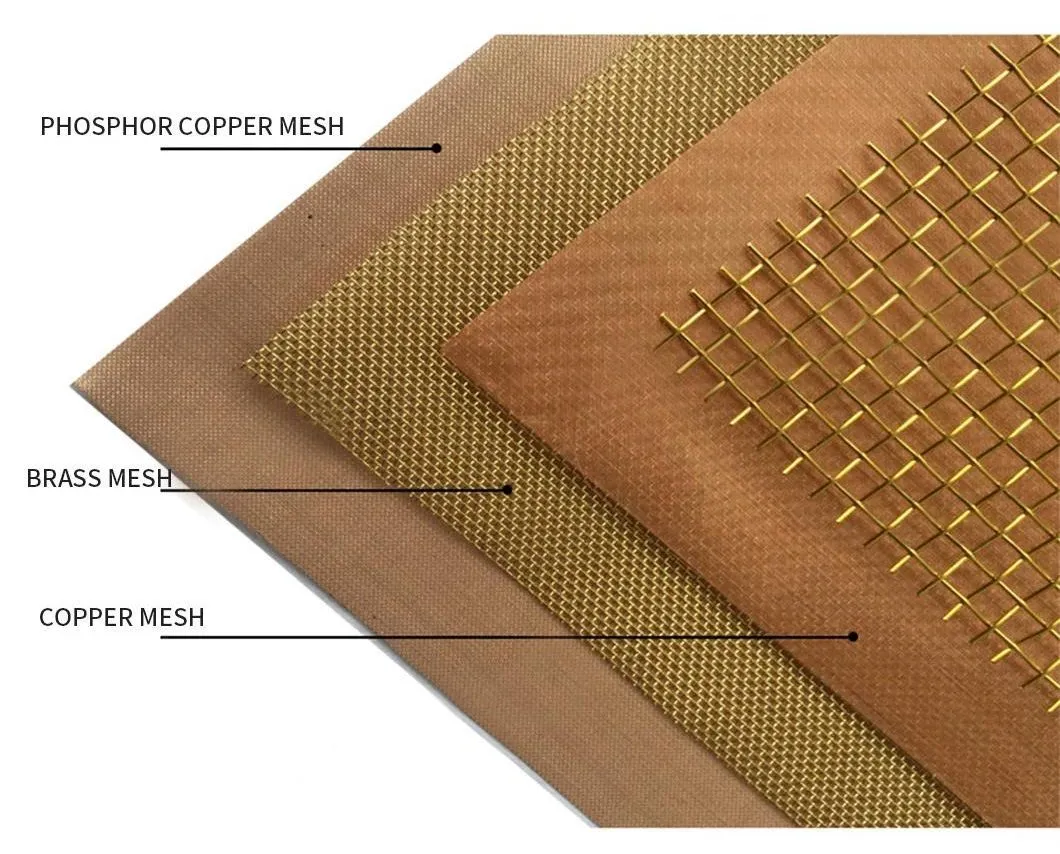

Mesh Specification Banner
Mesh Wire Dia. Opening (mm)
SWG mm inch
6 mesh220.7110.0283.522
8 mesh230.6100.0242.565
10 mesh250.5080.0202.032
12 mesh260.4570.0181.660
14 mesh270.4170.0161.397
16 mesh290.3450.0141.243
20 mesh300.3150.01240.955
30 mesh320.2470.0110.573
40 mesh360.1930.00760.442
50 mesh370.1730.00680.335
60 mesh370.1730.00680.250
80 mesh400.1220.00480.196
100 mesh420.0120.0040.152
200 mesh470.0510.0020.076
Various Brass Wire Mesh Products

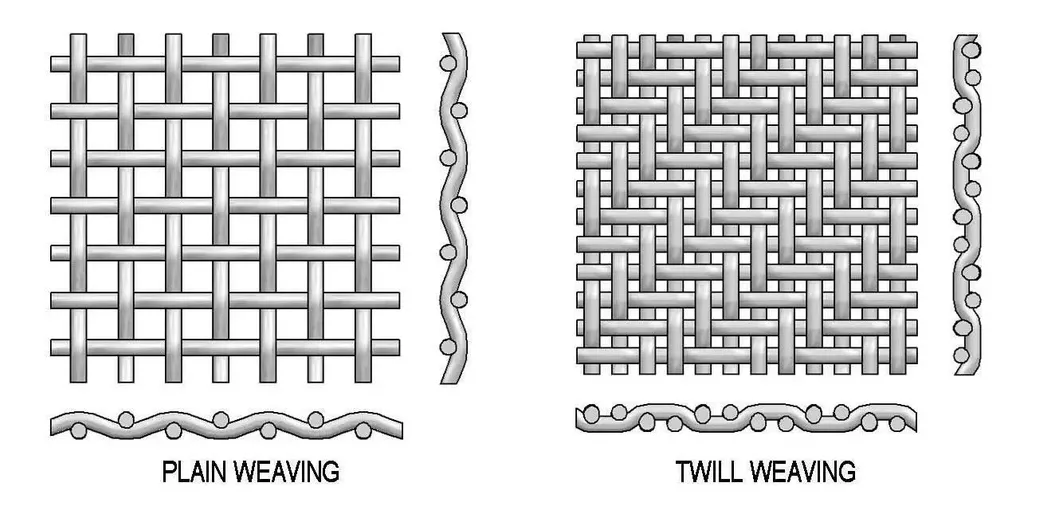

Mesh Details 1

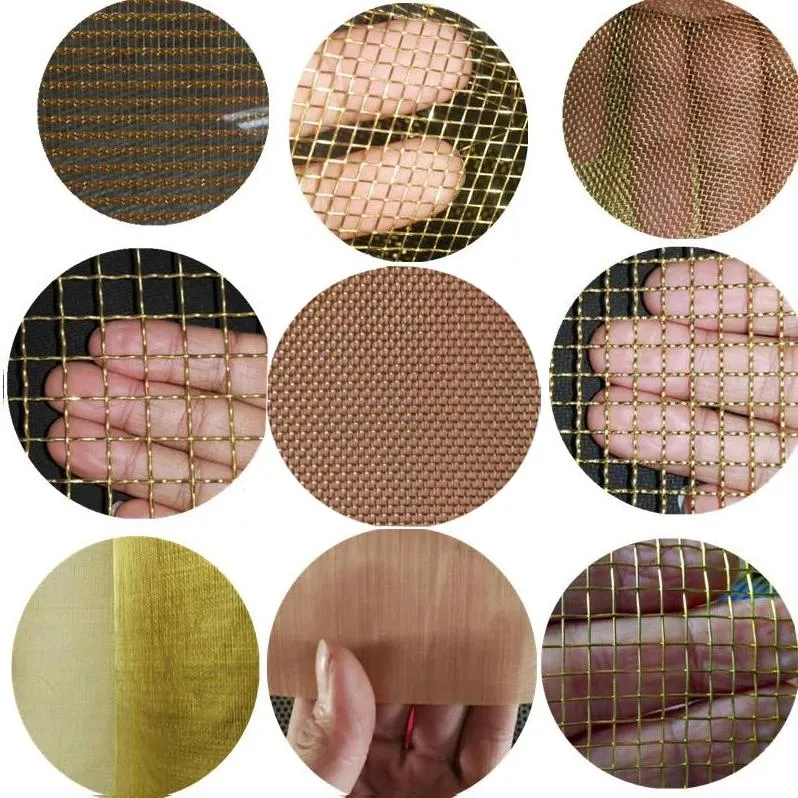

Mesh Details 2

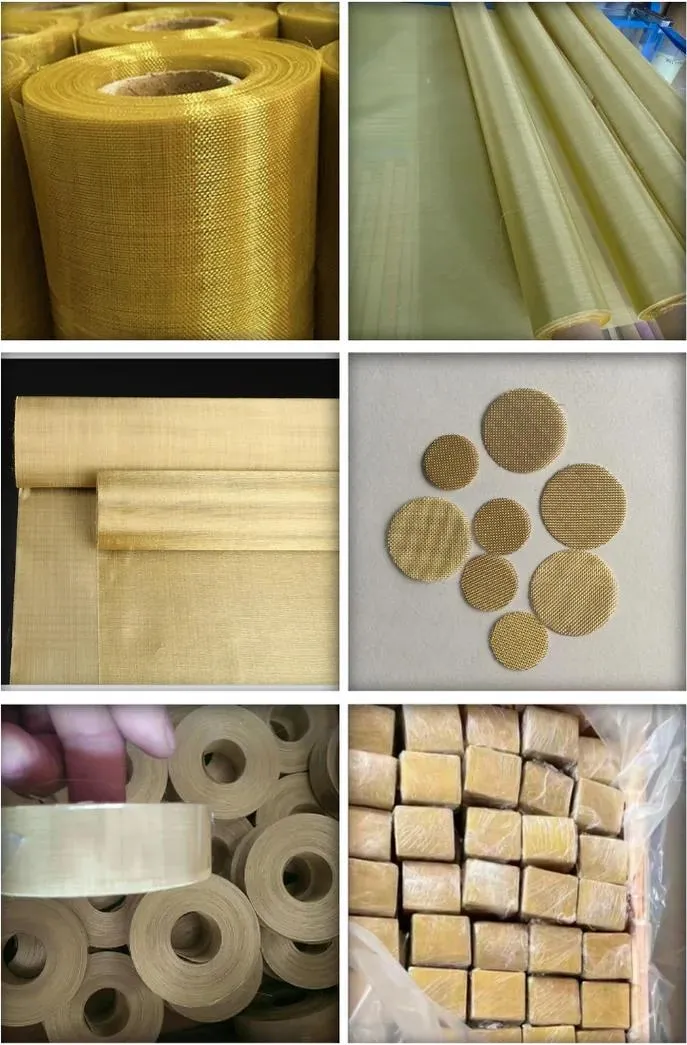

Mesh Gallery
Package and Delivery

Packaging: Brass Wire mesh rolls are typically packed in moisture-proof paper and woven bags, then secured in wooden boxes for export.

Delivery Time: Approximately 10-20 days after receipt of deposit, depending on the order quantity.

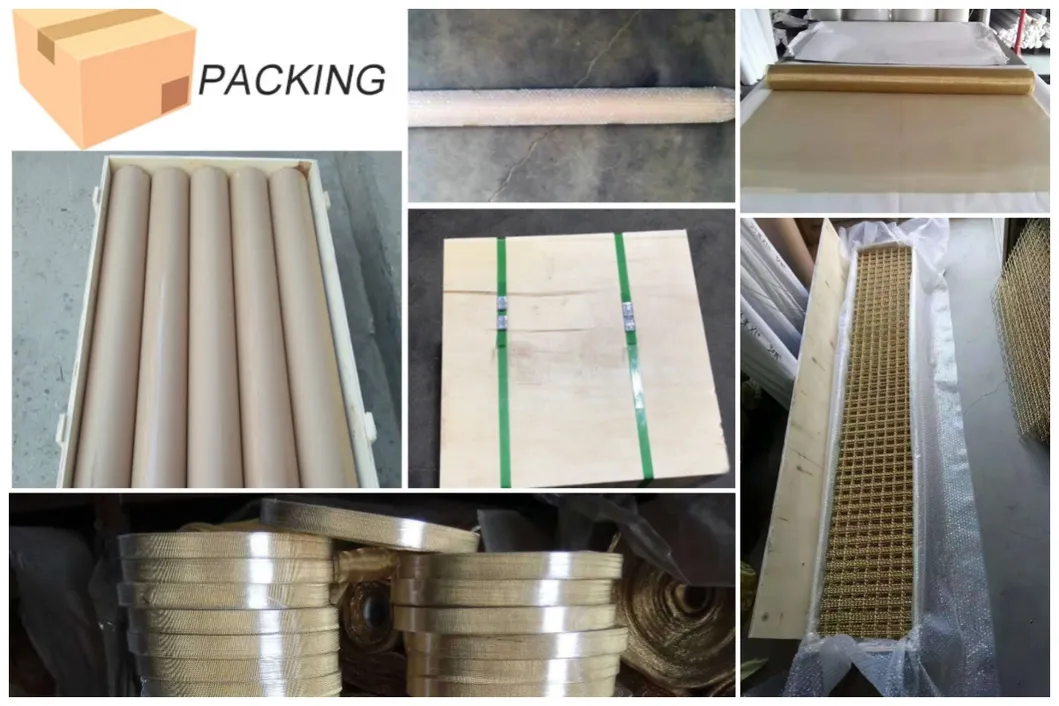

Packaging Process
Delivery Ready
Frequently Asked Questions
What materials are available for the wire mesh?
We offer high-quality Brass Wire and Copper Wire options suitable for various industrial and decorative needs.
What is the range of mesh counts you provide?
Our standard mesh count ranges from 6 mesh per inch up to 200 mesh per inch, catering to both coarse and fine filtration requirements.
Is the brass wire mesh magnetic?
No, our brass and copper wire meshes are non-magnetic and feature excellent ductility and electrical conductivity.
What are the common applications for this product?
Common applications include liquid and gas filtration, decorative mesh, particle screening, and specialized printing for porcelain and paper.
How is the wire mesh packaged for long-distance transport?
To prevent damage and moisture, rolls are wrapped in moisture-proof paper and woven bags, and then packed in sturdy wooden cases.
Do you offer customized specifications?
Yes, customized mesh sizes, wire diameters, and weaving types (Plain, Twill, or Dutch) are available upon request.
