Product Description

Basic Specifications
Model NO.
LS-PHBM426
Material Type
Phosphor Bronze / Brass Wire
Type
Woven Wire Mesh
Hole Size
10mesh to 250mesh
Mesh Width
0.9m to 2.0m
Technique
Plain Weave, Twill Weave
Certification
ISO9001
Production
10000 Meter/Day
Product Description

Phosphor Bronze Wire Mesh is a specialized copper alloy composed of 2% to 8% Tin (Sn), approximately 0.1% to 0.4% Phosphorous, with the balance being Copper. It is primarily utilized for high-precision woven wire mesh, EMI/RFI Shielding, and electrical components.

Its unique combination of fair electrical conductivity and low thermal conductivity makes it an ideal choice for electrical connections in devices operating at ultra-low temperatures, preventing excessive heat load.

◈ Corrosion Resistance: Excellent durability in various environments.
◈ High Tension & Flexibility: Superior mechanical strength and elasticity.
◈ Magnetism Resistant: Ideal for sensitive electronic applications.
◈ Wear & Tear Resistance: Long service life in heavy-duty filtration.
Technical Specifications
Mesh/Inch Wire Diameter (mm) Mesh Opening (mm) Opening Area (%) Weight (Kg/m²)
41.25.1565%3.25
514.0865%2.82
60.713.5269%1.7
80.72.4761%2.21
100.52.0465%1.41
200.251.0265%0.7
500.170.3344%0.81
1000.10.15437%0.56
2000.050.07737%0.28
4000.0250.03836%0.14
Product Display

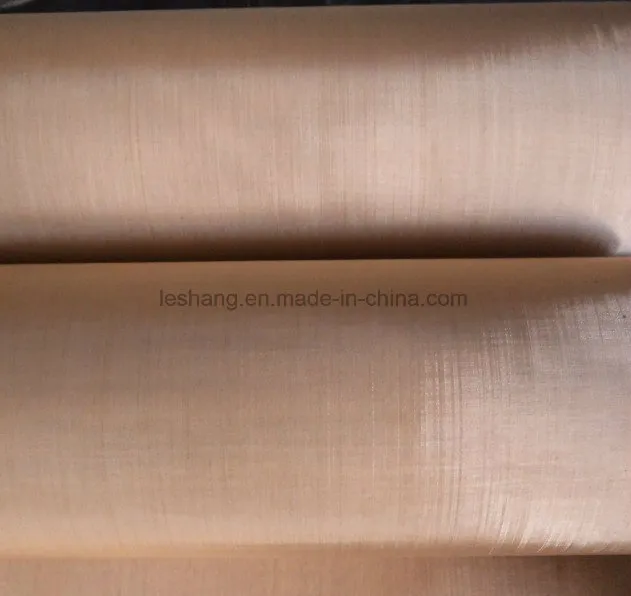

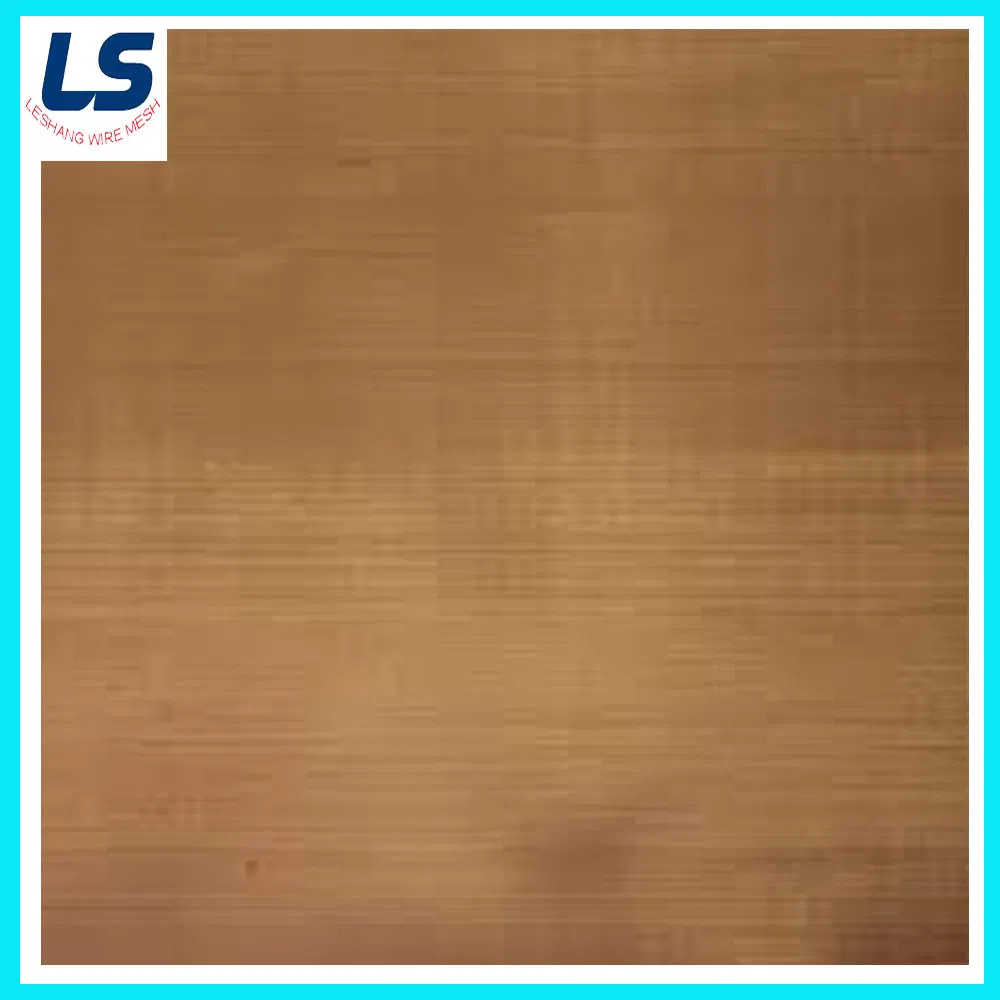

Phosphor Bronze Mesh

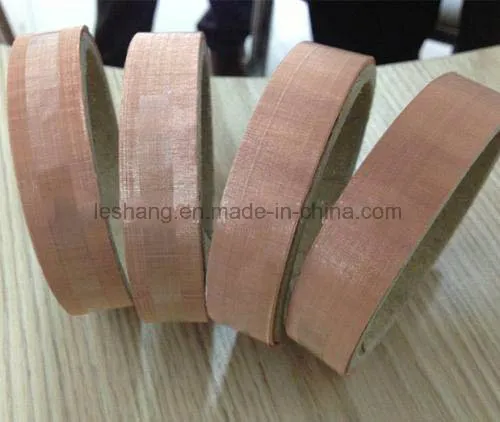

Copper Wire Mesh

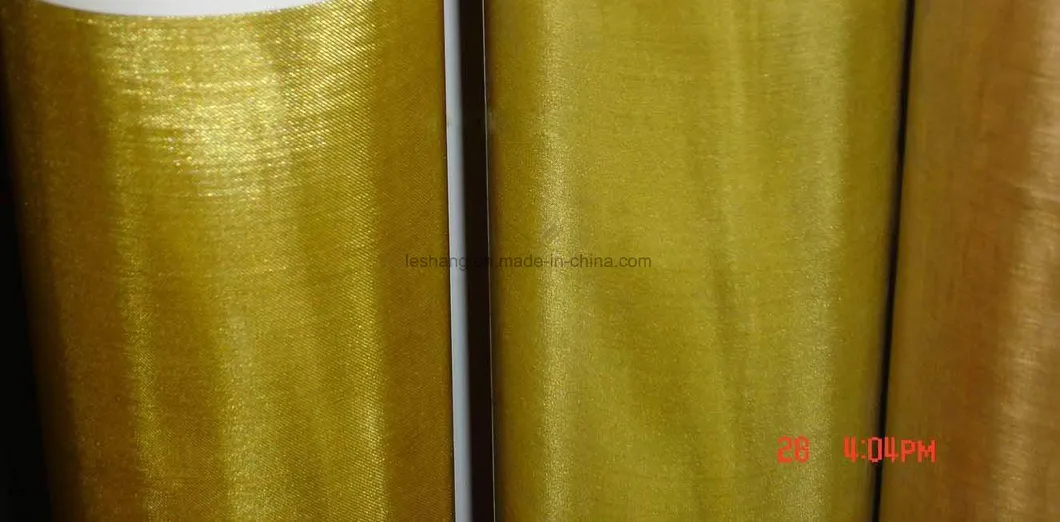

Filter Mesh

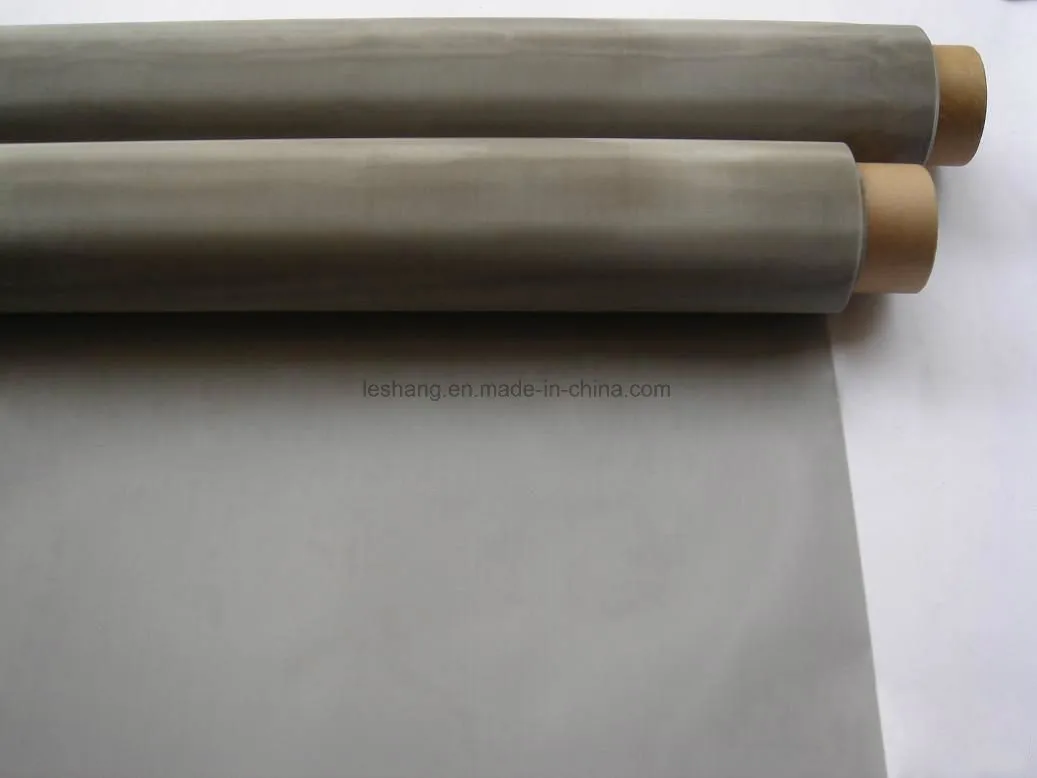

Phosphor Bronze Screen

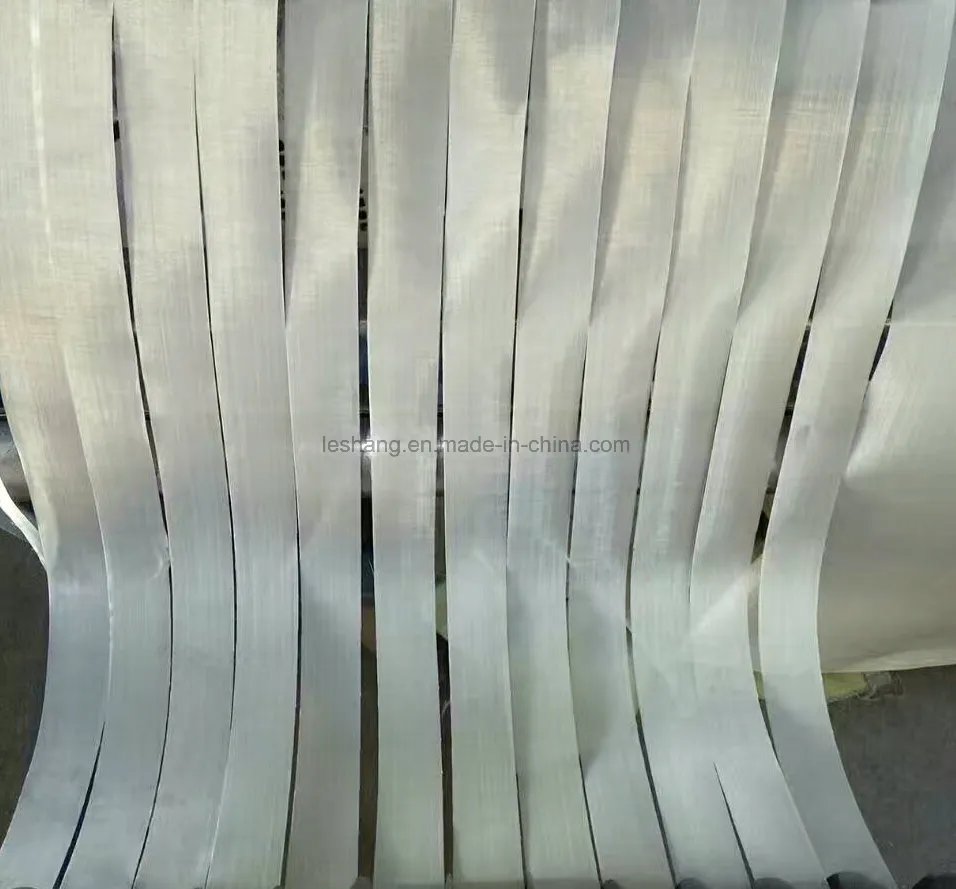

Woven Wire Cloth

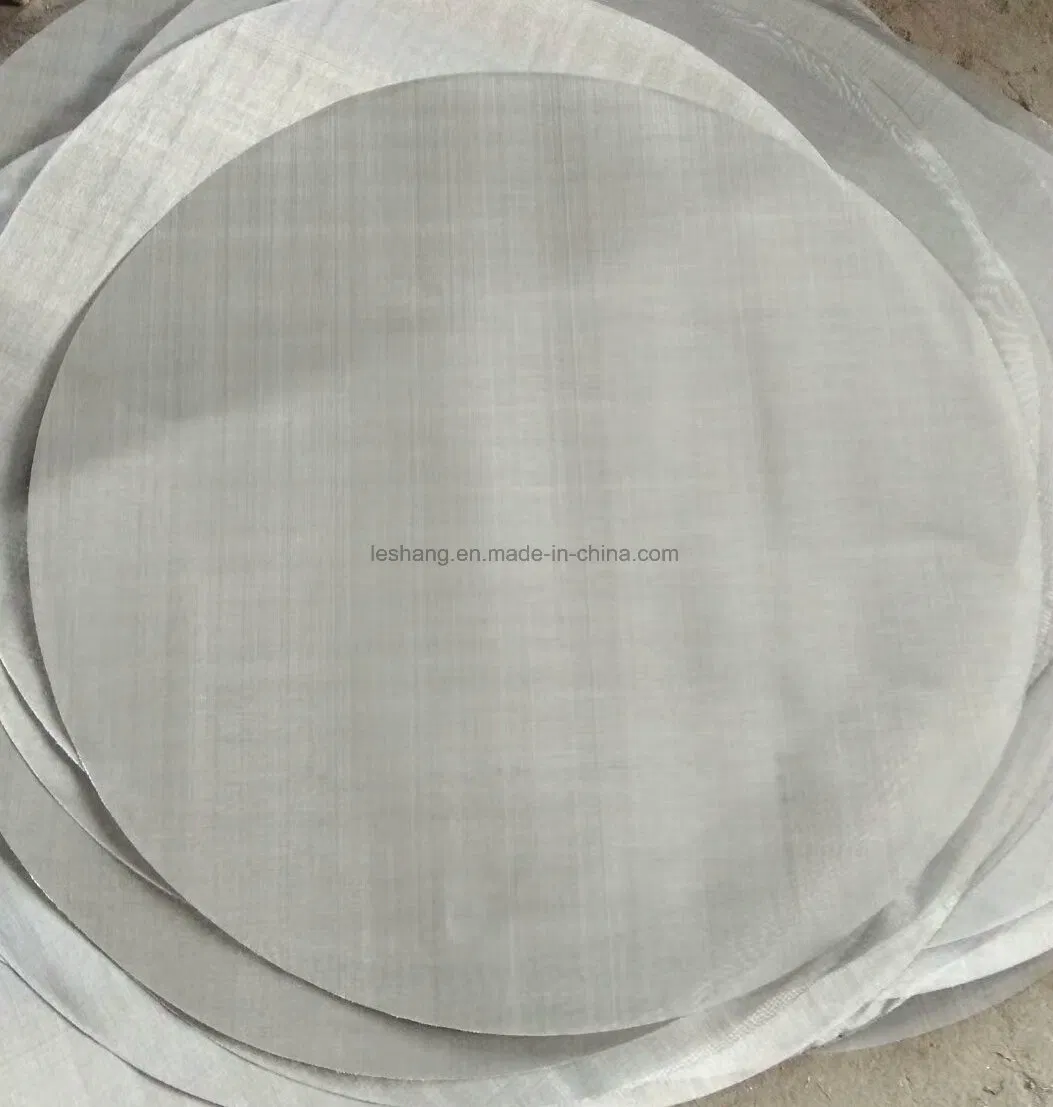

Industrial Filter Mesh
Frequently Asked Questions
1. What is the composition of Phosphor Bronze wire mesh?
Phosphor bronze is a copper alloy containing 2% to 8% tin and approximately 0.1% to 0.4% phosphorous, providing superior strength and corrosion resistance compared to standard copper.
2. What are the main applications for this mesh?
It is widely used for fine wire cloth filtration, EMI/RFI shielding, electrical products, and in industries such as construction, decorative mesh, and high-precision screening.
3. Why is it suitable for ultra-low temperature applications?
The mesh offers fair electrical conductivity combined with low thermal conductivity, allowing for reliable electrical connections without introducing excessive heat loads in cryogenic or low-temp environments.
4. Which weaving techniques are available?
We primarily offer Plain Weave and Twill Weave techniques to suit different filtration and strength requirements.
5. Can the mesh withstand corrosive environments?
Yes, one of the standout features of phosphor bronze is its excellent corrosion resistance, along with being wear and tear resistant.
6. What range of mesh sizes do you provide?
Our standard specifications range from 10 mesh to 250 mesh, with custom options available for specific industrial needs.
