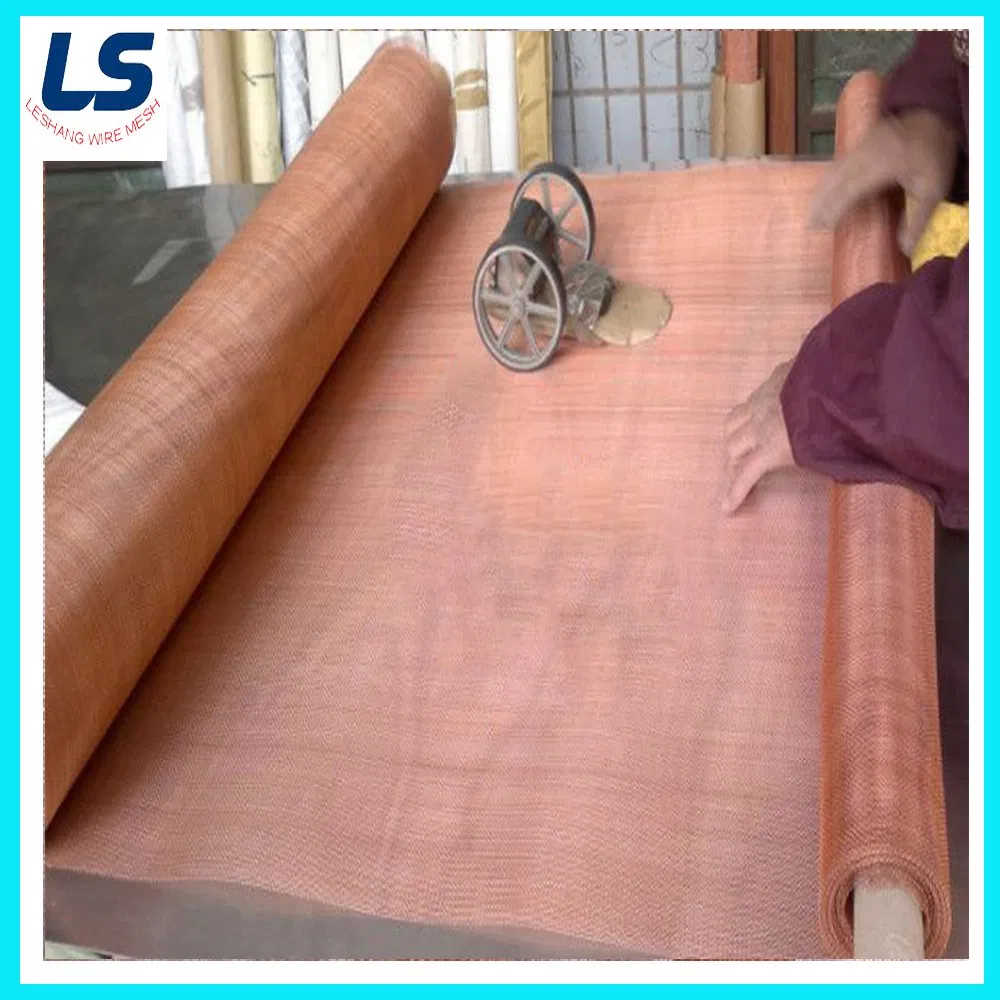

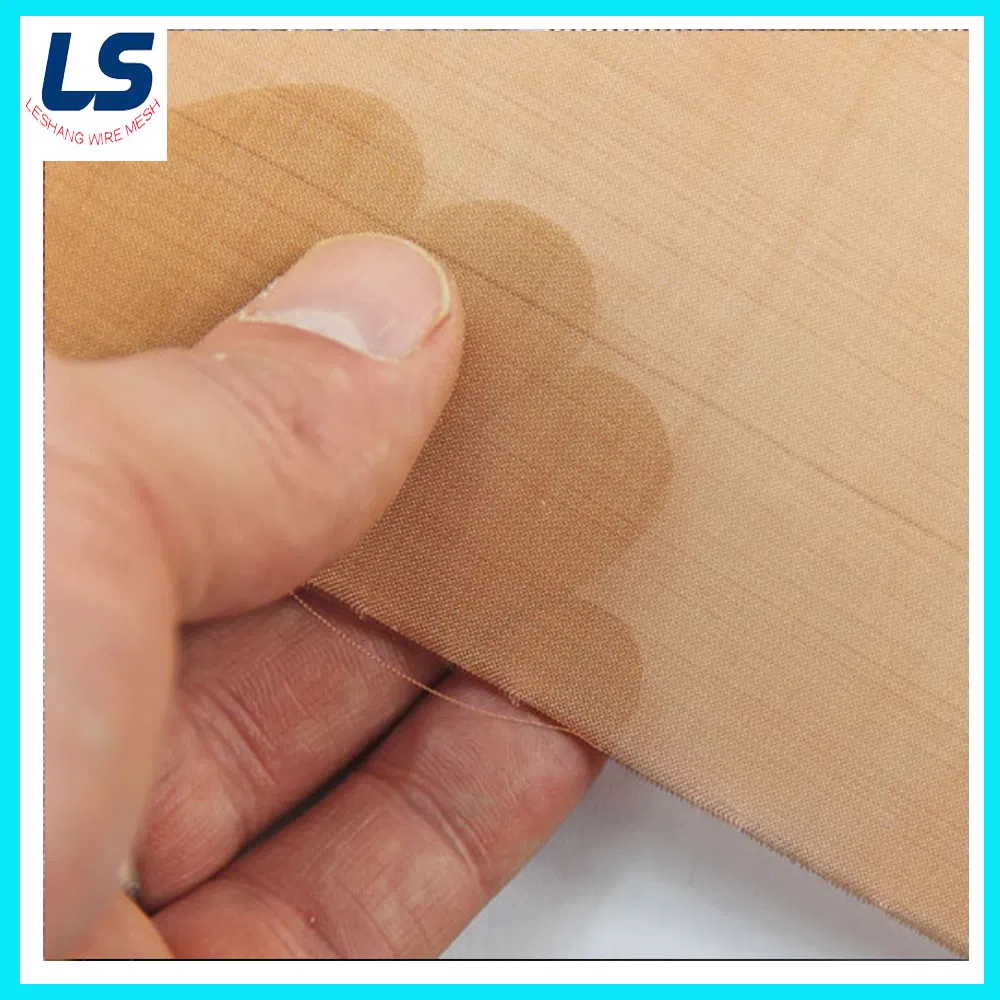

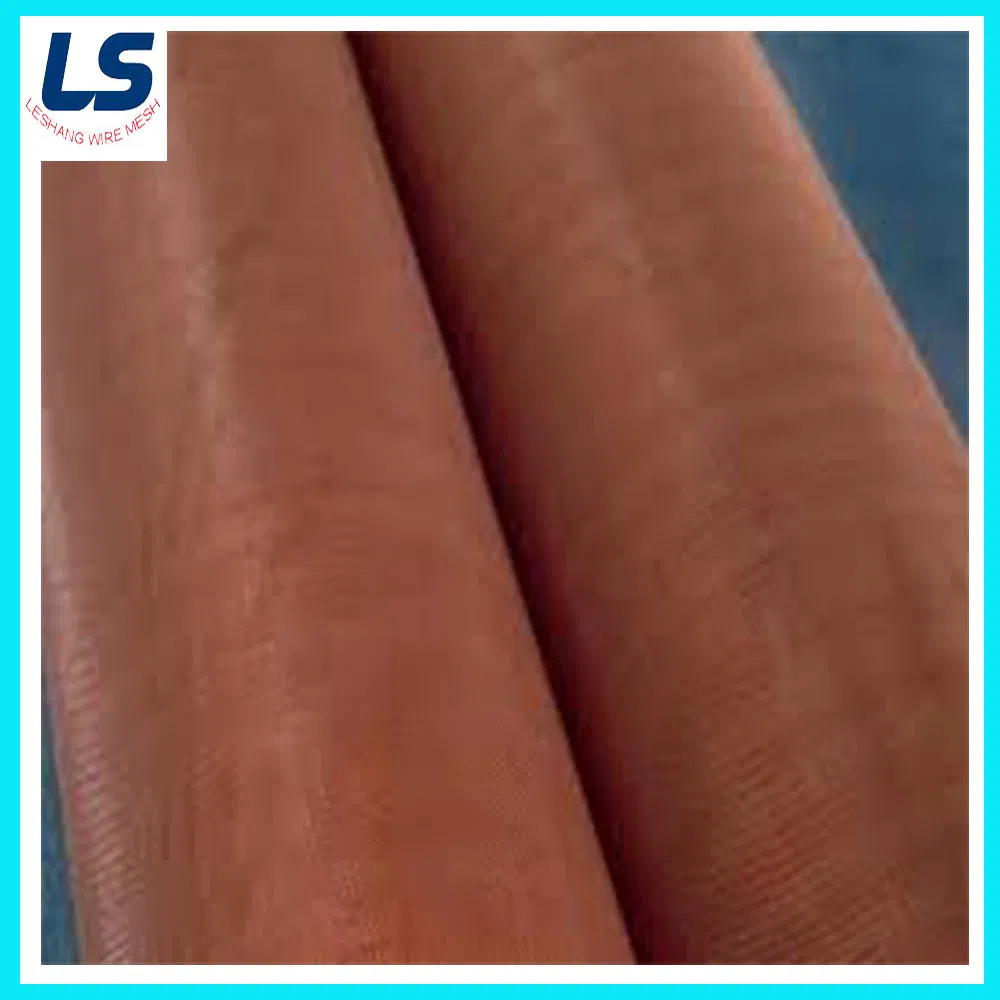

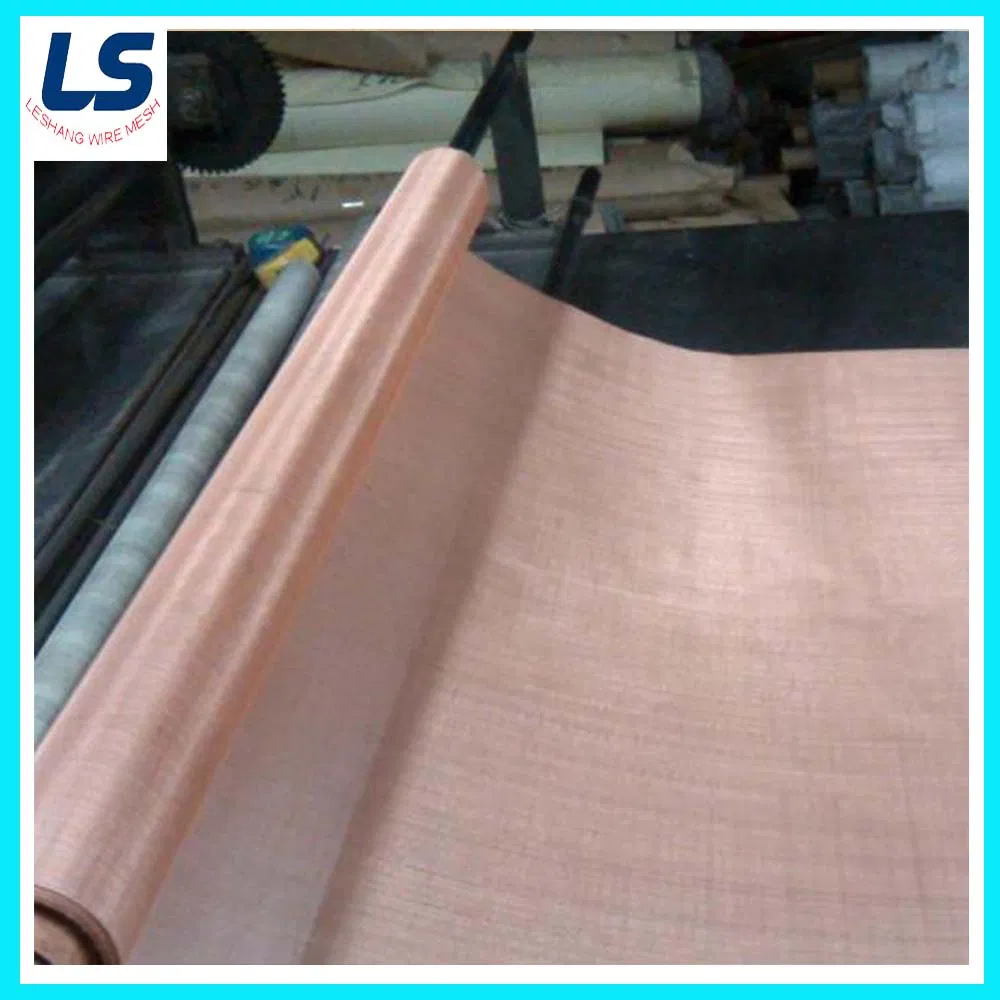

Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh
Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh
Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh
Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh
Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh
1 / 5
Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh
Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh
Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh
Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh
Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh

Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

🟦 Basic Information
Model NO.
LS-PHBM896
Type
Woven Wire Mesh
Material Type
Phosphor Bronze / Brass Wire
Weave Technique
Plain Weave, Twill Weave
Mesh Width
0.9m to 2.0m
Certification
ISO9001
Hole Size
10mesh to 250mesh
Production Capacity
10000 Meter/Day
🟦 Product Description

Phosphor bronze wire mesh is a kind of copper alloy, with 2% to 8% Sn, approximately 0.1% to 0.4% phosphorous, the balance is copper. Primarily used for woven wire mesh and wire cloth filters, EMI/RFI Shielding and electrical products.

Its qualities of fair electrical conductivity, combined with a low thermal conductivity allows phosphor bronze wire mesh to make electrical connection to devices at ultra low temperature without adding an excessive heat load.

✔ Features: Corrosion resistant, high in tension, high flexibility, magnetism resistant, wear resistant and tear resistant.
✔ Applications: Mainly used as fine wire cloth in a number of industries for high filtering.
✔ Dimensions: Width 0.5m to 2.0m; Length usually in 30M per roll.
🟦 Specifications Table
Mesh/Inch Wire Diameter (mm) Mesh Opening (mm) Opening Area (%) Weight (Kg/m²)
41.25.1565%3.25
514.0865%2.82
60.713.5269%1.7
80.72.4761%2.21
100.52.0465%1.41
120.451.6662%1.37
140.41.4161%1.26
160.31.2866%0.81
200.251.0265%0.7
300.260.5848%1.14
400.230.440%1.19
500.170.3344%0.81
600.150.27341%0.76
800.120.19739%0.65
1000.10.15437%0.56
1500.060.10942%0.3
2000.050.07737%0.28
3000.030.05441%0.15
4000.0250.03836%0.14
🟦 Product Showcase

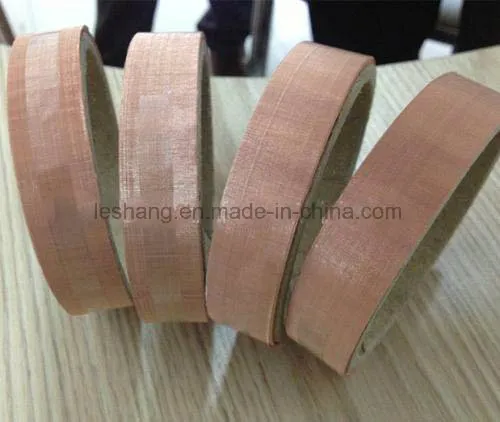

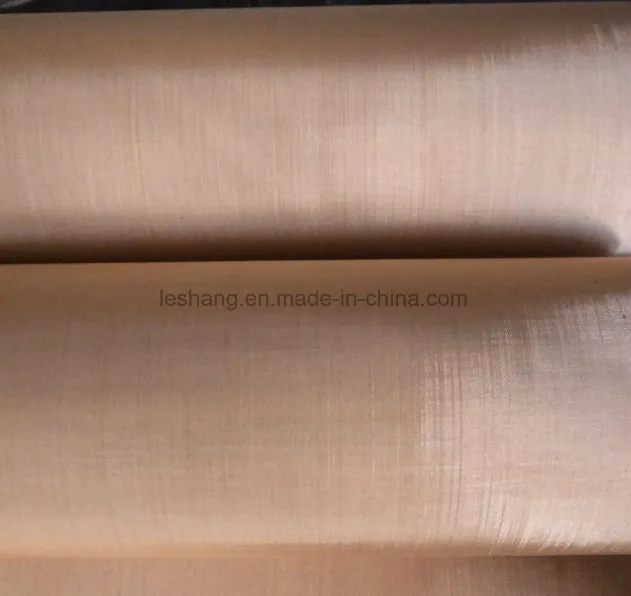

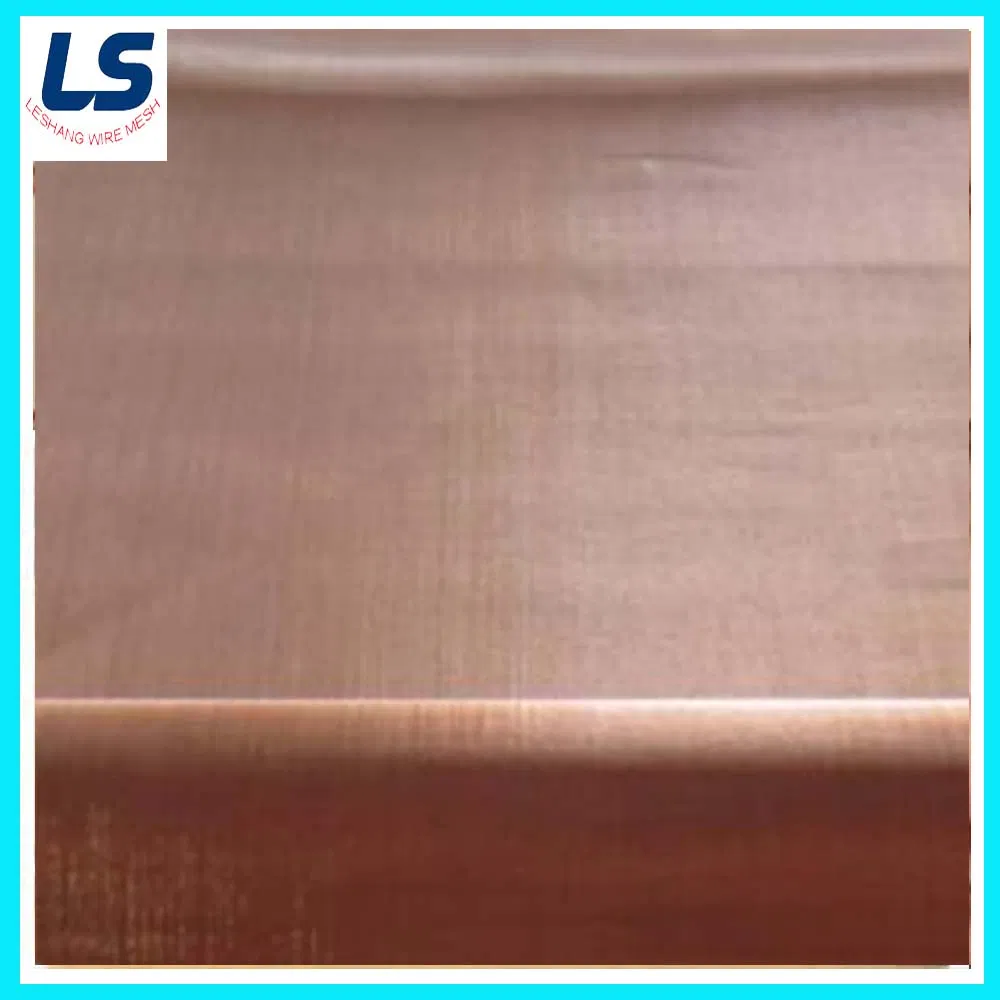

Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh
Phosphor Bronze Wire Mesh 10 Mesh to 400 Mesh
🟦 Relative Filter Mesh

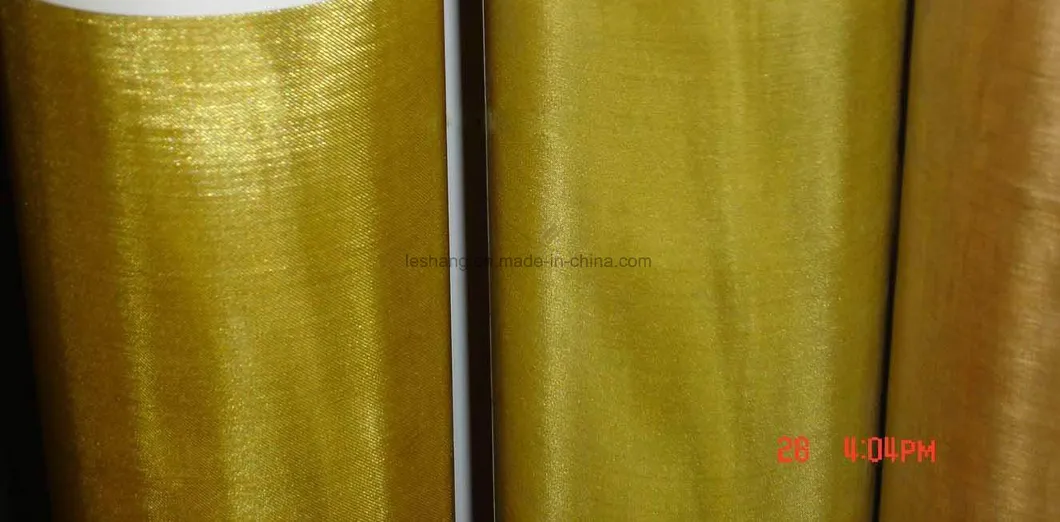

Filter Mesh relative 1

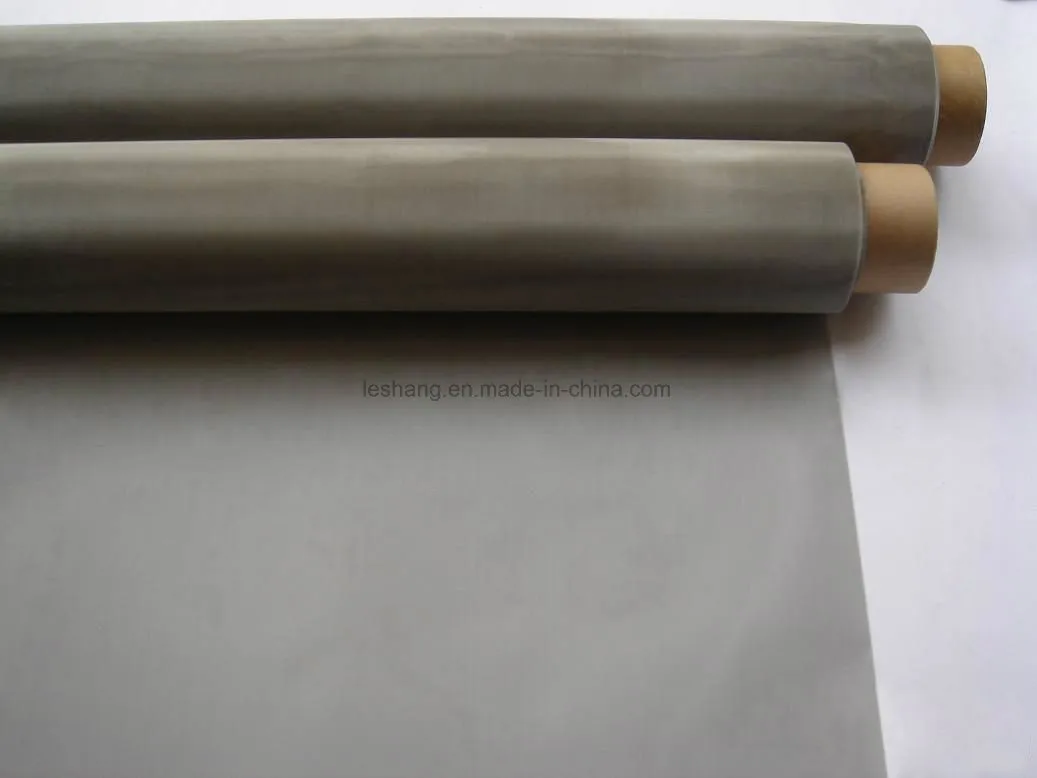

Filter Mesh relative 2

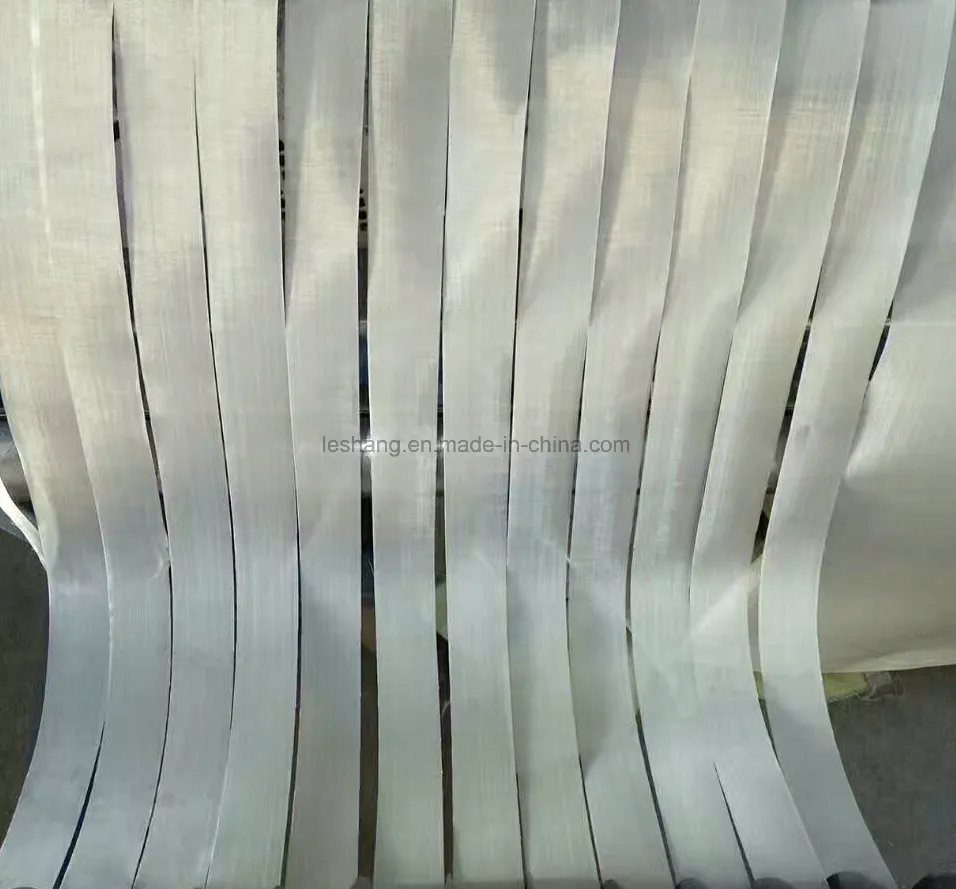

Filter Mesh relative 3

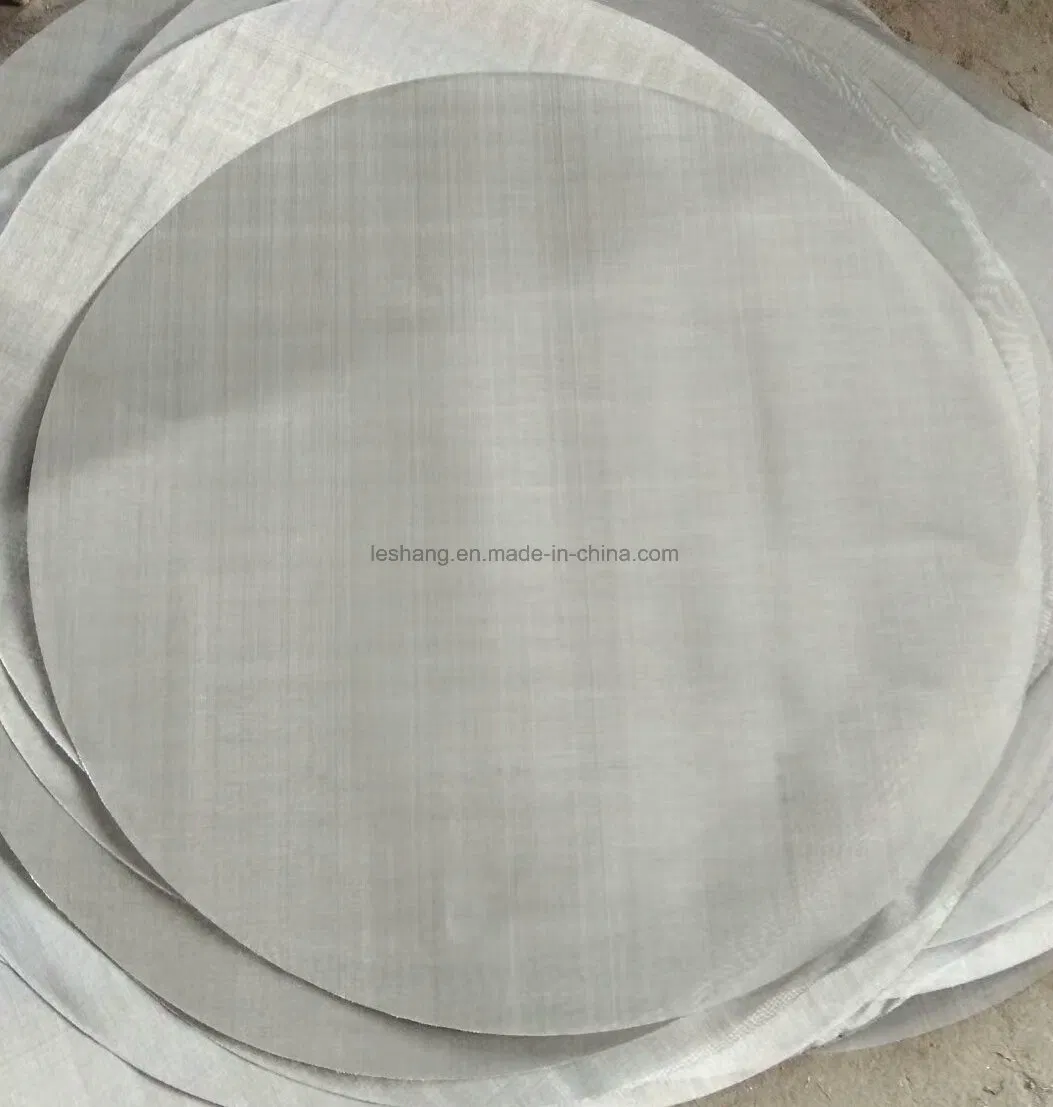

Filter Mesh relative 4
🟦 FAQ - Frequently Asked Questions
1. What is the composition of Phosphor Bronze Wire Mesh?
It is a copper alloy consisting of 2% to 8% Tin (Sn), approximately 0.1% to 0.4% Phosphorous (P), and the remainder is Copper (Cu).
2. What are the primary features of this mesh?
The mesh is notable for being corrosion resistant, magnetism resistant, and having high tension and flexibility. It is also highly wear and tear resistant.
3. In which industries is Phosphor Bronze mesh commonly used?
It is widely used in high-precision filtering, EMI/RFI shielding, and within the electrical industry due to its unique conductivity properties.
4. What weaving methods are available for the wire cloth?
We provide both Plain Weave and Twill Weave techniques to suit different filtering requirements.
5. Does the mesh handle low temperatures well?
Yes, its combination of fair electrical conductivity and low thermal conductivity makes it ideal for electrical connections at ultra-low temperatures.
6. What range of mesh sizes can be produced?
We offer a comprehensive range from 10 mesh up to 400 mesh, catering to various fine-filtering needs.
