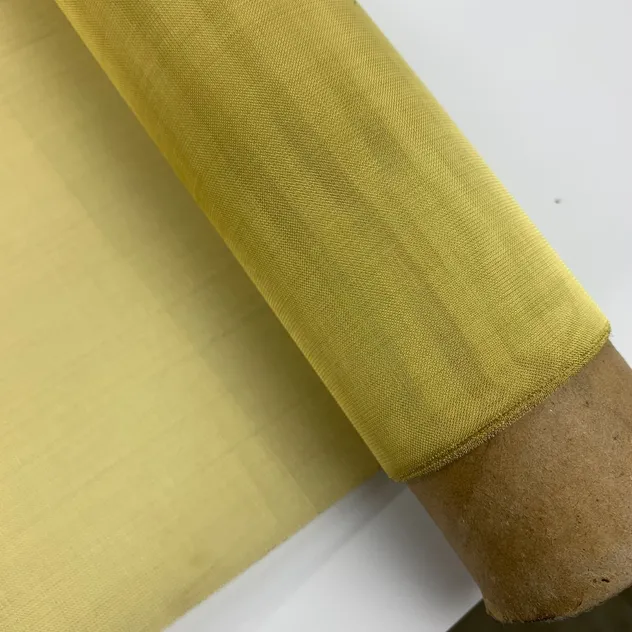

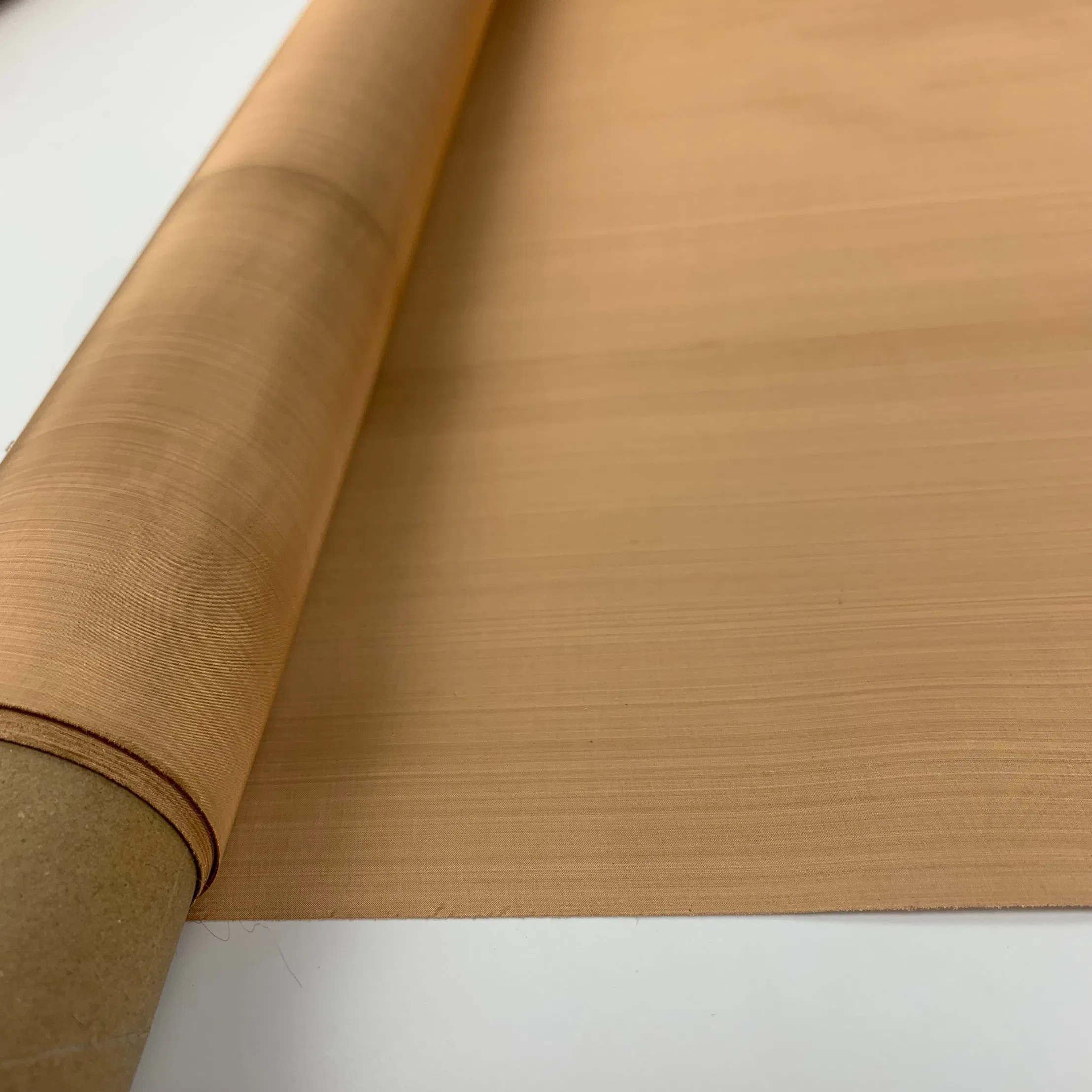

Phosphor bronze mesh, also known as tin bronze mesh, is a functional metal mesh woven from phosphor bronze alloy wire. This product is renowned for its unique non-magnetic properties, excellent wear resistance, good acid and alkali corrosion resistance, and excellent ductility, making it a versatile industrial and decorative mesh.
The main chemical composition typically contains approximately 94% copper, 4.75% tin, and 0.25% phosphorus. The added phosphorus significantly improves the alloy's stiffness, wear resistance, and fatigue strength. Compared to ordinary bronze or pure copper, phosphor bronze has advantages in physical properties, corrosion resistance, and elasticity.
| Mesh Count | Wire Diameter (mm) | Wire Diameter (inch) | Aperture (mm) |
|---|---|---|---|
| 10 | 0.508 | 0.020 | 2.032 |
| 20 | 0.315 | 0.0124 | 0.955 |
| 40 | 0.193 | 0.0076 | 0.442 |
| 60 | 0.172 | 0.0068 | 0.250 |
| 100 | 0.012 | 0.004 | 0.152 |
| 200 | 0.051 | 0.002 | 0.076 |
| 400 | 0.031 | 0.0012 | 0.033 |

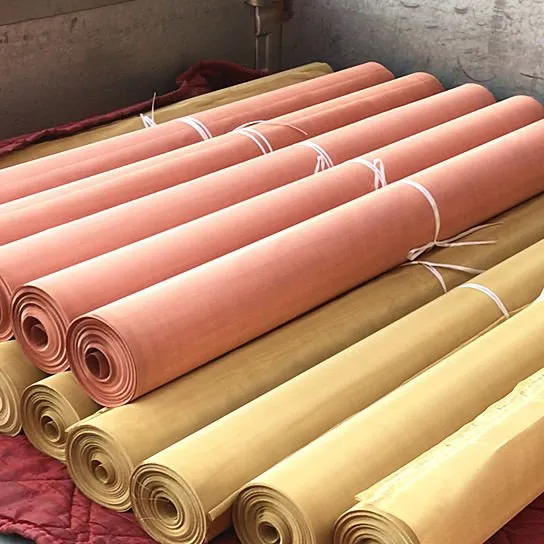

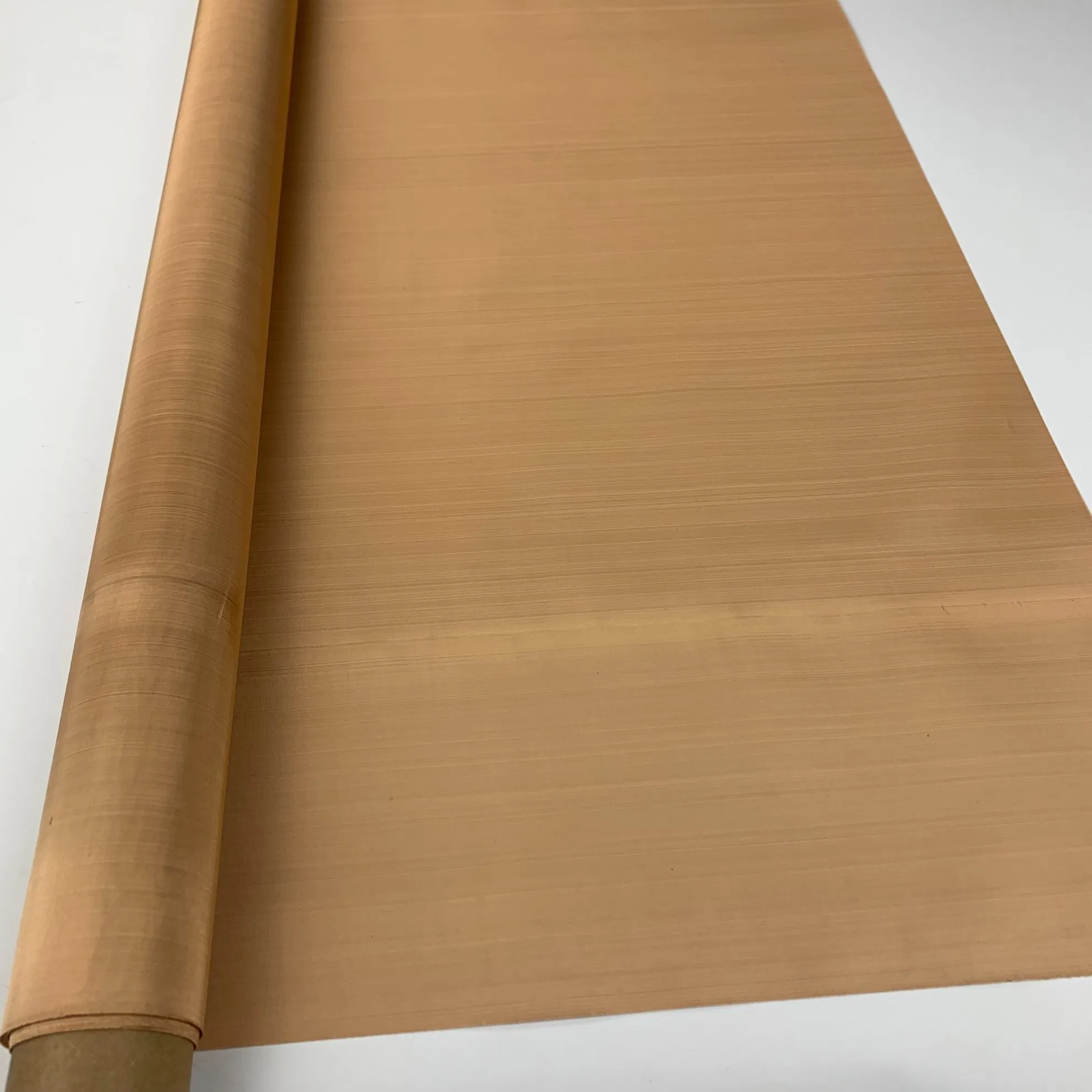

Mesh is wound around dry paper tubes, wrapped with moisture-proof paper, and secured in sturdy wooden cases or on pallets.
