| Model NO. | Epoxy Coated Wire Mesh | Application | Screening, Gas Filtration, Air Intake System, Window Screen |
|---|---|---|---|
| Type | High Efficiency | Style | Filter Cartridge / Woven Wire Mesh |
| Width | 10mm-1300mm | Length | 10-300m |
| Material | Aluminum / Iron | Color | Black, Dark Grey, etc. |

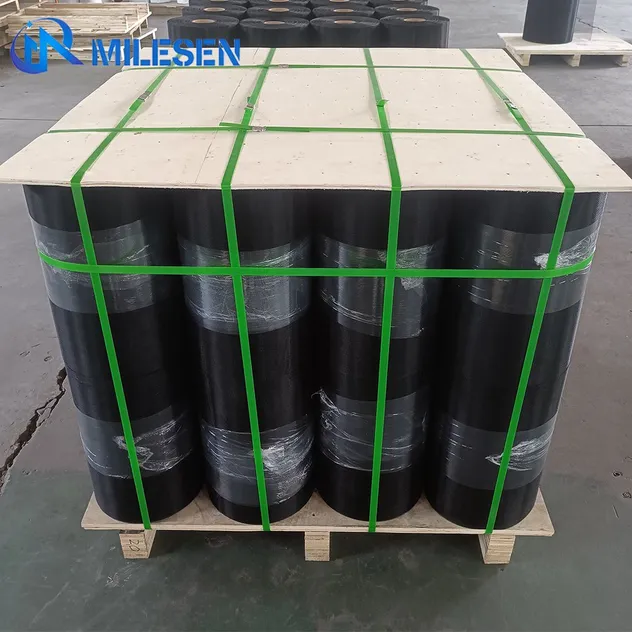

| Packaging | Waterproof Paper and Wooden Cases | HS Code | 73141900 |

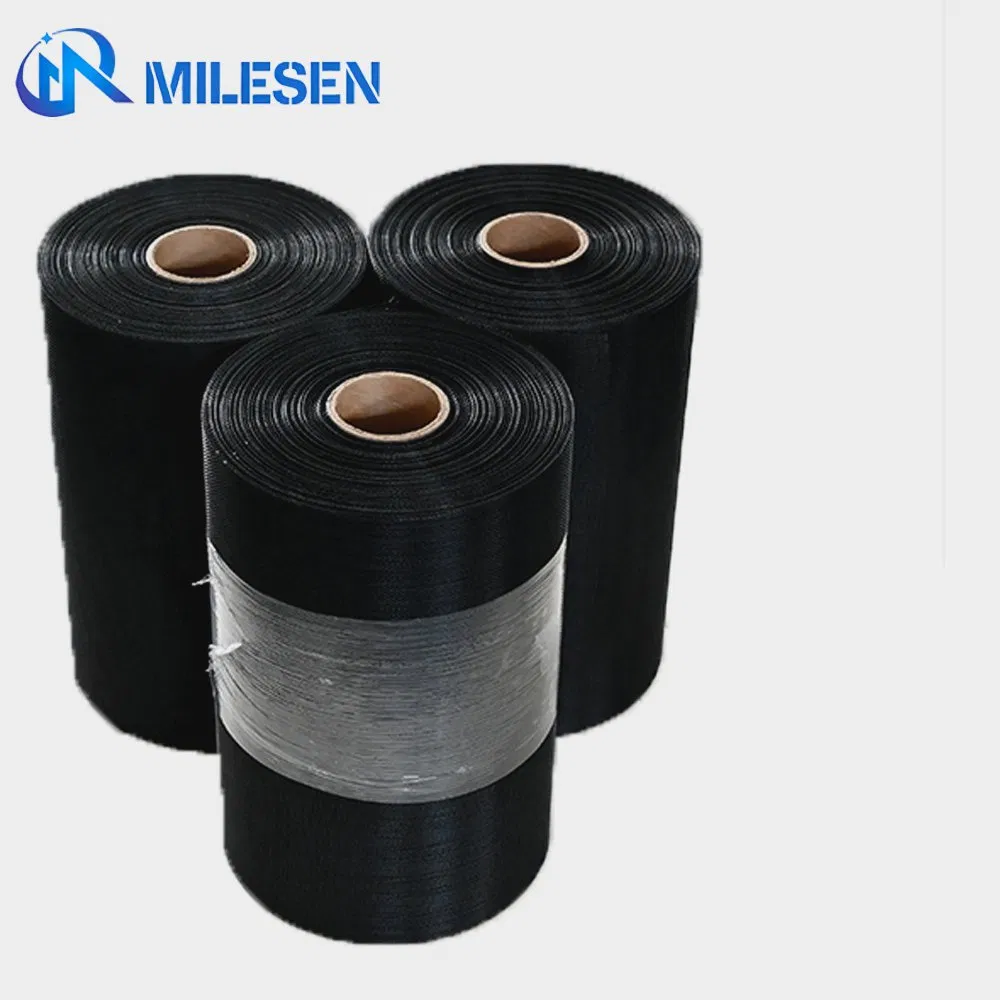

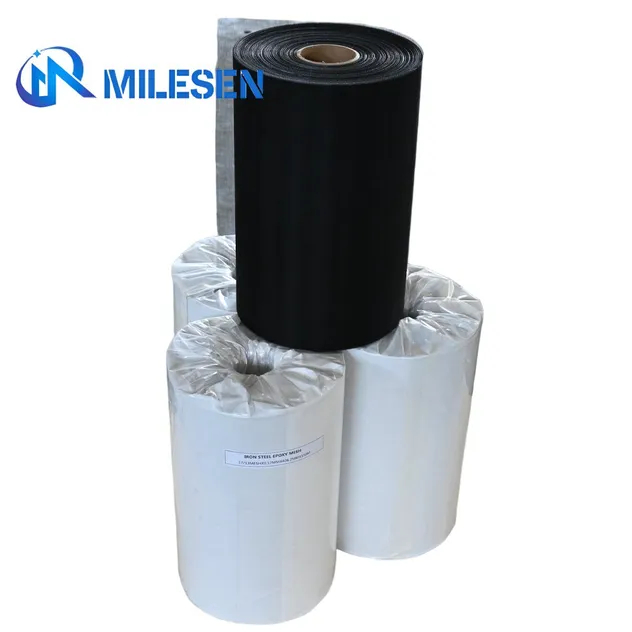

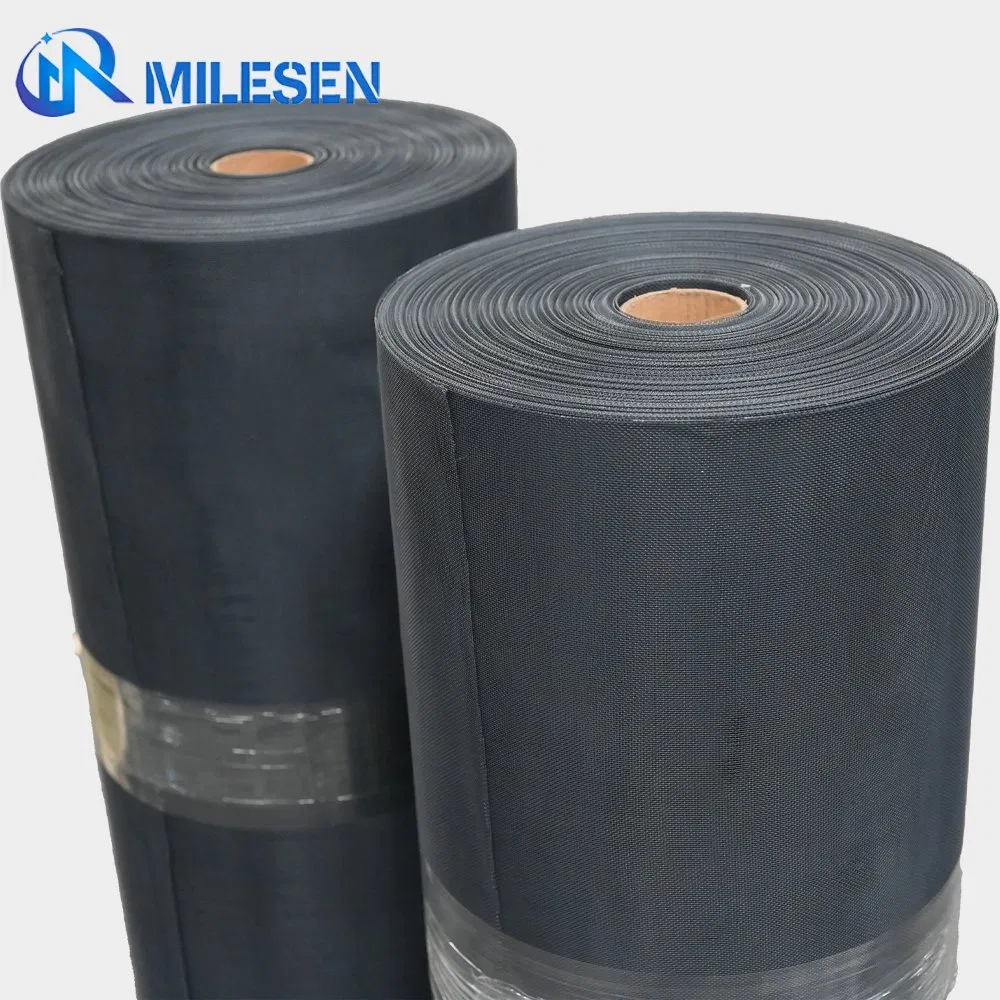

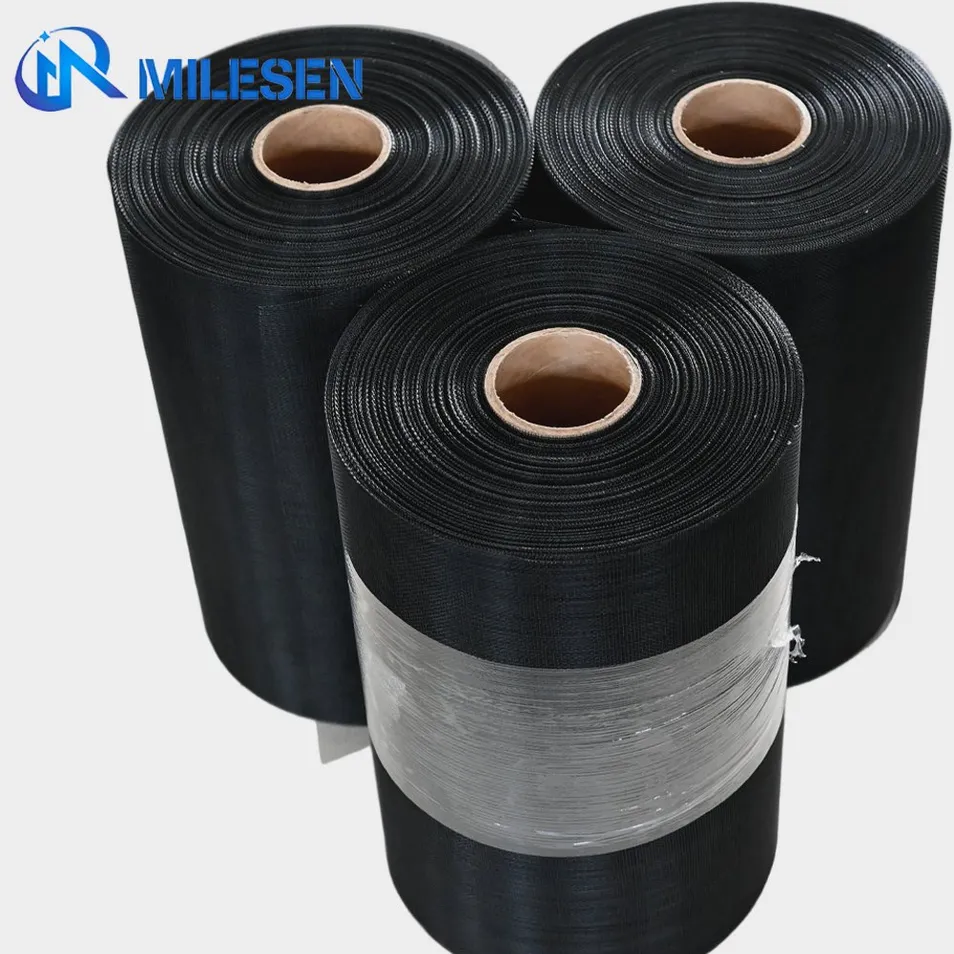

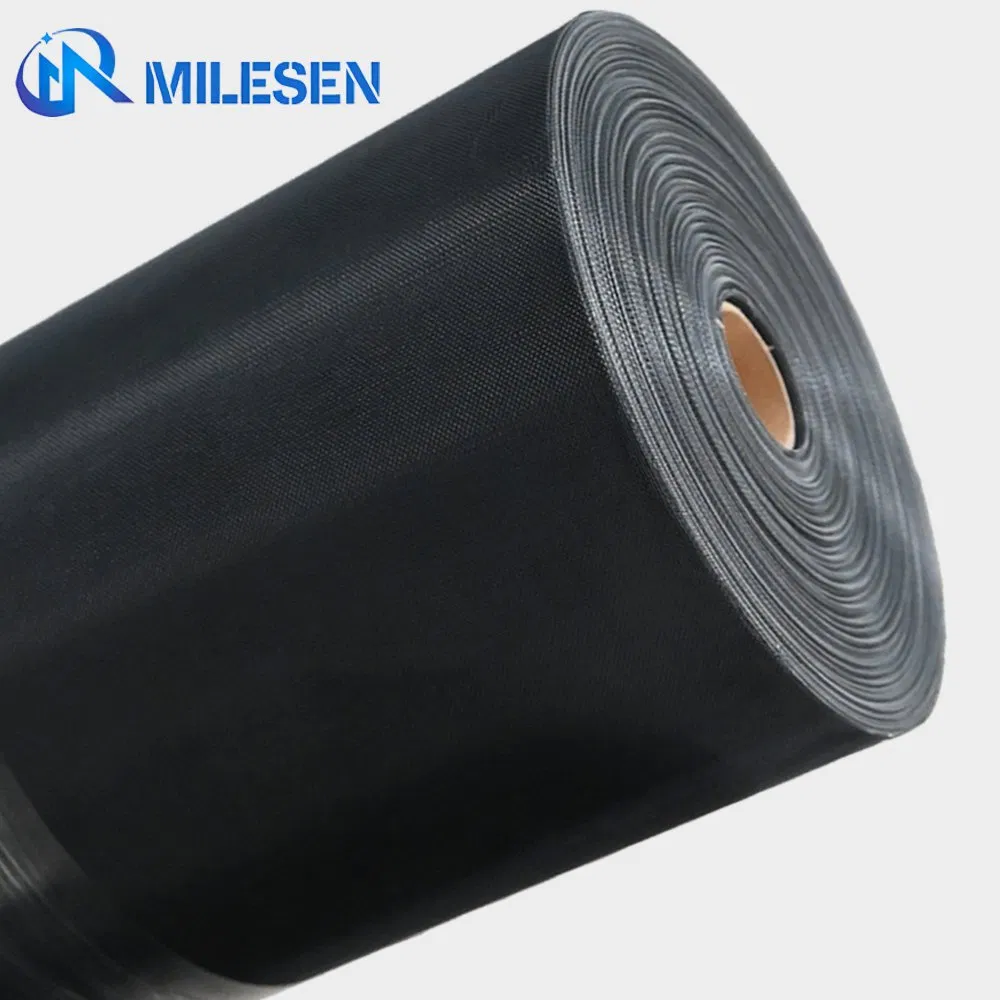

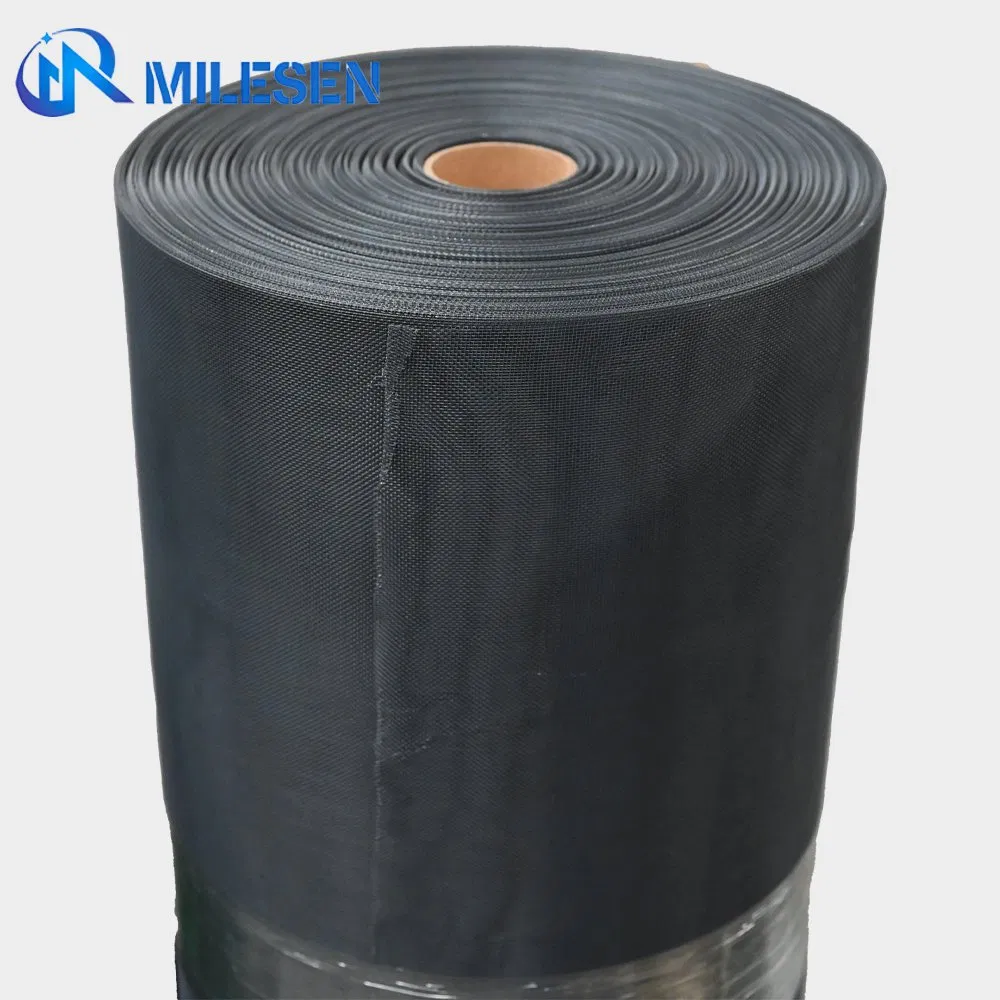

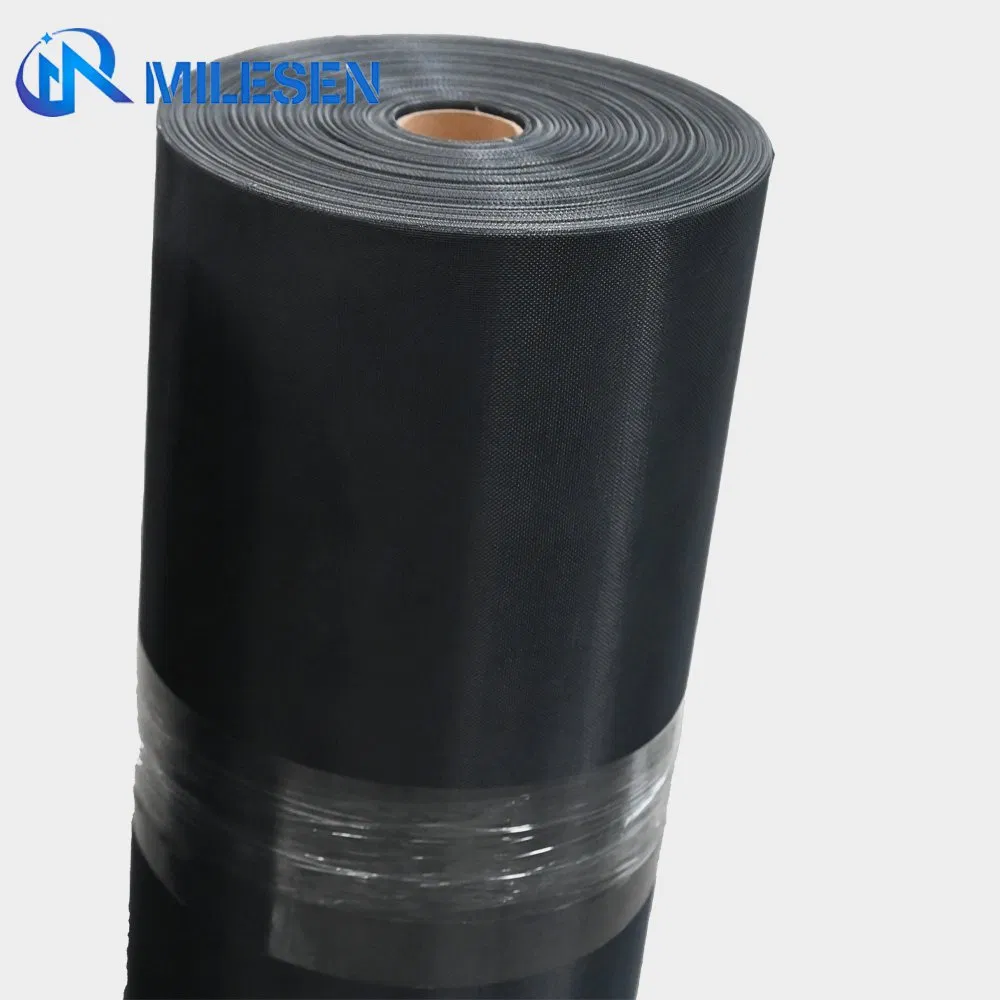

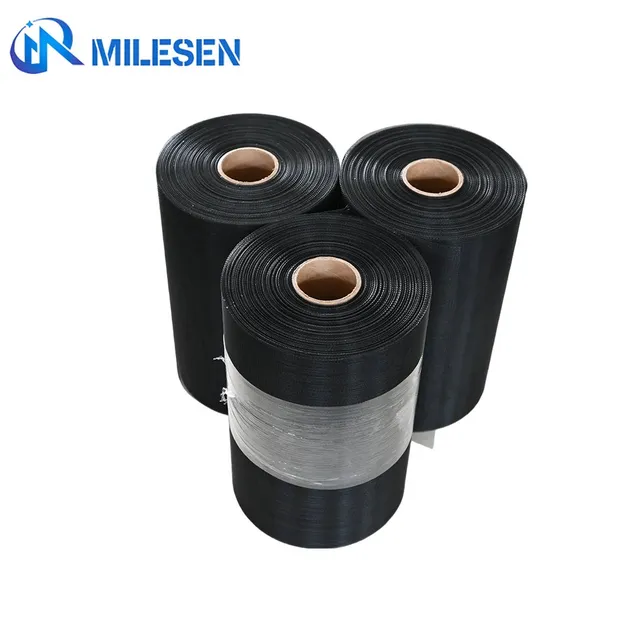

Epoxy Coated Mesh is a metal wire mesh with excellent corrosion resistance and superior physical properties. Made of high-quality aluminum or iron, it is coated with an epoxy resin surface. This coating provides outstanding protection against high temperatures and oxidation, significantly improving the durability and service life of the filter screen, especially in demanding industrial environments.
Aluminum Epoxy Coated Mesh Specifications:
| Material Grade | Specification (Mesh/Wire) | Width | Length |
|---|---|---|---|
| Al5154A | 18x16 / 0.26mm | 10mm-1300mm | 10m-300m |
| Al5154A | 18x14 / 0.21mm | 10mm-1300mm | 10m-300m |
| Al5154A | 17x15 / 0.26mm | 10mm-1300mm | 10m-300m |
Iron Epoxy Coated Mesh Specifications:
| Material Grade | Specification (Mesh/Wire) | Width | Length |
|---|---|---|---|
| Q195 | 17x13 / 0.17mm | 10mm-1300mm | 10m-300m |
| Q195 | 18x14 / 0.18mm | 10mm-1300mm | 10m-300m |
| Q195 | 18x18 / 0.23mm | 10mm-1300mm | 10m-300m |
| Q195 | 22x20 / 0.18mm | 10mm-1300mm | 10m-300m |
The mesh can be customized in various specifications and sizes to meet special application requirements. All products undergo rigorous testing, including paint film elasticity tests, salt spray tests, fatigue resistance tests, and oil immersion tests to ensure optimal performance in all conditions.
