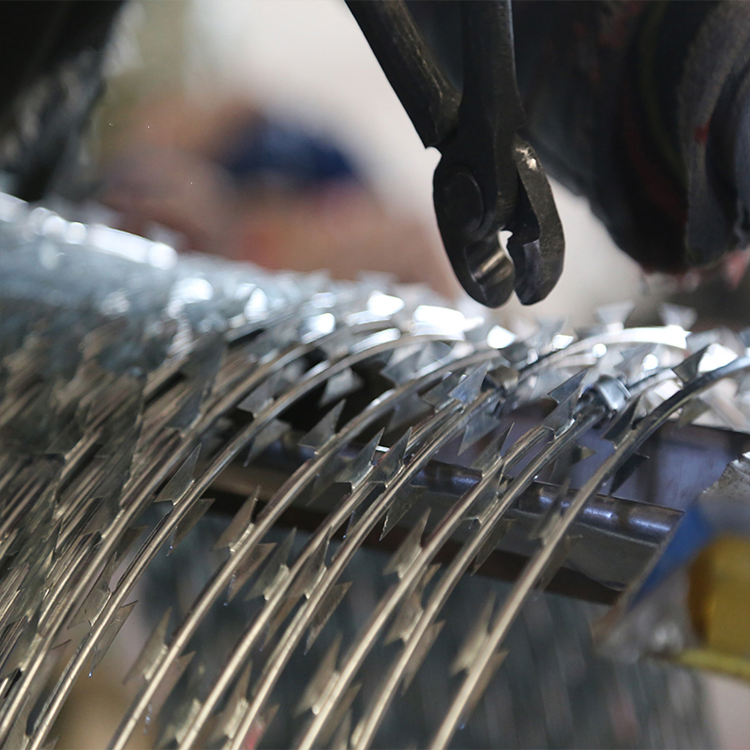

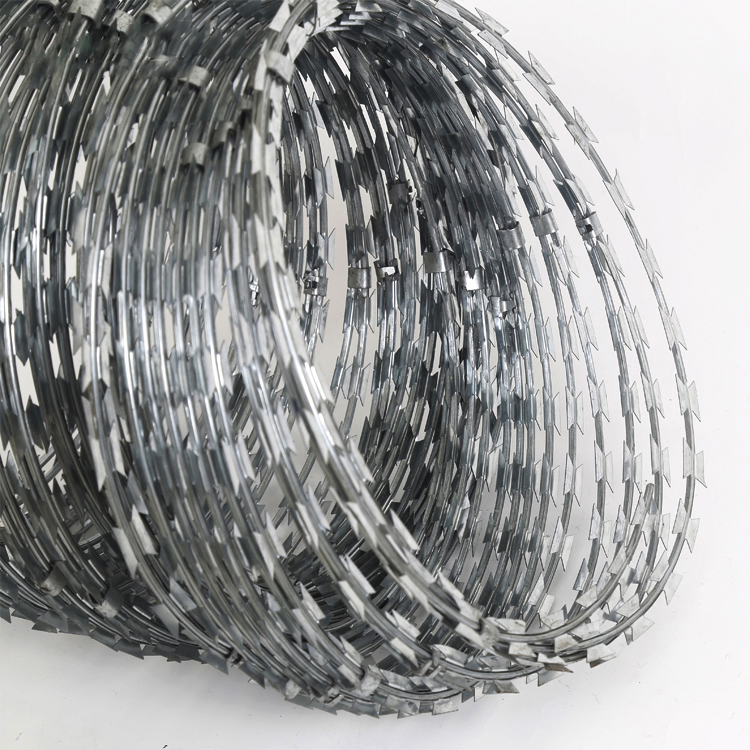

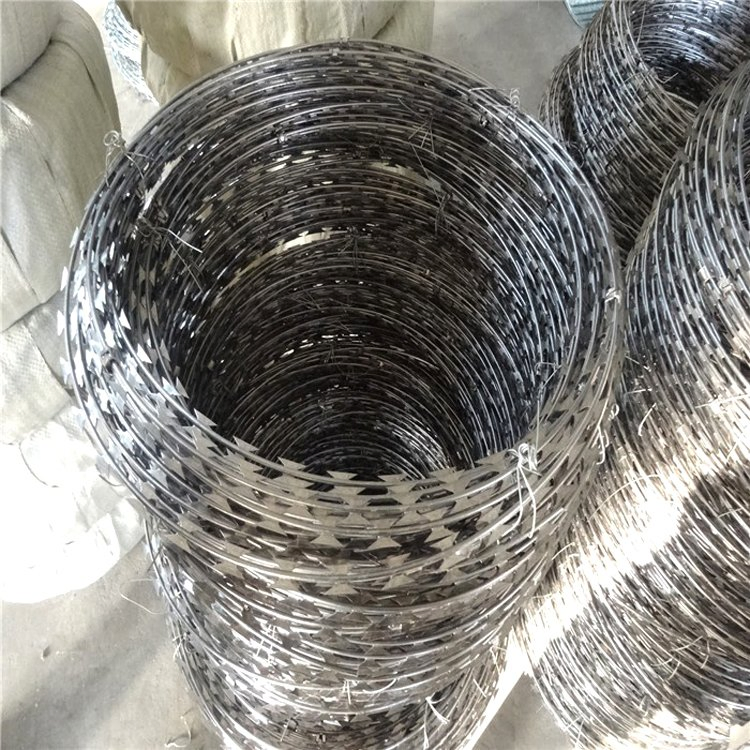

Concertina Razor Barbed Wire (Galvanized Steel/Stainless Steel) including BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-65, CBT-60 is designed for high-security applications such as prisons and border security.

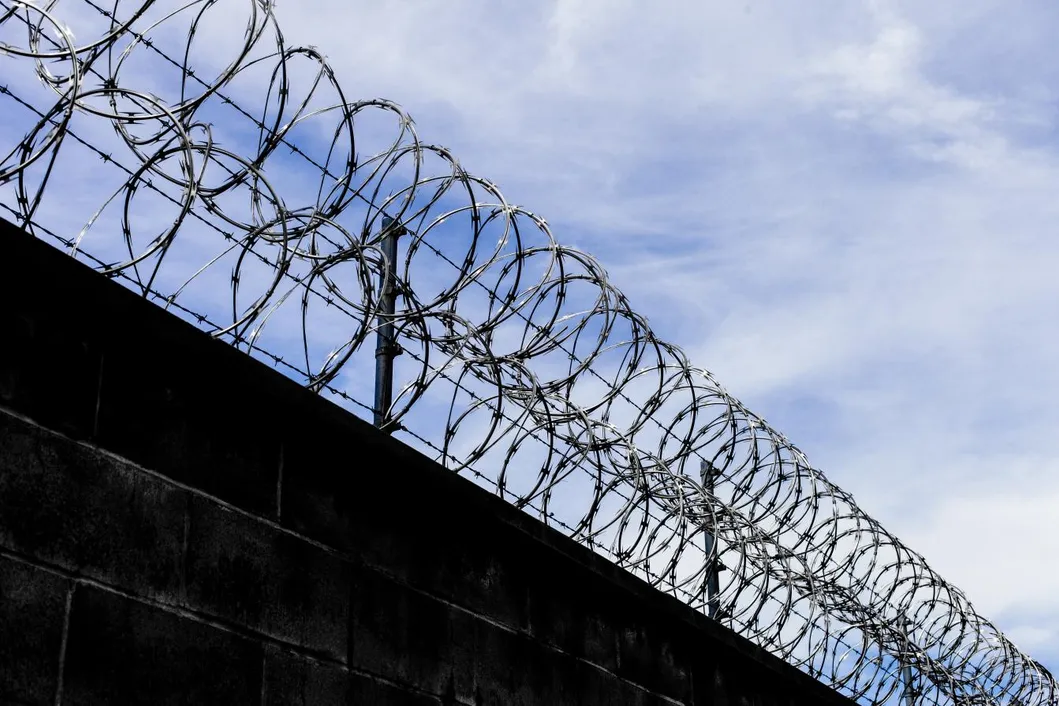

Razor wire, also known as concertina wire or barbed tape, consists of sharp razor blades and high-tensile steel wire. It serves as a passive safety product with extremely high security, often installed atop fences or walls to form impassable barriers.
| Technical Specifications | |
|---|---|

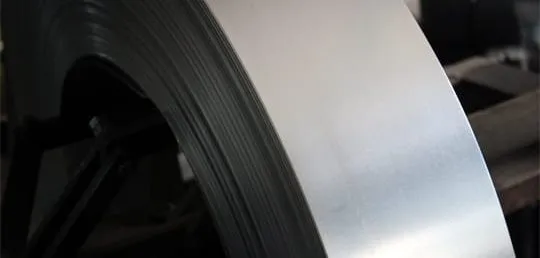

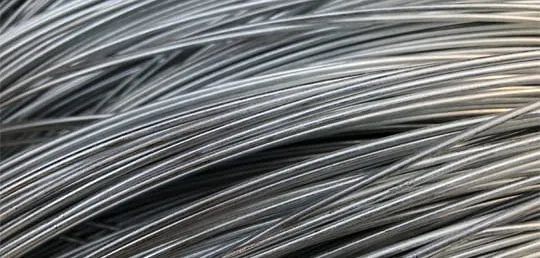

| Main Material | Low carbon steel, stainless steel |

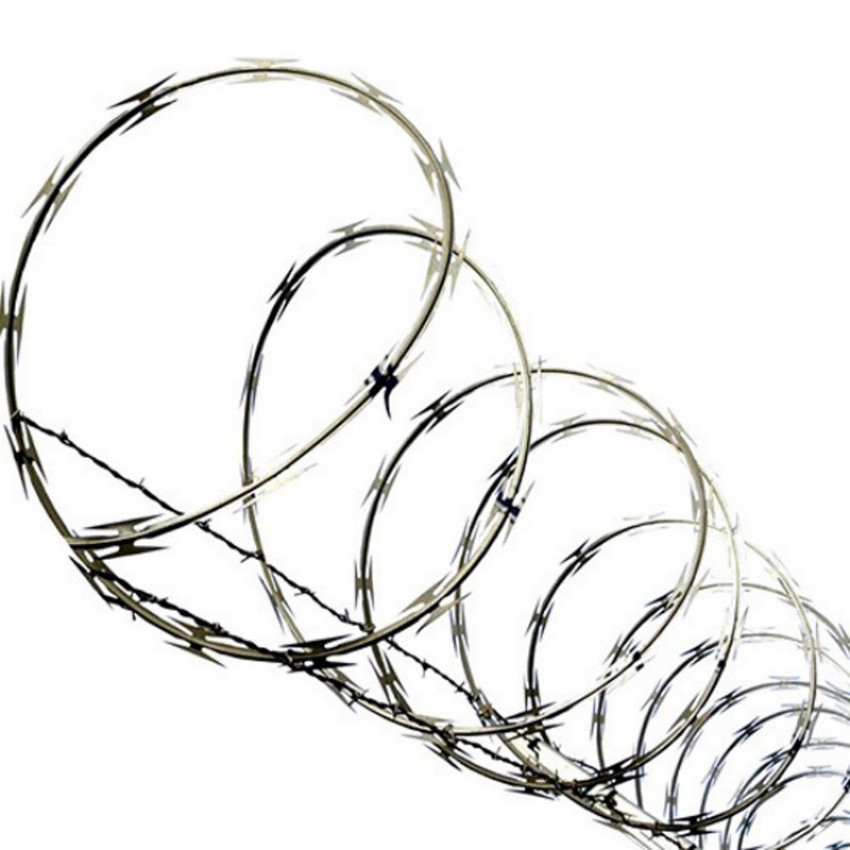

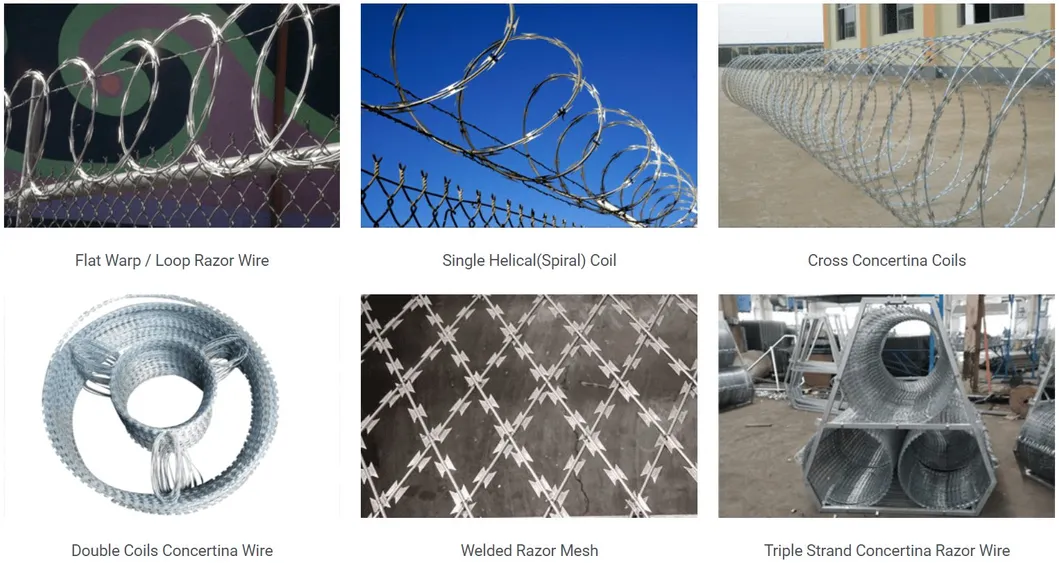

| Type | Concertina Coil |

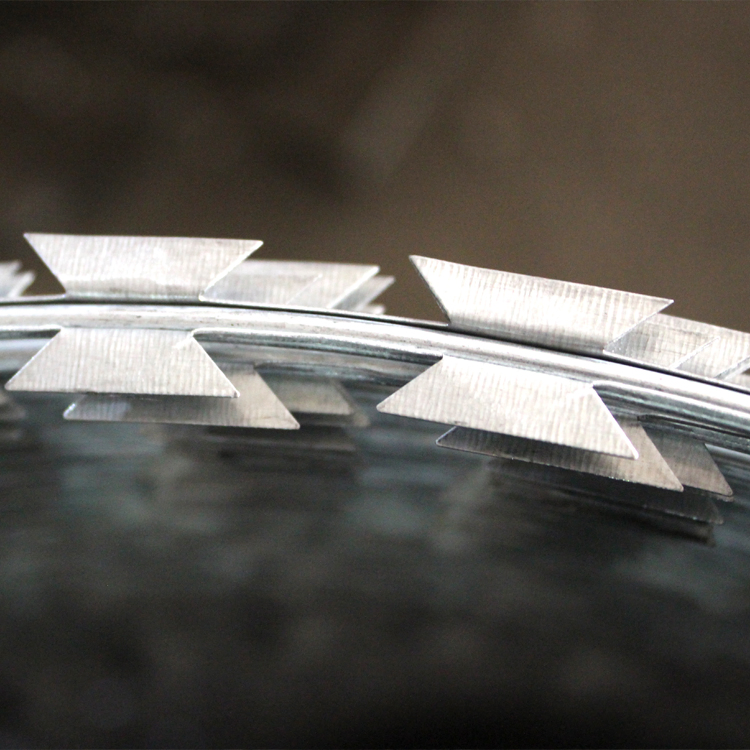

| Razor Type | Cross Razor |
| Blade Types | BTO-10, BTO-22, BTO-30, CBT-60, CBT-65 |
| Coil Diameter | 300/450/500/600/700/800/950/1000/1500 mm |
| Zinc Coating | Electro (15g/m²), Normal (40g/m²), High Zinc (200-300g/m²) |
We provide various material combinations to suit different budgets and security needs:

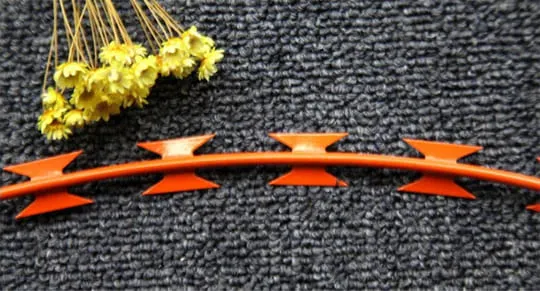

Anti-corrosion Options:

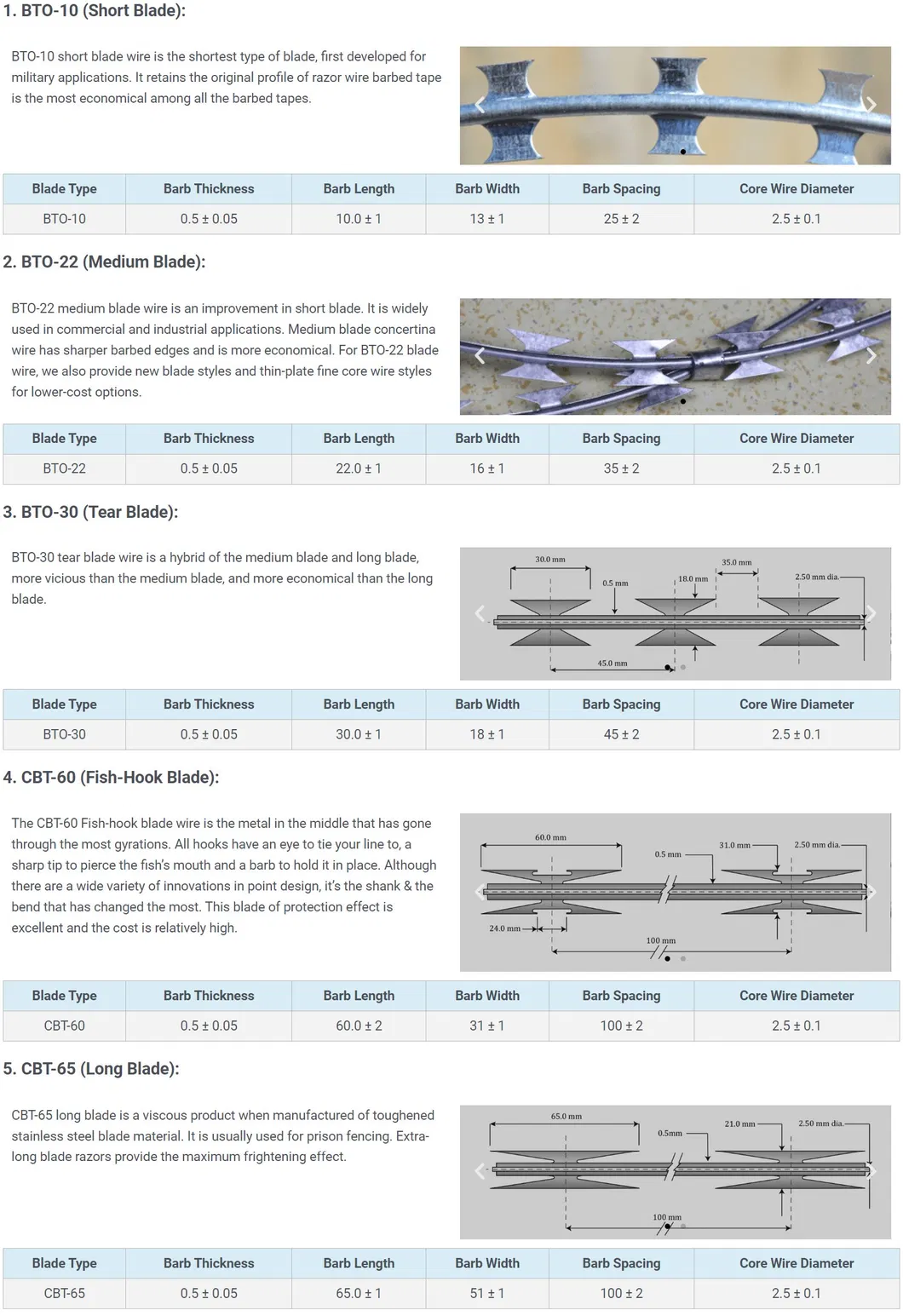

Common styles include BTO-10 (Short Blade), BTO-22 (Medium blade), BTO-30 (Tear Blade), CBT-60 (Fish-Hook Blade), and CBT-65 (Long Blade).
| Outside Diameter | No. of Loops | Extended Length | Blade Type | Coil Type |
|---|---|---|---|---|
| 300 mm | 33 | 4-6 m | CBT- 60, 65 | Single coil |
| 450 mm | 33 | 7-8 m | CBT- 60, 65 | Single coil |
| 500 mm | 56 | 12-13 m | CBT- 60, 65 | Single coil |
| 450 mm | 56 | 8-9 m (3 clips) | BTO- 10, 22, 30 | Cross-type |
| 600 mm | 56 | 10-11 m (3 clips) | BTO- 10, 22, 30 | Cross-type |
| 980 mm | 56 | 14-16 m (5 clips) | BTO- 10, 22, 30 | Cross-type |

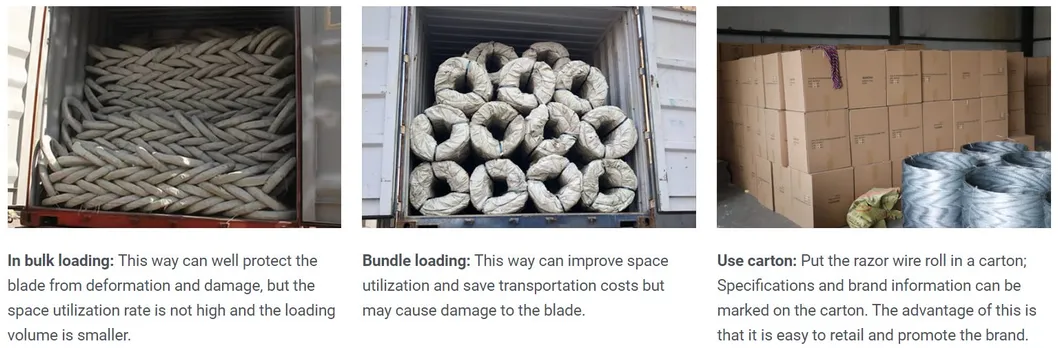

Razor Wire is typically wrapped in kraft paper and woven bags to ensure safe transport and handling.

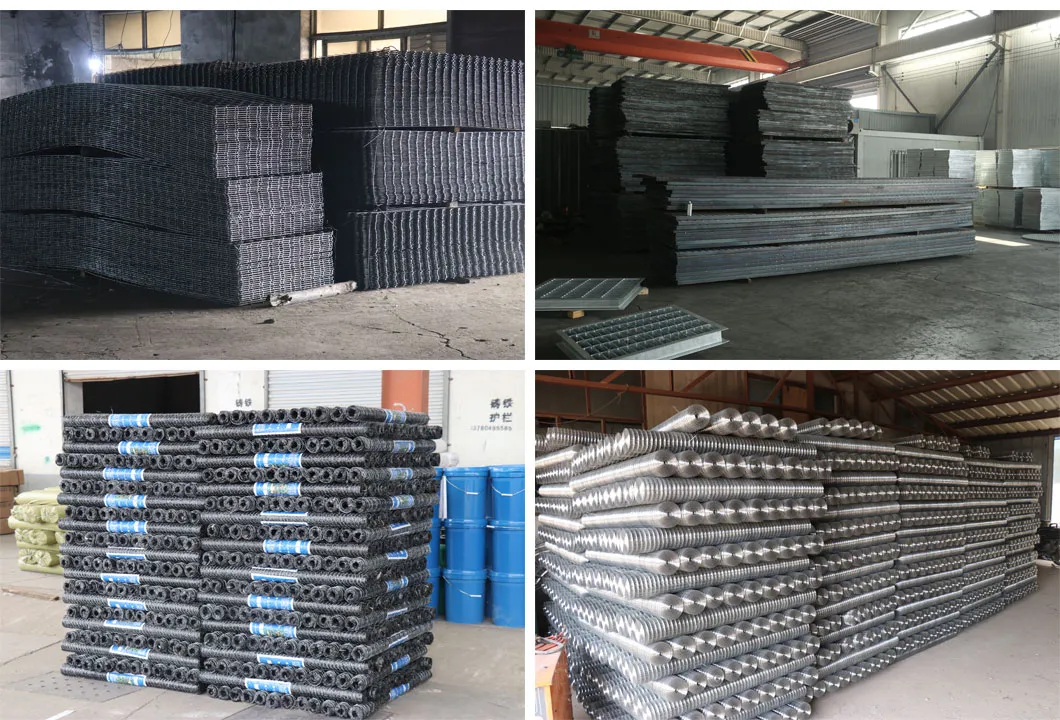

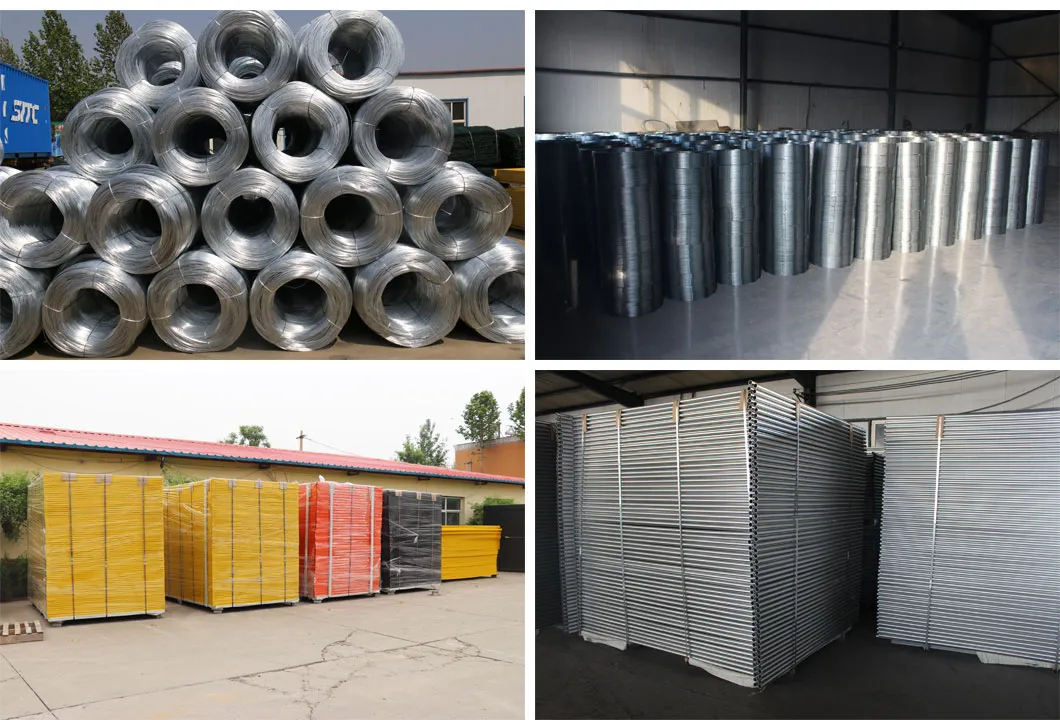

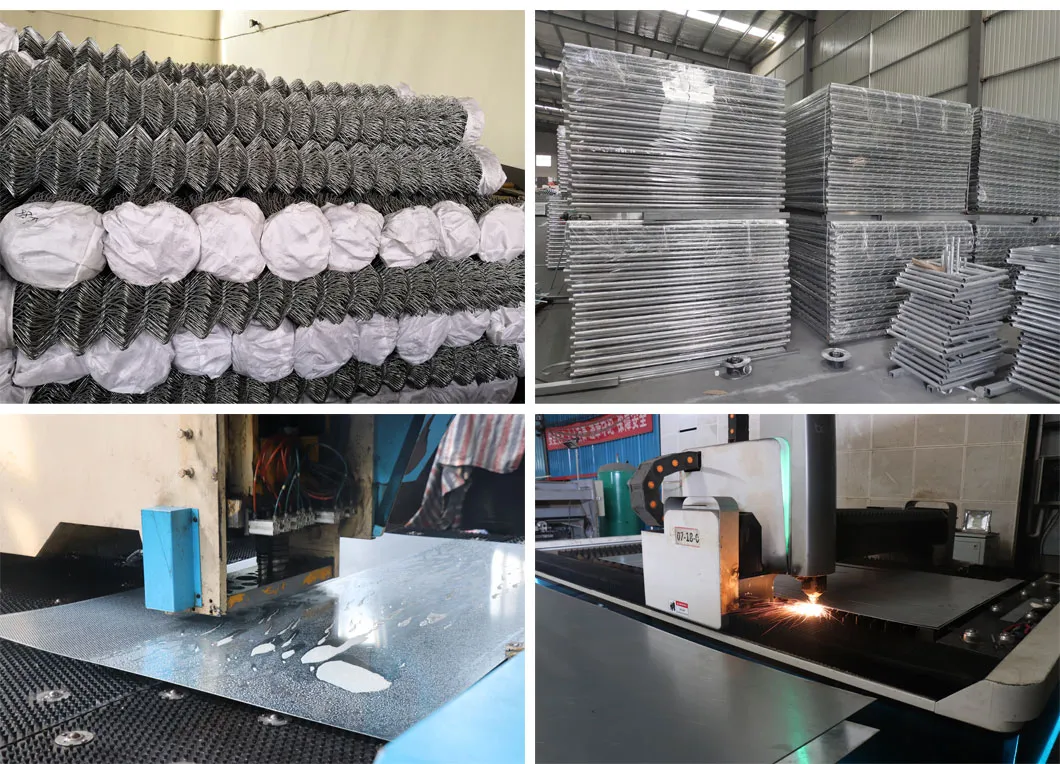

Established as a dedicated factory in 2009, we have focused on the research, development, and production of metal wire mesh and steel products for over a decade. Our goal is to provide high-quality metal solutions including welded mesh, bar grating, and security fencing to customers worldwide.
