Weaving Red Copper Wire Mesh Filter Plain Woven Emf Shielding Copper Mesh Brass Copper Wire Mesh

1 / 5

Weaving Red Copper Wire Mesh Filter Plain Woven Emf Shielding Copper Mesh Brass Copper Wire Mesh

After-sales Service:	Contact Us
Warranty:	Contact Us
Material:	Brass Wire

Send Inquiry

Product Description

Basic Information

Model NO.

Copper wire mesh (Red)

Hole Shape

Square

Application

Liquid Filtration, Screening

Type

Primary Filter

Style

Brass Wire Mesh

Mesh Size

5-250 Mesh

Width Range

0.914 - 3 M (Minimum 3 mm)

Package

Wooden Case

Product Description

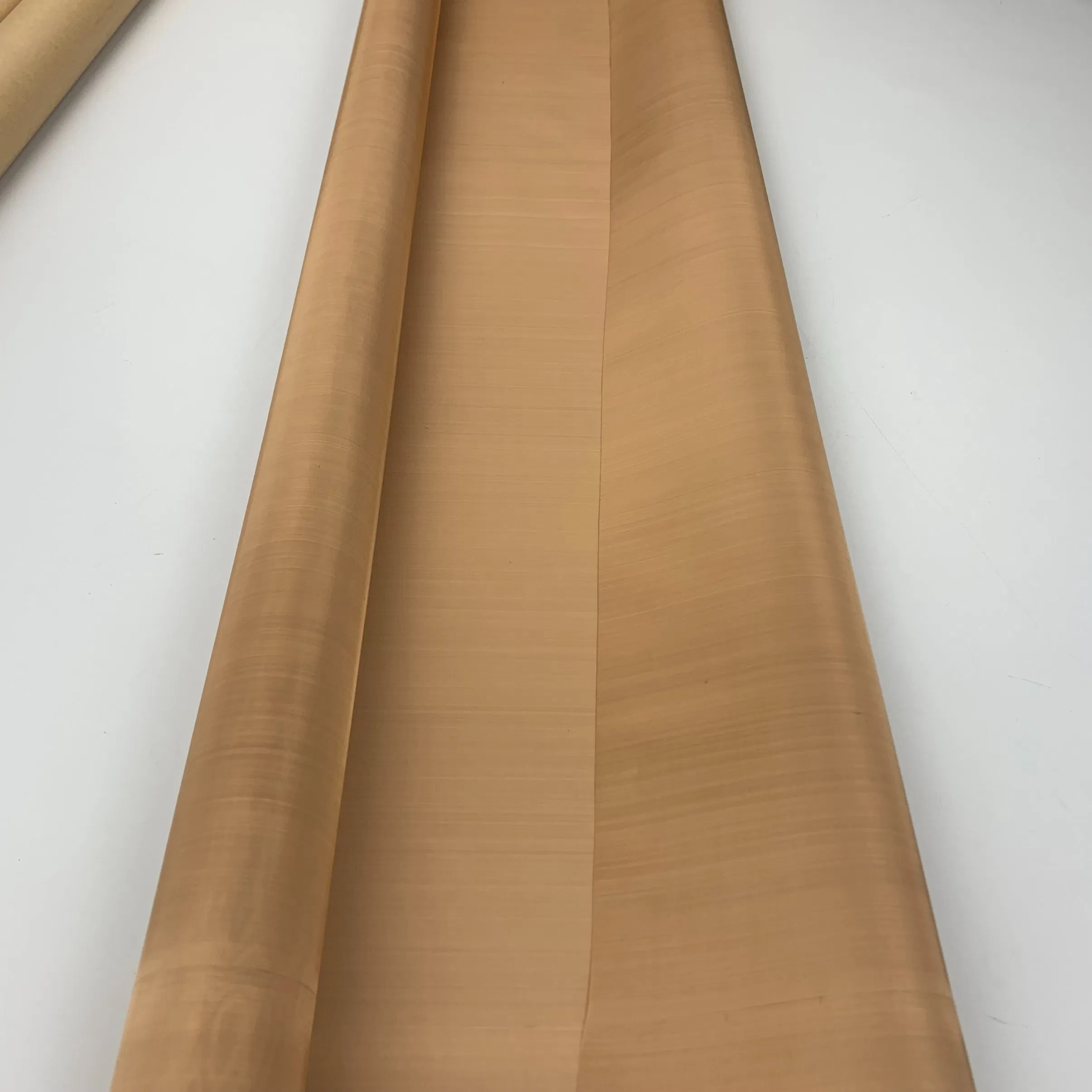

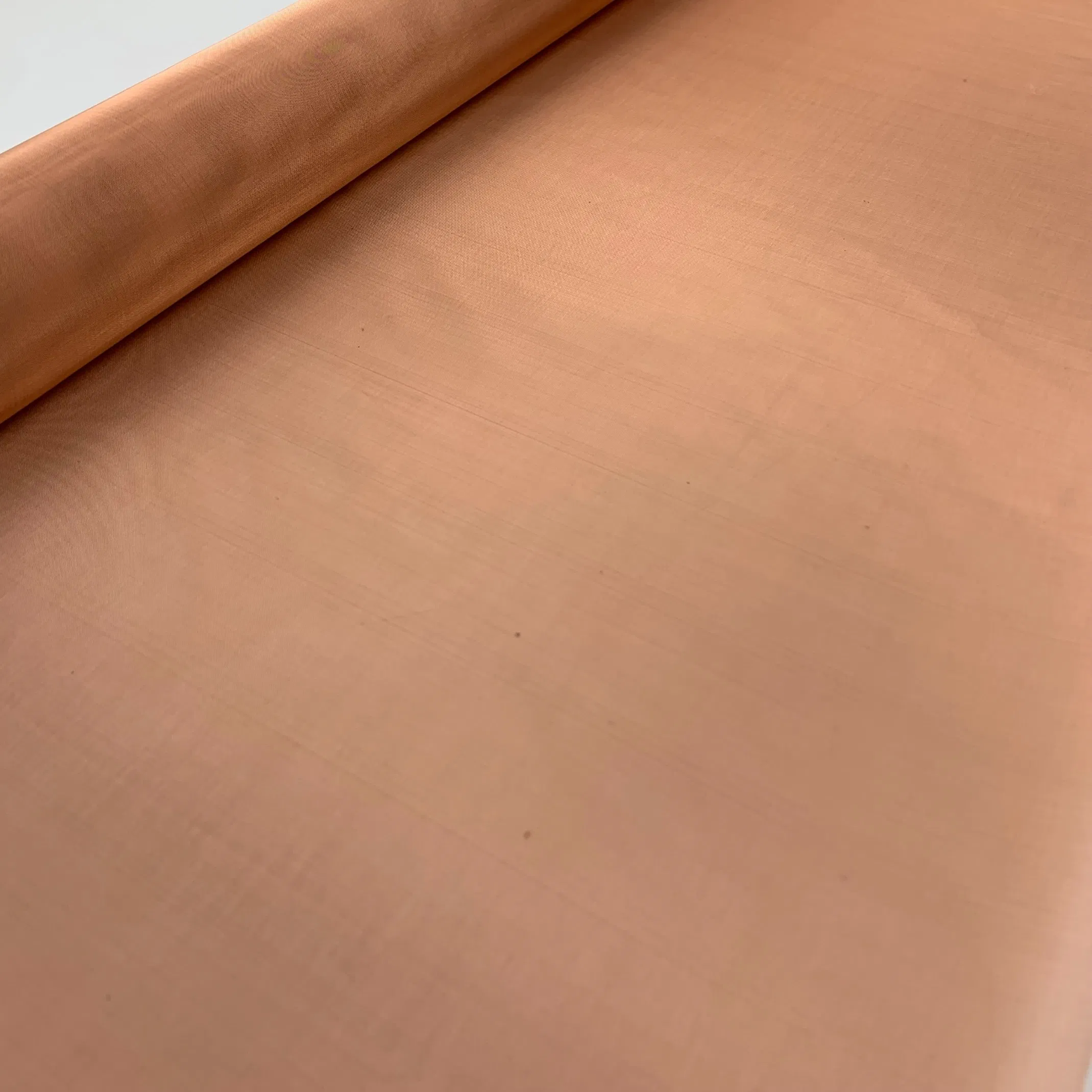

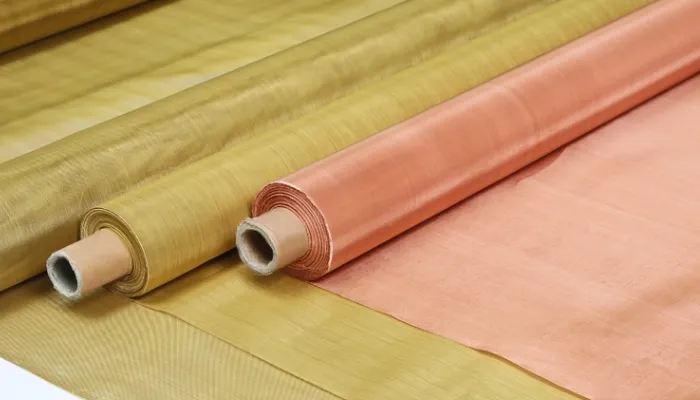

Weaving Red Copper Wire Mesh Filter Plain Woven EMF Shielding Copper Mesh

Copper mesh is a functional metal mesh material made from extremely high-purity copper wire (pure copper content ≥99.95%) through a precision weaving process. Its core characteristics lie in its excellent electrical and thermal conductivity and non-magnetic properties, making it an ideal material for electromagnetic shielding (EMI/RFI) and efficient heat dissipation applications. The product naturally forms a dense patina protective layer in the atmosphere, exhibiting excellent resistance to atmospheric corrosion.

Technical Specifications

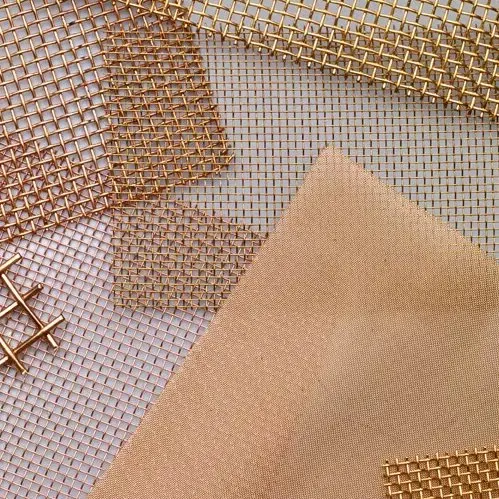

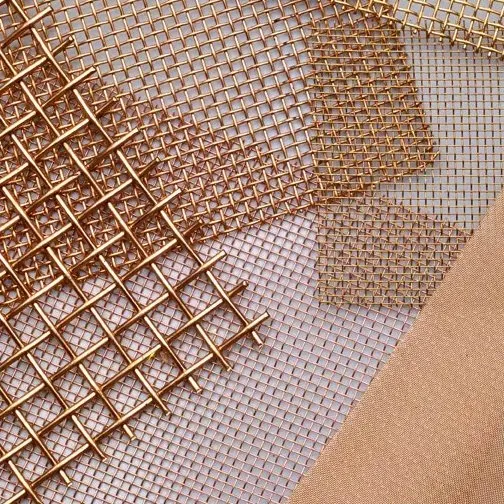

ITEM	Mesh Count/Inch	Diameter (mm)	Diameter (inch)	Aperture (mm)	Aperture (inch)	Weight (Kg/m²)
RK04	4	1.0	0.039	5.35	0.211	2.16
RK08	8	0.8	0.031	2.38	0.094	2.76
RK11	14	0.5	0.02	1.31	0.052	1.89
RK20	40	0.2	0.008	0.44	0.017	0.86
RK21	50	0.18	0.007	0.33	0.013	0.87
RK27	100	0.1	0.004	0.15	0.006	0.54
RK43	200	0.053	0.002	0.07	0.003	0.3

Key Features & Advantages

✓High Purity: Copper content ≥99.95%.

✓Conductivity: Excellent electrical and thermal conduction.

✓Non-Magnetic: Suitable for precision electronic environments.

✓Corrosion Resistance: Naturally formed protective patina layer.

✓High Temp Resistance: Withstands up to 450℃ for extended periods.

✓Easy Processing: High flexibility for cutting and welding.

Applications

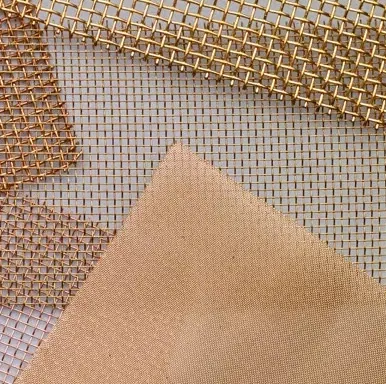

◈EMF/RFI shielding for labs and secure rooms.

◈Manufacturing Faraday cages for precision instruments.

◈Heat sink assemblies for LED lights and electronic components.

◈Liquid and powder filtration in pharmaceutical industries.

◈Decorative wall panels, screens, and architectural ceilings.

Shipping & Packaging

Shipping Ways:

Express (FedEx, DHL, UPS), Air Freight, Sea Freight (Economical for large orders), or Railway.

Packaging:

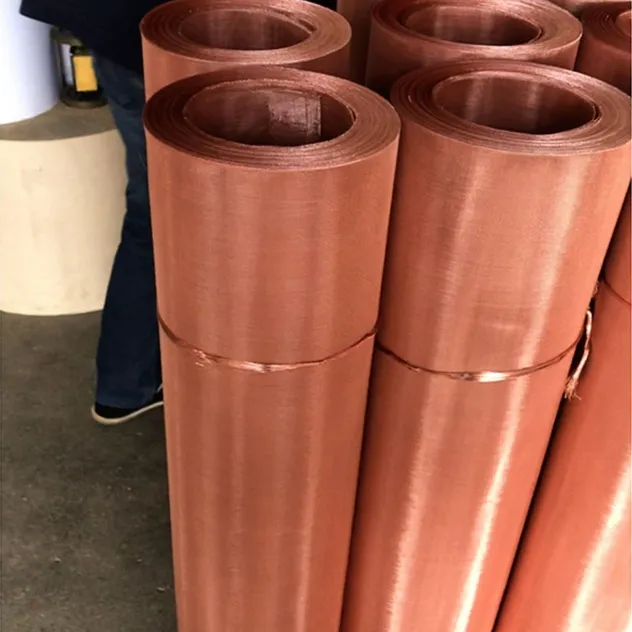

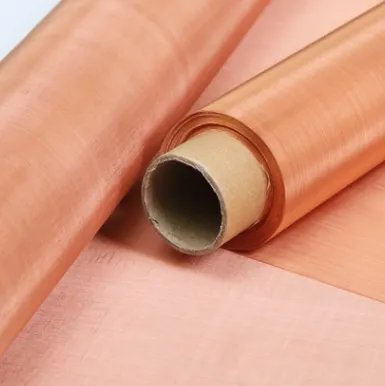

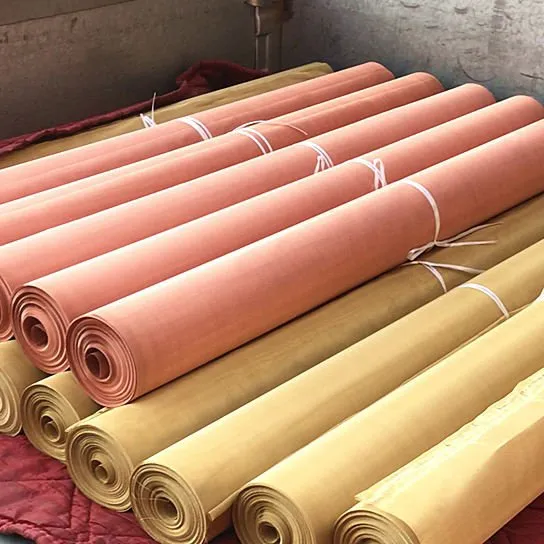

Wound around paper tubes, moisture-proof paper wrapping, and secured in wooden boxes or pallets.

Frequently Asked Questions

Q1: Can you provide free samples? A1: Yes, A4 size samples can be provided free of charge, though shipping or basic sample fees may apply depending on the requirement.

Q2: Is there a detailed specification sheet available? A2: Detailed specification tables are provided in our product description. You can select the mesh count, wire diameter, and aperture that fits your needs.

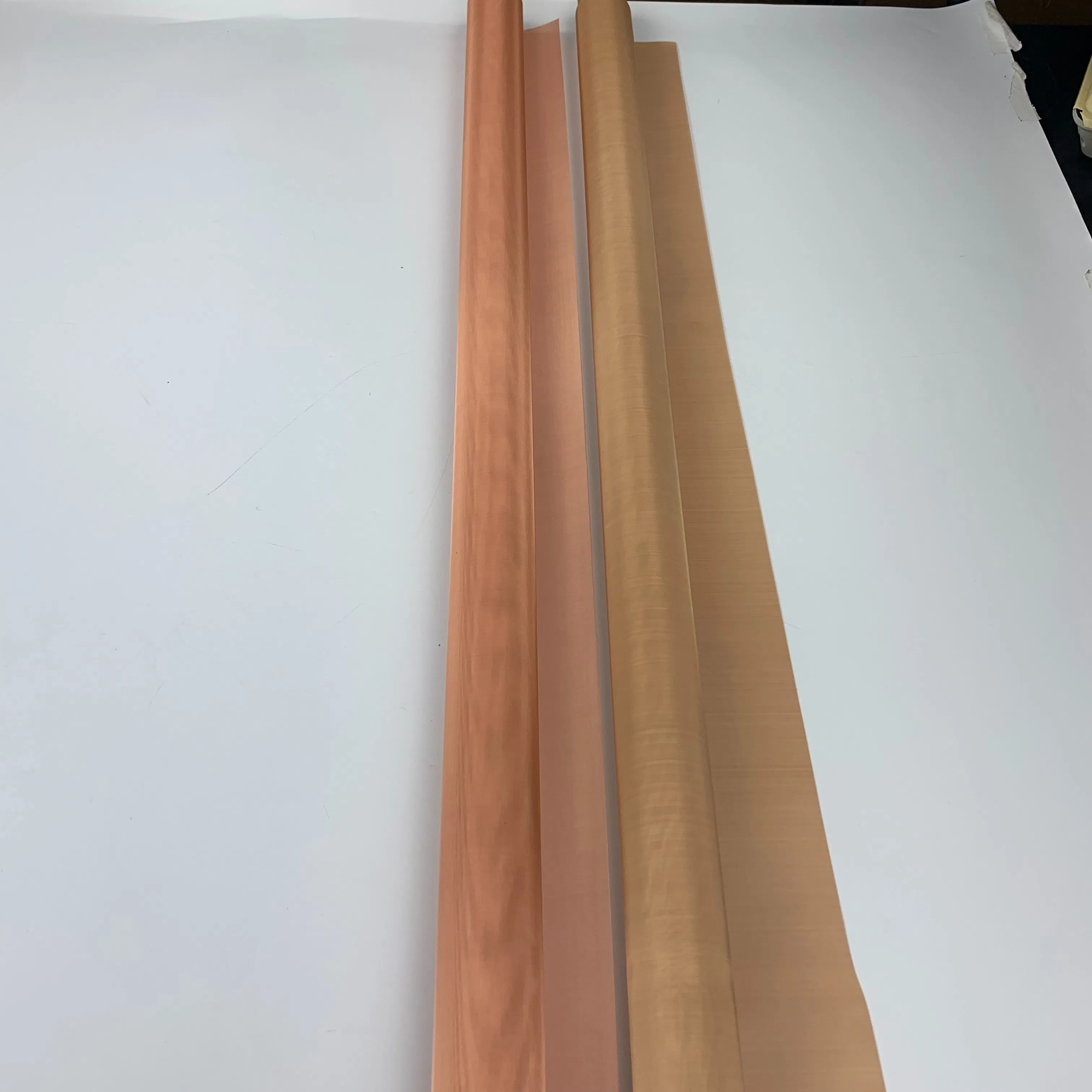

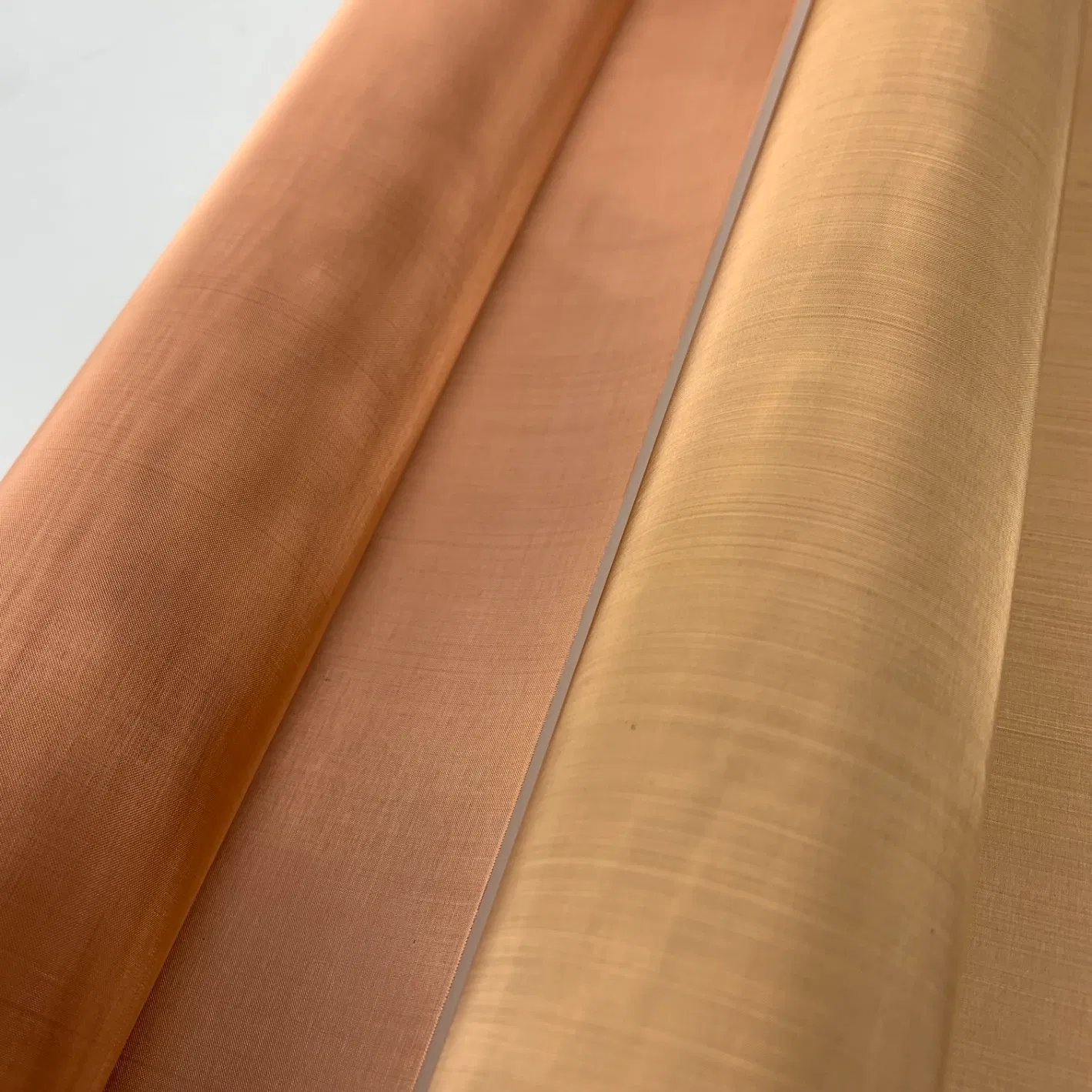

Q3: What is the highest mesh count available? A3: The standard highest mesh count for brass and red copper mesh is 200 mesh, though we can explore denser specifications upon request.

Q4: Can I customize the width of the mesh? A4: Yes, we offer standard widths up to 1.28 meters and can customize widths from 3mm up to 3 meters based on your requirements.

Q5: Are you a manufacturer? A5: We are an integrated manufacturing and trading company, providing both specialized production and professional export services.

Q6: What are the primary uses for red copper mesh? A6: It is primarily used for RFI/EMI shielding, Faraday cages, high-end filtration, and heat dissipation in electronic components.
