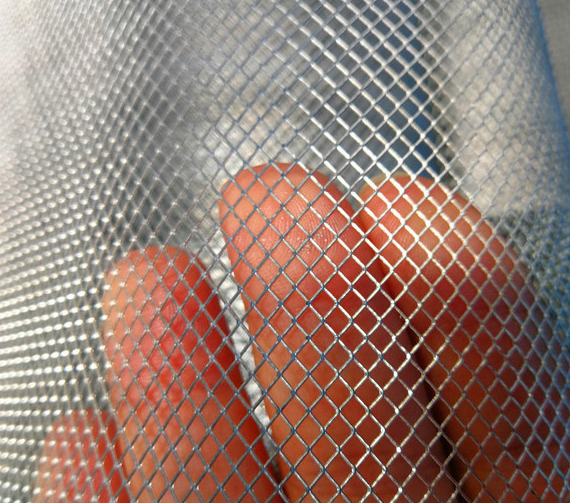

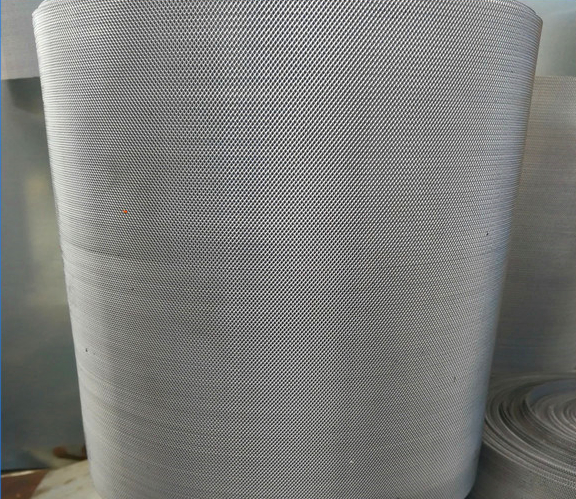

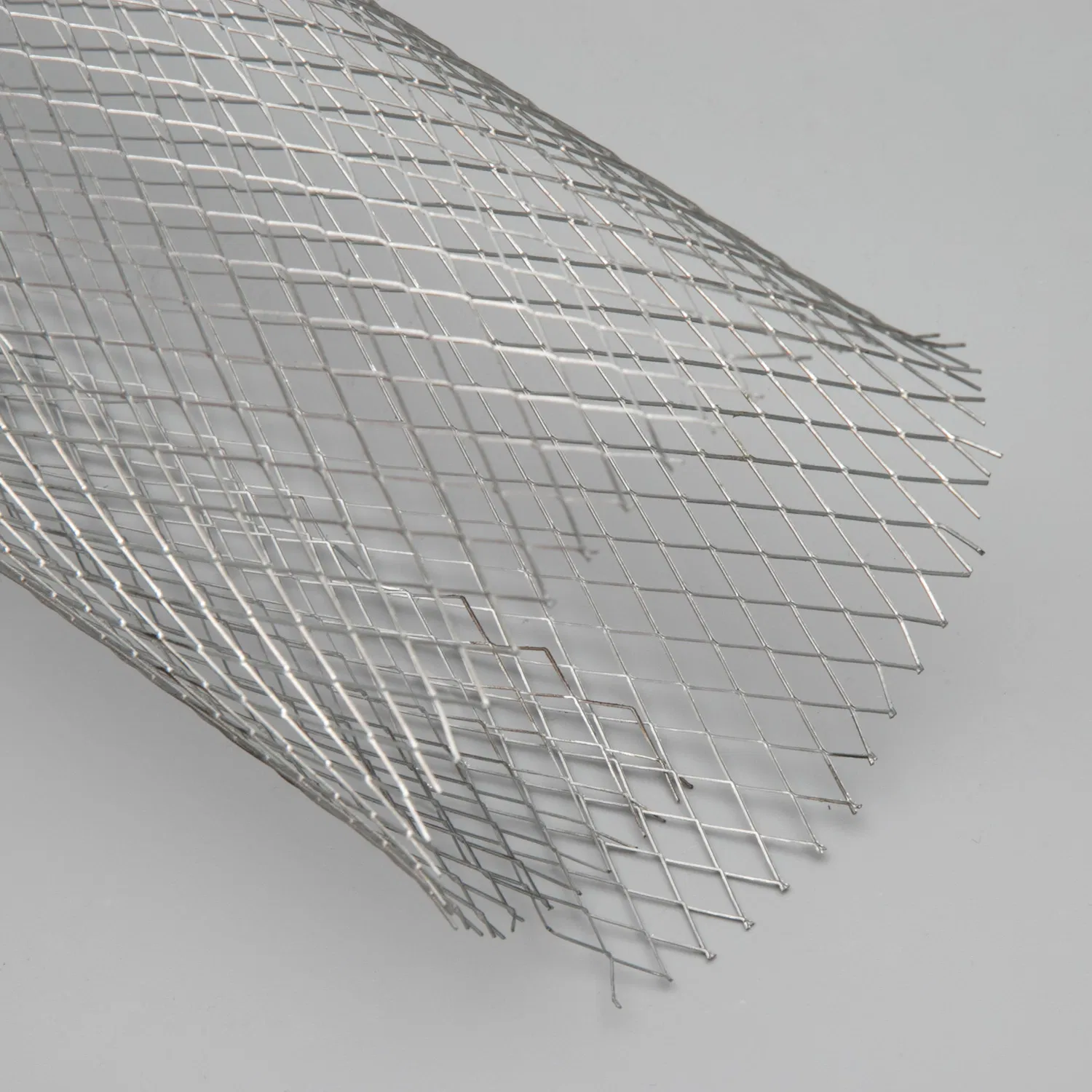

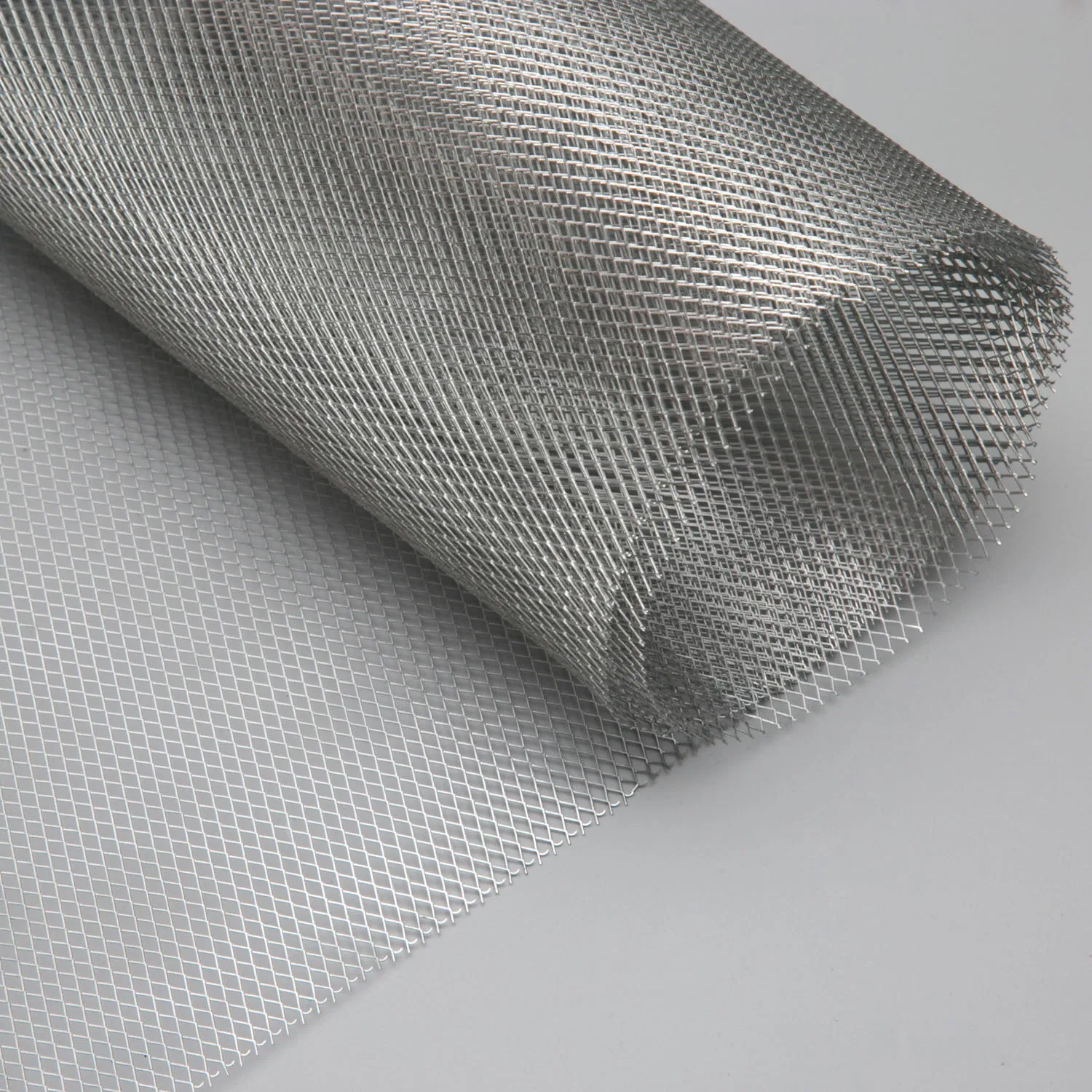

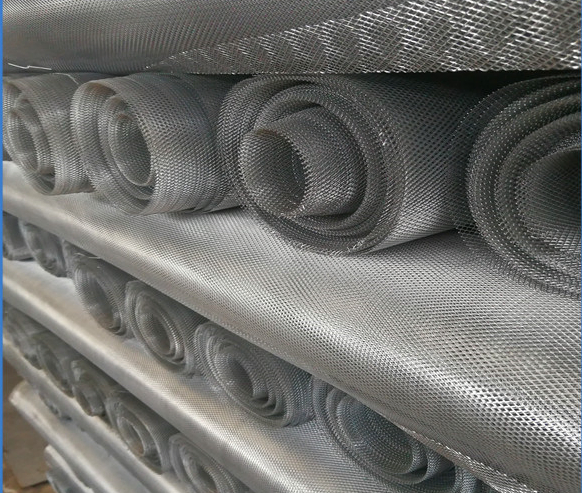

Small Hole Expanded Metal Mesh

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

FH-61

Hole Shape

Diamond

Usage

Protection, Aquaculture

Surface Treatment

Galvanized / Hot-galvanize

Product Description

Expanded metal is an intermediate raw material that allows light and air to flow freely through it and that has more rigidity than the sheet from which it was produced.

Material Options: Steel, Aluminium, Stainless steel, Bronze, Brass, Titanium, and more.
Thickness Range: 0.3mm - 12.0mm
Hole Shapes: Diamond, Square hole, Scale hole, Gothic, etc. (Custom designs available).
Mesh Sizes: 1220*2440mm, 1200*2400mm, 1000*2000mm or customized.
Surface Treatment: 1. Powder coated; 2. PVC coated; 3. Polishing.

Applications & Usage

Widely used for civil construction, cement pouring, and machinery protection.
Artware manufacture and high-grade speaker net hoods.
Reinforcement in the construction industry, roads, and bridges.
Fencing for sports venues and road greening belts.
Heavy expanded metal for oil tank truck pedal nets and heavy machinery platforms.
Staircases, walkways for boilers, locomotives, and ships.
Window guards, grilles, and wall reinforcement.
Perimeter fencing, gates, and pedestrian safety barriers.

Technical Specifications

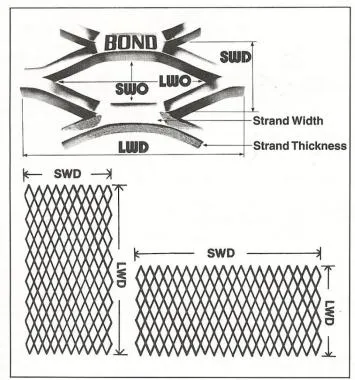

Thickness (mm)	SWD (mm)	LWD (mm)	Wire Stems Width (mm)	Width (m)	Length (m)	Weight (kg/m2)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
1	15	40	1.5	2	4	1.85
2	18	50	2.1	2	4	3.69
4	50	100	4	2	2	11.15
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26

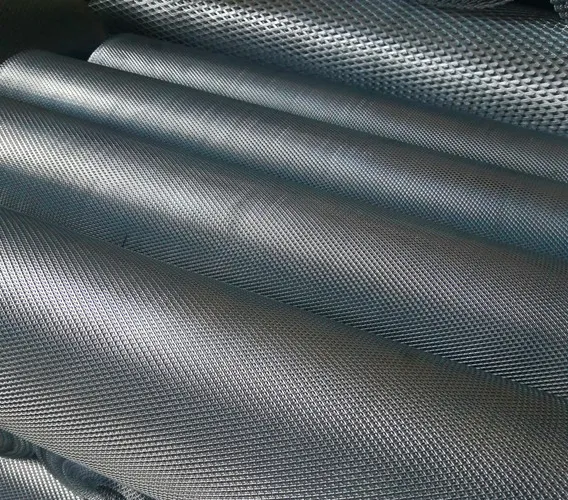

Product Gallery

Frequently Asked Questions

Q1: What is expanded metal mesh?

Expanded metal is a versatile material produced by slitting and stretching a single metal sheet to create a diamond-shaped pattern. It is stronger and more rigid than the original sheet while remaining lightweight.

Q2: Which materials can be expanded?

We can process various materials including Carbon Steel, Aluminum, Stainless Steel, Bronze, Brass, and Titanium depending on your structural requirements.

Q3: What are the main benefits of using this mesh?

It provides excellent air and light flow, high anti-slip properties, great strength-to-weight ratio, and is highly cost-effective as there is no material waste during the expansion process.

Q4: What surface treatments are available?

Common treatments include hot-dip galvanizing for corrosion resistance, powder coating for color and durability, PVC coating, and mechanical polishing for stainless steel versions.

Q5: Can the mesh sizes be customized?

Yes, while standard sizes like 1220x2440mm are common, we can customize the thickness (0.3mm to 12mm), hole shape, and sheet dimensions to meet specific project needs.

Q6: How is the mesh packaged for transport?

The mesh is typically packed using waterproof paper combined with woven bags, cartons, or pallets to ensure safety and prevent damage during shipping.
