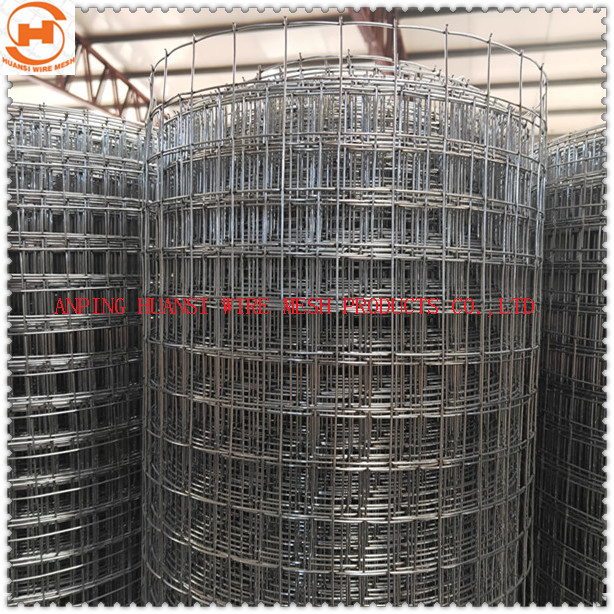

1'' Square Hole Galvanized/Stainless Steel Welded Wire Mesh

1 / 5

1'' Square Hole Galvanized/Stainless Steel Welded Wire Mesh

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

HS-W009

Mesh Size

1 Inch

Weave Technique

Welded

Color

Grey

Type

Welded Mesh

Certification

ISO9001

Length

30m

Width

1m, 1.2m

Wire Dia.

0.8mm--2mm

Mesh Opening

2''---6''

HS Code

73144100

Production Capacity

5000m2/Week

Packaging & Delivery

Package Size

120.00cm * 90.00cm * 70.00cm

Gross Weight

500.000kg

Packing Detail

Waterproof Paper Insides and Outer Woven Bags

Profile

We are a specialized manufacturer of all kinds of wire mesh and security fences. We have a wealth of experience in the production and sales of high-quality wire mesh products. Welded wire mesh is one of our primary professional offerings.

Product Description

Welded Wire Mesh is constructed from high-quality low-carbon steel wire. The manufacturing process includes precise automated welding followed by surface treatments such as cold plating (electroplating), hot-galvanizing, or PVC coating. This ensures a smooth surface, uniform mesh structure, and strong joints.

Material: Low carbon steel wire, Stainless steel 302, 304, 304L, 316, 316L. Special materials and specifications can be customized.

Available Types:

Hot-dipped Galvanized Welded Wire Mesh
Electric Galvanized Welded Wire Mesh
PVC Coated Welded Wire Mesh
Redrawing Wire Welded Wire Mesh
Stainless Steel Wire Welded Wire Mesh

Applications: Road isolation, ground leak-proof anti-cracking, highway reinforcement, breeding pens, machine guards, crafts, wall insulation, floor heating systems, and agricultural usage.

Product Parameters

Specification List of Welded Wire Mesh
Opening		Wire Diameter (BWG)
In Inch	In Metric (mm)	Wire Diameter (BWG)
1/4" x 1/4"	6.4mm x 6.4mm	22, 23, 24
3/8" x 3/8"	10.6mm x 10.6mm	19, 20, 21, 22
1/2" x 1/2"	12.7mm x 12.7mm	16, 17, 18, 19, 20, 21, 22, 23
5/8" x 5/8"	16mm x 16mm	18, 19, 20, 21
3/4" x 3/4"	19.1mm x 19.1mm	16, 17, 18, 19, 20, 21
1" x 1/2"	25.4mm x 12.7mm	16, 17, 18, 19, 20, 21
1-1/2" x 1-1/2"	38mm x 38mm	14, 15, 16, 17, 18, 19
1" x 2"	25.4mm x 50.8mm	14, 15, 16
2" x 2"	50.8mm x 50.8mm	12, 13, 14, 15, 16

Technical Notes:
1. Standard roll length: 30m; width: 0.5m to 1.8m.
2. Special sizes available upon request.
3. Packing: Waterproof paper in rolls. Custom packing available.

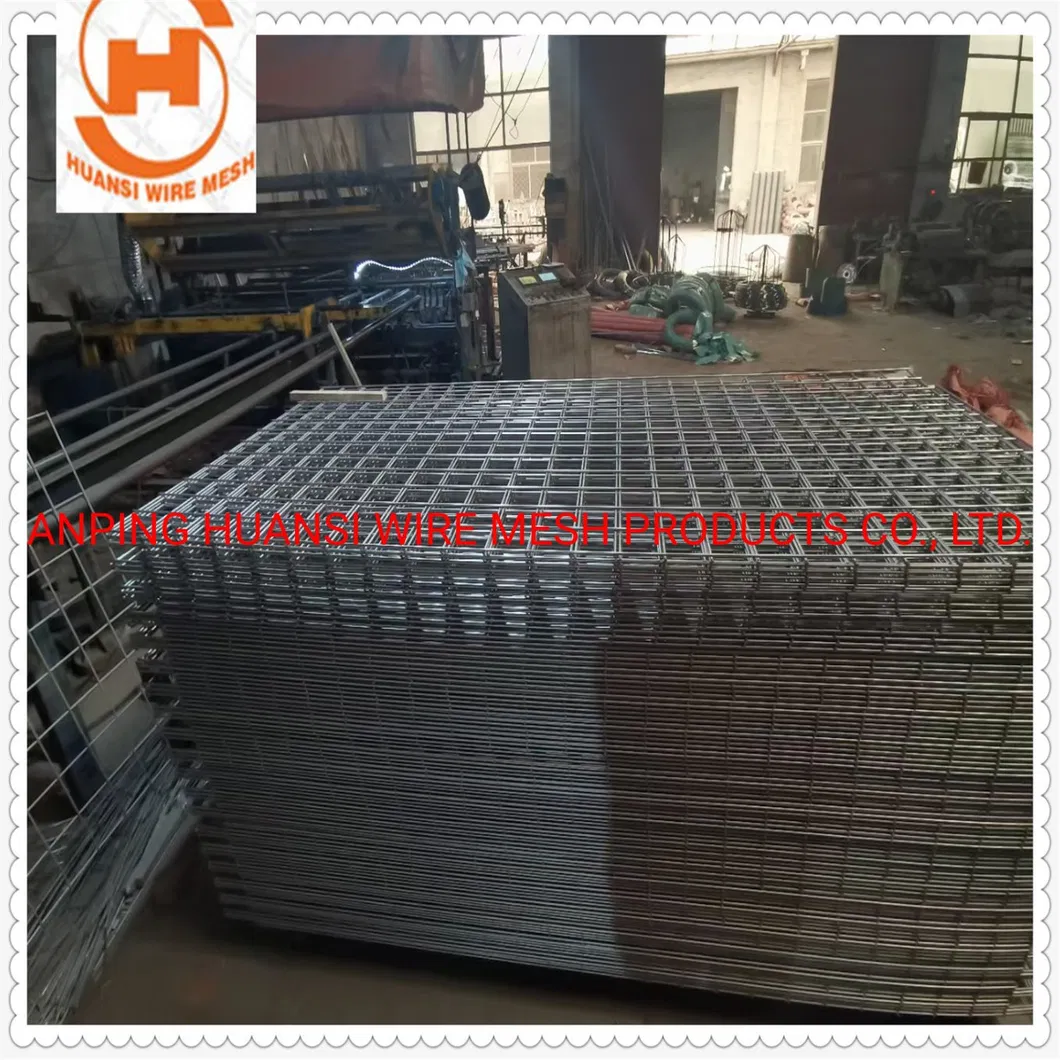

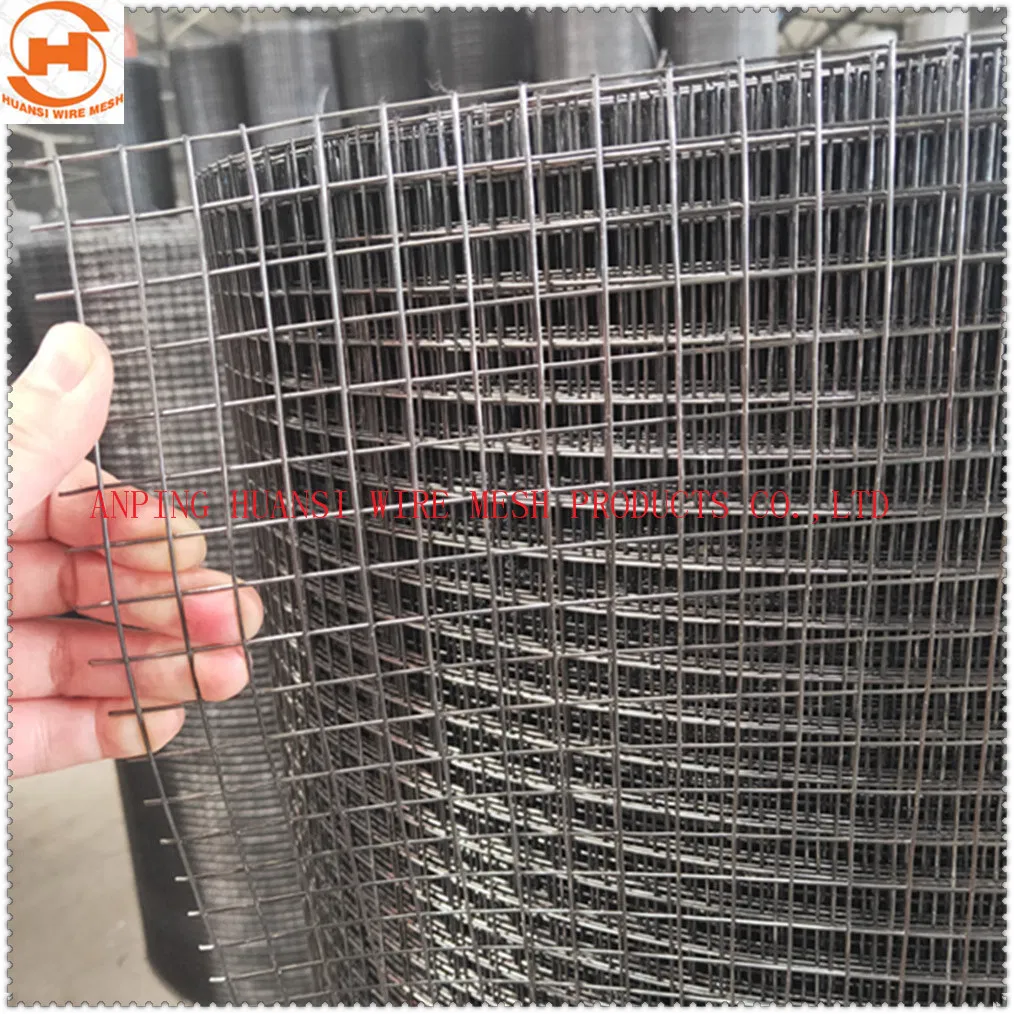

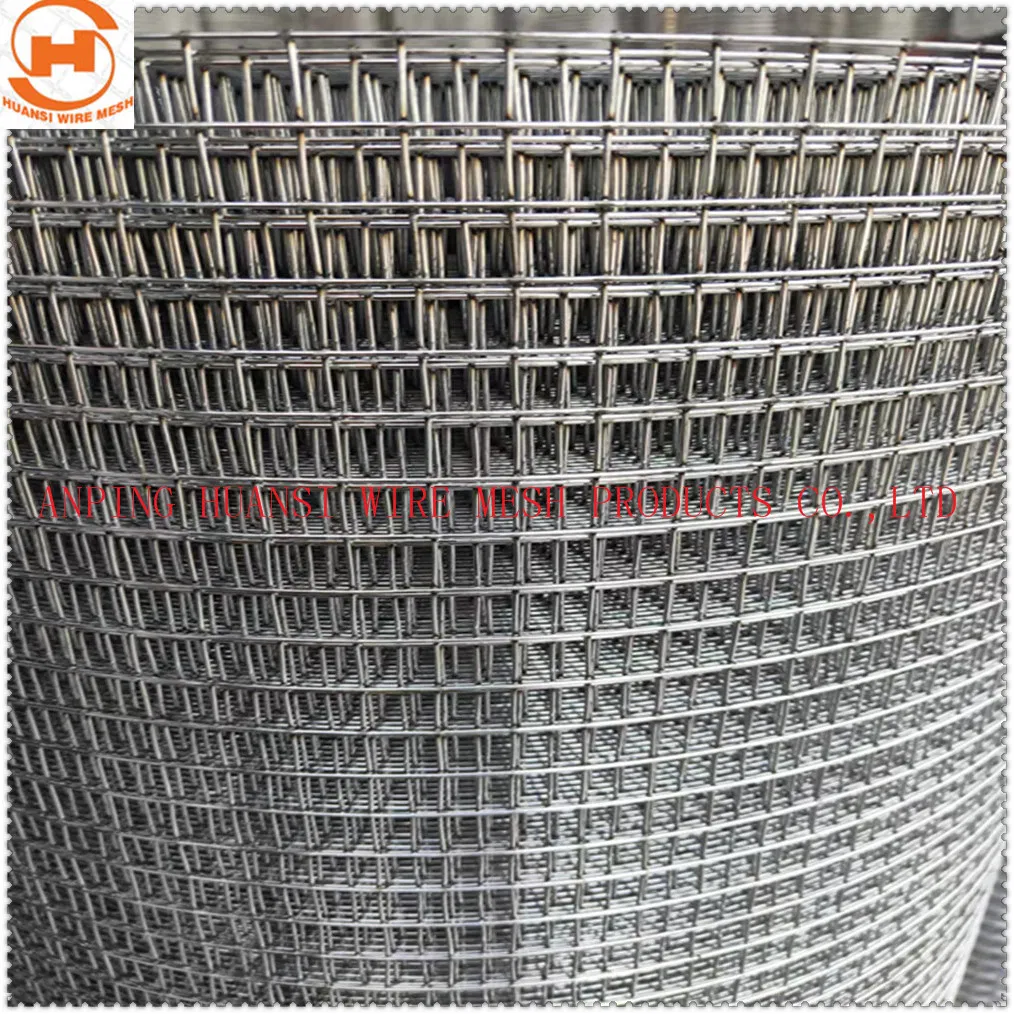

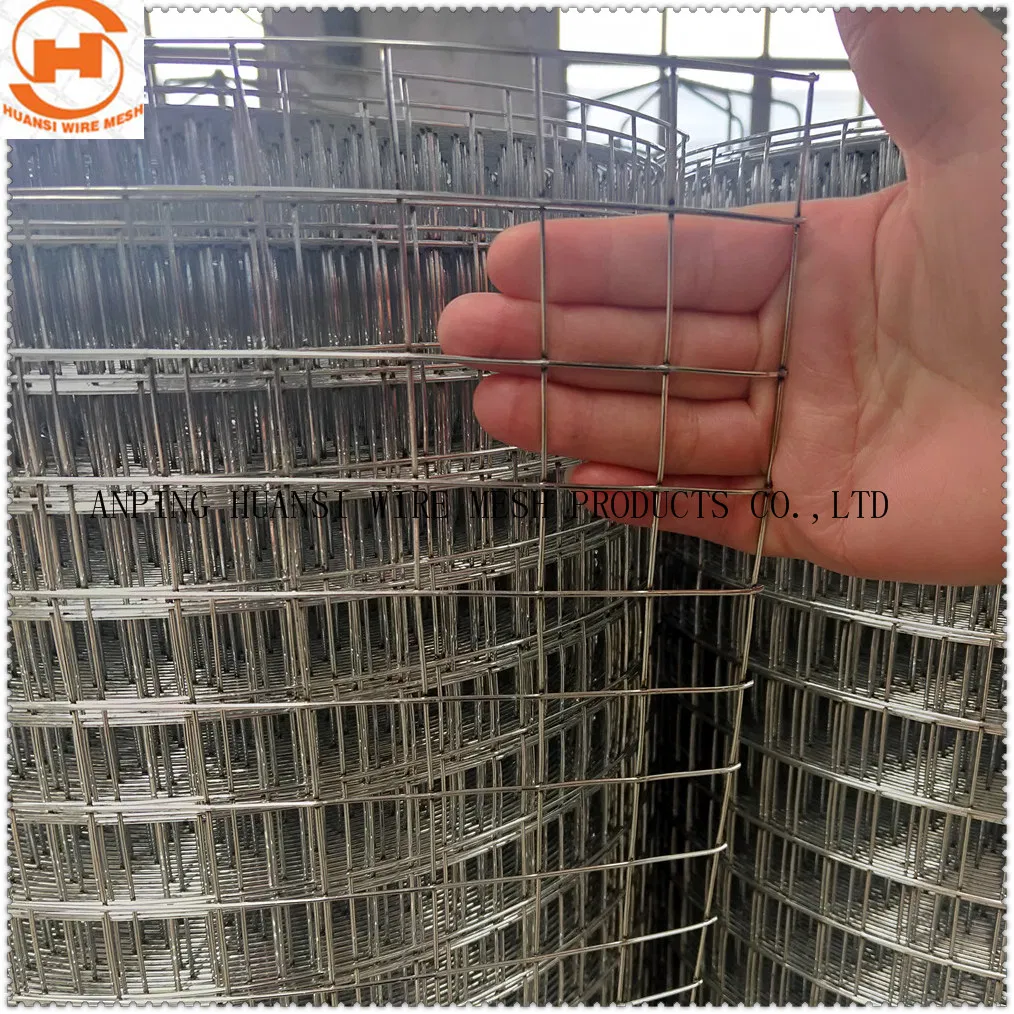

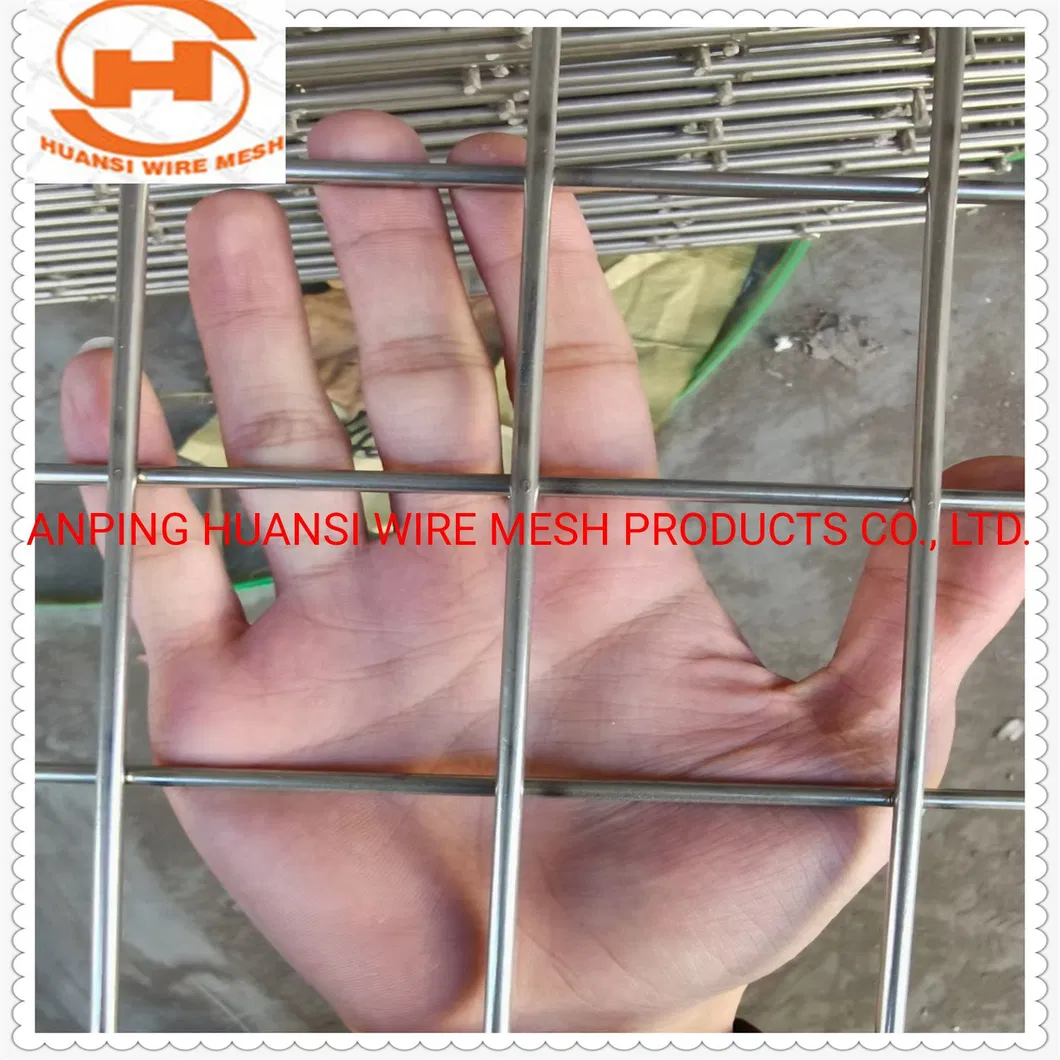

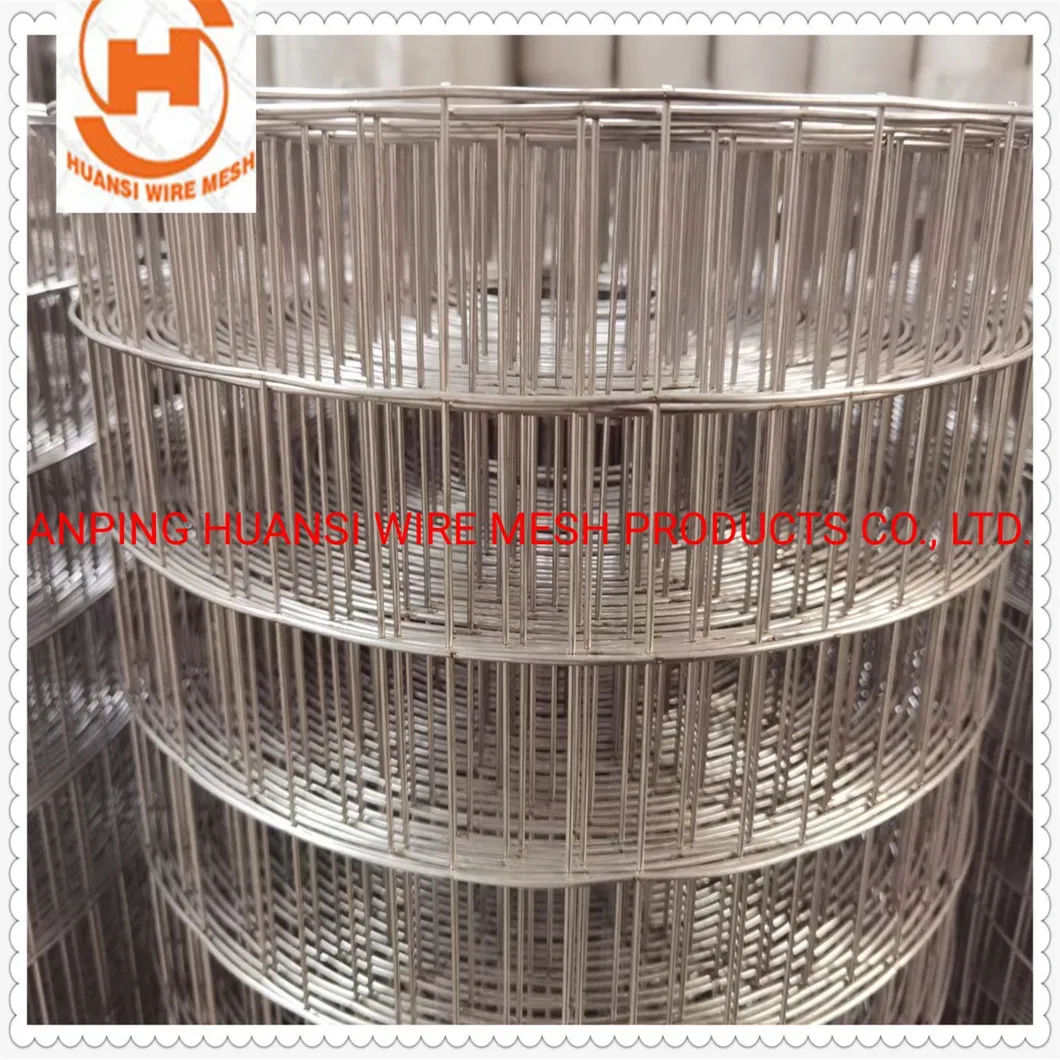

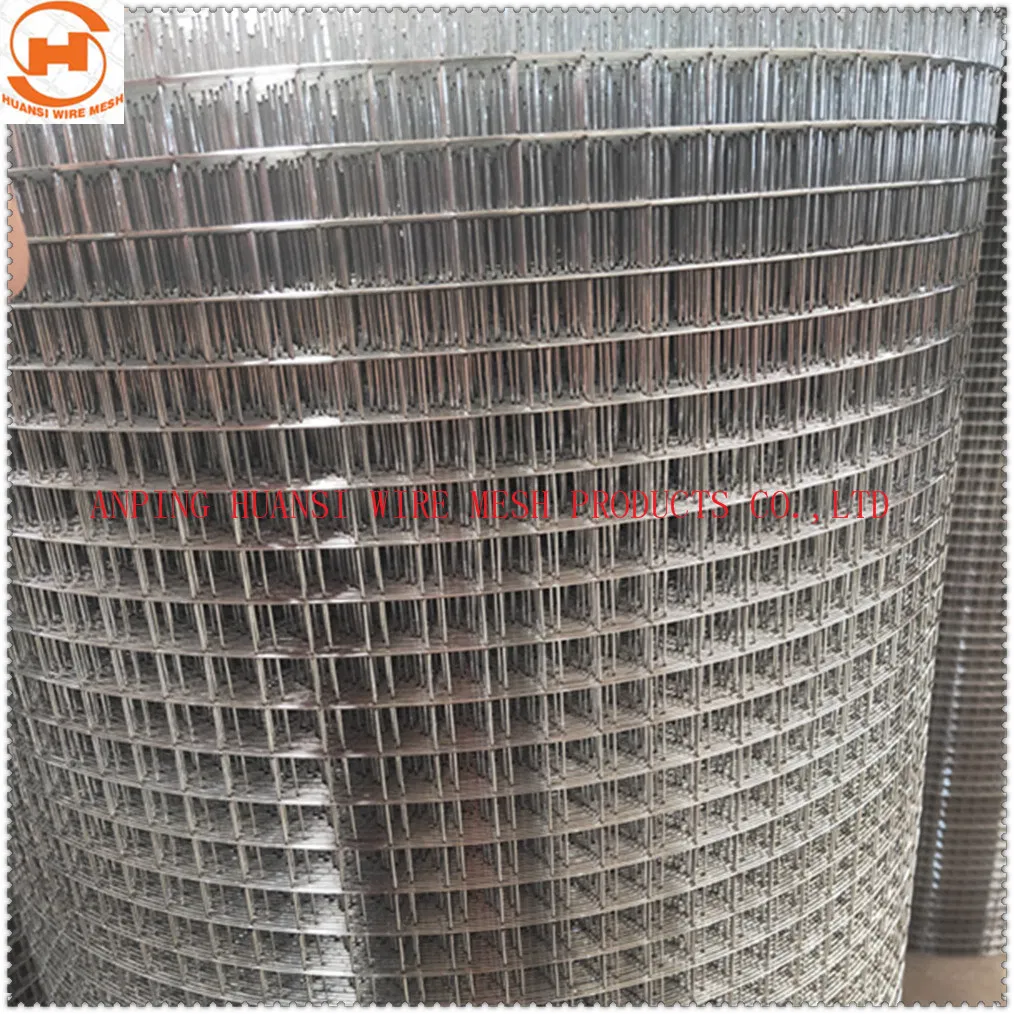

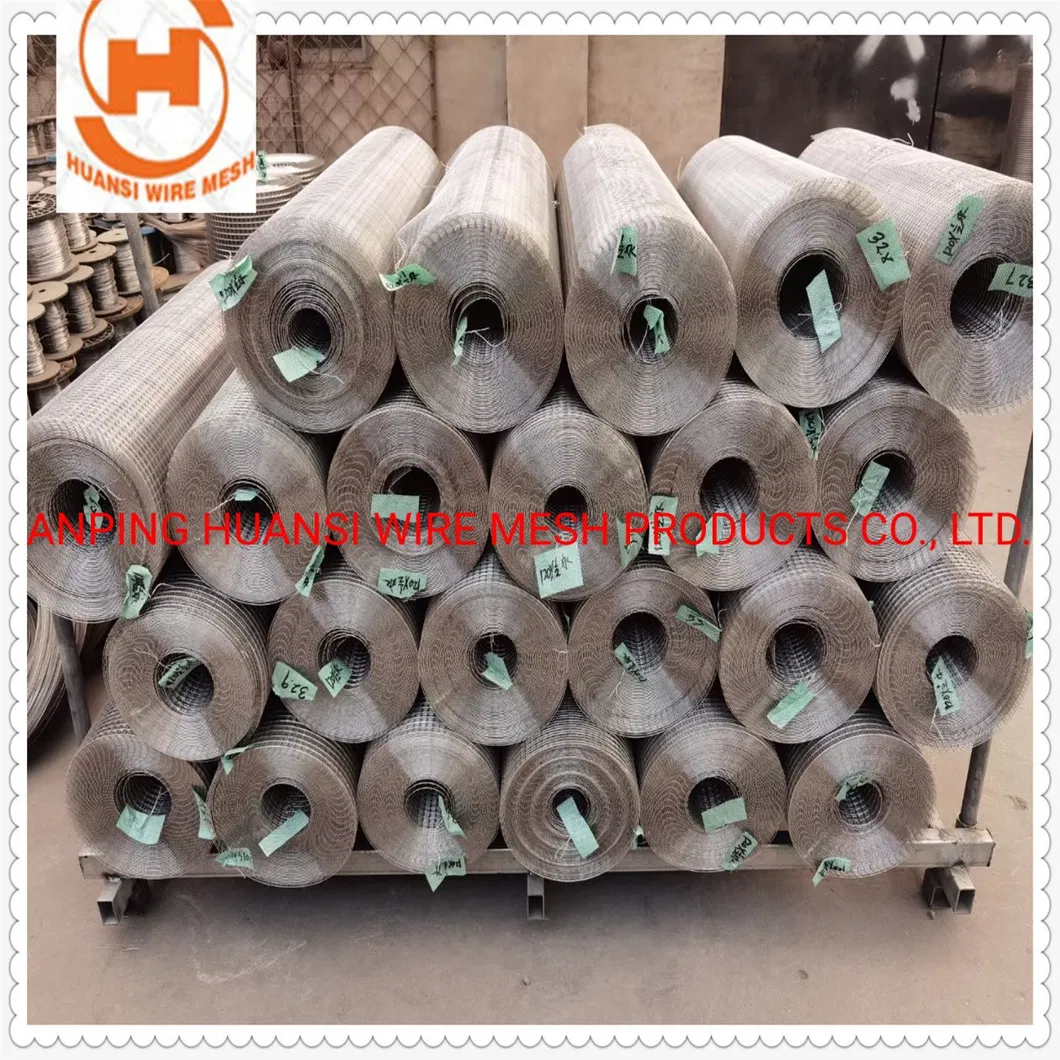

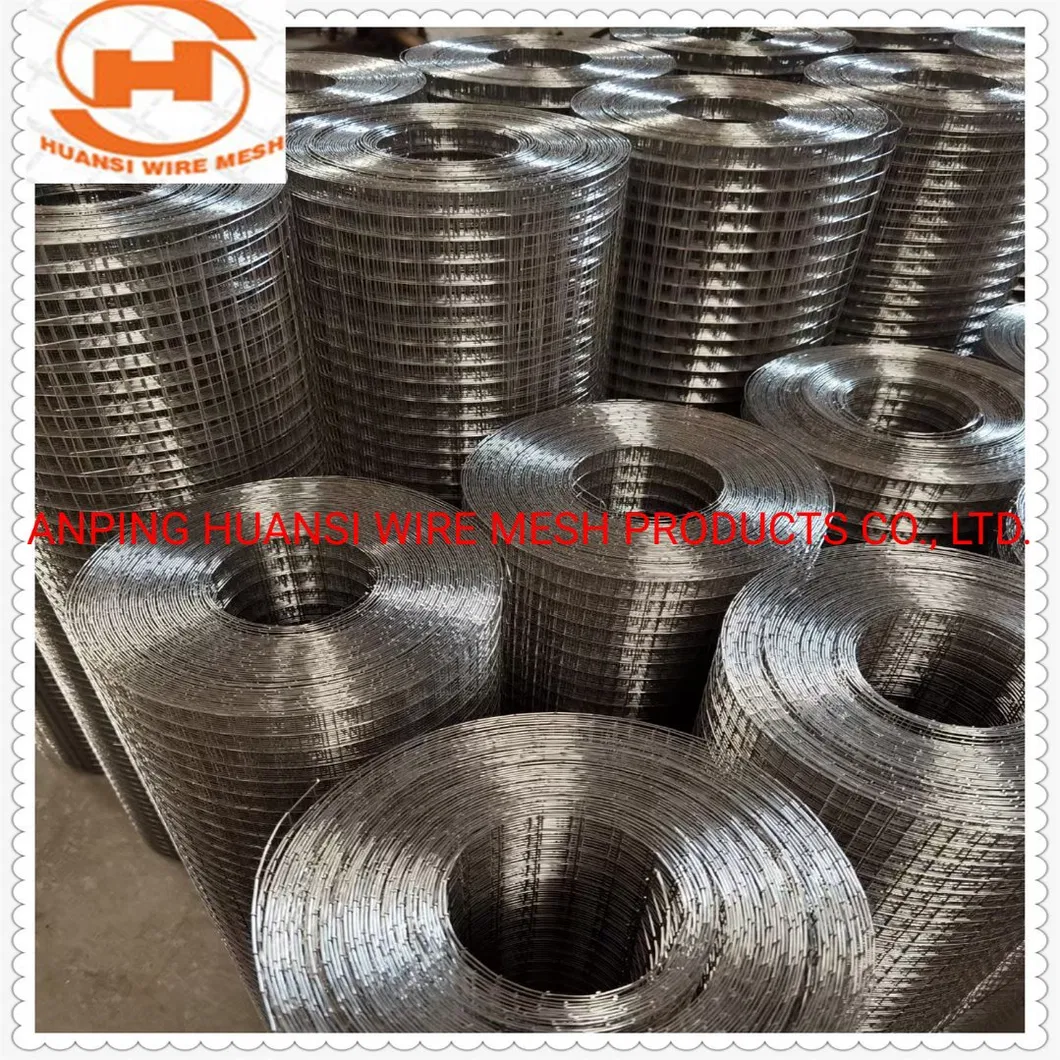

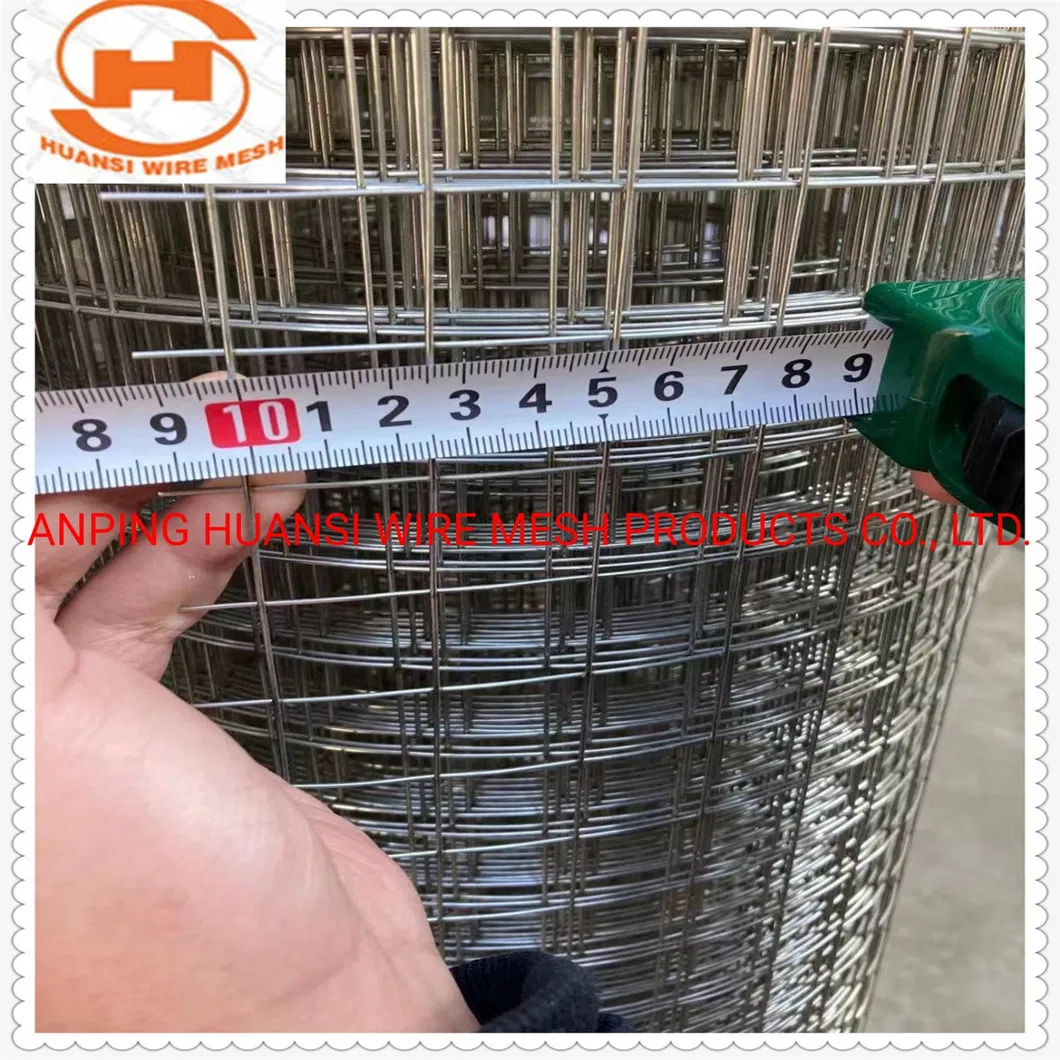

Detailed Photos

Frequently Asked Questions

Q1: What materials are used for the welded wire mesh? A: We use high-quality low-carbon steel wire as standard, as well as stainless steel grades 302, 304, 304L, 316, and 316L for superior corrosion resistance.

Q2: What surface treatments do you provide? A: We offer several finishes including hot-dipped galvanizing, electro-galvanizing, and PVC coating to meet various environmental and durability requirements.

Q3: Can the mesh dimensions be customized? A: Yes, we can customize wire diameters, mesh opening sizes, and roll widths/lengths according to your specific project needs.

Q4: What are the main applications for 1-inch welded mesh? A: It is commonly used for construction reinforcement, safety fences, animal cages, machine protection, and floor heating system stabilization.

Q5: How is the product packaged for international shipping? A: Standard rolls are wrapped in waterproof paper internally and secured with outer woven bags to ensure protection during transit.

Q6: Is the mesh stable and rust-resistant? A: Yes, our galvanizing and PVC coating processes provide excellent protection against corrosion, ensuring long-term stability and mechanical performance.
