| Model NO. | DY-B304 | Material | SUS304 |
| Hole Shape | Square | Application | Filter, Protecting Mesh, Screen, Decorative Mesh, Window Curtain |
| Type | Stainless Steel Plain Wire Mesh | Material Type | Stainless Steel Wire |
| Weave Technique | Plain Weave | Wire Mesh Width | 1m |
| Technique | Woven | Nickels | 8% |
| Certification | ISO9001 | Mesh Size | 2mesh -1500mesh |
| Structure | Single Network | Product Name | Stainless Steel Wire Mesh |
| Sample | Free | Transport Package | Wooden Case |
| HS Code | 7314140000 | Production Capacity | 5000m2/Day |
| Package Size | 100.00cm * 15.00cm * 15.00cm |
| Package Gross Weight | 20.000kg |

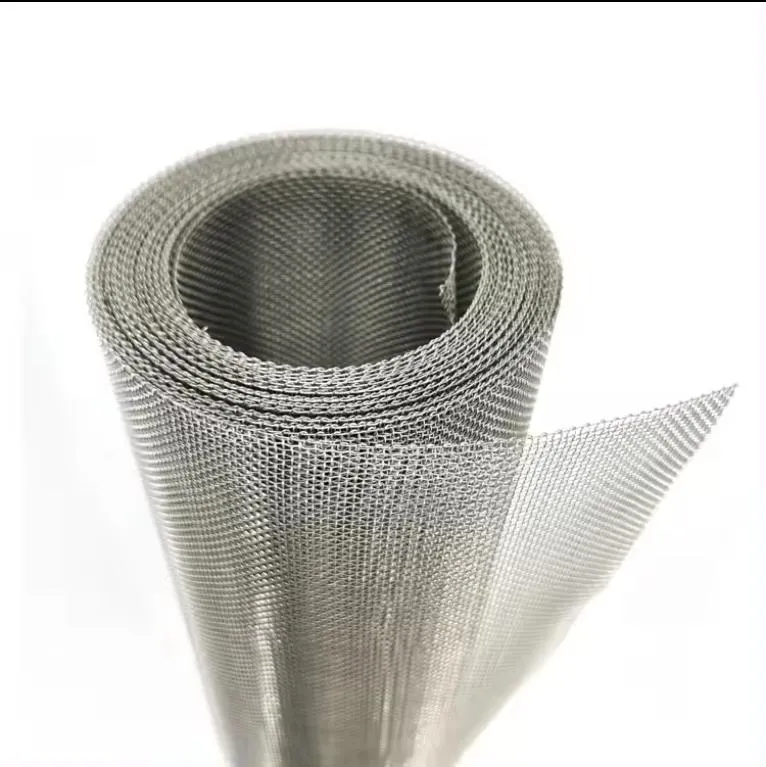

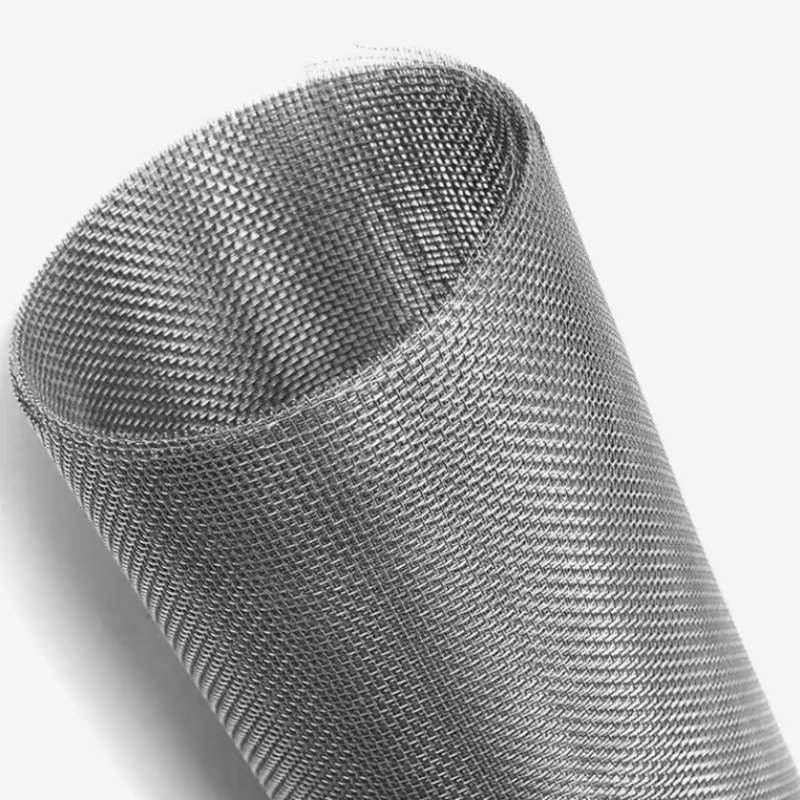

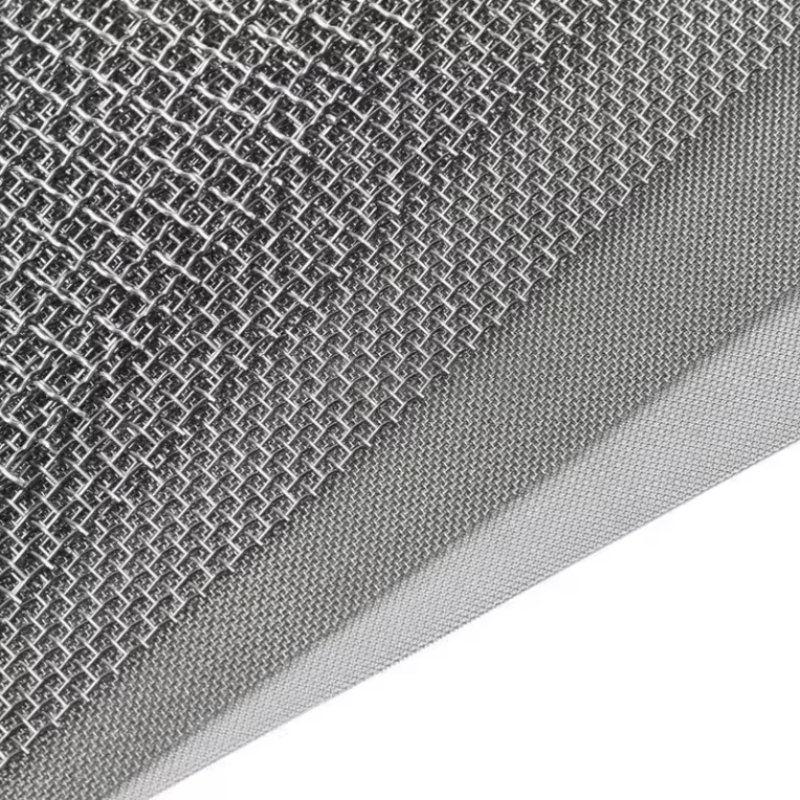

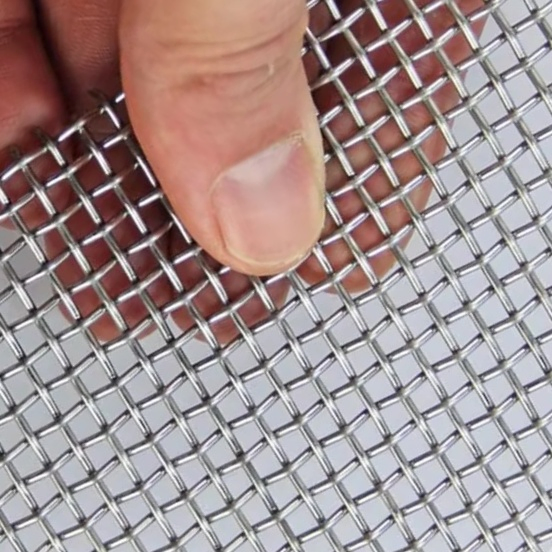

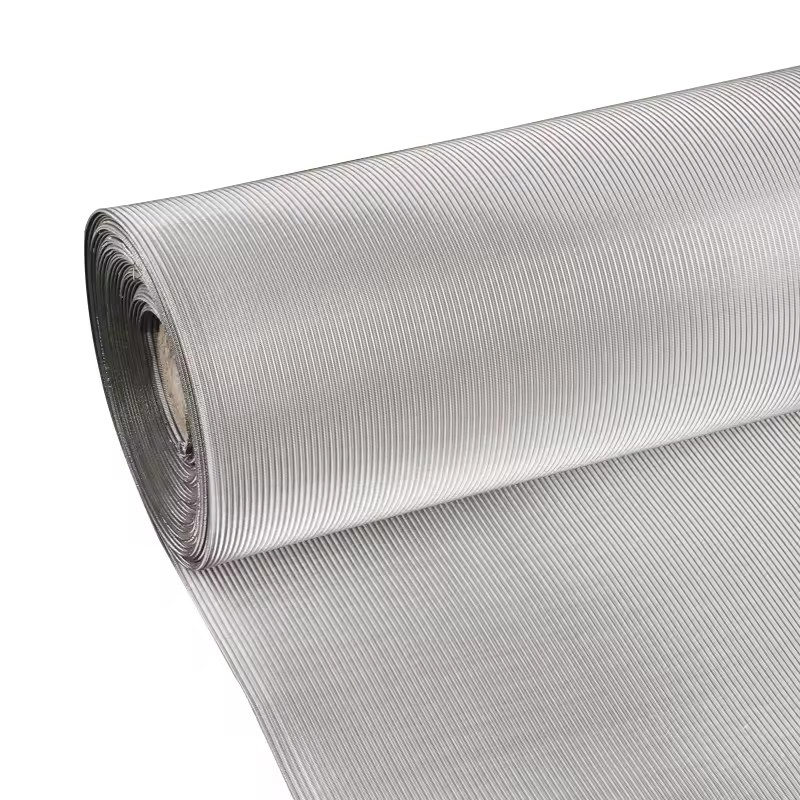

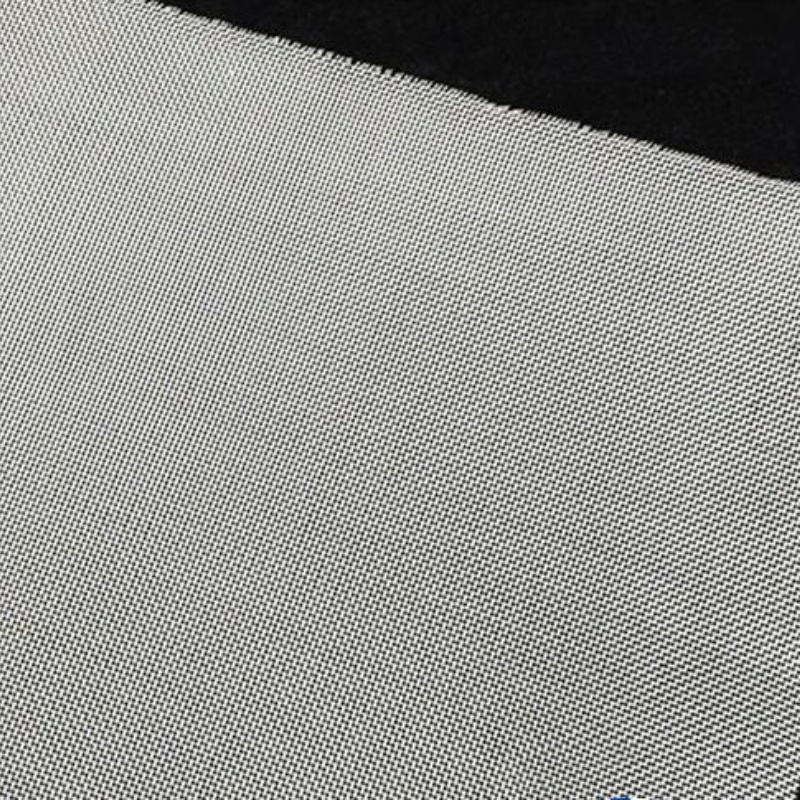

Widely used 304 316 ultra-fine stainless steel wire mesh filter 200 screen powder filter metal filter wholesale

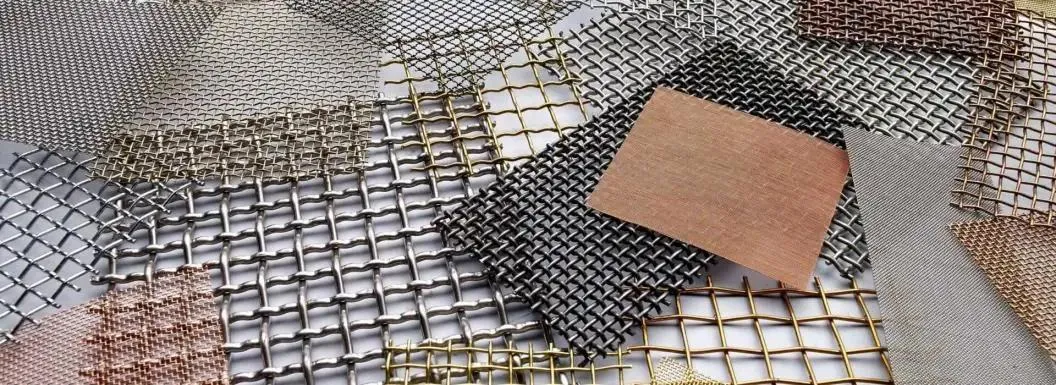

Professional woven wire mesh/metal screen custom manufacturing and wholesale. We will provide you with quality products and services, and provide you with satisfactory prices.

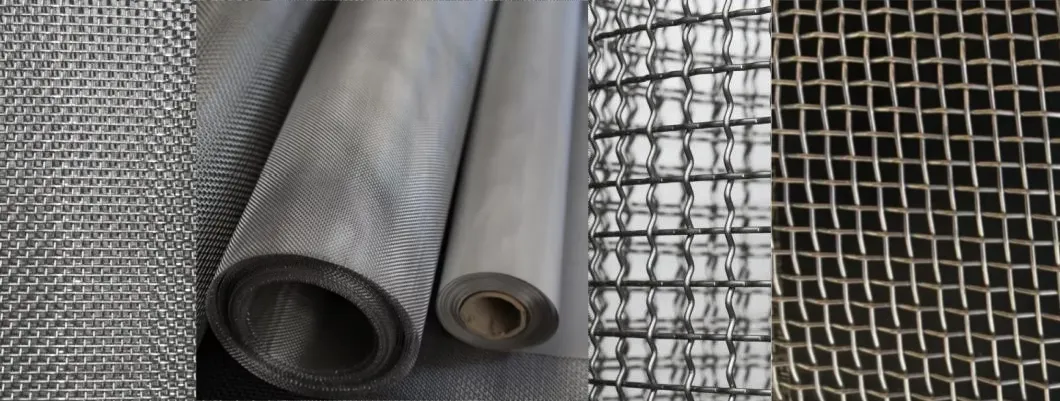

| Woven Wire Mesh Specifications | |
|---|---|
| Stainless Steel Grade | SS304, 316, 316L, 430, 310s, 2205, etc |
| Aluminum Alloy | 6061, 5056, 5052 |
| Copper | Pure Copper, Brass, Bronze |
| Special Materials | Nickel, Titanium, Silver, Tungsten, Molybdenum, Monel, Inconel, Nichrome, Hastelloy |
| Weave Types | Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave, etc |
| Wire Diameter Range | 0.016-0.5mm |
| Width Range | Maximum 6m, usually 1m |
| Length Range | Maximum 50m, usually 30m/roll |
| Production Standards | ASTM E2016 - 20 |

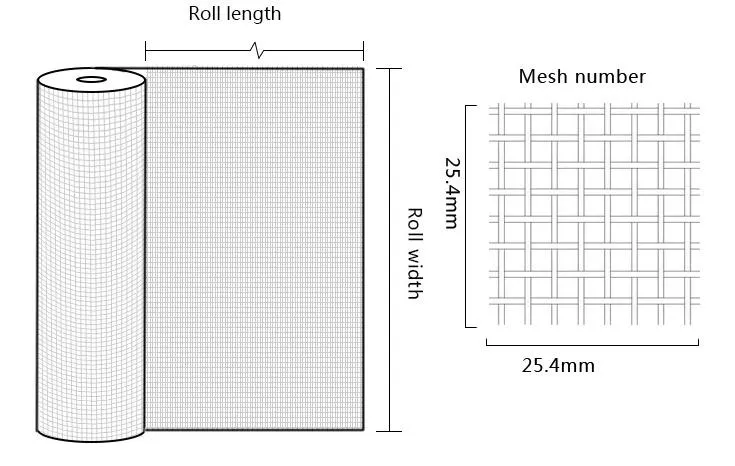

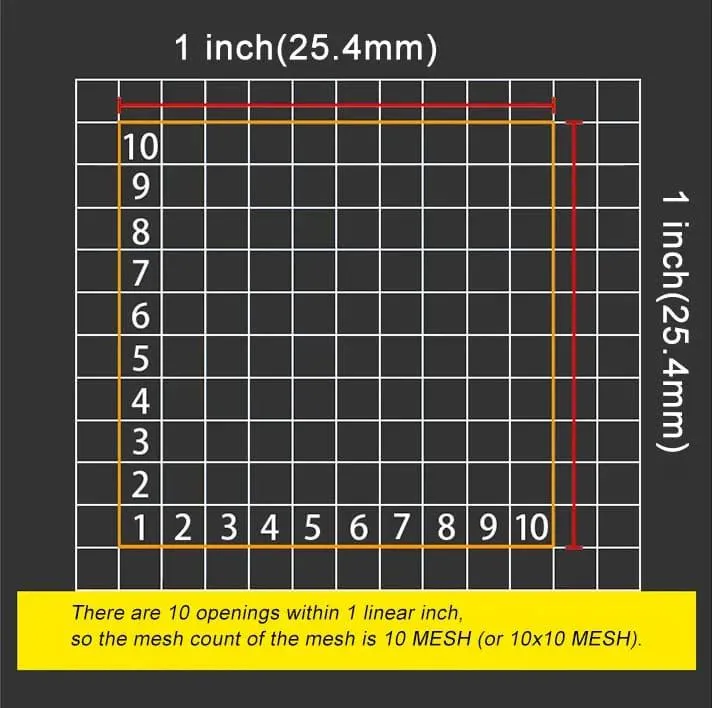

| Mesh/inch | Wire Dia (mm) | Aperture (mm) | Mesh/inch | Wire Dia (mm) | Aperture (mm) |
| 2 | 1.80 | 10.90 | 60 | 0.15 | 0.273 |
| 3 | 1.60 | 6.866 | 70 | 0.14 | 0.223 |
| 4 | 1.20 | 5.15 | 80 | 0.12 | 0.198 |
| 5 | 0.91 | 4.17 | 90 | 0.11 | 0.172 |
| 10 | 0.55 | 1.990 | 100 | 0.10 | 0.154 |
| 20 | 0.30 | 0.970 | 200 | 0.053 | 0.074 |
| 50 | 0.19 | 0.318 | 500 | 0.025 | 0.0385 |

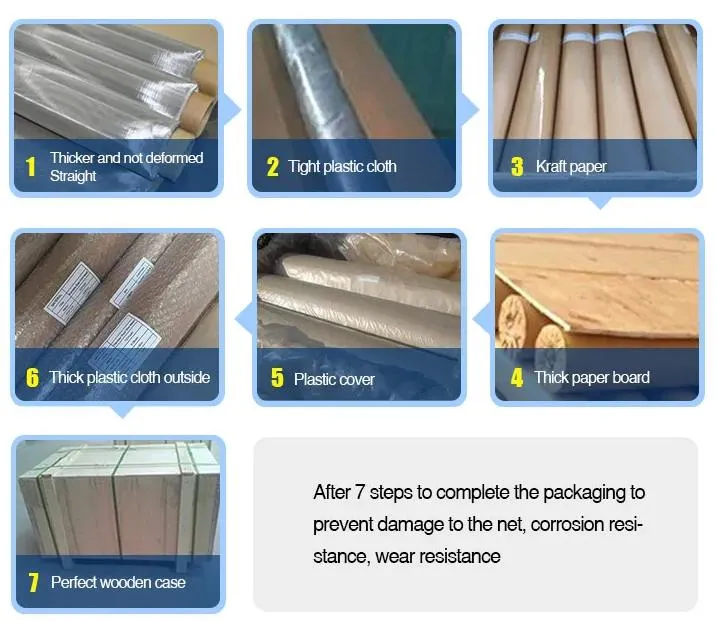

Lined with pressure resistant paper tubes, wrapped with air bubbles, and placed on a tray. Loading quantity: 130 sets per 20ft container, 280 sets per 40ft HQ. Delivery time: 15-30 days.
